Parts List Complete for VIPER FANG 20T


Brush Lift Assembly - 240-0019
RefNbr Part Number Description Req Notes
001 240-0332 Hub cap 2
002a 240-0400 Wheel (OBSOLETE) 2 (before SN 1500)
002b 240-0401 Wheel 2 (after SN 1499)
002c 240-0364 Wheel kit 2
003 240-0402 Spacer 2
004a 240-0403 20 inch transaxle (OBSOLETE) 1 (before SN 1500)
004b 240-0285 Transaxle assembly 1 (after SN 1499)
004c 240-0284 Drive motor (OBSOLETE) 1 (after SN 1499)
004d 240-0404 Key M5 x 25mm 1 (after SN 1499)
005 240-0405 Transaxle mount bracket 2
006 240-0329 Washer M8 plain finish 10
008 240-0361 Bolt M8 x 40mm 4
009 240-0406 Screw M8 x 12mm 2
010 999-1267 Washer M8 flat zinc 2
011 240-0408 Washer M20 plain finish 2
012 999-0783 Screw M8-1.25 x 16mm hex head 2
013 240-0409 Spacer 2
014 240-0336 Motor bracket 1
015 240-0337 Oilite thrust washer 1
016 240-0338 Spring 1
017 240-0339 Screw M12 x 60mm 1
018 240-0340 Bushing 6
019 240-0341 Screw M12 x 30mm 4
020 240-0342 Brush lift bracket 1
021 240-0343 Screw M12 x 35mm 1
022 240-0344 Nut M12 locking 6
023 240-0345 Washer M12 plain finish 10
024 240-0346 Brush lift latch 1
025 240-0347 Rubber spacer 1
026 240-0348 Nut 5/16 locking 1
027 240-0349 Screw M8 x 20mm 4
028 240-0350 Brush latch bracket 1
029 240-0351 Bushing 1
030 240-0352 Shoulder bolt 1
031 240-0410 Brush latch mounting plate 1
032 999-1261 Washer M6 flat stainless steel 5
033 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
034 240-0411 Washer M6 locking 5
035 240-0412 Adjustment bracket 1
036 999-1262 Washer M10 flat 2
037 240-0414 Washer M10 split lock stainless steel 1
038 999-9121 Screw M10-1.5 x 25mm zinc plated 2
039 240-0357 Screw M6 x 20mm 3
040 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
041 240-0358 Bushing 1
042 240-0359 Brush lift roller bracket 1
043 240-0360 Bushing 1
044 240-0362 Spring 1
045 240-0416 Shaft 1
046 240-0417 Pin M2 x 20mm 1
047 240-0418 Bushing 1

Control Console Assembly - 240-0020
RefNbr Part Number Description Req Notes
001 240-0356 Bushing 2
002 240-0393 Screw M4 x 12mm 7
003 240-0365 Washer M10 plain finish 2
004 240-0366 Screw M10 x 65mm 2
005 240-0038 Nut M6 10
006 240-0367 Washer M6 plain finish 6
007 240-2106 Diode with ends (OBSOLETE) 3
008 240-0314 Solenoid 3
009 240-0368 35amp circuit breaker 1
010 240-0369 Circuit breaker decal 1
011 240-0407 Control housing 1
012 240-0370 Screw M3 x 10mm 6
013 240-0333 Speed control decal 1
014 240-0371 Washer M3 plain finish 6
015 240-0372 Battery capacity light plate 1
016 240-0373 Gasket 1
017 240-0374 Spacer 6
018 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
019 240-0354 Switch panel 1
020 240-0413 Switch decal (OBSOLETE) 1
021 240-0290 Lighted rocker switch 4
022 240-0377 Screw M6 x 16mm 12
023 240-0382 Speed control knob 1
024 240-0378 Handle lock pin 2
025 240-0379 Spring 1
026 240-0380 Handle adjustment pin 2
027 240-0419 4.7K potentiometer with wiring harness 1
028 240-0420 Plate 1
029 240-0421 Speed control board 1
030 240-0422 Serial number tag (OBSOLETE) 1
031 240-0385 Cover 1
032 240-0386 Battery warning decal 1
033 240-0387 Circuit breaker decal 1
034 240-0955 Control panel housing 1
035 240-0388 Control board (battery capacity) 1
036 240-0383 Gasket 1
037 240-0114 Circuit breaker 1
038a 240-0390 Right hand trigger (black) 1
038b 240-0390 Right hand trigger (black) 1
039 240-0391 Bolt M8 x 15mm shoulder 2
040 240-0392 Spring 1
041 999-9097 Washer M8 flat stainless steel 2
042a 240-0395 Left hand trigger (red) 1
042b 240-0396 Left hand trigger (black) 1
044 240-0100 Internal tooth lock washer 2
045 272-8640 Switch 1
046 240-0956 Switch bracket 1
047 240-0398 Nut M3 locking 2
048 240-0399 Handle adjustment tube 1
049a 240-0276 Key switch kit 1 (includes 049b)
049b 240-0702 Replacement key (pkg of 2) 1
050 240-0381 Strain relief (OBSOLETE) 1
051 240-0424 Toggle switch 1
052 240-0368 35amp circuit breaker 1

Wiring Diagram -

RefNbr Part Number Description Req Notes

Brush Drive Assembly - 240-0022
RefNbr Part Number Description Req Notes
001 240-0425 24V brush motor 1
002 240-0426 Square keyway 1
003 240-0427 Screw M5 x 10mm self-tapping 4
004 999-0876 Washer M6 split lock plain finish 4
005 240-0429 Brush plate clamp 1
006 240-0430 Spring 1
007 240-0431 Drive plate 1
008 240-0432 Washer 1
009 240-0433 Washer 5/16 locking 1
010 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
011 996-5065 Pad driver 1 (includes 012-018)
012 240-0436 Screw M6 x 40mm 3
013 240-0693 Lug (sold individually) 3
014 240-0038 Nut M6 3
015 240-0438 Spacer 1
016 991-2202 Big mouth pad holder set (blue) 1 (includes top and bottom pieces, individual pieces cannot be ordered alone)
017 240-0150 Screw M4 x 12 3
018 240-0439 Screw 1/4 x 1 self-tapping 3
019 240-0440 Drive plate assembly 1 (includes 003-007 and 020)
020 240-0441 Drive release stop 1
021 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
022 240-0442 Washer 3/8 locking 4
023 999-1262 Washer M10 flat 4
024 240-0443 Clamp M10-16mm 1
025 240-0444 55mm tubing 1

Recovery Tank Assembly - 240-0023
RefNbr Part Number Description Req Notes
001 240-0753 Recovery tank lid kit 1 (lid)
002 240-0386 Battery warning decal 1
003 240-0435 Float elbow adaptor 1
004 240-0411 Washer M6 locking 13
005 999-1261 Washer M6 flat stainless steel 7
006 240-0357 Screw M6 x 20mm 4
007a 240-0445 Float 1
007b 991-5136 Shut-off float 1 (NON-OEM)
008 240-0434 Recovery tank 1
009 240-0185 Washer M6 star lock 2
010 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
011 240-0446 Cable 1
012 240-0295 Drain plug 1
013 240-0447 Drain hose strap 1 (before 10.2014)
014 240-0448 Drain hose sleeve 1 (before 10.2014)
015 240-0744 Drain hose assembly 1 (includes 012-014)(before 10.2014)
016 240-0450 Battery installation decal 1
017 240-0451 Cord hook 4
018 240-0452 Mesh cable cover 1
019 240-0189 Hose clamp 1
020 240-0436 Screw M6 x 40mm 4
021 240-0309 Connector 1

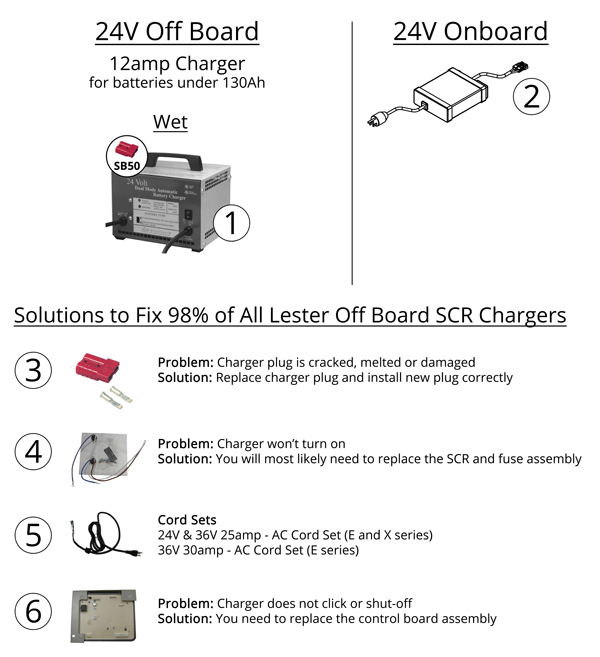

022 240-0453 24V onboard battery charger 1
023 240-0288 Onboard charger kit 1 (includes 021, 022, 024-026 and 028)
024 999-0876 Washer M6 split lock plain finish 4
025 999-9100 Washer M5 flat stainless steel 4
026 999-1986 Screw M5-.8 x 14mm pan head phillips 4
027 240-0455 Onboard battery charger kit 1 (includes 017, 018, 020-026 and 028-029)
028 240-0466 Charger clamp 2
029 240-0456 Cord clamp 2
030 240-0038 Nut M6 3
031 240-0457 Stud 3
032a 240-0325 24V 2 stage vacuum motor 1 (OEM)
032b 991-1203 24V 2 stage vacuum motor tangential 1 (NON-OEM)
033 999-1308 Nut M6-1 hex stainless steel 3
034 240-0459 Vacuum motor gasket 1
035 240-0377 Screw M6 x 16mm 9
036 240-0367 Washer M6 plain finish 9
037 240-0460 Recovery tank hinge 1
038 240-0461 Logo decal 1
039 240-0462 Screw M4 x 16mm self-tapping 4
040 240-0463 Washer M4 plain finish 4
041 240-0464 Rubber hinge 1
042 240-1012 Recovery lid gasket 1
043 240-0753 Recovery tank lid kit 1 (includes 001, 002, 041 and 042)
044 240-0744 Drain hose assembly 1 (after 10.2014)
045 240-2108 Rubber plug 1 (after 10.2014)

Brush Skirt Assembly - 240-0024
RefNbr Part Number Description Req Notes
001 240-0467 Bumper 2
002 240-0330 Screw M8 x 25mm 5
004 240-0329 Washer M8 plain finish 7
005 999-9097 Washer M8 flat stainless steel 4
006 240-0468 Wheel 4
007 240-0469 Bushing 4
008 240-0361 Bolt M8 x 40mm 2
009 240-0067 Screw M5 x 16mm 14
010 999-9100 Washer M5 flat stainless steel 4
011 240-0470 68 inch bumper grip 1
012 240-0471 Bumper clamp 2
013 240-0472 Washer M5 x M11 plain finish 14
014 240-0050 Screw M5 x 10 4
015 240-0473 Bumper clamp 1
016 240-0474 Cover 2
017 240-0475 Skirt 1
018 240-0476 Screw M8 x 45mm 2
019 240-0477 Swivel caster wheel 2
020 999-1261 Washer M6 flat stainless steel 8
021 240-0411 Washer M6 locking 8
022 240-0357 Screw M6 x 20mm 8

Solution Control Assembly - 240-0025
RefNbr Part Number Description Req Notes
001 240-0478 Screw M5 x 6mm 2
002 240-0479 Shaft 1
003 240-6391 SCREW M4X10 1
004a 999-0803 Washer M5 flat plain finish 4 (before 10.2014)
004b 999-0803 Washer M5 flat plain finish 6 (after 10.2014)
005a 999-0876 Washer M6 split lock plain finish 5 (before 10.2014)
005b 999-0876 Washer M6 split lock plain finish 7 (after 10.2014)
006 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 2
007 240-0482 Washer M9.8 2
008 999-0959 Nut 3/8-16 hex 2
009 240-0483 Solenoid cable 1
010 240-0484 Tee hose barb 1 (before 10.2014)
011a 240-0485 16mm clamp 12 (before 10.2014)
011b 240-0485 16mm clamp 5 (after 10.2014)
012 240-0486 75mm tubing 1
013 240-0487 Solution tank elbow 2
014 240-0488 Tubing bracket 1
015 240-0489 690mm tubing 1
016 240-0490 Tubing clamp 1 (before 10.2014)
017a 240-0274 Mesh filter 1
017b 240-0491 Mesh filter 1
018a 240-0492 O ring 1
018b 240-0493 O ring 1 (before 10.2014)
019a 240-0494 Filter clear cover 1 (before 10.2014)
019b 240-0495 Filter clear cover 1 (after 10.2014)
020a 240-0508 Filter assembly kit 1 (includes 017-019 and 022) (before 10.2014)
020b 240-0275 Filter assembly kit 1 (includes 017-019 and 022) (before 10.2014)
021 240-0050 Screw M5 x 10 4 (before 10.2014)
022a 240-0496 Filter mounting base 1 (black)
022b 240-0497 Filter mounting base 1 (white)
023 240-0498 Hose barb elbow 1 (before 10.2014)
024 240-0499 590mm tubing 1
025 240-0291 Solenoid valve 1
026 240-0500 205mm tubing 1
027 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
028 240-0411 Washer M6 locking 2
029 999-1261 Washer M6 flat stainless steel 4
030 240-0038 Nut M6 2
031 240-0501 Solenoid bracket 1
032 240-0502 P clamp 3
033 240-0503 Washer M12 wave 1
034 240-0504 Valve bracket 1
035 240-0505 Valve decal 1
036 240-0506 Bushing 1
037 240-0507 Valve adjust knob 1
038 240-0485 16mm clamp 9 (after 10.2014)
039 N/A Not available 1 (Filter seat) (after 10.2014)
040 240-0491 Mesh filter 1 (after 10.2014)
041 N/A Not available 1 (O-ring) (after 10.2014)
042 N/A Not available 1 (Filter cover) (after 10.2014)
043 240-0275 Filter assembly kit 1 (after 10.2014) (includes 038-042)
044 240-0498 Hose barb elbow 1 (after 10.2014)
045 N/A Not available 1 (Tubing) (after 10.2014)
046 240-0785 Elbow 1 (after 10.2014)
047 240-2126 Clamp 2 (after 10.2014)

Squeegee Assembly - 240-0026
RefNbr Part Number Description Req Notes
001 999-1223 Screw M12-1.75 x 25mm hex head stainless steel 2
002 240-0345 Washer M12 plain finish 2 (before 10.2014)
003 240-0340 Bushing 2 (before 10.2014)
004a 240-0530 Squeegee mount bracket 1 (Fang 20) (before 10.2014)
004b 240-0530 Squeegee mount bracket 1 (Fang 20T) (before 10.2014)
005 240-0511 Washer M12 lock 2 (before 10.2014)
006 240-0512 Squeegee lift cable 1 (before 10.2014)
007 240-0513 Bushing 1 (before 10.2014)
008 240-0292 Squeegee vacuum hose 1
009 240-0514 U hose holder 1
010 240-0515 Spring 1 (before 10.2014)
011 240-0516 Shaft 1 (before 10.2014)
012 240-0069 Nut M8 1 (before 10.2014)
013 240-0361 Bolt M8 x 40mm 4
014 999-9097 Washer M8 flat stainless steel 2
015 240-0469 Bushing 2
016 240-0468 Wheel 2
017 240-0517 Squeegee weldment 1
018a 240-0324 Squeegee blade urethane rear 1 (OEM)
018b 994-1001 Squeegee blade urethane rear 1 (NON-OEM)
018c 240-0312 Squeegee blade neoprene rear 1
019 240-0518 Hood latch 1
020 240-0519 Rear squeegee adjustment hook 1
021a 240-0520 Screw M5 x 70mm 1 (before 10.2014)
021b 240-2119 Screw M5 x 60mm 1 (after 10.2014)
022 240-0521 Rivet M4 x 5mm 2
023 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
024 240-0523 Bolt M9.5 x 31.5mm shoulder 3
025 240-0524 2 inch wheel 3
026 240-0329 Washer M8 plain finish 3
027 240-0348 Nut 5/16 locking 3
028a 240-0525 Rear squeegee backup strip 1 (before 10.2014)
028b 240-0526 Backup strip assembly 1 (after 10.2014)
030a 240-0323 Squeegee blade urethane front 1 (OEM)
030b 994-1002 Squeegee blade urethane front 1 (NON-OEM)
030c 240-0313 Squeegee blade neoprene front 1
031 240-0527 Front squeegee backup strip 1
032 240-0528 Knob M6 6
033 240-0529 Bolt M12 x 20mm shoulder 2 (before 10.2014)
034 240-0038 Nut M6 1 (before 10.2014)
035 240-0530 Squeegee mount bracket 1 (before 10.2014)
036 999-1308 Nut M6-1 hex stainless steel 1 (before 10.2014)
037 240-0531 Washer M12 plain finish 2 (before 10.2014)
038 240-0532 Knob M8 2 (before 10.2014)
039 999-0503 Nut M12-1.75 hex stainless steel 2
040 240-0533 Squeegee assembly 1 (includes 013-028 and 030-032)
041 240-0414 Washer M10 split lock stainless steel 2 (after 10.2014)
042 240-0365 Washer M10 plain finish 2 (after 10.2014)
043 240-2110 Front squeegee support 1 (after 10.2014)
044 240-2111 Spring 1 (after 10.2014)
045 240-2112 Squeegee support shaft 1 (after 10.2014)
046 240-0705 Squeegee lift cable 1 (after 10.2014)
047 240-0513 Bushing 1 (after 10.2014)
048 240-0532 Knob M8 2 (after 10.2014)
049 240-2114 Washer 4 (after 10.2014)
050 240-2115 Knob M8 x 55mm 1 (after 10.2014)
051 240-2116 Support pin 1 (after 10.2014)
052 240-2117 Bushing 1 (after 10.2014)
053 240-2118 Nut M8 2 (after 10.2014)
054 240-0038 Nut M6 1 (after 10.2014)
055 240-2120 Nut M8 lock 2 (after 10.2014)
056 240-0334 Washer M8 plain finish 2 (after 10.2014)
057 240-2121 Screw M8 x 10 x 11.5mm shoulder 2 (after 10.2014)
058 240-2122 Squeegee mount bracket 1 (after 10.2014)
059 999-1308 Nut M6-1 hex stainless steel 1 (after 10.2014)
060 240-2123 Screw M10 x 12 x 30mm shoulder 1 (after 10.2014)
061 240-2124 Rear squeegee support 1 (after 10.2014)
062 240-2125 Nut M10 lock 1 (after 10.2014)
063 240-0530 Squeegee mount bracket 1 (includes 001 and 041-062) (after 10.2014)

Solution Tank Assembly - 240-0049
RefNbr Part Number Description Req Notes
1 240-0968 Handle grip (black) 1
2 240-0462 Screw M4 x 16mm self-tapping 3
3 240-0463 Washer M4 plain finish 1
4 240-1014 Plug strap 1
5 240-0349 Screw M8 x 20mm 6
7 240-0295 Drain plug 1
8 240-0329 Washer M8 plain finish 8
9 240-0797 Bushing 1
10 240-0798 Recovery tank support 1
11 240-0801 Vacuum tube bracket 1
12 240-0802 Spring 1
13 240-0803 Tube adapter 1
14 240-0969 Tube adapter gasket 1
15 240-0805 Decal 1
16 240-0970 Left decal 1
17 240-0398 Nut M3 locking 2
18 240-1017 Charger plug bracket 1
19 240-0808 Cable 1
20 240-0806 Cable 1
21 240-0309 Connector 2
22 240-0100 Internal tooth lock washer 2
23 240-0811 Screw M3 x 20mm 2
24 999-1383 Screw M6-1 x 16mm hex head stainless steel 7
25 240-0411 Washer M6 locking 9
26 240-0367 Washer M6 plain finish 7
27 240-0812 Standoff 2
28 240-0974 Bracket 1
29 240-0807 Screw M6 x 10 2
30 240-0975 Fill screen 1
31 240-0976 Screw 4 x 16mm self tapping 2
32 240-0977 Screw 4 x 10mm self tapping 6
33 999-9089 Washer M4 flat stainless steel 7
34 240-0978 Fill screen plug 1
35 240-0979 Fill screen cover 1
36 240-1018 Solution tank 1
37 240-0980 Right decal 1
39 240-1019 Plate 1
40 240-5833 BATTERY SPACER PLASTIC 1
41a 240-0818 Battery cap (black) 2
41b 240-0819 Battery cap (red) 2
42 240-0986 Battery cable 1
43 240-0821 Screw M8 x 16mm 2
44 240-0069 Nut M8 2
45 240-0822 Lock plate 2
46 240-0823 Hose barb 2
47 240-0778 Clamp 1
48 240-5827 TUBING 1
49 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 3
50 999-0876 Washer M6 split lock plain finish 3
51 999-0803 Washer M5 flat plain finish 3
52 240-0990 Squeegee lock plate 1
53 240-0736 Screw M8 x 35mm 1
54 240-0991 Washer M12 lock 1
55 240-0311 Squeegee lift handle 1
56 240-0993 Bushing 1
57 240-0624 Screw M8 x 100mm 1
58 999-1262 Washer M10 flat 1
59 240-2109 Connect wire kit 1 (after 10.2014)
60 240-0100 Internal tooth lock washer 2 (after 10.2014)
61 N/A Not available 2 (Screw M3 25mm) (after 10.2014)
62 240-0309 Connector 1

- Batteries, Brushes, and Chargers - 240-7999
RefNbr Part Number Description Req Notes
162-5124 24V 12amp smart battery charger with small SB50 red plug 1
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0042 12V 115Ah AGM battery (Group 31) 2
4 240-0453 24V onboard battery charger 1
5 162-5124 24V 12amp smart battery charger with small SB50 red plug 1 (dual mode charger; can be changed to support AGM or wet batteries)
6 991-2103 50amp charger plug SB50 with pins (red) 1
7 996-1385 19 inch heavy grit stripping brush - 80 grit 1
8 996-0124 19 inch medium grit scrubbing brush - 180 grit 1
9 996-1386 19 inch lite grit scrubbing brush - 500 grit 1
10 996-1387 19 inch polypropylene scrubbing brush 1
11 996-3071 19 inch value daily cleaning brush assembly (OBSOLETE) 2
12 996-0605 19 inch Pad driver 1
13 996-0341 Drive lugs - plastic (pkg of 3) 1
14 991-2206 Center-Lok 3 pad holder 1

- Commonly Asked For Parts - 240-9993
RefNbr Part Number Description Req Notes
1 240-6431 HANDLE CORD WRAP 1
2 240-6470 COVER RECOVERY TANK 1
3 240-5886 HOOK 2
4 240-0942 Washer M4 lock 6
5 240-6397 SCREW PH M4 X 8 6
6 240-2150 Washer 10
7 240-0411 Washer M6 locking 12
8 240-0377 Screw M6 x 16mm 10
9 240-6469 RECOVERY TANK 1
10 240-6461 VIPER LOGO 2
11 240-6444 GASKET RECOVERY TANK 1
12 240-6482 COVER SOLUTION TANK 1
13 240-6455 WASHER SEAL 1
14 240-2032 Washer 1
15 240-6460 BARB HOSE 1
16 240-5505 CLAMP 4
17 240-6463 HOSE 1
18 240-6481 SOLUTION TANK 1
19 240-2273 Vac motor filter 1
20 240-6443 SCREEN 1
21 240-6441 GASKET SOLUTION TANK 1
22 240-6452 COVER (OBSOLETE) 2
23 240-6433 WHEEL (OBSOLETE) 2
24 240-2157 Screw M4 x 12mm 2
25 240-6430 HOUSING 1
26 240-6448 COLLAR 2
27 240-5372 SCREW M6 X 8 2
28 240-6395 NUT M10 X 1 2
29 240-6465 HOSE 2
30 240-0209 Nut M10 hex head 1
31 240-0414 Washer M10 split lock stainless steel 1
32 999-1262 Washer M10 flat 5
33 240-6447 AXLE 1
34 999-1986 Screw M5-.8 x 14mm pan head phillips 7
35 999-0876 Washer M6 split lock plain finish 7
36 240-2059 Washer 7
37 240-6457 DECAL SERIAL (OBSOLETE) 1
38 240-1057 Screw 4
39 240-6456 WASHER SEAL 3
40 240-6454 HOSE BARB (OBSOLETE) 2
41 240-1024 Hose barb 2
42 240-0739 Screw M10 x 30mm 1
43 240-5137 SCREEN 1
44 240-6464 HOSE 1
45 238-5048 Quick coupler 1
46 240-0941 Hood latch 1
47 240-6484 LABEL DRAINING 1
48 240-6466 SEALER 1
49 240-6471 ELBOW HOSE BARB 1
50 999-1261 Washer M6 flat stainless steel 2
51 240-2148 Screw M6 x 15 hex socket 2

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Batteries - 999-5053
RefNbr Part Number Description Req Notes
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0042 12V 115Ah AGM battery (Group 31) 2

- Chargers - 999-5087
RefNbr Part Number Description Req Notes
1 162-5124 24V 12amp smart battery charger with small SB50 red plug 1
2 240-0453 24V onboard battery charger 1
3 991-2103 50amp charger plug SB50 with pins (red) 1
4a 162-5079 SCR assembly kit 1
4b 372-1254 Fuse assembly 1
5 162-5087 AC cord set kit 1
6 162-5081 Control board assembly 1
Webpage Problem Reporting
