Parts List Complete for VIPER FANG 20HD

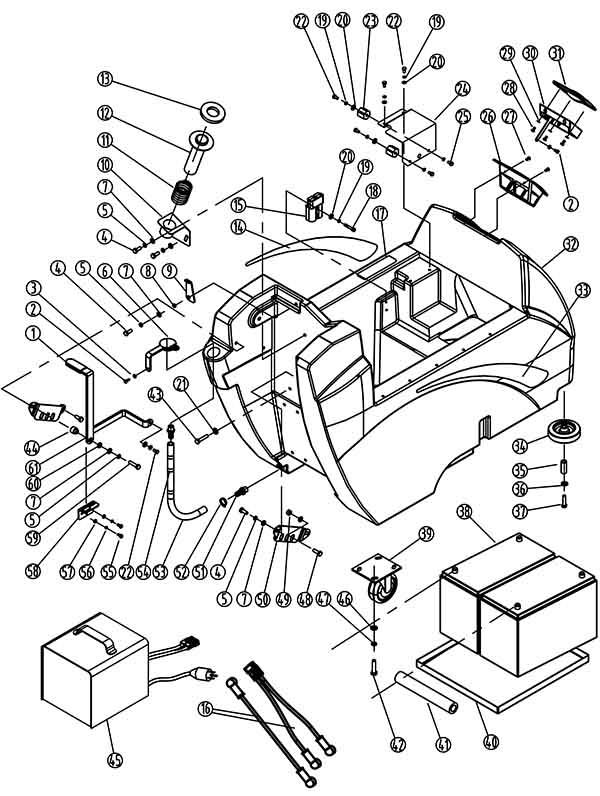

Solution Tank Assembly - 240-2463
RefNbr Part Number Description Req Notes
1 240-0968 Handle grip (black) 1
2 240-0462 Screw M4 x 16mm self-tapping 3
3 240-0463 Washer M4 plain finish 1
4 240-0349 Screw M8 x 20mm 6
6 240-0796 Expansion plug 1
7 240-0329 Washer M8 plain finish 8
8 240-0797 Bushing 1
9 240-0798 Recovery tank support 1
10 240-0801 Vacuum tube bracket 1
11 240-0802 Spring 1
12 240-0803 Tube adapter 1
13 240-0969 Tube adapter gasket 1
14 240-0970 Left decal 1
15 162-5045 175amp charger plug with pins (red) SB175 1
16 240-5794 WIRING HARNESS -FANG20HD 24T26 1
17 240-0805 Decal 1
18 240-0972 Screw M6 x 35mm 2
19 240-0411 Washer M6 locking 8
20 240-0367 Washer M6 plain finish 6
21 999-1262 Washer M10 flat 1
22 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
23 240-0812 Standoff 2
24 240-0974 Bracket 1
25 240-0807 Screw M6 x 10 2
26 240-0975 Fill screen 1
27 240-0976 Screw 4 x 16mm self tapping 2
28 240-0977 Screw 4 x 10mm self tapping 6
29 999-9089 Washer M4 flat stainless steel 7
30 240-0978 Fill screen plug 1
31 240-0979 Fill screen cover 1
32 240-5865 SOLUTION TANK FANG20HD 1
33 240-0980 Right decal 1
34 240-0981 4 inch wheel 2
35 240-0982 Bushing 2
36 999-9097 Washer M8 flat stainless steel 2
37 240-0983 Screw M8 x 50mm 2
38 162-0043 6V 224Ah AGM battery (Group GC2) 2
39 240-0984 4 inch caster 2
40 240-0917 Battery tray 1
41 240-5833 BATTERY SPACER PLASTIC 1
42 240-0739 Screw M10 x 30mm 8
43 240-0624 Screw M8 x 100mm 1
44 240-0993 Bushing 1
45 240-1045 24V 18amp charger (wet/AGM/gel) 1
46 999-1262 Washer M10 flat 8
47 240-0414 Washer M10 split lock stainless steel 8
48 240-0821 Screw M8 x 16mm 2
49 240-0069 Nut M8 2
50 240-0822 Lock plate 2
51 240-0823 Hose barb 2
52 240-0778 Clamp 1
53a 240-5783 TUBING 1 (OEM)
53b 991-1411 Clear vinyl tubing 3/8 x 1/2 inch (sold by the inch) 1 (NON-OEM)
54 240-0989 Marker decal kit (OBSOLETE) 1
55 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 3
56 999-0876 Washer M6 split lock plain finish 3
57 999-0803 Washer M5 flat plain finish 3
58 240-0990 Squeegee lock plate 1
59 240-0736 Screw M8 x 35mm 1
60 240-0991 Washer M12 lock 1
61 240-0992 Squeegee lift handle 1

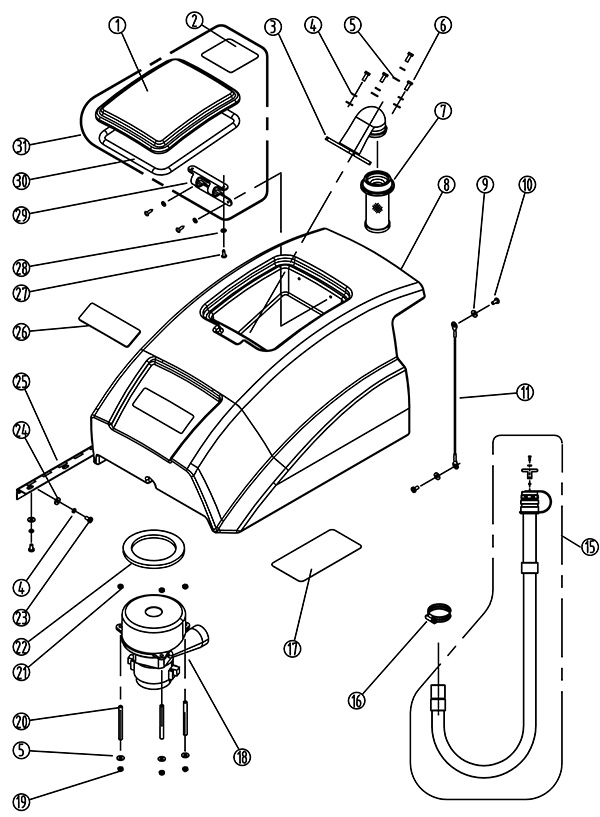

Recovery Tank Assembly - 240-2464
RefNbr Part Number Description Req Notes
1 240-0753 Recovery tank lid kit 1
2 240-0386 Battery warning decal 1
3 240-0435 Float elbow adaptor 1
4 240-0411 Washer M6 locking 13
5 999-1261 Washer M6 flat stainless steel 7
6 240-0357 Screw M6 x 20mm 4
7 240-0445 Float 1
8 240-5866 RECOVERY TANK FANG20HD 1
9 240-0185 Washer M6 star lock 2
10 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
11 240-0446 Cable 1
15 240-0744 Drain hose assembly 1
16 240-0189 Hose clamp 2
17 240-0958 Battery installation decal 1
18 240-0325 24V 2 stage vacuum motor 1
19 240-0038 Nut M6 3
20 240-0457 Stud 3
21 999-1308 Nut M6-1 hex stainless steel 3
22 240-0459 Vacuum motor gasket 1
23 240-0377 Screw M6 x 16mm 9
24 240-0367 Washer M6 plain finish 9
25 240-0460 Recovery tank hinge 1
26 240-0461 Logo decal 1
27 240-0462 Screw M4 x 16mm self-tapping 4
28 240-0463 Washer M4 plain finish 4
29 240-0464 Rubber hinge 1
30 240-1012 Recovery lid gasket 1
31 240-0753 Recovery tank lid kit 1 (includes 1-2, 27-30)

Brush Lift Drive Assembly - 240-2465
RefNbr Part Number Description Req Notes
1 240-0332 Hub cap 2
2 240-0905 8 inch wheel 2
3a 240-0906 Transaxle 1
3b 240-0284 Drive motor (OBSOLETE) 1
4 240-0909 Transaxle mount bracket 2
5 999-1262 Washer M10 flat 6
6 240-0414 Washer M10 split lock stainless steel 6
7 240-0910 Screw M10 x 45mm 4
8 240-0739 Screw M10 x 30mm 2
9 240-0038 Nut M6 8
10 999-1261 Washer M6 flat stainless steel 8
11 240-0911 Spacer 4
12 240-0340 Bushing 2
13 240-0345 Washer M12 plain finish 4
14 240-5867 BRACKET LIFT MOTOR 1
15 240-0913 Clevis pin 2
16 240-0763 Cotter pin 2
17 240-5791 ACTUATOR 1
19 240-0349 Screw M8 x 20mm 4
20 240-0329 Washer M8 plain finish 4
21 240-0915 Cable guide bracket 1
22 240-0916 Actuator bracket 1
24 240-0918 Screw M12 x 25mm 2
25 240-1115 Base plate 1
26 240-0344 Nut M12 locking 2

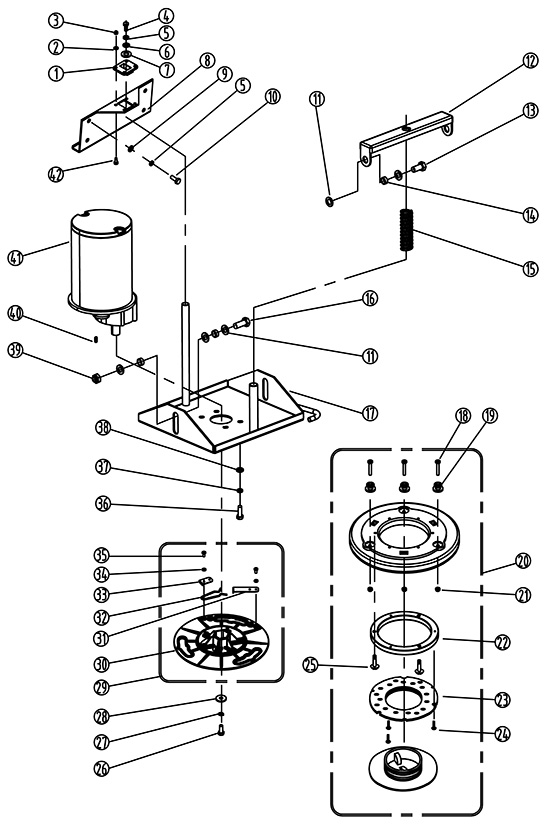

Brush Pad Drive Assembly - 240-2466
RefNbr Part Number Description Req Notes
1 240-0894 Guide block (OBSOLETE) 1
2 240-0472 Washer M5 x M11 plain finish 4
3 240-0522 Nut M5 lock 4
4 240-0821 Screw M8 x 16mm 1
6 240-0334 Washer M8 plain finish 1
7 240-0895 Washer M13 plain finish (OBSOLETE) 1
8 240-0896 Skirt support plate 1
9 240-0329 Washer M8 plain finish 4
10 240-0349 Screw M8 x 20mm 4
11 240-0345 Washer M12 plain finish 10
12 240-5869 BRACKET SPRING -FANG 20HD- 1
13 240-0918 Screw M12 x 25mm 2
14 240-0340 Bushing 6
15 240-0898 Spring 1
16 240-0341 Screw M12 x 30mm 2
17 240-5868 BRACKET MOTOR -FANG 20HD- 1
18 240-0436 Screw M6 x 40mm 3
19 240-0693 Lug (sold individually) 3
20 996-5065 Pad driver 1 (includes 18-19, 21-25)
21 240-0038 Nut M6 3
22 240-0438 Spacer 1
23 991-2202 Big mouth pad holder set (blue) 1
24 240-0150 Screw M4 x 12 3
25 240-0439 Screw 1/4 x 1 self-tapping 3
26 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
27 240-0433 Washer 5/16 locking 1
28 240-0432 Washer 1
29 240-0440 Drive plate assembly 1 (includes 30-35)
30 240-0431 Drive plate 1
31 240-0441 Drive release stop 1
32 240-0430 Spring 1
33 240-0429 Brush plate clamp 1
34 999-0876 Washer M6 split lock plain finish 4
35 240-0427 Screw M5 x 10mm self-tapping 4
36 240-0787 Screw 3/8-1 4
37 240-0442 Washer 3/8 locking 4
38 999-1262 Washer M10 flat 4
39 240-0344 Nut M12 locking 2
40 240-0426 Square keyway 1
41 240-0425 24V brush motor 1
42 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 4

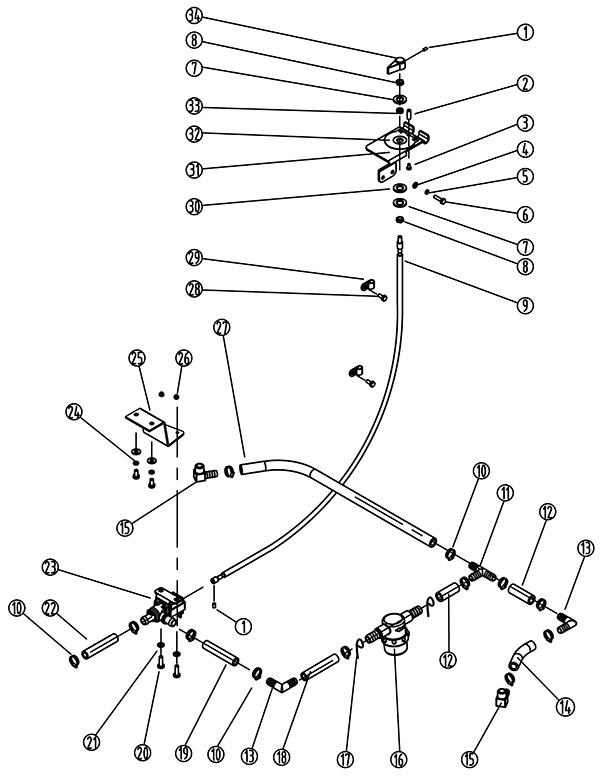

Solution Control Assembly - 240-2467
RefNbr Part Number Description Req Notes
1 240-0478 Screw M5 x 6mm 2
2 240-0479 Shaft 1
3 240-6391 SCREW M4X10 1
4 999-0803 Washer M5 flat plain finish 4
5 999-0876 Washer M6 split lock plain finish 4
6 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 2
7 240-0482 Washer M9.8 2
8 240-0792 Nut 3/8 2
9 240-0176 Solenoid cable 1
10 240-0485 16mm clamp 14
11 240-0484 Tee hose barb 1
12 240-0959 50mm tubing 2
13 240-0785 Elbow 2
14 240-0960 115mm tubing 1
15 240-0487 Solution tank elbow 2
16 240-0275 Filter assembly kit 1
17 240-5819 WIRE TIES LARGE FOR FANG20/20T 2
18 240-0961 200mm tubing 1
19 240-0962 80mm tubing 1
20 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
21 999-1261 Washer M6 flat stainless steel 4
22 240-0963 65mm tubing 1
23 240-0964 24V solenoid valve 1
24 240-0411 Washer M6 locking 2
25 240-0965 Solenoid bracket 1
26 240-0038 Nut M6 2
27 240-0966 320mm tubing 1
28 240-0050 Screw M5 x 10 2
29 240-0502 P clamp 2
30 240-0503 Washer M12 wave 1
31 240-0504 Valve bracket 1
32 240-0505 Valve decal 1
33 240-0506 Bushing 1
34 240-0507 Valve adjust knob 1

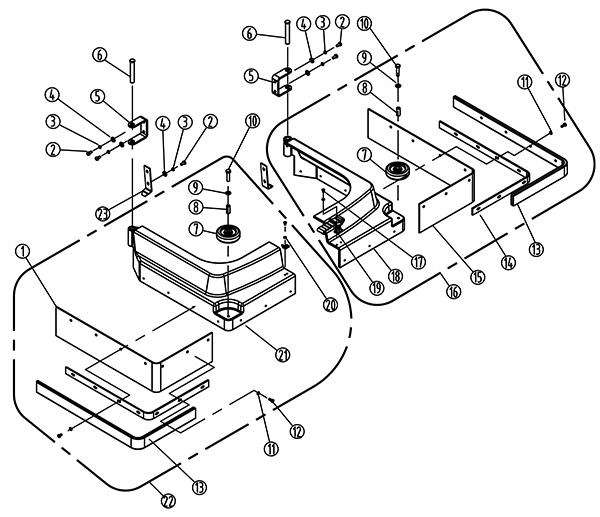

Brush Skirt Assembly - 240-2468
RefNbr Part Number Description Req Notes
1 240-5873 BUMPER FANG20HD 1
2 999-1383 Screw M6-1 x 16mm hex head stainless steel 8
3 240-0411 Washer M6 locking 8
4 999-1261 Washer M6 flat stainless steel 8
5 240-0923 Skirt mount bracket 2
6 240-0924 Skirt pin 2
7 240-0468 Wheel 2
8 240-0469 Bushing 2
9 999-9097 Washer M8 flat stainless steel 2
10 240-0361 Bolt M8 x 40mm 2
11 240-0472 Washer M5 x M11 plain finish 16
12 240-0067 Screw M5 x 16mm 16
13 240-5875 GRILL BUMPER FANG20HD 2
14 240-5874 CLAMP BUMPER FANG20HD 2
15 240-5876 BUMPER FANG20HD 1
16 240-5872 SKIRT ASSEMBLY RIGHT FANG20HD 1 (includes 2-15, 17-19)
17 240-0940 Screw M4 x 8mm 4
18 240-5871 RIGHT SKIRT FANG20HD 1
19 240-0941 Hood latch 1
20 240-0942 Washer M4 lock 4
21 240-5870 SKIRT ASSEMBLY LEFT FANG20HD 1
22 240-5870 SKIRT ASSEMBLY LEFT FANG20HD 1 (includes 1-13, 21-22)
23 240-0943 Skirt block 2

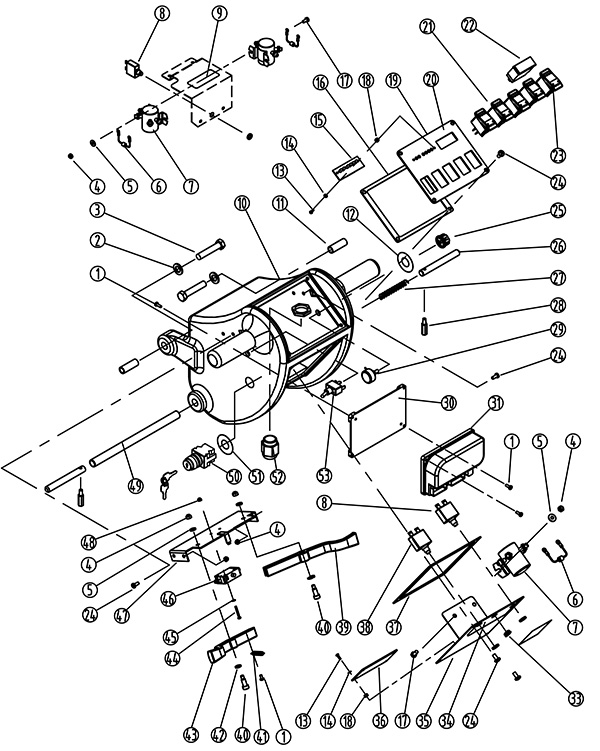

Control Housing Assembly - 240-2469
RefNbr Part Number Description Req Notes
1 240-0393 Screw M4 x 12mm 7
2 240-0365 Washer M10 plain finish 2
3 240-0366 Screw M10 x 65mm 2
4 240-0038 Nut M6 10
5 240-0367 Washer M6 plain finish 6
6 240-2106 Diode with ends (OBSOLETE) 3
7 240-0314 Solenoid 3
8 240-0368 35amp circuit breaker 2
9 240-0369 Circuit breaker decal 1
10 240-0407 Control housing 1
11 240-0356 Bushing 2
12 240-0333 Speed control decal 1
13 240-0370 Screw M3 x 10mm 6
14 240-0371 Washer M3 plain finish 6
15 240-0372 Battery capacity light plate 1
16 240-0373 Gasket 1
17 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
18 240-0374 Spacer 6
19 240-0949 Switch panel 1
20 240-1262 Switch decal 1
21 240-0290 Lighted rocker switch 4
22 240-0716 Brush pressure gauge 1
23 240-0696 Brush switch 1
24 240-0377 Screw M6 x 16mm 12
25 240-0382 Speed control knob 1
26 240-0378 Handle lock pin 2
27 240-0379 Spring 1
28 240-0380 Handle adjustment pin 2
29 240-0419 4.7K potentiometer with wiring harness 1
30 240-0420 Plate 1
31 240-0421 Speed control board 1
33 240-0385 Cover 1
34 240-0387 Circuit breaker decal 1
35 240-0955 Control panel housing 1
36 240-0388 Control board (battery capacity) 1
37 240-0383 Gasket 1
38 240-0114 Circuit breaker 1
39 240-0390 Right hand trigger (black) 1
40 240-0391 Bolt M8 x 15mm shoulder 2
41 240-0392 Spring 1
42 999-9097 Washer M8 flat stainless steel 2
43 240-0396 Left hand trigger (black) 1
45 240-0100 Internal tooth lock washer 2
46 240-0008 On/Off switch 1
47 240-0956 Switch bracket 1
48 240-0398 Nut M3 locking 2
49 240-0399 Handle adjustment tube 1
50 240-0276 Key switch kit 1
51 240-0730 Key switch decal 1
52 240-5817 STRAIN RELIEF CORD 1
53 240-0424 Toggle switch 1

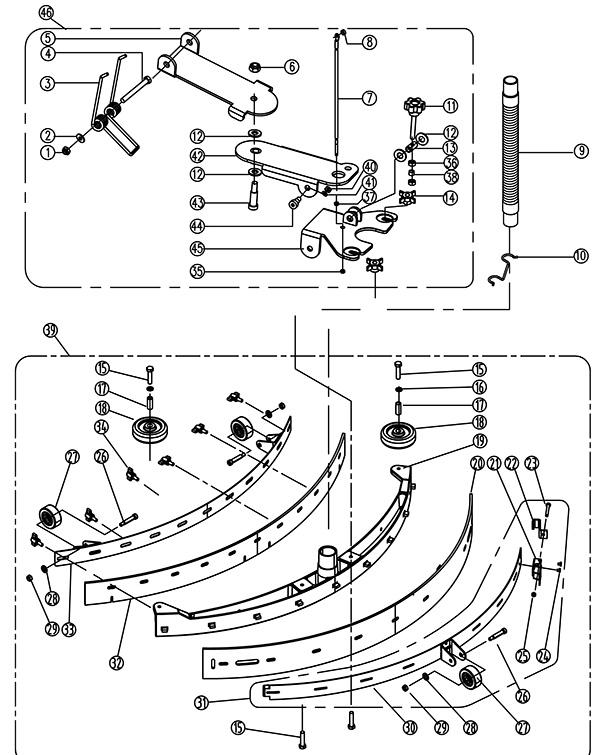

Squeegee Assembly - 240-2470
RefNbr Part Number Description Req Notes
1 240-0344 Nut M12 locking 3
2 240-0345 Washer M12 plain finish 1
3 240-2111 Spring 1
4 240-0833 Screw M12 x 130mm 1
5 240-5912 FRONT SQUEEGEE SUPPORT 2
6 240-2125 Nut M10 lock 2
7 240-0705 Squeegee lift cable 1
8 240-0513 Bushing 1
9 240-0292 Squeegee vacuum hose 1
10 240-0514 U hose holder 1
11 240-2115 Knob M8 x 55mm 1
12 240-2114 Washer 1
13 240-2116 Support pin 1
14 240-0532 Knob M8 3
15 240-0361 Bolt M8 x 40mm 4
16 999-9097 Washer M8 flat stainless steel 2
17 240-0469 Bushing 2
18 240-0468 Wheel 2
19 240-0517 Squeegee weldment 1
20a 240-0324 Squeegee blade urethane rear 1
20b 240-0312 Squeegee blade neoprene rear 1
21 240-0518 Hood latch 1
22 240-0519 Rear squeegee adjustment hook 1
23 240-0520 Screw M5 x 70mm 1
24 240-0521 Rivet M4 x 5mm 2
25 240-0522 Nut M5 lock 1
26 240-0523 Bolt M9.5 x 31.5mm shoulder 3
27 240-0524 2 inch wheel 3
28 240-0329 Washer M8 plain finish 3
29 240-0348 Nut 5/16 locking 3
30 240-0525 Rear squeegee backup strip 1
31 240-0526 Backup strip assembly 1 (includes 15,21-30)
32a 240-0323 Squeegee blade urethane front 1
32b 240-0313 Squeegee blade neoprene front 1
32c 240-5828 FT SQUEEGEE linatex F18 20 20T 1
33 240-0527 Front squeegee backup strip 1
34 240-0528 Knob M6 6
35 240-0038 Nut M6 1
36 240-2118 Nut M8 1
37 999-1308 Nut M6-1 hex stainless steel 1
38 240-2117 Bushing 4
39 240-0533 Squeegee assembly 1 (includes 15-34)
40 240-2120 Nut M8 lock 2
41 240-0334 Washer M8 plain finish 2
42 240-5909 BACK SQUEEGEE SUPPORT 1
43 240-2123 Screw M10 x 12 x 30mm shoulder 1
44 240-2121 Screw M8 x 10 x 11.5mm shoulder 2
45 240-2122 Squeegee mount bracket 1
46 240-1114 Squeegee bracket kit 1 (includes 1-8, 11-14, 35-36, 38, 42-45)

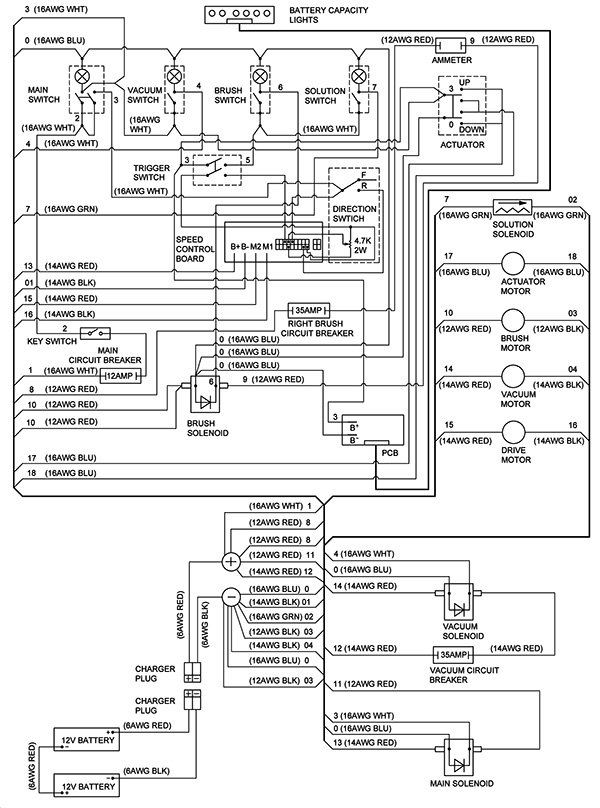

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Batteries and Chargers - 999-9109
RefNbr Part Number Description Req Notes
1 162-0043 6V 224Ah AGM battery (Group GC2) 2
2 240-1045 24V 18amp charger (wet/AGM/gel) 1
Webpage Problem Reporting
