Parts List Complete for VIPER DRAGON DR20175

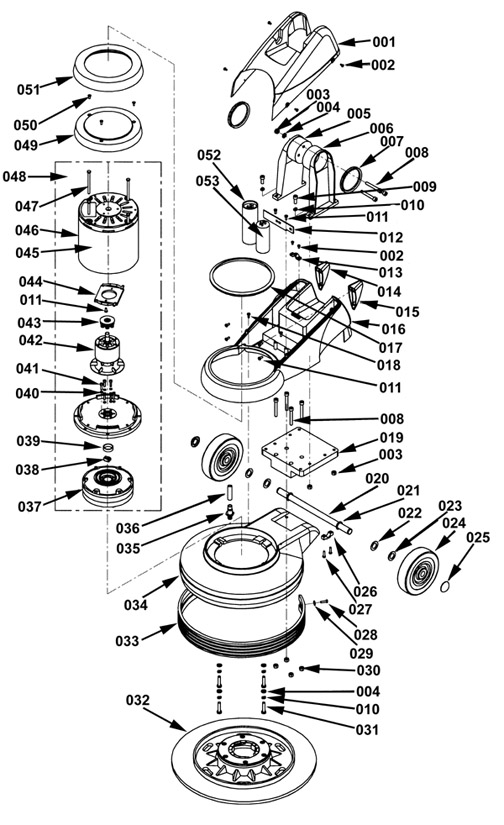

Base Group - 240-0000
RefNbr Part Number Description Req Notes
002 240-0041 Screw M4 x 16 self tapping (OBSOLETE) 6
003 999-0496 Nut M8-1.25 nylon insert lock stainless steel 7
004 240-0043 Plain washer 7
005 240-0044 Right arm 1
006 240-0045 Left arm 1
007 240-0046 Arm seal 2
008 240-0047 Screw M8 x 60 7
009 240-0048 Screw M8 x 25 hex socket 4
011 240-0050 Screw M5 x 10 8
012 240-0051 Mounting frame capacitor 1
013 240-0052 Block 1
014 240-0053 Right plastic stand 1
015 240-0054 Left plastic stand 1
017 240-0056 Lower cover seal 1
018 240-0057 Screw M5 x 12mm self-tapping 2
020 240-0059 Axle 1
021 240-0060 Retaining ring M19 external 2
022 240-0061 Washer M19 2
023 240-0062 Washer M19 wave 2
024 240-0063 Wheel 6.4 inch 2
025 240-0064 Axle cap 2
026 240-0065 Axle clamp block 2
027 240-0066 Screw M5 x 20 self tapping 4
028 240-0067 Screw M5 x 16mm 2
029 240-0068 Plain washer 2
030 240-0069 Nut M8 4
031 240-0070 Screw M8 x 30 4
032 240-0071 19 inch pad holder 1
033 240-0072 Bumper 20 inch 1
034 240-0073 Frame 20 inch 1
035 240-0074 Hose barb 1
036 240-0075 Hose solution 1
037 240-6584 Gear box 1
038 240-0077 Coupling 1
039 240-0078 Sleeve 1
040 240-0079 Washer M5 x 30 hex socket 6
041 240-0080 Screw M5 x 30 hex socket 6
042 240-0081 Rotor with fan assembly (OBSOLETE) 1
043 240-0857 Centrifugal switch 1
044 240-0083 Stationary switch (OBSOLETE) 1
045 240-0084 Motor label 1
046 240-0085 Motor 120v, 1.75hp 1
047 240-0086 Bolt M6 x 201 4
049 240-0087 Top cover motor 1
050 240-0088 Screw M5 x 12 hex socket 3
051 240-0089 Top cover bumper 1
052 240-0090 Starting capacitor 1
053 240-0091 Running capacitor 1

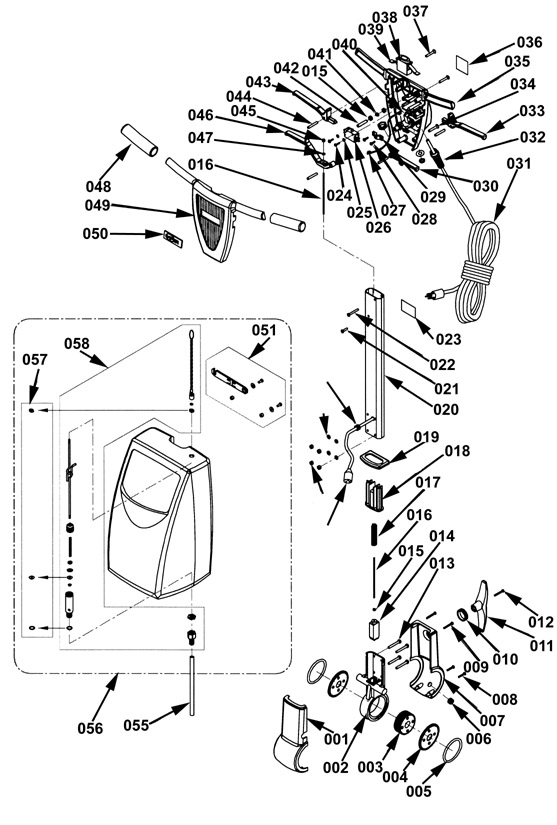

New Style Handle Group - 240-0001
RefNbr Part Number Description Req Notes
001 240-0014 Gear seat front cover 1
002 240-0015 Gear seat 1
003 240-0016 Gear kit (includes gear and leveling insert) 1
004 240-0017 Nylon washer 2
005 240-0018 Gear seat o-ring 2
006 240-0019 Grommet 2
007 240-0020 Rear seat cover 1
008 240-0021 Screw M4 x 25mm self tapping 2
009 240-0022 Screw M4 x 30mm self tapping 2
010 240-0023 Hook seal 1
011 240-0024 Cable hook 1
012 240-0025 Screw M10 x 55mm hex head 1
013 240-0092 Screw M6 x 45mm 4
014 240-0016 Gear kit (includes gear and leveling insert) 1
015 240-0028 Nut M4 4
016 240-0029 Leveling rod 1
017 170-8423 Compression spring 1
018 272-7568 Retainer 1
019 240-0032 Tube seal 1
020 240-0094 Tube 1
021 240-0067 Screw M5 x 16mm 1
022 240-0095 Screw M5 x 40mm 1
023 240-0096 Serial tag 1
023 240-0097 Serial tag 1
023 240-0098 Serial tag 1
023 240-0036 Serial tag 1
025 240-0100 Internal tooth lock washer 2
026 272-8640 Switch 1
027 240-0101 Jump wire 1
028 240-6391 SCREW M4X10 2
029 240-0103 Handle cable block 1
030 240-0104 Leveling handle solution 1
031a 240-0105 14/3 power cord 1 (OEM)
031b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
032 240-0106 Strain relief 1
033 240-0107 Left switch trigger 1
034 240-0108 Screw M6 x 35mm 2
035 240-0109 Rear cover switch housing 1
036 240-0110 Read manual decal 1
037 240-0111 Screw M6 x 40mm 2
038 240-0112 Safety block 1
039 240-0113 Safety block spring 1
040 240-0114 Circuit breaker 1
040 240-0115 Circuit breaker 1
041 240-0116 Washer M4 external tooth 1
042 240-0117 Screw M4 x 30mm hex socket 1
043 240-0010 Right switch lever 1
044 240-0118 Lever pin 4
045 240-0119 Nut M4 Nylon insert 1
046 240-0009 Leverling handle 1
047 240-0120 Washer M4 x 16mm large plain 1
048 240-0121 Handle grip 2
049 240-0122 Front cover switch housing 1
050 240-0123 Viper logo decal 1
051 240-0124 Tank mounting kit 1
052 240-0037 Washer 4
053 240-0038 Nut M6 4
054 240-0039 Handle cable 1
055 240-0075 Hose solution 1
056 240-0125 Solution tank assembly (OBSOLETE) 1
057 240-0126 Gasket/seal kit, solution tank 1
058 240-0127 Valve assembly, solution tank 1
N/S 240-0128 New style handle assembly
N/S 240-0129 New style switch housing kit

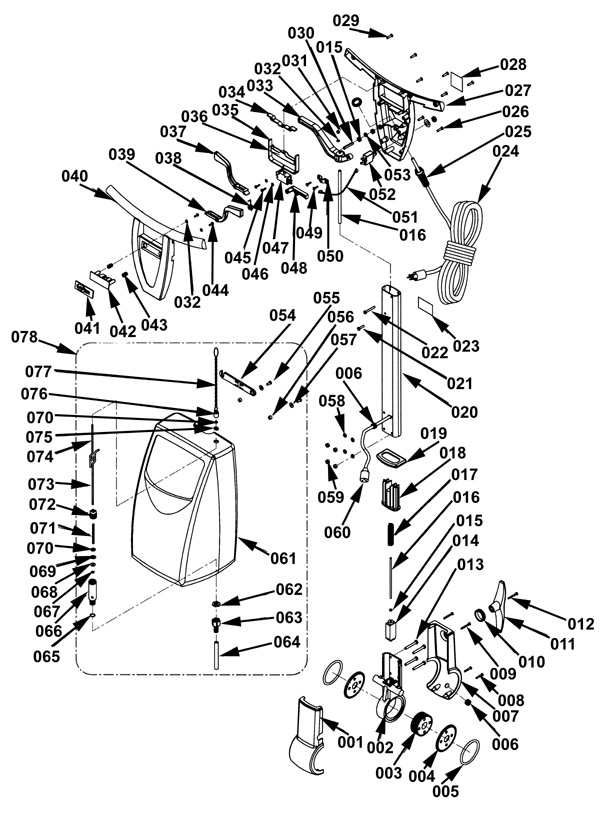

Old Style Handle Group - 240-0002
RefNbr Part Number Description Req Notes
001 240-0014 Gear seat front cover
002 240-0015 Gear seat
003 240-0016 Gear kit (includes gear and leveling insert)
004 240-0017 Nylon washer
005 240-0018 Gear seat o-ring
006 240-0019 Grommet
007 240-0020 Rear seat cover
008 240-0021 Screw M4 x 25mm self tapping
009 240-0131 Screw M4 x 35 self tapping
010 240-0023 Hook seal
011 240-0024 Cable hook
012 240-0025 Screw M10 x 55mm hex head
013 240-0092 Screw M6 x 45mm
014 240-0016 Gear kit (includes gear and leveling insert)
015 240-0028 Nut M4
016 240-0134 Leveling rod (OBSOLETE)
017 240-0135 Leveling spring (OBSOLETE)
018 272-7568 Retainer
019 240-0032 Tube seal
020 240-0136 Tube
021 240-0067 Screw M5 x 16mm
022 240-0095 Screw M5 x 40mm
023 240-0096 Serial tag
023 240-0097 Serial tag
023 240-0098 Serial tag
023 240-0036 Serial tag
024a 240-0105 14/3 power cord (OEM)
024b 991-5005 14/3 replacement power cord 50 foot (yellow) (NON-OEM) (does not include strain relief)
025 240-0106 Strain relief
026 240-0137 Screw M5 x 35
027 240-0138 Rear cover switch housing (OBSOLETE)
028 240-0110 Read manual decal
029 240-0139 Screw M5 x 20mm
030 240-0117 Screw M4 x 30mm hex socket
031 240-0119 Nut M4 Nylon insert
032 240-0120 Washer M4 x 16mm large plain
033 240-0140 Leveling handle rod (OBSOLETE)
034 240-0141 Trans-bail switch (OBSOLETE)
035 240-0142 U-shape bail switch (OBSOLETE)
036 240-0143 Leveling handle center (OBSOLETE)
037 240-0144 Leveling handle right switch (OBSOLETE)
038 N/A Not available (Ball switch spring)
039 240-0146 Leveling handle left switch (OBSOLETE)
040 240-0147 Front cover switch housing
041 240-0123 Viper logo decal
042 240-0148 Safety lock (OBSOLETE)
043 N/A Not available (Safety lock spring)
044 240-0150 Screw M4 x 12
046 240-0100 Internal tooth lock washer
047 272-8640 Switch
048 240-0151 Leveling handle solution (OBSOLETE)
049 240-0152 Screw M4 x 8
050 240-0153 Handle cable block
051 240-0101 Jump wire
052 240-0115 Circuit breaker
052 240-0114 Circuit breaker
053 240-0116 Washer M4 external tooth
054 240-0154 Solution tank clamp plate
055 240-0088 Screw M5 x 12 hex socket
056 240-0155 Clamp plate spacer
057 240-0156 Plain washer M5
058 240-0037 Washer
059 240-0038 Nut M6
060 240-0039 Handle cable
061 240-0157 Solution tank
062 240-0158 Brass nut M14
063 240-0159 Tank end barb hose
064 240-0075 Hose solution
065 240-0160 O-ring
066 240-0161 Valve body
067 240-0162 Nut M5
068 240-0163 Rubber seal
069 240-0164 Brass plain washer M5
070 240-0165 Brass nut M5
071 240-0166 Spring
072 240-0167 Screw
073 240-0168 Lower pulling rod
074 240-0169 Upper pulling rod, brass
075 240-0170 Tank seal
076 240-0171 Chain seat
077 240-0172 Chain (OBSOLETE)
078 240-0125 Solution tank assembly (OBSOLETE)
N/S 240-0128 New style handle assembly
N/S 240-0129 New style switch housing kit

- Commonly Asked For Parts -

RefNbr Part Number Description Req Notes

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
