Parts List Complete for VIPER AS530R

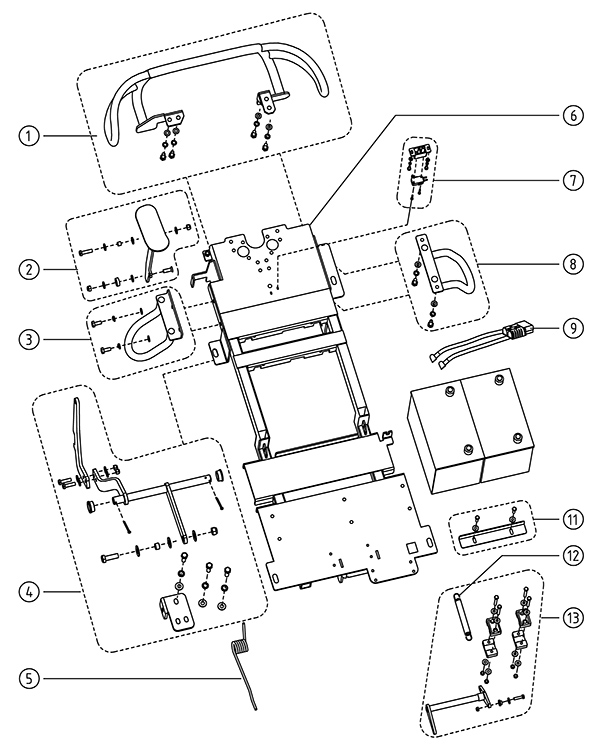

Chassis and Bumper Assembly - 240-2478
RefNbr Part Number Description Req Notes
1 240-1288 Front bumper kit 1
2 240-1289 Brush lift pedal kit 1
3 240-1290 Left hand bumper kit 1
4 240-1291 Rotary bracket kit 1
5 240-1292 Spring 1
6 240-1293 Chassis 1
7 240-1294 Microswitch kit 1
8 240-1295 Right hand bumper kit 1
9 240-6338 BATTERY CONNECTIONS 1
11 240-1296 Battery bracket kit 1
12 240-1297 Squeegee lift spring 1
13 240-1298 Squeegee lift bracket kit 1 (includes 12)

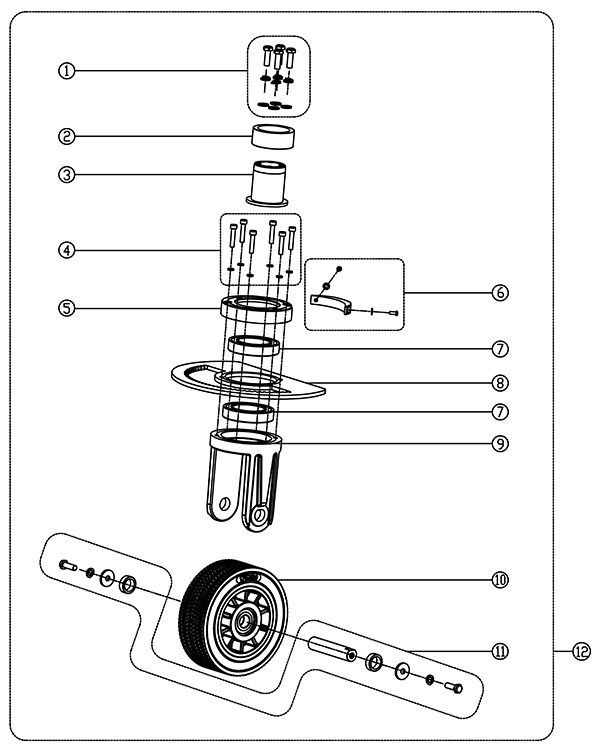

Front Wheel Assembly - 240-2479
RefNbr Part Number Description Req Notes
1 240-1299 Fixed pillars hardware kit 1
2 240-1300 Front wheel washer 1
3 240-1301 Front wheel fixed pillars 1
4 240-1302 Front wheel bracket hardware kit 1
5 240-1303 Fixed bearing ring 1
6 240-1304 Contractor kit 1
7 240-1305 Bearing 2
8 240-1306 Big gear 1
9 240-1307 Front wheel bracket 1
10 240-1308 Front wheel 1
11 240-1309 Wheel fix kit 1
12 240-1310 Front wheel assembly 1 (includes 1-11)

Drive Motor and Rear Wheel Assembly - 240-2480
RefNbr Part Number Description Req Notes
1 240-1311 Rear wheel 2
2 240-1312 Hook block kit 1
3 240-1313 Motor shaft 1 (long)
4 240-1314 Motor brake kit 1
5 240-1315 Carbon brush 2
6 240-1316 Motor traction 1
7 240-1317 Motor traction kit 1 (includes 3-6, 7-8, and 11)
8 240-1318 Motor shaft 1 (short)
9 240-0219 Bearing 3
10 240-1319 Traction mount kit 3
11 270-5021 Waterproof case 1
12 240-1321 Rear wheel fix kit 1
13 240-1322 Waterproof board kit 1
14 240-1323 Drive motor and rear wheel assembly 1 (includes 1-13)

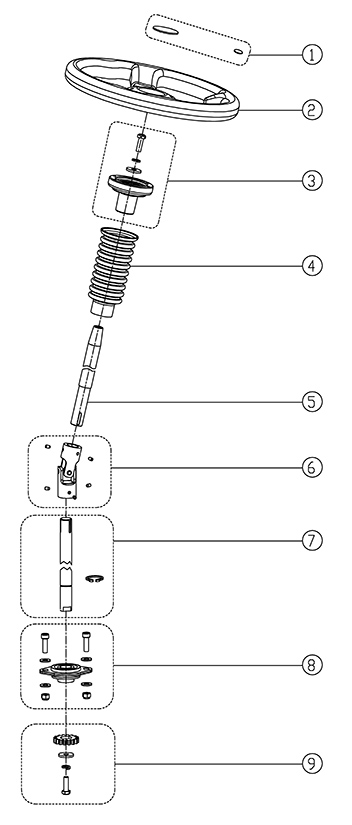

Direction Control Assembly - 240-2481
RefNbr Part Number Description Req Notes
1 240-1324 Steering wheel logo kit 1
2 240-1325 Steering wheel 1
3 240-2298 Steering wheel sleeve 1
4 240-1327 Steering wheel rubber sleeve 1
5 240-1328 Steering wheel up shaft 1
6 240-2301 Universal joint kit 1
7 240-1329 Steering wheel down shaft kit 1
8 240-1330 Bearing kit with bracket 1
9 240-1331 Gear kit 1

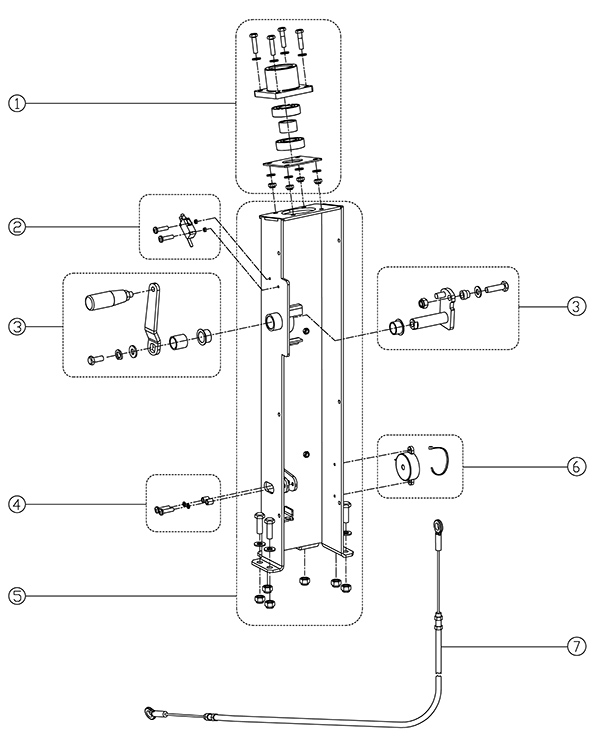

Front Main Frame Assembly - 240-2482
RefNbr Part Number Description Req Notes
1 240-1332 Bearing base kit 1
2 240-1333 Squeegee switch kit 1
3 240-1334 Squeegee lift handle kit 1
4 240-1335 Squeegee lift cable guide wheel kit 1
5 240-1336 Front frame kit 1
6 240-1337 Horn kit 1
7 240-1338 Squeegee lift cable 1

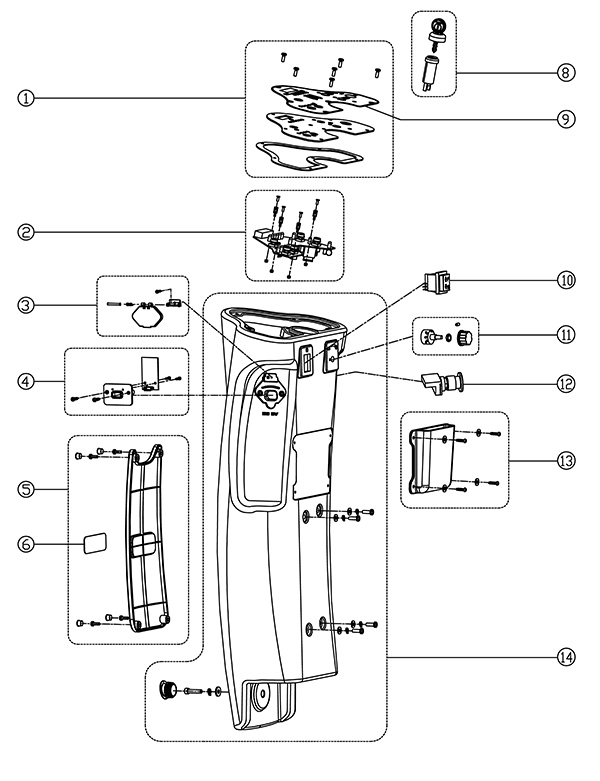

Control Housing Assembly - 240-2483
RefNbr Part Number Description Req Notes
1 240-1339 Control panel kit 1 (includes 9)
2 240-1340 Power control board kit 1
3 240-2342 USB cover 1
4 240-1341 Power control board USB kit 1
5 240-1342 Control housing cover kit 1 (includes 6)
6 240-1343 Logo decal 1
8 572-3666 SWITCH KEY WITH CAP PKD 1
9 240-1344 Control panel decal 1
10 240-2345 Forward/reverse button 1
11 240-1345 Speed potentiometer 1
12 240-1346 Emergency stop button 1
13 240-1347 Phone storage kit 1
14 240-1348 Control housing kit 1

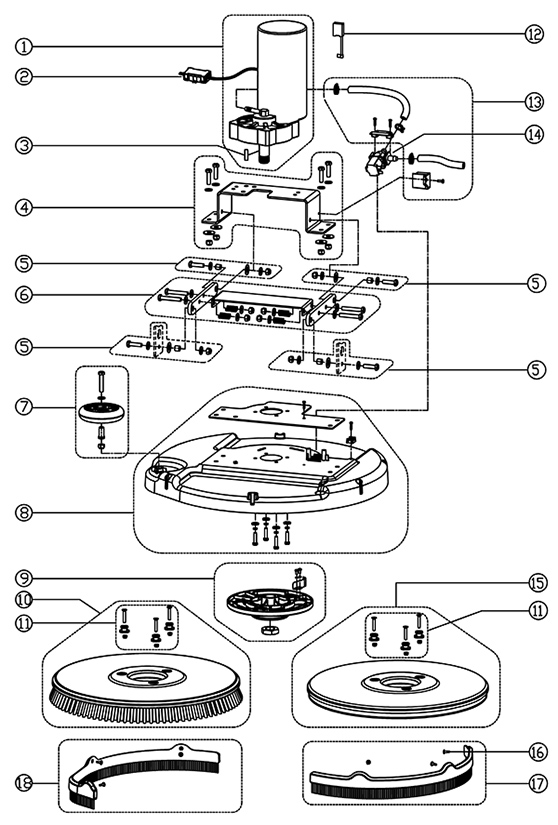

Brush Assembly - 240-2484
RefNbr Part Number Description Req Notes
1 240-1349 Brush motor kit 1
2 270-5021 Waterproof case 1
3 240-1350 Shaft key 1
4 240-1351 Brush lift plate kit 1
5 240-1352 Brush lift arm connection kit 1
6 240-1353 Brush lift arm kit 1
7 240-1354 Bumper wheel kit 1
8 240-1355 Brush deck kit 1
9 240-1356 Plate drive kit 1
10 240-1357 Brush kit 1 (includes 11)
11 240-1358 Brush screw kit 1
12 240-5984 CARBON BRUSH KIT 4
13 240-1359 Tube kit 1
14 240-1360 Solenoid valve 1
15 240-1361 20 inch pad driver 1 (includes 11) (optional)
16 240-1362 Screw step 6
17 240-1363 Left hand brush skirt hardware kit 1 (includes 16) (optional)
18 240-1364 Right hand brush skirt hardware kit 1 (optional)

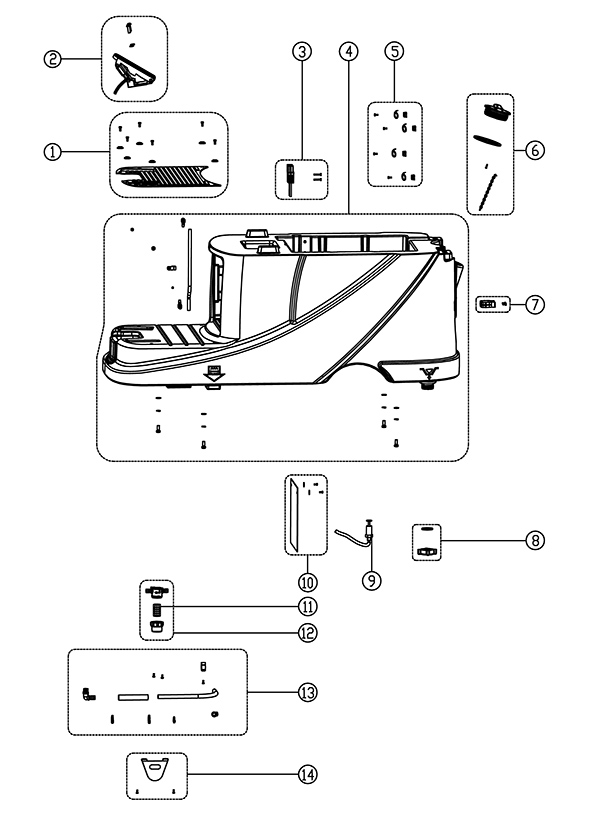

Solution Tank Assembly - 240-2485
RefNbr Part Number Description Req Notes
1 240-1365 Anti skid plate kit 1
2 240-1366 Speed control pedal kit 1
3 240-1367 Input connection cable kit 1
4 240-1368 Solution tank kit 1
5 240-1369 Wire clamp kit 1
6 240-1370 Solution cover kit 1
7 240-1371 Hose clamp kit 1
8 240-6209 OUTLET COVER KIT 1
9 240-2362 Water level switch 1
10 240-1372 Waterproof board kit 1
11 240-6217 FILTER NET 1
12 240-2296 Filter kit 1 (includes 11)
13 240-1373 Adaptor hose 1
14 240-1374 Filter protection kit 1

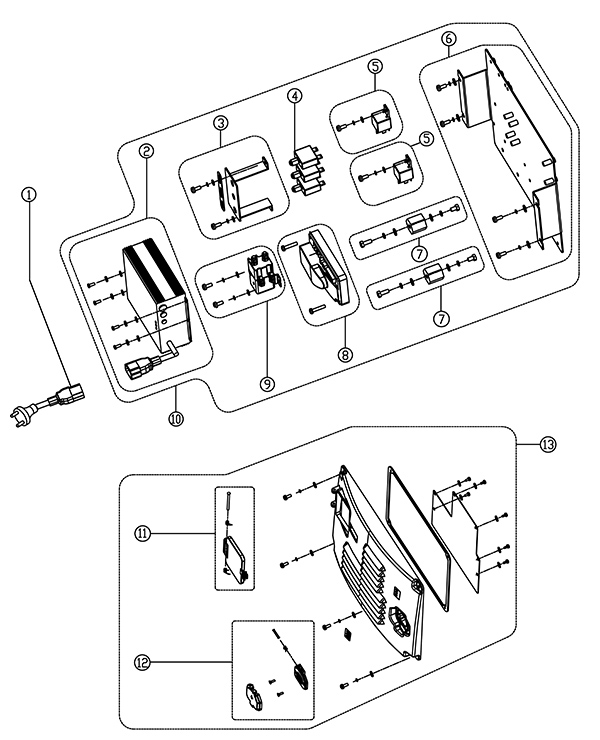

Electric Parts Assembly - 240-2486
RefNbr Part Number Description Req Notes
1 240-6018 Charger cable 1
2 240-1375 Charger kit 1
3 240-1376 Bracket fix kit 1
4 240-0882 30amp circuit breaker 3
5 240-1377 Relay kit 2
6 240-1378 Electric parts mounting plate 1
7 240-1379 Wire pole connect kit 2
8 240-1380 Drive motor control kit 1
9 240-1381 Contactor kit 1
10 240-1382 Electric parts mounting plate kit 1 (includes 2-9)
11 240-2328 Lid kit (clear) 1
12 240-6312 CHARGER SOKET KIT 1
13 240-1383 Electric box lid kit 1 (includes 11-12)

Recovery Tank Assembly - 240-2487
RefNbr Part Number Description Req Notes
1 240-1384 Recovery tank cover 1
2 240-1385 Gasket 1
3 240-1386 Cushion 1
4 240-1387 Cushion switch kit 1
5 240-1388 Cushion kit 1 (includes 3-4)
6 240-1389 Recovery tank 1
7 240-1390 Cable clamp 1
8 240-1391 Recovery tank pull cable kit 1
9 240-6199 VACUUM MOTOR 1
10 240-6200 CARBON BRUSH KIT 2
11 270-5021 Waterproof case 1
12 270-5024 Vacuum motor gasket kit 1
13 270-5025 Vacuum motor cover kit 1
14 240-6298 ELBOW ADAPTOR KIT 1
15 240-6208 Float kit 1 (includes 16)
16 240-1392 Float 1
17 240-2369 Warning light kit 1 (optional)
18 240-1393 Bend tube 1
19 240-2371 Squeegee hook kit 1
20 240-1394 Drain hose clamp kit 1
21 240-1395 Hinge kit 2
22 270-5017 Clamp 1
23 240-1396 Drain hose 1
24 240-0514 U hose holder 1
25 240-0700 Squeegee vacuum hose 1

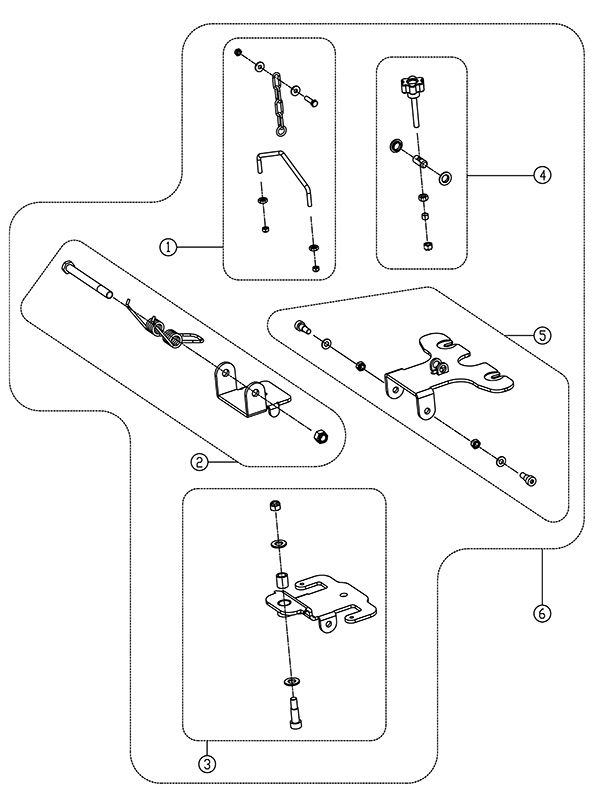

Squeegee Bracket Assembly - 240-2488
RefNbr Part Number Description Req Notes
1 240-1397 Squeegee lift chain kit 1
2 240-1398 Squeegee bracket kit 1
3 240-1399 Squeegee mounting pivot kit 1
4 240-1400 Squeegee adjustment handle kit 1
5 240-1401 Squeegee adjustment bracket 1
6 240-1402 Squeegee bracket assembly 1 (includes 1-5)

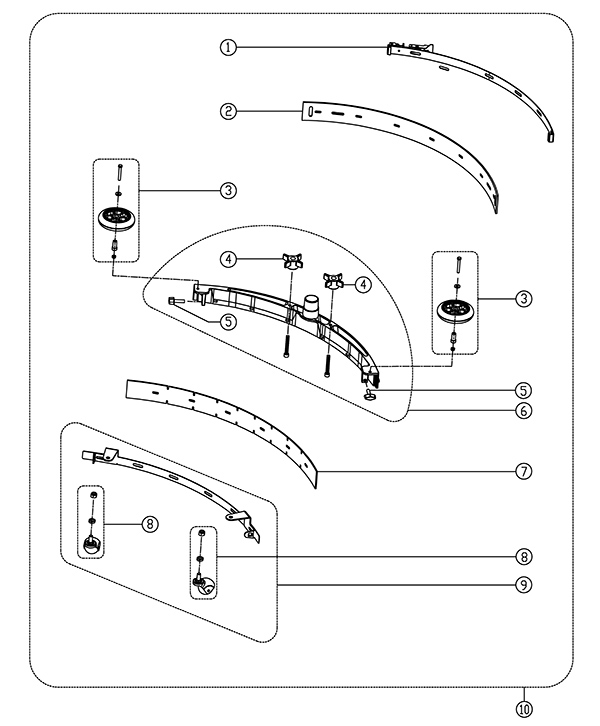

Squeegee Assembly - 240-2489
RefNbr Part Number Description Req Notes
1 240-6077 17 IN STRAP-SQUEEGEE BACK KIT
2a 240-6059 17 inch rear blade
2b 240-6081 17 BLADE REAR PU (optional)
3 240-1403 Bumper wheel kit
4 240-0532 Knob M8
5 240-2143 Thumb screw
6 240-1404 Aluminum squeegee body (includes 3-5)
7a 240-6058 17 inch front blade
7b 240-6080 17 BLADE FRONT PU (optional)
8 240-1405 Universal squeegee wheel kit
9 240-1406 Front squeegee strap kit (includes 8)
10 240-1407 Squeegee assembly (includes 1-9)

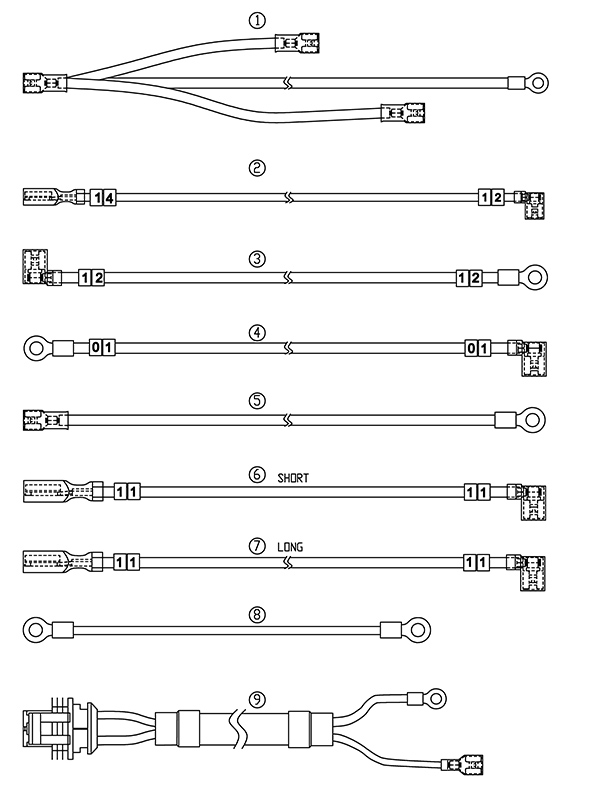

Electric Parts - 240-2490
RefNbr Part Number Description Req Notes
1 240-1408 Relay connect wire 1
2 240-1409 Vacuum motor breaker to relay wire 1
3 240-1410 Brush motor breaker to relay wire 1
4 240-1411 Speed control to negative binding post wire 1
5 240-1412 Relay to negative binding post wire 1
6 240-1413 Drive motor breaker to relay wire 1
7 240-1414 Relay to motor speed controller connect wire 1
8 240-1415 Brush motor short wire 1
9 240-1416 Clean water level wire 1

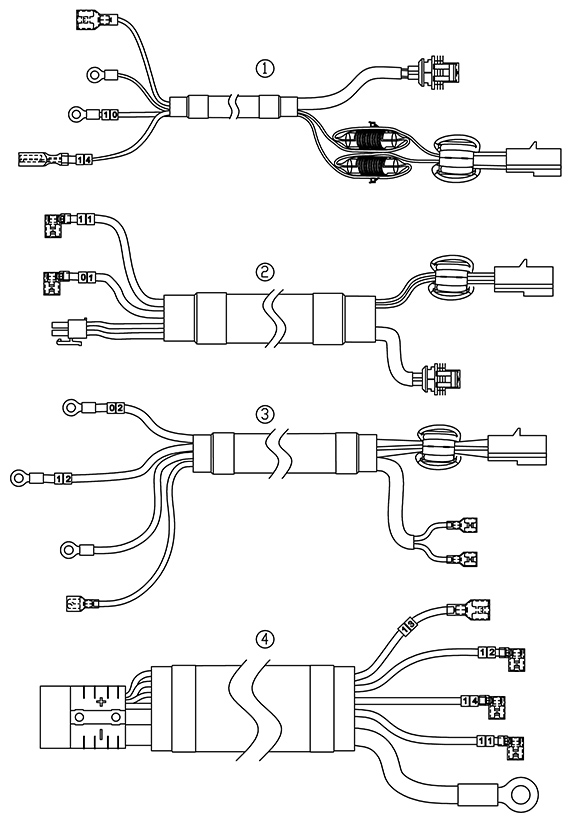

Other Electric Parts Assembly - 240-2491
RefNbr Part Number Description Req Notes
1a 240-1417 Vacuum motor connect wire 1
1b 240-1418 Vacuum motor connect wire 1 (for AS530R-XX except AS530R-EU)
2a 240-1419 Drive motor connect wire 1
2b 240-1420 Drive motor connect wire 1 (for AS530R-XX except AS530R-EU)
3a 240-1421 Brush motor connect wire 1
3b 240-1422 Brush motor connect wire 1 (for AS530R-XX except AS530R-EU)
4 240-1423 24V input line wire 1

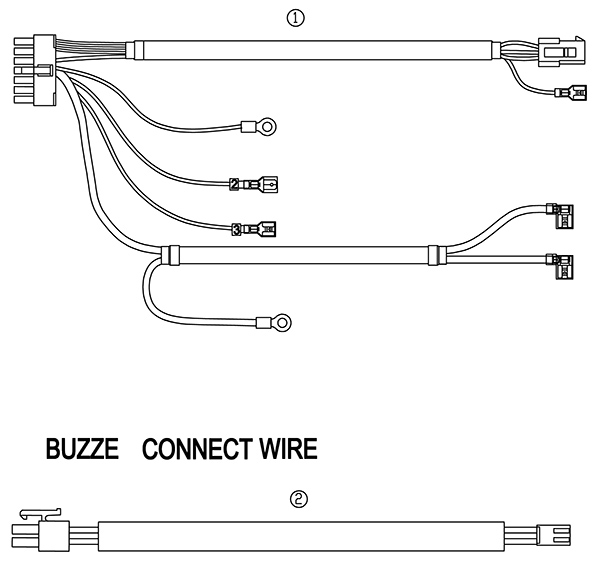

Motor Speed Controller Connect Wire - 240-2492
RefNbr Part Number Description Req Notes
1 240-1424 Motor speed controller wire 1
2 240-1425 Buzze connect wire 1

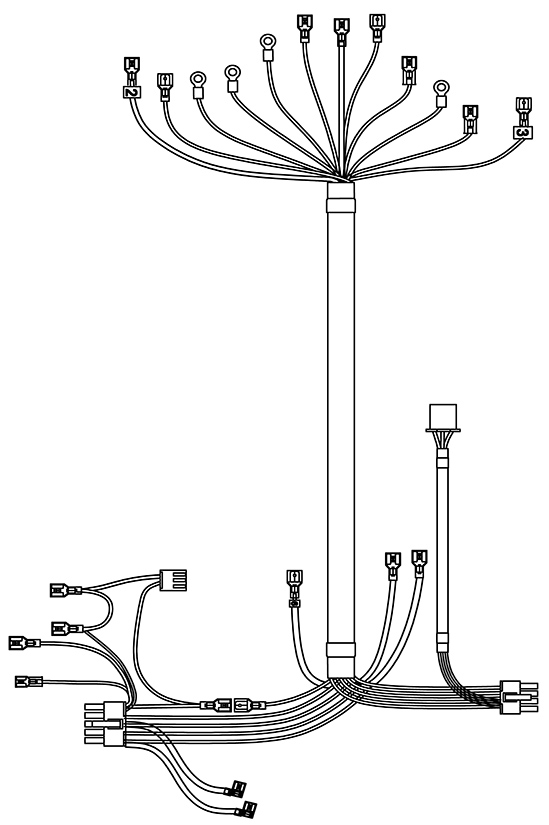

Main Connection Wire - 240-2493
RefNbr Part Number Description Req Notes
1 240-1426 Main connect wire 1

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Batteries, Brushes, and Chargers - 240-9965
RefNbr Part Number Description Req Notes
01 162-0011 12V 105Ah wet battery (SNSR)
02 162-0042 12V 115Ah AGM battery (Group 31)
