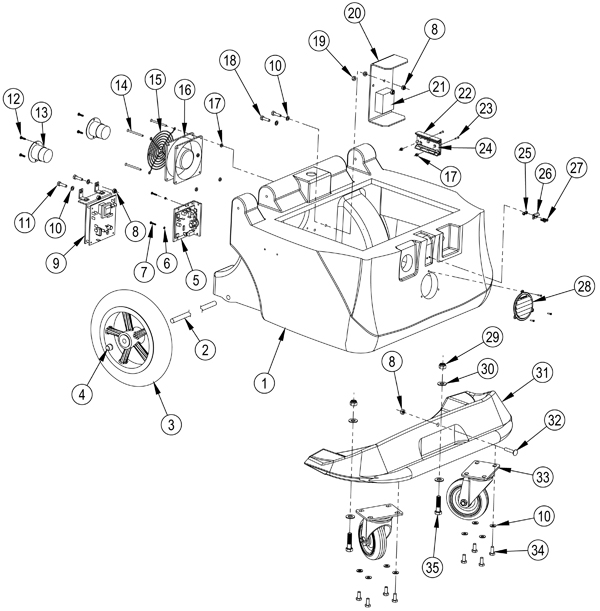

Base Assembly - 209-0025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| N/S |
209-0481 |
Terminal block |
1 |
(model 56380568) |
| 1 |
209-0475 |
Base housing (OBSOLETE) |
1 |
|
| 3 |
209-0357 |
12 inch wheel |
2 |
|
| 4 |
170-5410 |
Axle cap (OBSOLETE) |
2 |
|
| 5 |
209-0404 |
Pump motor control board |
1 |
|
| 6 |
209-0477 |
Backup washer for rive |
2 |
|
| 7 |
999-0365 |
Screw 6-32 x 5/8 pan head phillips zinc plated |
2 |
|
| 8 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 9 |
209-0012 |
Vacuum control board |
1 |
|
| 11 |
209-0148 |
Bolt 1/4 inch x 3/4 inch |
2 |
|
| 12 |
209-0478 |
Screw 8 x 5/8 self tapping pan head |
4 |
|
| 13 |
172-2451 |
Power cord receptacle |
2 |
|
| 14 |
209-0159 |
Screw 6/32 inch x 2 inch-1/4 |
4 |
|
| 15 |
172-2463 |
Fan kit |
1 |
(fan guard) |
| 16 |
172-2463 |
Fan kit |
1 |
(fan) |
| 17 |
270-8623 |
Nut nylon lock 6/32 Z.P |
6 |
|
| 18 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| 20 |
209-0108 |
Heat sink plate |
1 |
|
| 21a |
209-0412 |
Thermistor control (OBSOLETE) |
1 |
(includes 21b-21d) |
| 21b |
999-0976 |
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
1 |
|
| 21d |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 23 |
209-0227 |
Screw 6-32 x 1/2 inch |
2 |
|
| 24 |
209-0101 |
PCB dual circuit sensor board (OBSOLETE) |
1 |
|
| 25 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
2 |
|
| 26 |
209-0140 |
Latch strike |
1 |
|
| 27 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
2 |
|
| 28 |
209-0479 |
Louver (OBSOLETE) |
1 |
|
| 29 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
| 30 |
999-0120 |
Washer 3/8 SAE flat |
4 |
|
| 31 |
209-0458 |
Caster plate |
1 |
|
| 32 |
999-1443 |
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
1 |
|
| 33 |
209-0480 |
Caster wheel (gray) |
2 |
|
| 34 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
8 |
|
| 35 |
999-0350 |
Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated |
2 |
|
| N/S |
209-0482 |
15amp circuit breaker |
1 |
(model 56380568) |
| N/S |
209-0097 |
12/3 extension cord 25 foot |
2 |
|
|
|

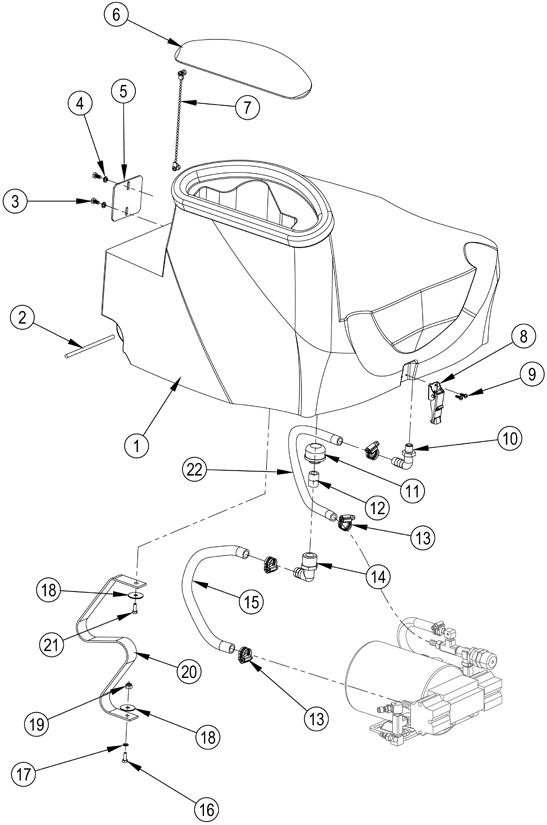

Solution Tank Assembly - 209-0026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
209-0600 |
Solution tank |
1 |
|
| 2 |
209-0601 |
Rod 1/4 stainless steel |
2 |
|
| 3 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
| 4 |
999-1049 |
Washer 1/4 split lock zinc plated |
2 |
|
| 5 |
209-0606 |
Tank plate (OBSOLETE) |
1 |
|
| 6 |
209-0602 |
Solution tank lid assembly |
1 |
|
| 7 |
209-0607 |
Chain assembly with hardware |
1 |
|
| 9 |
999-1131 |
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
2 |
|
| 10 |
209-0427 |
90 degree elbow |
1 |
|
| 12 |
209-0603 |
Nipple 1/2 NPT |
1 |
|
| 15 |
209-0379 |
Pump inlet hose 1/2 x 17 (sold by the inch) |
15in |
|
| 16 |
209-0148 |
Bolt 1/4 inch x 3/4 inch |
1 |
|
| 17 |
999-0006 |
Washer 3/16 flat zinc plated |
1 |
|
| 18 |
209-0608 |
Washer 1/4 x 1 flat zinc plated |
2 |
|
| 19 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 20 |
209-0605 |
Strap with grommet |
1 |
|
| 21 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
1 |
|
| 22 |
209-0076 |
24 inch pump inlet hose (sold by the inch) (OBSOLETE) |
16in |
|
|
|

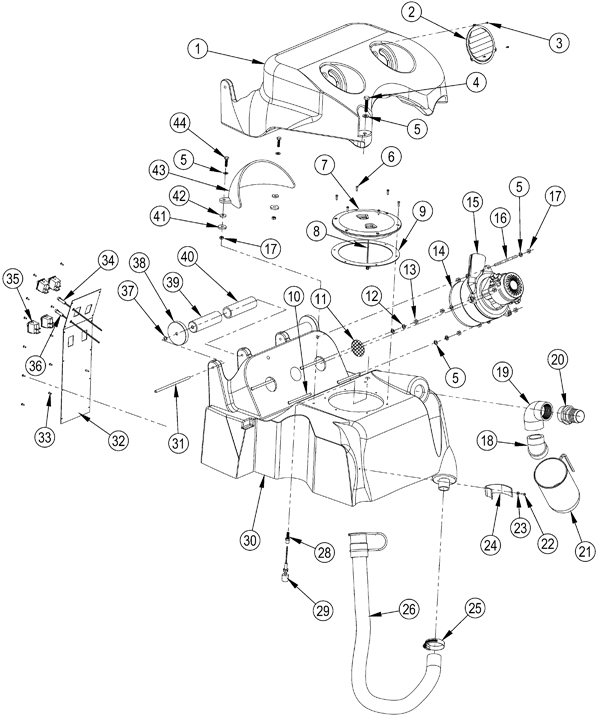

Recovery Tank Assembly - 209-0027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Vac cover) |
| 3 |
170-9308 |
Screw 2 x 1/4 phillips sheet metal stainless steel |
6 |
|
| 4 |
372-2004 |
Screw 1/4-20 x 1 1/4 hex head stainlss steal |
2 |
|
| 5 |
999-0006 |
Washer 3/16 flat zinc plated |
16 |
|
| 6a |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
6 |
|
| 6b |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
6 |
|
| 8a |
172-2474 |
8 inch chain |
1 |
|
| 8b |
170-9309 |
Screw #6 x 3/8 truss head phillips stainless steel |
1 |
|
| 10 |
209-0133 |
Bolt 5 inch x 1/4 inch |
4 |
|
| 11 |
209-0631 |
3 inch screen mesh |
2 |
|
| 12 |
999-1049 |
Washer 1/4 split lock zinc plated |
4 |
|
| 13 |
170-6639 |
Nut 1/4-20 |
10 |
|
| 14 |
209-0632 |
Adhesive gasket |
2 |
|
| 15 |
209-0337 |
120V 3 stage vacuum motor |
2 |
|
| 16 |
209-0646 |
Stud 1/4-20 zinc plated |
2 |
|
| 17 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
10 |
|
| 19 |
172-2473 |
PVC elbow 1-1/2 |
1 |
|
| 21 |
209-0720 |
Micron filter bag |
1 |
|
| 22 |
999-1131 |
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
2 |
|
| 23 |
209-0477 |
Backup washer for rive |
2 |
|
| 24 |
209-0269 |
Cord strap (OBSOLETE) |
2 |
|
| 25 |
270-8636 |
Hose clamp 3/4 x 1 3/4 SS |
1 |
|
| 29 |
209-0636 |
Float switch |
1 |
|
| 30 |
209-0637 |
Vacuum tank |
1 |
|
| 32 |
209-0638 |
Switchplate (OBSOLETE) |
1 |
|
| 33 |
209-0639 |
Screw 4 x 5/16 pan head |
12 |
|
| 34 |
172-3551 |
Light (green) |
1 |
|
| 35 |
172-3539 |
Switch with cover (OBSOLETE) |
4 |
|
| 36 |
209-0640 |
Light (red) |
1 |
|
| 37 |
209-0164 |
Washer, nylon |
2 |
|
| 38 |
209-0649 |
Wheel handle (OBSOLETE) |
2 |
|
| 39 |
209-0641 |
Handle grip |
2 |
|
| 40 |
209-0642 |
Rubber handle |
2 |
|
| 41 |
209-0608 |
Washer 1/4 x 1 flat zinc plated |
2 |
|
| 43 |
209-0650 |
Manifold cover (OBSOLETE) |
1 |
|
| 44 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
|

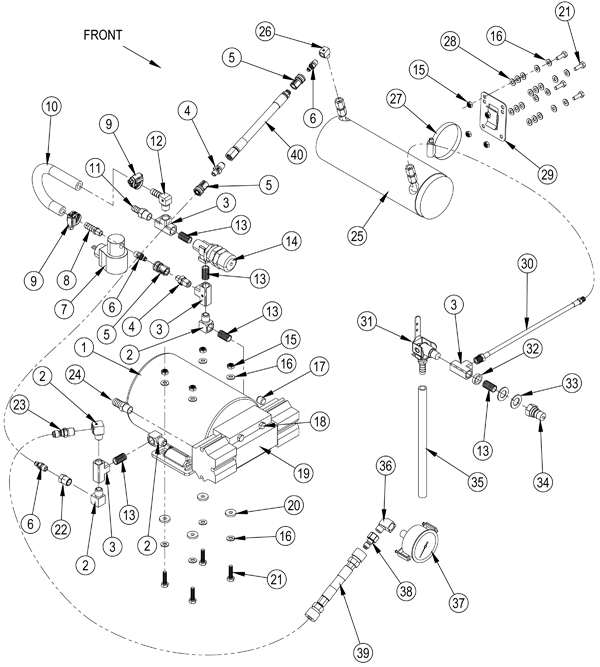

Plumbing Assembly - 209-0028 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-2452 |
1/3HP motor for 300 PSI pump |
1 |
|
| 2 |
209-0609 |
90 degree elbow |
4 |
|
| 3a |
209-0610 |
1/4 inch tee brass |
4 |
(before September 2011) |
| 3b |
209-0610 |
1/4 inch tee brass |
1 |
(after September 2011) |
| 4 |
172-1342 |
Male reducer nipple |
2 |
|
| 5 |
209-0468 |
Brass quick disconnect socket |
3 |
|
| 6 |
209-0099 |
Male quick disconnect |
2 |
|
| 8 |
209-0460 |
Hose barb 3/8 x 1/8 pt |
1 |
|
| 10 |
209-0076 |
24 inch pump inlet hose (sold by the inch) (OBSOLETE) |
8in |
|
| 11 |
209-0157 |
Hose barb with male 1/4 pipe |
1 |
|
| 12 |
209-0627 |
90 degree hose barb 3/8 inch brass |
1 |
|
| 14 |
209-0613 |
Bypass valve |
1 |
|
| 15 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
| 16 |
999-0006 |
Washer 3/16 flat zinc plated |
12 |
|
| 17 |
209-0614 |
1/4 inch plug |
1 |
|
| 18 |
209-0615 |
Screw 1/4-20 x 2 cap |
4 |
|
| 21 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
8 |
|
| 23 |
209-0618 |
Quick connect plug |
1 |
|
| 25 |
209-0335 |
120v complete heat exchanger |
1 |
|
| 26 |
209-0619 |
90 degree elbow 1/8 x 1/8 inch |
1 |
|
| 28 |
209-0620 |
Washer 1/4 nylon (black) |
16 |
|
| 29 |
209-0621 |
Heat exchanger mount |
1 |
|
| 30 |
209-0622 |
Braided hose |
1 |
|
| 31 |
209-0371 |
Power prime valve |
1 |
|
| 32 |
209-0125 |
Fiber bushing |
1 |
|
| 34 |
209-0336 |
Male quick disconnect |
1 |
|
| 36 |
209-0623 |
90 degree elbow 1/4 inch brass |
1 |
|
| 37 |
209-0380 |
Pressure gauge |
1 |
|
| 38 |
209-0624 |
1/4 inch quick connect brass |
1 |
|
| 39 |
209-0625 |
Hose assembly |
1 |
(pump to gauge) |
|
|

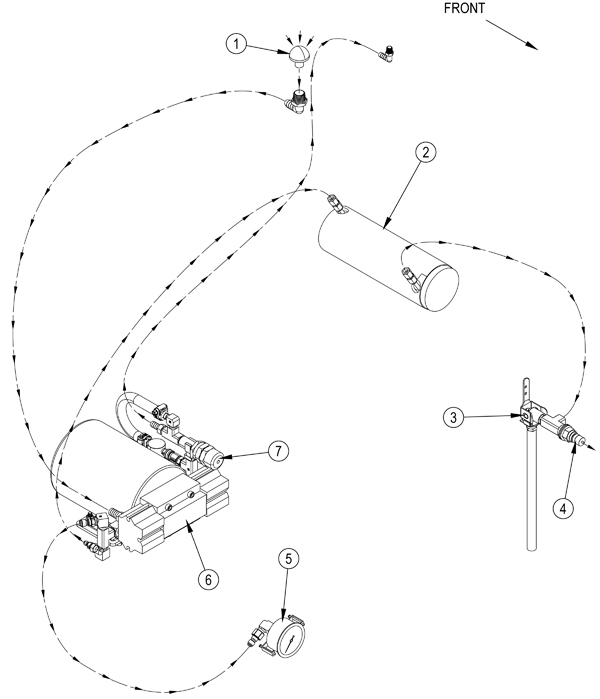

Solution Flow Assembly - 209-0029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
209-0335 |
120v complete heat exchanger |
1 |
|
| 3 |
209-0371 |
Power prime valve |
1 |
|
| 4 |
209-0336 |
Male quick disconnect |
1 |
|
| 5 |
209-0380 |
Pressure gauge |
1 |
|
| 7 |
209-0613 |
Bypass valve |
1 |
|
|
|
- Commonly Asked For Parts - 209-9992 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
172-3539 |
Switch with cover (OBSOLETE) |
|
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
