Parts List Complete for UNIMAC UFNE5BJP115TW01

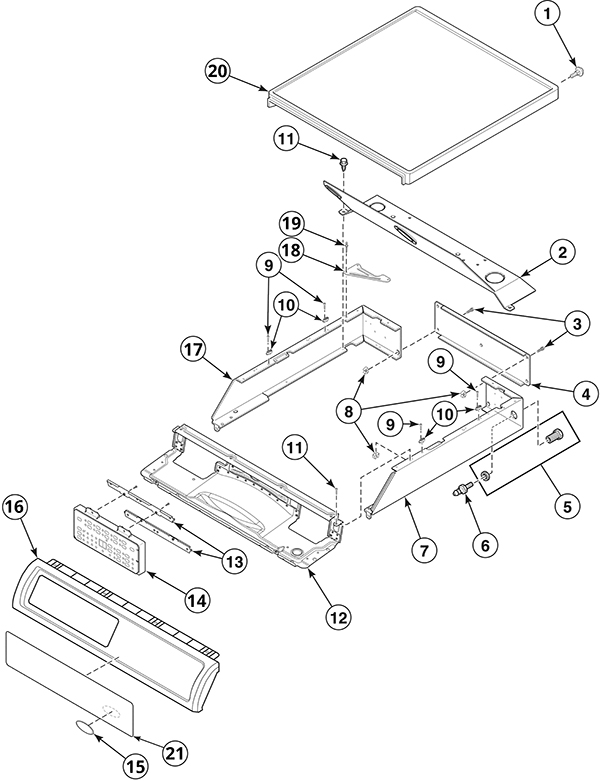

Control Cabinet Assembly - 992-0058
RefNbr Part Number Description Req Notes
1 992-0309 Bolt 1
2 992-0310 Control shield 1
3 992-0311 Screw 2
4 992-0312 Rear access panel 1
5 992-0313 Union 1
6 992-0314 Connector 1
7 992-0315 Right hand control wrapper 1
8 992-0316 Expansion clip 3
9 992-0317 Screw 1
10 992-0318 Top panel guide 2
11 992-0319 Screw 1
12 992-0320 Top panel brace 1
13 992-0321 Control bracket 2
14a 992-0322 Control panel 1 (before SN 2101000001)
14b 992-0323 Control panel 1 (after SN 2012999999)
15 992-0324 Domed decal 1
16a 992-0325 Control panel 1 (white)
16b 992-0326 Control panel 1 (black)
17a 992-0327 Left hand control wrapper 1 (white)
17b 992-0328 Left hand control wrapper 1 (black)
17c 992-0329 Left hand control wrapper 1 (gray)
18 992-0330 Rear wrapper brace 1
19 992-0331 Pop rivet 1
20a 992-0332 Top panel stainless steel 1
20b 992-0333 Top panel (white) 1
20c 992-0334 Top panel (gray) 1
21 992-0340 Control overlay 1

Control Cabinet Lid Assembly - 992-0059
RefNbr Part Number Description Req Notes
1 992-0335 Top panel 1
2 992-0331 Pop rivet 1
3 992-0336 Hinge 1
4 992-0309 Bolt 1
5 992-0337 Top mounting bracket 1
6 992-0338 Nut 1
7 992-0339 Nut 1

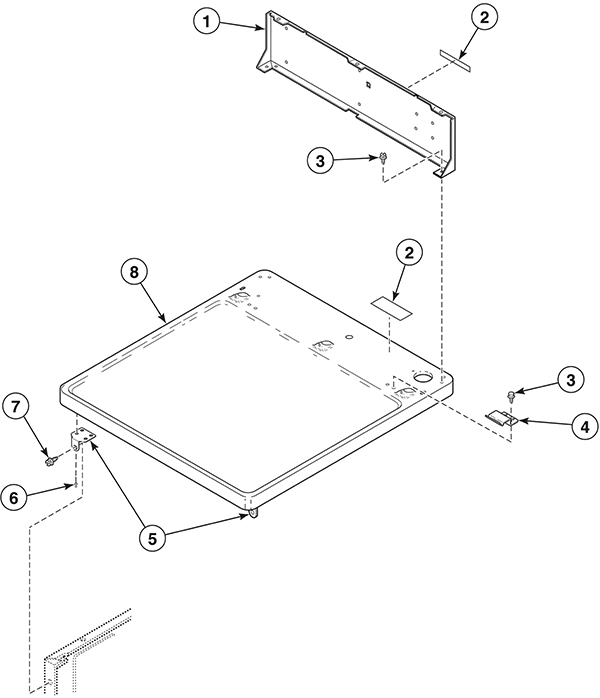

Top and Hood Back Panel Assembly - 992-0060
RefNbr Part Number Description Req Notes
1 992-0341 Back panel hood 1
2a 992-0342 Warning decal 1
2b 992-0343 Electrical shock decal 1
2c 992-0344 Disconnect power warning decal 1
3 992-0345 Screw 2
4 992-0346 Hold down clip 1
5 992-0347 Bracket 2
6 992-0348 Pop rivet 1
7 992-0319 Screw 1
8 992-0349 Top panel 1

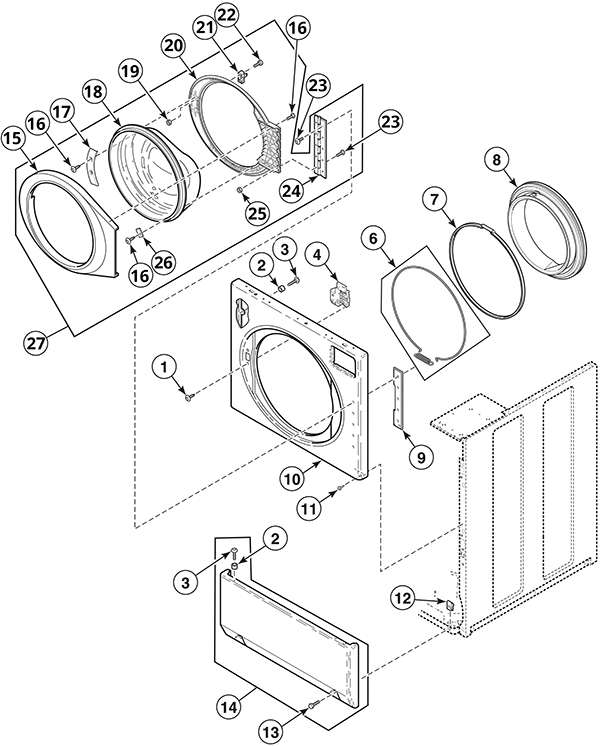

Door Assembly - 992-0061
RefNbr Part Number Description Req Notes
1 992-0350 Screw 1
2 992-0351 Panel locator 2
3a 992-0352 Screw 2 (use with stainless steel panels)
3b 992-0317 Screw 2 (use with painted panels)
4 267-1005 LOCK,DOOR 1
6 992-0353 Wire ring with spring 1
7 992-0354 Hose clamp 1
8a 267-1022 Door bolt seal 1
8b 992-0355 Door seal (gray) 1
9 992-0356 Hinge plate 1
10a 992-0357 Front panel (stainless steel) 1 (stainless steel)
10b 992-0358 Front panel (white) 1 (white)
10c 992-0359 Front panel (dark gray) 1 (gray)
11 992-0319 Screw 1
12 992-0338 Nut 1
13 992-0360 Screw 1
14a 992-0361 Access panel (stainless steel) 1 (stainless steel)
14b 992-0362 Access panel (white) 1 (white)
14c 992-0363 Access panel (dark gray) 1 (gray)
15 992-0364 Outer door bezel 1
16 992-0350 Screw 3
17 992-0366 Door glass mounting plate 1
18 267-1019 Glass door 1
19 992-0367 Nut 1
20a 267-1002 BEZEL,INNER DOOR(WHITE)42811 PKG 1 (glass filled polypropylene upgrade)
20b 992-0368 Inner door bezel 1
21 267-1004 ASSY DOOR CATCH 1
22 992-0369 Screw 1
23 992-0370 Screw 2
24 992-0371 Door hinge 1
25 992-0372 Nut 1
26 992-0373 Glass mounting clip 7
27a 992-0374 Door assembly (black) 1 (includes 15-26)
27b 267-1018 Standard door assembly (white) 1 (includes 15-26)
27c 992-0375 Door assembly (gray) 1 (includes 15-26)

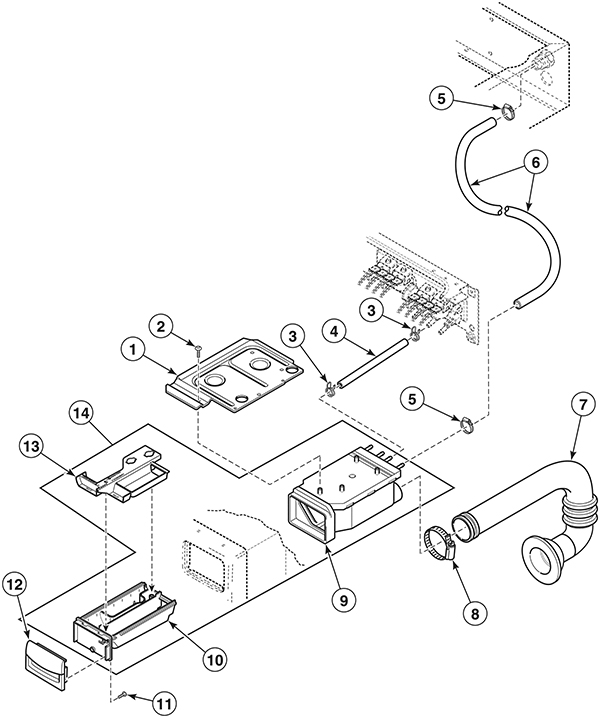

Dispenser Assembly - 992-0062
RefNbr Part Number Description Req Notes
1 992-0376 Dispenser plate 1
2 992-0377 Screw 1
3 992-0378 Hose clamp 2
4 992-0379 Dispenser inlet hose 1 (before SN 1810000002)
5 992-0380 Hose clamp 2
6 992-0381 Tubing 2
7 267-1012 HOSE,DETERGENT(DISP TO TUB) 1
8 992-0382 Hose clamp 1
9 992-0383 Dispenser 1
10 267-1007 DRAWER,DISPENSER 1
11 992-0350 Screw 1
12a 267-1006 HANDLE,DISPENSER WHITE 1
12b 992-0384 Dispenser handle (black) 1
12c 992-0385 Dispenser handle (gray) 1
13 992-0386 Compartment cover 1
14 992-0387 Dispenser assembly 1 (includes 9-10, 13)
N/S 992-0388 Foam pad 1

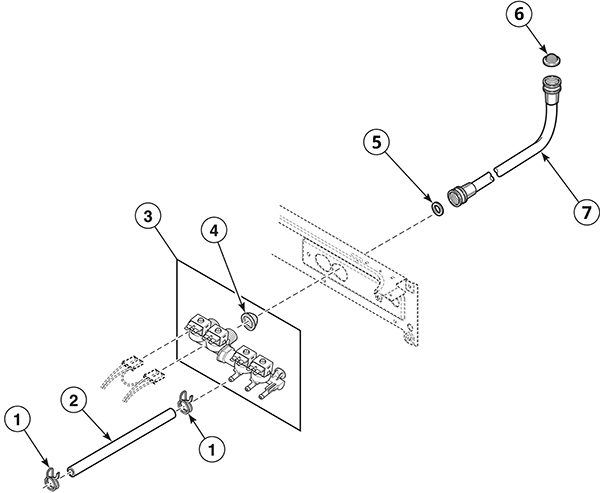

Hose and Valve Assembly - 992-0063
RefNbr Part Number Description Req Notes
1 992-0378 Hose clamp 2
2 992-0379 Dispenser inlet hose 1 (before SN 1810000002)
3 992-0389 Mixing valve 1 (includes 4)
4 992-0390 Mixing valve screen 1
5 267-1016 WASHER,FLAT NON-FERROUS EPDM .593x1.031 1
6a 267-1015 WASHER,STRAINER,3/4 inch PIPE 1 (filter screen)
6b 992-0391 Washer 1 (flow restrictor)
7a 267-1014 HOSE,INLET WATER-IEC(3/8 x 48)GHT/GHT (Blue = Cold) 1 (marked for cold water, 4 feet) (2 GHT thread hose couplings)
7b 267-1013 HOSE,INLET WATER-IEC(3/8 x 48)GHT/GHT (Red = Hot) 1 (marked for hot water, 4 feet) (2 GHT thread hose couplings)
7c 992-0392 Fill hose 1 (marked for cold water, 4 feet) (1 GHT thread and 1 BSPP thread hose coupling)
7d 992-0393 Fill hose 1 (marked for hot water, 4 feet) (1 GHT thread and 1 BSPP thread hose coupling)
7e 992-0394 Fill hose 1 (marked for cold water, 4 feet) (2 BSPP thread hose couplings)
7f 992-0395 Fill hose 1 (marked for hot water, 4 feet) (2 BSPP thread hose couplings)

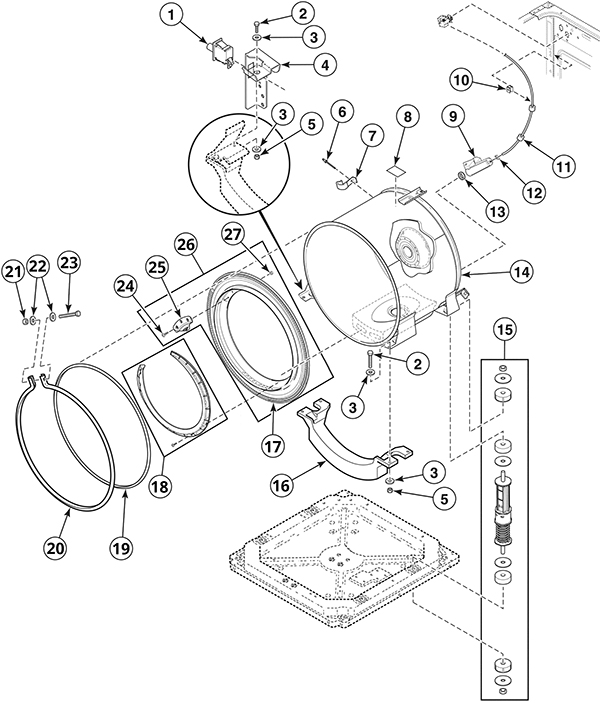

Outer Tube Assembly - 992-0064
RefNbr Part Number Description Req Notes
1a 992-0396 Out-of-balance switch assembly 1 (before SN 2013000000)
1b 992-0397 Out-of-balance switch assembly 1 (after SN 2101000000)
2 992-0398 Screw 2
3 992-0399 Washer 4
4a 992-0400 Out-of-balance switch bracket 1 (before SN 2013000000)
4b 992-0401 Out-of-balance switch bracket 1 (after SN 2101000000)
5 992-0402 Nut 2
6 992-0331 Pop rivet 1
7 992-0403 Hose clip 1
8 992-0404 Warning decal 1
9 992-0405 Pressure bulb 1
10 992-0406 Hose clip 1
11 992-0407 Pressure sensor tube 1
12 992-0409 Hose clamp 1
13 992-0408 Grommet 1
14a 992-0410 Outer tube 1 (before SN 1911000000 excluding SN 1908066087-1909000879)
14b 992-0411 Outer tube 1 (after SN 2011000000)
15 992-0412 Shock 1 (must replace all four)
16 992-0413 Counterweight 1
17 992-0414 Tub front 1
18a 992-0415 Foreign object deflector with screws (black) 1
18b 992-0416 Foreign object deflector with screws (gray) 1
18c 992-0417 Tall foreign object deflector with screws (gray) 1
19 992-0418 Tub front seal 1
20 992-0419 Clamp ring 1
21 992-0420 Nut 1
22 992-0421 Washer 2
23 992-0422 Screw 1
24 992-0423 Screw 1
25a 992-0424 Clothes guard deflector 1
25b 992-0425 Heavy duty clothes guard deflector 1
26 992-0426 Tub front assembly 1 (includes 2, 11-12, 14)
27 992-0427 Nut 1

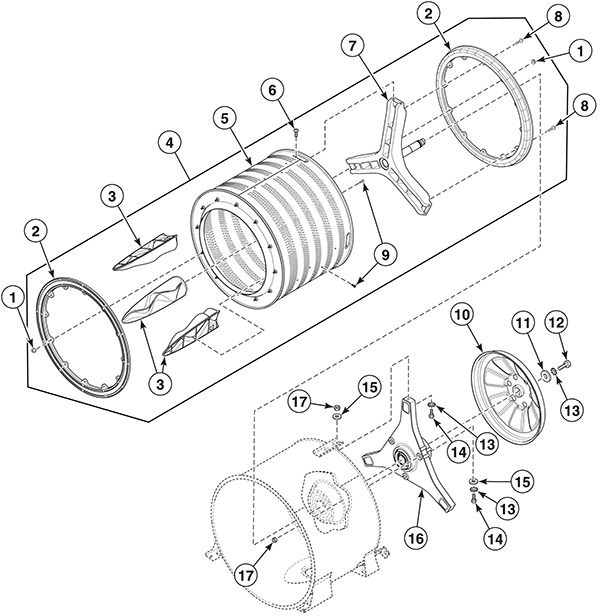

Inner Basket Assembly - 992-0065
RefNbr Part Number Description Req Notes
1 992-0428 Nut 2
2 992-0429 Balance ring 2
3 992-0430 Lifter 3
4 992-0431 Inner basket assembly 1 (includes 1-3, 5-9)
5 992-0432 Inner basket 1
6 992-0433 Screw 1
7 992-0434 Trunnion shaft kit 1 (includes hardware and tool)
8 992-0435 Screw 2
9 992-0350 Screw 2
10 992-0436 Pulley 1
11 992-0437 Washer 1
12 992-0438 Screw 1
13 992-0439 Washer 3 (before SN 1609046806)
14 992-0440 Screw 2
15 992-0421 Washer 2
16 992-0441 Bearing housing kit 1 (includes harware and tool)
17 992-0402 Nut 2
N/S 992-0442 Anti-seize compound 1
N/S 992-0443 Bearing kit 1

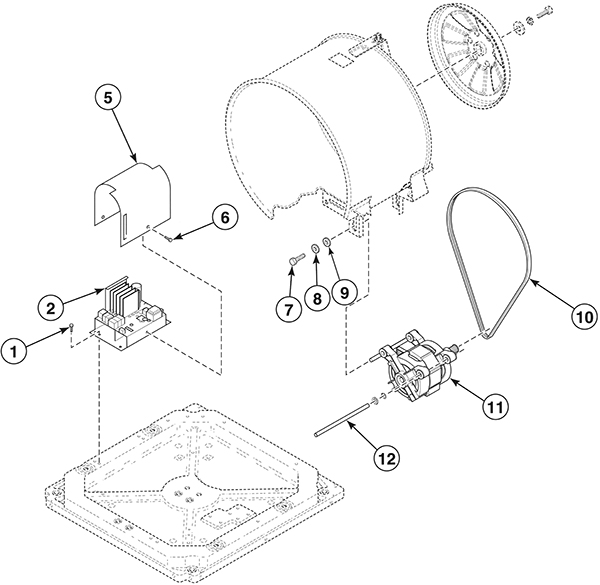

Motor and Belt Assembly - 992-0066
RefNbr Part Number Description Req Notes
1a 992-0319 Screw 1 (before SN 2013000000)
1b 992-0444 Screw 1 (after SN 2101000000)
2a 992-0445 Inverter control 1 (before SN 2013000000)
2b 992-0446 120V output control without filter 1 (after SN 2101000000)
2c 992-0447 240V output control with filter 1 (after SN 2101000000)
5 992-0448 Motor control shield 1 (before SN 2013000000)
6 992-0449 Screw 1
7a 992-0450 Screw 1 (before SN 2013000000)
7b 992-0451 Screw 1 (after SN 2101000000)
8 992-0452 Washer 1
9 992-0453 Washer 1
10a 992-0454 Drive belt 1 (before SN 1911000000 excluding 1908066087-1909000879)
10b 992-0455 Belt 1 (after SN 1911000000 including 1908066087-1909000879)
11a 267-1010 KIT MOTOR AND ROD ASSEMBLY - COBRA 1 (includes 12) (before SN 2013000000)
11b 992-0456 Motor and rod assembly 1 (includes 12) (after SN 2101000000)
12a 992-0457 Motor rod 1 (before SN 2013000000)
12b 992-0458 Motor rod 1 (after SN 2101000000)
N/S 992-0459 Control bracket 1 (after SN 2101000000)

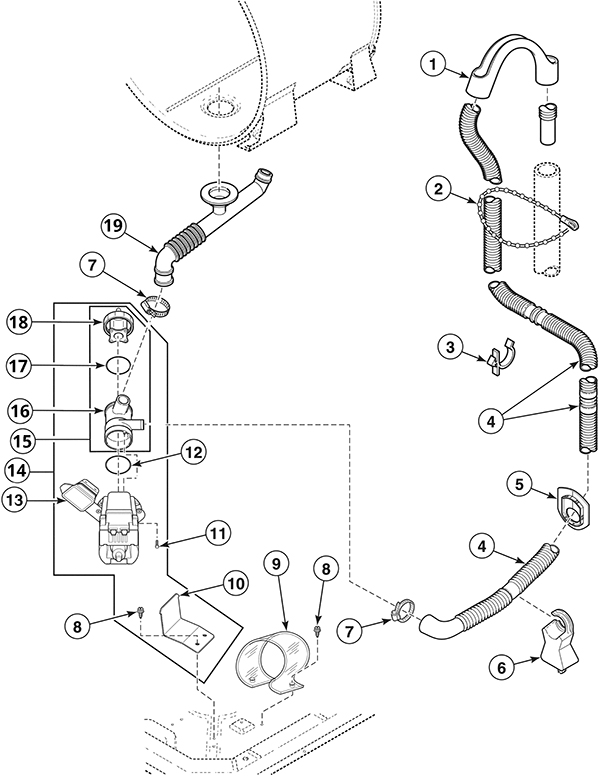

Drain Hose and Pump Assembly - 992-0067
RefNbr Part Number Description Req Notes
1 992-0461 Drain hose sleeve 1
2 992-0462 Standpipe strap 1
3 992-0463 Retainer clip 1
4 992-0464 Drain hose 3
5 992-0465 Strain relief 1
6 992-0466 Hose stand 1
7 992-0467 Hose clamp 2
8 992-0319 Screw 2
9 992-0468 Drain pump drip shield 1
10 992-0469 Drain base bracket 1
11 992-0470 Screw 1
12 992-0471 O-ring 1
13 992-0472 Drain pump isolator 1
14 267-1011 ASSY,DRN PUMP(100V-127V,60Hz)YEL 1 (includes 2-5)
15 992-0473 Pump housing assembly 1 (includes 3-5)
16 992-0474 Pump housing 1
17 992-0475 Gasket 1
18 992-0476 Lid with filter 1
19a 267-1017 HOSE,TUB TO PUMP 1
19b 992-0477 Sealant 1
N/S 992-0460 Pump-to-gravity drain kit 1

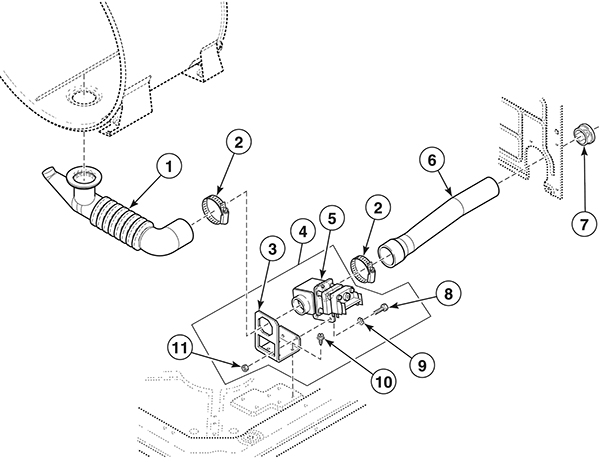

Drain Hose and Valve Assembly - 992-0068
RefNbr Part Number Description Req Notes
1 992-0478 Tub-to-gravity drain hose 1
2 992-0382 Hose clamp 2
3 992-0479 Gravity drain bucket 1
4 992-0480 Drain valve kit 1 (includes 3, 5, 8-11)
5 992-0481 Gravity drain valve 1
6 992-0482 Drain-to-cabinet hose 1
7 992-0483 Snap bushing 1
8 992-0451 Screw 1
9 992-0484 Washer 1
10 992-0319 Screw 1
11 992-0485 Nut 1

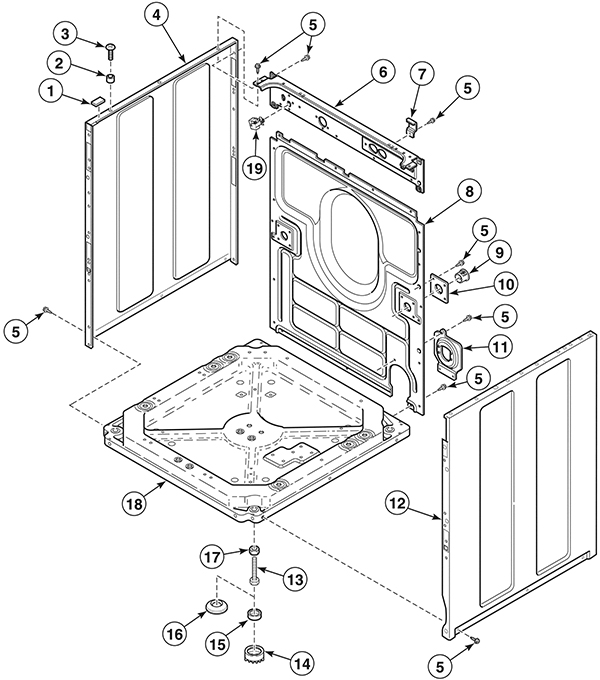

Rear and Side Panel Assembly - 992-0069
RefNbr Part Number Description Req Notes
1 992-0486 Bumper pad 1
2 992-0351 Panel locator 1
3a 992-0487 Screw 1 (use with stainless steel panels)
3b 992-0317 Screw 1 (use with painted panels)
4a 992-0488 Left hand cabinet side panel 1 (stainless steel)
4b 992-0489 Left hand cabinet side panel (gray) 1
4c 992-0490 Left hand cabinet side panel (white) 1 (includes corner gusset and hardware)
5 992-0319 Screw 8
6a 992-0491 Rear panel 1 (before SN 1810000002)
6b 992-0492 Rear panel 1 (after SN 1810000000)
7 992-0493 Top hinge 1
8 992-0494 Rear panel 1
9 992-0495 Shipping plug 1
10 992-0496 Shipping plate 1
11 992-0497 Drain hose bracket 1
12a 992-0498 Right hand cabinet side panel 1 (stainless steel)
12b 992-0499 Right hand cabinet side panel (gray) 1
12c 992-0500 Right hand cabinet side panel (white) 1
13 992-0501 Leveling leg 1
14 992-0502 Rubber foot 2 (install over 15)
15 992-0503 Rubber foot 1
16a 992-0504 Anchor 1 (includes 4 rubber discs with adhesive backing)
16b 992-0505 Anchor floor mount 1 (includes 2 rubber discs with adhesive backing)
17 992-0506 Nut 1
18 992-0507 Base 1
19 992-0508 Pressure sensor 1
N/S 992-0509 Porcelain touch up paint (white) 1
N/S 992-0510 Paint 1

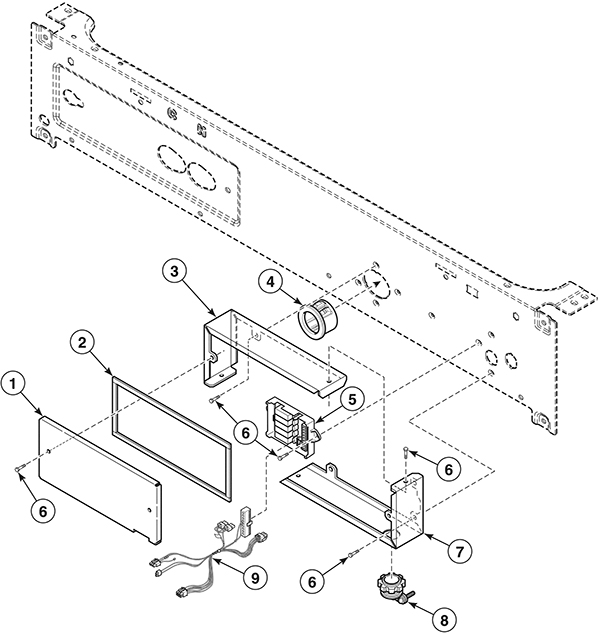

Junction Box Assembly - 992-0070
RefNbr Part Number Description Req Notes
1 992-0511 Junction box cover 1
2 992-0512 Junction box seal 1
3 992-0513 Upper junction box 1
4 992-0514 Snap bushing 1
5 992-0515 Chemical injection control 1
6 992-0319 Screw 5
7 992-0516 Lower junction box 1
8 992-0517 Connector 1
9a 992-0518 Supply injection wire harness 1 (before SN 2013000000)
9b 992-0519 Supply injection wire harness 1 (after SN 2101000000)

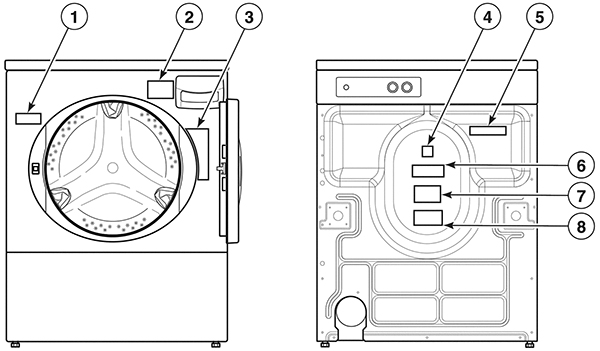

Decal Assembly - 992-0071
RefNbr Part Number Description Req Notes
1 992-0520 Notice decal 1
2 992-0521 Oversudsing decal 1
3 992-0522 Warning decal 1
4 992-0523 Notice decal 1
5a 992-0344 Disconnect power warning decal 1
5b 992-0524 Caution icon decal 1
6a 992-0525 Left hand thread text decal 1
6b 992-0526 Left hand thread icon decal 1
7a 992-0527 Disconnect power warning decal 1
7b 992-0343 Electrical shock decal 1
8 992-0404 Warning decal 1

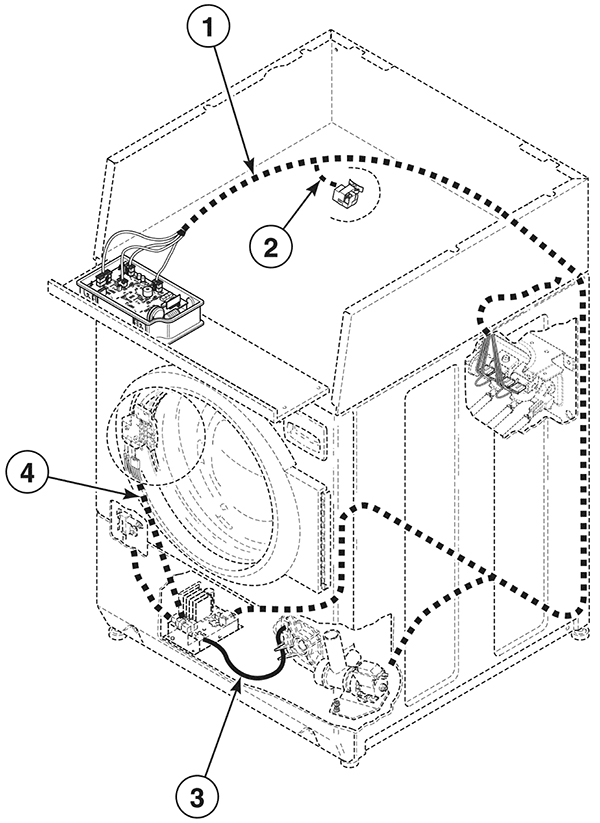

Wiring Assembly - 992-0072
RefNbr Part Number Description Req Notes
1a 992-0528 Front control harness 1 (before SN 2013000000)
1b 992-0529 Front control harness 1 (after SN 2101000000)
2 992-0530 Pressure sensor harness 1
3a 992-0531 Motor harness 1 (before SN 2013000000)
3b 992-0532 Motor harness 1 (after SN 2101000000)
4a 992-0533 Door lock harness assembly 1 (before SN 2013000000)
4b 992-0534 Door lock harness assembly 1 (after SN 2101000000)
N/S 992-0535 18 gauge wire 1
N/S 992-0536 12 gauge wire 1
N/S 992-0537 Power harness 1
Webpage Problem Reporting
