Parts List Complete for TRIPLE S UHS 1500

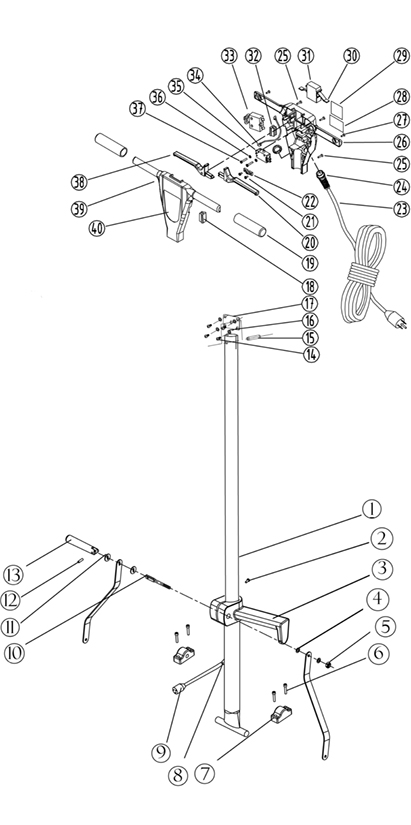

Handle Assembly - 240-0006
RefNbr Part Number Description Req Notes
1 240-5015 Handle tube 1
2 240-0237 Screw M6 x 10 hex socket 1
3 240-2130 Hook (high speed) 1
4 240-0205 Washer M10 plain 2
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
6 240-0241 Screw M6 x 25 hex socket 4
7 240-5441 Handle clamp block 2
8 240-5605 Grommet 1
9 240-1110 47 inch handle cord 1
10 240-0264 Handle release bolt (short) 1
11 240-0265 Handle release plain washer 2
12 240-0266 Handle release screw pin 1
13 240-0267 Handle release 1
14 999-1986 Screw M5-.8 x 14mm pan head phillips 4
15 240-1150 Pin 1
16 240-0186 Washer M5 star lock 4
17 240-1149 Connection plate 1
18 240-5111 Cover (OBSOLETE) 1
19 240-0269 Handle grip 2
20 240-1134 Right hand switch lever 1
21 240-5382 Screw M4 X 10mm 2
22 240-0103 Handle cable block 1
23a 240-5488 14/3 Power cord (black) 1 (OEM)
23b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
24 240-0106 Strain relief 1
25 240-1131 Screw M5 x 30mm 5
26 240-1128 Handle cover 1
27 240-0139 Screw M5 x 20mm 2
28 240-5617 Serial number tag 1
29 240-0110 Read manual decal 1
30 240-0183 Safety block spring 1
31 240-1133 Safety block 1
32 240-1135 Cover 1
33 240-0115 Circuit breaker 1
34 240-5490 Jump wire 1
35 240-0008 On/Off switch 1
36 240-0100 Internal tooth lock washer 2
38 240-1130 Left hand switch lever 1
39 240-1108 Front handle cover 1
40 240-1136 Front cover decal 1

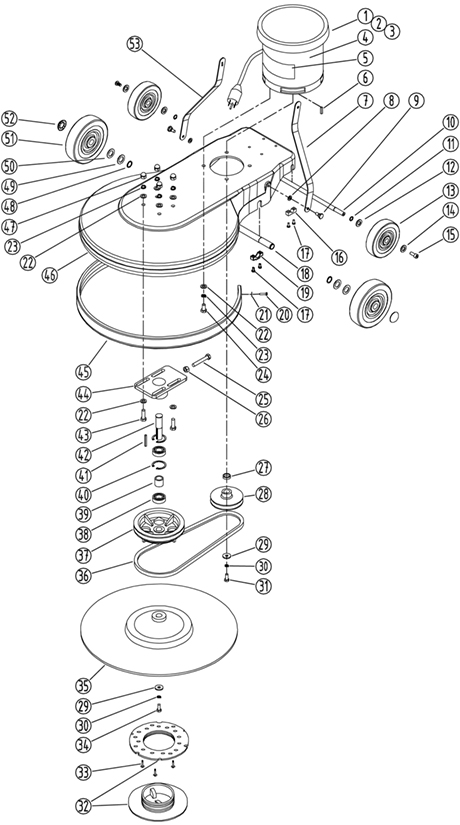

Base Assembly - 240-0007
RefNbr Part Number Description Req Notes
2 240-0191 Carbon brush (pkg of 4) 1
3 240-0690 Rectifier 1
4 240-0235 Silver label 1
5 240-5473 LABEL LOGO 1
6 240-6520 Motor shaft key 1
7 240-0193 Left hand bracket 1
8 240-0229 Washer M8 x M16 plain 2
9 240-0228 Screw hex head for bracket 2
10 240-5613 Transport axle 1
11 240-0197 External retaining ring 2
12 999-0806 Washer M12 wave zinc plated 2
13 240-0198 5 inch wheel 2
14 240-0199 Washer M6 flat 2
15 240-0200 Screw M6-1 x 12mm 2
16 240-0310 Clamp lock 2
17 240-0066 Screw M5 x 20 self tapping 8
18 240-5611 Front axle 1
19 240-0065 Axle clamp block 2
20 240-0067 Screw M5 x 16mm 2
21 240-0068 Plain washer 2
22 240-0205 Washer M10 plain 12
23 240-0414 Washer M10 split lock stainless steel 8
24 240-0207 Screw 16G x 3/8 hex head 4
25 240-5383 Screw M10 x 65 hex head 1
26 240-0209 Nut M10 hex head 1
27 240-0201 Drive pulley spacer 1
28 240-5610 Pulley 1
29 240-0212 Washer M8 x M30 x 5 plain 2
31 240-0214 Screw 5/16-18 hex head 1
32 991-2202 Big mouth pad holder set (blue) 1
33 240-0150 Screw M4 x 12 3
34 240-0216 Screw M8 x 30 1
35 240-0013 Pad driver 1
36 240-5393 Belt 1
37 240-0218 Drive pulley 1
38 240-0219 Bearing 2
39 240-0220 Bearing spacer 1
40 240-0221 Retaining ring 2
41 240-0222 Drive shaft key 1
42 240-0223 Drive shaft 1
43 240-0224 Screw M10 x 32 hex head 4
44 240-0225 Drive shaft mounting plate 1
45 240-0174 Bumper 1
46 240-5012 Frame 1
47 240-0227 Nut M10 cap 4
48 240-0060 Retaining ring M19 external 2
49 240-0061 Washer M19 2
50 240-0062 Washer M19 wave 2
51 240-1109 160mm wheel 2
52 240-0064 Axle cap 2
53 372-1268 Right hand bracket 1

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
