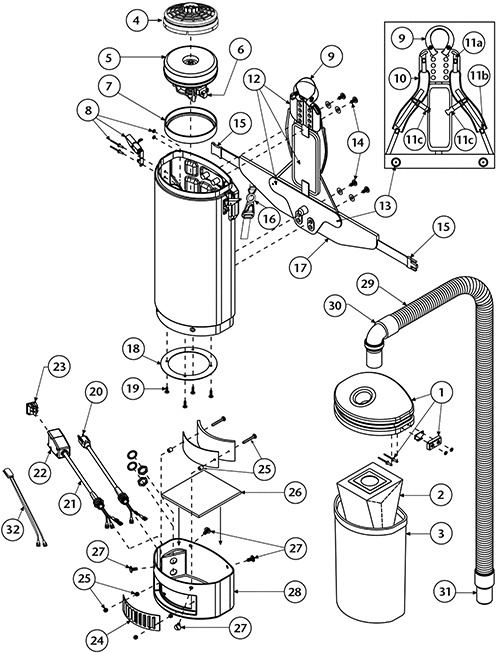

Entire Assembly - 199-0029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
199-0746 |
Lid assembly |
1 |
|
| 2 |
199-0431 |
Paper vacuum bag (pkg of 10) |
1 |
|
| 3 |
199-0651 |
Micro cloth filter |
1 |
|
| 4 |
199-0318 |
HEPA dome filter |
1 |
|
| 5 |
199-0747 |
Motor fan with crimps |
1 |
|
| 6a |
199-0307 |
Carbon brush (pkg of 2) |
1 |
(Domel) |
| 6b |
199-0022 |
Carbon brush (pkg of 2) |
1 |
(Ametek) |
| 7 |
199-0262 |
Motor gasket |
1 |
|
| 8 |
199-0710 |
Draw latch assembly |
1 |
|
| 9 |
199-0004 |
Carrying handle with rivet and washer set |
1 |
|
| 10 |
199-0077 |
Shoulder strap assembly |
1 |
|
| 11a |
199-0006 |
Top shoulder strap plastic adjustment buckle |
1 |
|
| 11b |
199-0007 |
Bottom shoulder strap plastic adjustment buckle |
1 |
|
| 11c |
199-0276 |
Sternum strap buckles (latch and keeper) (OBSOLETE) |
1 |
|
| 12 |
199-0078 |
Backplate assembly with center pad |
1 |
|
| 13 |
199-0009 |
Barrel nut connection set for backplate |
1 |
|
| 14 |
199-0036 |
Backplate hardware set (4 bolts with washers) |
1 |
|
| 15 |
199-0745 |
Waist belt keeper and latch |
1 |
|
| 16 |
199-0350 |
Cord holder |
1 |
|
| 17 |
199-0012 |
Waist belt assembly |
1 |
|
| 18 |
199-0714 |
Motor plate |
1 |
|
| 19 |
199-0040 |
Compression ring screw set (pkg of 4) |
1 |
|
| 20 |
199-0485 |
14/3 pigtail cord assembly with strain relief 18 inch |
1 |
|
| 21a |
199-0015 |
On/off switch cord assembly |
1 |
(includes 22 and 23) |
| 21b |
199-0017 |
Switch cord with crimps |
1 |
|
| 22 |
199-0037 |
Switch box with velcro and switch (new) |
1 |
|
| 23 |
199-0018 |
On/off switch |
1 |
|
| 24 |
199-0718 |
Exhaust louver |
1 |
|
| 25 |
199-0720 |
Exhaust assembly |
1 |
|
| 26 |
199-0719 |
Accoustic insulator |
1 |
|
| 27 |
199-0721 |
Bottom cap screw kit (pkg of 4) |
1 |
|
| 28 |
199-0748 |
Bottom cap (black) |
1 |
|
| 29 |
199-0032 |
1 1/2 inch static-dissipating hose with cuffs |
1 |
|
| 30 |
199-0256 |
1 1/2 inch double swivel elbow cuff |
1 |
|
| 31a |
199-0074 |
1 1/2 inch swivel cuff |
1 |
|
| 32 |
199-0347 |
Thermal protector |
1 |
|
| N/S |
199-0749 |
60 foot extension cord |
1 |
|
| KIT1 |
199-0079 |
Two-piece backplate assembly |
1 |
(includes 10-16) |
|
|
- Commonly Asked For Parts - 199-9978 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
199-0651 |
Micro cloth filter |
|
|
| 02 |
199-0018 |
On/off switch |
|
|
| 03 |
173-4789 |
1 1/2 x 56 inch two piece aluminum double curve wand |
|
|
| 04 |
199-0114 |
1 1/2 x 14 inch E-Z glide with nylon brush |
|
|
|
|
|
