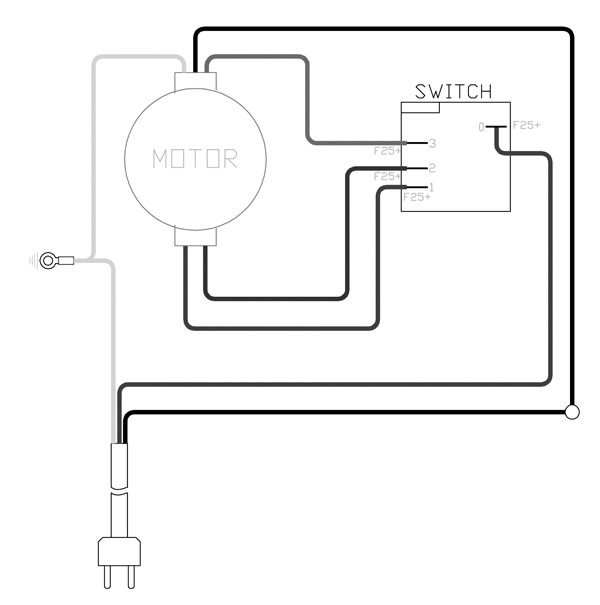

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

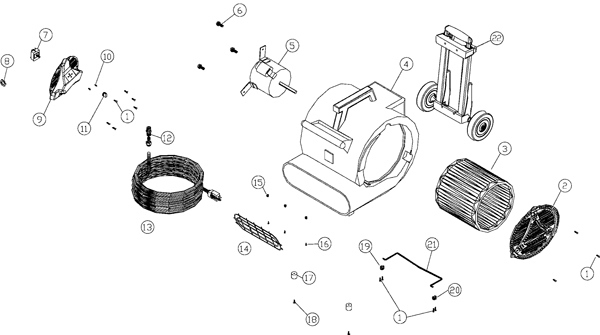

Entire Assembly - 183-4016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0680 |
Screw 6 x 1/2 pan head phillips T-A sheet metal |
1 |
|
| 2 |
190-0561 |
Intake panel |
1 |
|
| 3a |
190-0237 |
Squirrel cage with lock nut |
1 |
(1/3 and 1/2 HP models) |
| 3b |
190-0029 |
Squirrel cage with lock nut (OBSOLETE) |
1 |
(3/4 HP models) |
| 4 |
190-0250 |
Dryer housing (OBSOLETE) |
1 |
|
| 5a |
190-0251 |
1/3HP dryer motor and capacitor |
1 |
|
| 5b |
190-0252 |
1/2HP dryer motor and capacitor (OBSOLETE) |
1 |
|
| 6 |
190-0254 |
Screw 3/8-16 x 1/2 |
1 |
|
| 7 |
183-7483 |
3 speed rotary switch |
1 |
|
| 8 |
216-0181 |
Nut 1/2 lock steel conduit |
1 |
|
| 9 |
190-0257 |
Motor control panel |
1 |
|
| 10 |
999-1538 |
Screw M4-.7 x 6mm flat head phillips |
1 |
|
| 11 |
190-0258 |
Switch knob |
1 |
|
| 12 |
216-0173 |
Strain relief |
1 |
|
| 13 |
183-0563 |
16/3 power cord 20 foot |
1 |
|
| 15 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
1 |
|
| 16 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
1 |
|
| 17 |
190-0030 |
Rubber foot (black) (new style) |
1 |
|
| 18 |
999-0697 |
Screw 8-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 19 |
190-0260 |
Right side foot |
1 |
|
| 20 |
190-0261 |
Left side foot |
1 |
|
| 22 |
190-0263 |
Handle and wheels |
1 |
|
|
|
- Frequently Replaced Parts - 998-0017 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
183-0563 |
16/3 power cord 20 foot |
|
(OEM) |
|
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) |
|
183-7483 |
3 speed rotary switch |
|
|
|
190-0029 |
Squirrel cage with lock nut (OBSOLETE) |
|
|
|
190-0030 |
Rubber foot (black) (new style) |
|
|
|
|
