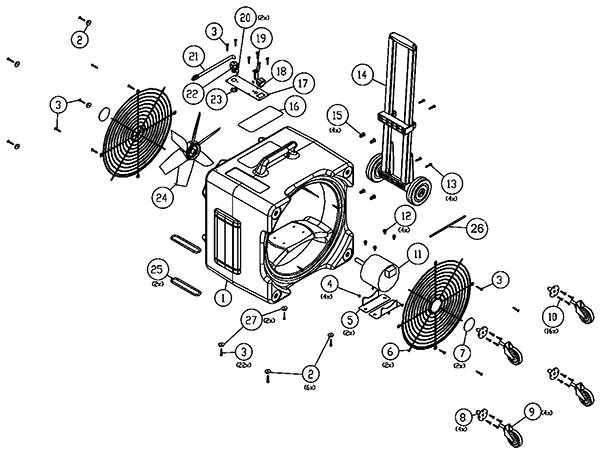

Entire Assembly - 183-4025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
183-1081 |
Axial fan housing |
1 |
|
| 2 |
183-1082 |
Rubber Foot |
1 |
(5x) |
| 3 |
183-1083 |
Pan head screw #10 x 1 zinc (black) |
12 |
(22x) |
| 4 |
183-1084 |
Nut 8-32 nylock |
1 |
(4x) |
| 5 |
183-1085 |
Axial fan motor bracket |
1 |
(2x) |
| 6 |
183-2285 |
Axial fan grill |
1 |
(2x) |
| 7 |
183-1086 |
Round decal at grill |
1 |
(2x) |
| 8 |
183-1087 |
Caster reciever |
1 |
(4x) |
| 9 |
183-1088 |
Swivel caster and socket 4 x 15/16 inch |
1 |
(4x) |
| 10 |
183-1089 |
Screw self tap #12 x 1 inch zinc |
1 |
(14x) |
| 11 |
183-1090 |
Motor, Axial fan, Downdraft 11 |
1 |
|
| 12 |
183-1091 |
Screw hex serrated flange #1/4-20 x 1/2 inch |
1 |
(4x) |
| 13 |
183-1092 |
Screw 1/4-20 x 1 1/4 inch |
1 |
(4x) |
| 14 |
183-4614 |
Handle and wheel assembly |
1 |
|
| 15 |
183-1093 |
1/4-20 jacknut steel |
1 |
(4x) |
| 16 |
183-1094 |
Decal product at top axial fan |
1 |
|
| 17 |
183-1095 |
Switch panel |
1 |
|
| 18 |
183-1096 |
Rocker switch |
1 |
|
| 19 |
183-4632 |
5amp circuit breaker |
1 |
|
| 20 |
183-1097 |
Screw 6-32 x 3/8 inch (black) |
1 |
(2x) |
| 21 |
183-0563 |
16/3 power cord 20 foot |
1 |
|
| 22 |
183-4808 |
Strain relief |
1 |
|
| 23 |
183-1098 |
Nut lock steel conduit appleton 12 inch |
1 |
|
| 25 |
183-1099 |
Round belt |
1 |
(2x) |
| 26 |
183-1100 |
Heat shrink 1/2 inch (black) |
1 |
|
| 27 |
183-1101 |
Rubber foot |
1 |
(2x) |
|
|
- Commonly Asked For Parts - 183-9947 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
183-4614 |
Handle and wheel assembly |
1 |
|
| 03 |
183-4632 |
5amp circuit breaker |
1 |
|
| 04 |
183-2285 |
Axial fan grill |
1 |
|
|
|
|
