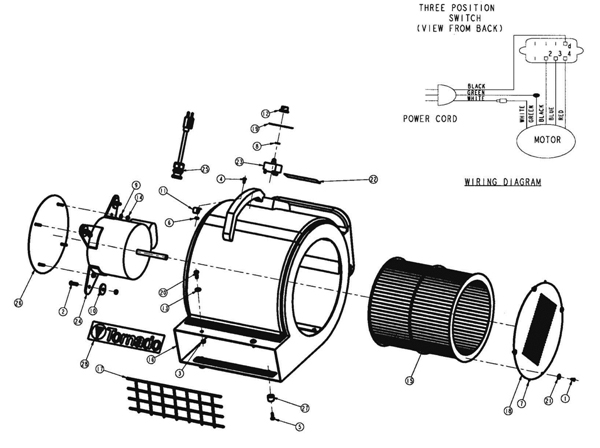

Entire Assembly - 183-1021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-1505 |
Screw 8-32 x 3/8 flat head phillips stainless steel |
4 |
|
| 2 |
999-0866 |
Screw 1/4-20 x 7/8 round head slotted zinc plated |
4 |
|
| 3 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
6 |
|
| 4 |
999-1174 |
Screw 10-24 x 7/16 pan head phillips zinc plated |
1 |
|
| 5 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
8 |
|
| 6 |
999-1068 |
Nut 10-24 hex reversible lock zinc plated |
1 |
|
| 7 |
183-4320 |
Brush card pad |
2 |
|
| 8 |
N/A |
Not available |
1 |
(obsolete) |
| 9 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 10 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 11 |
183-0840 |
Cable clamp 5/8 |
1 |
|
| 12 |
190-0258 |
Switch knob |
1 |
|
| 13 |
183-8146 |
Washer 1/4 plain |
2 |
|
| 14 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
8 |
|
| 15 |
190-0237 |
Squirrel cage with lock nut |
1 |
|
| 16b |
N/A |
Not available |
1 |
(obsolete) |
| 17 |
183-9052 |
Grill exhaust |
1 |
|
| 18 |
183-9053 |
Screen intake (OBSOLETE) |
1 |
|
| 19 |
183-9054 |
Switch decal (Obsolete) |
1 |
|
| 20 |
999-0509 |
Screw 1/4-20 x 3/8 pan head phillips zinc plated |
2 |
|
| 22 |
183-9055 |
Warning decal |
1 |
|
| 23 |
183-7483 |
3 speed rotary switch |
1 |
|
| 25 |
183-0563 |
16/3 power cord 20 foot |
1 |
|
| 26 |
183-9057 |
Intake screen |
1 |
|
| 27 |
183-7498 |
Rubber foot (OBSOLETE) |
4 |
|
| 29 |
183-0622 |
7 Inch white wire tie |
2 |
|
|
|
- Commonly Asked For Parts - 183-9987 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
183-0563 |
16/3 power cord 20 foot |
|
|
| 02 |
183-7483 |
3 speed rotary switch |
|
(Original switch is no longer available. If you are replacing the switch, you will also need the new knob, 190-0258.) |
| 03 |
190-0258 |
Switch knob |
|
(Original knob is no longer available. In order to use this new knob you will also need to replace your switch.) |
| 04 |
183-2295 |
100RPM 1/2HP fan motor (OBSOLETE) |
|
|
|
|
|
