Parts List Complete for TORNADO TASKFORCE 20

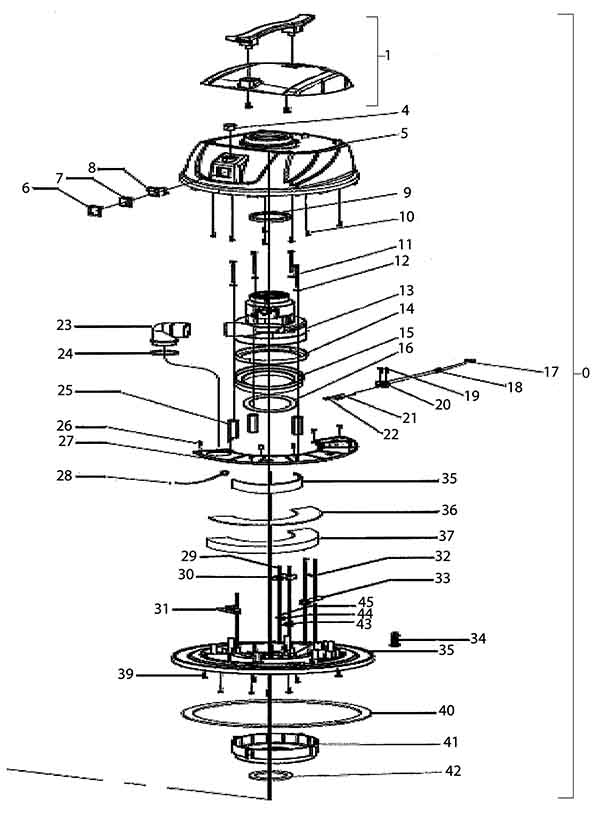

Head Assembly - 183-6683
RefNbr Part Number Description Req Notes
1 183-4901 Top cover with handle 1
4 183-4902 Cap 1
5 183-4903 Top housing 1
6 183-4904 Power switch 1
7 183-4905 Switch cover 1
8 183-4906 Switch cove (OBSOLETE) 1
9 183-4861 Seal 1
10 183-4907 Screw M4 x 16mm 7
11 183-4908 Screw M5 x 85mm 3
12 183-4909 Washer 4
13a 183-4910 2 stage vacuum motor 1
13b 183-4858 120V motor 1
14 183-4911 Gasket 1
15 183-4912 Motor mount 1
16 183-4913 Gasket 1
17 183-4914 Capacitor 2
18 183-4915 Sleeve 2
19 183-4916 Screw M3.5 x 20mm (OBSOLETE) 3
20 183-4918 Terminal block 1
21 183-4917 35cm wire (black) 1
22 183-4919 35cm wire (white) 1
23 183-4920 90 degree elbow 1
24 183-4921 Seal 1
25 183-4922 Spacer 3
26 183-4855 Screw M3.5 x 12mm 1
27 183-4923 Plate 1
28 183-4924 25cm earth wire (yellow/green) 1
29 183-4863 Screw M3 x 8mm 3
30 183-4926 Holder B 1
31 183-4927 Terminal board (OBSOLETE) 1
32 183-4930 Wire plate 1
33 183-4931 Strain relief 1
34 183-4932 30 foot power cord 1
35 183-4933 Foam 3 1
36 183-4934 Foam 2 1
37 183-4935 Foam 1 1
38 183-4936 Motor base 1
39 183-4937 Screw M4 x 18mm 6
40a 183-4939 Gasket 1
40b 183-4939 Gasket 1
41 183-4940 Holder 1
42 183-4941 Gasket 1
43 183-4928 Spring 1
44 183-4855 Screw M3.5 x 12mm 1
45 183-4929 30 cm static wire (green) 1

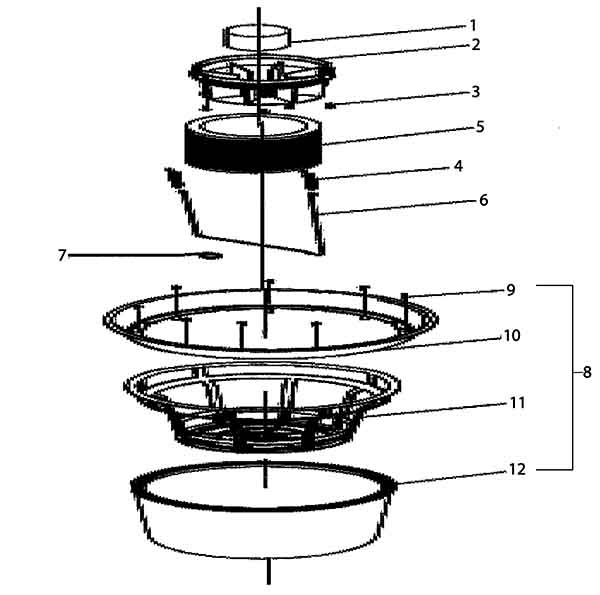

Filter Assembly - 183-6684
RefNbr Part Number Description Req Notes
1 183-4942 Float (OBSOLETE) 1
2 183-4943 Float cage (OBSOLETE) 1
3 183-4944 Screw M5 x 55mm 4
4 183-4945 Spring (OBSOLETE) 2
5 183-4689 Washable filter cartridge 1
6 183-4946 Hook (OBSOLETE) 1
7 183-4947 Cable tie 2
8 183-4948 Filter 1 (includes 9 through 12)
9 183-4949 Screw M8 x 18mm (OBSOLETE) 8
10 183-4950 Holder 1
11 183-8737 Filter frame 1
12 183-4952 Complete filter assembly 1

Tank Assembly - 183-6685
RefNbr Part Number Description Req Notes
1 183-4953 Stainless steel tank 1
2 183-4954 Screw M4 x 10mm 2
3 183-4955 Holder 2
4 183-4956 Holder 1
5 183-4957 Fixed holder 2
6a 183-4958 Nut (OBSOLETE) 4
6b 183-4952 Complete filter assembly 4
7 183-4959 Washer (OBSOLETE) 4
8 183-4960 Clip base 2
9 183-4961 Screw M4 x 8mm 4
10 183-4962 Spring (OBSOLETE) 2
11 183-4963 Clip holder 2
12 183-1371 Complete latch assembly 2
13 183-4965 Short pin M3.9 x 25.5mm 2
14 183-4966 Long pin (OBSOLETE) 12
15 183-4967 Screw M5 x 25mm (OBSOLETE) 12
16 183-4968 Holder 12
17 183-4969 Rubber washer (OBSOLETE) 1
18 183-4970 Washer 1
19 183-4971 Hose coupler (OBSOLETE) 1
20 183-4972 Spring (OBSOLETE) 1
21 183-4973 Button holder (OBSOLETE) 1
22 183-4974 Button (OBSOLETE) 1
23 183-4975 Handle Holder 2
24 183-4976 Handle 1

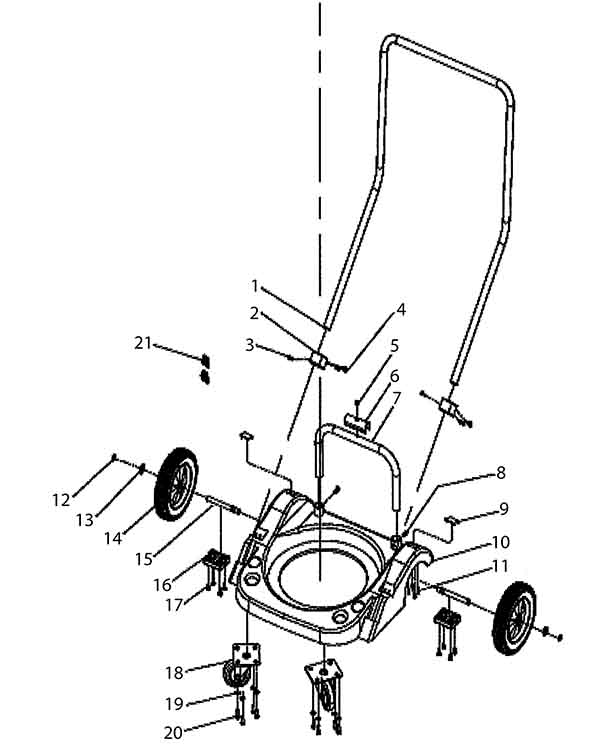

Trolley Assembly - 183-6686
RefNbr Part Number Description Req Notes
1a 183-4977 Handle 1
1b 183-4978 Dolly assembly with handle 1
2 183-4979 Holder 2
3 183-4980 Screw M4 x 16mm stainless steel (OBSOLETE) 2
4 183-4937 Screw M4 x 18mm 4
5 183-4981 Screw M4 x 5mm 1
6 183-4982 Holder 1
7 183-4983 Supporter 1
8 183-4843 Screw M5 x 12mm 2
9 183-4984 Cover 2
10 183-4985 Trolley base 1
11 183-4986 Screw M4 x 12mm 8
12a 183-4987 C clip 2
12b 183-4988 C ring 2
13 183-4838 Washer 4
14 183-4989 Wheel 2
15 183-4990 Axle 2
16 183-4991 Plate 2
17 183-4992 Screw M5 x 50mm 8
18 183-4993 Caster 2
19 183-4994 Washer 8
20 183-4995 Screw M8 x 30mm 8
21 183-4996 Fixer (OBSOLETE) 2

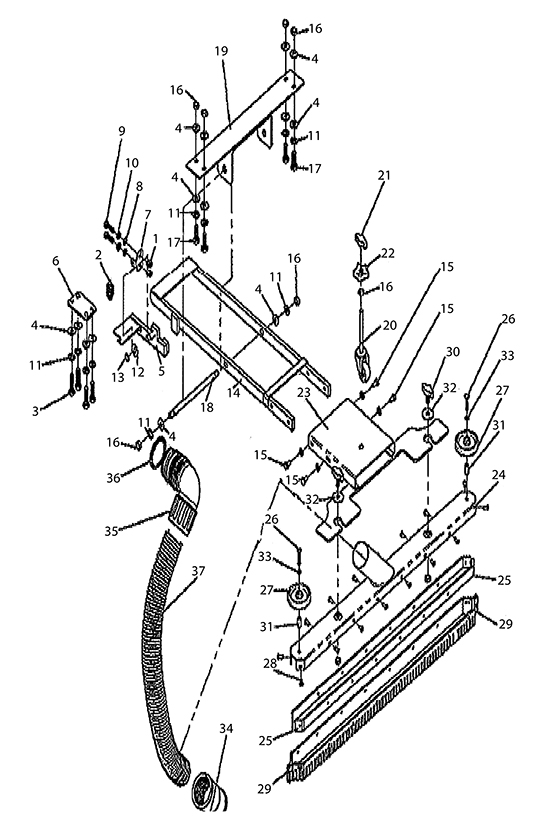

Squeegee Assembly - 183-6687
RefNbr Part Number Description Req Notes
1 183-4998 Nut 2
2 183-2172 Spring 1
3 183-4999 Screw M8 x 30mm 8
4 183-5000 Washer 14
5 183-5001 Hook assembly 1
6 183-5002 Plate 1
7 183-5003 Plate 1
8 183-5004 Washer 6
9 183-5005 Pin M6 x 25mm 2
10 183-5006 Spring washer 2
11 183-5007 Lock washer 10
12 183-5008 Washer 1
13 183-5009 C ring 1
14 183-5010 Long pedal 1
15 183-5011 Screw 4
16 183-5012 Nut 7
17 183-5013 Screw M8 x 25mm 4
18 183-5014 Squeegee pin 1
19 183-5015 U shaft assembly 1
20 183-5016 Caster wheel 1
21 183-5017 Thumb wheel 1
22 183-5018 Adjustment knob 1
23 183-5019 Mounting plate 1
24 183-5020 Squeegee body 1
25 183-5021 Retainer strip 2
26 183-5022 Screw M5 x 25mm 2
27 183-5023 Squeegee wheel 2
28 183-5024 Screw M4 x 10mm stainless steel 16
29 190-0226 Squeegee blade (pkg of 2) 1
30 183-5025 Wing nut 2
31 183-5026 Spacer 2
32 183-5027 Washer 2
33 183-5028 Washer 2
34 183-9060 Connector 1
35 183-5029 Elbow connector 1
36 183-5031 Gasket 1
37 183-9287 Squeegee hose 1
N/S 183-4997 26 inch front mount squeegee assembly 1

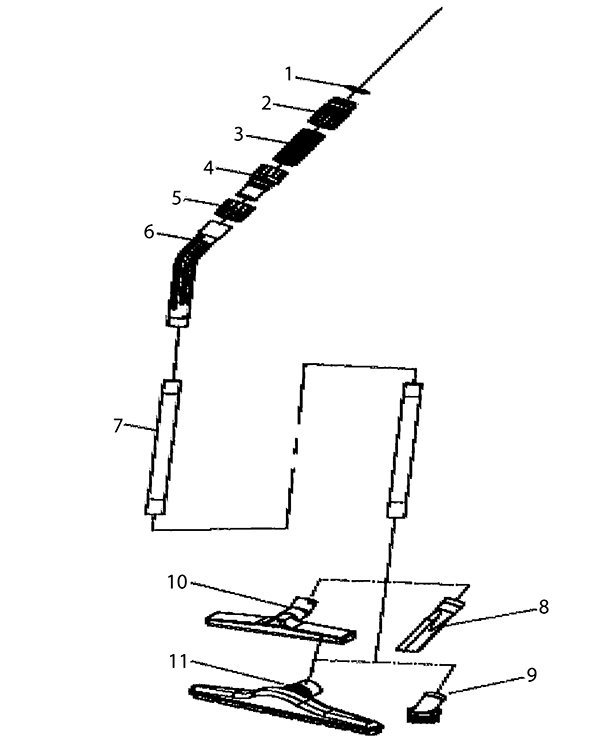

Attachments - 183-6688
RefNbr Part Number Description Req Notes
1 183-5031 Gasket 1
2 183-5033 Connector 1
3 183-5034 3M hose 1
4 183-5035 Connector 1
5 183-5036 Wand holder 1
6 183-5037 Bend connector 1
7 190-1078 Wand extension 1
8 183-5039 Crevice tool 1
9 183-5040 Round brush 1
10a 190-9172 Brush nozzle assembly 1
10b 190-9172 Brush nozzle assembly 1
11 183-5043 Squeegee nozzle assembly 1
N/S 190-0476 Hose 1

- Commonly Asked For Parts - 183-9925
RefNbr Part Number Description Req Notes
01 183-4689 Washable filter cartridge
