Parts List Complete for TORNADO PAC-VAC 6 ROAM

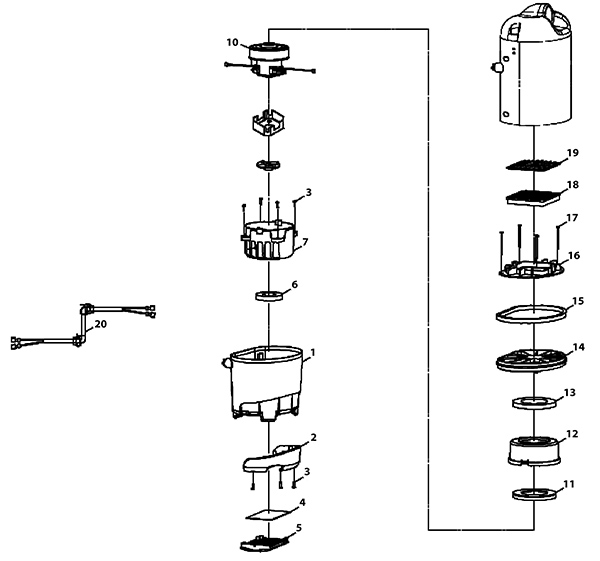

Lower Assembly - 183-1238
RefNbr Part Number Description Req Notes
1 183-1319 Motor compartment 1
2 183-1320 Bumper 1
3 183-1321 Screw #8 x 5/8 8
4 190-0462 Exhaust filter 1
5 183-1322 Post filter frame 1
6 183-1323 Bottom motor mount 1
7 183-1324 Bottom motor shroud 1
10 183-2335 36V vacuum motor 1
11 183-1325 Motor seal 1
12 183-1326 Top motor shroud 1
13 183-1327 Top motor mount 1
14 183-1328 Motor cover 1
15 183-1329 Body seal 1
16 183-1330 Secondary filter plate 1
17 183-1331 Screw 4
18 190-0461 HEPA filter 1
19 183-1333 Secondary filter cap 1
20 183-1334 Wiring kit 1

Upper Assembly - 183-1239
RefNbr Part Number Description Req Notes
1 183-1335 Top cover 1
2 183-1336 Hose inlet 1
3 183-1337 Inlet seal 1
4 183-1321 Screw #8 x 5/8 22
5 991-9042 6 quart paper vacuum bags (pkg of 10) 1
6 190-0450 Cloth bag 1
7 183-1338 Harness 1
8 183-1339 Bag compartment seal 2
9 183-1340 Frame harness 1
10 183-1341 Screw #10 x .750 8
11 183-1342 Latch 2
12 183-1343 Latch rivet 4
13 999-0377 Washer 6 SAE flat plain finish 4
14 183-1344 Back plate 1
19 183-1345 Rubber foot 2
27 183-2279 Wand 1
28 183-1346 6 quart front cover 1
29 183-1347 Battery box cover 1
30 183-1348 Terminal plate 1
31 183-1349 Terminal block 1
32 183-1350 Spring loaded plunger 1
33 183-1351 Switch 1
35 183-1352 Screw 2
36 183-1353 Lock spring 1
37 183-1354 Screw 2
N/S 183-1355 Li ion battery 1
N/S 183-1356 Battery charger with cord 1

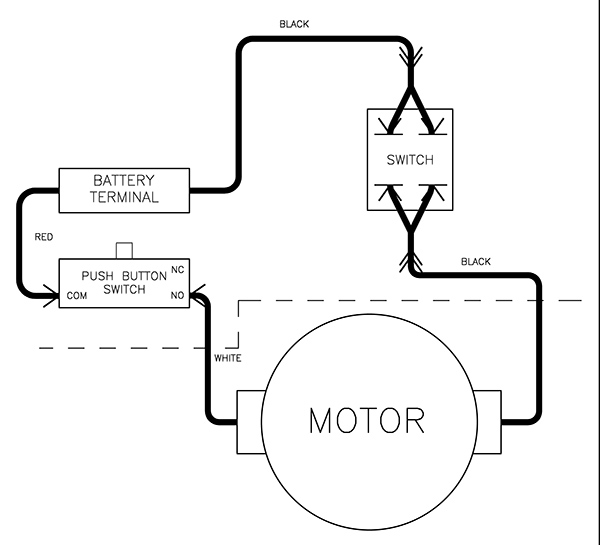

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 183-9904
RefNbr Part Number Description Req Notes
1 183-8740 Spray nozzle retaining nut 1
2 183-8741 Screw 7
3 183-8742 Screw 3
4 183-8743 Spray jet 110 degree pattern 1
5 183-8744 Gasket 2
6 183-8745 Brush housing 1
7 183-8746 Seal 1
8 183-8747 Bottom housing 1
9 183-8748 Exhaust port 1
