Parts List Complete for TORNADO FLOORKEEPER 24

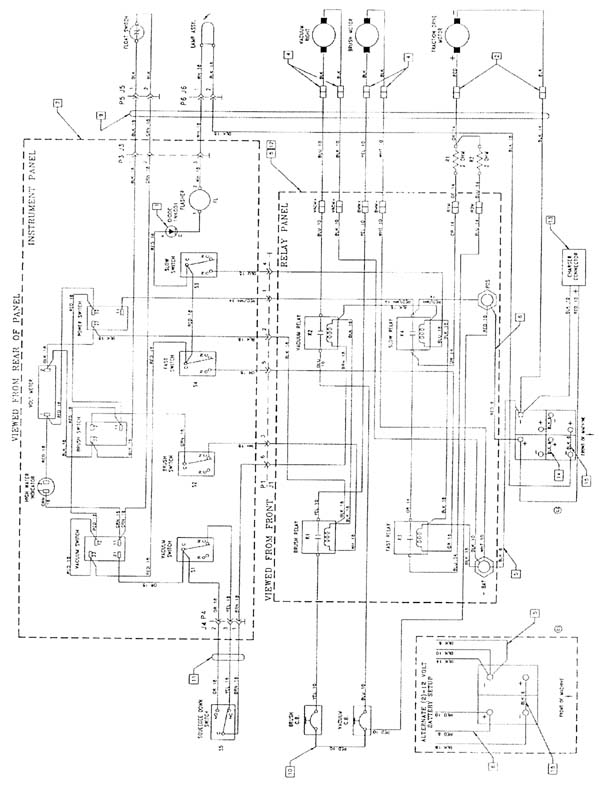

Wiring Diagram - 183-0061
RefNbr Part Number Description Req Notes
001 183-0778 Recitfier assembly 1
002 183-0779 Quick disconnect male terminal (Obsolete) 2
004 183-0780 Quick disconnect fully insulated male terminal 4
005 183-0781 12 inch Battery cable (Obsolete) 1 Black
006 183-0782 12 inch Battery cable 1 Red
007 183-0783 Instrument panel wiring harness (Obsolete) 1
008 183-0784 Heavy gauge relay panel wiring harness (Obsolete) 1
009 183-0785 Main wiring harness (Obsolete) 1
010 183-0786 3 inch Lead (Obsolete) 1
011 183-0787 Vacuum/squeegee switch wiring harness (Obsolete) 1 Red
012 183-0788 Control panel A wiring harness (Obsolete) 1
013 183-0789 Battery charger connector assembly 1
015 183-0790 10 inch battery jumper cable 1
016 183-0621 Self-adhesive retaining clip 3

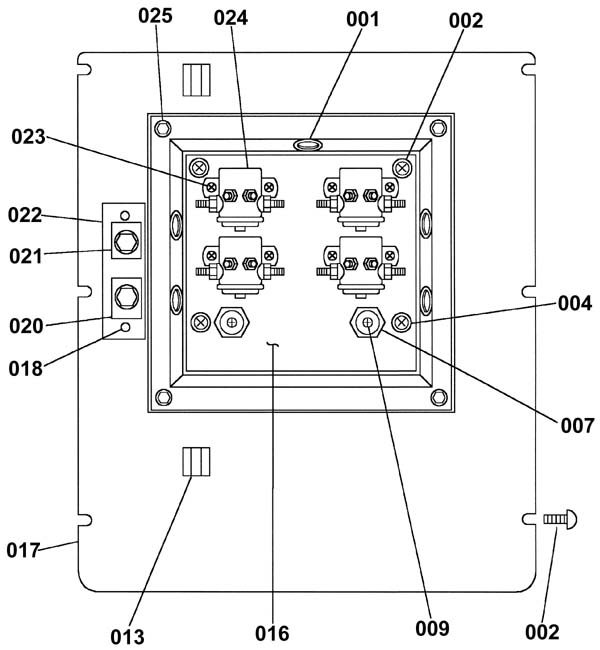

Rear Access Panel with Relays - 183-0062
RefNbr Part Number Description Req Notes
001 183-0791 Grommet 5/8 4
002 999-1172 Screw 1/4-20 x 1/2 truss head phillips zinc 8
004a 999-0016 Washer 1/4 flat plain finish 4
004b 999-1173 Screw 1/4-20 x 5/8 round head phillips zinc plated 4
004c 999-0060 Washer 1/4 split lock plain finish 4
007 173-0792 Steel quick fastener 2
009 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 12
013a 999-0385 Screw 8-32 x 1/2 round head slotted zinc plated 2
013b 999-0077 Nut 8-32 k-lock zinc plated 2
013c 183-0512 Clip 1
016 183-0793 Relay mounting plate 1
017 183-0794 Rear solution tank panel (Obsolete) 1
018a 999-1174 Screw 10-24 x 7/16 pan head phillips zinc plated 2
018b 999-1068 Nut 10-24 hex reversible lock zinc plated 2
020 183-0059 25 amp circuit breaker 1
021a 183-0795 45amp circuit breaker 1 (OEM)
021b 991-5159 45amp circuit breaker 1 (NON-OEM)
022 183-0796 Circuit breaker mounting plate 1
023a 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 12
023b 183-0797 Nut 1/4-20 retainer 8
024 183-0560 24V relay (OBSOLETE) 4
025 183-0798 Retaining access panel pin 4

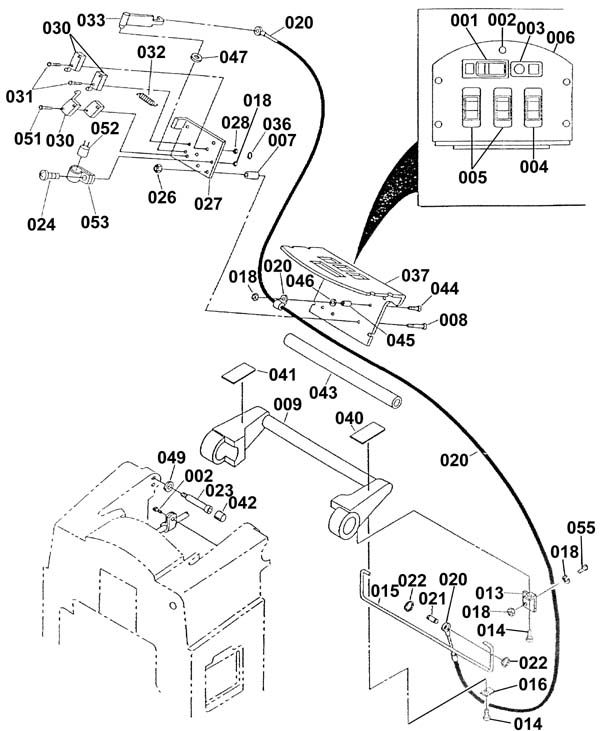

Control/Instrument System Assembly -

RefNbr Part Number Description Req Notes

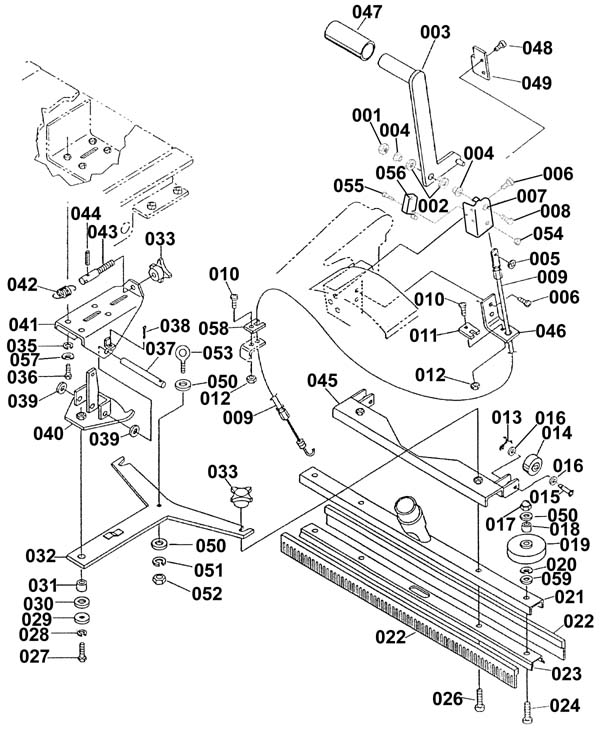

Squeegee Assembly -

RefNbr Part Number Description Req Notes

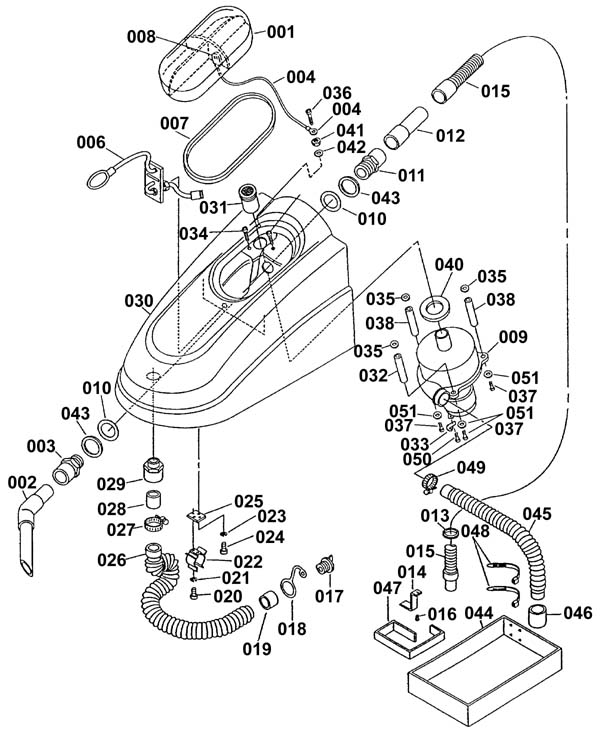

Recovery Tank with Vacuum Motor Assembly - 183-0065
RefNbr Part Number Description Req Notes
001 183-7539 Recovery tank lid (OBSOLETE) 1

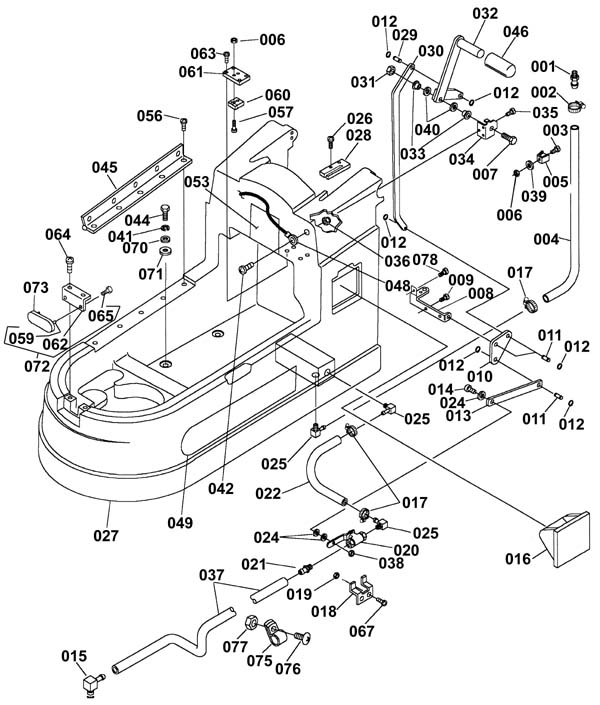

Solution Tank Assembly - 183-0066
RefNbr Part Number Description Req Notes
001 183-0801 Plastic coupler fitting 5/8 (Obsolete) 1
002 183-0802 Hose clamp 15/16 (Obsolete) 1
003 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 1
004 183-0803 Sight tube 1
005 183-0804 Sight tube clip 1
006 183-0602 Nut #6-32 hex lock 3
007 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1
008 183-0805 Solution control bracket 1
009 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 2
010 183-0806 Solution control plate 1
011 183-0807 Pin 3
012 183-0808 Retaining ring 3/8 8
013 183-0809 Lower link bar 1
014 183-0702 Screw 3/8-16 x 3/8 socket head shoulder 1
015 183-0678 Plastic elbow fitting 1
016 183-0810 Fill door 1
017 216-0075 Hose clamp 3
018 183-0812 Solution valve clamp bracket 1
019 183-0641 Nut 1/4-20 hex lock 2
020 183-0508 Solution valve 1 Solution release valve (only available in kit)
021 183-0814 Fitting 1
022 183-0815 Solution tube (Obsolete) 1
024 999-0032 Washer 3/8 USS flat plain finish 2
025 190-0893 90 degree elbow 3
026 183-0595 Screw 8-16 x 3/4 pan head thread forming 2
027 183-0535 Solution tank 1
028 183-0817 Control handle stop plate 1
029 183-0818 Pin 1
030 183-0819 Upper link bar 1
031 999-0247 Nut 3/8-16 hex jam plain finish 1
032 183-0820 Solution control handle weldment 1
033 183-0716 Flanged bearing 3/8 bronze 2
034 183-0821 Handle pivot bracket 1
035 183-0822 Screw #13-9 x 3/4 fillister head 3
036 999-1068 Nut 10-24 hex reversible lock zinc plated 2
037b 183-0824 Solution tube 1 For 24 inch models
038 999-0069 Nut 5/16-18 hex 1
039 999-0051 Washer #6 medium split lock 1
040 999-0566 Washer 1/2 flat nylon 2
041 999-0553 Washer 5/16 medium split lock stainless steel 4
042 999-0820 Screw 10-24 x 7/8 truss head phillips zinc plated 2
044 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel 4
045 183-0826 Hinge 1
046 183-4316 Handle grip 1
048 183-0588 Cable assembly 1
049 183-0829 Logo decal 1
053 183-0830 Battery maintenance decal 1
056 999-1172 Screw 1/4-20 x 1/2 truss head phillips zinc 10
057 999-1175 Screw 6-32 x 7/8 flat head phillips stainless steel 2
059 999-1068 Nut 10-24 hex reversible lock zinc plated 2 Included in 072 kit
060 183-0834 Charger connector (OBSOLETE) 1
061 183-0835 Connector mounting plate 1
062 183-0836 Light mounting bracket 1
063 183-0595 Screw 8-16 x 3/4 pan head thread forming 4
064 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
065 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2 Included in 072 kit
067 999-1173 Screw 1/4-20 x 5/8 round head phillips zinc plated 2
070 999-0016 Washer 1/4 flat plain finish 4
071 999-0120 Washer 3/8 SAE flat 4
072 183-0838 Warning light assembly kit 1 Includes 059, 062, and 065
073 183-0839 Bulb (Obsolete) 2 For Warning light assembly kit -072
075 183-0840 Cable clamp 5/8 2
076 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
077 999-1068 Nut 10-24 hex reversible lock zinc plated 2
078 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 1
N/S 183-0833 Tornado decal 1
N/S 183-0828 Access panel 1
N/S 183-0832 Level gauge decal 1
N/S 183-0831 Identification decal 1
N/S 183-0837 Wiring diagram decal (Obsolete) 1

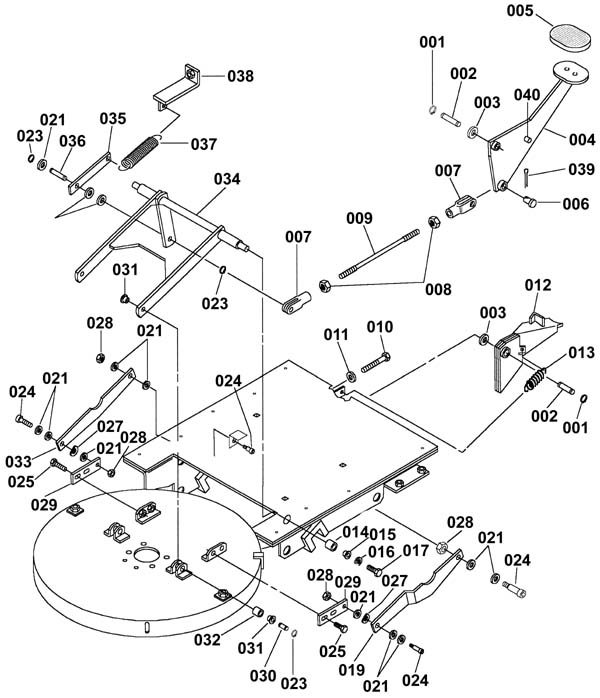

Brush Lift Assembly - 183-0067
RefNbr Part Number Description Req Notes
001 183-0041 Retaining ring 4
002 183-0753 Pin 2
003 999-0566 Washer 1/2 flat nylon 4
004 183-0754 Brush lift pedal weldment (Obsolete) 1
005 183-0755 Pedal mat 1
006 183-0756 Clevis pin 3/8 1
007 183-0757 Clevis 3/8 2
008 999-0143 Nut 3/8-24 hex plain finish 2
009 183-0758 Lift rod 1
010 999-1171 Bolt 5/16-18 x 4 hex head grade 5 zinc plated 1 For 20 inch models only
011 999-0024 Washer 5/16 flat stainless steel 1 For 20 inch models only
012 183-0759 Brush release latch weldment 1
013 183-0555 Extension spring 1
014 183-0760 Bearing 2
015 183-0761 Flanged bushing 3/4 nylon 2
016 999-0120 Washer 3/8 SAE flat 2
017 999-1073 Screw 3/8-16 x 5/8 hex head grade 5 zinc plated 2
018 999-0566 Washer 1/2 flat nylon 2
019a 183-0762 Left hand arm 1 20 inch models only
019b 183-0763 Left hand arm 1 24 inch models only
020 183-0784 Heavy gauge relay panel wiring harness (Obsolete) 1
021 999-0032 Washer 3/8 USS flat plain finish 13 On 24 inch models quantity is 10
022 183-0750 Pin (Obsolete) 1
023 183-0748 Extension retaining ring 3/8 8 On 24 inch models quantity is 6
024 183-0702 Screw 3/8-16 x 3/8 socket head shoulder 3
025 183-0765 Bolt 5/16-18 x 1/2 hex head flange zinc plated 4
027 183-0022 Washer wave 2
028 999-0069 Nut 5/16-18 hex 3
029 183-0766 Adjustment plate 2
030 183-0767 Pin (Obsolete) 2
031 183-0716 Flanged bearing 3/8 bronze 4
032 183-0768 Bronze sleeve bearing 3/8 2
033a 183-0769 Right hand arm 1 For 20 inch models
033b 183-0770 Right hand arm 1 For 24 inch models
034a 183-0771 Brush weldment 1 For 20 inch models only
034b 183-0772 Brush lift weldment 1 For 24 inch models only
035 183-0773 Link 1 For 20 inch models
036a 183-0774 Pin 1 For 20 inch models
036b 183-0699 Cotter pin 1 For 24 inch models only
037 183-0775 Spring 1 For 20 inch models
038 183-0776 Adjustment weldment 1 For 20 inch models only
039 183-0699 Cotter pin 1
040 183-0777 Spring pin 1

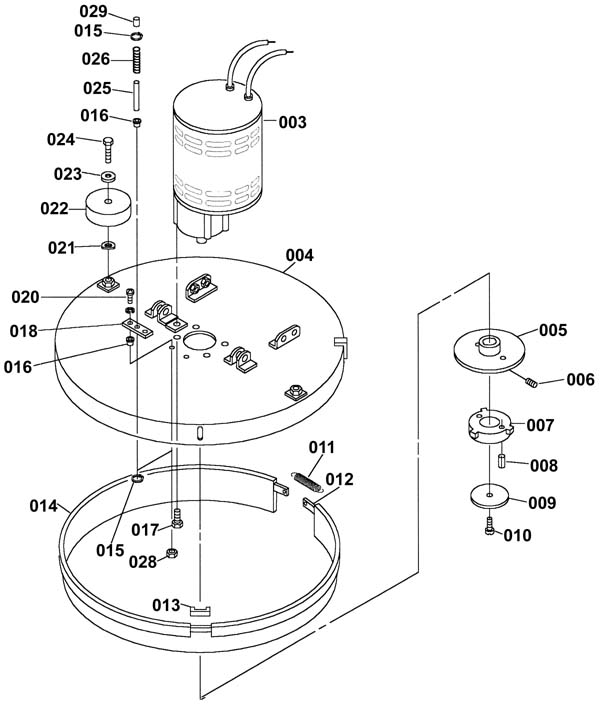

Brush Motor and Cover Assembly - 183-0068
RefNbr Part Number Description Req Notes
003 183-0740 1HP brush motor 1
004 183-0741 24 inch Brush cover 1
005 183-0062 Brush retainer plate 1
006 183-0742 Screw 1/4-20 x 1/4 socket set black oxide 1
007 183-0064 Brush retainer plate 1
008 183-0064 Brush retainer plate 2
009 183-0066 Clutch retaining ring 1
010 183-0063 Screw 1
011 183-4220 Extension spring 1
012a 183-0744 20 inch Bumper strap 1
012b 183-0745 24 inch Bumper strap 1
013 183-0002 Keeper 2
014a 183-0746 20 inch Brush cover bumper 1
014b 183-0747 24 inch Brush cover bumper 1
015 183-0748 Extension retaining ring 3/8 2
016 183-0716 Flanged bearing 3/8 bronze 2
017 999-1073 Screw 3/8-16 x 5/8 hex head grade 5 zinc plated 4
018 183-0749 Bearing retaining plate (OBSOLETE) 1
020 999-1075 Screw 8-32 x 3/4 round head slotted stainless steel 2
021 183-0022 Washer wave 2
022 183-0021 Bumper wheel 2
023 999-0032 Washer 3/8 USS flat plain finish 2
024 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 2
025 183-0750 Pin (Obsolete) 1
026 183-0752 Compression spring 1
028 999-0077 Nut 8-32 k-lock zinc plated 2
029 183-0751 Cap 1

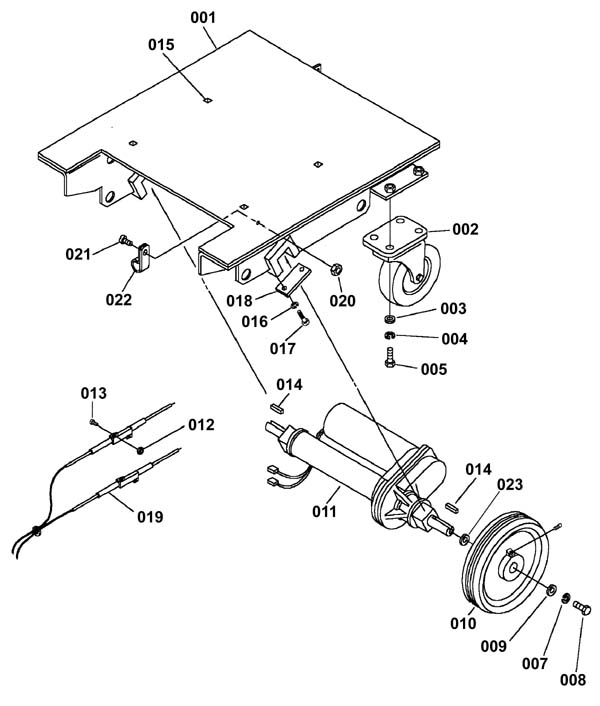

Traction Drive Assembly - 183-0069
RefNbr Part Number Description Req Notes
002 183-4222 Caster wheel 2
010 183-4221 8 inch wheel 2

- Batteries, Brushes and Chargers - 183-9973
RefNbr Part Number Description Req Notes
01 162-0003 6V 225Ah wet battery (SNSR) 4
02 162-0043 6V 224Ah AGM battery (Group GC2) 4
03 162-5060 24V 20amp battery charger with small SB50 red plug 1
04 991-2103 50amp charger plug SB50 with pins (red) 1
05 996-1774 11 inch heavy grit stripping brush - 80 grit 2
06 996-1777 11 inch medium grit scrubbing brush - 180 grit 2
07 996-1780 11 inch lite grit scrubbing brush - 500 grit 2
08 996-1783 11 inch polypropelene scrubbing brush 2
09 996-1786 Pad driver 2
10 996-1616 Clutch plate (OBSOLETE) 2

- Pads - 255-2400
RefNbr Part Number Description Req Notes
01 255-2440 24 inch aqua plus burnishing pad (pkg of 5)
02 255-2435 24 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2464 24 inch Blue ace pad (pkg of 5)
04 255-2442 24 inch Blue Jay burnishing pad (pkg of 5)
05 255-2412 24 inch Cure white pad (pkg of 5)
06 255-2477 24 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2438 24 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2421 24 inch gorilla lite burnishing pad (pkg of 5)
09 255-2450 24 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2465 24 inch Heat concrete bonding pad (pkg of 5)
11 255-2430 24 inch jaguar burnishing pad (pkg of 5)
12 255-2469 24 inch Micropolish polishing and burnishing pad (pkg of 2)
13 255-2490 24 inch premium black stripping pad (pkg of 5)
14 255-2470 24 inch premium blue cleaning pad (pkg of 5)
15 255-2492 24 inch premium brown stripping pad (pkg of 5)
16 255-2480 24 inch premium green scrubbing pad (pkg of 5)
17 255-2460 24 inch premium red scrubbing pad (pkg of 5)
18 255-2452 24 inch premium tan polishing pad (pkg of 5)
19 255-2420 24 inch premium white polishing pad (pkg of 5)
20 255-2411 24 inch superspped rubberized pad (pkg of 5)
21 255-2495 24 inch razorback stripping pad (pkg of 5)
22 255-2447 24 inch Redwood maroon floor prep pad (pkg of 10)
23 255-0174 24 inch Professional sand screen 100 grit (pkg of 10)
24 255-0175 24 inch Professional sand screen 180 grit (pkg of 10)
25 255-0176 24 inch Professional sand screen 220 grit (pkg of 10)
26 255-0267 24 inch Superscreen sand screen 100 grit (pkg of 10)
27 255-0268 24 inch Superscreen sand screen 180 grit (pkg of 10)
28 255-0269 24 inch Superscreen sand screen 220 grit (pkg of 10)
29 255-9619 24 inch Diamond by Gorilla 11000 Grit (pkg of 2)
30 255-9616 24 inch Diamond by Gorilla 1500 Grit (pkg of 2)
31 255-9613 24 inch Diamond by Gorilla 200 Grit (pkg of 2)
32 255-9617 24 inch Diamond by Gorilla 3000 Grit (pkg of 2)
33 255-9614 24 inch Diamond by Gorilla 400 Grit (pkg of 2)
34 255-9615 24 inch Diamond by Gorilla 800 Grit (pkg of 2)
35 255-9618 24 inch Diamond by Gorilla 8000 Grit (pkg of 2)
36 255-9649 24 inch Diamond starter pack (1 of each grit)
37 255-2415 24 inch Duala clean and shine pad - low speed (pkg of 5)
38 255-2416 24 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
