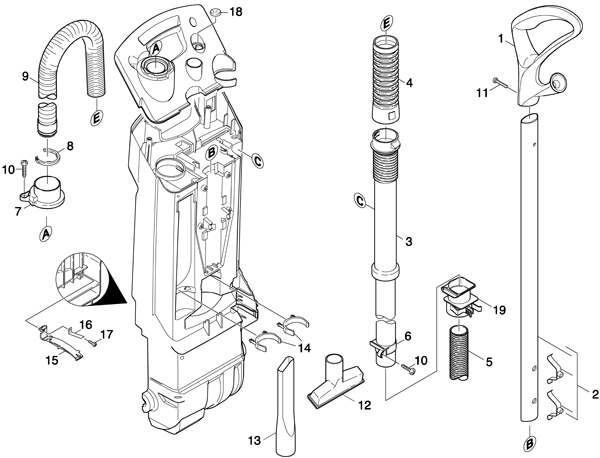

Main Assembly - 183-4009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
183-8113 |
Handle bracket |
1 |
|
| 3 |
183-7414 |
Suction tube with sleeve |
1 |
|
| 5 |
183-8114 |
Suction hose |
1 |
|
| 6 |
183-7415 |
Suction tube ring |
1 |
|
| 7 |
183-7549 |
Connection piece |
1 |
|
| 8 |
183-8115 |
Retaining ring |
1 |
|
| 10 |
183-8117 |
Screw 5 x 40 |
2 |
|
| 11 |
183-8117 |
Screw 5 x 40 |
1 |
|
| 12 |
183-8118 |
Upholstery nozzle |
1 |
|
| 13 |
173-5755 |
Crevice nozzle |
1 |
|
| 17 |
273-0966 |
Screw M4-10.9 x 12mm round head |
1 |
|
| 19 |
183-8122 |
Bushing (OBSOLETE) |
1 |
|
|
|

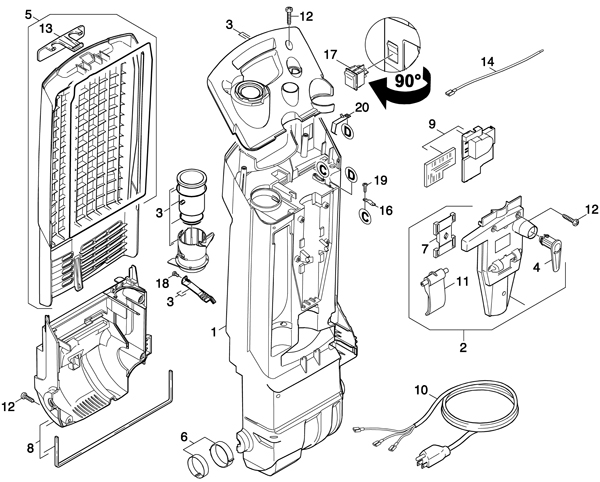

Upper Assembly - 183-4010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
183-8124 |
Back cover assembly |
1 |
(includes 4, 7, 11 and 12) |
| 3b |
183-4780 |
Lever and tube assembly |
1 |
|
| 4 |
183-2129 |
Lower cord catch |
1 |
|
| 5 |
183-9015 |
Cover |
1 |
(includes 13) |
| 6 |
183-8126 |
Bearing shell |
1 |
|
| 9 |
183-8129 |
Circuit board |
1 |
|
| 10 |
183-9014 |
40 foot power cord |
1 |
|
| 12 |
183-8116 |
Screw 5 x 20 |
9 |
|
| 14 |
183-8132 |
Electrical cable |
1 |
|
| 17 |
183-2526 |
Rocker switch |
1 |
|
| 18 |
273-0966 |
Screw M4-10.9 x 12mm round head |
1 |
|
| 19 |
183-0923 |
Screw 3.5 x 12 |
2 |
|
|
|

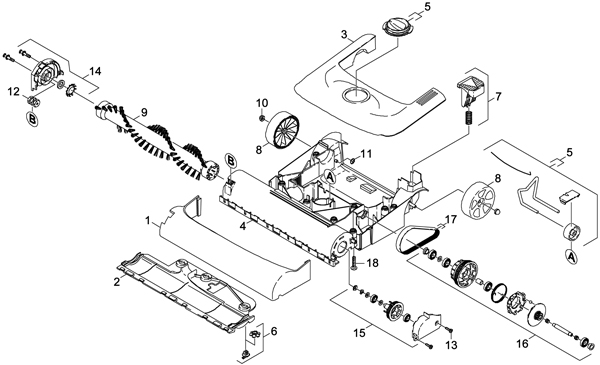

Brush Head Assembly - 183-4011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
183-4629 |
Shock absorber |
1 |
|
| 4 |
183-8176 |
Bottom cover |
1 |
|
| 5 |
183-4586 |
Wheel adjustment |
1 |
|
| 6 |
183-7433 |
Lock piece kit (pkg of 4) |
1 |
|
| 9 |
183-8172 |
Roller brush (black) |
1 |
|
| 10 |
183-7435 |
Lock washer |
2 |
|
| 11 |
183-7436 |
Lock washer |
2 |
|
| 12 |
183-7511 |
Screw union |
2 |
|
| 13 |
273-0966 |
Screw M4-10.9 x 12mm round head |
2 |
|
| 14 |
183-0883 |
Covering cap |
1 |
|
| 15 |
183-0884 |
Belt side covering cap |
1 |
|
| 16 |
183-8136 |
Coupler assembly |
1 |
|
| 17 |
164-6694 |
Belt (pkg of 2) |
1 |
|
| 18 |
183-8116 |
Screw 5 x 20 |
8 |
|
|
|

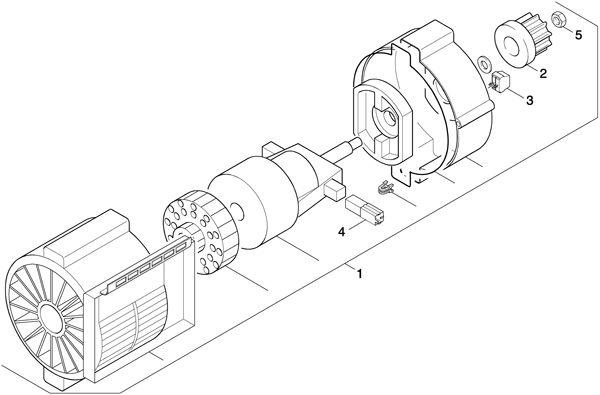

Vacuum Motor Assembly - 183-4012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
183-8137 |
Vacuum motor assembly |
1 |
(includes 2-5) |
| 3 |
183-2100 |
Strip terminal |
1 |
|
| 4 |
183-2107 |
Carbon brush set (pkg of 2) |
1 |
|
|
|

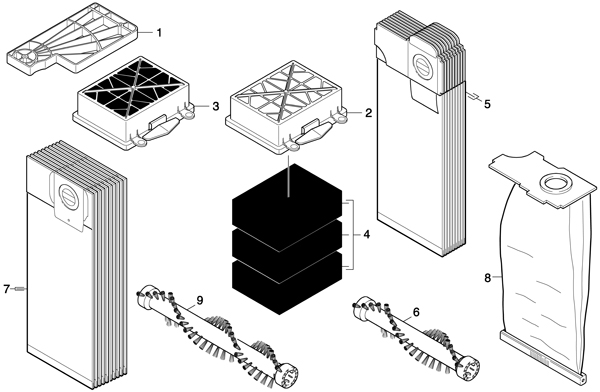

Accessories - 183-4013 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
183-0886 |
Vacuum filter |
1 |
|
| 2 |
183-8139 |
Filter frame |
1 |
|
| 3a |
183-7451 |
HEPA filter |
1 |
|
| 3b |
991-6037 |
Hepa filter |
1 |
|
| 4 |
183-9017 |
Exhaust air filter (pkg of 3) |
1 |
|
| 5a |
183-4585 |
Paper vacuum bag (pkg of 10) |
1 |
|
| 5b |
991-9155 |
Paper vacuum bags (pkg of 10) |
1 |
(NON-OEM) |
| 6 |
183-8140 |
Brush roll (red) |
1 |
|
| 7 |
183-4219 |
Cleanbreeze filter bag (pkg of 10) |
1 |
|
| 8 |
183-8141 |
Cloth filter bag |
1 |
|
| 9 |
183-8142 |
Roller brush (red) |
1 |
|
|
|
- Frequently Replaced Parts - 183-9960 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
183-7414 |
Suction tube with sleeve |
|
|
| 02 |
183-7415 |
Suction tube ring |
|
|
| 04 |
183-7510 |
Brush roller (black) |
|
|
| 05 |
991-9041 |
Fleece vacuum bags (pkg of 10) |
|
|
| 06 |
991-9053 |
Paper vacuum bags (pkg of 10) |
|
|
| 08 |
183-0884 |
Belt side covering cap |
|
|
| 09 |
183-7414 |
Suction tube with sleeve |
|
|
| 10 |
183-8137 |
Vacuum motor assembly |
|
|
| 11 |
183-8170 |
Crevice nozzle |
|
|
| 13 |
183-4629 |
Shock absorber |
|
|
| 14 |
183-8172 |
Roller brush (black) |
|
|
| 15 |
183-8136 |
Coupler assembly |
|
|
| 16 |
164-6694 |
Belt (pkg of 2) |
|
|
| 19 |
183-7435 |
Lock washer |
2 |
|
| 20 |
183-7436 |
Lock washer |
2 |
|
|
|
