Parts List Complete for TORNADO BR 530 99575


Cover - 183-0019
RefNbr Part Number Description Req Notes
000 N/A Not available 1 (Cover)
001 183-0068 Housing with cover 1
002 183-0068 Housing with cover 1
003 183-0071 Sealing profile recovery tank seal (Sold by the inch) 2
004 183-0072 Joint ring 1
005 183-0073 Float 1
006 183-0074 Washer 1
007 183-0075 Screw 5-16 x 10.9mm 3
008 183-0076 Joint ring 1
009 183-0077 Bolt 3
010 183-0078 Rubber buffer 3
011 183-0079 Hex nut 3
012a 183-0080 24V vacuum motor (OBSOLETE) 1
012b 991-0019 BX50 Belt 1 (NON-OEM)
013 183-0081 Hose clamp 1
014 183-0082 Sound proof hose 1
016 183-0084 Screw 1
017 183-0085 Cheese head screw 2
018 183-0086 Suction/squeegee hose assembly 1
019 183-0087 Protecting cap 2
020 183-0088 Plate 1
021 183-0089 Sleeve 1
022 183-0090 Washer lock 1
023 183-0091 Washer 3
024 183-0092 Pipe clip 1
026 183-0093 Screw M6-1 x 16mm 1
027 183-0094 Gasket 1
028a 183-0095 Plate 1
028b 183-0096 Plate (Obsolete) 1
029 183-0097 Plate (OBSOLETE) 1
030 183-0098 Seal 1
032 183-0099 Washer 1
033 183-0100 Gasket 1
034 183-0101 Pipe 1
035 183-0068 Housing with cover 1
036 183-0103 Carbon brush set (Obsolete) 1

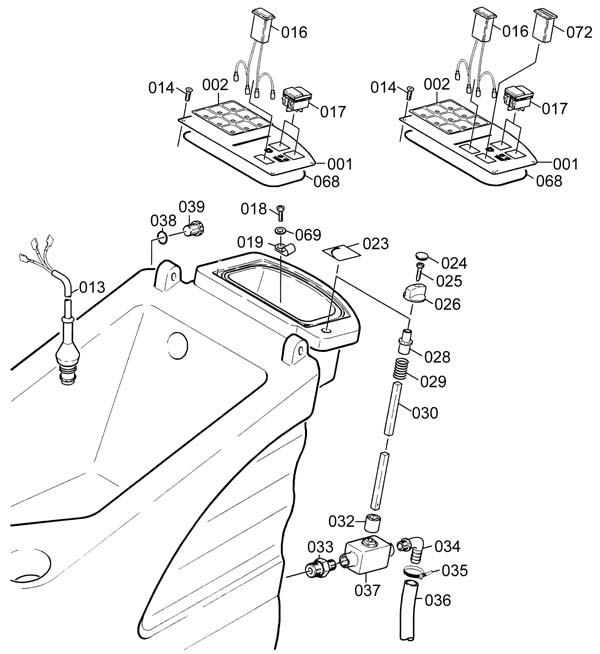

Control Panel Assembly 1 - 183-0020
RefNbr Part Number Description Req Notes
001a 183-0104 Control panel (OBSOLETE) 1
001b 183-0105 Control panel 1
002 183-0106 Decal 1
013 183-0107 Electric parts (Obsolete) 1
014 183-0108 Screw M4-10.9 x 16mm oval head 4
016 183-0109 Battery monitor 1
017 183-0110 Switch 2
018 183-0111 Screw (Obsolete) 1
019 183-0112 Pipe clamp (Obsolete) 1
023 183-0113 Decal (Obsolete) 1
024 183-0114 Ornamental hub cap 1
025 183-0115 Sheet metal screw (Obsolete) 1
026 183-0116 Handle 1
028 183-0117 Coupler 1
029 183-0118 Helecal spring 1
030 183-0119 Bar 1
032 183-0120 Coupler 1
033 183-0121 Double nipple 1
034 183-0122 Angle Socket 1
035 183-0123 Hose clamp 2
036 183-0124 Hose 1
038 183-0126 Gasket 1
039 183-0127 Closing screw 1
068 183-0128 Cellular rubber cord 1
069 183-0129 Washer (Obsolete) 1
072 183-0130 Hour meter (Obsolete) 1

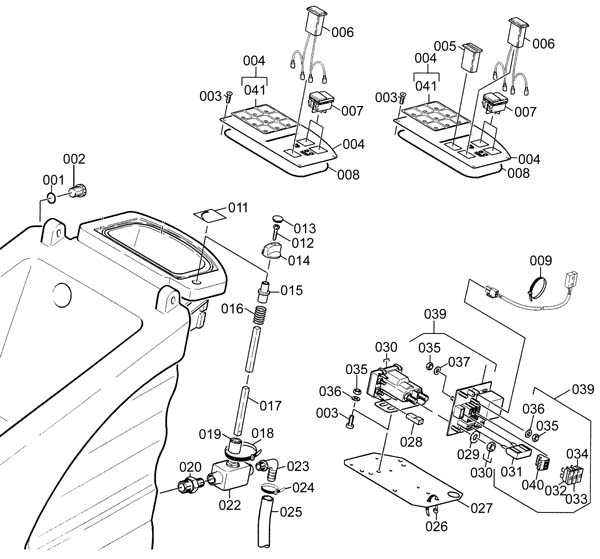

Control Panel Assembly 2 - 183-0021
RefNbr Part Number Description Req Notes
001 183-0131 Seal (Obsolete) 1
002 183-0132 Closure 1
003 183-0133 Screw 6
004a 183-0134 Control panel (OBSOLETE) 1
004b 183-0135 Control panel 1
005 183-0136 Hour meter (Obsolete) 1
006a 183-0137 Electric Equipment (Obsolete) 1
006b 183-0109 Battery monitor 1
007 183-0110 Switch 2
008 183-0138 Cellular rubber cord (Obsolete) 1
009 183-0139 Cable tie (Obsolete) 1
011 183-0113 Decal (Obsolete) 1
012 183-0140 Sheet metal screw 1
013 183-0114 Ornamental hub cap 1
014 183-0116 Handle 1
015 183-0117 Coupler 1
016 183-0118 Helecal spring 1
017a 183-0119 Bar 1
017b 183-0141 Bar (Obsolete) 1
018 183-0142 Tie band 6
019 183-0120 Coupler 1
020 183-0143 Double nipple connector 1
023 183-0122 Angle Socket 1
024 183-0123 Hose clamp 1
025 183-0124 Hose 2
026 183-0144 Cable tie (Obsolete) 1
027 183-0145 Plate (Obsolete) 1
028 183-0146 Insulating house 11
029 999-9097 Washer M8 flat stainless steel 4
030 183-0148 Power relay 1
031 183-0149 Fuse insert 1
032 183-0150 Fuse insert 1
033 183-0151 Fuse insert 1
034 183-0152 Fuse insert 1
035 183-0153 Hex nut (Obsolete) 9
036 183-0154 Washer (Obsolete) 3
037 183-0129 Washer (Obsolete) 4
040 183-0156 Plug (Obsolete) 1
041 183-0106 Decal 1

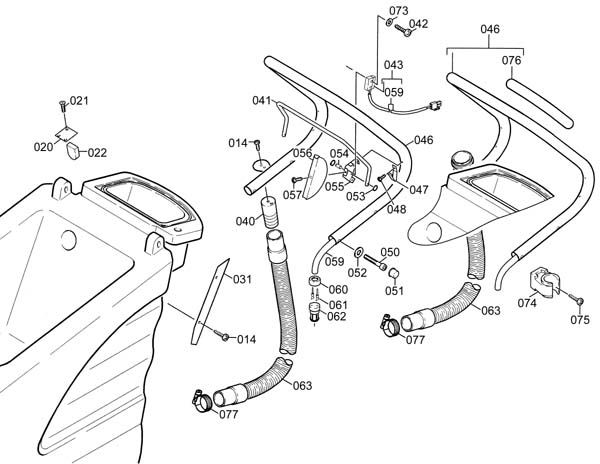

Handle Assembly 1 - 183-0022
RefNbr Part Number Description Req Notes
014 183-0180 Drain hose (OBSOLETE) 3
020 183-0157 Retainer clip (Obsolete) 1
021 183-0158 Flat head screw (Obsolete) 3
022 183-0159 Seal (Obsolete) 2
031 183-0160 Plate (Obsolete) 1
040 183-0161 Drain hose cap 1
041 183-0162 Strap 1
042 183-0163 Sheet metal screw 2
043 183-0164 Switch 1
046a 183-0165 Handle 1
046b 183-0166 Handle (Obsolete) 1
047 183-0167 Plate spring 1
048 183-0168 Screw 4
050 183-0169 Cheese head screw 4
051 183-0087 Protecting cap 4
052 999-9097 Washer M8 flat stainless steel 4
053 183-0170 Washer lock 4
054 183-0171 Bolt 2
055 183-0172 Bracket 2
056 183-0173 Covering cap 1
057 183-0174 Sheet metal screw 2
059 183-0175 Insulating hose 1
060 183-0176 Rubber cap 1
061 183-0177 Pin 3
062 183-0178 Plug housing 1
063a 183-0192 Oil resistant drain hose 1
063b 183-0180 Drain hose (OBSOLETE) 1
073 183-0181 Washer (Obsolete) 2
074 183-0092 Pipe clip 1
075 183-0182 Cheese head screw 1
076 183-0183 Hose (Obsolete) 1
077 183-0184 Hose clamp 1

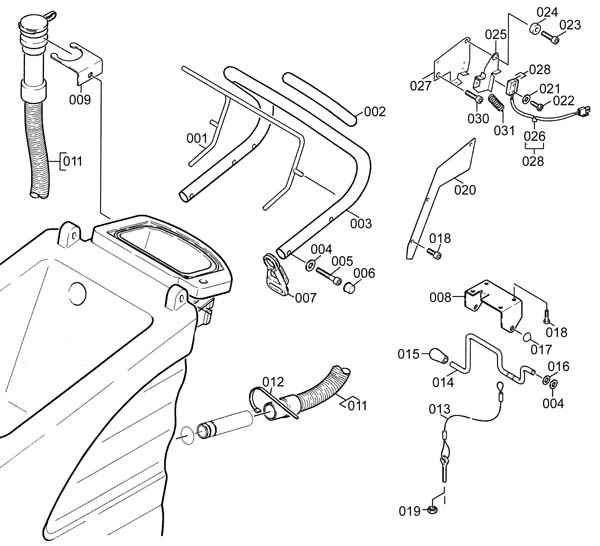

Handle Assembly 2 - 183-0023
RefNbr Part Number Description Req Notes
001 183-0185 Strap 1
002 183-0186 Hose 1
003 183-0187 Handle (Obsolete) 1
004 183-0099 Washer 10
005 183-0169 Cheese head screw 4
006 183-0087 Protecting cap 4
007 183-0188 Pull relief 1
008 183-0189 Bracket 1
009 183-0190 Plate 1
010 183-0182 Cheese head screw 1
011b 183-0192 Oil resistant drain hose 1
012 183-0184 Hose clamp 2
013 183-0193 Rope suction beam 1
014 183-0194 Strap (OBSOLETE) 1
015 183-0195 Switch knob 1
016 183-0196 Washer lock 2
017 183-0197 Wheel cap 3
018 183-0075 Screw 5-16 x 10.9mm 7
019 183-0199 Hex nut 1
020 183-0200 Plate 1
021 183-0163 Sheet metal screw 2
022 183-0201 Washer (Obsolete) 2
023 183-0202 Screw 1
024 183-0203 Washer (Obsolete) 1
025 183-0204 Plate 1
026 183-0175 Insulating hose 1
027 183-0205 Plate 1
028 183-0164 Switch 1
030 183-0206 Screw 1
031 183-0207 Extension spring 1

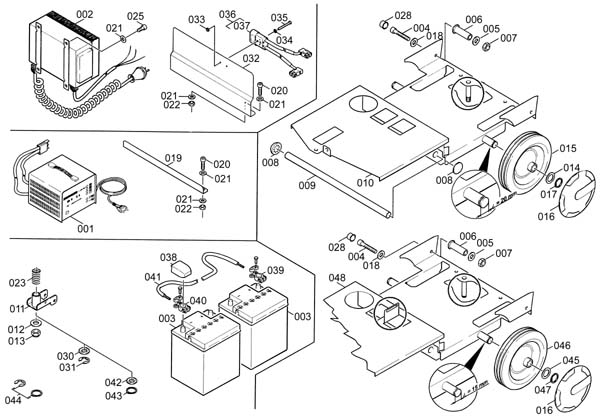

Chassis Assembly - 183-0024
RefNbr Part Number Description Req Notes
001a N/A Not available 1 Battery charger
002 N/A Not available 1 Battery Charger
003a 183-0211 12V 70amp battery 2
003b 162-0011 12V 105Ah wet battery (SNSR) 2
004a 183-0213 Cheese head screw 2
004c 183-0215 Cheese head screw (Obsolete) 2
005b 183-0216 Washer 4
006a 183-0089 Sleeve 2
006b 183-0217 Sleeve 2
007 183-0218 Hex nut 2
008 183-0219 Washer lock 2
009a 183-0220 Axle (Obsolete) 1
009b 183-0221 Axle (Obsolete) 1
010 183-0222 Bracket (Obsolete) 1
011a 183-0224 Carrier 1
011b 183-0224 Carrier 1
011c 183-0225 Carrier (Obsolete) 1
012 183-0226 Washer (Obsolete) 1
013 183-0227 Hex nut 1
015 183-0228 Wheel 2
016 183-0229 Wheel cab 2
017 183-0230 Spring clip 2
018 183-0099 Washer 1
019a 183-0231 Angle (Obsolete) 1
019b 183-0232 Angle (Obsolete) 1
020a 183-0236 Screw 2
020b 183-0202 Screw 2
021 183-0237 Washer 8
022 183-0079 Hex nut 2
023a 183-0238 Helical spring 1
023b 183-0239 Helical spring (Obsolete) 1
025 183-0206 Screw 4
028 183-0087 Protecting cap 2
030 183-0240 Washer 1
031 183-0241 Washer lock 1
032 183-0242 Angle 1
033 183-0233 Hex nut 2
034 183-0243 Washer 2
035 183-0244 Screw 2
036 183-0245 Charger plug and cable assembly (batteries to charger plug) 1
037 183-0246 Plug 1
038 183-0247 Cap (Obsolete) 1
039 183-0248 Battery terminal 1
040 183-0249 Battery terminal (Obsolete) 1
041 183-0250 Connection cable 1
042 183-0251 Washer 1
043a 183-0252 Spring clip 1
043b 183-0253 Spring clip (Obsolete) 1
044 183-0254 Piece parts 1
045a 183-0255 Washer 2
045b 183-0256 Washer (OBSOLETE) 2
046 183-0257 Wheel 2
047a 183-0258 Spring clip 2
047b 183-0259 Locking ring 2
048a 183-0234 Bracket (Obsolete) 1
048b 183-0235 Bracket (Obsolete) 1

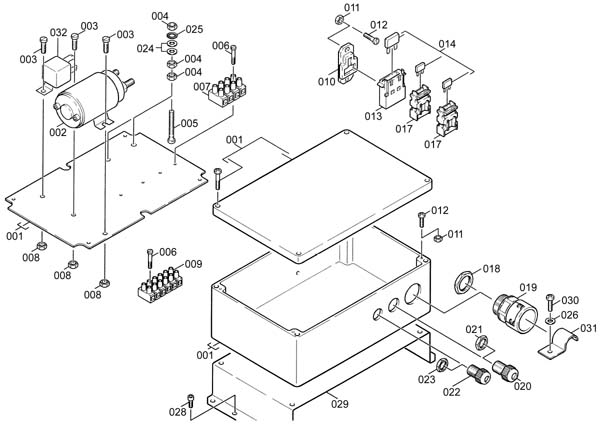

Switch Box Assembly - 183-0025
RefNbr Part Number Description Req Notes
001 183-0260 Chest (Obsolete) 1
002 183-0148 Power relay 1
003 183-0261 Screw (obsolete) 3
004 183-0262 Hex nut 6
005 183-0263 Flat screw (Obsolete) 2
006 183-0264 Screw (Obsolete) 4
007 183-0265 Strip terminal (Obsolete) 1
008 183-0153 Hex nut (Obsolete) 3
009 183-0266 Strip terminal 1
010 183-0267 Plate (Obsolete) 1
012 183-0269 Cheese head screw (Obsolete) 6
013 183-0270 Retainer 1
014 183-0271 Spare parts kit (Obsolete) 1
017 183-0272 Retainer (obsolete) 2
018 183-0273 Nut counter (Obsolete) 1
019 183-0274 Cable connector (Obsolete) 1
021 183-0276 Nut counter (Obsolete) 1
022 183-0277 Cable connector (Obsolete) 1
023 183-0278 Nut counter (Obsolete) 1
024 183-0237 Washer 4
025 183-0279 Washer lock (Obsolete) 2
026 183-0129 Washer (Obsolete) 1
028 183-0182 Cheese head screw 3
029 183-0280 Bracket (Obsolete) 1
030 183-0281 Screw 1
031 183-0112 Pipe clamp (Obsolete) 1
032 183-0282 Relay (Obsolete) 1

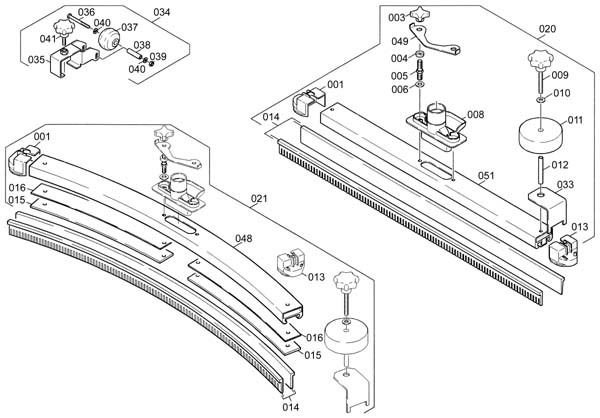

Squeegee Assembly 1 - 183-0026
RefNbr Part Number Description Req Notes
001 183-0283 Tail piece 2
003 183-0284 Star handle 2
004 183-0285 Washer (OBSOLETE) 2
005 183-0286 Pin (OBSOLETE) 2
008 183-0287 Connecting piece 1
010 999-9097 Washer M8 flat stainless steel 2
011 183-0289 Roller wheel 2
012 183-0290 Pipe 2
013 183-0291 Tail piece 1
014a 183-0292 Oil resistant squeege blade set (OBSOLETE) 1
014b 183-0293 Squeege blade set 1
015 183-0294 Insert (Obsolete) 2
016 183-0295 Insert (Obsolete) 2
020 183-0296 Straight squeegee assembly (Obsolete) 1
021 183-0297 Curved squeegee assembly (Obsolete) 1
033 183-0298 Angle 2
034 183-0299 Support wheels kit 2
035 183-0300 Bracket (Obsolete) 2
036 183-0302 Screw 2
037 183-0301 Wheel 1
038 183-0303 Axle 2
039 183-0304 Hex nut 2
040 999-1261 Washer M6 flat stainless steel 4
041 183-0306 Handle 2
048 183-0307 Profile (Obsolete) 1
049 183-0308 Plate 1
051 183-0309 Profile (Obsolete) 1

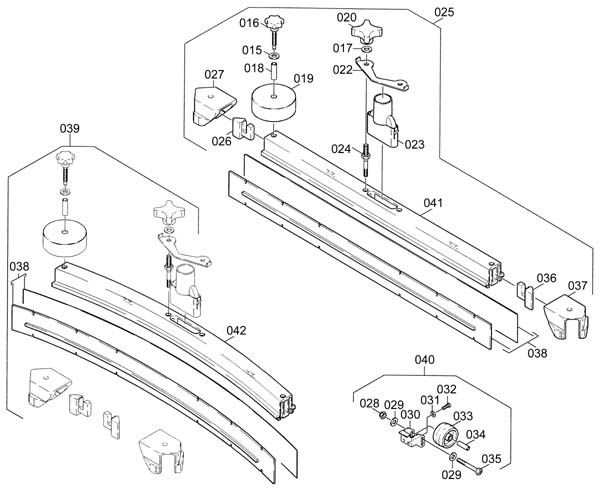

Squeegee Assembly 2 - 183-0027
RefNbr Part Number Description Req Notes
015a 999-9097 Washer M8 flat stainless steel 3
015b 183-0099 Washer 3
016b 183-0310 Control knob (Obsolete) 2
018a 183-0311 Pipe 2
018b 183-0312 Pipe (Obsolete) 2
019 183-0289 Roller wheel 2
020 183-0284 Star handle 2
022a 183-0308 Plate 1
022b 183-0313 Angle (Obsolete) 1
023 183-0314 Intake tube 1
024 183-0315 Pin (Obsolete) 1
025a 183-0316 Straight squeegee beam (Obsolete) 1
025b 183-0317 Squeegee beam (Obsolete) 1
026 183-0318 Hose 1
027 183-0319 Hose 1
028 183-0304 Hex nut 1
029 999-1261 Washer M6 flat stainless steel 2
030a 183-0320 Bracket (Obsolete) 2
030b 183-0321 Bracket (Obsolete) 2
031 999-9100 Washer M5 flat stainless steel 2
032 183-0323 Screw M5-.8 x 10mm stainless steel 2
033 183-0301 Wheel 1
034 183-0303 Axle 1
035 183-0302 Screw 1
036 183-0324 Hose (Obsolete) 1
037 183-0325 Hose (Obsolete) 1
038a 183-0326 Anti-stripe squeegee blade set 1
038b 183-0327 Oil-resistant squeegee blade set 1
039 183-0328 Complete squeegee assembly 1
040 183-0299 Support wheels kit 2
041 183-0329 Profile (Obsolete) 1
042 183-0330 Profile (Obsolete) 1

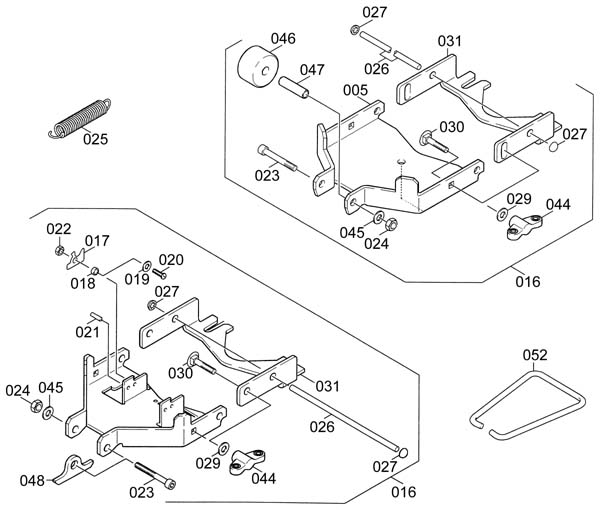

Lifting Bracket Assembly - 183-0028
RefNbr Part Number Description Req Notes
005a 183-0331 Bracket 1
005b 183-0332 Bracket (Obsolete) 1
016 183-0333 Suction part 1
017 183-0334 Moulded part (Obsolete) 1
018 183-0335 Sleeve (Obsolete) 1
019 183-0181 Washer (Obsolete) 1
020 183-0336 Screw (obsolete) 1
021 183-0337 Pin (Obsolete) 1
022 183-0338 Hex nut (Obsolete) 1
023a 183-0339 Screw 1
023b 183-0340 Screw 1
024 183-0341 Hex nut 1
025 183-0207 Extension spring 1
026 183-0342 Bar 1
027 183-0197 Wheel cap 2
029 183-0237 Washer 2
030 183-0343 Screw 2
031a 183-0344 Rocker 1
031b 183-0345 Rocker (Obsolete) 1
032 183-0346 Weight (Obsolete) 1
044 183-0347 Wing nut (Obsolete) 2
045 183-0099 Washer 1
046 183-0348 Roller 1
047 183-0349 Bushing 1
048 183-0350 Moulded part (Obsolete) 1
052 183-0351 Strap (Obsolete) 1

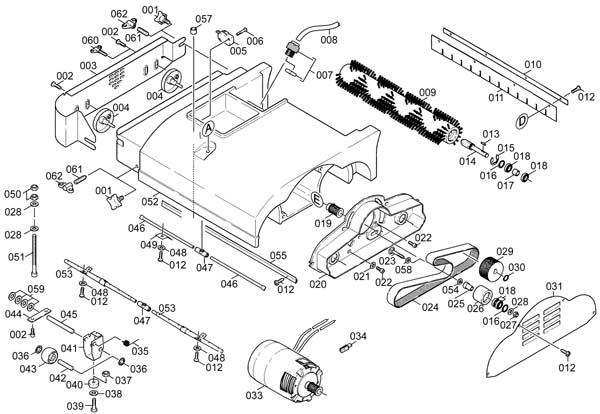

Power Brush Assembly - 183-0029
RefNbr Part Number Description Req Notes
002 183-0206 Screw 6
003 183-0353 Counter holder 1
004 183-0354 Plate 2
007 183-0355 Cable connector (obsolete) 1
008 183-0356 Insulating hose 1
009b 183-0358 High/low grout brush - CYLINDRICAL (orange) 2
009c 183-0359 Extra heavy grit scrubbing brush (gray) 2
009d 183-0360 Soft scrub brush black 2
009e 183-0361 Standard brush roll 2
009f 183-0362 Red brush roll 2
009g 183-0363 Grey brush roll 2
009h 183-0364 Black brush roll 2
010a 183-0365 Plate 1
010b 183-0366 Plate 1
011a 183-0367 Strip 1
011b 183-0368 Strip 1
012 183-0281 Screw 14
013a 183-0369 Spring 2
013b 183-0370 Spring (Obsolete) 2
014 183-0371 Drive shaft 2
015 183-0372 Washer 2
016 183-0373 Safety ring 3
017 183-0374 Sleeve 2
018 183-0375 Ball bearing 6
019a 183-0376 Pulley 1
019b 183-0377 Pulley (Obsolete) 1
020 183-0378 Plate 1
021 183-0379 Washer 6
022 183-0093 Screw M6-1 x 16mm 10
023a 183-0380 Screw (Obsolete) 1
023b 183-0381 Screw 1
024 183-7523 Belt 1
025a 183-0382 Sleeve 1
025b 183-0383 Sleeve (Obsolete) 1
026 183-0384 Roller 1
027a 183-0341 Hex nut 1
027b 183-0385 Hex nut (Obsolete) 1
028 183-0099 Washer 3
029a 183-0386 Pulley 2
029b 183-0387 Pulley (Obsolete) 2
030 183-0388 Spring plate 2
031a 183-0389 Cover plate 1
031b 183-0390 Cover plate (Obsolete) 1
033 183-0391 Motor 1
034 183-0392 Carbon brush (pkg of 2) 1
035 183-0393 Spring 1
036 183-0394 Quick fastener (OBSOLETE) 2
037 183-0304 Hex nut 1
038 183-0395 Washer 1
039 183-0202 Screw 1
040 183-0396 Foot stand 1
041 183-0397 Stand 1
042 183-0398 Axle (OBSOLETE) 1
043 183-0348 Roller 1
044 183-0399 Retainer clip 2
045 183-0400 Axle 1
046 183-0401 Pipe 2
047 183-0402 Pipe connection 1
048 999-9100 Washer M5 flat stainless steel 4
049 183-0404 Bracket (Obsolete) 1
050 183-0405 Hex nut 3
051 183-0406 Hex screw 1
052a 183-0407 Brush housing (Obsolete) 1
052b 183-0408 Brush housing 1
053 183-0409 Pipe 2
054 183-0216 Washer 1
055a 183-0410 Plate (Obsolete) 1
055b 183-0411 Plate 1
057 183-0412 Sleeve (Obsolete) 1
059 183-0413 Washer 4
060 183-0414 Screw (Obsolete) 4
061 183-0415 Pin (threaded) 2
062 273-3611 Wing nut 2

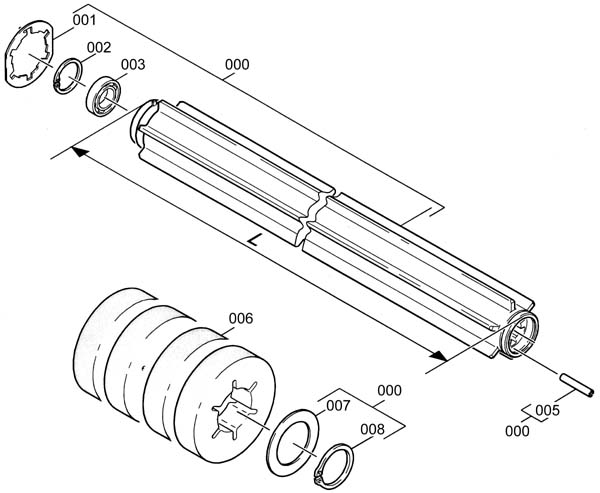

Accessories - 183-0030
RefNbr Part Number Description Req Notes
000a 183-0417 Roller pad holder 1
000b 183-0418 Cylindrical pad shaft 1
001 183-0419 Washer (OBSOLETE) 1
002 183-0420 Spring clip (Obsolete) 1
003 183-0421 Ball bearing (Obsolete) 1
005 183-0422 Pin (Obsolete) 1
006a 183-0423 White pad 96 20 pcs 1
006b 183-0424 Yellow pad 96 20 pcs 1
006c 183-0425 Green pad 96 20 pcs 1
006d 183-0426 Red pad 96 20 pcs 1
007 183-0427 Ronde 1
008 183-0428 Spring clip 1

- Frequently Replaced Parts - 183-9010
RefNbr Part Number Description Req Notes
0.9835 183-0192 Oil resistant drain hose SN 14770-3501
0.9835 183-0086 Suction/squeegee hose assembly
0.9835 183-0384 Roller
0.9835 183-0372 Washer
0.9835 183-0180 Drain hose (OBSOLETE) up to SN 14769
0.9835 183-0373 Safety ring
0.9835 183-0369 Spring
0.9835 183-0358 High/low grout brush - CYLINDRICAL (orange)
0.9835 183-0293 Squeege blade set non-ball style squeegee drag wheel
0.9835 183-0284 Star handle
0.9835 183-0391 Motor
0.9835 183-0326 Anti-stripe squeegee blade set ball style squeegee
0.9835 183-0374 Sleeve
0.9835 183-0284 Star handle
0.9835 183-0375 Ball bearing
0.9835 183-0388 Spring plate
0.9835 183-0386 Pulley
0.9835 183-7523 Belt
0.9835 183-0378 Plate
0.9835 183-0375 Ball bearing
01 183-4702 Medium grit brush CYLINDRICAL

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
