Parts List Complete for TORNADO BR 13/1 MW

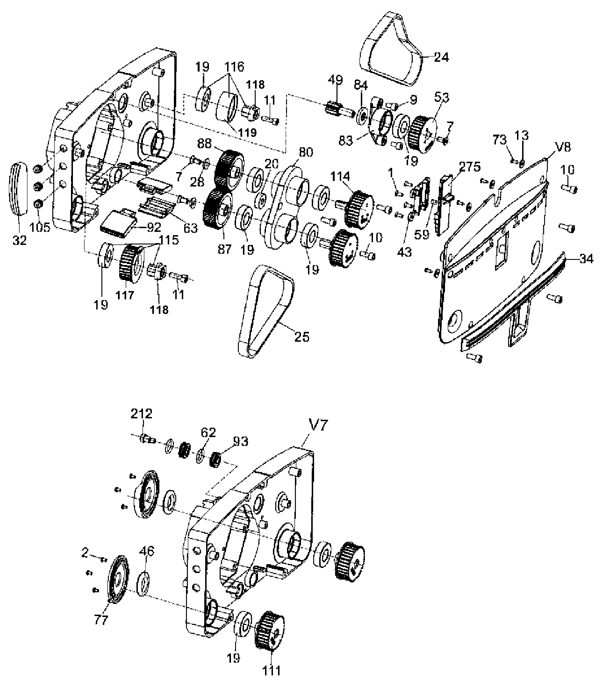

Drive Housing Assembly - 183-4446
RefNbr Part Number Description Req Notes
1 190-1503 Screw M4 x 10mm 4
2 190-1504 Screw M3 x 6mm 6
7 190-1505 Screw M6 x 14mm 3
9 190-1506 Screw M6 x 10mm 2
10 190-1507 Screw M6 x 16mm 7
11 190-1508 Screw M6 x 20mm 2
13 190-1509 Washer 4
19 190-1510 Bearing 6003 2RS 9
20 190-1511 Bearing 608 2Z 1
24 190-1512 Belt 1
25 190-1513 Belt 1
28 190-1514 Washer 2
32 190-1515 Bumper 1
34 190-1516 Bumper 1
43 190-1518 Slider housing 1
46 190-1519 Seal 2
49 190-1520 Pinion 1
53 190-1521 Drum sprocket 1
59 190-1522 Pin 1
62 190-1523 O-ring 2
63 190-1524 Shield 1
73 190-1525 Self tapping screw 4
77 190-1526 Cap 2
80 190-1527 Gear housing 1
83 190-1528 Housing sprocket 1
84 190-1529 Seal 1
87 183-2302 Complete replacement gear assembly - new style 1
88 183-2302 Complete replacement gear assembly - new style 1
92 190-1532 Shield 2
93 190-1533 Roller 2
105 190-1534 Bumper sleeve 3
111 190-7045 Brush sprocket 2
114 190-1536 Gear sprocket 2
115 190-1537 Idler assembly 1 (includes 19, 117, 118)
116 190-1540 Idler assembly 1 (includes 19, 118, 119)
117 190-1538 Sprocket 1
118 190-1539 Hub 2
119 190-1541 Sleeve 1
212 190-0572 Stub axle 1
275 183-8701 Brush slider (yellow) 1

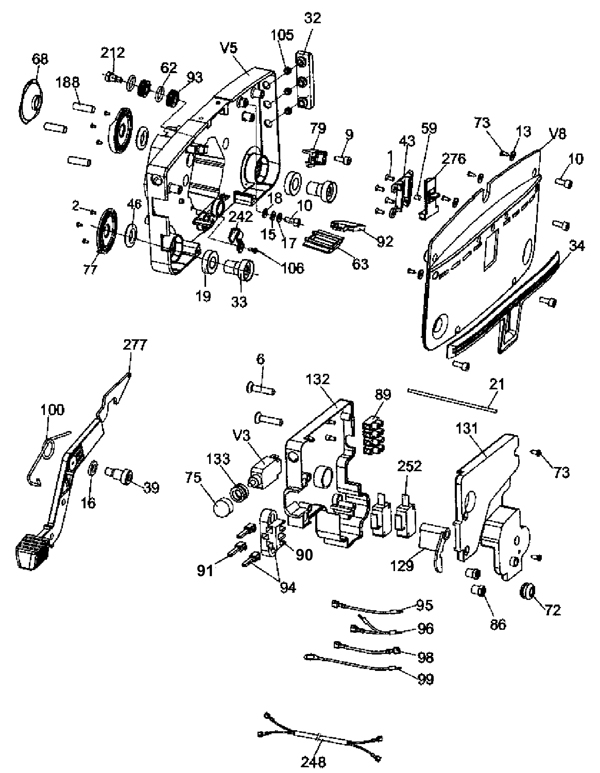

Idle Housing Assembly - 183-4447
RefNbr Part Number Description Req Notes
1 190-1503 Screw M4 x 10mm 4
2 190-1504 Screw M3 x 6mm 6
6 190-1544 Screw M5 x 25mm 2
9 190-1506 Screw M6 x 10mm 1 PF90-0293-0000
10 190-1507 Screw M6 x 16mm 6
13 190-1509 Washer 4
15 190-1545 Washer 1
16 190-1546 Washer 1
17 190-1547 Spring washer 1
18 190-1548 Toothed washer 1
19 190-1510 Bearing 6003 2RS 2
21 190-1549 Wire tie 3
32 190-1515 Bumper 1
33 190-1550 Bushing 2
34 190-1516 Bumper 1
39 190-1551 Stub axle 1
43 190-1518 Slider housing 1
46 190-1519 Seal 2
59 190-1522 Pin 1
62 190-1523 O-ring 2
63 190-1524 Shield 1
68 190-1553 Fan cover 1
72 190-1554 Gromet 2
73 190-1525 Self tapping screw 6
75 190-1555 Cap 1
77 190-1526 Cap 2
79 190-1556 Stopper 1
86 190-1558 Nut 2
89 190-1558 Nut 1
90 190-1561 Socket 1
91 190-1562 Terminal 3
92 190-1532 Shield 1
93 190-1533 Roller 2
94 190-1560 Socket assembly 1 (includes 90, 91)
95 190-1563 Cable 1
96 190-1564 Cable 1
98 190-1566 Cable 1
99 190-1567 Cable 1
100 190-1568 Pedal spring 1
105 190-1534 Bumper sleeve 3
106 190-1569 Screw M4 x 8mm 1
129 190-1570 Switch lever 1
131 190-1571 Top insulation 1
132 190-1572 Bottom insulation 1
133 190-1573 Nut 1
188 190-1574 Tie rod sleeve 3
212 190-0572 Stub axle 1
242 190-1575 Wire clamp 1
248 190-1576 Cable assembly 1
252 190-1577 Switch 2
276 183-8704 Transport slider (yellow) 1
277 183-8705 Pedal assembly 1

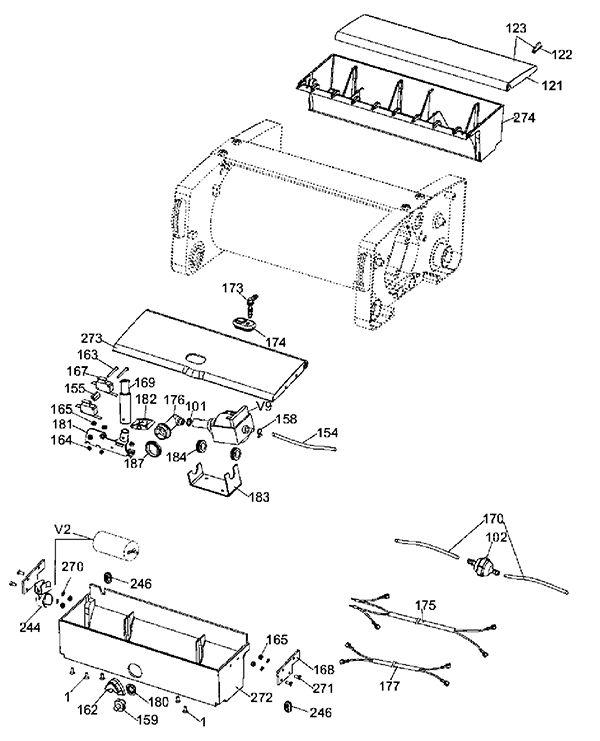

Pump Housing Assembly - 183-4448
RefNbr Part Number Description Req Notes
1 190-1503 Screw M4 x 10mm 5
101 183-8708 O-ring 1
102 190-1601 Filter 1
121 190-1605 Dirty water tank lid 1
122 190-1603 Lid pad 2
123 190-1604 Dirty water tank lid assembly 1 (includes 121, 122)
154 190-1606 Hose 1
155 183-8709 Insulation (OBSOLETE) 1
158 183-8724 Hose clip 1
159 183-4722 Nozzle 1
162 183-4740 Boot 1
163 183-8725 Screw M3 x 30mm 2
164 183-8726 Nut (OBSOLETE) 2
165 190-1607 Nut 3
167 183-8710 Switch 2
168 190-1608 Lid strip 2
169 183-8711 Extension 1
170 190-1609 Hose 2
173 190-0582 Hose connector 1
174 190-1610 Lid boot 1
175 183-8712 Cable 1
176 183-8713 Adaptor nozzle 1
177 183-8727 Cable 1
180 183-8713 Adaptor nozzle 1
181 183-8714 Switch base 1
182 183-8715 Lever 1
183 183-8716 Clamp 1
184 183-8717 Support ring (OBSOLETE) 2
187 183-8718 Spacer 1
244 183-8719 Capacitor clamp 1
246 183-8720 Gromet 2
270 183-8721 Washer 4
271 190-1613 Screw M4 x 15mm 4
272 183-8722 Pump housing (yellow) 1
273 183-2265 Pump housing lid (yellow) 1
274 183-8723 Dirty water tank 1

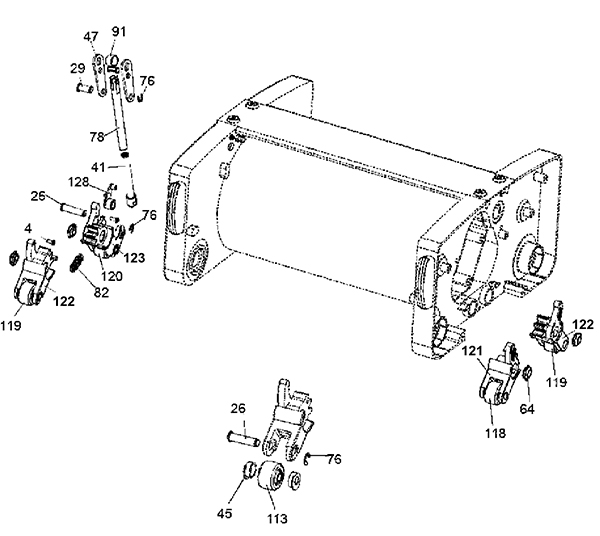

Lever and Guide Link Mechanism - 183-4449
RefNbr Part Number Description Req Notes
4 190-1581 Screw M4 x 12mm 2
26 190-1582 Clevis Pin 5
29 190-1583 Clevis pin 1
41 190-1584 Link 1
45 190-1585 Shield 8
47 190-1586 Lever 2
64 190-1587 Lever button 4
76 190-1588 Circlip 6
78 190-1589 Guide link 1
82 190-1590 Spring 1
91 190-1591 Bushing 1
113 190-1592 Wheel 4
118 190-1593 Lever assembly 1 (includes 121)
119 190-1595 Lever assembly 2 (includes 122)
120 190-1597 Lever assembly 1 (includes 123)
121 190-1594 Lever 1
122 190-1596 Lever 2
123 190-1598 Lever 1
128 190-1599 Lever switch 1

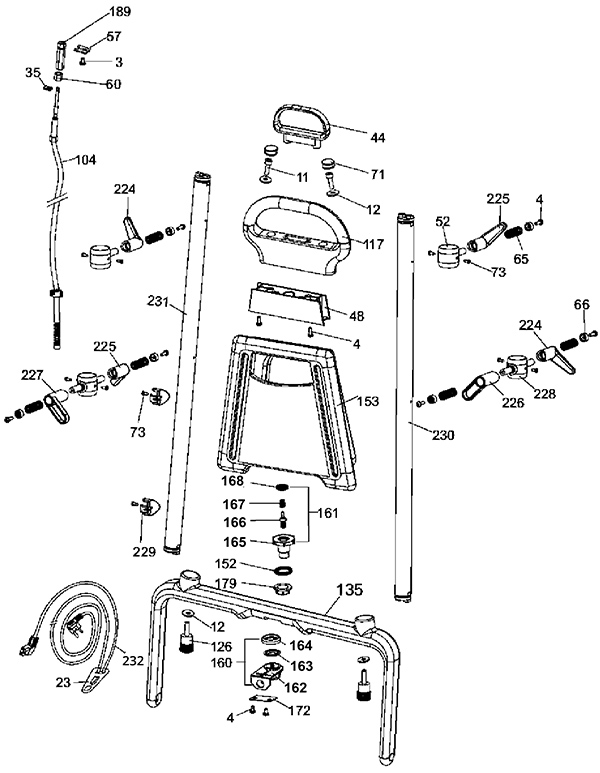

Handle Assembly - 183-4450
RefNbr Part Number Description Req Notes
3 190-1617 Screw M4 x 8mm 1
4 190-1581 Screw M4 x 12mm 10
11 190-1508 Screw M6 x 20mm 2
12 190-1618 Washer 4
23 190-1619 Cable restraint 1
35 190-1620 Clamp 1
44 190-1621 Pull handle 1
48 190-1622 Cap 1
52 190-1623 Base cable holder 2
57 190-1624 Clamp 1
60 190-1625 Nut 1
65 190-1626 Spring 6
66 190-1627 Washer 6
71 190-1628 Plug 2
73 190-1525 Self tapping screw 10
104 183-2308 Pull cable 1
117 190-1629 Top handle 1
126 190-1460 Threaded knob 2
135 190-1630 Bottom handle 1
152 190-0580 Gasket 1
153 190-1631 Tank 1
160 183-4771 Base valve assembly 1 (includes 162 - 164)
161 190-1636 Complete valve 1 (includes 165 - 168)
162 190-1633 Base 1
163 190-1634 Seal (OBSOLETE) 1
164 190-1635 Valve cap 1
165 190-1637 Valve body 1
166 190-1638 Seal 1
167 190-1639 Spring 1
168 190-1640 Spring cap 1
172 190-1641 Plate 1
179 190-1642 Nut 1
189 190-1643 Sleeve 1
224 190-1644 Cable holder knob 2
225 190-1645 Cable holder knob 2
226 190-1646 Left hand tank holder knob 1
227 190-1647 Right hand tank holder knob 1
228 190-1648 Cable and tank holder base 2
229 190-1649 Guide 2
230 190-1650 Left hand pipe 1
231 190-1651 Right hand pipe 1
232 183-8173 40 foot power cord (yellow) 1

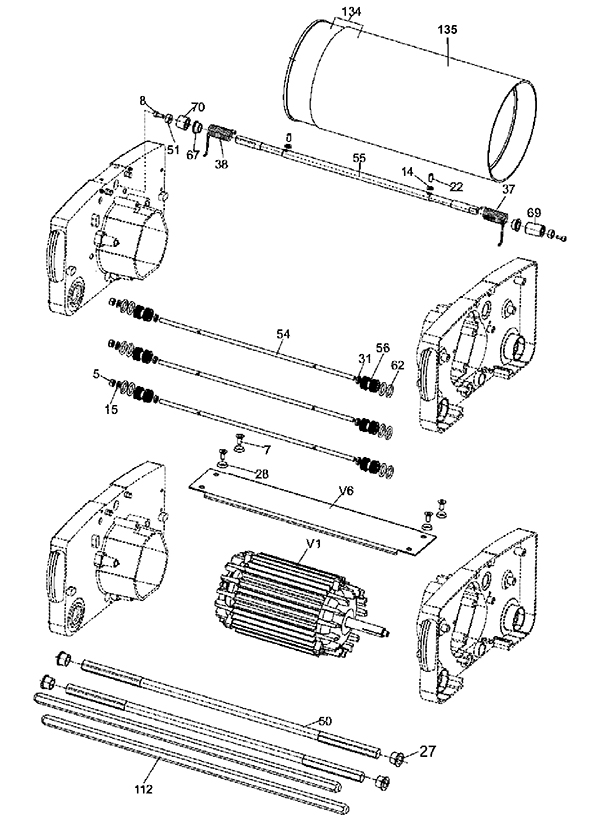

Motor, Drum and Bridge Assembly - 183-4451
RefNbr Part Number Description Req Notes
5 190-1653 Nut 3
7 190-1505 Screw M6 x 14mm 4
8 190-1654 Screw M4 x 10mm 2
14 190-1655 Washer 2
15 190-1545 Washer 3
22 190-1656 Screw M5 x 12mm 2
27 190-1459 Cap 4
28 190-1514 Washer 4
31 190-1657 Washer 6
38 190-1658 Spring 1
50 190-1659 Hex shaft 2
51 190-1660 Washer 2
54 190-1661 Tie rod 3
55 190-1662 Shaft 1
56 190-1663 Roller 6
62 190-1523 O-ring 12
67 190-1664 Bushing 2
69 190-1665 Bushing 1
70 190-1666 Bushing 1
112 190-1585 Shield 2
134 190-1668 Drum 1 (includes 135)
135 190-1458 Drum sleeve 1
V1 190-1669 Motor 110V 60Hz 1

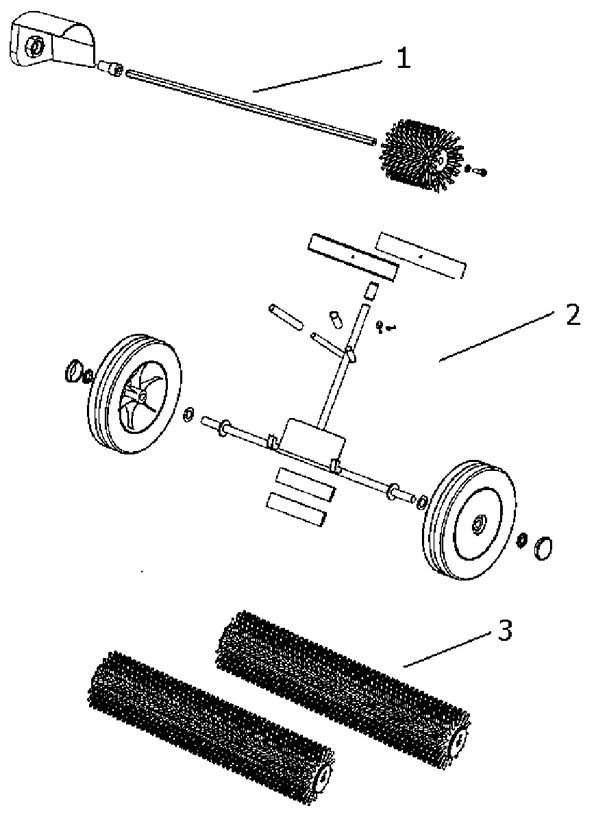

Accessories - 183-4452
RefNbr Part Number Description Req Notes
1 183-8728 Side brush (black) 1
2 190-1671 Transport cart 1
3a 183-8729 Standard brush (black)(sold each, 2 required) 1 (standard)
3b 183-8730 Soft brush (grey) (pkg of 2) 1 (optional)
3c 183-8731 Hard brush (blue) 1 (optional)
3d 183-8732 Escalator brush (green) 2 (optional)
3e 183-8733 Carpet brush (red) 1 (optional)

- Frequently Replaced Parts - 183-9932
RefNbr Part Number Description Req Notes
01 183-2264 Filter assembly
02 183-2265 Pump housing lid (yellow)
03 183-8190 Motor
04 183-8191 Trolley
05 183-2302 Complete replacement gear assembly - new style
06 183-2308 Pull cable
07 183-4722 Nozzle
08 183-4740 Boot
09 183-4741 Nozzle seal
10 183-2311 Left hand pipe
11 183-4771 Base valve assembly
12 190-1636 Complete valve
13 183-4775 Tank lid
14 183-8699 120V pump
15 190-0582 Hose connector
16 183-2340 Lid boot
17 190-1515 Bumper
18 183-4740 Boot

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
