Parts List Complete for TORNADO BD 28/20


Frame Assembly - 183-1026
RefNbr Part Number Description Req Notes
1 183-7604 Right hand frame post 1
2 183-7605 Left hand frame post 1
3 183-8404 Nut 4
4 183-8294 Washer 4
5 183-9129 Screw M8 x 25mm 4
6 183-9099 Fairlead 3
7 183-7606 Motor support suction 1
8 183-8240 Washer INOX 4
10 183-9100 Screw M6 x 10mm 4
11 183-7607 Frame 1
12 183-2584 Screw M8 x 25mm 4
14 183-8291 Nut INOX 4
15 183-9101 Caster assembly 2
16 183-8260 Washer INOX 8
17 183-8286 Washer INOX 8
18 183-2584 Screw M8 x 25mm 8
20 183-9100 Screw M6 x 10mm 1

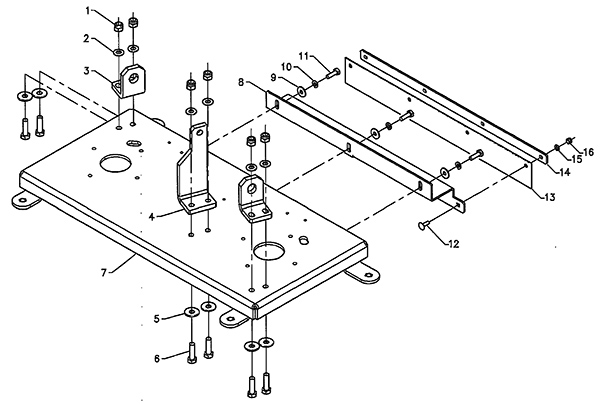

Brush Base Assembly - 183-1027
RefNbr Part Number Description Req Notes
1 183-8291 Nut INOX 6
2 183-8260 Washer INOX 6
3 183-9102 Base coupling 2
4 183-9103 Support 1
6 183-9104 Screw M8 x 30mm INOX 6
7 183-9105 Brush base 1
8 183-9106 Rear splash guard support 1
9 183-8240 Washer INOX 3
11 183-2597 Screw M6 x 20mm 3
12 183-2627 Screw M5 x 16mm 4
13 183-9107 Rear splash guard (OBSOLETE) 1
14 183-9108 Rear splash guard blade 1
15 183-2610 Washer 4
16 183-8279 Nut INOX 4

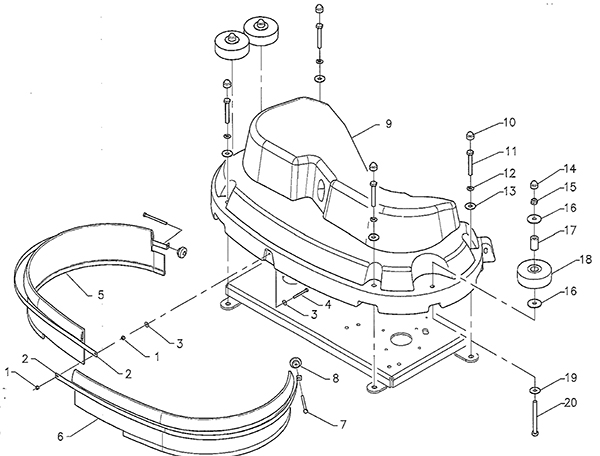

Cover Assembly - 183-1028
RefNbr Part Number Description Req Notes
1 183-3233 Lock nut 2 Lock nut
2 183-9110 Splash guard blade 2 Splash guard blade
3 183-8482 Washer 2 Washer
4 183-9111 Screw M4 x 40mm 1 Screw M4 x 40mm
5 183-2309 Right hand splash guard 1 Right splash guard
6 183-2310 Left hand splash guard 1 Left splash guard
7 183-9112 Screw M5 x 60mm 2 Screw M5 x 60mm
8 183-9113 Handwheel 2 Handwheel
9 183-9114 Base brush cover 1 Brush base cover
10 183-1995 Nut cover (black) 4 Black nut cover
11 183-2450 Screw M8 x 60mm 4 Screw M8 x 60mm
12 183-8286 Washer INOX 4 Lock washer
14 183-1995 Nut cover (black) 3 Black nut cover
16 183-2451 Washer inox 6 Washer
17 183-8498 Bushing 3 Bushing
18 183-4706 Bumper wheel 3 Bumper wheel (gray)
20 183-1996 Screw M8 x 90mm 3 Screw M8 x 90mm

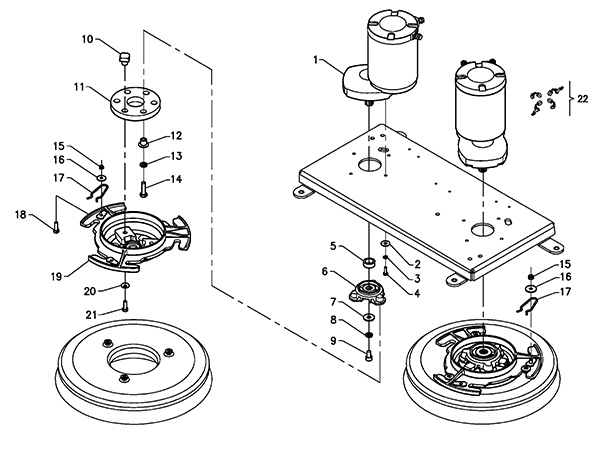

Brush Transmisson - 183-1029
RefNbr Part Number Description Req Notes
1 183-1997 Brush motor 2
2 183-2580 Washer INOX 8
3 183-2578 Lock washer 8
4 183-3179 Screw M5 x 16mm 8
5 183-2574 Spacer 2
6 183-2575 Flange 2
8 183-8286 Washer INOX 2
9 183-2576 Screw M8 x 14mm 2
10 183-1998 Bushing 6
11 183-1999 Flexible coupling 2
12 183-9115 Bushing 6
13 183-8286 Washer INOX 6
14 183-9104 Screw M8 x 30mm INOX 8
15 183-8271 Nut INOX 2
17 183-2490 Brush block spring 2
18 183-8526 Screw M6 x 14 2
19 183-4721 Clutch plate 2
20 183-8415 Conical washer 6
21 183-2584 Screw M8 x 25mm 6
22 183-7608 Carbon brush 1

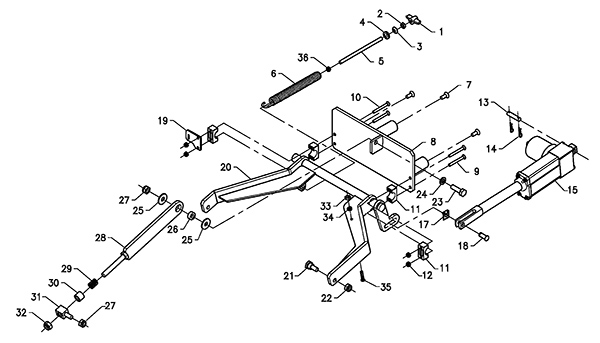

Brush Base Control - 183-1030
RefNbr Part Number Description Req Notes
1 183-4768 Wing nut 1 (Wing nut)
2 183-8267 Nut INOX 1 Nut
3 183-4766 Spherical bushing 1 Spherical bushing
4 183-9116 Spherical bushing bracket 1 Spherical bushing bracket
5 183-9117 Tie rod M8 x 150mm 1 Tie rod M8 x 150mm
6 183-7609 Traction spring with insert 1
7 183-7610 Screw M8 x 20mm 3
8 183-7611 Plate 1
9 183-7612 Screw M6 x 50mm 2
10 183-9118 Screw M6 x 55 mm 2 Screw M6 x 55 mm
11 183-7613 Base control holder 4
12 183-8271 Nut INOX 4 Nut
13 183-9119 Actuator pin 1 Actuator pin
14 183-9120 Cotter pin 2 Cotter pin
15 183-7614 24V actuator 1
17 183-7615 Spring clip 1
18 183-7616 Pin 1
19 183-7617 Spring coupler 1
20 183-9121 Base control arm 1 Base control arms
21 183-7618 Arms stud bolts (OBSOLETE) 2
22 183-9122 Lock nut 2 Lock nut
23 183-9123 Screw M10 x 35mm 1 Screw M10 x 35mm
24 183-8399 Washer 1 Washer
25 183-9124 Washer 2 Washer
26 183-7619 Bushing (OBSOLETE) 1
27 183-9122 Lock nut 2 Locknut
28 183-9126 Arm 1 Arm
29 183-8429 Compression spring 1 Spring
30 183-7620 Spacer (OBSOLETE) 1
31 183-7621 Arm adjuster (OBSOLETE) 1
32 183-9127 Lock nut INOX 1 Locknut
33 183-9128 Nut 1 Nut
34 183-8286 Washer INOX 1 Washer
35 183-9129 Screw M8 x 25mm 1 Screw M8 x 25 mm
36 183-9130 Lock nut 1 Locknut
37 183-7622 Actuator fork 1

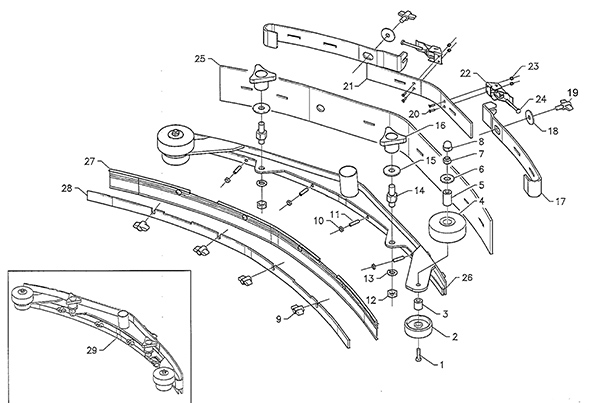

Squeegee assembly up to S/N 15000812 - 183-1031
RefNbr Part Number Description Req Notes
1 183-9131 Screw M8 x 70mm 2
2 183-9132 Bumper wheel 2
3 183-9133 Bushing 2
4 183-4706 Bumper wheel 2
5 183-8498 Bushing 2
6 183-2451 Washer inox 2
7 183-9130 Lock nut 2
8 183-1995 Nut cover (black) 2
9 183-2305 Wing nut 4
10 183-8214 Nut 4
11 183-9134 Dowel 4
12 183-9135 Nut 2
13 183-9136 Lock washer 2
14 183-9137 Stud bolt 2
15 183-9138 Washer 2
16 183-9139 Handwheel 2
17 183-9140 Rear blade coupler 2
18 183-2451 Washer inox 2
19 183-7623 Wing nut 2
20 183-2459 Screw M3 x 10mm 4
21 183-9141 Center rear blade bracket 1
22 183-9142 Adjustable latch 2
23 183-2463 Lock nut inox 4
24 183-9143 Screw M6 x 60mm 2
25 183-2307 Squeegee blade rear 1
26 183-9144 Squeegee body 1
27 183-2306 Squeegee blade front 1
28 183-9145 Front squeegee blade 1
29.a 183-9146 835mm squeegee assembly 1
29.b 183-9147 990mm squeegee assembly 1

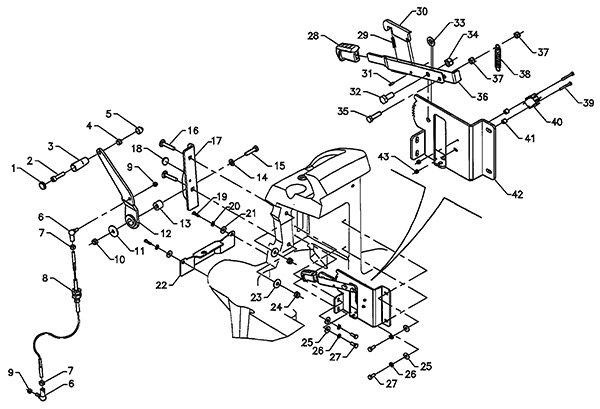

Control Levers - 183-1032
RefNbr Part Number Description Req Notes
1 183-9153 Knob cap 1
2 183-9154 Screw M8 x 35mm 1
3 183-9155 Cylindrical knob 1
5 183-1995 Nut cover (black) 1
6 183-9156 Angular joint 2
7 183-9157 Nut 2
8 183-9158 Squeegee lift cable 1
9 183-8271 Nut INOX 2
12 183-9159 Squeegee control lever 1
13 183-9160 Bushing 1
14 183-8307 Washer 1
15 183-2546 Screw M8 x 35mm 1
16 183-9161 Screw M8 x45mm 2
17 183-9162 Squeegee support lever 1
18 183-9163 Adhesive plastic cup 1
19 183-9164 Screw M6 x 14mm 2
20a 183-8523 Lock washer 1
20b 190-0269 Washer 1/4 spring lock 1
21 183-8393 Washer 2
22 183-9165 Cable fixing bar 1
23 183-8294 Washer 2
26a 183-8523 Lock washer 4
26b 190-0269 Washer 1/4 spring lock 4
28 183-9166 Brake control knob 1
29 183-9167 Compression spring 1
30 183-9168 Blocking lever 1
31 183-9169 Parallel pin 1
32 183-2473 Screw M8 x 20mm 1
33 183-8307 Washer 1
35 183-8512 Screw M6 x 25 1
37 183-8256 Nut 2
38 183-2633 Traction spring 1
39 183-8345 Screw M3 x 25 2
40 183-9170 10amp microswitch 1
41 183-8211 Spacer 2
42 183-9171 Brake lever support 1
43 183-8357 Nut 2

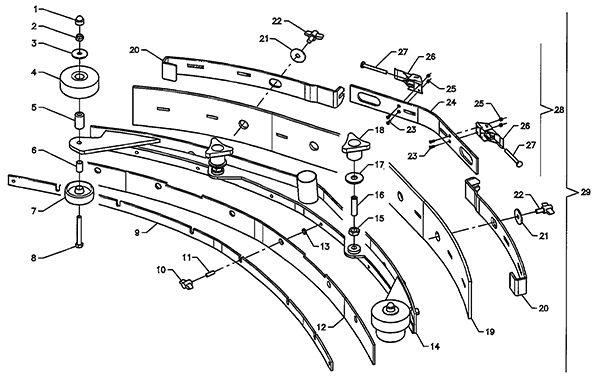

Squeegee assembly from S/N 15000913 - 183-1033
RefNbr Part Number Description Req Notes
1 183-1995 Nut cover (black) 2
2 183-9130 Lock nut 2
3 183-2451 Washer inox 2
4 183-4706 Bumper wheel 2
5 183-8498 Bushing 2
6 183-9133 Bushing 2
7 183-9132 Bumper wheel 2
8 183-9131 Screw M8 x 70mm 2
9 183-7624 Rubber blade front 1
10 183-2305 Wing nut 6
11 183-7625 Dowel 6
12 183-9148 Squeegee blade 990mm front 1
13 183-8214 Nut 6
14 183-7626 Squeegee body 1
15 183-9135 Nut 2
16 183-7627 Dowel 2
17 183-9138 Washer 2
18 183-9139 Handwheel 2
19 183-9149 Squeegee blade 990mm rear 2
20 183-7628 Blade coupler rear 2
21 183-2451 Washer inox 2
22 183-7623 Wing nut 2
23 183-2459 Screw M3 x 10mm 4
24 183-9150 Center rear blade bracket 1
25 183-2463 Lock nut inox 4
26 183-9142 Adjustable latch 2
27 183-9143 Screw M6 x 60mm 2
28 183-9143 Screw M6 x 60mm 1 (includes 23-27)
29 183-9147 990mm squeegee assembly 1 (includes 1-27)

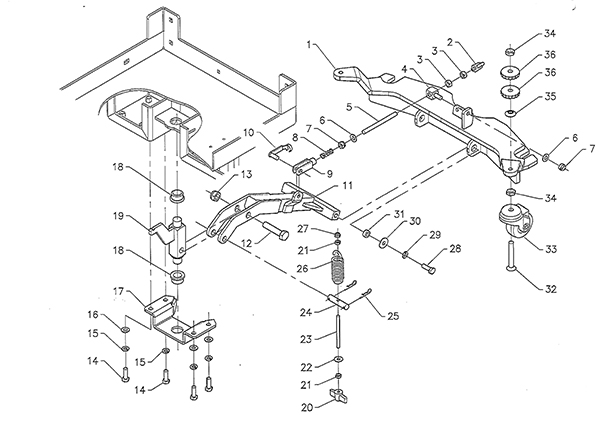

Squeeegee Control Assembly S/N 14004613-15000504 - 183-1034
RefNbr Part Number Description Req Notes
1a 183-9172 Squeegee support 1
1b 183-7630 Squeegee coupling assembly 1
2 183-8273 Wing nut 1
3 183-9128 Nut 2
4 183-9173 Drilled adjuster 1
5 183-9174 Threaded bar 1
6 183-8260 Washer INOX 2
7 183-9130 Lock nut 2
8 183-9175 Compression spring 1
9 183-9176 Fork long 1
10 183-9177 Fork clip 1
11 183-9178 Squeegee arm 1
12 183-9179 Screw M12 x 55mm 1
13 183-9127 Lock nut INOX 1
14 183-2584 Screw M8 x 25mm 4
15 183-8286 Washer INOX 4
16 183-8260 Washer INOX 3
17 183-9180 Support arm joint 1
18 183-9181 Bushing 2
19 183-9182 Arm joint 1
20 183-8435 Wing nut 1
21 183-9157 Nut 2
22 183-8240 Washer INOX 1
23 183-9183 Tie rod 1
24 183-9184 Pressure adjuster pin 1
25 183-9120 Cotter pin 2
26 183-9185 Traction spring 1
27 183-8271 Nut INOX 1
28 183-2584 Screw M8 x 25mm 2
30 183-8286 Washer INOX 2
31 183-9186 Bushing 2
32 183-9187 Screw M10 x 80mm 2
33 183-9188 Caster wheel 2
34 183-2456 Nut inox 4
35 183-8398 Conical washer 2
36 183-9189 Handwheel 4

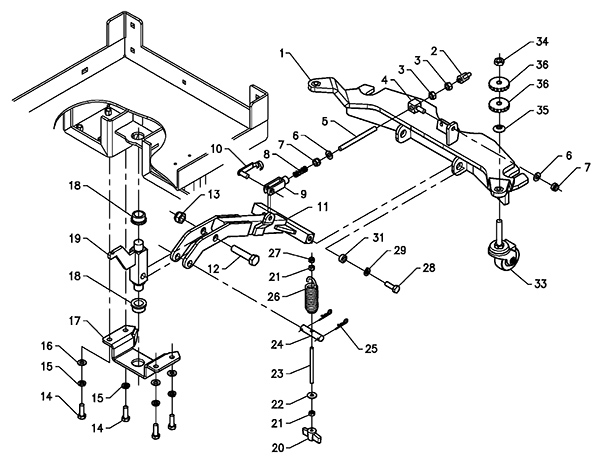

Squeeegee Control Assembly from S/N 16003001 - 183-1035
RefNbr Part Number Description Req Notes
1 183-7631 Squeegee support 1
2 183-8273 Wing nut 1
3 183-9128 Nut 2
4 183-9173 Drilled adjuster 1
5 183-9174 Threaded bar 1
6 183-8260 Washer INOX 2
7 183-9130 Lock nut 2
8 183-9175 Compression spring 1
9 183-9176 Fork long 1
10 183-9177 Fork clip 1
11 183-9178 Squeegee arm 1
12 183-9179 Screw M12 x 55mm 1
13 183-9127 Lock nut INOX 1
14 183-2584 Screw M8 x 25mm 4
15 183-8286 Washer INOX 2
16 183-8260 Washer INOX 2
17 183-9180 Support arm joint 1
18 183-9181 Bushing 2
19 183-9182 Arm joint 1
20 183-8435 Wing nut 1
21 183-9157 Nut 2
22 183-8240 Washer INOX 1
23 183-9183 Tie rod 1
24 183-9184 Pressure adjuster pin 1
25 183-9120 Cotter pin 2
26 183-9185 Traction spring 1
27 183-8271 Nut INOX 1
28 183-8289 Screw M8 x 20 INOX 2
29 183-9190 Washer 2
31 183-9186 Bushing 2
33 183-7632 Castor wheel 2
34 183-9135 Nut 2
35 183-7633 Washer conical 2
36 183-9189 Handwheel 4

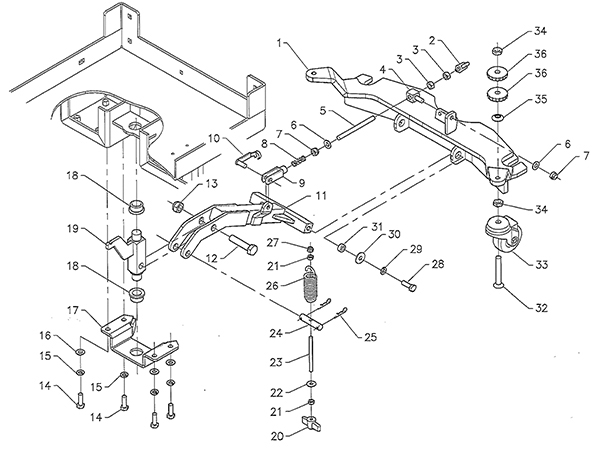

Squeeegee Control Assembly S/N 15000505-16003000 - 183-1036
RefNbr Part Number Description Req Notes
1a 183-9172 Squeegee support 1
1b 183-7630 Squeegee coupling assembly 1
2 183-8273 Wing nut 1
3 183-9128 Nut 2
4 183-9173 Drilled adjuster 1
5 183-9174 Threaded bar 1
6 183-8260 Washer INOX 2
7 183-9130 Lock nut 2
8 183-9175 Compression spring 1
9 183-9176 Fork long 1
10 183-9177 Fork clip 1
11 183-9178 Squeegee arm 1
12 183-9179 Screw M12 x 55mm 1
13 183-8411 Nut 1
14 183-2584 Screw M8 x 25mm 4
15 183-8286 Washer INOX 4
16 183-8260 Washer INOX 3
17 183-9180 Support arm joint 1
18 183-9181 Bushing 2
19 183-9182 Arm joint 1
20 183-8435 Wing nut 1
21 183-9157 Nut 2
22 183-8240 Washer INOX 1
23 183-9183 Tie rod 1
24 183-9184 Pressure adjuster pin 1
25 183-9120 Cotter pin 2
26 183-9185 Traction spring 1
27 183-8271 Nut INOX 1
28 183-8289 Screw M8 x 20 INOX 2
29 183-9190 Washer 2
31 183-9186 Bushing 2
32 183-9187 Screw M10 x 80mm 2
33 183-9188 Caster wheel 2
34 183-2456 Nut inox 4
35 183-8398 Conical washer 2
36 183-9189 Handwheel 4

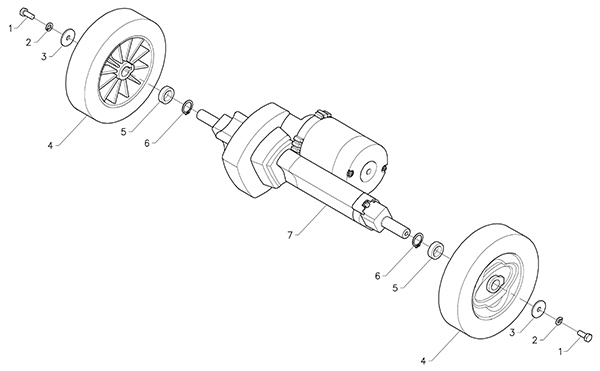

Traction Assembly Before S/N 16003835 - 183-1037
RefNbr Part Number Description Req Notes
1 183-8289 Screw M8 x 20 INOX 2
2 183-8286 Washer INOX 2
3 183-2451 Washer inox 2
4 183-9191 Wheel 2
5 183-9192 Spacer 2
6 183-9193 Seeger ring 2
7 183-9194 Geared motor 1

Traction Assembly After S/N 16003836 - 183-1038
RefNbr Part Number Description Req Notes
1 183-8289 Screw M8 x 20 INOX 2
2 183-8286 Washer INOX 2
3 183-2451 Washer inox 2
4a 183-7634 Washer 2
4b 183-7635 Anti slip wheels 2 (optional)
5 183-9192 Spacer 2
6 183-9193 Seeger ring 2
7 183-9195 Geared motor 1
8a 183-7636 Key 2
8b 183-7637 Traction motor, wheels, and keys 1

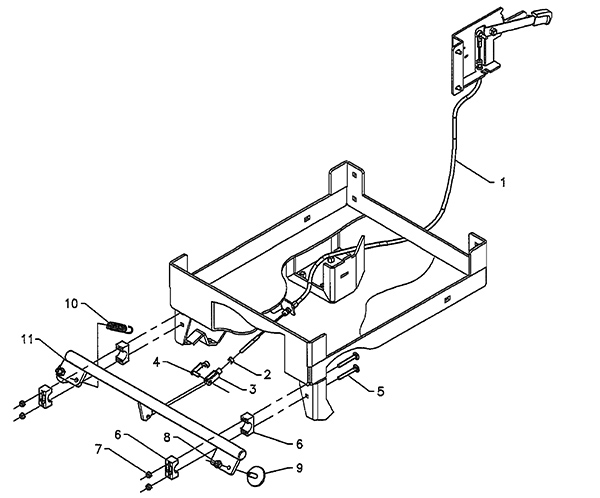

Brake Assembly - 183-1039
RefNbr Part Number Description Req Notes
1 183-9196 Break cable 1
2 183-9157 Nut 1
3 183-9197 Fork 1
4 183-7638 Fork clip 1
5a 183-8526 Screw M6 x 14 4
5b 183-8526 Screw M6 x 14 4
6 183-7613 Base control holder 4
7 183-8271 Nut INOX 4
8a 183-9128 Nut 2
8b 183-9198 Nut INOX 2 (from S/N 16003212)
9a 183-9199 Brake pad 2
9b 183-7639 Brake pad 2 (from S/N 16003212)
10 183-9200 Traction spring 1
11a 183-9201 Brake shaft 1
11b 183-7640 Brake shaft 1 (from S/N 16003212)

Handle Bar Assembly Up to S/N 16001279 - 183-1041
RefNbr Part Number Description Req Notes
1 183-4696 Key 2
2 183-4695 Key switch 1
3 183-8372 Switch flange 1
4 183-8373 Switch contact 1
5 183-8361 Screw 2
6 183-2548 Washer 2
7 183-8386 Nylon nut 2
8 183-7641 Screw M3 x 16mm 2
9 183-9202 Hexagonal spacer 2
10 183-9203 Check card controls with display 1
11 183-8386 Nylon nut 2
12 183-7642 Handlebar cover 1
13a 183-9204 Handlebar body 1
13b 183-7643 Handlebar body 1
14 183-8335 Screw 4
16a 183-8523 Lock washer 4
16b 190-0269 Washer 1/4 spring lock 4
17 183-8378 Nut 4
18 183-8334 Washer 4
19 183-8256 Nut 4
20 183-8383 Rivet with screw 1
21 183-8375 Screw M4 x 45 2
22 183-8336 Handle grip 2
23 183-8396 Handle cap 2
24 183-8341 Screw 2
25 183-8340 Handle tube 1

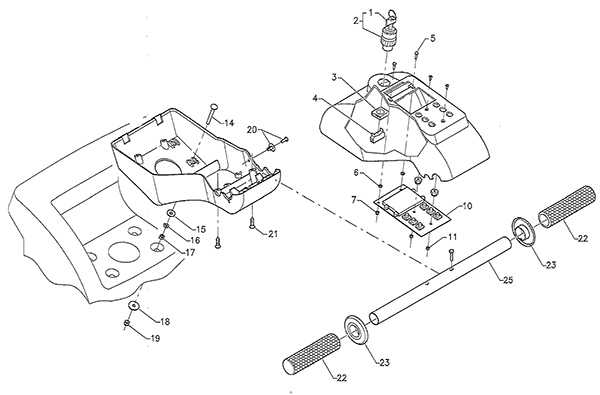

Handle Bar Assembly From S/N 16001280 - 183-1042
RefNbr Part Number Description Req Notes
1 183-4696 Key 1
2 183-4695 Key switch 1
3 183-8372 Switch flange 1
4 183-8373 Switch contact 1
5 183-8361 Screw 2
6 183-2548 Washer 2
7 183-8386 Nylon nut 2
10 183-9203 Check card controls with display 1
11 183-8386 Nylon nut 2
14 183-8335 Screw 4
16a 183-8523 Lock washer 4
16b 190-0269 Washer 1/4 spring lock 4
17 183-8378 Nut 4
18 183-8334 Washer 4
19 183-8256 Nut 4
20 183-8383 Rivet with screw 1
21 183-8375 Screw M4 x 45 2
22 183-8336 Handle grip 2
23 183-8396 Handle cap 2
25 183-8340 Handle tube 1
N/S 183-7641 Screw M3 x 16mm 2
N/S 183-7642 Handlebar cover 1
N/S 183-7644 Handlebar body 1
N/S 183-8341 Screw 2
N/S 183-7645 Fan grid 1
N/S 183-9205 Rivet 2

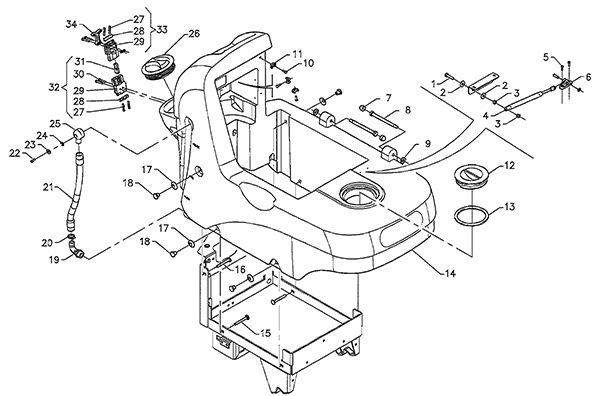

Solution Tank Assembly - 183-1043
RefNbr Part Number Description Req Notes
1 183-9206 Screw M8 x 35mm 1
3 183-9130 Lock nut 2
4 183-9207 Gas shock absorber 1
5 183-9208 Screw M5 x 16mm 2
6 183-9209 Gas shock absorber support 1
7 183-9210 Black nut cover 2
8 183-9211 Tank pin 2
9 183-9212 PVC washer (black) 2
10 183-8477 Screw M5 x 16 3
11 183-8454 Saddle support 3
12 183-8484 Cap 1
13 183-8483 Gasket 1
14 183-9213 Solution tank 1
15 183-7646 Screw M8 x 70mm 4
16 183-8520 Screw M8 x 60 2
17 183-9214 Conical washer 6
18 183-9215 Bushing 6
19 183-9216 Bent fitting 1
20 183-3248 Hose clamp 1
21 183-9217 Water level hose 1
22 183-9218 Screw M6 x 30mm 1
23a 183-8523 Lock washer 1
23b 190-0269 Washer 1/4 spring lock 1
24 183-8393 Washer 1
25 183-9219 Solution level hose fitting 1
26 183-8455 Solution tank cap 1
27 183-9220 Contact 4
28 183-9221 Fair-lead guide 2
29 183-9222 Connector body 2
30 183-7647 Screw M4.2 x 38mm 2
31 183-9223 Polarizer assembly 1
32 183-9224 80amp bipolar connector 1 (includes 27-31)
33 183-9225 80amp bipolar female connector 1 (includes 27-29)
34 183-9226 Connector lever 1

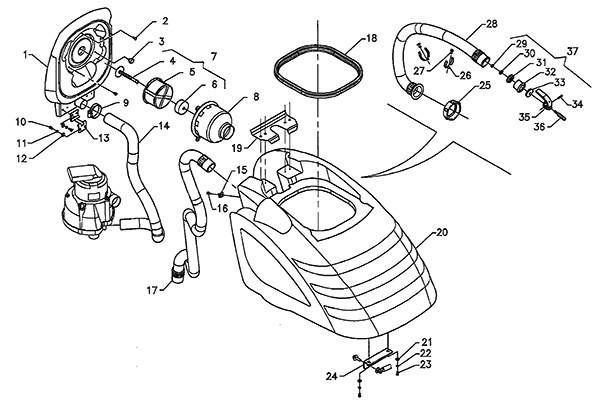

Recovery Tank - 183-1044
RefNbr Part Number Description Req Notes
1a 183-9227 Recovery tank cover 1
1b 183-7648 Recovery tank cover 1
2 183-9228 Screw M5 x 12mm 2
3 183-9229 Handwheel 1
4 183-2138 Rod with plate 1
5 183-2139 Float filter 1
6 183-2147 Float 1
7 183-8479 Filter and float assembly 1 (includes 4-6)
8 183-9230 Filter protection 1
9 183-9231 Hose clamp 1
10 183-2581 Screw M5 x 12mm 8
11 183-2578 Lock washer 8
12 183-9232 Washer 8
13 183-9233 Tank cover hinge 2
14 183-9234 Suction hose 1
15 183-8454 Saddle support 1
16 183-8477 Screw M5 x 16 1
17 183-7649 Squeegee hose 1
18 183-9235 Tank cover gasket 1
19 183-9236 Recovery tank baffle 1
20 183-9237 Recovery tank 1
22a 183-8523 Lock washer 2
22b 190-0269 Washer 1/4 spring lock 2
24 183-9238 Gas shock absorber guide 1
25 183-9239 Drain hose ring nut 1
26 183-8226 Spring 2
27 183-8402 Screw M6 x 16 2
28 183-9240 Exhaust hose 1
29 183-8229 Nut INOX 1
30 183-8240 Washer INOX 1
31 183-8221 Drain plug 1
32 183-8222 Plug 1
33 183-8220 Drain plug cover 1
34 183-2509 Parallel pin inox 1
35 183-8223 Drain plug lever 1
36 183-8218 Rod 1
37 183-8197 Plug assembly 1 (includes 29-34)
38 183-2478 Washer aluminium 1

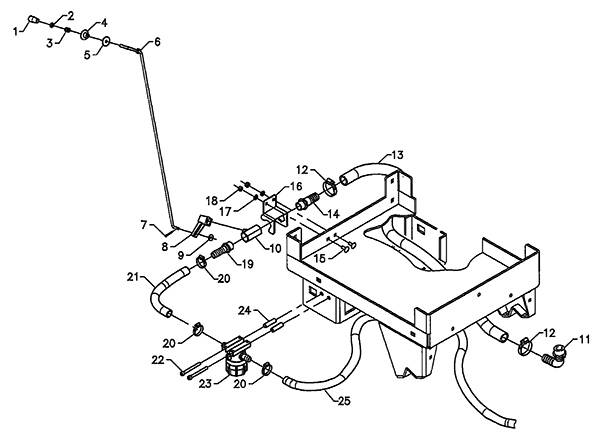

Filter and Valve Assembly - 183-1045
RefNbr Part Number Description Req Notes
1 183-8212 Knob 1
2 183-8266 Nut INOX 1
3 183-8213 Spring 1
4 183-8215 Solution control valve rod guide 1
6 183-9242 Solution control valve rod 1
7 183-8323 Pin 1
8 183-2154 Solution valve lever 1
9 183-2580 Washer INOX 1
10 183-2524 1/2 inch solution valve body 1
11 183-9243 Bent fitting 1
12 183-2518 Hose clamp 2
14 183-9244 Straight fitting 1
15 183-2583 Screw M6 x 16mm INOX 2
16 183-7650 Solution valve support 1
17 183-2457 Washer INOX 2
18 183-8271 Nut INOX 2
19 183-9245 Brass straight fitting 1
20 183-7651 Hose clamp 3
21 183-7652 Hose 1
22 183-9246 Screw M6 x 60mm 2
23 183-9247 Filter with fitting 1
24 183-9248 Plastic spacer 2
25 183-9249 Hose M14 x 820mm 1

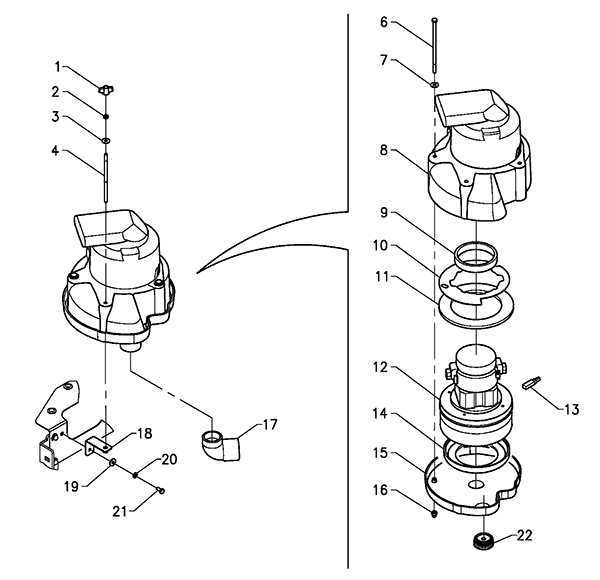

2 Stage Vacuum Motor Assembly - 183-1046
RefNbr Part Number Description Req Notes
1 183-7653 Wing nut 1
2 183-8214 Nut 1
4 183-8436 Bolt 1
6 183-8462 Screw 4
8 183-8464 Motor housing 1
9 183-9250 Suction motor separator ring 1
10 183-8465 Protection ring 1
11 183-8466 Gasket 1
12 183-8166 Vacuum motor 1
13 183-4701 Carbon brushes 1
14 183-8471 Vacuum motor gasket 1
15 183-7654 Motor base with inserts 1
16 183-8392 Nut 4
17 183-8480 Fitting 1
18 183-9251 Mounting bracket 1
19 183-8240 Washer INOX 1
21 183-8526 Screw M6 x 14 1
22 183-9252 Cap 1 (after SN 18003219)

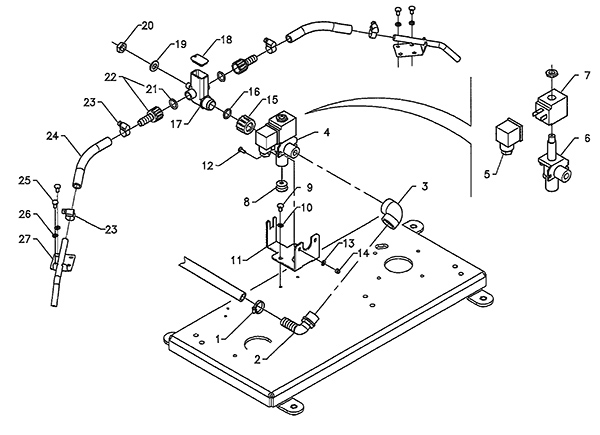

Water Unit Assembly up to SN 19004225 - 183-1047
RefNbr Part Number Description Req Notes
1 183-7651 Hose clamp 1
2 183-8202 Fitting 1
3 183-9253 90 degree elbow fitting 1
4 183-2517 Solenoid valve assembly 1
5 183-8198 Square connector 1
6 183-2522 Solenod valve body 1
7 183-8230 Solenoid valve coil 1
8 183-2270 Cap 1
9 183-2688 Screw M5 x 10mm 2
10 183-2578 Lock washer 2
11 183-7655 Solenoid valve support 1
12 183-9254 Screw M4 x 12mm 2
13 183-2438 Washer 2
14 183-3233 Lock nut 2
15 183-2520 Ring nut 1
16 183-9255 O-ring 1
17 183-9256 Distributor 1
18 183-7656 Cover 1
19 183-8264 Washer INOX 1
20 183-9198 Nut INOX 1
21 183-9198 Nut INOX 1
22 183-9259 Gasket 2
23 183-9260 Straight fitting 4
24 183-8241 Clamp 2
25 183-2688 Screw M5 x 10mm 4
26 183-2578 Lock washer 4
27 183-9261 Water tube outlet 2

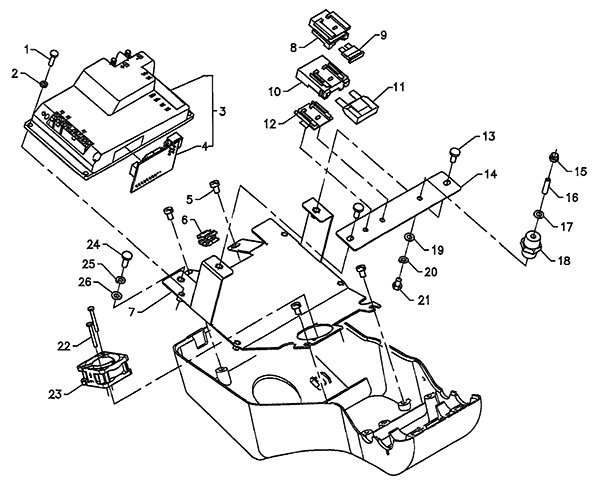

Electrical Layout S/N 150-1023-17004554 - 183-1048
RefNbr Part Number Description Req Notes
1 183-2429 Screw M4 x 16mm 4
2 183-8365 Washer 4
3a 183-9262 Chopper card 1
3b 183-7658 Chopper card 1
4 183-7659 Actuator check card 1
5 183-8332 Screw M5 x 8 4
6 183-2705 Clamp holder clip 1
7 183-9263 Electrical installation panel 1
8 183-8370 Fuse holder 1
9 183-8376 3amp Fuse 1
10 183-8324 Fuse holder 1
11 183-9264 80amp fuse 1
12 183-8329 Plate 1
13 183-2430 Screw M5 x 14mm 2
14 183-9265 Electric components panel 1
15 183-8314 Nut 1
16 183-8325 Dowel 1
17 183-8374 Washer 1
18 183-8326 Insulator 1
19 183-8374 Washer 1
20 183-8327 Washer 1
21 183-8330 Screw M5 x 8 1
22 183-8345 Screw M3 x 25 1
23 183-9266 Fan 1
24 183-2430 Screw M5 x 14mm 1
25 183-9267 Lock washer 1
26 183-8374 Washer 1

Electrical Layout up to S/N 15001022 - 183-1049
RefNbr Part Number Description Req Notes
1 183-2429 Screw M4 x 16mm 4
2 183-8365 Washer 4
3a 183-9262 Chopper card 1
3b 183-7658 Chopper card 1
4 183-7659 Actuator check card 1
5 183-8332 Screw M5 x 8 4
6 183-9263 Electrical installation panel 1
7 183-8370 Fuse holder 1
8 183-8376 3amp Fuse 1
9 183-8324 Fuse holder 1
10 183-9264 80amp fuse 1
11 183-8329 Plate 1
12 183-2430 Screw M5 x 14mm 2
13 183-9265 Electric components panel 1
14 183-8314 Nut 1
15 183-8325 Dowel 1
16 183-8374 Washer 1
17 183-8326 Insulator 1
18 183-8374 Washer 1
19 183-8327 Washer 1
20 183-8330 Screw M5 x 8 1
21 183-8345 Screw M3 x 25 1
22 183-9266 Fan 1

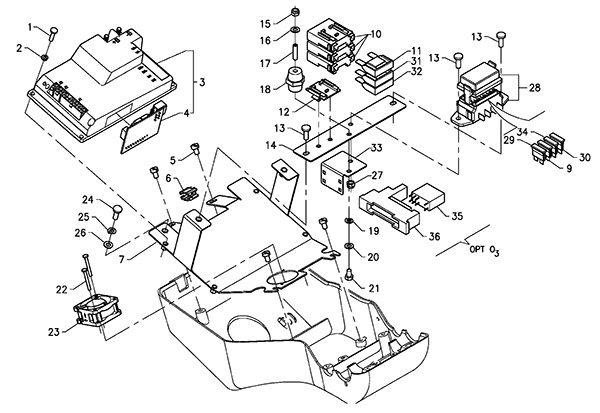

Electrical Layout from S/N 17004555 - 183-1050
RefNbr Part Number Description Req Notes
1 183-2429 Screw M4 x 16mm 4
2 183-8365 Washer 4
3 183-9262 Chopper card 1
4 183-7659 Actuator check card 1
5 183-8332 Screw M5 x 8 4
6 183-2705 Clamp holder clip 1
7 183-9263 Electrical installation panel 1
9 183-8376 3amp Fuse 1
10 183-8324 Fuse holder 1
11 183-9264 80amp fuse 1
12 183-8329 Plate 1
13 183-2430 Screw M5 x 14mm 2
14 183-7660 Electric components panel 1
15 183-8314 Nut 1
16 183-8325 Dowel 1
17 183-8374 Washer 1
18 183-8326 Insulator 1
19 183-8374 Washer 1
20 183-8327 Washer 1
21 183-8330 Screw M5 x 8 1
22 183-8345 Screw M3 x 25 1
23 183-9266 Fan 1
24 183-2430 Screw M5 x 14mm 1
25 183-8327 Washer 1
26 183-8368 Washer 2
27 183-8314 Nut 1
28 183-7661 4 way fuseholder 1
29 183-9269 7.5amp fuse 1
30 183-7663 Ozone assembly relay support 1
31 183-8377 30amp Fuse 1
32 183-8377 30amp Fuse 1
33 183-7663 Ozone assembly relay support 1
34 183-8376 3amp Fuse 1
35 183-7664 Relay 1
36 183-7665 Base for relay 1

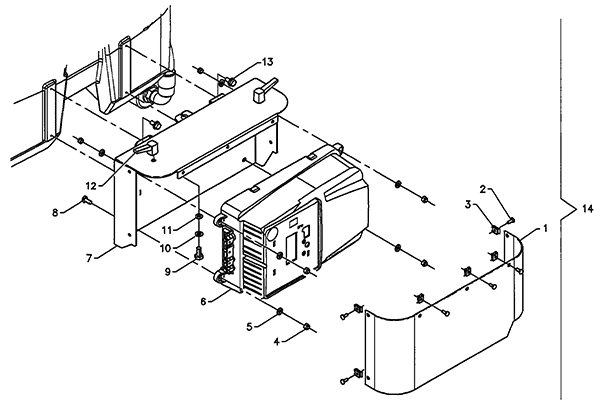

Battery Charger - 183-1051
RefNbr Part Number Description Req Notes
1 183-9271 Splash guard 1
2 183-2702 Screw M4 x 10mm 7
3 183-2434 Clip nut 7
4 183-8314 Nut 4
5 183-8374 Washer 4
6 183-9272 24V 20amp battery charger 1
7 183-9273 Charger support 1
8 183-2619 Screw M5 x 16mm 4
9 183-8432 Screw M6 x 12 2
10a 183-8523 Lock washer 2
10b 190-0269 Washer 1/4 spring lock 2
11 183-8393 Washer 2
12 183-8447 Lever 2
13 183-9274 Flanged screw M6 x 12mm 4
14 183-9275 On-board battery charger assembly 1

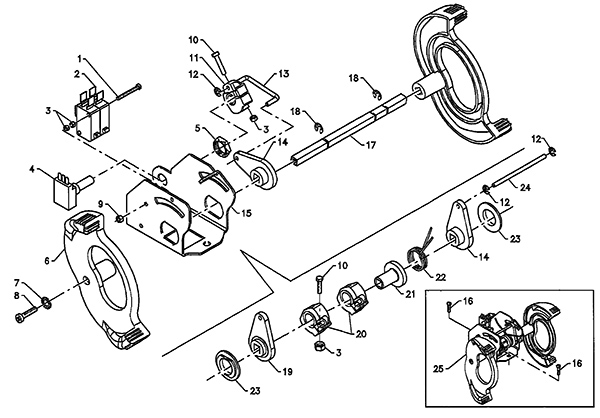

Traction Control Assembly - 183-1052
RefNbr Part Number Description Req Notes
1 183-9276 Screw M3 x 35mm 2
2 183-4712 10amp microswitch 2
3 183-8352 Nut 7
4 183-9277 2.5K potentioneter 1
5 183-9278 Potentiometer nut 4
6 183-8339 Lever 2
7 183-8338 Washer 2
8 183-8337 Screw M3 x 10 2
9 183-8357 Nut 2
10 183-8350 Screw 3
11 183-9279 Potentiometer level 1
12 183-8354 Ring 3
13 183-9280 Drive control tie rod 1
14 183-8353 Lever 2
15 183-8344 Bracket 1
16 183-8332 Screw M5 x 8 2
17 183-8342 shaft 1
18 183-8343 Ring 2
19 183-8348 Lever 1
20 183-9281 Micro cam drive control 2
21 183-8351 Bushing 1
22 183-8346 Spring 1
23 183-8347 Bushing 2
24 183-8355 Spring 1
25 183-9282 Drive control assembly 1

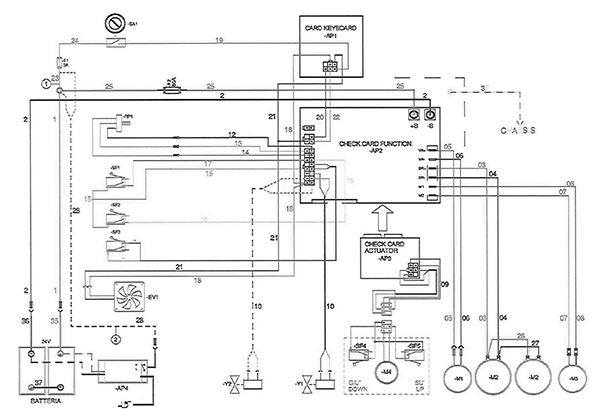

Wiring Assembly -

RefNbr Part Number Description Req Notes

Water Unit Assembly from SN 19004226 - 183-1058
RefNbr Part Number Description Req Notes
1 183-7651 Hose clamp 1
2 183-8202 Fitting 1
3 183-9253 90 degree elbow fitting 1
4 183-2517 Solenoid valve assembly 1
5 183-8198 Square connector 1
6 183-2522 Solenod valve body 1
7 183-8230 Solenoid valve coil 1
8 183-2270 Cap 1
9 183-2581 Screw M5 x 12mm 2
10 183-2578 Lock washer 2
11 183-7655 Solenoid valve support 1
12 183-9254 Screw M4 x 12mm 2
13 183-2438 Washer 2
14 183-3233 Lock nut 2
15 183-2520 Ring nut 1
16 183-9255 O-ring 1
17 183-9256 Distributor 1
18 183-9257 Cover 1
19 183-9258 Hose M12 x 85mm 1
20 183-8264 Washer INOX 1
21 183-2456 Nut inox 1
22 183-9259 Gasket 1
23 183-9260 Straight fitting 2
24 183-8241 Clamp 4
25 183-7657 Hose 2
26 183-2581 Screw M5 x 12mm 4
27 183-2578 Lock washer 4
28 183-9261 Water tube outlet 2

- Commonly Asked For Parts - 183-9908
RefNbr Part Number Description Req Notes
1 183-8769 Screw 1
2 183-8770 Washer 1
3 183-1193 Spring washer 2
4 183-8771 Internal toothed washer 1
5 183-8772 Nut 4
6 183-8773 Screw 1
7 183-8774 Screw 1
8 183-8775 Screw 1
9 183-8776 Screw 1
10 183-8777 Washer 4
11 183-8778 Mounting screw 4
12 183-8779 Bolt 2
13 183-8780 Washer internal star lock 2
14 183-8781 Complete wheel (with cap) 2
15 183-8782 Wheel cap 2
16 183-8783 Cable restraint 1
17 183-8784 O-clip 6
18 183-8785 Nylon washer 4
19 183-8786 Male barb connector 1
20 183-8787 Female bulkhead coupling 1
21 183-8788 Male coupling connector 1
22 183-8789 Brush motor pulley 1
23 183-8790 Brush drive belt 1
24 183-8791 Handle lock knob 2
25 183-8741 Screw 11
26 183-1142 Screw 2
27 183-8742 Screw 4
28 183-8792 Pick up hose 1
29 183-8794 Hose clamp 2
30 183-8795 Strain relief clip 1
31 183-8796 Nut wire connector 1
32 183-8797 Wheel axle spacer 2
33 183-8798 Rear electrical panel 1
34 183-8799 Axle retaining plate 2
35 183-8800 Fluid coupling bracket 1
36 183-8801 Wheel axle 1
37 183-8802 Heat sink bracket 1
38 183-8803 Gasket strip 1
39 183-8804 Decal 1
40 183-8805 Motor mounting bracket 1
41 183-8806 Pump hose feed 1
42 183-8807 Pump outlet hose 1
43 183-8808 Spray jet hose 1
46 183-8809 Solution tank filter 1
47 183-8810 Metal elbow 1
48 183-8811 Brush motor 1
49 183-8812 Switch splash cover 3
50 183-8813 M20 cable gland 1
51 183-8814 Suppressor 1
N/S 183-8815 Terminal block 1
53 183-2124 120V solenoid pump 1 (with rubber mounts)
54 183-8817 Thermal overload 1
55 183-8818 1.5amp cutout 1
56 183-8819 25amp bridge rectifier 1
57 183-8820 Pick up assembly 1
58 183-8821 Vacuum motor cover assembly 1
59 183-8822 Handle assembly 1
61 183-8823 Complete brush assembly 1
62 183-8824 Drain hose assembly 1
63 183-8825 Vacuum motor kit 1
64 183-8826 Bottom cover kit 1
N/S 183-8827 30 feet main cable (yellow) 1

- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)
Webpage Problem Reporting
