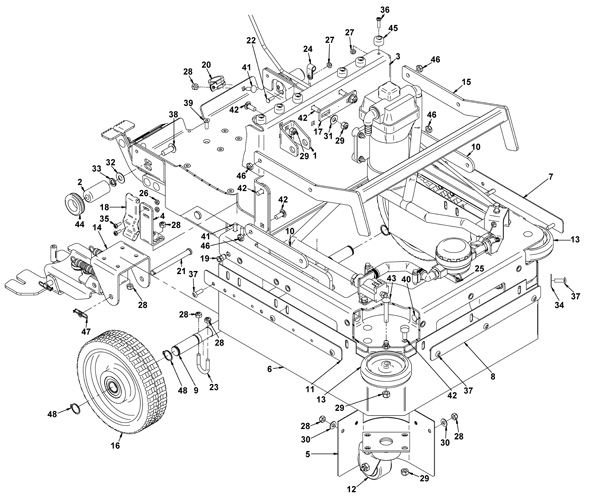

Main Frame Assembly - Pad Driven - 202-2168 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5316 |
Lifting bracket |
1 |
|
| 3a |
202-5318 |
17 inch pad assist main frame |
1 |
(17 inch) |
| 3b |
202-5340 |
20 inch main frame |
1 |
(20 inch) |
| 4 |
202-5319 |
Latch bracket |
2 |
|
| 5 |
202-5320 |
Caster curtain |
2 |
|
| 6a |
202-5321 |
17 inch brush frame curtain |
1 |
(17 inch) |
| 6b |
202-5341 |
20 inch brush frame curtain |
1 |
(20 inch) |
| 7a |
202-5322 |
17 inch left side curtain band |
1 |
(17 inch) |
| 7b |
202-5342 |
20 inch left side curtain band |
1 |
(20 inch) |
| 8 |
202-5323 |
17 inch main frame front curtain band |
1 |
|
| 10 |
202-5325 |
Lateral arm |
2 |
|
| 11a |
202-5326 |
17 inch right side curtain band |
1 |
(17 inch) |
| 11b |
202-5343 |
20 inch right side curtain band |
1 |
(20 inch) |
| 12 |
202-5064 |
Caster wheel |
2 |
|
| 13 |
202-5079 |
4 inch wheel |
2 |
|
| 14 |
202-5327 |
Squeegee drag bracket |
1 |
|
| 15 |
202-5328 |
Disk lateral arm |
1 |
|
| 16 |
202-4149 |
Tire (black) |
2 |
|
| 17 |
202-3279 |
Tank support strap |
1 |
|
| 19 |
202-5284 |
Nut 1/4-20 hex crimp long |
17 |
|
| 20 |
202-5105 |
1 inch rubber loop clamp |
1 |
|
| 22 |
999-1508 |
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
| 25 |
202-2589 |
Nut 10-32 crimp hex |
4 |
|
| 26 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
4 |
|
| 27 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
7 |
|
| 28 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
24 |
|
| 29 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
14 |
|
| 30 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
10 |
|
| 31 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 32 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 33 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 34 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
2 |
|
| 35 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 36 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
6 |
|
| 37 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
11 |
|
| 38 |
999-1847 |
Screw 3/8-16 x 1 1/2 button head socket cap stainless steel |
2 |
|
| 39 |
999-1571 |
Screw 1/4-20 x 3/4 flat head socket stainless steel |
6 |
|
| 40 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
8 |
|
| 41 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
5 |
|
| 42 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
16 |
|
| 43 |
202-2100 |
Bolt 5/16-18 x 2 carriage head |
2 |
|
| 45 |
202-3275 |
Rubber bumper |
6 |
|
| 46 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
4 |
|
| 48 |
202-5330 |
Retaining ring |
4 |
|
|
|

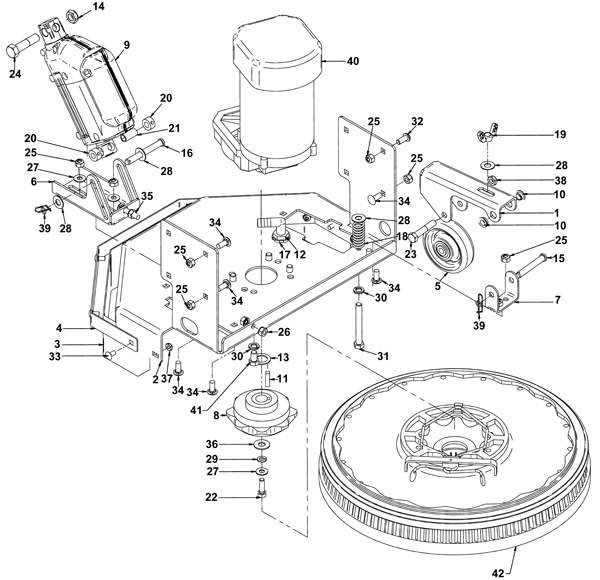

Disk Deck - Pad Driven - 202-2169 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5331 |
Deck wheel pivot bracket |
1 |
|
| 2a |
202-5332 |
17 inch disk deck |
1 |
(17 inch) |
| 2b |
202-5344 |
20 inch disk deck |
1 |
(20 inch) |
| 3a |
202-5333 |
17 inch disk deck curtain |
1 |
(17 inch) |
| 3b |
202-5345 |
20 inch disk deck curtain |
1 |
(20 inch) |
| 4a |
202-5334 |
17 inch disk deck curtain band |
1 |
(17 inch) |
| 4b |
202-5346 |
20 inch disk deck curtain band |
1 |
(20 inch) |
| 6 |
202-5336 |
Lifting bracket |
1 |
|
| 7 |
202-2079 |
Deck wheel pivot support |
1 |
|
| 8 |
202-0330 |
Metal brush driver |
1 |
|
| 9 |
202-4042 |
24V actuator |
1 |
|
| 10 |
202-1239 |
Flanged bearing |
2 |
|
| 11 |
202-0331 |
Brush driver key (pkg of 2) |
1 |
|
| 13 |
202-1204 |
Washer 3/4 x 1 1/8 flat stainless steel |
1 |
|
| 14 |
999-9119 |
Nut 1/2-13 nylon hex jam |
1 |
|
| 15 |
202-5193 |
Clevis pin 3/8 x 2 |
1 |
|
| 17 |
999-0330 |
Nut 1/2-13 acorn brass |
2 |
|
| 19 |
999-1848 |
Wing nut 3/8-16 nylon insert zinc |
1 |
|
| 20 |
202-2964 |
Shaft collar |
2 |
|
| 22 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
| 23 |
202-2211 |
Screw 3/8-16 x 2 hex cap stainless steel |
1 |
|
| 24 |
202-3084 |
Bolt hex head 1/2 x 2 inch stainlee steel |
1 |
|
| 25 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
| 26 |
999-1838 |
Nut 5/16-18 keps lock with external tooth lockwasher |
3 |
|
| 27 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 28 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 29 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 30 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
5 |
|
| 31 |
202-3193 |
Bolt 3/8-16 x 3 inch hex head stainless steel |
1 |
|
| 32 |
202-2372 |
Bolt 5/16-18 x 3/4 inch button head socket cap |
1 |
|
| 34 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
7 |
|
| 35a |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
1 |
|
| 35b |
202-2100 |
Bolt 5/16-18 x 2 carriage head |
1 |
(20 inch) |
| 36 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
(17 inch) |
| 37 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
| 38 |
999-9071 |
Nut 3/8-16 nylon insert jam lock stainless steel |
1 |
|
| 40a |
202-5443 |
24V 3/4HP 200RPM brush motor |
1 |
(Standard Motor) |
| 40b |
202-0321 |
24V 1HP 200RPM brush motor |
1 |
(HD Motor) |
| 41a |
999-1856 |
Screw 3/8-24 x 5/8 hex cap stainless steel |
1 |
(Standard Motor) |
| 41b |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
(HD Motor) |
|
|

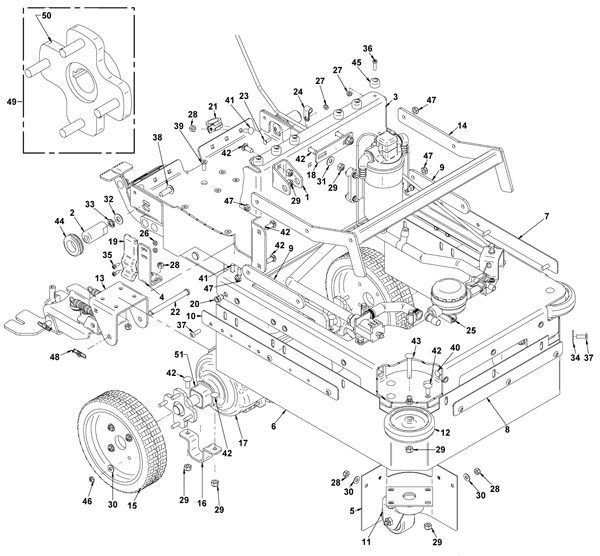

Main Frame Assembly - Traction Driven - 202-2170 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5316 |
Lifting bracket |
1 |
|
| 3a |
202-5338 |
17 inch main frame |
1 |
(17 inch) |
| 3b |
202-5347 |
20 inch main frame |
1 |
(20 inch) |
| 4 |
202-5319 |
Latch bracket |
2 |
|
| 5a |
202-5320 |
Caster curtain |
2 |
(17 inch) |
| 5b |
202-5348 |
20 inch frame curtain |
1 |
(20 inch) |
| 6 |
202-5339 |
17 inch traction frame curtain |
1 |
|
| 7a |
202-5322 |
17 inch left side curtain band |
1 |
(17 inch) |
| 7b |
202-5342 |
20 inch left side curtain band |
1 |
(20 inch) |
| 8 |
202-5323 |
17 inch main frame front curtain band |
1 |
|
| 10a |
202-5326 |
17 inch right side curtain band |
1 |
(17 inch) |
| 10b |
202-5343 |
20 inch right side curtain band |
1 |
(20 inch) |
| 11 |
202-5064 |
Caster wheel |
2 |
|
| 12 |
202-5079 |
4 inch wheel |
2 |
|
| 13 |
202-5327 |
Squeegee drag bracket |
1 |
|
| 14 |
202-5328 |
Disk lateral arm |
1 |
|
| 15 |
202-0920 |
Solid tire (gray) |
2 |
|
| 17 |
202-0908 |
Transaxle assembly |
1 |
|
| 18 |
202-3279 |
Tank support strap |
1 |
|
| 20 |
202-5284 |
Nut 1/4-20 hex crimp long |
17 |
|
| 21 |
202-5105 |
1 inch rubber loop clamp |
1 |
|
| 23 |
999-1508 |
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
| 25 |
202-2589 |
Nut 10-32 crimp hex |
4 |
|
| 26 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
4 |
|
| 27 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
7 |
|
| 28 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
20 |
|
| 29 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
18 |
|
| 30 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
16 |
|
| 31 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 32 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 33 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 34 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
2 |
|
| 35 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 36 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
6 |
|
| 37 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
11 |
|
| 38 |
999-1847 |
Screw 3/8-16 x 1 1/2 button head socket cap stainless steel |
2 |
|
| 39 |
999-1571 |
Screw 1/4-20 x 3/4 flat head socket stainless steel |
6 |
|
| 40 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
8 |
|
| 41 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
5 |
|
| 42 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
20 |
|
| 43 |
202-2100 |
Bolt 5/16-18 x 2 carriage head |
2 |
|
| 45 |
202-3275 |
Rubber bumper |
6 |
|
| 46 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
8 |
|
| 47 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
4 |
|
| 49 |
202-1366 |
Transaxle drive hub with hardware |
1 |
|
| 50 |
202-1634 |
MOTOR BRUSH |
1 |
|
| 51 |
202-1628 |
MOUNTING SLEEVE |
1 |
|
|
|

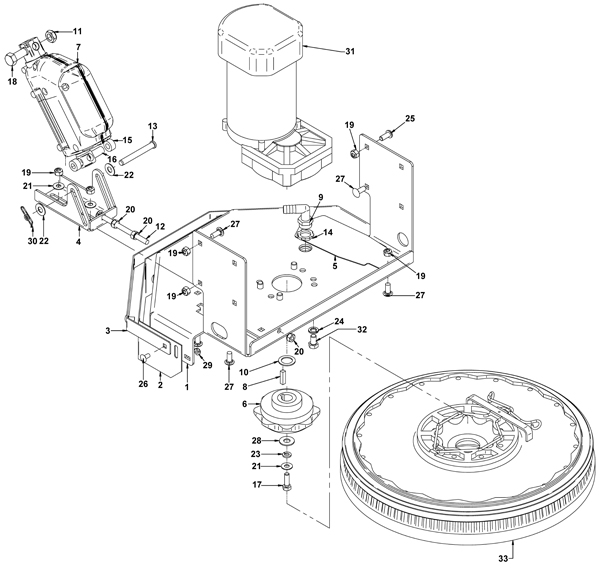

Disk Deck - Traction Driven - 202-2171 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
202-5332 |
17 inch disk deck |
1 |
(17 inch) |
| 1b |
202-5344 |
20 inch disk deck |
1 |
(20 inch) |
| 2a |
202-5333 |
17 inch disk deck curtain |
1 |
(17 inch) |
| 2b |
202-5345 |
20 inch disk deck curtain |
1 |
(20 inch) |
| 3a |
202-5334 |
17 inch disk deck curtain band |
1 |
(17 inch) |
| 3b |
202-5346 |
20 inch disk deck curtain band |
1 |
(20 inch) |
| 4 |
202-5336 |
Lifting bracket |
1 |
|
| 6 |
202-0330 |
Metal brush driver |
1 |
|
| 7 |
202-4042 |
24V actuator |
1 |
|
| 8 |
202-0331 |
Brush driver key (pkg of 2) |
1 |
|
| 10 |
202-1204 |
Washer 3/4 x 1 1/8 flat stainless steel |
1 |
|
| 11 |
999-9119 |
Nut 1/2-13 nylon hex jam |
1 |
|
| 12b |
999-1850 |
Bolt 5/16-18 x 5 1/2 round head zinc |
1 |
(20 inch) |
| 14 |
999-0330 |
Nut 1/2-13 acorn brass |
2 |
|
| 15 |
202-2964 |
Shaft collar |
2 |
|
| 17 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
| 18 |
202-3084 |
Bolt hex head 1/2 x 2 inch stainlee steel |
1 |
|
| 19 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
| 20 |
999-1838 |
Nut 5/16-18 keps lock with external tooth lockwasher |
3 |
|
| 21 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 22 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 23 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 24 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
4 |
|
| 25 |
202-2372 |
Bolt 5/16-18 x 3/4 inch button head socket cap |
1 |
|
| 27 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
7 |
|
| 28 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 29 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
| 31a |
202-5443 |
24V 3/4HP 200RPM brush motor |
1 |
(Standard Motor) |
| 31b |
202-0321 |
24V 1HP 200RPM brush motor |
1 |
(HD Motor) |
| 32a |
999-1856 |
Screw 3/8-24 x 5/8 hex cap stainless steel |
1 |
(Standard Motor) |
| 32b |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
(HD Motor) |
|
|
- Batteries, Brushes, and Chargers - 202-2172 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01a |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 01b |
162-0114 |
12V 50Ah AGM battery |
2 |
|
| 02b |
202-2883 |
24V 12amp dual model console charger |
1 |
(for 85Ah AGM batteries) |
| 03 |
202-5542 |
Battery cable kit |
1 |
|
| 04 |
202-5089 |
Mighty-Lok II grip face pad holder set (brown) |
1 |
(Edge deck) |
| 05a |
996-1146 |
17 inch Extra heavy grit stripping brush - 46 grit |
|
(Before Serial Number 89940) |
| 05b |
996-1543 |
20 inch Extra heavy grit stripping brush - 46 grit |
|
(Before Serial Number 89940) |
| 05c |
996-3218 |
17 inch super grit brush (green block) |
|
(After Serial Number 89939) |
| 05d |
996-3225 |
20 inch super grit brush (green block) |
|
(After Serial Number 89939) |
| 06a |
202-0036 |
17 inch Heavy grit stripping brush - 46 grit |
|
(Before Serial Number 89940) |
| 06b |
996-1510 |
20 inch Heavy grit stripping brush - 80 grit |
|
(Before Serial Number 89940) |
| 06c |
996-3219 |
17 inch tough grit brush (green block) |
|
(After Serial Number 89939) |
| 06d |
996-3226 |
20 inch tough grit brush (green block) |
|
(After Serial Number 89939) |
| 07a |
996-0750 |
17 inch Medium grit scrubbing brush - 180 grit |
|
(Before Serial Number 89940) |
| 07b |
202-1550 |
20 inch Medium grit scrubbing brush - 180 grit |
|
(Before Serial Number 89940) |
| 07c |
202-5725 |
17 inch midi-grit brush (green block) |
|
(After Serial Number 89939) |
| 07d |
996-3227 |
20 inch midi grit brush (green block) |
|
(After Serial Number 89939) |
| 08a |
996-0749 |
17 inch Lite grit scrubbing brush - 500 grit |
|
(Before Serial Number 89940) |
| 08b |
996-1544 |
20 inch Lite grit scrubbing brush - 500 grit |
|
(Before Serial Number 89940) |
| 08c |
996-3220 |
17 inch light grit brush (green block) |
|
(After Serial Number 89939) |
| 08d |
996-3228 |
20 inch light grit brush (green block) |
|
(After Serial Number 89939) |
| 09a |
996-0748 |
17 inch polypropylene scrubbing brush |
|
(Before Serial Number 89940) |
| 09b |
996-1545 |
20 inch Polypropelene scrubbing brush |
|
(Before Serial Number 89940) |
| 09c |
202-4196 |
17 inch polypropelene brush (green block) |
|
(After Serial Number 89939) |
| 09d |
996-3229 |
20 inch polypropelene brush (green block) |
|
(After Serial Number 89939) |
| 10a |
996-0747 |
17 inch Nylon brush |
|
(Before Serial Number 89940) |
| 10b |
996-1165 |
20 inch Nylon brush |
|
(Before Serial Number 89940) |
| 10c |
996-3221 |
17 inch nylon brush (green block) |
|
(After Serial Number 89939) |
| 10d |
996-3230 |
20 inch nylon brush (green block) |
|
(After Serial Number 89939) |
| 11a |
202-0031 |
17 inch Tampico scrubbing brush |
|
(Before Serial Number 89940) |
| 11b |
996-3216 |
20 inch Tampico brush |
|
(Before Serial Number 89940) |
| 11c |
996-3222 |
17 inch Tampico brush (green block) |
|
(After Serial Number 89939) |
| 11d |
996-3231 |
20 inch Tampico brush (green block) |
|
(After Serial Number 89939) |
| 12a |
996-0751 |
17 inch Pad driver |
|
(Before Serial Number 89940) |
| 12b |
996-1546 |
20 inch Pad driver |
|
(Before Serial Number 89940) |
| 12c |
996-3223 |
17 inch pad driver (green block) |
|
(After Serial Number 89939) |
| 12d |
996-3232 |
20 inch pad driver (green block) |
|
(After Serial Number 89939) |
| 13a |
202-3544 |
17 inch Diamond driver |
|
(Before Serial Number 89940) |
| 13b |
996-3217 |
20 inch diamond driver |
|
(Before Serial Number 89940) |
| 13c |
996-3224 |
17 inch diamond driver (green block) |
|
(After Serial Number 89939) |
| 13d |
996-3233 |
20 inch diamond driver (green block) |
|
(After Serial Number 89939) |
| 14 |
991-2202 |
Big mouth pad holder set (blue) |
|
|
|
|

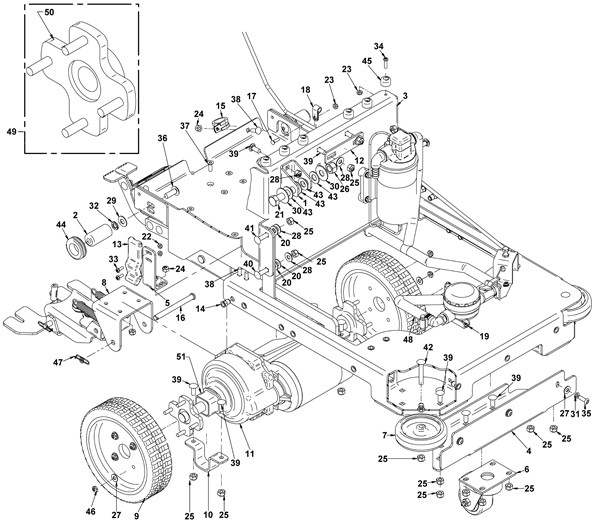

Edge Frame - Traction Driven - 202-2176 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5316 |
Lifting bracket |
1 |
|
| 3 |
202-5338 |
17 inch main frame |
1 |
|
| 4 |
202-5349 |
Single caster mount |
1 |
|
| 5 |
202-5319 |
Latch bracket |
2 |
|
| 6 |
202-5064 |
Caster wheel |
1 |
|
| 7 |
202-5079 |
4 inch wheel |
2 |
|
| 8 |
202-5327 |
Squeegee drag bracket |
1 |
|
| 9 |
202-0920 |
Solid tire (gray) |
2 |
|
| 11 |
202-0908 |
Transaxle assembly |
1 |
|
| 12 |
202-3279 |
Tank support strap |
1 |
|
| 14 |
202-5284 |
Nut 1/4-20 hex crimp long |
17 |
|
| 15 |
202-5105 |
1 inch rubber loop clamp |
1 |
|
| 17 |
999-1508 |
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
| 19 |
202-2589 |
Nut 10-32 crimp hex |
4 |
|
| 20 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
6 |
|
| 21 |
999-1113 |
Bolt 1/2-13 x 2 1/2 hex cap stainless steel |
1 |
|
| 22 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
4 |
|
| 23 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
7 |
|
| 24 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
12 |
|
| 25 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
22 |
|
| 26 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
| 27 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
13 |
|
| 28 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
| 29 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 30 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
| 31 |
999-0632 |
Washer 1/4 split lock stainless steel |
3 |
|
| 32 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 33 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 34 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
6 |
|
| 35 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
3 |
|
| 36 |
999-1847 |
Screw 3/8-16 x 1 1/2 button head socket cap stainless steel |
2 |
|
| 37 |
999-1571 |
Screw 1/4-20 x 3/4 flat head socket stainless steel |
6 |
|
| 38 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
5 |
|
| 39 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
16 |
|
| 40 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
2 |
|
| 41 |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
2 |
|
| 42 |
202-2100 |
Bolt 5/16-18 x 2 carriage head |
2 |
|
| 43 |
999-0566 |
Washer 1/2 flat nylon |
4 |
|
| 45 |
202-3275 |
Rubber bumper |
6 |
|
| 46 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
8 |
|
| 48 |
202-5533 |
Hose (elbow to valve) (OBSOLETE) |
1 |
|
| 49 |
202-1366 |
Transaxle drive hub with hardware |
1 |
|
| 50 |
202-1634 |
MOTOR BRUSH |
1 |
|
| 51 |
202-1628 |
MOUNTING SLEEVE |
1 |
|
|
|

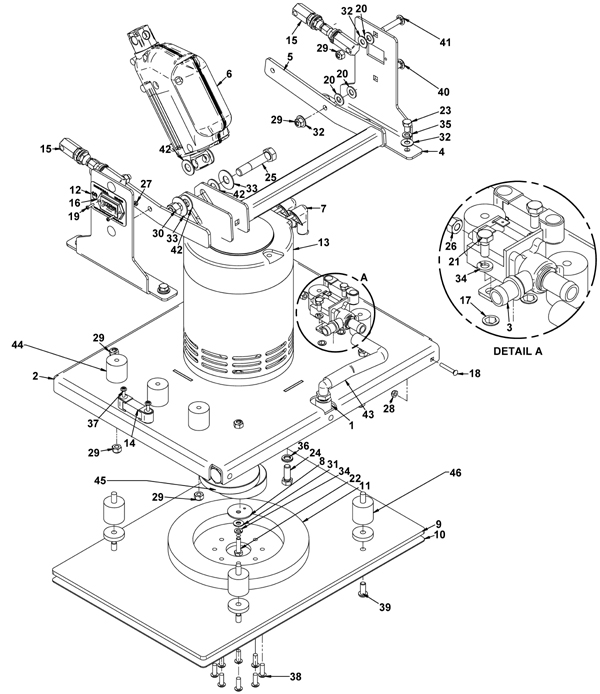

Edge Deck - Traction Driven - 202-2177 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5527 |
20 inch feed tube kit |
1 |
|
| 2 |
202-5350 |
20 inch micro edge deck |
1 |
|
| 3 |
202-5351 |
Adjustable solution flow valve |
1 |
|
| 4 |
202-5352 |
Micro edge deck bracket |
2 |
|
| 6 |
202-4042 |
24V actuator |
1 |
|
| 7 |
202-2961 |
Terminal cover (black) |
2 |
|
| 8 |
202-5084 |
Crush washer |
1 |
|
| 9 |
202-5194 |
20 inch aluminum pad driver |
1 |
|
| 10 |
202-5089 |
Mighty-Lok II grip face pad holder set (brown) |
1 |
|
| 11 |
202-5202 |
1 inch bearing gasket |
1 |
|
| 12 |
202-5091 |
Isolator decal |
1 |
|
| 13 |
202-5354 |
24V 1.2 HP motor |
1 |
|
| 14 |
202-5098 |
2 inch bolt on level |
2 |
|
| 15 |
202-5099 |
Adjustable lateral arm assembly |
2 |
|
| 17 |
202-5284 |
Nut 1/4-20 hex crimp long |
2 |
|
| 18 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
3 |
|
| 19 |
999-0983 |
Screw 4-40 x 1 pan head phillips zinc plated |
2 |
|
| 20 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
6 |
|
| 21 |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
2 |
|
| 22 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 23 |
999-0547 |
Bolt 5/16-18 x 1/2 hex head stainless steel |
6 |
|
| 24 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
| 25 |
999-1113 |
Bolt 1/2-13 x 2 1/2 hex cap stainless steel |
1 |
|
| 26 |
999-0651 |
Nut 1/4-28 hex stainless steel |
1 |
|
| 27 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 28 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
3 |
|
| 29 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
12 |
|
| 30 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
| 31 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 32 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
| 33 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
| 34 |
999-0632 |
Washer 1/4 split lock stainless steel |
3 |
|
| 35 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 36 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
4 |
|
| 37 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 38 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
8 |
|
| 39 |
202-2372 |
Bolt 5/16-18 x 3/4 inch button head socket cap |
4 |
|
| 40 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
2 |
|
| 41 |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
2 |
|
| 42 |
999-0566 |
Washer 1/2 flat nylon |
4 |
|
| 43 |
202-5147 |
Tubing 1/2 x 7 inch (OBSOLETE) |
1 |
|
| 44 |
202-5111 |
Isolator kit (pkg of 6) |
1 |
(includes 6 isolators, 6 bolts, 6 washers, 6 lock washers and 6 nylok nuts) |
| 45 |
202-9586 |
Eccentric kit with hardware and loctite for scrubbers |
1 |
|
| 46 |
202-5444 |
20 and 24 inch isolator kit (pkg of 4) |
1 |
(includes 4 isolators, 1 hour meter, 4 bolts, 4 nuts, 1 gasket and 1 sticker seal) |
|
|

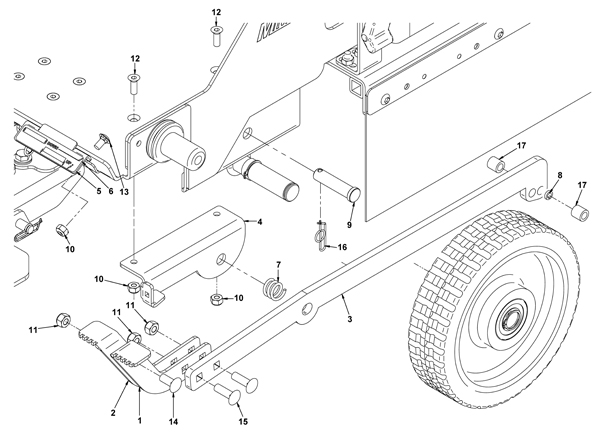

Foot Pedal Assembly - 202-2178 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5355 |
Left side foot pedal |
1 |
|
| 2 |
202-5356 |
Right side foot pedal |
1 |
|
| 3 |
202-5357 |
Foot pedal arm |
1 |
|
| 4 |
202-5358 |
Foot pedal arm lock |
1 |
|
| 5 |
202-5359 |
Decal bracket |
1 |
|
| 6 |
202-5360 |
Foot pedal decal |
1 |
|
| 8 |
202-5304 |
Spring roll pin |
1 |
|
| 10 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
| 11 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
| 12 |
999-1571 |
Screw 1/4-20 x 3/4 flat head socket stainless steel |
2 |
|
| 14 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
| 15 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
2 |
|
| 16 |
202-2059 |
Cotter ring |
1 |
|
| 17 |
202-0589 |
5/16 clear tubing |
2 |
|
|
|

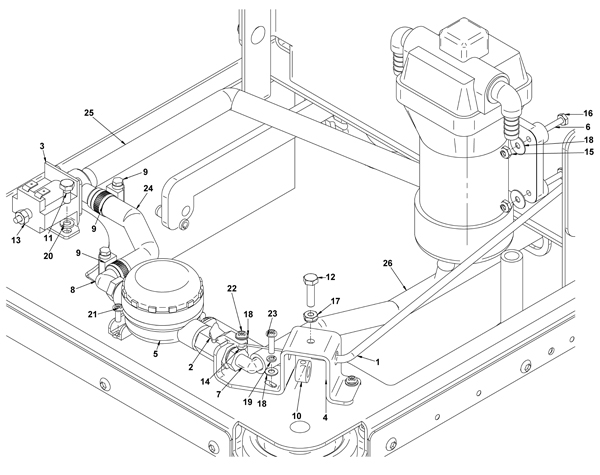

Solution Flow Filter Assembly - 202-2179 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-5363 |
3/8 inch ball valve |
1 |
|
| 3 |
202-5351 |
Adjustable solution flow valve |
1 |
|
| 4 |
202-5364 |
Valve cable guide |
1 |
|
| 5 |
202-3234 |
Inline filter |
1 |
|
| 6 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
4 |
|
| 7 |
202-3235 |
90 degree elbow |
1 |
|
| 10 |
202-2964 |
Shaft collar |
1 |
|
| 11 |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
2 |
|
| 12 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 13 |
999-0651 |
Nut 1/4-28 hex stainless steel |
1 |
|
| 14 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
1 |
|
| 15 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 16 |
202-2067 |
Nut 10-32 keps |
4 |
|
| 17 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
| 18 |
999-0998 |
Washer #10 flat stainless steel |
7 |
|
| 19 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 20 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 21 |
999-1350 |
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
2 |
|
| 22 |
202-2621 |
Screw 6-32 x 1/2 round head phillips |
1 |
|
| 23 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
| 24 |
202-5365 |
5 1/2 inch hose |
1 |
|
| 25 |
202-5536 |
Hose (OBSOLETE) |
1 |
|
|
|

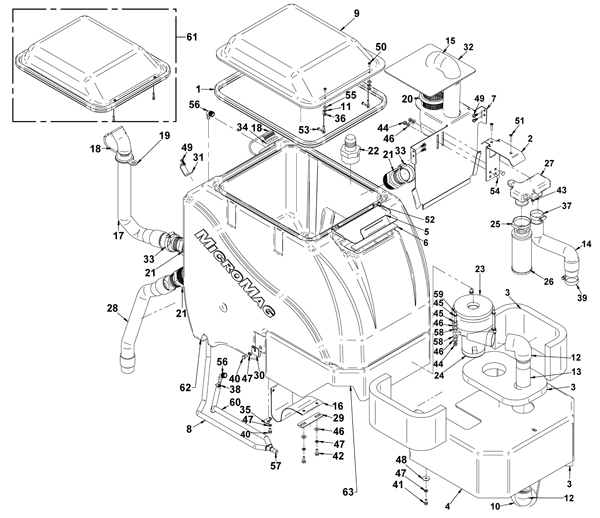

Tank Assembly - 202-2180 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-5366 |
Ball float holder |
1 |
|
| 3 |
202-5367 |
Vacuum motor insulation |
1 |
|
| 5 |
202-5369 |
Solution fill lid |
1 |
|
| 8 |
202-5372 |
Sight tube hose |
1 |
|
| 9 |
202-5373 |
Vacuum cover |
1 |
|
| 11 |
202-5375 |
Cable lanyard |
2 |
|
| 12 |
202-5376 |
1 1/2 inch elbow |
2 |
|
| 13 |
202-5377 |
1 1/2 inch pipe |
1 |
|
| 14 |
202-4101 |
Wire reinforced hose 1 1/2 x 15 inch (black) |
1 |
|
| 15 |
202-3363 |
Wire reinforced hose 2 x 22 inch (gray) |
1 |
|
| 17 |
202-2882 |
Drain hose with cap |
1 |
|
| 18 |
202-3373 |
Drain hose cap |
2 |
|
| 19 |
202-5378 |
Hose retainer strap |
1 |
|
| 20 |
202-3036 |
Strainer screen |
1 |
|
| 23 |
202-1917 |
Vacuum motor gasket |
1 |
|
| 24 |
991-1210 |
24V 3 stage vacuum motor tangential |
1 |
|
| 25 |
202-1640 |
Nylon clamp |
1 |
|
| 26 |
202-0903 |
Vacuum screen |
1 |
|
| 28 |
202-3023 |
Squeegee vacuum hose |
1 |
|
| 29 |
202-3279 |
Tank support strap |
1 |
|
| 32 |
202-3251 |
Splash panel |
1 |
|
| 35 |
202-2189 |
Loop clamp rubber |
1 |
|
| 36 |
999-1269 |
Nut 10-32 nylon insert jam stainless steel |
2 |
|
| 40 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
3 |
|
| 41 |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
3 |
|
| 42 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 43 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 44 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 45 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
| 46 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
10 |
|
| 47 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 48 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
3 |
|
| 49 |
202-2918 |
Screw 1/4-20 x 3/4 self tapping |
5 |
|
| 50 |
999-1350 |
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
2 |
|
| 51 |
999-1471 |
Screw #10-21 x 1 flat head phillips stainless steel |
2 |
|
| 52 |
999-1882 |
Screw #6 x 1/2 inch pan head phillips stainless steel |
2 |
|
| 53 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
| 54 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
2 |
|
| 55 |
202-3244 |
Neoprene washer |
2 |
|
| 56 |
202-5379 |
3/8 inch elbow |
3 |
|
| 57 |
202-5380 |
3/8 inch fitting |
1 |
|
| 58 |
202-1986 |
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
6 |
|
| 60 |
202-5382 |
3/8 inch hose |
1 |
|
| 61 |
202-5373 |
Vacuum cover |
1 |
|
| 62a |
202-5445 |
Solution tank (granite) |
1 |
|
| 62b |
202-5446 |
Solution tank (red) |
1 |
|
| 63 |
202-5538 |
Bandeau |
1 |
(for front mounted edge decks only) |
|
|

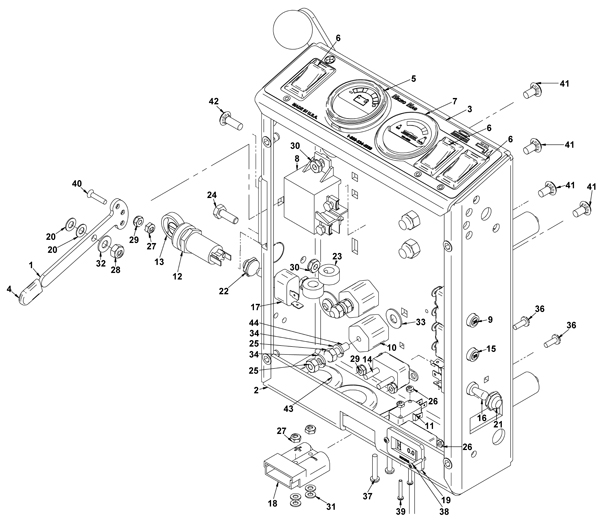

Central Command - Pad Driven - 202-2181 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-5384 |
Traction control panel |
1 |
|
| 3 |
202-5385 |
Control panel decal |
1 |
|
| 4 |
202-5386 |
Handle grip (blue) |
1 |
|
| 5 |
202-5387 |
Battery meter |
1 |
|
| 6 |
202-5388 |
Rocker switch |
3 |
|
| 7 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 8 |
202-4165 |
24V 50amp relay |
1 |
|
| 9 |
202-2241 |
25amp resettable fuse |
1 |
|
| 10 |
202-2858 |
Switchboard insulator |
2 |
|
| 11 |
202-0721 |
Microswitch |
1 |
|
| 12 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 13 |
991-1634 |
Key (pkg of 2) |
1 |
|
| 14 |
202-2052 |
15amp circuit breaker |
1 |
|
| 16 |
202-0521 |
Toggle switch |
1 |
|
| 17 |
202-0097 |
Toggle switch |
1 |
|
| 18 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 20 |
202-1196 |
Washer 17/64 x 21/64 nylon flat |
2 |
|
| 21 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 22 |
202-1355 |
Toggle switch protective boot (black) |
1 |
|
| 23 |
202-2964 |
Shaft collar |
2 |
|
| 24 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 25 |
999-0609 |
Nut 1/4-20 hex stainless steel |
4 |
|
| 26 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
3 |
|
| 27 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
3 |
|
| 28 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 29 |
999-1464 |
Nut 8-32 keps lock with external tooth lockwasher ss |
3 |
|
| 30 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
3 |
|
| 31 |
999-0266 |
Washer #8 SAE flat stainless steel |
4 |
|
| 32 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 33 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 34 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 36 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
2 |
|
| 37 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 38 |
202-2370 |
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
| 39 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 40 |
999-1851 |
Screw 8-32 x 3/4 phillips flat head stainless steel |
1 |
|
| 42 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
| N/S |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
1 |
|
|
|

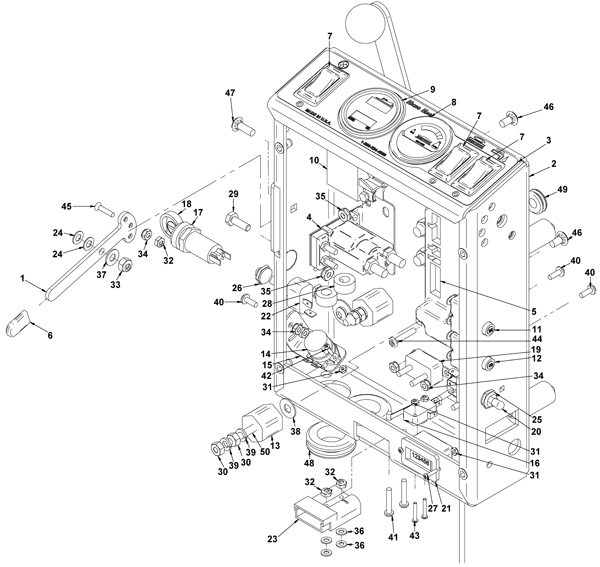

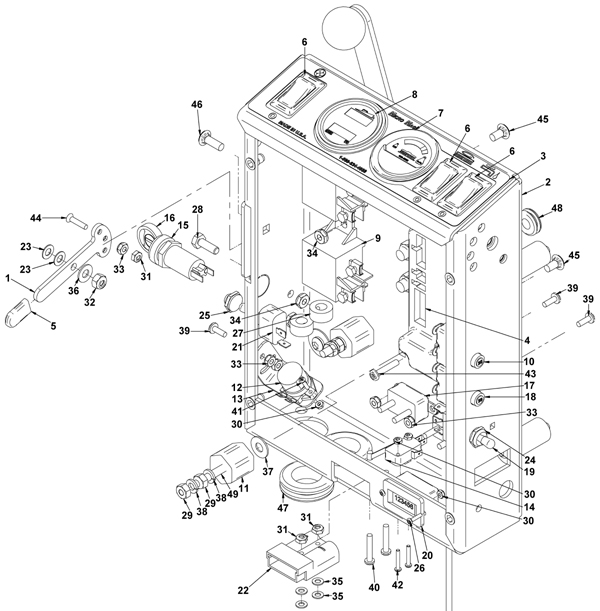

Central Command - Traction Driven - 202-2182 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-5384 |
Traction control panel |
1 |
|
| 3 |
202-5385 |
Control panel decal |
1 |
|
| 5 |
202-5386 |
Handle grip (blue) |
1 |
|
| 6 |
202-5388 |
Rocker switch |
3 |
|
| 7 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 8 |
202-2855 |
Battery meter |
1 |
|
| 9 |
202-4165 |
24V 50amp relay |
1 |
|
| 10 |
202-2241 |
25amp resettable fuse |
1 |
|
| 11 |
202-2858 |
Switchboard insulator |
1 |
|
| 12 |
202-2859 |
Tilt switch |
1 |
|
| 13 |
202-2860 |
Tilt switch bracket |
1 |
|
| 14 |
202-0721 |
Microswitch |
1 |
|
| 15 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 16 |
991-1634 |
Key (pkg of 2) |
1 |
|
| 17 |
202-2052 |
15amp circuit breaker |
1 |
|
| 19 |
202-0521 |
Toggle switch |
1 |
|
| 21 |
202-0097 |
Toggle switch |
1 |
|
| 22 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 23 |
202-1196 |
Washer 17/64 x 21/64 nylon flat |
2 |
|
| 24 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 25 |
202-1355 |
Toggle switch protective boot (black) |
1 |
|
| 26 |
999-0983 |
Screw 4-40 x 1 pan head phillips zinc plated |
1 |
|
| 27 |
202-2964 |
Shaft collar |
2 |
|
| 28 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 29 |
999-0609 |
Nut 1/4-20 hex stainless steel |
4 |
|
| 30 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
5 |
|
| 31 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
36 |
|
| 32 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 33 |
999-1464 |
Nut 8-32 keps lock with external tooth lockwasher ss |
7 |
|
| 34 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
| 35 |
999-0266 |
Washer #8 SAE flat stainless steel |
4 |
|
| 36 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 37 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 38 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 39 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
6 |
|
| 40 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 41 |
202-2370 |
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
| 42 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 43 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
| 44 |
999-1851 |
Screw 8-32 x 3/4 phillips flat head stainless steel |
1 |
|
| 46 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
| 48 |
202-3348 |
Rubber grommet |
1 |
|
|
|
Edge Cental Command - Traction Driven - 202-2183 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-5384 |
Traction control panel |
1 |
|
| 3 |
202-5385 |
Control panel decal |
1 |
|
| 6 |
202-5386 |
Handle grip (blue) |
1 |
|
| 7 |
202-5388 |
Rocker switch |
3 |
|
| 8 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 9 |
202-2855 |
Battery meter |
1 |
|
| 10 |
202-4165 |
24V 50amp relay |
1 |
|
| 11 |
202-2241 |
25amp resettable fuse |
1 |
|
| 12 |
202-4160 |
40amp resettable fuse |
1 |
|
| 13 |
202-2858 |
Switchboard insulator |
1 |
|
| 14 |
202-2859 |
Tilt switch |
1 |
|
| 15 |
202-2860 |
Tilt switch bracket |
1 |
|
| 16 |
202-0721 |
Microswitch |
1 |
|
| 17 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 18 |
991-1634 |
Key (pkg of 2) |
1 |
|
| 19 |
202-2052 |
15amp circuit breaker |
1 |
|
| 20 |
202-0521 |
Toggle switch |
1 |
|
| 22 |
202-0097 |
Toggle switch |
1 |
|
| 23 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 24 |
202-1196 |
Washer 17/64 x 21/64 nylon flat |
2 |
|
| 25 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 26 |
202-1355 |
Toggle switch protective boot (black) |
1 |
|
| 27 |
999-0983 |
Screw 4-40 x 1 pan head phillips zinc plated |
1 |
|
| 28 |
202-2964 |
Shaft collar |
2 |
|
| 29 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 30 |
999-0609 |
Nut 1/4-20 hex stainless steel |
4 |
|
| 31 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
5 |
|
| 32 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
3 |
|
| 33 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 34 |
999-1464 |
Nut 8-32 keps lock with external tooth lockwasher ss |
7 |
|
| 35 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
| 36 |
999-0266 |
Washer #8 SAE flat stainless steel |
4 |
|
| 37 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 38 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 39 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 40 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
6 |
|
| 41 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 42 |
202-2370 |
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
| 43 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 44 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
| 45 |
999-1851 |
Screw 8-32 x 3/4 phillips flat head stainless steel |
1 |
|
| 47 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
| 49 |
202-3348 |
Rubber grommet |
1 |
|
|
|

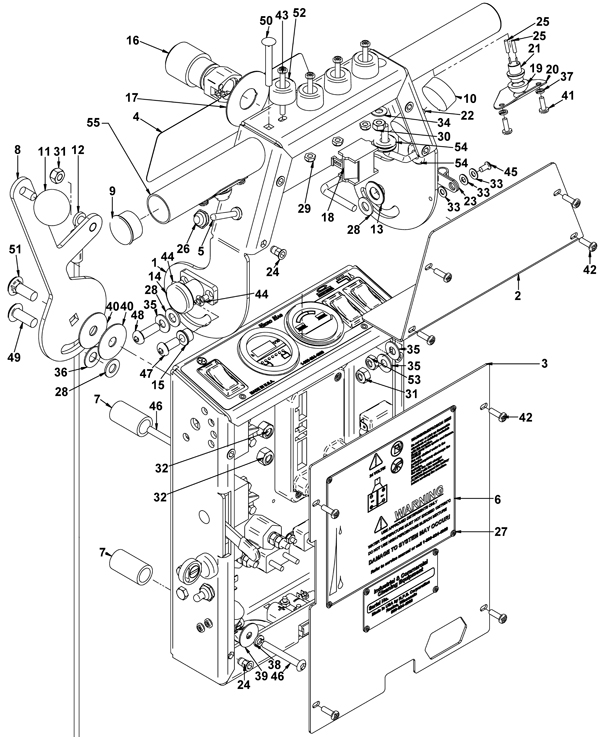

Handlebar and Squeegee Lift Arm Assembly - 202-2184 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5392 |
Adjustable handle bar holder |
1 |
|
| 2 |
202-5393 |
Handlebar cover |
1 |
|
| 3 |
202-5394 |
Control panel cover |
1 |
|
| 4 |
202-5395 |
Traction decal |
1 |
|
| 5 |
202-5396 |
Toggle switch |
1 |
|
| 6a |
202-5397 |
24V battery warning plate |
1 |
(The warning plate has changed - You now need to order this and 202-0675.) |
| 6b |
202-0675 |
Detergent warning plate |
1 |
|
| 8 |
202-4164 |
Squeegee lifting lever |
1 |
|
| 10 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 12 |
202-5398 |
Squeegee lift cable |
1 |
|
| 13 |
202-1181 |
Washer 1/2 flat bronze |
2 |
|
| 14 |
202-0719 |
Index plunger |
1 |
|
| 15 |
202-3312 |
Flanged bearing |
2 |
|
| 16 |
202-0826 |
Emergency shut-off switch |
1 |
|
| 17 |
202-0827 |
Emergency legend plate |
1 |
|
| 18 |
202-0825 |
Emergency contact |
1 |
|
| 19 |
202-3427 |
Button cover |
2 |
|
| 20 |
202-0869 |
Switch cover |
2 |
|
| 21 |
202-0879 |
Push button switch |
2 |
|
| 22 |
202-0535 |
Speed control potentiometer |
1 |
|
| 24 |
202-2589 |
Nut 10-32 crimp hex |
8 |
|
| 25 |
202-2254 |
Heat shrink |
4 |
|
| 26 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 27 |
202-3315 |
Blind rivet |
8 |
|
| 28 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
5 |
|
| 29 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 30 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 31 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
| 32 |
999-1482 |
Nut 3/8-16 nylon lock stainless steel |
2 |
|
| 33 |
999-0998 |
Washer #10 flat stainless steel |
3 |
|
| 34 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 35 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
| 36 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 37 |
999-0150 |
Washer #8 medium split lock |
4 |
|
| 38 |
999-0632 |
Washer 1/4 split lock stainless steel |
1 |
|
| 39 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
1 |
|
| 40 |
999-1446 |
Washer 3/8 x 1 1/2 fender stainless steel |
2 |
|
| 41 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 42a |
202-2122 |
Screw 10-32 x 5/8 inch phillips pan head |
5 |
|
| 42b |
999-1487 |
Screw 10-32 x 5/8 pan head phillips stainless steel |
5 |
|
| 43 |
999-1818 |
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
| 44 |
999-1509 |
Screw 10-32 x 3/8 flat head phillips stainless steel |
2 |
|
| 45 |
202-3197 |
Screw 10-32 x 3/8 inch button head socket stainless steel |
1 |
|
| 46 |
999-1852 |
Screw 1/4-20 x 2 button head socket stainless steel |
4 |
|
| 47 |
202-2372 |
Bolt 5/16-18 x 3/4 inch button head socket cap |
2 |
|
| 48 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
| 49 |
999-1003 |
Bolt 3/8-16 x 1 button head socket cap stainless steel |
14 |
|
| 50 |
999-0605 |
Screw 1/4-20 x 2 carriage head stainless steel |
2 |
|
| 51 |
202-2832 |
Bolt 3/8 - 16 x 1 carriage head stainless steel |
1 |
|
| 52 |
202-3275 |
Rubber bumper |
4 |
|
| 53 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
2 |
|
| 54 |
202-3348 |
Rubber grommet |
2 |
|
| 55a |
202-5447 |
Dual button handle bar |
1 |
(traction driven) |
| 55b |
202-5448 |
No button assist handle bar |
1 |
(pad driven) |
|
|

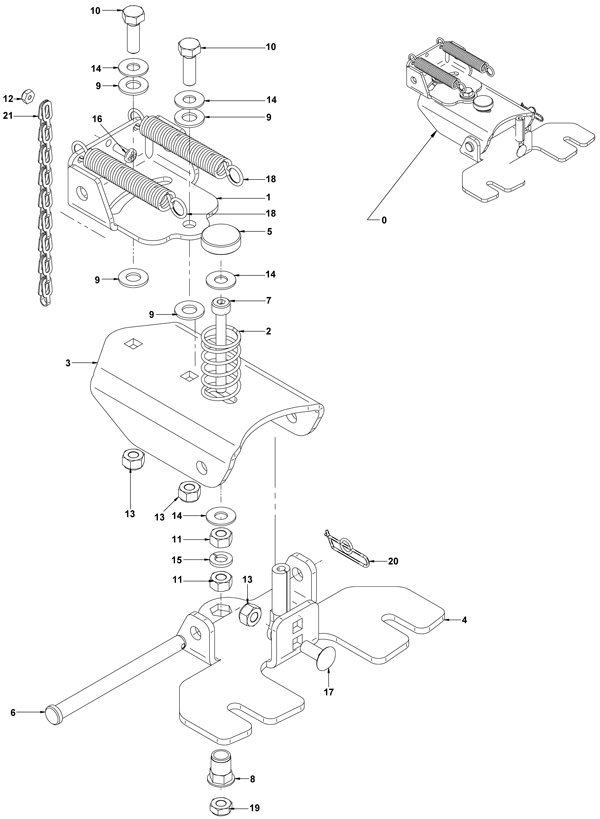

Squeegee Drag Link Assembly - 202-2185 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
202-5399 |
Squeegee trail arm assembly |
1 |
|
| 1 |
202-5400 |
Squeegee swing plate |
1 |
|
| 3 |
202-5402 |
Squeegee triangle plate |
1 |
|
| 4 |
202-5403 |
Lower squeegee triangle pivot |
1 |
|
| 5 |
202-2754 |
Adjustment knob |
1 |
|
| 7 |
999-1829 |
Screw 5/16-18 x 2 1/2 socket head stainless steel |
1 |
|
| 8 |
999-0069 |
Nut 5/16-18 hex |
1 |
|
| 9 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
4 |
|
| 10 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 11 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 12 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
1 |
|
| 13 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
| 14 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 15 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 16 |
202-2621 |
Screw 6-32 x 1/2 round head phillips |
1 |
|
| 17 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
| 18 |
202-2208 |
Compression spring |
2 |
|
| 19 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 21 |
202-5539 |
6 inch flat chain |
1 |
|
|
|

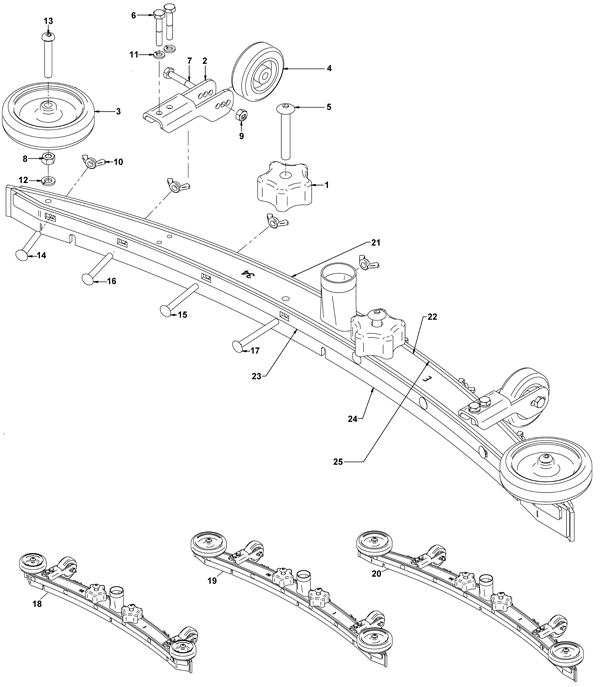

Squeegee Tool Assembly - 202-2186 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-5404 |
Backup wheel bracket |
2 |
|
| 3a |
202-5079 |
4 inch wheel |
2 |
(30 and 34 inch) |
| 3b |
202-5405 |
3 inch wheel |
2 |
(26 inch only) |
| 4 |
202-0008 |
Squeegee wheel with hardware (pkg of 2) |
2 |
|
| 5 |
999-1842 |
Screw 3/8-16 x 2 1/2 button socket head stainless steel |
2 |
|
| 6 |
999-1260 |
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
4 |
|
| 7 |
999-1436 |
Bolt 1/4-20 x 1 3/4 hex stainless steel |
2 |
|
| 8 |
999-0609 |
Nut 1/4-20 hex stainless steel |
2 |
|
| 9 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 11 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 12 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 13 |
999-1854 |
Screw 5/16 18 x 2 button head socket cap stainless steel |
2 |
|
| 14 |
999-1400 |
Screw 1/4-20 x 1 3/4 carriage head stainless steel |
2 |
(only used on the 34 inch) |
| 15 |
999-1855 |
Bolt 1/4 20 x 2 1/4 round head stainless steel |
2 |
|
| 16 |
999-0605 |
Screw 1/4-20 x 2 carriage head stainless steel |
2 |
|
| 17 |
999-0606 |
Screw 1/4-20 x 2 1/2 carriage head stainless steel |
2 |
|
| 18 |
202-5406 |
26 inch squeegee assembly |
1 |
|
| 19 |
202-5407 |
30 inch squeegee assembly |
1 |
|
| 20 |
202-5408 |
34 inch squeegee assembly |
1 |
|
| 21a |
202-5409 |
26 inch rear squeegee band |
1 |
|
| 21b |
202-5410 |
30 inch rear squeegee band |
1 |
|
| 21c |
202-5411 |
34 inch rear squeegee band |
1 |
|
| 22a |
202-5412 |
26 inch squeegee body |
1 |
|
| 22b |
202-5413 |
30 inch squeegee body |
1 |
|
| 22c |
202-5414 |
34 inch squeegee body |
1 |
|
| 23a |
202-5415 |
26 inch front squeegee band |
1 |
|
| 23b |
202-5416 |
30 inch front squeegee band |
1 |
|
| 23c |
202-5417 |
34 inch front squeegee band |
1 |
|
| 24a |
202-5418 |
26 inch front squeegee blade linatex |
1 |
|
| 24b |
202-5419 |
30 inch front squeegee blade linatex |
1 |
|
| 24c |
202-5420 |
34 inch front squeegee blade linatex |
1 |
|
| 24d |
202-5421 |
26 inch front squeegee blade gum |
1 |
|
| 24e |
202-5422 |
30 inch front squeegee blade gum |
1 |
|
| 24f |
202-5423 |
34 inch front squeegee blade gum |
1 |
|
| 24g |
202-5424 |
26 inch front squeegee blade urethane |
1 |
|
| 24h |
202-5425 |
30 inch front squeegee blade urethane |
1 |
|
| 24i |
202-5426 |
34 inch front squeegee blade urethane |
1 |
|
| 25a |
202-5427 |
26 inch rear squeegee blade linatex |
1 |
|
| 25b |
202-5428 |
30 inch rear squeegee blade linatex |
1 |
|
| 25c |
202-5429 |
34 inch rear squeegee blade linatex |
1 |
|
| 25d |
202-5430 |
26 inch rear squeegee blade gum |
1 |
|
| 25e |
202-5431 |
30 inch rear squeegee blade gum |
1 |
|
| 25f |
202-5432 |
34 inch rear squeegee blade gum |
1 |
|
| 25g |
202-5433 |
26 inch rear squeegee blade urethane |
1 |
|
| 25h |
202-5434 |
30 inch rear squeegee blade urethane |
1 |
|
| 25i |
202-5435 |
34 inch rear squeegee blade urethane |
1 |
|
| N/S |
202-3530 |
Squeegee rebuild kit 30 inch linatex |
|
|
|
|

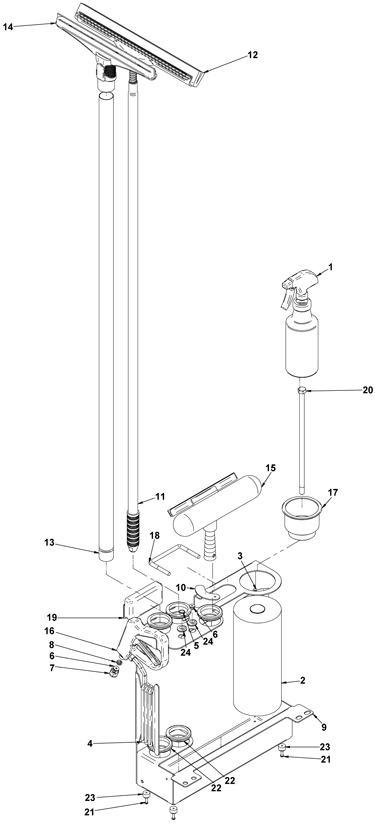

Clean Cady Assembly - 202-2187 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
Round Soap Bottle |
| 2 |
N/A |
Not available |
1 |
Paper Towel |
| 3 |
N/A |
Not available |
1 |
Blade |
| 4 |
N/A |
Not available |
1 |
Spray Hose |
| 5 |
N/A |
Not available |
1 |
Stream Spray Tip |
| 6 |
N/A |
Not available |
2 |
40 Degree Spray Tip |
| 7 |
N/A |
Not available |
1 |
Spray Tip Nut |
| 8 |
N/A |
Not available |
1 |
Spray Tip Seal |
| 9 |
202-5436 |
Accessories rack |
1 |
|
| 11 |
202-5437 |
Scrub brush stick |
1 |
|
| 12 |
202-5438 |
Scrub brush |
1 |
|
| 13 |
202-5439 |
59 inch straight wand tube |
1 |
|
| 14 |
202-5440 |
Vacuum nozzle |
1 |
|
| 15 |
202-5441 |
Window/mirror tool |
1 |
|
| 18 |
202-0855 |
Hopper handle |
1 |
|
| 20 |
999-1287 |
Screw 1/2-13 x 13 hex head grade 8 yellow zinc |
1 |
|
| 21 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
| 23 |
202-3275 |
Rubber bumper |
4 |
|
| 24 |
202-3467 |
Rubber grommet |
2 |
|
|
|
- Commonly Asked For Parts - 202-9971 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
202-3547 |
34 inch linatex squeegee rebuild kit |
1 |
For 34 inch squeegee |
|
|
- Pads - 17 inch - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 20 inch - 255-2000 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
