Parts List Complete for TOMCAT GTX 24


Front Wheel Assembly - 202-0104
RefNbr Part Number Description Req Notes
1 202-1892 Lower steering shaft 1
2 202-1894 60 toothed sprocket 1
3 202-1898 Drop plate 1
4 202-1896 Pivot plate 1
5 202-1897 Steering chain 1
6 202-2960 Wire guide 1
7 202-0771 Bearing block 1
8 202-1166 Slotted castle nut 1
9 202-5067 Tapered roller bearing 2
10a 202-0769 Sleeved bearing 1 (before SN 56484)
10b 202-5036 Preload sleeve 1 (after SN 56483)
11 202-2308 Steering shaft spindle 1
12a 202-0768 Seal 2 (before SN 56484)
12b 202-5068 Bearing seal 1 (after SN 56483)
13 202-5069 Drive guard 2 (after SN 56483)
14 202-0280 10 toothed sprocket 1
15 202-0283 Master link 1
16 202-2963 Bolt hex head stainless steel 5
17 202-2963 Bolt hex head stainless steel 2
18 202-0775 PVC tube 1
19a 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (before SN 56484)
19b 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel 4 (after SN 56483)
20 202-2216 Shaft collar with set screw 1
21 202-0281 Snap ring 1
22 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
23 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
24 999-0609 Nut 1/4-20 hex stainless steel 1
25 999-0635 Nut 3/8-16 hex stainless steel 2
26 999-0169 Nut 3/8-24 hex jam plain finish 1
27 999-1391 Nut 3/8-24 nylon insert lock stainless steel 2
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
29 999-0617 Washer 3/8 x 1 flat stainless steel 3
30 999-0632 Washer 1/4 split lock stainless steel 5
31 999-0659 Washer 3/8 medium split lock stainless steel 2
32 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
33 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
34 202-0278 Square keyway 1
35 202-2967 S hook 1
36 202-5071 O-ring 1 (after SN 56483)
37 202-5038 Spacer 1
38a 202-1893 Drive wheel assembly w/motor - includes brake 1 (includes 47) (black)
38b 202-5059 10 inch front wheel drive motor assembly 1 (with x-groove) (gray)
39a 202-3028 Front wheel drive motor 1 (before SN 56484) (drive motor only)
39b 202-3524 Front wheel drive motor 1 (after SN 56483) (drive motor only)
39c 202-5072 36V brush motor kit with springs 1 (after SN 56483)
40a 202-3385 Replacement tire ONLY 1
40b 202-5039 10 inch tire and wheel (black) 1
40d 202-5074 10 inch P7 X groove tire and wheel (black) 1
41 202-0160 Bearing 2
42 999-0423 Nut 5/16-18 nylon insert lock stainless steel 10
43 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 10
44 202-1883 Main frame (OBSOLETE) 1
45 999-0553 Washer 5/16 medium split lock stainless steel 7
46 999-0964 Washer 5/16 x 3/4 flat stainless steel 7
47a 202-1893 Drive wheel assembly w/motor - includes brake 1 (before SN 56484)
47b 202-2455 Brake assembly 1 (before SN 56484)
47c 202-5075 36V electric brake 1 (after SN 56483)
N/S 999-1300 Screw M6-1 x 25mm socket head stainless steel 10 (used for the drive wheel)
N/S 202-9300 Washer,Tooth Lock,3/8 inch Internal & External,Zinc 2

Shroud Assembly - 202-0129
RefNbr Part Number Description Req Notes
1 202-2098 4 inch wheel (gray) 2
2 202-1996 Shroud curtain band 2
4 999-1632 Nut 3/8-16 acorn stainless steel 1
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
6 999-0659 Washer 3/8 medium split lock stainless steel 1
7 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 6
8 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel 1
9 999-0304 Nut 1/4-20 nylon lock jam stainless steel 6
10a 202-5114 26 inch right side shroud assembly 1
10b 202-5115 30 inch right side shroud assembly 1
10c 202-5116 34 inch right side shroud assembly 1
11a 202-5117 26 inch left side shroud assembly 1
11b 202-5118 30 inch left side shroud assembly 1
11c 202-5119 34 inch left side shroud assembly 1
12a 202-4205 Side skirt 2
12b 202-1995 Shroud curtain gum rubber (tan) 2
12c 202-3560 Shroud curtain urethane 2
13a 202-2261 26 inch left shroud 1
13b 202-1997 26 inch right shroud 1
13c 202-1998 30 inch left shroud 1
13d 202-2263 30 inch right shroud 1
13e 202-2262 34 inch left shroud 1
13f 202-2264 34 inch right shroud 1

Solution and Recovery Tank Assembly - Before SN 76764 - 202-0172
RefNbr Part Number Description Req Notes
001 202-2025 Hosebarb 2
002 202-2118 Hosebarb 1
003 202-0884 Barbed elbow 2
004 202-4204 Squeegee vacuum hose 1 (Squeegee)
005 202-3031 Vacuum hose (tank) 1
006 202-3032 Solution drain hose 1
007 202-1989 Drain hose bracket 1
008 202-0703 Elbow 2
009 202-0708 Drain hose 1
010 202-3033 Tank plug 2
011 202-1487 Latch 1
012 202-2022 Hood cable 2
013 997-2011 Hose clamp 2
014 202-0240 Drain hose plug 1
015 202-1031 Clamp 5
016 202-0694 Drain hose end tube 1
017 202-0081 Seat with switch, cover, locking track and mounting 1
018 202-1936 Barbed tee 1
019 202-1163 Bolt 3/8 x 3/8 shoulder stainless steel 1
020 202-2917 90 degree elbow 1
021 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
022 999-1290 Screw #14 x 1 truss head phillips stainless steel 8
023 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
024 999-0617 Washer 3/8 x 1 flat stainless steel 4
025 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 1
026 202-3034 Hose 3/4 x 3 inch 1
027 202-3035 Hose 3/4 x 33 inch 1
028 202-1987 Solution and recovery tank 1
N/S 202-2027 Strainer

Scrub Deck Assembly - DISK - 202-0174
RefNbr Part Number Description Req Notes
1 202-0330 Metal brush driver 2
2 202-0809 Brass star knob 4
3 202-2976 Hose 3/4 x 16 inch 1
4 202-2976 Hose 3/4 x 16 inch 1
5 202-1948 34 inch rear curtain band 1
6 202-1946 Adjustment knob plate 4
7 202-1942 Bracket 1
8 202-1879 Bracket 2
9 202-1950 36V actuator 1
10a 991-2122 36V .75HP brush motor assembly with gear box 2 (you will also need to order 999-0130)
10b 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2
11 202-1971 Lateral arm 1
12 202-3448 Brush motor cap 2
13 202-1239 Flanged bearing 8
14 202-0754 Flanged bearing 4
15 202-1181 Washer 1/2 flat bronze 4
16 202-3085 Left thread rod end 2
17 202-3086 Right thread rod end 2
18 202-3089 Sleeved bearing 1
19 202-2208 Compression spring 2
20 202-0331 Brush driver key (pkg of 2) 2
21 202-0332 1/2 inch barbed tee 1
22 202-0333 Elbow barb 2
23 202-0629 Adjustable lateral arm 2
24 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 8
25 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 8
26 202-3096 Shim 4
27 999-0330 Nut 1/2-13 acorn brass 4
28 202-3098 Nut hex jam left hand thread 2
29 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
30 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 8
31 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel 4
32 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 4
33 999-0635 Nut 3/8-16 hex stainless steel 4
34 202-3099 Nut 2
35 999-0086 Nut 10-32 nylon insert lock zinc plated 8
36 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
37 999-1482 Nut 3/8-16 nylon lock stainless steel 8
38 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
39 999-0617 Washer 3/8 x 1 flat stainless steel 12
40 999-0553 Washer 5/16 medium split lock stainless steel 2
41 999-0659 Washer 3/8 medium split lock stainless steel 16
42 999-1567 Screw 3/8-24 x 2 hex head stainless steel 4
43 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
44 202-1968 Clevis pin 2
45 999-0120 Washer 3/8 SAE flat 4
46 999-0617 Washer 3/8 x 1 flat stainless steel 6
47 202-2036 Cotter pin 2
48a 202-1944 26 and 30 inch scrub deck 1
48b 202-1958 34 inch scrub deck 1
49a 202-1947 26 and 30 inch rear curtain band 1
49b 202-1948 34 inch rear curtain band 1
50a 202-1943 26 and 30 inch front curtain 1
50b 202-1957 34 inch front curtain 1
51a 202-2259 26 inch front curtain band 1
51b 202-2260 30 inch front curtain band 1
51c 202-1956 34 inch front curtain band 1

- Batteries, Brushes and Chargers - 202-0981
RefNbr Part Number Description Req Notes
162-0003 6V 225Ah wet battery (SNSR) 6
162-0005 6V 305Ah wet battery (SNSR) 6
162-0043 6V 224Ah AGM battery (Group GC2) 6
162-0046 6V 335Ah AGM battery (Group J305) 6
202-1877 36V 35amp onboard battery charger 1 (OEM)
162-9024 36V 12amp battery charger with small SB50 gray plug 1 (non-OEM)
162-5062 36V 20amp battery charger with small SB50 gray plug 1
991-2105 SB50 50amp charger plug with pins (gray) 1
998-0010 Battery jumper cable - ring type (red) 1
202-3506 Extra heavy grit scrubbing brush - CYLINDRICAL 2 (New style) (After SN 50000)
202-3029 Medium grit scrubbing brush - CYLINDRICAL 2 (New style) (After SN 50000)
202-3030 Light grit scrubbing brush - CYLINDRICAL 2 (New style) (After SN 50000)
202-3507 Nylon scrubbing brush - CYLINDRICAL 2 (New style) (After SN 50000)
202-1708 22 inch Extra heavy grit scrubbing brush - CYLINDRICAL 2 (Old style) (Before SN 49999)
202-1705 Medium grit scrubbing brush - CYLINDRICAL 2 (Old style) (Before SN 49999)
202-1707 Light grit scrubbing brush - CYLINDRICAL 2 (Old style) (Before SN 49999)
202-1706 Nylon scrubbing brush - CYLINDRICAL 2 (Old style) (Before SN 49999)

Side Broom Assembly - 202-2111
RefNbr Part Number Description Req Notes
1a 202-3079 36V motor 1 (before SN 5000)
1b 202-3066 36V motor left hand 1 (after SN 4999)
2b 302-0131 36V motor 1 (after SN 4999)
3 202-1932 36V actuator 1
4 202-3068 Left side lifting arm 1
5 202-3069 Right side lifting arm 1
6 202-5076 Broom suspension axle 1
7 202-5077 Side broom axle bracket 2
8 202-3071 Pivot bracket 1
9 202-3073 Mounting plate 2
10 202-1397 Flanged bushing 2
11 202-0805 Clevis pin 2
12 202-3083 Clevis pin 1
13 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
14 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
15 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
16 202-3075 Bolt hex cap 5/16 x 2 1/2 inches stainless steel 2
17 202-3076 Screw 1/4 x 1/2 flat head phillips stainless steel 8
18 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel 2
19 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel 2
20 202-2059 Cotter ring 1
21 202-0585 Cotter ring 2
22 202-1495 Polypropylene side broom 2

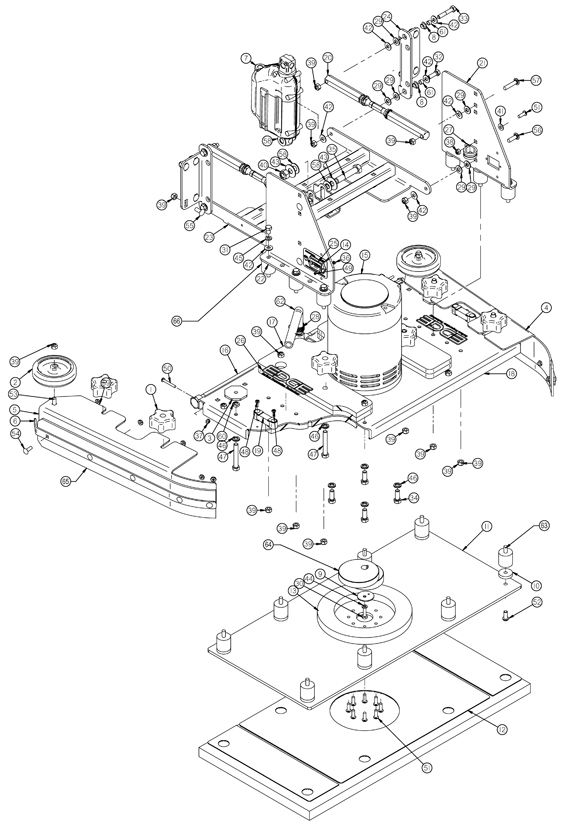

Scrub Deck Assembly - EDGE - 202-2112
RefNbr Part Number Description Req Notes
1 202-5078 Star knob 6
2 202-5079 4 inch wheel 2
3 202-5080 Adjustment knob shroud 4
4 202-5081 Right side wiper shroud 1
5 202-5082 Left side wiper shroud 1
6 202-5083 Wiper band 2
7 202-1932 36V actuator 1
8 202-1239 Flanged bearing 4
9 202-5084 Crush washer 1
9b 202-5086 32 inch spacer 8
10a 202-5085 20 and 28 inch spacer 8
11a 202-5087 28 inch aluminum pad driver 1
11b 202-5088 32 inch aluminum pad driver 1
12 202-5089 Mighty-Lok II grip face pad holder set (brown) 1
13 202-5202 1 inch bearing gasket 1
15b 202-4189 32 inch feed tube 1
14 202-5091 Isolator decal 1
15 202-5092 36V 1HP motor 1
17b 202-7032 Kit, Deck, Square Head, SS, 32 inch 1
16a 202-5093 28 inch solution feed tube 1
19b 202-4189 32 inch feed tube 1
17 202-5095 15 pound top weight 2
18a 202-5096 28 inch square scrub deck 1
19 202-5098 2 inch bolt on level 2
20 202-5099 Adjustable lateral arm assembly 2
21 202-5100 Left side deck lifting bracket 1
22 202-5101 Right side deck lifting bracket 1
23 202-5102 Lateral arm 1
24 202-5103 Adjustable arm bracket 2
25 202-0376 Hour meter 1
26 202-5104 5 1/2 inch Tomcat EDGE decal (black) 2
27 202-5105 1 inch rubber loop clamp 1
28 202-0680 Hose clamp 1
29 202-2210 Washer 3/8 x 3/4 flat nylon 12
30 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
31 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel 6
32 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
33 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 2
34 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
35 999-1113 Bolt 1/2-13 x 2 1/2 hex cap stainless steel 1
36 999-0295 Nut 4-40 nylon insert lock stainless steel 2
37 999-0086 Nut 10-32 nylon insert lock zinc plated 3
38 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
39 999-0423 Nut 5/16-18 nylon insert lock stainless steel 32
40 999-1208 Nut 1/2-13 nylon insert lock stainless steel 1
41 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
42 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 18
43 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
44 999-0632 Washer 1/4 split lock stainless steel 1
45 999-0553 Washer 5/16 medium split lock stainless steel 6
46 999-0659 Washer 3/8 medium split lock stainless steel 10
48 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
49 202-2370 Screw 4-40 x 1/2 Phillips pan head stainless steel 2
50 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel 3
51 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 9
52a 202-2372 Bolt 5/16-18 x 3/4 inch button head socket cap 8 (28 inch)
52b 999-1630 Screw 5/16-18 x 7/8 button socket head stainless steel 8 (32 inch)
53 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel 2
54 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 10
55 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 8
56 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 2
57 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel 2
58 999-0566 Washer 1/2 flat nylon 4
59 999-0304 Nut 1/4-20 nylon lock jam stainless steel 10
60 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4
61 202-3128 Sleeved bearing 4
62 202-5106 Reinforced hose 1/2 x 60 inch 1
63a 202-5107 28 inch isolator kit (pkg of 8) 1 (includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal)
63b 202-5721 32 inch isolator kit (pkg of 8) 1 (includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal)
64a 202-9586 Eccentric kit with hardware and loctite for scrubbers 1 (includes 1 eccentric, 8 bolts, 1 gasket, 1 sticker seal and 1 pack of blue Loctite)
64b 202-5109 28 inch eccentric assembly 1 (includes 1 eccentric, 8 bolts, 1 gasket, 1 sticker seal and 1 pack of blue Loctite)
68b 202-5721 32 inch isolator kit (pkg of 8) 1 (includes 8 isolators, 1 hour meter, 8 bolts, 8 nuts, 1 gasket and 1 sticker seal)
69b 202-5110 32 inch eccentric assembly 1 (includes 1 eccentric, 8 bolts, 1 gasket, 1 sticker seal and 1 pack of blue Loctite)
65a 202-5112 linatex wiper 1
65b 202-5113 Polyurethane wiper 1
66 202-5111 Isolator kit (pkg of 6) 1 (includes 6 isolators, 6 bolts, 6 washers, 6 lock washers and 6 nylok nuts)

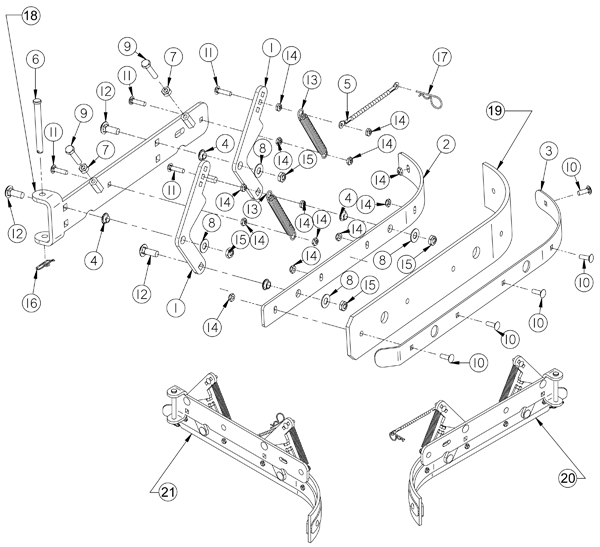

Wipe Assembly - CYLINDRICAL - 202-2113
RefNbr Part Number Description Req Notes
1 202-5121 Vertical arm 2
2 202-5122 Side shroud 1
3 202-5123 Wiper band 1
4 202-1239 Flanged bearing 4
5 202-3127 4 inch chain (6 inch no longer available) 1
6 999-1633 Clevis pin 3/8 x 3 1/2 1
7 999-0593 Nut 5/16-18 hex stainless steel 2
8 999-0617 Washer 3/8 x 1 flat stainless steel 4
9 999-1634 Bolt 5/16-18 x 1 1/2 hex head stainless steel 2
10 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 5
11 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 4
12 202-2832 Bolt 3/8 - 16 x 1 carriage head stainless steel 4
13 202-2208 Compression spring 2
14 999-0304 Nut 1/4-20 nylon lock jam stainless steel 13
15 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4
16 202-2036 Cotter pin 1
17 202-3129 Cotter pin 1

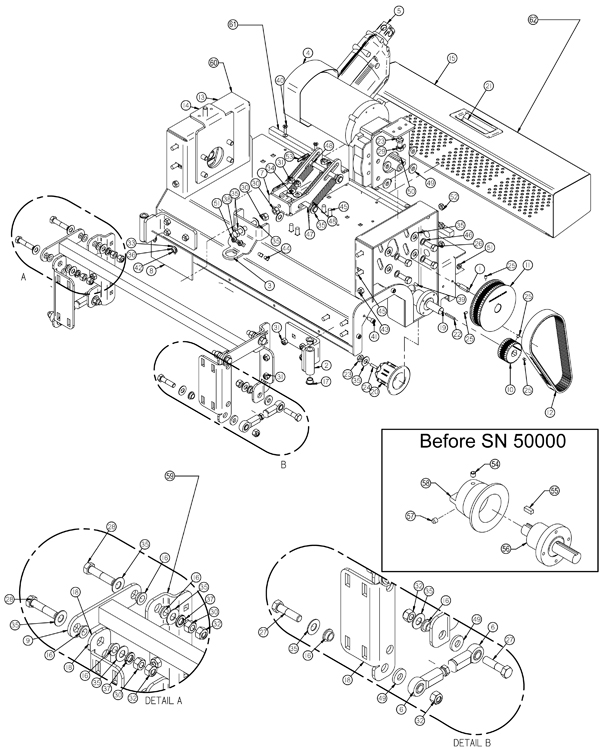

Scrub Deck Assembly - CYLINDRICAL - 202-2114
RefNbr Part Number Description Req Notes
1 202-3136 Retaining pin 2
2 202-3137 Hinge 2
3 202-5124 Actuator adjustment bracket 1
4 202-5125 36V 3/4HP motor 2
5 202-1932 36V actuator 1
6 202-3138 Adjustable ball joint 2
7 202-5126 Lifting bracket 1
8 202-3139 Curtain blade 1
9 202-5127 Lateral arm 1 (250 models only)
10 202-3140 32 toothed sprocket 2
11 202-3141 68 toothed sprocket 2
12 202-2877 Belt 2
13 202-5027 24 inch cylindrical scrub deck 1
14 202-3142 Motor adjustment bracket 2
15 202-4024 24 inch hopper 1
16 202-1239 Flanged bearing 12
17 202-0754 Flanged bearing 4
18 202-5103 Adjustable arm bracket 2
19 202-3146 Bearing housing 2
20 202-3147 Brush driver 2
21 202-0308 Handle 1
22 202-0847 Square keyway 2
23 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 4
24 202-3153 Square keyway 2
25 999-1635 Screw 10-32 x 1/4 socket set 8
26 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 8
27 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel 4
28 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 4
29 202-3155 Bolt 3/8 x 1 inch hex head stainless steel 2
30 999-0635 Nut 3/8-16 hex stainless steel 6
31 999-0423 Nut 5/16-18 nylon insert lock stainless steel 16
32 999-1482 Nut 3/8-16 nylon lock stainless steel 8
33 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
34 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 10
35 999-0617 Washer 3/8 x 1 flat stainless steel 28
36 999-0632 Washer 1/4 split lock stainless steel 2
37 999-0659 Washer 3/8 medium split lock stainless steel 4
39 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 8
40 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel 6
41 202-3157 Screw 1/4 x 1/4 inch socket head stainless steel 8
42 202-3109 Screw 1/4 x 5/8 button head socket stainless steel 2
43 999-1575 Bolt 5/16-18 x 1/2 carriage head zinc plated 8
45 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 14
46 202-3158 Washer 3/8 inch serrated stainless steel 8
47 202-1968 Clevis pin 2
48 202-2208 Compression spring 4
49 999-0120 Washer 3/8 SAE flat 12
50 202-0140 Steering shaft key 2
51 999-0304 Nut 1/4-20 nylon lock jam stainless steel 10
52 999-1019 Nut 5/16-18 hex jam stainless steel 6
53 202-2036 Cotter pin 2
54 202-3154 Screw 1/4-20 x 1/4 set 1 (before SN 50000)
55 164-1029 Square keyway 1 (before SN 50000)
56 202-4041 Bearing housing 1 (before SN 50000)
57 202-3154 Screw 1/4-20 x 1/4 set 1 (before SN 50000)
58 202-0264 Brush driver 1 (before SN 50000)
59a 202-5128 24 inch lifting bracket 1
59b 202-5129 27 inch lifting bracket 1
59c 202-5130 30 inch right side lifting bracket 1
59d 202-5131 30 inch left side lifting bracket 1
59e 202-5132 34 inch right side lifting bracket 1
59f 202-5133 34 inch left side lifting bracket 1
60a 202-5027 24 inch cylindrical scrub deck 1
60b 202-4019 27 inch cylindrical brush deck 1
60c 202-4020 30 inch cylindrical brush deck 1
60d 202-4021 34 inch cylindrical brush deck 1
61a 202-1275 24 inch hopper rail 1
61b 202-0840 27 inch hopper rail 1
61c 202-0841 30 inch hopper rail 1
61d 202-4010 34 inch hopper rail 1
62a 202-4024 24 inch hopper 1
62b 202-6833 Hopper,Stainless,27 inch, Complete 1
62c 202-4026 30 inch hopper 1
62d 202-4027 34 inch hopper 1

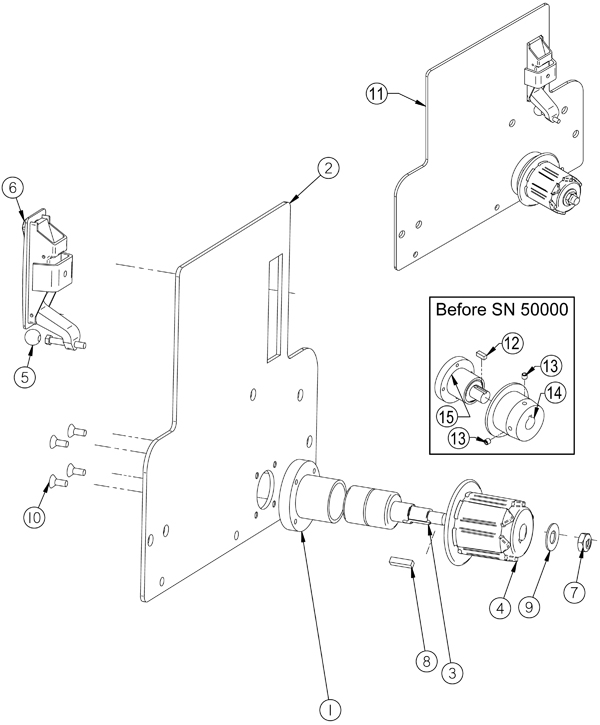

Door Assembly - CYLINDRICAL - 202-2115
RefNbr Part Number Description Req Notes
1 202-0265 Idler bearing housing 1
2 202-4076 Driver cover 1
3 202-3168 Idler drive bearing 1
4 202-3147 Brush driver 1
5 202-3170 Grommet 1
6 202-0404 Latch 1
7 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 1
8 202-3153 Square keyway 1
9 999-0617 Washer 3/8 x 1 flat stainless steel 1
10 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 4
11 202-5134 Door assembly 1 (includes 1-10)
12 164-1029 Square keyway 1 (before SN 50000)
13 202-3154 Screw 1/4-20 x 1/4 set 2 (before SN 50000)
14 202-4078 Brush idler 1 (before SN 50000)
15 202-4077 Idler bearing 1

Deck Attachement Assembly - 202-2116
RefNbr Part Number Description Req Notes
1 202-5135 Main frame 1
2 999-9119 Nut 1/2-13 nylon hex jam 1
3 202-3175 P clamp 1
4 999-1636 Screw 1/2-13 x 4 1/2 hex head stainless steel 1
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
7 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 1
8 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 1
9 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 8

Squeegee Plate Assembly - 202-2117
RefNbr Part Number Description Req Notes
1 202-0809 Brass star knob 1
2 202-0813 Spring 1
3 202-5136 Squeegee drag brace 1
4 202-5137 Squeegee swing plate 1
5 202-5138 Squeegee trail arm 1
6 202-5139 Triangle plate 1
7 202-1239 Flanged bearing 5
8 202-1181 Washer 1/2 flat bronze 2
9 202-0151 Grommet 3
10 999-9119 Nut 1/2-13 nylon hex jam 1
11 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 1
12 999-1637 Screw 1/2-13 x 9 hex head zinc 1
13 202-2210 Washer 3/8 x 3/4 flat nylon 4
14 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
15 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 3
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
17 999-1482 Nut 3/8-16 nylon lock stainless steel 6
18 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 2
19 999-0617 Washer 3/8 x 1 flat stainless steel 9
20 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
21 999-0659 Washer 3/8 medium split lock stainless steel 1
22 999-1638 Bolt 3/8-16 x 2 1/4 carriage stainless steel 1
23 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 2
24 202-2208 Compression spring 2
25 202-1054 Bolt 3/8-24 x 3 1/2 hex head stainless steel 1
26 202-3054 Squeegee trail arm assembly 1

Vacuum Motor Assembly - 202-2119
RefNbr Part Number Description Req Notes
1 202-1906 Vacuum motor housing 1
2 202-5143 Muffler 1
3 202-1917 Vacuum motor gasket 1
4 202-0706 1 1/2 inch hose cuff 1
5a 202-1904 36V 3 stage vacuum motor 1
5b 991-1202 36V 3 stage vacuum motor tangential 1
6 202-3250 Hose 2 x 15 inch 1
7 202-3250 Hose 2 x 15 inch 1
8 202-1916 Unloader valve 1
9 202-1908 Vacuum shut-off switch 1
10 202-1919 Barbed fitting 1
11 997-2011 Hose clamp 4
12 202-0680 Hose clamp 1
13 202-5144 Hose 1/8 x 16 inch (clear) 1

Vacuum motor and Solution Hoses - 202-2120
RefNbr Part Number Description Req Notes
1 202-1008 Barbed elbow 2
2 202-5135 Main frame 1
3 202-3032 Solution drain hose 1
4 202-1932 36V actuator 1
5 202-3058 Valve bracket 1
6 202-0104 18 foot rubber hose (blue) 1
7 202-3057 Ball valve 1
8 202-3038 36V solenoid valve 1
9 202-3234 Inline filter 1
10 202-2368 36V water jet pump 1
11 202-0403 Hinge 2
12 202-0332 1/2 inch barbed tee 1
13 202-1031 Clamp 5
14 202-5105 1 inch rubber loop clamp 2
15 999-9119 Nut 1/2-13 nylon hex jam 1
16 202-1936 Barbed tee 1
17 202-3236 Threaded barb 1
18 202-3059 Elbow barb 3
19 202-5145 Coupling 1
20 202-0680 Hose clamp 10
21 202-3084 Bolt hex head 1/2 x 2 inch stainlee steel 1
22 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 11
23 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 3
24 999-0998 Washer #10 flat stainless steel 5
25 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
26a 202-2122 Screw 10-32 x 5/8 inch phillips pan head 4
26b 999-1487 Screw 10-32 x 5/8 pan head phillips stainless steel 4
27 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 3
28 999-1219 Bolt 1/4-20 x 6 carriage head stainless steel 3
29 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 8
30 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 1
31 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 3
32 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread 7
33 202-5146 Tubing 1/2 x 3 inch 1
34 202-5147 Tubing 1/2 x 7 inch (OBSOLETE) 1
35 202-5148 Tubing 1/2 x 9 inch 1
36 202-5149 Tubing 1/2 x 13 inch 1
37 202-2975 Reinforced wire hose 1/2 x 26 inch 1
38 202-3034 Hose 3/4 x 3 inch 1
39 202-3035 Hose 3/4 x 33 inch 1
40 202-2874 Filter screen 1

Tank Baffle Assembly - 202-2121
RefNbr Part Number Description Req Notes
1 202-4101 Wire reinforced hose 1 1/2 x 15 inch (black) 1
2 202-1640 Nylon clamp 2
3 202-0897 Vacuum box 1
4 202-2911 Upper tank brace 2
5 202-2027 Strainer 1
6 202-3250 Hose 2 x 15 inch 1
7 202-4044 Mounting bracket 1 (after SN 58187)
8 202-3255 Vacuum screen 1
9 997-2011 Hose clamp 1
10 202-3256 Hose clamp 2
11 999-0086 Nut 10-32 nylon insert lock zinc plated 2
12 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
13 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
14 202-2918 Screw 1/4-20 x 3/4 self tapping 4
15 999-1471 Screw #10-21 x 1 flat head phillips stainless steel 2
16 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 6
17a 302-0254 Baffle w/holder stainless 1
17b 202-5150 Baffle (stainless steel) 1

Tank and Batteries Assembly - 202-2122
RefNbr Part Number Description Req Notes
1 202-5151 Battery box 1
2 202-5152 Battery bracket 1
3 202-5135 Main frame 1
4 202-5153 Non skid floor plate 1
6 202-0403 Hinge 2
7 202-3175 P clamp 1
8 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 8
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 9
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel 6
11 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 1
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
14 999-0632 Washer 1/4 split lock stainless steel 8
15 202-2372 Bolt 5/16-18 x 3/4 inch button head socket cap 2
16 202-2831 Screw 5/16-18 x 3/4 flat head socket stainless steel 2
17 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 8
18 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 1
19 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 2

Central Command Assembly - 202-2123
RefNbr Part Number Description Req Notes
1 202-0818 Access cover gasket 1
2 202-1356 One touch button 1
3 202-0831 Low solution indicator (amber) 1
4 202-0832 Full recovery indicator (red) 1
5 202-2300 Key switch with key entry (red) and ring (black) 1
6 991-1634 Key (pkg of 2) 1
7 202-1317 LCD window display 1
8 202-3305 Hardware panel (black) 1
9 202-3306 Control panel top plate decal 1
10 202-3307 36V relay with mounting plate 2
11 202-0521 Toggle switch 1
12 202-3340 Toggle switch 1
13 202-1992 Toggle switch 2
14 202-0097 Toggle switch 3
15 202-1369 Main controller 1
16 202-2500 10amp fuse 1
17 202-2499 15amp fuse 2
18 202-3308 Control panel decal 1
19 202-0368 Switch 1
20 202-0369 2 position rocker switch 2
21 202-0345 Diode bridge 1
22 202-0826 Emergency shut-off switch 1
23 202-0825 Emergency contact 1
24 202-0879 Push button switch 1
25 202-0541 Busbar 2
26 202-0822 2amp fuse 1
27 202-0704 Hinge 1
28 202-0830 Busbar (5 hole) 2
29 202-1976 Toggle switch protective boot (white) 1
30 202-1864 Toggle switch protective boot (red) 1
31 202-1977 Toggle switch protective boot (yellow) 1
32 202-1866 Toggle switch protective boot (green) 1
33 202-1865 Toggle switch protective boot (blue) 1
34 202-1355 Toggle switch protective boot (black) 1
35 202-2221 Toggle switch protective boot (gray) 1
36 999-0190 Nut 1/4-20 hex plain finish 8
37 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4
38 999-0609 Nut 1/4-20 hex stainless steel 12
39 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
40 999-0632 Washer 1/4 split lock stainless steel 4
41 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
43 202-2592 Grommet 3
44a 202-3309 Control box (red) 1
44b 202-3310 Control box (granite) 1
45a 202-3311 Access cover (red) 1
45b 202-2574 Access cover (granite) 1

Steering Assembly - 202-2124
RefNbr Part Number Description Req Notes
1 202-1181 Washer 1/2 flat bronze 2
2 202-5154 Decal 1
3 202-0719 Index plunger 1
4 202-3312 Flanged bearing 2
5 202-3313 Hour meter decal 1
6 202-3314 Patent plate 1
7 202-5155 Hour meter 1
8 202-0097 Toggle switch 1
9 202-2009 50amp connector (gray) 1
10 202-0142 Upper steering bearing 1
11 202-0143 Bearing mount 2
12a 202-2010 48V headlight 1
12b 202-3317 36V headlight LED 1
13 202-0376 Hour meter 1
14 202-0385 Backup alarm 1
15 202-0381 Horn button 1
16 202-1196 Washer 17/64 x 21/64 nylon flat 6
17 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 1
18 202-2431 P clamp 1
19 202-1355 Toggle switch protective boot (black) 1
20 999-0190 Nut 1/4-20 hex plain finish 12
21 202-3315 Blind rivet 4
22 999-0593 Nut 5/16-18 hex stainless steel 4
23 999-0295 Nut 4-40 nylon insert lock stainless steel 4
24 999-0357 Nut 8-32 nylon insert lock stainless steel 2
25 999-0086 Nut 10-32 nylon insert lock zinc plated 3
26 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
27 999-0998 Washer #10 flat stainless steel 4
28 202-3316 Washer flat stainless steel 2
29 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
30 999-0553 Washer 5/16 medium split lock stainless steel 4
31 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
32 202-2371 Screw 4-40 x 3/4 round pan head 4
33a 202-2122 Screw 10-32 x 5/8 inch phillips pan head 2
33b 999-1487 Screw 10-32 x 5/8 pan head phillips stainless steel 2
34 999-1509 Screw 10-32 x 3/8 flat head phillips stainless steel 2
35 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 6
36 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 6
37a 202-0715 Upper steering column (red) 1
37b 202-2012 Upper steering column (granite) 1
38a 202-0714 Lower steering column (red) 1
38b 202-2011 Lower steering column (granite) 1
39a 202-0716 Pedestal cover (red) 1
39b 202-2013 Pedestal cover (granite) 1
41 202-4190 Steering tower decal 1 (after SN 55325)
42 202-0381 Horn button 1 (after SN 55325)
43 202-0097 Toggle switch 1 (after SN 55325)
44 202-1355 Toggle switch protective boot (black) 1 (after SN 55325)
45 202-4191 Emergency stop button 1 (after SN 55325)

Steering Tower Assembly - 202-2125
RefNbr Part Number Description Req Notes
1 202-5135 Main frame 1
2 202-5153 Non skid floor plate 1
3 202-0717 Drive cover 1
4 202-0761 Upper steering shaft 1
5 202-0760 U-joint 1
6 202-2404 Fitting 1
7 202-5156 Alarm 1
8 202-0362 Foot pedal assembly (includes potentiometer) 1
9 202-0773 Steering cover 1
10 202-0772 Steering wheel 1
11 202-1196 Washer 17/64 x 21/64 nylon flat 6
12 202-0847 Square keyway 2
13 999-0460 Nut 10-32 hex 10
14 202-3154 Screw 1/4-20 x 1/4 set 3
15 999-0069 Nut 5/16-18 hex 16
16 202-2216 Shaft collar with set screw 3
17 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
18 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
19 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 13
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 12
22 999-0632 Washer 1/4 split lock stainless steel 2
23 999-0553 Washer 5/16 medium split lock stainless steel 13
24 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 4
25 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 6
26 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 3
27a 202-2016 Front apron 1
27b 202-5157 Front apron (red) 1

Side Door Assembly - CYLINDRICAL - 202-2127
RefNbr Part Number Description Req Notes
1 202-0756 Guide roller 4
2 202-0403 Hinge 1
3 202-0404 Latch 1
4 999-0989 Bolt 5/8-11 x 13 hex head grade 5 zinc plated 1
5 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
6 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 4
7 999-0304 Nut 1/4-20 nylon lock jam stainless steel 4
8a 202-5158 27 inch right side cylindrical door 1
8b 202-5159 27 inch left side cylindrical door 1
8c 202-5160 30 inch right side cylindrical door 1
8d 202-5161 30 inch left side cylindrical door 1
8e 202-5162 34 inch right side cylindrical door 1
8f 202-5163 34 inch left side cylindrical door 1

Vacuum Wand Assembly - 202-2128
RefNbr Part Number Description Req Notes
0 202-1553 Vacuum wand assembly 1
1 202-0091 Vacuum hose 1 1/2 x 15 foot with cuffs 1
2 202-0094 54 inch wand tube 1
3 202-0095 Vacuum nozzle 1
4 202-3339 Coupler 1

Spray Jet Assembly - 202-2129
RefNbr Part Number Description Req Notes
1 202-1008 Barbed elbow 2
2 202-1017 Male barb 1/2 x 3/4 1
3 202-0104 18 foot rubber hose (blue) 1
4 202-0332 1/2 inch barbed tee 1
5 202-0101 60 PSI water jet pump 1
6 202-0103 Spray nozzle 1
7 202-0680 Hose clamp 7
8 202-5146 Tubing 1/2 x 3 inch 1
9 202-5147 Tubing 1/2 x 7 inch (OBSOLETE) 1
10 202-5148 Tubing 1/2 x 9 inch 1

SUDS Assembly - 202-2130
RefNbr Part Number Description Req Notes
1 202-5141 Rear soap bumper 1
2 202-5164 36V pump 1
3 202-3347 Soap jug cap 1
4 202-3340 Toggle switch 1
5 202-5165 Pump bracket 1
6 202-3301 36V soap pump 1
7 202-1866 Toggle switch protective boot (green) 1
8 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 3
9 202-2431 P clamp 1
10 202-3235 90 degree elbow 1
11 202-5166 Coupling 1
12 999-0086 Nut 10-32 nylon insert lock zinc plated 3
13 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
14 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
15 999-1571 Screw 1/4-20 x 3/4 flat head socket stainless steel 2
16 202-3343 Barbed fitting 1
17 202-3343 Barbed fitting 1
18 202-3348 Rubber grommet 4
19 202-3504 Hose 3/16 x 20 inch 1
20 202-5167 Tubing 3/16 x 38 inch 1
21 202-5168 Tubing 3/8 x 10 inch 1
22 202-5169 Tubing 3/8 x 28 inch 1

Squeegee Trail Arm and Rear Axle Assembly - 202-2262
RefNbr Part Number Description Req Notes
1 202-5135 Main frame 1
2 202-5141 Rear soap bumper 1
3 202-3378 8 inch brass chain 1
4 202-1932 36V actuator 1
5 202-1909 Rear axle 1
6 202-3464 Charger status indicator 1
7 202-1154 U bolt 1/2-13 x 1 1/4 4
8 202-1153 Nut 1/2-20 lug 8
9 202-5156 Alarm 1
10 202-3222 Shaft collar with set screw 2
11 202-5142 Clevis pin 1
12 202-3154 Screw 1/4-20 x 1/4 set 2
13 202-1985 Screw 10 x 1/2 hex washer head 1
14 999-0842 Nut 1/2-20 nylon insert lock zinc plated 8
15 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
17 999-0423 Nut 5/16-18 nylon insert lock stainless steel 5
18 999-1482 Nut 3/8-16 nylon lock stainless steel 2
19 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 2
20 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
21 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 2
22 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 4
23 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 3
24 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
25 202-2592 Grommet 1
26 202-2059 Cotter ring 1
27a 202-5141 Rear soap bumper 1
27b 202-2008 Rear bumper 1
28b 202-1288 Rear wheel 2
28c 202-0725 Rear wheel 2
28d 202-3578 12 inch rear wheel 2 (After SN 59018)

Tank Lid Assembly - Before SN 76764 - 202-5563
RefNbr Part Number Description Req Notes
1 202-1980 Tank lid gasket 1
2 202-3521 Strobe light bracket 1
3 202-3549 Push on gasket for clear lid 1
4 N/A Not available 1 (Lid)
5 202-3127 4 inch chain (6 inch no longer available) 2
6 202-0403 Hinge 2
7 202-0383 Strobe light 1
8 999-0429 Nut 1/4-20 acorn nickel plated 8
9 999-0086 Nut 10-32 nylon insert lock zinc plated 9
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
11 999-0632 Washer 1/4 split lock stainless steel 8
12 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 6
13 999-1479 Screw 10-32 x 5/8 button head socket cap stainless steel 3
14 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel 8
15 202-3244 Neoprene washer 2
16 202-3522 Stainless steel recovery lid assembly 1
17 202-1983 Tank lid (upper) (clear) 1
18a 202-1981 Tank lid 1
18b 202-3577 Recovery tank lid (granite) 1

Solution and Recovery Tank Assembly - After SN 76765 - 202-5564
RefNbr Part Number Description Req Notes
1 202-4091 Tank strap 1
2 202-3373 Drain hose cap 2
3 202-3036 Strainer screen 1
4 202-5025 12 foot hose (blue) 1
5 202-5630 Soft draw latch 2
6 202-3279 Tank support strap 2
7 202-0686 90 degree barb 1/4 x 1/4 2
8 202-0703 Elbow 1
9 202-0708 Drain hose 1
10 202-3127 4 inch chain (6 inch no longer available) 1
11 202-0232 Float shut-off ball 1
12 202-0230 Strainer gasket 1
13 202-1487 Latch 1
14 202-2022 Hood cable 2
15 202-2734 Corner seal strip 1
16 202-0403 Hinge 2
17 997-2011 Hose clamp 2
18 202-0240 Drain hose plug 1
19 202-0675 Detergent warning plate 1
20 202-4106 O-ring 2
21 202-0103 Spray nozzle 1
22 202-0694 Drain hose end tube 1
23 202-5636 Curtain band 1
24 202-5646 Tank utility handle 1
25 202-4183 Sight tube 1
26 202-5710 Squeegee vacuum hose 2 x 55 inch 1
27 202-3561 Vacuum hose 1
28 202-4184 Drain saver curtain 1
29 202-5648 4 inch hinge stainless steel 3
30 202-4185 Splash curtain 1
31 N/A Not available 2 (Clip)
32 202-4186 Sight tube 1
33 N/A Not available 1 (Solution fill lid)
34 202-5651 Vacuum inlet screen 1
35 202-4187 Elbow 1
36 202-5652 Vacuum inlet gasket 1
37 202-5653 Small drain saver basket 1
39 202-0081 Seat with switch, cover, locking track and mounting 1
40 202-0231 Filter screen 1
41 202-0884 Barbed elbow 3
42 999-0429 Nut 1/4-20 acorn nickel plated 1
43 202-2210 Washer 3/8 x 3/4 flat nylon 1
44 999-1928 Nut 1/2 inch lock brass 1
45 999-1929 Pipe cap 1/2 inch female brass 16
46 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
47 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 3
48 999-0086 Nut 10-32 nylon insert lock zinc plated 4
49 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
50 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 21
51 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 19
52 999-0632 Washer 1/4 split lock stainless steel 10
53 202-2918 Screw 1/4-20 x 3/4 self tapping 1
54 202-2122 Screw 10-32 x 5/8 inch phillips pan head 4
55 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 2
56 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 4
57 999-1930 Screw #6-18 x 3/8 phillips pan head SS 7
58 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
59 202-4188 Screw #10 3
60 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 1
61 202-3244 Neoprene washer 1
62 202-2592 Grommet 4
63 999-0617 Washer 3/8 x 1 flat stainless steel 1
64 202-3439 Male brass fitting 1
65 202-3576 Seal 1
66 202-5655 Tank lid assembly 1
67a 202-3573 Recovery tank (granite) 1
67b 202-5656 Recovery tank (red) 1
68a 202-3574 Solution tank (granite) 1
68b 202-3575 Solution tank (red) 1
69 202-5544 Squeegee hose with 2 inch pigtail 1

Side Door Assembly - DISK - 202-5566
RefNbr Part Number Description Req Notes
1 202-2098 4 inch wheel (gray) 1
2 202-0976 20 inch roller bracket 1
3 202-0756 Guide roller 1
4 202-0403 Hinge 1
5 202-0404 Latch 1
6 999-1209 Bolt 5/8-11 x 4 hex head zinc plated 1
7 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
9 999-1482 Nut 3/8-16 nylon lock stainless steel 1
10 999-1462 Screw 3/8-16 x 2 button socket head stainless steel 1
11 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 8
12a 202-2004 Left door 1
12b 202-2005 Right door 1

Squeegee Assembly - 32 Inch and 35 Inch - 202-5570
RefNbr Part Number Description Req Notes
1b 991-2412 Squeegee trail mounting bracket 2 (NON-OEM)
1a 202-0581 Squeegee trail mount 2
2 202-0008 Squeegee wheel with hardware (pkg of 2) 2
3 202-0802 32 inch rear squeegee band 1
4 202-1742 32 inch front squeegee band 1
5a 202-1743 32 inch squeegee weldment 1
5b 202-0795 35 inch squeegee weldment 1
6 202-1999 Star knob 2
7 202-0174 Squeegee guide wheels w/ collar and hardware (pkg of 2) 2
8 202-0174 Squeegee guide wheels w/ collar and hardware (pkg of 2) 2
9 202-0582 Stand-off 2
10 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel 4
11 999-0860 Screw 10-32 x 2 1/2 pan head slotted stainless steel 2
12 999-0993 Screw 1/4-20 x 1 5/8 hex head stainless steel 2
13 202-0807 Shaft collar 2
14 999-1273 Screw 3/8-16 x 3 1/2 button head socket stainless steel 2
15 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
16 999-0911 Screw 5/16-18 x 3 hex head stainless steel 2
17 999-0593 Nut 5/16-18 hex stainless steel 2
18 999-0058 Nut 10-32 wing zinc plated 8
19 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
20 999-0632 Washer 1/4 split lock stainless steel 6
21 999-0553 Washer 5/16 medium split lock stainless steel 2
22 999-0659 Washer 3/8 medium split lock stainless steel 2
23 999-0868 Screw 10-32 x 1 3/4 pan head phillips stainless steel 2
24 999-1818 Screw 10-32 x 2 pan head phillips stainless steel 2
25 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2
26 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 2
27a 202-1297 32 inch squeegee assembly 1 (24 inch CYLINDRICAL) (26 inch DISK) (includes 28a and 29a)
27b 202-1359 35 inch squeegee assembly 1 (27 inch CYLINDRICAL) (30 inch DISK) (includes 28d and 29d)
28a 202-1714 Squeegee blade 32 inch linatex front 1 (24 inch CYLINDRICAL) (26 inch DISK)
28b 202-0796 Squeegee blade 32 inch gum rubber front 1 (24 inch CYLINDRICAL) (26 inch DISK)
28c 202-4192 Squeegee blade 32 inch urethane front 1 (24 inch CYLINDRICAL) (26 inch DISK)
28d 202-1792 Squeegee blade 35 inch linatex front 1 (27 inch CYLINDRICAL) (30 inch DISK)
28e 994-1006 Squeegee blade 35 inch gum rubber front 1 (27 inch CYLINDRICAL) (30 inch DISK)
28f 202-0797 Squeegee blade 35 inch gum rubber front 1 (27 inch CYLINDRICAL) (30 inch DISK)
28g 202-4170 Squeegee blade 35 inch front urethane (blue) 1 (27 inch CYLINDRICAL) (30 inch DISK)
29a 202-1712 Squeegee blade 32 inch linatex rear 1 (27 inch CYLINDRICAL) (30 inch DISK)
29b 202-0800 Squeegee blade 32 inch gum rubber rear 1 (27 inch CYLINDRICAL) (30 inch DISK)
29c 202-4193 Squeegee blade 32 inch urethane rear (blue) 1 (27 inch CYLINDRICAL) (30 inch DISK)
29d 202-1790 Squeegee blade 35 inch linatex rear (red) 1 (24 inch CYLINDRICAL) (26 inch DISK)
29e 202-0801 Squeegee blade 35 inch gum rubber rear 1 (24 inch CYLINDRICAL) (26 inch DISK)
29f 202-4171 Squeegee blade 35 inch rear urethane 1 (24 inch CYLINDRICAL) (26 inch DISK)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
