Solution Tank Assembly - 202-0001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0859 |
Yellow solution tank (OBSOLETE) |
1 |
|
| 002 |
202-0860 |
Pivot and guide |
1 |
|
| 003 |
202-0861 |
Squeegee lever |
1 |
|
| 004 |
202-0862 |
Fill screen frame |
1 |
|
| 005 |
202-0863 |
Handle bar |
1 |
|
| 006 |
202-0864 |
Lift lever retainer |
1 |
|
| 007 |
202-0865 |
24 inch stainless steel hinge |
1 |
|
| 009 |
999-1481 |
Screw 3/8-16 x 1/2 button head stainless steel |
4 |
|
| 010 |
202-1214 |
Washer 1/4 uss |
3 |
|
| 011 |
999-0632 |
Washer 1/4 split lock stainless steel |
7 |
|
| 012 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
7 |
|
| 013 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
6 |
|
| 014 |
999-0981 |
Screw 5-16-18 x 1/2 hex head grade 5 zinc plated |
6 |
|
| 015 |
202-0867 |
Acrylic light guard |
1 |
|
| 016 |
202-0868 |
Safety light |
1 |
|
| 017 |
202-0721 |
Microswitch |
1 |
|
| 018 |
999-1059 |
Screw 4-40 x 3/4 pan head phillips zinc plated |
2 |
|
| 019 |
999-0985 |
Washer #4 SAE flat |
2 |
|
| 020 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 021 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 022 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
4 |
|
| 023 |
202-0869 |
Switch cover |
2 |
|
| 024 |
202-0870 |
1/4 nylon spacer |
6 |
|
| 025 |
202-0871 |
1/2 nylon spacer |
3 |
|
| 026 |
202-0872 |
Warning plate |
1 |
|
| 027 |
202-0675 |
Detergent warning plate |
1 |
|
| 028 |
202-0873 |
Serial number plate |
1 |
|
| 029 |
999-1882 |
Screw #6 x 1/2 inch pan head phillips stainless steel |
12 |
|
| 031 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
2 |
|
| 032 |
202-1195 |
Screw 8-32 x 1/2 round head phillips machine (OBSOLETE) |
4 |
|
| 034 |
202-0874 |
Front fill screen |
1 |
|
| 035 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 036 |
202-0875 |
Tank cable |
1 |
|
| 037 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 038 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 039 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
| 040 |
202-0876 |
Battery tray (OBSOLETE) |
1 |
|
| 041a |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 041b |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
| 042 |
202-0878 |
High density pe wear strip |
1 |
|
| 043 |
202-0879 |
Push button switch |
2 |
|
| 044 |
202-0880 |
Squeegee lift cable |
1 |
|
| 045 |
202-0881 |
15 x 13 x .50 spacer (OBSOLETE) |
1 |
|
| 046 |
202-0882 |
14 inch 2 x 4 Spacer |
2 |
|
| 047 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
1 |
|
| 048 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
1 |
|
| 049 |
202-0687 |
90 degree 1/2 straight elbow |
1 |
|
| 050 |
202-0877 |
1/2npt to 3/4 brass barb |
1 |
|
| 051 |
202-0883 |
1/2 mnpt to 3/8 brass cup |
1 |
|
| 052 |
202-0884 |
Barbed elbow |
1 |
|
| 053 |
202-0885 |
3/4 barb tee |
1 |
|
| 054 |
202-0886 |
3/4 inch tube x 3 inch |
1 |
|
| 055 |
202-0887 |
3/4 inch tube x 2 inch |
1 |
|
| 056 |
202-1642 |
Clear hose - sold by the foot |
3 ft |
|
| N/S |
162-5070 |
24V 20amp AGM battery charger with small SB50 red plug |
1 |
(AGM batteries) |
| N/S |
202-0906 |
Drain hose |
1 |
|
| N/S |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
(Wet batteries) |
|
|

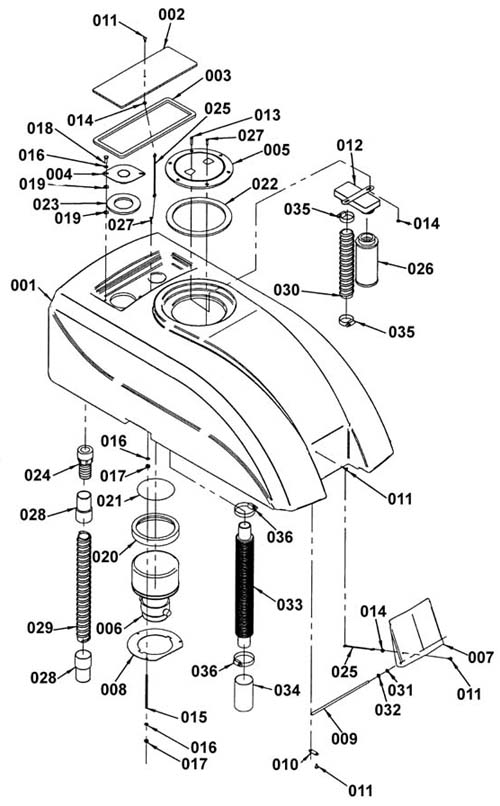

Recovery Tank Assembly - 202-0002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0890 |
Yellow recovery tank |
1 |
|
| 002 |
202-1296 |
Recovery tank lid with gasket (OBSOLETE) |
1 |
|
| 003 |
202-0892 |
Vacuum lid gasket (OBSOLETE) |
1 |
|
| 004 |
202-0893 |
Strainer top |
1 |
|
| 005 |
202-0234 |
Tank lid and ring |
1 |
|
| 006a |
202-1091 |
24V 3 stage vacuum motor with gasket and contacts |
1 |
|
| 006b |
202-2299 |
Carbon brush (pkg of 2) |
1 |
|
| 006b |
991-1235 |
24V 3 stage vacuum motor peripheral |
1 |
|
| 007 |
202-0894 |
Solution fill door |
1 |
|
| 008 |
202-0736 |
Blower ring (OBSOLETE) |
1 |
|
| 009 |
202-0895 |
Fill door pivot rod |
1 |
|
| 010 |
202-0896 |
Fill door clip |
2 |
|
| 011 |
999-0074 |
Screw 10-32 x 1/2 round head slotted zinc plated |
7 |
|
| 012a |
202-0897 |
Vacuum box |
1 |
|
| 012b |
202-1644 |
Vac box filter |
1 |
|
| 013 |
202-1198 |
Round Head Phillips 10-32 x 1 1/4 Stainless Steel |
2 |
|
| 014 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 016 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 017 |
999-0609 |
Nut 1/4-20 hex stainless steel |
6 |
|
| 018 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 019 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 020 |
202-0022 |
Vacuum motor mounting gasket |
1 |
|
| 021 |
202-0899 |
Vacuum motor screen |
1 |
|
| 022 |
202-0900 |
Foam gasket |
1 |
|
| 023 |
202-0230 |
Strainer gasket |
1 |
top |
| 024 |
202-0901 |
1 1/2 npt x 1 1/2 m hose barb |
1 |
|
| 026 |
202-0903 |
Vacuum screen |
1 |
|
| 027 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
5 |
|
| 028 |
202-0706 |
1 1/2 inch hose cuff |
2 |
|
| 029 |
202-0904 |
Vacuum hose 31 inch |
1 |
|
| 030 |
202-0905 |
19 inch vacuum hose |
1 |
|
| 031 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
2 |
|
| 032 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
2 |
|
| 033 |
202-0906 |
Drain hose |
1 |
|
| 034 |
202-0238 |
Drain hose end tube (metal) |
1 |
|
| 035 |
997-2011 |
Hose clamp |
2 |
|
| 036 |
202-1200 |
Hose clamp 3/4 - 1 3/4 Stainless steel (OBSOLETE) |
2 |
|
| N/S |
202-0240 |
Drain hose plug |
1 |
|
|
|

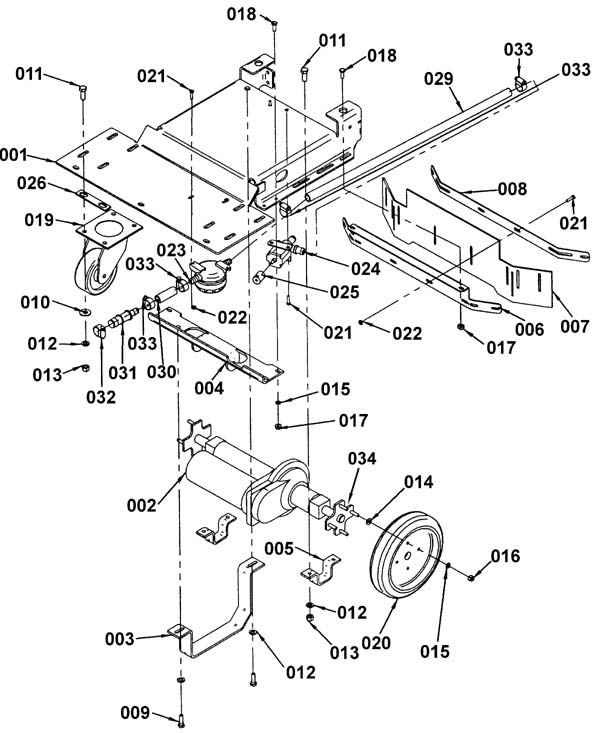

Main Frame Assembly - 202-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-1370 |
Main frame |
1 |
|
| 002 |
202-0908 |
Transaxle assembly |
1 |
|
| 003 |
202-0909 |
Motor guard |
1 |
|
| 004 |
202-0910 |
Squeegee cross member |
1 |
|
| 005 |
202-0911 |
Axle mount |
2 |
|
| 006a |
202-0912 |
21/25 inch rear splash bracket |
1 |
|
| 006b |
202-0912 |
21/25 inch rear splash bracket |
1 |
|
| 007a |
202-0914 |
21/25 inch splash curtain |
1 |
|
| 007b |
202-0914 |
21/25 inch splash curtain |
1 |
|
| 008a |
202-0916 |
21/25 inch splash band |
1 |
|
| 008b |
202-0916 |
21/25 inch splash band |
1 |
|
| 009 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
| 010 |
202-1201 |
Washer 5/16 uss |
8 |
|
| 011 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
12 |
|
| 012 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
14 |
|
| 013 |
999-0069 |
Nut 5/16-18 hex |
12 |
|
| 014 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
| 015 |
999-0632 |
Washer 1/4 split lock stainless steel |
12 |
|
| 016 |
999-0949 |
Nut 1/4-28 acorn nickel plated |
8 |
|
| 017 |
999-0609 |
Nut 1/4-20 hex stainless steel |
6 |
|
| 018 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
6 |
|
| 019a |
202-0918 |
Performa caster wheel (black) |
2 |
|
| 019b |
202-0919 |
Non-marking Soft caster wheel (gray) |
2 |
|
| 020a |
202-0920 |
Solid tire (gray) |
2 |
Solid |
| 020b |
202-0921 |
10 inch poly wheel assembly |
2 |
Foam filled |
| 020c |
202-5722 |
8 inch poly tire with shims (gray) |
2 |
Pnuematic (Air filled) |
| 021 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
12 |
|
| 022 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
10 |
|
| 023 |
999-0894 |
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
| 024a |
202-0674 |
Adjustable solution flow valve |
1 |
|
| 024b |
202-2291 |
Orange rubber stopper |
|
|
| 025 |
202-0922 |
Lower coupler |
1 |
|
| 026 |
202-3002 |
Axle spacer (pkg of 4) |
1 |
|
| 029 |
202-0926 |
1/2 inch tube x 24 inch |
1 |
|
| 030 |
202-0927 |
1/2 inch tube x 2 inch |
1 |
|
| 031 |
202-0928 |
3/4 to 1/2 reducer barb |
1 |
|
| 033 |
202-0680 |
Hose clamp |
4 |
|
| 034 |
202-1366 |
Transaxle drive hub with hardware |
2 |
|
| N/S |
202-0924 |
Solution cable |
1 |
|
|
|

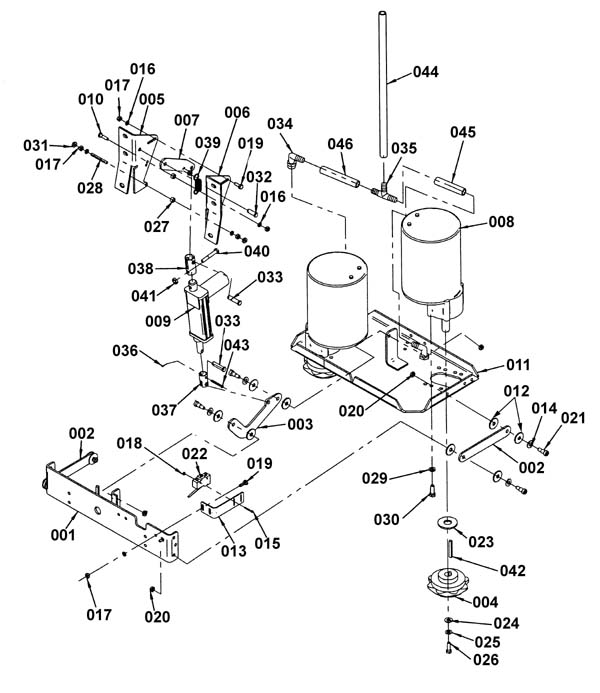

Brush Head Assembly - 202-0005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0930 |
Center pivot |
1 |
|
| 002 |
202-0757 |
Parallel link |
2 |
|
| 003 |
202-0931 |
Center arm |
1 |
|
| 004 |
202-0330 |
Metal brush driver |
2 |
|
| 005 |
202-0932 |
Left fixed actuator |
1 |
|
| 006 |
202-0933 |
Right fixed actuator |
1 |
|
| 007 |
202-0934 |
Actuator anchor |
1 |
|
| 008b |
991-2121 |
24V .75HP brush motor assembly with gear box |
1 |
|
| 009 |
202-0936 |
Disk actuator |
1 |
|
| 010 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 011a |
202-0937 |
Model 21 deck |
1 |
|
| 011b |
202-0938 |
Model 25/27 deck (OBSOLETE) |
1 |
|
| 012 |
999-1007 |
Washer 3/8 x 1/16 flat nylon |
12 |
|
| 013 |
202-0939 |
Switch mount |
1 |
|
| 014 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
6 |
|
| 015 |
999-0983 |
Screw 4-40 x 1 pan head phillips zinc plated |
2 |
|
| 016 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 017 |
999-0609 |
Nut 1/4-20 hex stainless steel |
8 |
|
| 018 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 019 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
3 |
|
| 020 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
6 |
|
| 021 |
999-0795 |
Bolt 3/8-16 x 4 hex head stainless steel |
6 |
|
| 022 |
202-0192 |
Lift limit switch |
1 |
|
| 023 |
202-1204 |
Washer 3/4 x 1 1/8 flat stainless steel |
2 |
|
| 024 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 025 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 026 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 028 |
202-0940 |
1/4-20 x 2 1/4 inch stainless steel stud |
2 |
|
| 029 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
8 |
|
| 030 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
8 |
|
| 031 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
| 033 |
202-0942 |
Clevis pin |
2 |
|
| 034 |
202-0333 |
Elbow barb |
2 |
|
| 035 |
202-0332 |
1/2 inch barbed tee |
1 |
|
| 036 |
202-2036 |
Cotter pin |
4 |
|
| 037 |
202-0944 |
Lower actuator link |
1 |
|
| 038 |
202-0945 |
Upper actuator link |
1 |
|
| 039 |
202-0946 |
Down pressure spring |
2 |
|
| 040 |
999-0178 |
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
1 |
|
| 041 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 042 |
202-0947 |
1/4 x 2 key |
2 |
|
| 043 |
202-0948 |
3/16 x 1 1/2 inch clevis pin |
1 |
|
| 044 |
202-0949 |
1/2 inch tube x 18 inch |
1 |
|
| 045a |
202-0950 |
1/2 inch tube x 3 1/2 inch |
1 |
|
| 045b |
202-0950 |
1/2 inch tube x 3 1/2 inch |
1 |
|
| 046a |
202-0952 |
Hose 1/2 x 4 1/2 inch |
1 |
|
| 046b |
202-0950 |
1/2 inch tube x 3 1/2 inch |
1 |
|
|
|

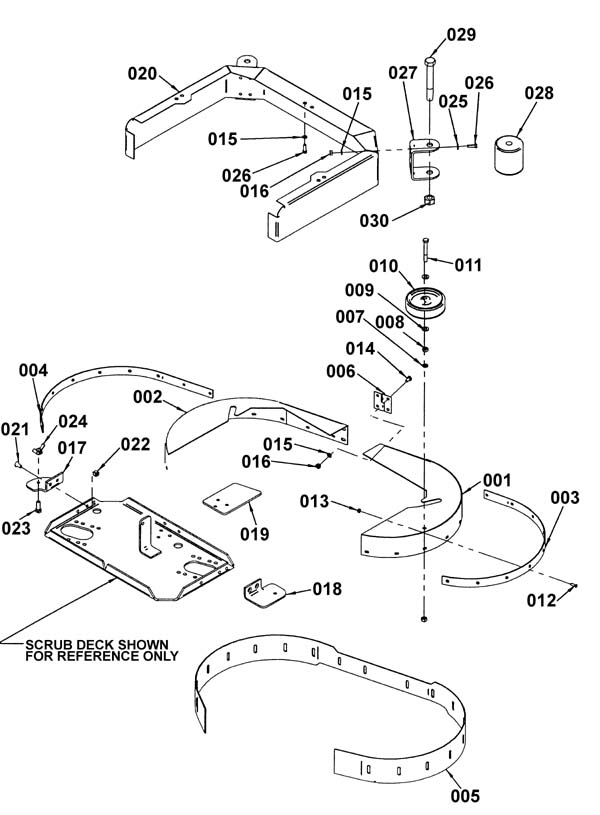

Skirt Assembly - 202-0008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
202-0954 |
21 inch right shroud (OBSOLETE) |
1 |
|
| 001b |
202-0955 |
25 inch right shroud (OBSOLETE) |
1 |
|
| 001c |
202-0956 |
27 inch right shroud |
1 |
|
| 002a |
202-0957 |
21 inch left shroud |
1 |
|
| 002b |
202-0958 |
25 inch left shroud (OBSOLETE) |
1 |
|
| 002c |
202-0959 |
27 inch left shroud |
1 |
|
| 003a |
202-0960 |
21 inch right shroud band |
1 |
|
| 003b |
202-0961 |
25 inch right shroud band |
1 |
|
| 003c |
202-0962 |
27 inch right shroud band |
1 |
|
| 004a |
202-0963 |
21 inch left shroud band |
1 |
|
| 004b |
202-0964 |
25 inch left shroud band |
1 |
|
| 004c |
202-0965 |
27 inch left shroud band |
1 |
|
| 005a |
202-0966 |
21 inch shroud curtain |
1 |
|
| 005b |
202-0967 |
25 inch shroud curtain |
1 |
|
| 005c |
202-0968 |
27 inch shroud curtain |
1 |
|
| 006 |
202-0969 |
Shroud hinge |
1 |
|
| 007 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 008 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 009 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 010 |
202-0174 |
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
1 |
|
| 011 |
999-0730 |
Bolt 5/16-18 x 2 1/2 hex head grade 5 zinc plated |
1 |
|
| 012 |
202-1205 |
Screw 10-32 x 5/8 flat head phillips machine stainless steel |
18 |
|
| 013 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
18 |
|
| 014 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
4 |
|
| 015 |
999-0632 |
Washer 1/4 split lock stainless steel |
15 |
|
| 016 |
999-0609 |
Nut 1/4-20 hex stainless steel |
9 |
|
| 017a |
202-0970 |
21 inch left shroud mount |
1 |
|
| 017b |
202-0971 |
25/27 inch left shroud mount |
1 |
|
| 018a |
202-0972 |
21 inch right shroud mount |
1 |
|
| 018b |
202-0973 |
25/27 inch right shroud mount |
1 |
|
| 019 |
202-0974 |
Front shroud mount |
1 |
|
| 020 |
202-0975 |
Front bumper |
1 |
|
| 021 |
999-0990 |
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
7 |
|
| 022 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
7 |
|
| 023 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
| 024 |
202-1044 |
Nut wing 3/8-16 nickel |
2 |
|
| 025 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
| 026 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
11 |
|
| 027 |
202-0976 |
20 inch roller bracket |
2 |
|
| 028 |
202-0756 |
Guide roller |
2 |
|
| 029 |
999-1209 |
Bolt 5/8-11 x 4 hex head zinc plated |
2 |
|
| 030 |
999-0968 |
Nut 5/8-11 nylon insert jam lock zinc plated |
2 |
|
| N/S |
202-1772 |
JAW CURTAIN |
1 |
|
|
|

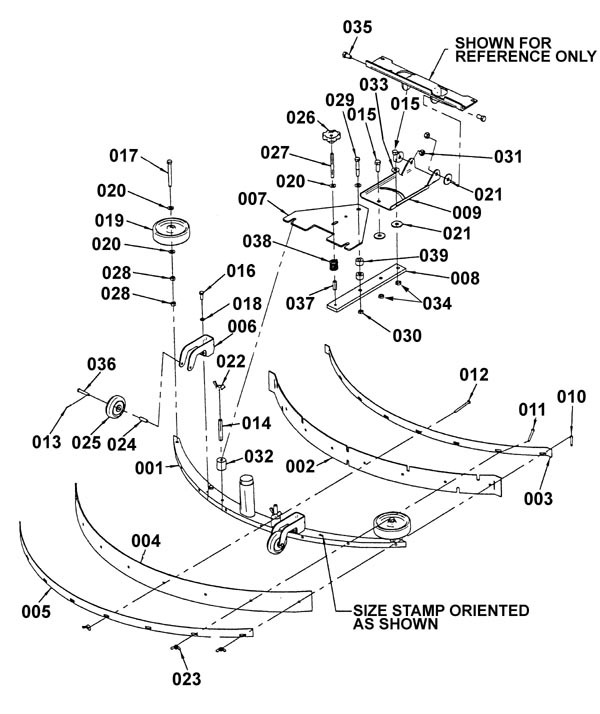

Squeegee Assembly - 202-0009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
202-1297 |
32 inch squeegee assembly |
|
|
| 001a |
202-1743 |
32 inch squeegee weldment |
1 |
|
| 001b |
202-0795 |
35 inch squeegee weldment |
1 |
|
| 001c |
202-0578 |
38 inch squeegee weldment |
1 |
|
| 002a |
202-0796 |
Squeegee blade 32 inch gum rubber front |
1 |
|
| 002b |
202-1714 |
Squeegee blade 32 inch linatex front |
1 |
|
| 002c |
202-2936 |
Front gum rubber squeegee blade 32 inch 1/8 inch thick |
1 |
|
| 002c |
202-0797 |
Squeegee blade 35 inch gum rubber front |
1 |
|
| 002d |
202-0577 |
Squeegee blade 38 inch gum rubber front |
1 |
|
| 003a |
202-1742 |
32 inch front squeegee band |
1 |
|
| 003b |
202-1712 |
Squeegee blade 32 inch linatex rear |
1 |
|
| 003c |
202-0799 |
35 inch front squeegee band |
1 |
|
| 003d |
202-0580 |
38 inch front squeegee band |
1 |
|
| 004a |
202-0800 |
Squeegee blade 32 inch gum rubber rear |
1 |
|
| 004b |
202-0801 |
Squeegee blade 35 inch gum rubber rear |
1 |
|
| 004c |
202-0579 |
Squeegee blade 38 inch gum rubber rear |
1 |
|
| 004c |
202-2935 |
Rear gum rubber squeegee blade 32 inch 1/8 inch thick |
1 |
|
| 005a |
202-0802 |
32 inch rear squeegee band |
1 |
|
| 005b |
202-0803 |
35 inch rear squeegee band |
1 |
|
| 005c |
202-0576 |
38 inch rear squeegee band |
1 |
|
| 006a |
202-0581 |
Squeegee trail mount |
2 |
|
| 006b |
991-2412 |
Squeegee trail mounting bracket |
2 |
(NON-OEM) |
| 007 |
202-0808 |
Squeegee triangle plate |
1 |
|
| 008 |
202-0977 |
Squeegee trail arm |
1 |
|
| 009 |
202-0978 |
Squeegee swing plate (OBSOLETE) |
1 |
|
| 010 |
999-0868 |
Screw 10-32 x 1 3/4 pan head phillips stainless steel |
2 |
|
| 011 |
999-1017 |
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
4 |
|
| 012 |
999-0860 |
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
2 |
|
| 013 |
202-0585 |
Cotter ring |
2 |
|
| 015 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
| 016 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 017 |
999-1285 |
Bolt 5/16 -18 x 3 tap head zinc plated |
2 |
|
| 018 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 019 |
202-0174 |
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
2 |
set of two with hardware |
| 020 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
| 021 |
999-1007 |
Washer 3/8 x 1/16 flat nylon |
4 |
|
| 022 |
202-1044 |
Nut wing 3/8-16 nickel |
2 |
|
| 023 |
999-0058 |
Nut 10-32 wing zinc plated |
8 |
|
| 024 |
202-0573 |
Wheel bushing (OBSOLETE) |
2 |
|
| 025 |
202-0008 |
Squeegee wheel with hardware (pkg of 2) |
1 |
|
| 026 |
202-0575 |
Pitch adjusting knob |
1 |
This part is no longer available seperatly, it must be purchased in this kit. |
| 027 |
202-0575 |
Pitch adjusting knob |
1 |
This part is no longer available seperatly, it must be purchased in this kit. |
| 028 |
999-0069 |
Nut 5/16-18 hex |
4 |
|
| 029 |
999-0178 |
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
1 |
|
| 030 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
1 |
|
| 031 |
999-0959 |
Nut 3/8-16 hex |
2 |
|
| 033 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 034 |
999-0628 |
Nut 3/8-16 hex jam stainless steel |
2 |
|
| 035 |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
2 |
|
| 036 |
202-0805 |
Clevis pin |
2 |
|
| 037 |
202-0787 |
Polyurethane spring |
2 |
|
| 038 |
202-0589 |
5/16 clear tubing |
1 |
|
| N/S |
202-0442 |
Clevis pin with cotter |
2 |
(includes 013 and 036) |
|
|

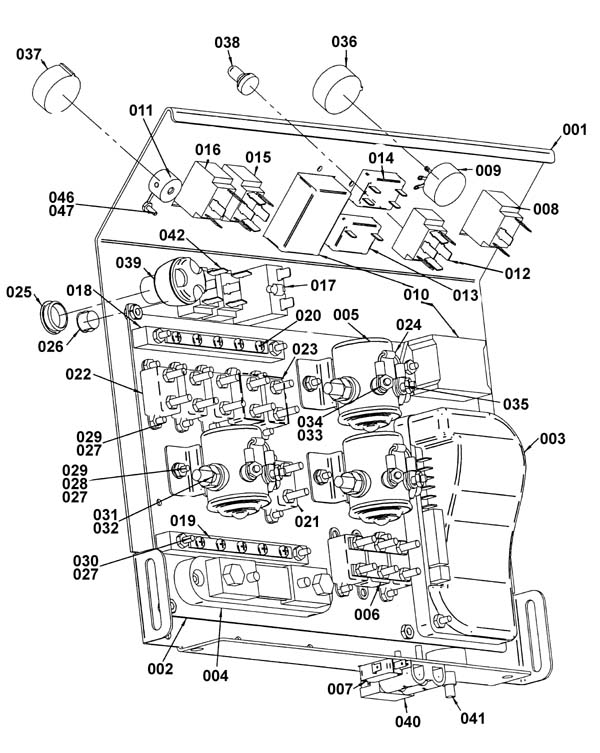

Control Panel - 202-0010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
202-1574 |
CONTROL PANEL |
1 |
|
| 001b |
202-0983 |
European control panel (OBSOLETE) |
1 |
|
| 002 |
202-0984 |
Component plate (OBSOLETE) |
1 |
|
| 003 |
202-0985 |
Speed controller |
1 |
|
| 005 |
202-0350 |
80 amp relay |
3 |
|
| 006 |
202-0823 |
40 amp circuit breaker |
1 |
|
| 007 |
202-0721 |
Microswitch |
1 |
|
| 009 |
202-0535 |
Speed control potentiometer |
1 |
|
| 010 |
202-0354 |
Downpressure gauge module (OBSOLETE) |
1 |
|
| 011 |
202-0211 |
Solution flow upper cable coupler |
1 |
|
| 012 |
202-0521 |
Toggle switch |
1 |
|
| 013 |
202-0376 |
Hour meter |
1 |
|
| 014 |
202-0375 |
Battery condition meter |
1 |
|
| 019 |
202-0830 |
Busbar (5 hole) |
2 |
|
| 020 |
999-0458 |
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
10 |
|
| 021 |
202-0344 |
25 amp circuit breaker |
1 |
|
| 022 |
202-0341 |
6 Amp circuit breaker |
3 |
|
| 023a |
202-0823 |
40 amp circuit breaker |
2 |
|
| 023b |
202-0823 |
40 amp circuit breaker |
1 |
|
| 023c |
202-0343 |
50amp circuit breaker |
1 |
|
| 023d |
202-0346 |
80 Amp circuit breaker |
1 |
|
| 024 |
202-0351 |
EMF suppression diode |
3 |
|
| 025 |
202-0987 |
3/4 inch hole plug |
1 |
|
| 027 |
999-0077 |
Nut 8-32 k-lock zinc plated |
49 |
|
| 028 |
999-0266 |
Washer #8 SAE flat stainless steel |
6 |
|
| 029 |
999-0385 |
Screw 8-32 x 1/2 round head slotted zinc plated |
25 |
|
| 030 |
999-0995 |
Screw 8-32 x 1 round head phillips zinc plated |
8 |
|
| 031 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 032 |
202-1207 |
Nut 5/16-24 hex |
6 |
|
| 033 |
999-0998 |
Washer #10 flat stainless steel |
3 |
|
| 034 |
999-0460 |
Nut 10-32 hex |
3 |
|
| 035 |
999-0237 |
Screw 8-32 x 1 1/4 round head slotted zinc plated |
11 |
|
| 036 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 037 |
202-0990 |
Control knob (blue) |
1 |
|
| 038 |
202-0098 |
Toggle switch boot (gray) |
3 |
|
| 039 |
202-0537 |
Key switch (brass and silver) |
1 |
Before 02.2006 and SN 44180 |
| 039b |
202-0374 |
Keys (pkg of 2) |
1 |
Before 02.2006 and SN 44180 |
| 039c |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
After 02.2006 and SN 44179 (OEM) |
| 039d |
991-5161 |
Key switch with keys |
1 |
After 02.2006 and SN 44179 (NON-OEM) |
| 039d |
991-1634 |
Key (pkg of 2) |
1 |
After 02.2006 and SN 44179 |
| 040 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 041 |
202-0991 |
100k potentiometer |
1 |
|
| 042 |
202-0097 |
Toggle switch |
2 |
|
| 043 |
202-0374 |
Keys (pkg of 2) |
1 |
|
| 044 |
202-0250 |
Chain guard seal |
1 |
|
| 045 |
202-0993 |
1 inch x 16.5 inch nylon strap (OBSOLETE) |
1 |
|
| 046 |
202-1209 |
Bolt 4-40 x 1/2 hex cap stainless steel |
1 |
|
| 047 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
1 |
|
| N/S |
202-1369 |
Main controller |
1 |
When ordering this part be sure to order part number 202-2270. 202-2270 is sent out at no charge per Tomcat. |
| N/S |
202-3555 |
Scrubber decal |
1 |
|
| N/S |
202-3589 |
SPST rocker switch (red) |
|
|
|
|

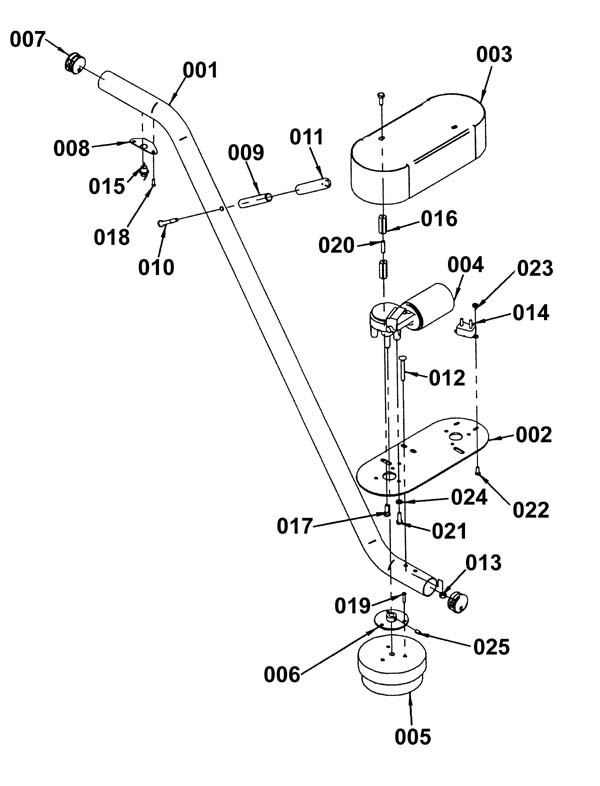

Optional Accessories-Scrub Assembly - 202-0011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0994 |
Scrubber handle (OBSOLETE) |
1 |
|
| 002 |
202-0995 |
Scrub deck (OBSOLETE) |
1 |
|
| 003 |
202-0996 |
Cover (OBSOLETE) |
1 |
|
| 004 |
202-0997 |
Side broom motor |
1 |
|
| 005 |
202-0998 |
5 inch disk brush (OBSOLETE) |
1 |
|
| 006 |
202-0999 |
Brush driver (OBSOLETE) |
1 |
|
| 007 |
202-1000 |
End plug (OBSOLETE) |
2 |
|
| 008 |
202-0869 |
Switch cover |
1 |
|
| 009 |
202-0505 |
Squeegee lift handle |
1 |
|
| 010 |
999-0258 |
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
1 |
|
| 011 |
202-0506 |
Handle grip |
1 |
|
| 012 |
202-1210 |
Bolt 1/4-20 x 2 carriage (OBSOLETE) |
1 |
|
| 013 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 014 |
202-0341 |
6 Amp circuit breaker |
1 |
|
| 015 |
202-0879 |
Push button switch |
1 |
|
| 016 |
202-1003 |
Stand off (OBSOLETE) |
2 |
|
| 017 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 018 |
202-1195 |
Screw 8-32 x 1/2 round head phillips machine (OBSOLETE) |
1 |
|
| 019 |
999-0055 |
Screw 8-32 x 3/4 round head slotted zinc plated |
1 |
|
| 020 |
202-0857 |
Stud 1/4-20 x 1 |
1 |
|
| 021 |
999-1465 |
Screw M6-1 x 14mm hex head zinc plated |
1 |
|
| 022 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 023 |
999-0239 |
Nut 10-32 k-lock zinc plated |
1 |
|
| 024 |
202-1212 |
Washer #6 metric lock |
1 |
|
| 025 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
1 |
|
|
|

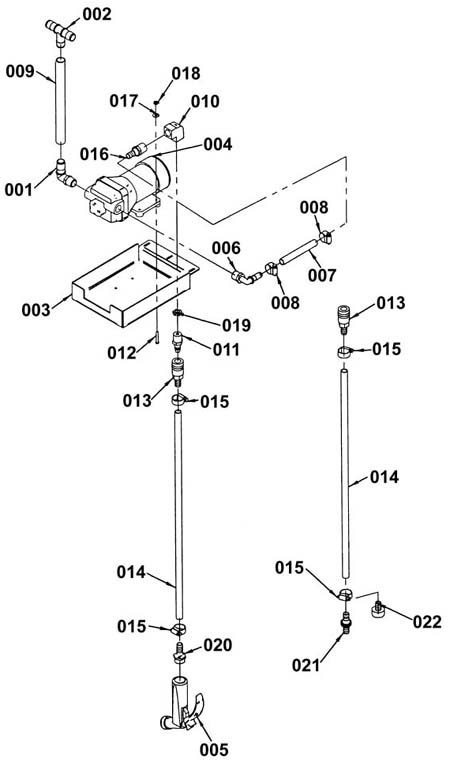

Optional Accessories-Spray Hose Assembly - 202-0012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-1004 |
Barbed elbow |
1 |
|
| 002 |
202-0885 |
3/4 barb tee |
1 |
|
| 003 |
202-1006 |
Spray jet box (OBSOLETE) |
1 |
|
| 004 |
202-0101 |
60 PSI water jet pump |
1 |
|
| 005a |
202-0103 |
Spray nozzle |
1 |
|
| 005b |
202-0104 |
18 foot rubber hose (blue) |
1 |
|
| 006 |
202-1008 |
Barbed elbow |
1 |
|
| 007 |
202-1009 |
4 1/2 inch blue hose |
1 |
|
| 008 |
202-0680 |
Hose clamp |
2 |
|
| 009 |
202-1642 |
Clear hose - sold by the foot |
1 |
|
| 010 |
202-1011 |
1/2 street elbow |
1 |
|
| 011 |
202-0883 |
1/2 mnpt to 3/8 brass cup |
1 |
|
| 012 |
999-1005 |
Screw 10-32 x 1 1/4 button head socket stainless steel |
4 |
|
| 013 |
202-1013 |
Quick release barb |
2 |
|
| 014 |
202-5025 |
12 foot hose (blue) |
2 |
|
| 015 |
202-1015 |
1/2 inch - 29/32 inch stainless steel clamp |
4 |
|
| 016 |
202-1016 |
1/2 mnpt x 1/2 barb |
1 |
|
| 017 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 018 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 019 |
999-0330 |
Nut 1/2-13 acorn brass |
1 |
|
| 020 |
202-1017 |
Male barb 1/2 x 3/4 |
1 |
|
| 021 |
202-1018 |
Hose connector |
1 |
|
| 022 |
202-1019 |
Garden hose connection |
1 |
|
|
|
38 inch Squeegee Assembly - 202-0068 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1b |
991-2412 |
Squeegee trail mounting bracket |
2 |
(NON-OEM) |
| 0a |
202-1297 |
32 inch squeegee assembly |
1 |
(includes 1-28) |
| 0b |
202-1359 |
35 inch squeegee assembly |
1 |
(includes 1-28) |
| 0c |
202-1284 |
38 inch squeegee assembly |
1 |
(includes 1-28) |
| 0d |
202-1876 |
45 inch squeegee assembly |
1 |
(includes 1-29) |
| 1a |
202-0581 |
Squeegee trail mount |
2 |
|
| 2a |
202-5724 |
Back up wheel (gray) |
2 |
|
| 2b |
991-2410 |
Rear wheel |
2 |
(NON-OEM) |
| 3a |
202-0802 |
32 inch rear squeegee band |
1 |
|
| 3b |
202-0803 |
35 inch rear squeegee band |
1 |
|
| 3c |
202-0576 |
38 inch rear squeegee band |
1 |
|
| 3d |
202-1857 |
45 inch rear squeegee band |
1 |
|
| 4a |
202-1742 |
32 inch front squeegee band |
1 |
|
| 4b |
202-0799 |
35 inch front squeegee band |
1 |
|
| 4c |
202-0580 |
38 inch front squeegee band |
1 |
|
| 4d |
202-1856 |
45 inch front squeegee band |
1 |
|
| 5a |
202-1743 |
32 inch squeegee weldment |
1 |
|
| 5b |
202-0795 |
35 inch squeegee weldment |
1 |
|
| 5c |
202-0578 |
38 inch squeegee weldment |
1 |
|
| 5d |
202-1855 |
45 inch squeegee weldment |
1 |
|
| 7a |
202-0174 |
Squeegee guide wheels w/ collar and hardware (pkg of 2) |
2 |
|
| 7b |
202-5405 |
3 inch wheel |
2 |
(grey) |
| 9 |
999-1017 |
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
2 |
|
| 10 |
202-1197 |
Washer 17/64 x 1/2 x 5/8 flat nylon |
4 |
|
| 11a |
999-1244 |
Screw 10-32 x 3 pan head phillips stainless steel |
2 |
|
| 11b |
999-0860 |
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
2 |
|
| 12 |
999-0993 |
Screw 1/4-20 x 1 5/8 hex head stainless steel |
2 |
|
| 13 |
202-0807 |
Shaft collar |
2 |
|
| 14 |
999-1273 |
Screw 3/8-16 x 3 1/2 button head socket stainless steel |
2 |
|
| 15a |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
(32, 35 and 45 inch) |
| 15b |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
4 |
(38 inch) |
| 16 |
999-0911 |
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
| 17 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 18 |
999-0058 |
Nut 10-32 wing zinc plated |
8 |
|
| 19 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 20 |
999-0632 |
Washer 1/4 split lock stainless steel |
6 |
|
| 21 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 22 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 23 |
999-0868 |
Screw 10-32 x 1 3/4 pan head phillips stainless steel |
2 |
|
| 24a |
999-1818 |
Screw 10-32 x 2 pan head phillips stainless steel |
2 |
|
| 24b |
999-1017 |
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
4 |
|
| 25a |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
| 25b |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
| 26 |
999-9071 |
Nut 3/8-16 nylon insert jam lock stainless steel |
2 |
|
| 27a |
202-1714 |
Squeegee blade 32 inch linatex front |
1 |
|
| 27b |
202-0796 |
Squeegee blade 32 inch gum rubber front |
1 |
|
| 27c |
202-1792 |
Squeegee blade 35 inch linatex front |
1 |
|
| 27e |
202-0797 |
Squeegee blade 35 inch gum rubber front |
1 |
|
| 27f |
202-2931 |
Squeegee blade 38 inch linatex front |
1 |
|
| 27g |
202-0577 |
Squeegee blade 38 inch gum rubber front |
1 |
|
| 27h |
202-2289 |
Squeegee blade 45 inch linatex front (red) |
1 |
|
| 27i |
202-1803 |
Squeegee blade 45 inch gum rubber front |
1 |
|
| 28a |
202-1712 |
Squeegee blade 32 inch linatex rear |
1 |
|
| 28b |
202-0800 |
Squeegee blade 32 inch gum rubber rear |
1 |
|
| 28c |
202-1790 |
Squeegee blade 35 inch linatex rear (red) |
1 |
|
| 28d |
202-0801 |
Squeegee blade 35 inch gum rubber rear |
1 |
|
| 28f |
202-2930 |
Squeegee blade 38 inch linatex rear (red) |
1 |
|
| 28e |
994-1007 |
Squeegee blade 35 inch gum rubber rear (red) |
1 |
|
| 28g |
202-0579 |
Squeegee blade 38 inch gum rubber rear |
1 |
|
| 28h |
202-2288 |
Squeegee blade 45 inch linatex rear (red) |
1 |
|
| 28i |
202-0002 |
Squeegee blade 45 inch gum rubber rear |
1 |
|
| 29 |
202-0806 |
Stud |
1 |
(45 inch) |
| N/S |
202-2269 |
Squeegee hose |
1 |
|
|
|

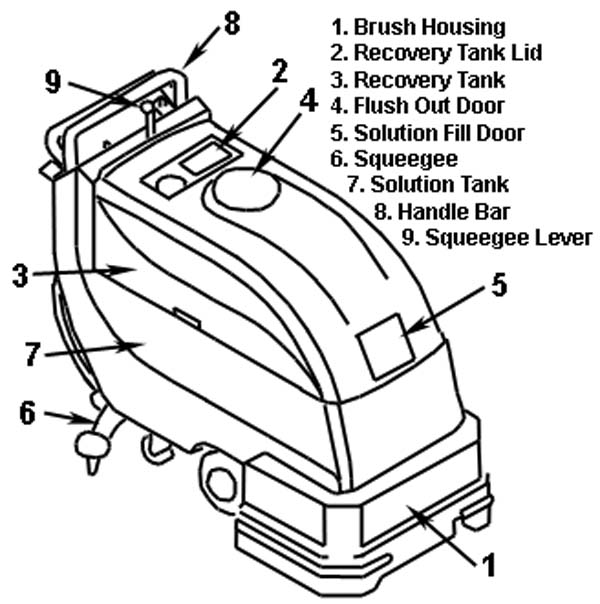

- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes, and Chargers - 202-9994 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 02 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
| 03 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
2 |
|
| 04 |
991-2103 |
50amp charger plug SB50 with pins (red) |
2 |
|
| 05 |
996-0755 |
Extra heavy grit stripping brush - 46 grit |
2 |
|
| 06 |
996-1153 |
Medium grit scrubbing brush - 180 grit |
2 |
|
| 07 |
996-1154 |
Lite grit scrubbing brush - 500 grit |
2 |
|
| 08 |
996-1155 |
Polypropelene scrubbing brush |
2 |
|
| 09 |
996-0756 |
Nylon brush |
2 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
