Parts List Complete for TOMCAT 250


Brush Motor Assembly - NON-OEM - 164-0011
RefNbr Part Number Description Req Notes
000a 991-2121 24V .75HP brush motor assembly with gear box 1 (includes 001-027)
000b 991-2122 36V .75HP brush motor assembly with gear box 1 (includes 001-027) (you will also need to order 000c and 000d)
000c 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
000d 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1 (Needed for mounting the hub on the shaft)
001 164-1157 Bolt 1/4-20 x 7 3/4 thru 2
002 164-1095 Negative lead 1
003a 164-0337 Top end bell (OBSOLETE) 1
003b N/A Not available 1 (Commutator bracket assembly)
004 N/A Not available 1 (Brush board assembly)
005 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
006 164-0329 Top rotor bearing 1 (Commutator end)
007a 164-1084 24V armature assembly (OBSOLETE) 1
007b 164-0341 36V armature assembly 1
008 164-0342 Armature vent fan 1
009 164-0343 Stator frame assembly with magnets 1
010 164-0355 Bottom bearing large 1
011 164-1096 Positive lead 1
012 164-0345 Strain relief (OBSOLETE) 2
013 164-0324 Carbon brush spring 4
014 991-1505 Carbon brush (sold individually) 4
015 999-0111 Screw 10-32 x 1/2 round head slotted brass 4
016 164-0328 Washer 1 7/8 wave 1
017 164-0349 Oil seal 1
018 164-0350 Gear box housing 1
019 164-0352 Top bearing small 1
020 164-0353 Gear shaft 1
021 164-0132 Square keyway 1/4 x 1/4 1
022 164-0355 Bottom bearing large 1
023 164-0356 O-ring 1
024 164-0357 End cap 1
025 164-0358 Oil seal 1
026 164-0359 Snap ring 1
027a 164-0351 Gear box assembly 1 (includes 017-026) (OEM)
027b 991-5115 Gear box assembly 1 (includes 017-026) (also need to order 027c) (NON-OEM)
027c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (needed with 027b)

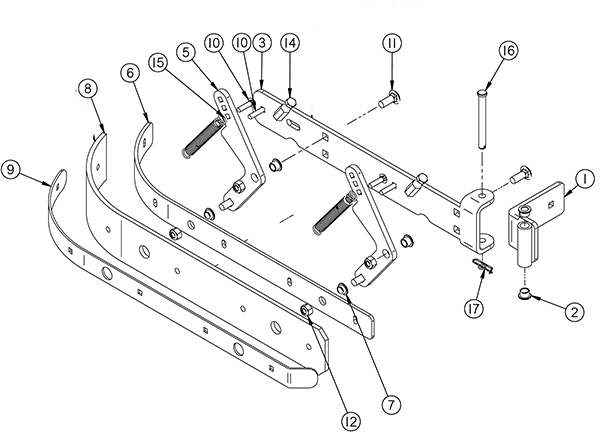

Squeegee Assembly - 202-0068
RefNbr Part Number Description Req Notes
1b 991-2412 Squeegee trail mounting bracket 2 (NON-OEM)
0a 202-1297 32 inch squeegee assembly 1 (includes 1-28)
0b 202-1359 35 inch squeegee assembly 1 (includes 1-28)
0c 202-1284 38 inch squeegee assembly 1 (includes 1-28)
0d 202-1876 45 inch squeegee assembly 1 (includes 1-29)
1a 202-0581 Squeegee trail mount 2
2a 202-5724 Back up wheel (gray) 2
2b 991-2410 Rear wheel 2 (NON-OEM)
3a 202-0802 32 inch rear squeegee band 1
3b 202-0803 35 inch rear squeegee band 1
3c 202-0576 38 inch rear squeegee band 1
3d 202-1857 45 inch rear squeegee band 1
4a 202-1742 32 inch front squeegee band 1
4b 202-0799 35 inch front squeegee band 1
4c 202-0580 38 inch front squeegee band 1
4d 202-1856 45 inch front squeegee band 1
5a 202-1743 32 inch squeegee weldment 1
5b 202-0795 35 inch squeegee weldment 1
5c 202-0578 38 inch squeegee weldment 1
5d 202-1855 45 inch squeegee weldment 1
6 202-1999 Star knob 2
7a 202-0174 Squeegee guide wheels w/ collar and hardware (pkg of 2) 2
7b 202-5405 3 inch wheel 2 (grey)
8 202-0582 Stand-off 2
9 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel 2
10 202-1197 Washer 17/64 x 1/2 x 5/8 flat nylon 4
11a 999-1244 Screw 10-32 x 3 pan head phillips stainless steel 2
11b 999-0860 Screw 10-32 x 2 1/2 pan head slotted stainless steel 2
12 999-0993 Screw 1/4-20 x 1 5/8 hex head stainless steel 2
13 202-0807 Shaft collar 2
14 999-1273 Screw 3/8-16 x 3 1/2 button head socket stainless steel 2
15a 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4 (32, 35 and 45 inch)
15b 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4 (38 inch)
16 999-0911 Screw 5/16-18 x 3 hex head stainless steel 2
17 999-0593 Nut 5/16-18 hex stainless steel 2
18 999-0058 Nut 10-32 wing zinc plated 8
19 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
20 999-0632 Washer 1/4 split lock stainless steel 6
21 999-0553 Washer 5/16 medium split lock stainless steel 2
22 999-0659 Washer 3/8 medium split lock stainless steel 2
23 999-0868 Screw 10-32 x 1 3/4 pan head phillips stainless steel 2
24a 999-1818 Screw 10-32 x 2 pan head phillips stainless steel 2
24b 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel 4
25a 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2
25b 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2
26 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 2
27a 202-1714 Squeegee blade 32 inch linatex front 1
27b 202-0796 Squeegee blade 32 inch gum rubber front 1
27c 202-1792 Squeegee blade 35 inch linatex front 1
27e 202-0797 Squeegee blade 35 inch gum rubber front 1
27f 202-2931 Squeegee blade 38 inch linatex front 1
27g 202-0577 Squeegee blade 38 inch gum rubber front 1
27h 202-2289 Squeegee blade 45 inch linatex front (red) 1
27i 202-1803 Squeegee blade 45 inch gum rubber front 1
28a 202-1712 Squeegee blade 32 inch linatex rear 1
28b 202-0800 Squeegee blade 32 inch gum rubber rear 1
28c 202-1790 Squeegee blade 35 inch linatex rear (red) 1
28d 202-0801 Squeegee blade 35 inch gum rubber rear 1
28f 202-2930 Squeegee blade 38 inch linatex rear (red) 1
28e 994-1007 Squeegee blade 35 inch gum rubber rear (red) 1
28g 202-0579 Squeegee blade 38 inch gum rubber rear 1
28h 202-2288 Squeegee blade 45 inch linatex rear (red) 1
28i 202-0002 Squeegee blade 45 inch gum rubber rear 1
29 202-0806 Stud 1 (45 inch)
N/S 202-2269 Squeegee hose 1

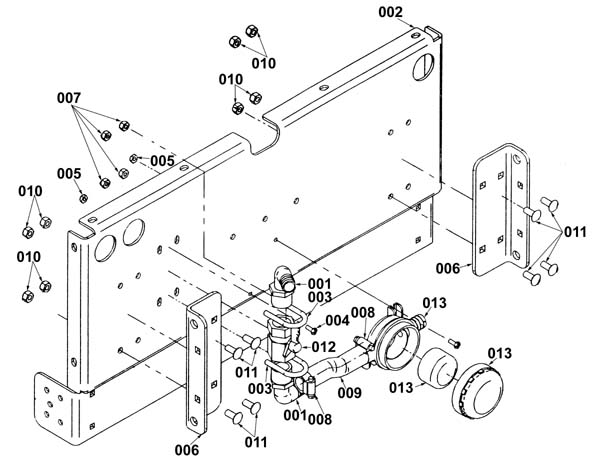

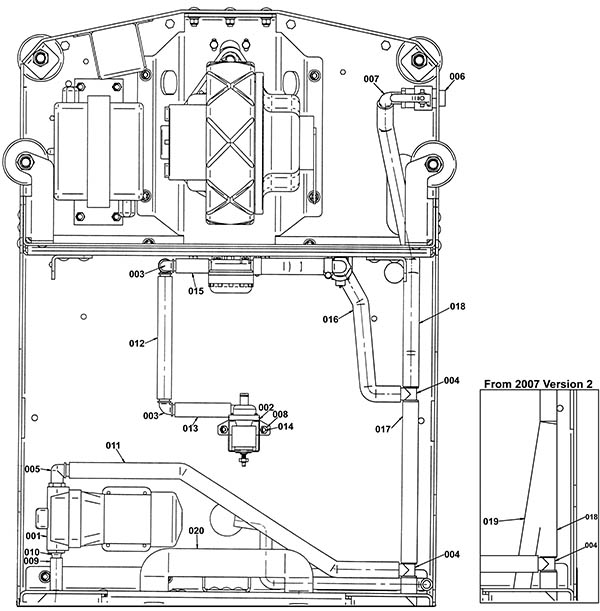

Front Wall - Disk Assembly - 202-0102
RefNbr Part Number Description Req Notes
001 202-0884 Barbed elbow 2
002 202-1878 Front splash guard 1
003 202-1120 U bolt 1/4-20 x 1 3/4 2
004 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
005 999-0086 Nut 10-32 nylon insert lock zinc plated 2
006 202-1879 Bracket 2
007 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
008a 202-0860 Pivot and guide 2
008b 202-0680 Hose clamp 2
009a 202-1880 Hose 1
009b 202-2904 Hose 3/4 x 5 1/4 inch 1
010 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
011 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 8
012 202-1881 Ball valve 3/4 NPT 1
013 202-1882 Inline filter 1

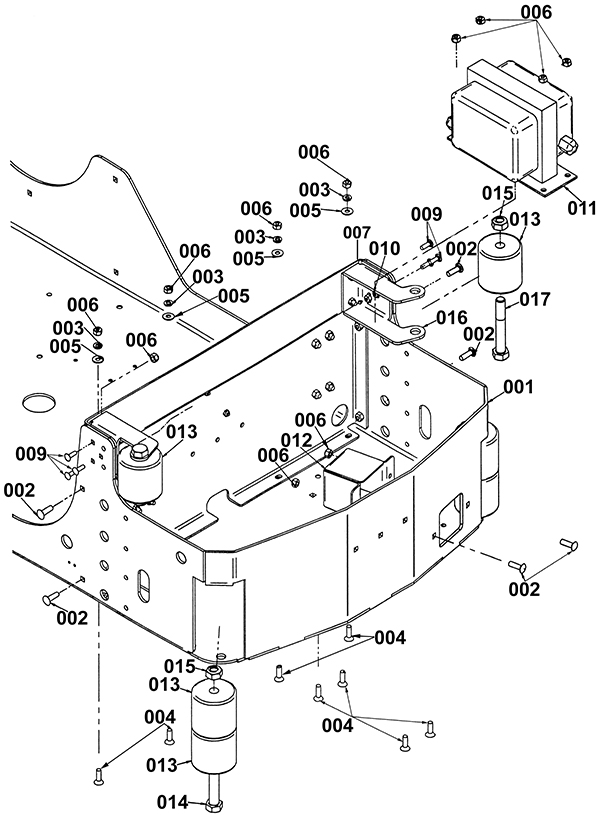

Front Panel Assembly - 202-0103
RefNbr Part Number Description Req Notes
001 202-1883 Main frame (OBSOLETE) 1
002 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 6
003 999-0553 Washer 5/16 medium split lock stainless steel 4
004 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated 8
005 999-0964 Washer 5/16 x 3/4 flat stainless steel 4
006 999-0423 Nut 5/16-18 nylon insert lock stainless steel 14
007 202-3602 250 disk front wall 1
009 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 7
010 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 10
011 202-1877 36V 35amp onboard battery charger 1 (optional)
012 202-1888 Charger plug box 1
013 202-0756 Guide roller 6
014 999-6723 Bolt 5/8-11 x 7 hex head grade 5 zinc plated 2
015 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 4
016 202-5560 Lower roller bracket 2
017 999-1209 Bolt 5/8-11 x 4 hex head zinc plated 2

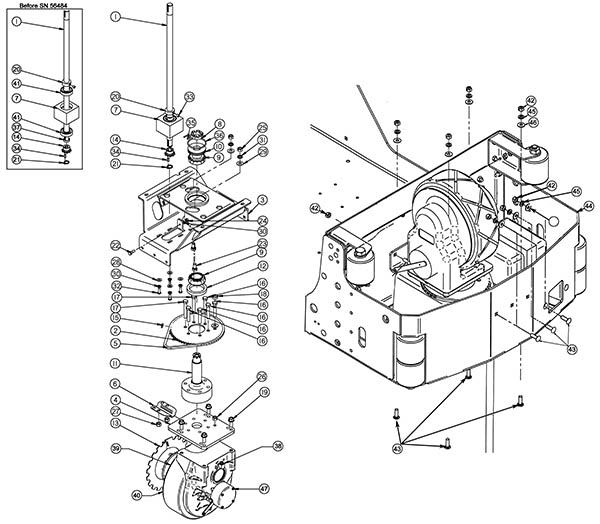

Front Wheel Drive Assembly Before 2007 Version 2 - 202-0104
RefNbr Part Number Description Req Notes
1 202-1892 Lower steering shaft 1
2 202-1894 60 toothed sprocket 1
3 202-1898 Drop plate 1
4 202-1896 Pivot plate 1
5 202-1897 Steering chain 1
6 202-2960 Wire guide 1
7 202-0771 Bearing block 1
8 202-1166 Slotted castle nut 1
9 202-5067 Tapered roller bearing 2
10a 202-0769 Sleeved bearing 1 (before SN 56484)
10b 202-5036 Preload sleeve 1 (after SN 56483)
11 202-2308 Steering shaft spindle 1
12a 202-0768 Seal 2 (before SN 56484)
12b 202-5068 Bearing seal 1 (after SN 56483)
13 202-5069 Drive guard 2 (after SN 56483)
14 202-0280 10 toothed sprocket 1
15 202-0283 Master link 1
16 202-2963 Bolt hex head stainless steel 5
17 202-2963 Bolt hex head stainless steel 2
18 202-0775 PVC tube 1
19a 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (before SN 56484)
19b 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel 4 (after SN 56483)
20 202-2216 Shaft collar with set screw 1
21 202-0281 Snap ring 1
22 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
23 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
24 999-0609 Nut 1/4-20 hex stainless steel 1
25 999-0635 Nut 3/8-16 hex stainless steel 2
26 999-0169 Nut 3/8-24 hex jam plain finish 1
27 999-1391 Nut 3/8-24 nylon insert lock stainless steel 2
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
29 999-0617 Washer 3/8 x 1 flat stainless steel 3
30 999-0632 Washer 1/4 split lock stainless steel 5
31 999-0659 Washer 3/8 medium split lock stainless steel 2
32 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
33 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
34 202-0278 Square keyway 1
35 202-2967 S hook 1
36 202-5071 O-ring 1 (after SN 56483)
37 202-5038 Spacer 1
38a 202-1893 Drive wheel assembly w/motor - includes brake 1 (includes 47) (black)
38b 202-5059 10 inch front wheel drive motor assembly 1 (with x-groove) (gray)
39a 202-3028 Front wheel drive motor 1 (before SN 56484) (drive motor only)
39b 202-3524 Front wheel drive motor 1 (after SN 56483) (drive motor only)
39c 202-5072 36V brush motor kit with springs 1 (after SN 56483)
40a 202-3385 Replacement tire ONLY 1
40b 202-5039 10 inch tire and wheel (black) 1
40d 202-5074 10 inch P7 X groove tire and wheel (black) 1
41 202-0160 Bearing 2
42 999-0423 Nut 5/16-18 nylon insert lock stainless steel 10
43 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 10
44 202-1883 Main frame (OBSOLETE) 1
45 999-0553 Washer 5/16 medium split lock stainless steel 7
46 999-0964 Washer 5/16 x 3/4 flat stainless steel 7
47a 202-1893 Drive wheel assembly w/motor - includes brake 1 (before SN 56484)
47b 202-2455 Brake assembly 1 (before SN 56484)
47c 202-5075 36V electric brake 1 (after SN 56483)
N/S 999-1300 Screw M6-1 x 25mm socket head stainless steel 10 (used for the drive wheel)
N/S 202-9300 Washer,Tooth Lock,3/8 inch Internal & External,Zinc 2

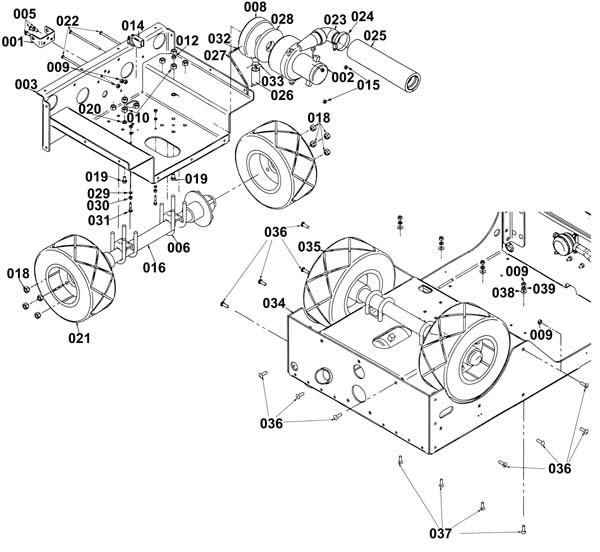

Rear Axle Mount Assembly - 202-0106
RefNbr Part Number Description Req Notes
001 202-1903 Lifting bracket 1
002a 202-1904 36V 3 stage vacuum motor 1 (Tomcat)
002b 991-1202 36V 3 stage vacuum motor tangential 1 (NON-OEM)
002c 991-1222 Plastic covered carbon brush (sold individually) 2
003 202-1905 Axle mount 1
005 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 3
006 202-1154 U bolt 1/2-13 x 1 1/4 4
008 202-1906 Vacuum motor housing 1
009 999-0423 Nut 5/16-18 nylon insert lock stainless steel 18
010 999-0118 Nut 1/2-13 nylon insert lock zinc plated 8
012 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
014 202-1908 Vacuum shut-off switch 1
015 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
016 202-1909 Rear axle 1
018 202-1153 Nut 1/2-20 lug 8
019 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
020 999-0659 Washer 3/8 medium split lock stainless steel 2
021a 202-0725 Rear wheel 2 (250)
021b 202-0724 Rear wheel (black) 2
022 999-1219 Bolt 1/4-20 x 6 carriage head stainless steel 3
023 202-1913 Exhaust elbow 1
024 997-2003 Hose clamp 1
025 202-6394 Muffler, Vac Fan 1
026 202-1916 Unloader valve 1
027 202-2903 Hose 1/4 x 9 1/2 inch 1
028 202-1917 Vacuum motor gasket 1
029 999-0632 Washer 1/4 split lock stainless steel 4
030 999-0609 Nut 1/4-20 hex stainless steel 4
031 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 2
032 202-1919 Barbed fitting 1
033 202-0680 Hose clamp 1
034 202-1883 Main frame (OBSOLETE) 1
035 202-1909 Rear axle 1
036 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 11
037 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated 4
038 999-0964 Washer 5/16 x 3/4 flat stainless steel 4
039 999-0553 Washer 5/16 medium split lock stainless steel 4

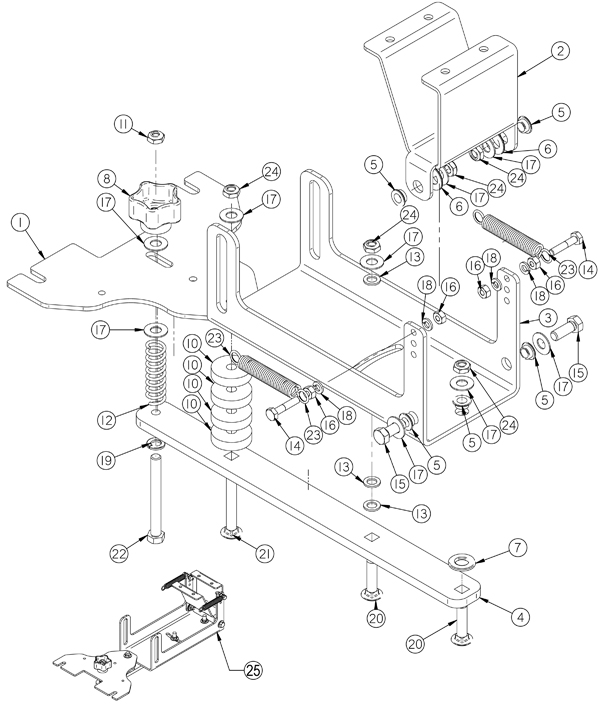

Squeegee Drag Plate Assembly 1 - 202-0108
RefNbr Part Number Description Req Notes
1 202-0808 Squeegee triangle plate 1
2 N/A Not available 1 (included in 25) (Squeegee drag brace is not available separately and included in this assembly)
3 N/A Not available 1 (included in 25) (Squeegee swing plate is not available separately and included in this assembly)
4 202-1923 Squeegee trail arm 1
5 202-1239 Flanged bearing 5
6 202-1181 Washer 1/2 flat bronze 2
7 202-1161 Washer 1/2 flat thick bronze 1
8 202-0809 Brass star knob 1
10 202-0151 Grommet 4
11 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 1
12a 202-2945 Spring 1
12b 202-0813 Spring 1
13a 202-2210 Washer 3/8 x 3/4 flat nylon 3
13b 999-1007 Washer 3/8 x 1/16 flat nylon 4 (SN 30000000 - SN 40000000)
14 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 2
15 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
16 999-0609 Nut 1/4-20 hex stainless steel 4
17 999-0617 Washer 3/8 x 1 flat stainless steel 9
18 999-0632 Washer 1/4 split lock stainless steel 4
19 999-0659 Washer 3/8 medium split lock stainless steel 1
20a 999-1348 Bolt 3/8-16 x 1 1/2 carriage head stainless steel 2
20b 999-1150 Bolt 3/8-16 x 1 1/4 carriage head stainless steel 2
21a 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel 1
21b 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel 1
22 202-1054 Bolt 3/8-24 x 3 1/2 hex head stainless steel 1
23 202-2208 Compression spring 2
24a 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 5
24b 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 5
25 202-3054 Squeegee trail arm assembly 1 (includes 2-3) (Complete assembly)

Hoses and Wiring Harness Assembly - 202-0110
RefNbr Part Number Description Req Notes
001 202-0101 60 PSI water jet pump 1
002a 202-1935 36V solution flow valve 1
002b 202-2278 Nylon valve body (OBSOLETE) 1
003 202-0194 5/8 Barb elbow 3
004 202-1936 Barbed tee 2
005 202-1004 Barbed elbow 1
006 202-0684 Ball valve 1
007 202-0884 Barbed elbow 1
008 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
009 202-5025 12 foot hose (blue) 1
010 202-1017 Male barb 1/2 x 3/4 1
011a 202-1880 Hose 1
011b 202-3605 Spray jet hose 3/4 x 23-1/2 inch 1
012a 202-0299 5/8 inch PVC hose (clear) (sold by the foot) 1
012b 202-5044 Solution hose 5/8 x 12 inch (OBSOLETE) 1
013a 202-0299 5/8 inch PVC hose (clear) (sold by the foot) 1
013b 202-5043 Solution hose 5/8 x 2 1/2 inch (OBSOLETE) 1
014 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel 2
015a 202-0299 5/8 inch PVC hose (clear) (sold by the foot) 1
015b 202-5045 Solution hose 5/8 x 2 1/2 inch 1
016 202-2908 Hose 3/4 x 6 1/4 inch 1
017 202-2907 Solution drain hose 3/4 x 20 inch 1
018 202-3374 Hose 3/4 x 15 1/2 inch (OBSOLETE) 1
019 202-2280 Hose 2.5 x 18 inch 1
020 202-2905 Hose 3/4 x 40 inch 1
N/S 202-2277 Wire harness (OBSOLETE) 1 (for the drive motor)

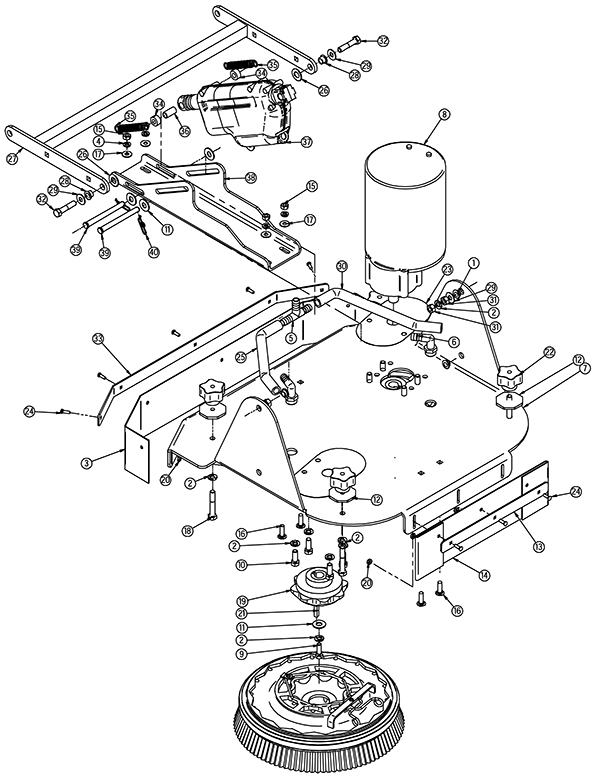

Scrub Deck Assembly - 26 and 30 inch - 202-0111
RefNbr Part Number Description Req Notes
1 202-1239 Flanged bearing 4
2 999-0659 Washer 3/8 medium split lock stainless steel 16
3 202-1943 26 and 30 inch front curtain 1
4 999-0553 Washer 5/16 medium split lock stainless steel 4
5a 202-0332 1/2 inch barbed tee 1 (before 2007 version 2)
5b 202-0099 Tee barb 1 (from 2007 version 2)
6a 202-0333 Elbow barb 2 (before 2007 version 2)
6b 202-0335 Barbed elbow 2 (from 2007 version 2)
7 202-1944 26 and 30 inch scrub deck 1
8a 991-2122 36V .75HP brush motor assembly with gear box 2 (you will also need to order 999-0130)
8b 202-1945 36V Brush gear motor assembly 2
9 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
10 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 8
11 999-0617 Washer 3/8 x 1 flat stainless steel 6
12 202-1946 Adjustment knob plate 4
13 202-1947 26 and 30 inch rear curtain band 1
14 202-1948 34 inch rear curtain band 1
15 999-0593 Nut 5/16-18 hex stainless steel 4
16 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
17 999-0964 Washer 5/16 x 3/4 flat stainless steel 4
18 999-0994 Screw 3/8-24 x 2 1/4 hex head stainless steel 4
19 202-0330 Metal brush driver 2
20 999-0086 Nut 10-32 nylon insert lock zinc plated 8
21 202-0331 Brush driver key (pkg of 2) 2
22 202-0809 Brass star knob 4
23 202-1954 Brush motor cap 2
24 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 8
25 202-3031 Vacuum hose (tank) 1
26 202-1181 Washer 1/2 flat bronze 2
27 202-1971 Lateral arm 1
28 202-0754 Flanged bearing 2
29 999-0617 Washer 3/8 x 1 flat stainless steel 4
30 202-2976 Hose 3/4 x 16 inch 1
31 999-0635 Nut 3/8-16 hex stainless steel 4
32 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 2
33a 202-2259 26 inch front curtain band 1 (for 26 inch deck)
33b 202-2260 30 inch front curtain band 1 (for 30 inch deck)
34 202-3222 Shaft collar with set screw 2
35 202-2208 Compression spring 2
36 202-1951 Sleeve 1
37 202-1950 36V actuator 1
38 202-1942 Bracket 1
39 202-1968 Clevis pin 2
40 202-2036 Cotter pin 2

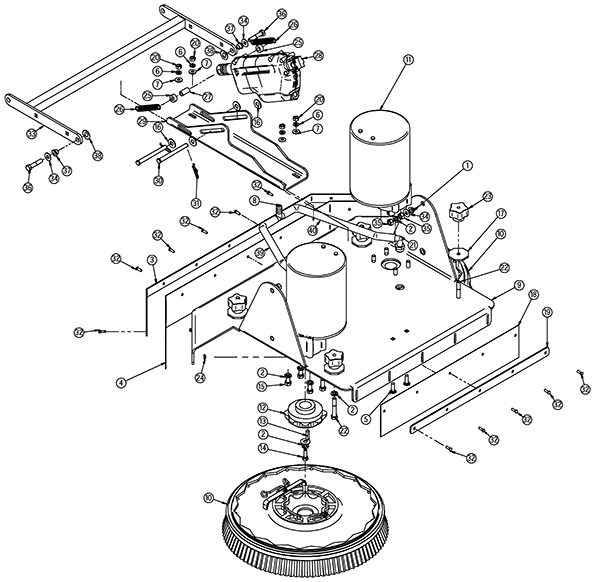

Scrub Deck Assembly - 34 inch - 202-0112
RefNbr Part Number Description Req Notes
1 202-1239 Flanged bearing 4
2 999-0659 Washer 3/8 medium split lock stainless steel 16
3 202-1956 34 inch front curtain band 1
4 202-1957 34 inch front curtain 1
5 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
6 999-0553 Washer 5/16 medium split lock stainless steel 4
7 999-0964 Washer 5/16 x 3/4 flat stainless steel 4
8a 202-0332 1/2 inch barbed tee 1 (before 2007 version 2)
8b 202-0099 Tee barb 1 (after 2007 version 2)
9 202-1958 34 inch scrub deck 1
10a 202-4276 17 inch brush 2 (before 2007 version 2)
10b 996-0748 17 inch polypropylene scrubbing brush 2 (after 2007 version 2)
11 991-2122 36V .75HP brush motor assembly with gear box 2
12a 202-0330 Metal brush driver 2 (before 2007 version 2)
12b 202-0330 Metal brush driver 2 (after 2007 version 2)
13 202-0331 Brush driver key (pkg of 2) 2
14 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
15 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 8
16 999-0617 Washer 3/8 x 1 flat stainless steel 6
17 202-1946 Adjustment knob plate 4
18 202-1948 34 inch rear curtain band 1
19 202-1963 34 inch rear curtain band 1
20 999-0593 Nut 5/16-18 hex stainless steel 4
21a 202-0333 Elbow barb 2 (before 2007 version 2)
21b 202-0335 Barbed elbow 2 (after 2007 version 2)
22 999-0994 Screw 3/8-24 x 2 1/4 hex head stainless steel 4
23 202-0809 Brass star knob 4
24 999-0086 Nut 10-32 nylon insert lock zinc plated 12
25 202-3222 Shaft collar with set screw 2
26 202-2208 Compression spring 2
27 202-1951 Sleeve 1
28 202-1950 36V actuator 1
29 202-1942 Bracket 1
30 202-1968 Clevis pin 2
31 202-2036 Cotter pin 2
32 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 14
33 202-1971 Lateral arm 1
34 999-0617 Washer 3/8 x 1 flat stainless steel 4
35 999-0635 Nut 3/8-16 hex stainless steel 4
36 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 2
37 202-0754 Flanged bearing 2
38 202-1181 Washer 1/2 flat bronze 2
39 202-2920 Hose 5/8 x 9 inch (OBSOLETE) 1
40 202-2921 Hose 5/8 x 10 inch (OBSOLETE) 1

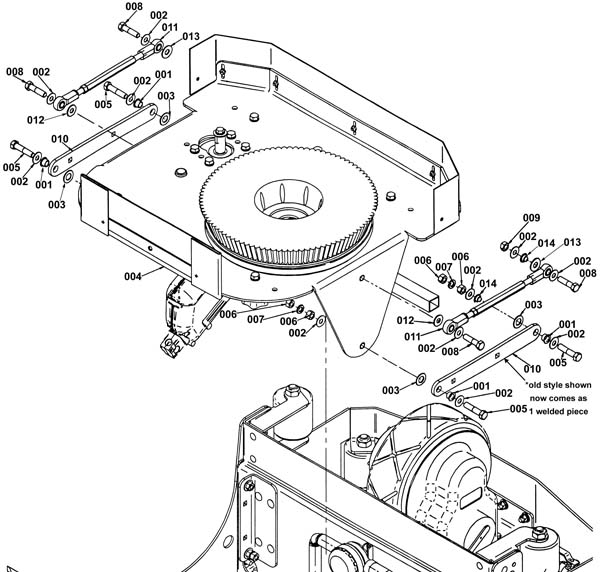

Scrub Deck Assembly - Bottom - 202-0113
RefNbr Part Number Description Req Notes
001 202-0754 Flanged bearing 4
002 999-0617 Washer 3/8 x 1 flat stainless steel 11
003 202-1181 Washer 1/2 flat bronze 4
004a 202-2259 26 inch front curtain band 1
004b 202-2260 30 inch front curtain band 1
004c 202-4278 26 inch scrub deck 1
005 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 3
006 999-0635 Nut 3/8-16 hex stainless steel 8
007 999-0659 Washer 3/8 medium split lock stainless steel 2
008a 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4
008b 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel 4
009 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 4
010 202-1971 Lateral arm 1
011 202-0629 Adjustable lateral arm 2
012 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
013 999-0617 Washer 3/8 x 1 flat stainless steel 2
014 202-1239 Flanged bearing 4

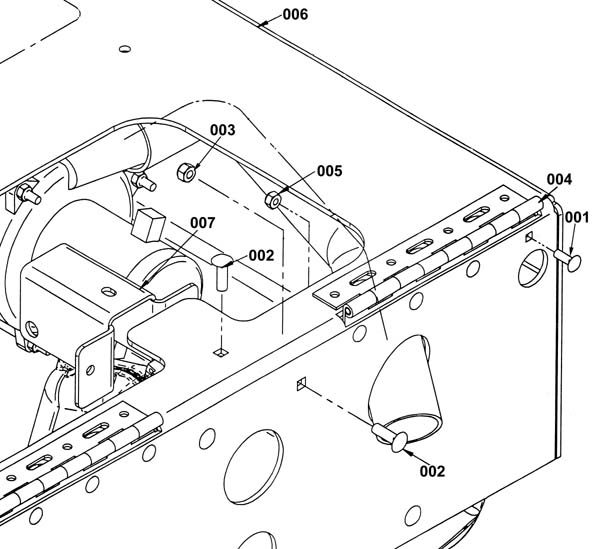

Squeegee Lifting Bracket and Hinges - 202-0114
RefNbr Part Number Description Req Notes
001 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 8
002 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 3
003 999-0423 Nut 5/16-18 nylon insert lock stainless steel 3
004 202-0403 Hinge 2
005 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
006 202-1883 Main frame (OBSOLETE) 1
007 202-1974 Squeegee lifting bracket 1

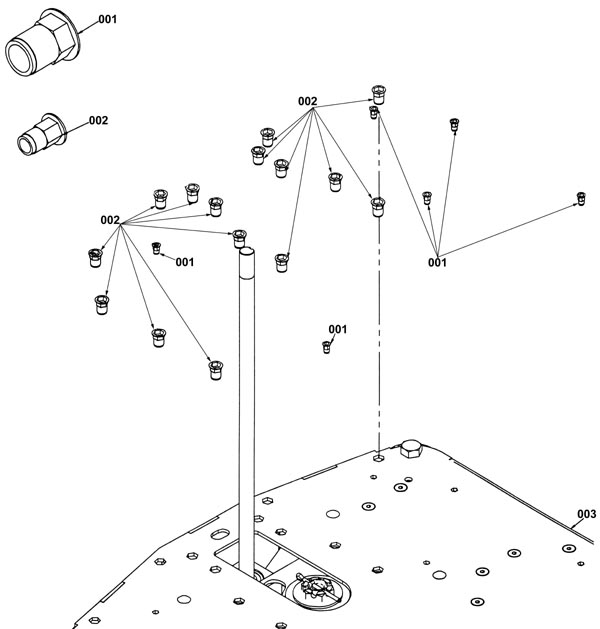

Crimp Nuts - 202-0115
RefNbr Part Number Description Req Notes
001 202-3601 Nut #10-32 hex crimp 6
002 999-0069 Nut 5/16-18 hex 15
003 202-1883 Main frame (OBSOLETE) 1

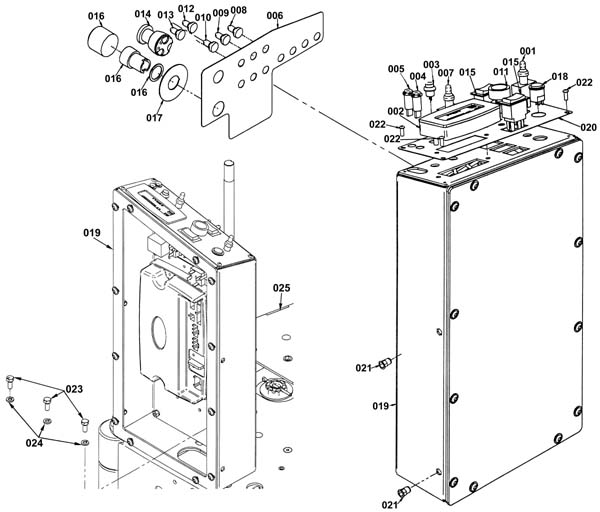

Central Command Assembly - 202-0116
RefNbr Part Number Description Req Notes
001 202-1864 Toggle switch protective boot (red) 1
002 202-1317 LCD window display 1
003 202-0879 Push button switch 1
004 202-0832 Full recovery indicator (red) 1
005 202-0831 Low solution indicator (amber) 1
006 202-1975 Central command decal (OBSOLETE) 1
007 202-1355 Toggle switch protective boot (black) 1
008 202-1865 Toggle switch protective boot (blue) 1
009 202-1976 Toggle switch protective boot (white) 1
010 202-1866 Toggle switch protective boot (green) 1
011 202-0990 Control knob (blue) 1 (solution knob)
012 202-0098 Toggle switch boot (gray) 1
013 202-1977 Toggle switch protective boot (yellow) 1
014a 202-0537 Key switch (brass and silver) 1 (before 02.2006 and SN 44180) (250)
014b 202-0374 Keys (pkg of 2) 1 (before 02.2006 and SN 44180) (250)
014c 202-2300 Key switch with key entry (red) and ring (black) 1 (after 02.2006 and SN 44179) (GTX) (OEM)
014d 991-1634 Key (pkg of 2) 1 (after 02.2006 and SN 44179) (GTX)
014d 991-5161 Key switch with keys 1 (after 02.2006 and SN 44179) (GTX) (NON-OEM)
015 202-0369 2 position rocker switch 2
016 202-0826 Emergency shut-off switch 1
017 202-0827 Emergency legend plate 1
018 202-1356 One touch button 1 (new button is slightly larger - drill hole out to 1 inch; old hole was 7/8 inch)
019a 202-1978 Control panel 1
019b 202-4279 Control panel 1
020 202-1979 Control panel top plate 1
021 999-0190 Nut 1/4-20 hex plain finish 2
022 999-0965 Screw 10-32 x 1/2 button head socket cap stainless steel 4
023 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 3
024 999-0553 Washer 5/16 medium split lock stainless steel 3
025 202-1883 Main frame (OBSOLETE) 1
N/S 202-2889 Resistor

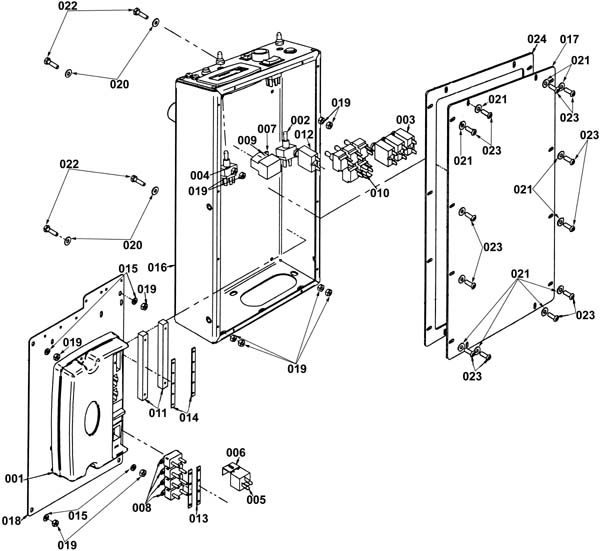

Control Panel Assembly - 202-0117
RefNbr Part Number Description Req Notes
001a 202-1369 Main controller 1 (order 001b when ordering 001a)
001b 202-2271 Wire harness - Rider 1 (for purchase with 001a)
002 202-0097 Toggle switch 5 (on/off brush switch)
003 202-1338 50amp resettable circuit breaker 3
004 202-0521 Toggle switch 1 (forward/reverse)
005 202-0348 15amp relay 1
006 202-0819 Bracket 1
007 202-0535 Speed control potentiometer 1
008 202-0343 50amp circuit breaker 4
009 202-0825 Emergency contact 1
010 202-1992 Toggle switch 1
011 202-0541 Busbar 2
012 202-0822 2amp fuse 1
013 202-0833 Buss bar (4 hole) 2
014 202-0830 Busbar (5 hole) 2
015 999-0060 Washer 1/4 split lock plain finish 4
016 202-1978 Control panel 1
017 202-1993 Access cover (OBSOLETE) 1
018 202-1994 Hardware panel 1
019 999-0190 Nut 1/4-20 hex plain finish 12
020 999-0123 Washer 1/4 SAE flat zinc plated 4
021 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 12
022 999-9072 Bolt 1/4-20 x 1 hex head cap 4
023 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 12
024 202-0818 Access cover gasket 1

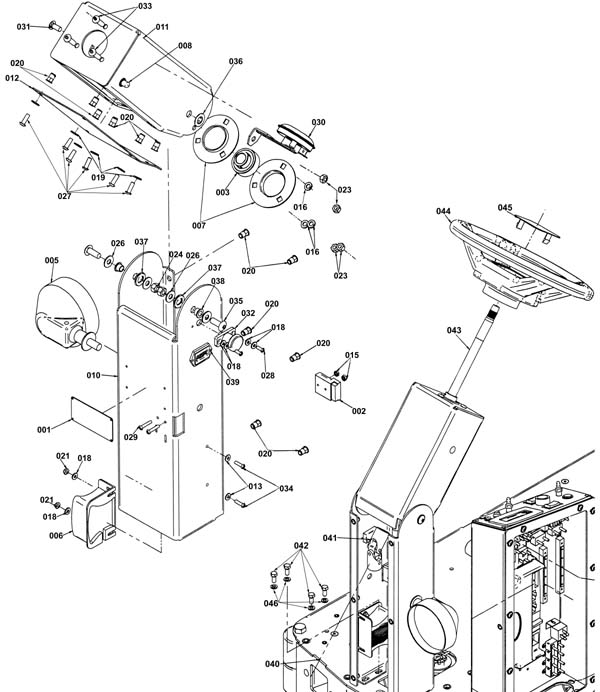

Upright Steering Assembly - 202-0119
RefNbr Part Number Description Req Notes
001 202-0873 Serial number plate 1
002a 991-2105 SB50 50amp charger plug with pins (gray) 1
002b 202-2009 50amp connector (gray) 1
003 202-0142 Upper steering bearing 1
005 202-2010 48V headlight 1
006 202-0385 Backup alarm 1
007 202-0143 Bearing mount 2
008 202-0381 Horn button 1
010 202-2011 Lower steering column (granite) 1
011 202-2012 Upper steering column (granite) 1
012 202-2013 Pedestal cover (granite) 1
013 999-0998 Washer #10 flat stainless steel 2
015 999-0077 Nut 8-32 k-lock zinc plated 2
016 999-0553 Washer 5/16 medium split lock stainless steel 3
018 999-0006 Washer 3/16 flat zinc plated 6
019 999-0563 Washer 1/4 x 1/16 flat nylon 6
020 999-0190 Nut 1/4-20 hex plain finish 12
021 999-0086 Nut 10-32 nylon insert lock zinc plated 2
023 999-0069 Nut 5/16-18 hex 4
024 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
026 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
027 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 6
028 999-0997 Screw 10-32 x 1/2 round head phillips zinc plated 2
029 999-0995 Screw 8-32 x 1 round head phillips zinc plated 2
030 202-3082 Horn 1
031 999-9069 Bolt 5/16-18 x 3/4 carriage head 1
032 202-0719 Index plunger 1
033 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 3
034 999-1271 Screw 10-32 x 3/4 round head phillips zinc plated 2
035 999-1003 Bolt 3/8-16 x 1 button head socket cap stainless steel 2
036 202-1181 Washer 1/2 flat bronze 2
037 202-1161 Washer 1/2 flat thick bronze 2
038 202-0754 Flanged bearing 2
039 202-0376 Hour meter 1
040 202-1883 Main frame (OBSOLETE) 1
041 202-0760 U-joint 1
042 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 4
043 202-0761 Upper steering shaft 1
044 202-0772 Steering wheel 1
045 202-0773 Steering cover 1
046 999-0553 Washer 5/16 medium split lock stainless steel 4
N/S 202-2586 36V steering upright (OBSOLETE) 1

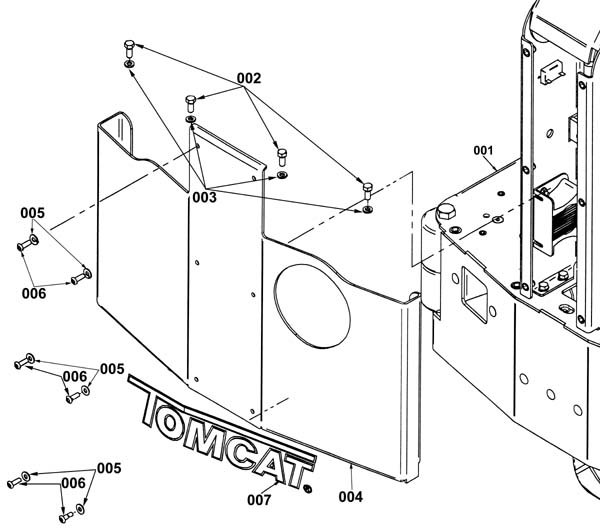

Front Apron Assembly - 202-0121
RefNbr Part Number Description Req Notes
001 202-1883 Main frame (OBSOLETE) 1
002 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 4
003 999-0553 Washer 5/16 medium split lock stainless steel 4
004 202-2016 Front apron 1
005 999-0563 Washer 1/4 x 1/16 flat nylon 6
006 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 1
007 N/A Not available 1 (Tomcat decal)

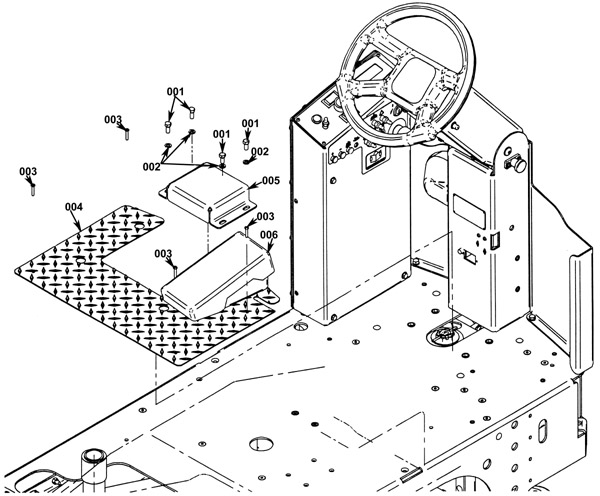

Drive Pedal Assembly - 202-0122
RefNbr Part Number Description Req Notes
001 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 4
002 999-0553 Washer 5/16 medium split lock stainless steel 4
003 999-9067 Screw 10-32 x 1 pan head phillips zinc plated 4
004 202-2018 Non skid floor plate 1
005 202-0717 Drive cover 1
006 202-0362 Foot pedal assembly (includes potentiometer) 1

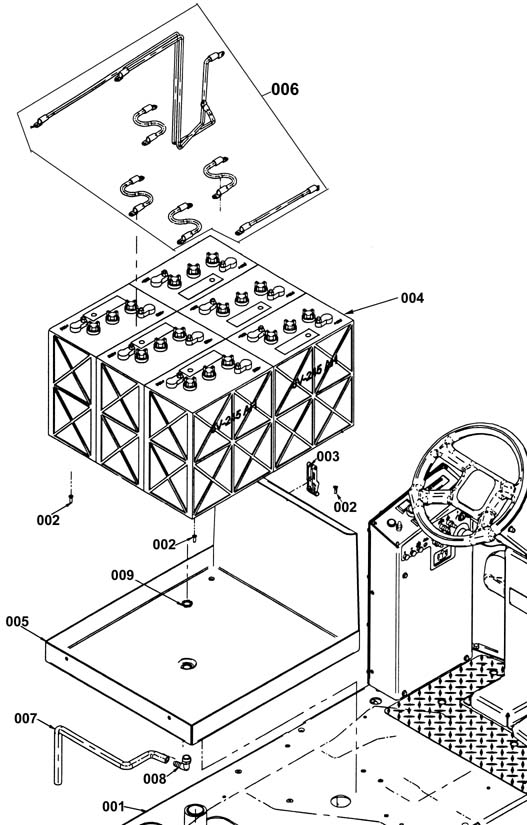

Batteries and Cables Assembly - 202-0123
RefNbr Part Number Description Req Notes
001 202-1883 Main frame (OBSOLETE) 1
002 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated 4
003 202-1487 Latch 1
004 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 6
005 202-5151 Battery box 1
006 202-2302 Battery cable harness 1
007 202-2290 Battery tray drain hose 1
008 202-0333 Elbow barb 1
009 999-0330 Nut 1/2-13 acorn brass 1

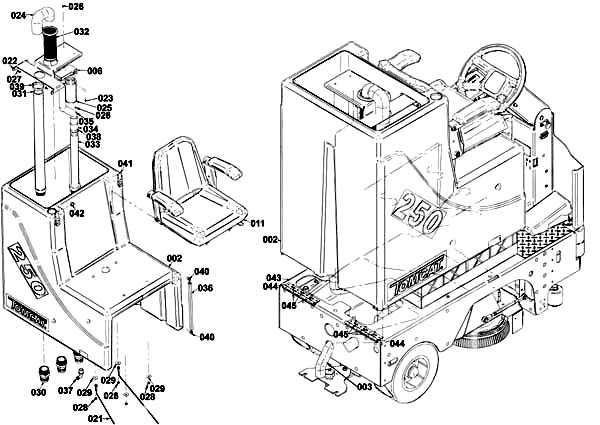

Solution and Recovery Tank Assembly - 202-0124
RefNbr Part Number Description Req Notes
002 202-1987 Solution and recovery tank 1
002b 202-3596 Solution/recovery tank conversion kit (red) 1
003 202-2269 Squeegee hose 1
006a 202-0897 Vacuum box 1
006b 202-1644 Vac box filter 1
011 202-0081 Seat with switch, cover, locking track and mounting 1
021 202-2022 Hood cable 2
022 202-2023 Recovery pipe bracket (OBSOLETE) 1
023 999-0086 Nut 10-32 nylon insert lock zinc plated 2
024 202-2024 Hose 1
025 202-0903 Vacuum screen 1
026 999-0965 Screw 10-32 x 1/2 button head socket cap stainless steel 2
027 999-0969 Screw 14 x 3/4 zinc pan phillips self-tapping 4
028 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
029 999-0964 Washer 5/16 x 3/4 flat stainless steel 4
030 202-2025 Hosebarb 3
031 202-2026 Inner vacuum tube 1
032 202-2027 Strainer 1
033a 202-2026 Inner vacuum tube 1
033b 202-2913 PVC pipe 1 1/2 inch x 18 inch (OBSOLETE) 1
034a 202-0706 1 1/2 inch hose cuff 1
034b 202-0901 1 1/2 npt x 1 1/2 m hose barb 1
035 202-2028 Inner tank vacuum hose 1
036a 202-1650 Drain hose 1
036b 202-2912 Sight tube 1
037 202-0884 Barbed elbow 1
038a 997-2011 Hose clamp 1
038b 202-2914 Female adapter 1
039 997-2003 Hose clamp 1
040 202-0686 90 degree barb 1/4 x 1/4 2
041 202-1487 Latch 2
042 N/A Not available 1 (Barb)
043 202-1883 Main frame (OBSOLETE) 1
044 202-0403 Hinge 2
045 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 6
N/S 202-2911 Upper tank brace 1
N/S 202-2915 Reducer 2 inch to 1.5 inch 1
N/S 202-2916 Female coupling 2
N/S 202-2917 90 degree elbow 1
N/S 202-2918 Screw 1/4-20 x 3/4 self tapping 4
N/S 202-1988 Drain hose 1
N/S N/A Not available 1 (drain hose guard)

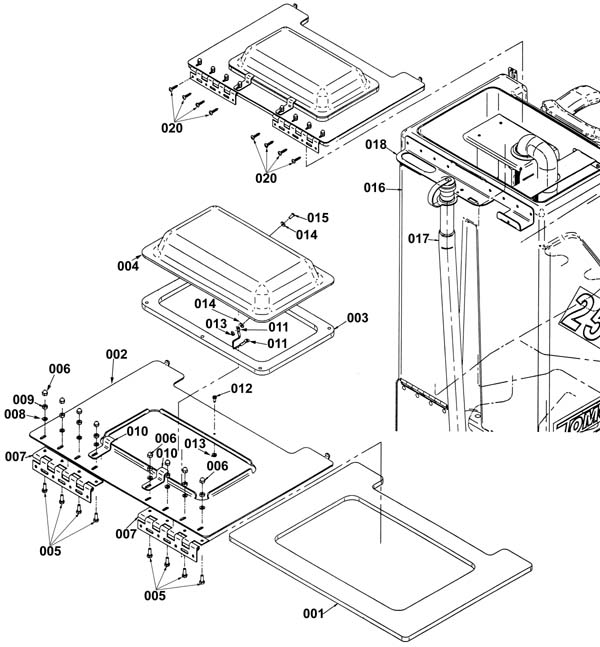

Tank Lid Assembly - 202-0127
RefNbr Part Number Description Req Notes
001 202-1980 Tank lid gasket 1
002 202-1981 Tank lid 1
003 202-1982 Tank lid gasket (upper) 1
004 202-1983 Tank lid (upper) (clear) 1
005 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 8
006 999-0429 Nut 1/4-20 acorn nickel plated 8
007 202-0403 Hinge 2
008 999-0632 Washer 1/4 split lock stainless steel 8
009 999-0609 Nut 1/4-20 hex stainless steel 8
010 N/A Not available 2 (Lid clip) (Use silicone to attatch the lid)
011 202-0902 Lanyard 1
012 202-1985 Screw 10 x 1/2 hex washer head 1
013 999-0086 Nut 10-32 nylon insert lock zinc plated 2
014 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread 2
015 999-6707 Screw #10-32 x 1/2 round head phillips stainless steel 1
016 202-1987 Solution and recovery tank 1
017a 202-1988 Drain hose 1
017b 202-0240 Drain hose plug 1
018 202-1989 Drain hose bracket 1
020 202-2918 Screw 1/4-20 x 3/4 self tapping 8

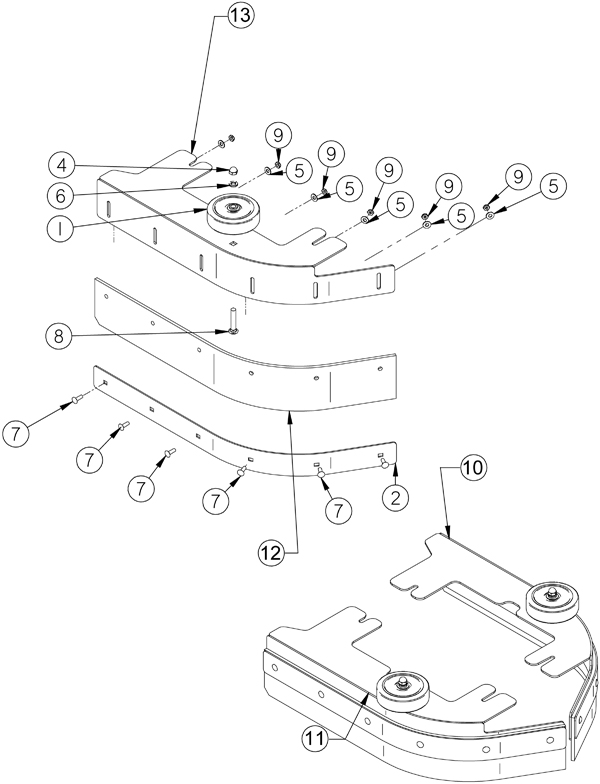

Shroud Assembly - 202-0129
RefNbr Part Number Description Req Notes
1 202-2098 4 inch wheel (gray) 2
2 202-1996 Shroud curtain band 2
4 999-1632 Nut 3/8-16 acorn stainless steel 1
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
6 999-0659 Washer 3/8 medium split lock stainless steel 1
7 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 6
8 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel 1
9 999-0304 Nut 1/4-20 nylon lock jam stainless steel 6
10a 202-5114 26 inch right side shroud assembly 1
10b 202-5115 30 inch right side shroud assembly 1
10c 202-5116 34 inch right side shroud assembly 1
11a 202-5117 26 inch left side shroud assembly 1
11b 202-5118 30 inch left side shroud assembly 1
11c 202-5119 34 inch left side shroud assembly 1
12a 202-4205 Side skirt 2
12b 202-1995 Shroud curtain gum rubber (tan) 2
12c 202-3560 Shroud curtain urethane 2
13a 202-2261 26 inch left shroud 1
13b 202-1997 26 inch right shroud 1
13c 202-1998 30 inch left shroud 1
13d 202-2263 30 inch right shroud 1
13e 202-2262 34 inch left shroud 1
13f 202-2264 34 inch right shroud 1

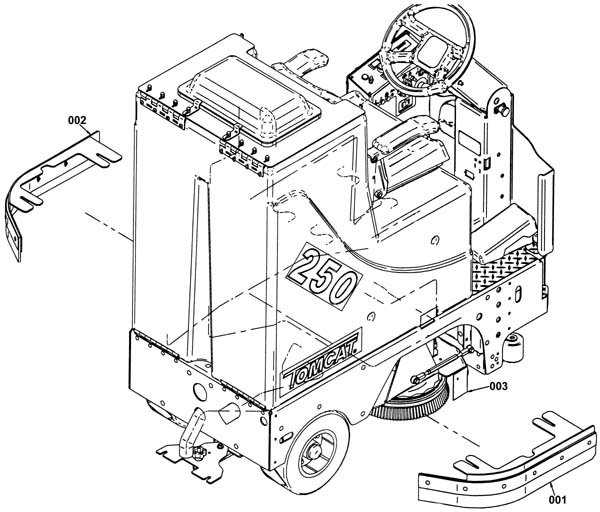

Shroud Assembly - External - 202-0130
RefNbr Part Number Description Req Notes
001 202-1997 26 inch right shroud 1
002 202-1998 30 inch left shroud 1
003a 202-2259 26 inch front curtain band 1
003b 202-2260 30 inch front curtain band 1

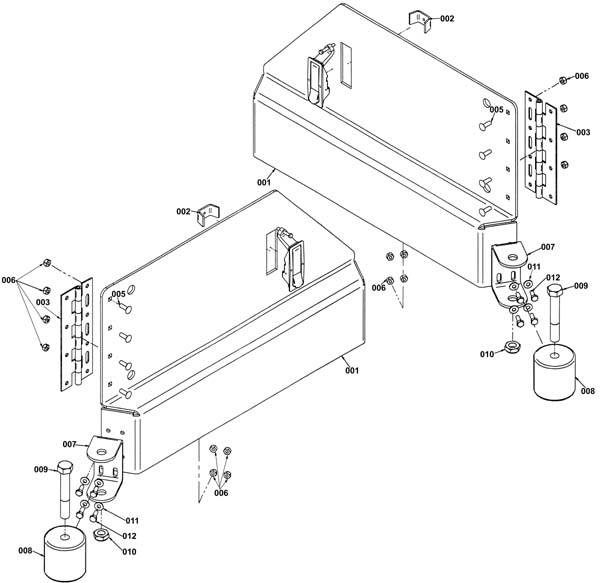

Doors Assembly - 29 inch - 202-0134
RefNbr Part Number Description Req Notes
001a 202-2005 Right door 1
001b 202-2004 Left door 1
002 202-0404 Latch 1
003 202-0403 Hinge 1
005 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 4
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
007 202-0976 20 inch roller bracket 1
008 202-0756 Guide roller 1
009a 999-0069 Nut 5/16-18 hex 1
009b 999-1209 Bolt 5/8-11 x 4 hex head zinc plated 1
010 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
011 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
012a 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
012b 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4

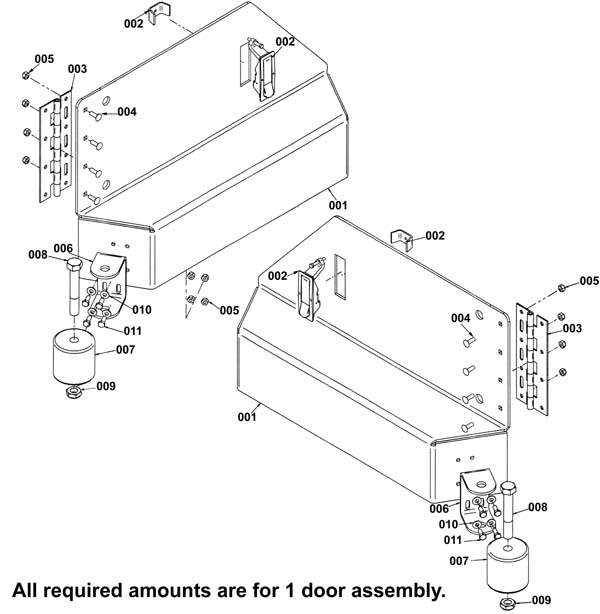

Doors Assembly - 34 inch - 202-0137
RefNbr Part Number Description Req Notes
001a 202-2006 Right door 1
001b 202-2007 Left door 1
002 202-0404 Latch 1
003 202-0403 Hinge 1
004 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 4
005 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
006 202-0976 20 inch roller bracket 1
007 202-0756 Guide roller 1
008 999-1209 Bolt 5/8-11 x 4 hex head zinc plated 1
009 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
010 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
011a 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
011b 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4

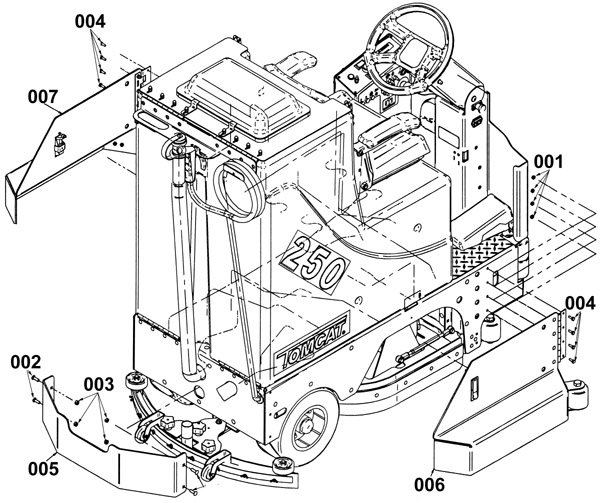

Door and Bumper Assembly - 202-0138
RefNbr Part Number Description Req Notes
001 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
002 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
003 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
004 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 8
005 202-2008 Rear bumper 1
006 202-2006 Right door 1
007 202-2007 Left door 1

- Batteries, Brushes and Charger - 26 inch - 202-0999
RefNbr Part Number Description Req Notes
0.9835 202-1887 On-board battery charger 1
0.9835 996-1168 Polypropelene scrubbing brush 2
0.9835 996-1193 Heavy grit stripping brush - 80 grit 2
0.9835 202-2310 36V 25amp battery charger 1
0.9835 202-2310 36V 25amp battery charger 1
0.9835 996-1167 Pad driver 2
0.9835 996-1166 Medium grit scrubbing brush - 180 grit 2
0.9835 996-1169 Lite grit scrubbing brush - 500 grit 2
0.9835 202-1877 36V 35amp onboard battery charger 1
0.2225 162-0003 6V 225Ah wet battery (SNSR) 6
0.2258 162-0003 6V 225Ah wet battery (SNSR) 6
0.2283 162-0003 6V 225Ah wet battery (SNSR) 6
0.2335 162-0005 6V 305Ah wet battery (SNSR) 6
0.3224 162-0043 6V 224Ah AGM battery (Group GC2) 6

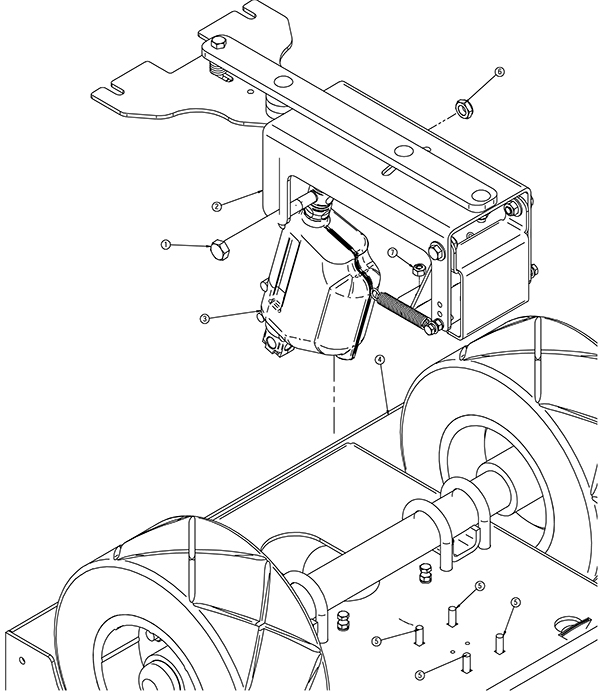

Squeegee Drag Plate Assembly 2 - 202-1377
RefNbr Part Number Description Req Notes
1 202-1844 Screw 1/4-20 x 1/2 hex head stainless steel 1
2 202-3603 250 squeegee drag plate 1
3 202-1932 36V actuator 1
4 202-1883 Main frame (OBSOLETE) 1
5 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
6 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 1
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1

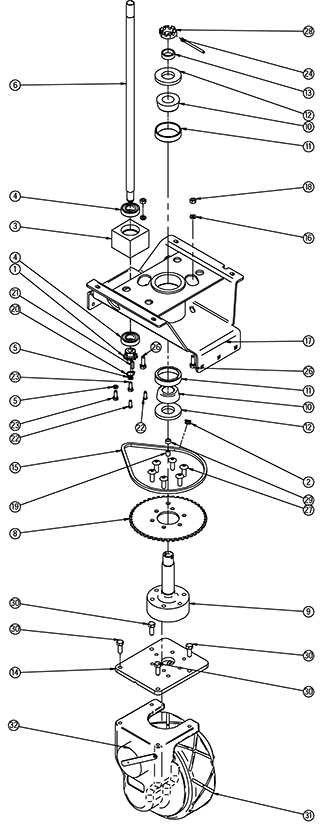

Front Wheel Assembly From 2007 Version 2 - 202-1378
RefNbr Part Number Description Req Notes
1 202-0280 10 toothed sprocket 1
2 202-0283 Master link 1
3 202-0771 Bearing block 1
4 202-0160 Bearing 2
5 999-0060 Washer 1/4 split lock plain finish 2
6 202-1892 Lower steering shaft 1
8 202-1894 60 toothed sprocket 1
9 202-2308 Steering shaft spindle 1
10 202-0766 Tapered bearing 2
11 202-0767 Bearing cap 2
12 202-0768 Seal 2
13 202-0769 Sleeved bearing 1
14 202-1896 Pivot plate 1
15 202-1897 Steering chain 1
16 999-0553 Washer 5/16 medium split lock stainless steel 2
17 202-1898 Drop plate 1
18 999-0069 Nut 5/16-18 hex 2
19 202-1169 Clevis pin 1
20 202-0281 Snap ring 1
21 164-1029 Square keyway 1
22 999-0435 Screw 1/4-20 x 5/8 socket head alloy plain finish 2
23 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
24 997-2520 Cotter pin 1
26 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 2
27 999-1011 Screw 3/8-24 x 1 button head socket plain finish 6
28 202-1166 Slotted castle nut 1
29 202-0775 PVC tube 1
30 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
31 202-1893 Drive wheel assembly w/motor - includes brake 1
32 202-2455 Brake assembly 1

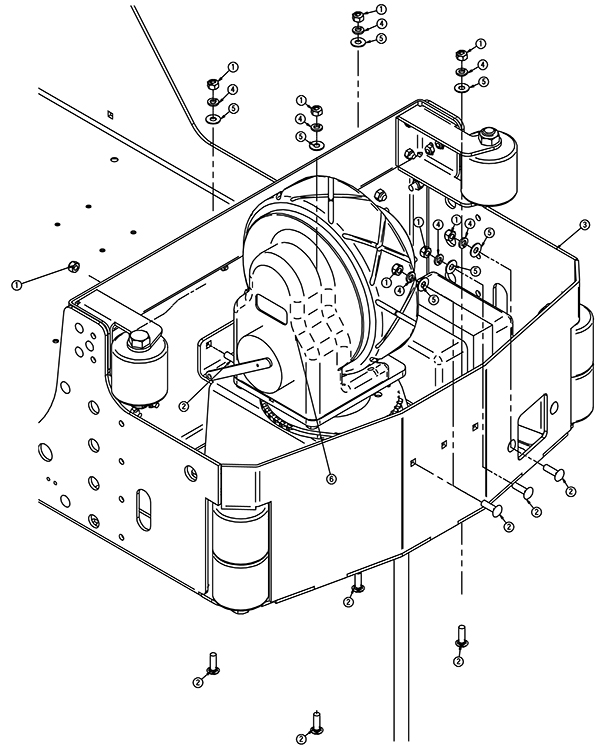

Front Wheel Drive Assembly From 2007 Version 2 - 202-1379
RefNbr Part Number Description Req Notes
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel 10
2 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 10
3 202-1883 Main frame (OBSOLETE) 1
4 999-0553 Washer 5/16 medium split lock stainless steel 7
5 999-0964 Washer 5/16 x 3/4 flat stainless steel 7
6 202-3604 250 front wheel assembly 1

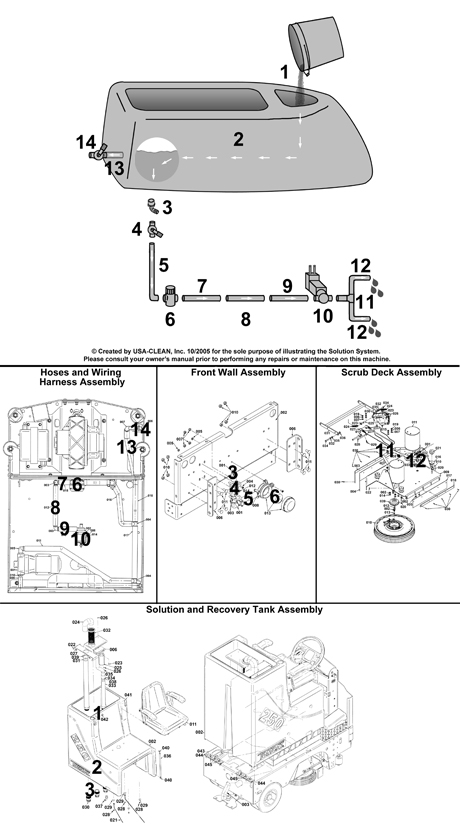

-Simplified Solution System -

RefNbr Part Number Description Req Notes

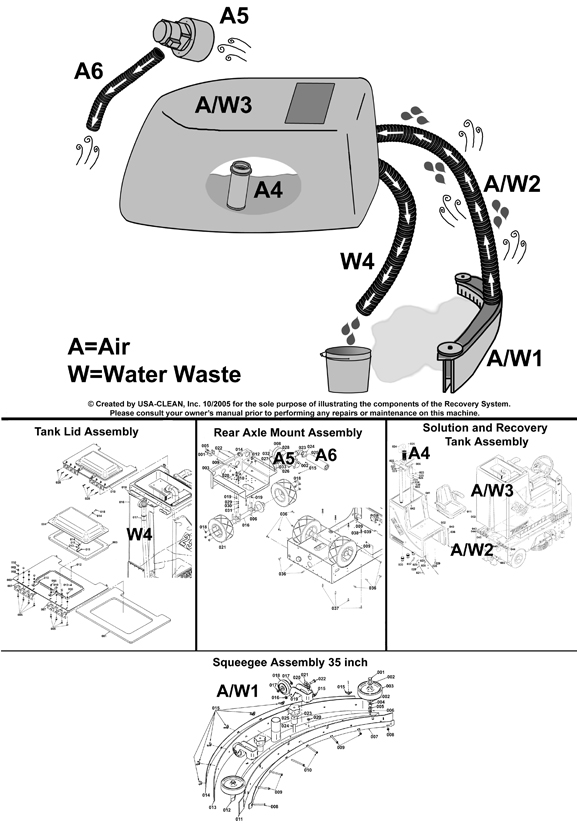

-Simplified Recovery System -

RefNbr Part Number Description Req Notes

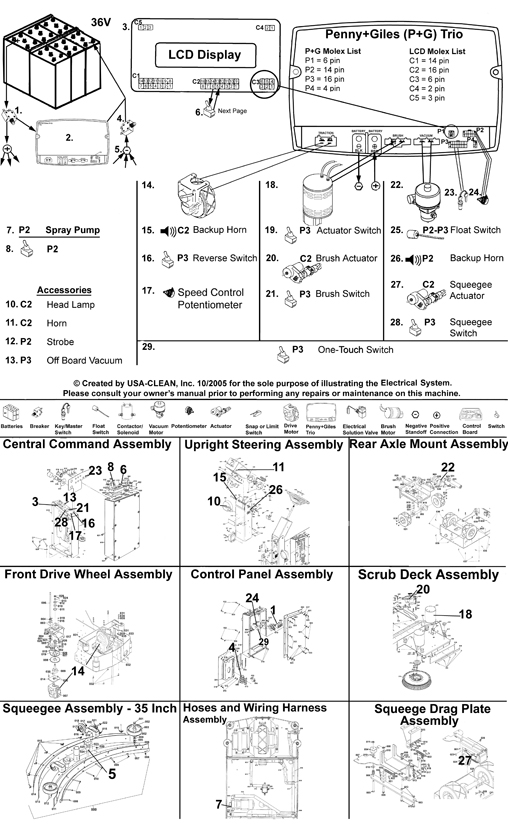

-Simplified Electrical System -

RefNbr Part Number Description Req Notes

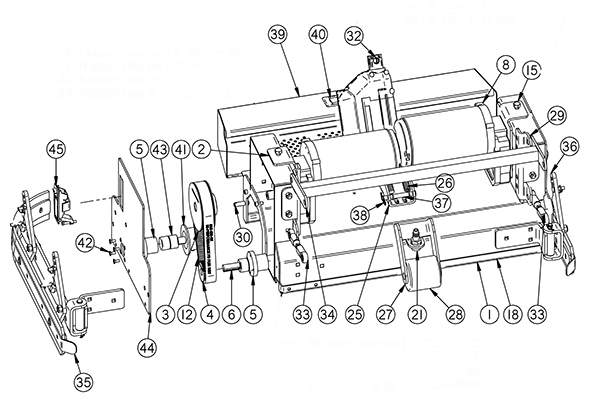

Cylindrical Deck Assembly - 202-2500
RefNbr Part Number Description Req Notes
1a 202-5027 24 inch cylindrical scrub deck 1
1b 202-4019 27 inch cylindrical brush deck 1
1c 202-4020 30 inch cylindrical brush deck 1
1c 202-4021 34 inch cylindrical brush deck 1
2 202-3142 Motor adjustment bracket 2
3 202-3141 68 toothed sprocket 2
4 202-3140 32 toothed sprocket 2
5 202-0265 Idler bearing housing 4
6 202-4041 Bearing housing 2
7 202-0264 Brush driver 2
8 202-5125 36V 3/4HP motor 2
9 999-0617 Washer 3/8 x 1 flat stainless steel 8
10 999-0659 Washer 3/8 medium split lock stainless steel 8
11 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 8
12 202-2877 Belt 2
13 999-0338 Screw 1/4-20 x 1/2 socket head shoulder 4
14 999-0965 Screw 10-32 x 1/2 button head socket cap stainless steel 8
15 202-1186 Bolt 3/8-24 x 1 1/8 hex cap stainless steel 2
16 999-0169 Nut 3/8-24 hex jam plain finish 2
17 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 4
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
19 202-1275 24 inch hopper rail 1
20 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel 6
21 202-0883 1/2 mnpt to 3/8 brass cup 1
23 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2
24 202-1181 Washer 1/2 flat bronze 8
25 202-5126 Lifting bracket 1
26 202-2208 Compression spring 2
27 202-5124 Actuator adjustment bracket 1
28 202-0756 Guide roller 1
29a 202-5128 24 inch lifting bracket 2
29b 202-5129 27 inch lifting bracket 2
29c 202-5130 30 inch right side lifting bracket 2
29d 202-5131 30 inch left side lifting bracket 2
29e 202-5132 34 inch right side lifting bracket 2
29f 202-5133 34 inch left side lifting bracket 2
30 202-3136 Retaining pin 2
31 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2
32 202-1932 36V actuator 1
33 202-0629 Adjustable lateral arm 2
34 202-5127 Lateral arm 1
35 202-5196 Right hand cylindrical wiper 1
36 202-5197 Left hand cylindrical wiper 1
37 202-2572 Clevis pin 2
38 202-2036 Cotter pin 2
39a 202-4024 24 inch hopper 1
39b 202-6833 Hopper,Stainless,27 inch, Complete 1
39c 202-4026 30 inch hopper 1
39d 202-4027 34 inch hopper 1
40 202-0308 Handle 1
41 202-4078 Brush idler 2
42 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 8
43 202-4077 Idler bearing 2
44 202-4076 Driver cover 2
45 202-0404 Latch 2
46 202-0278 Square keyway 2
47 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel 4

Cylindrical Wipers - 202-2501
RefNbr Part Number Description Req Notes
1 202-3137 Hinge 1
2 202-0754 Flanged bearing 4
3a 202-5705 Right hand horizontal wiper arm 1
3b 202-5704 Left hand horizontal wiper arm 1
5 202-5121 Vertical arm 2
6 202-5122 Side shroud 1
7 202-1239 Flanged bearing 2
8a 202-3019 Shroud curtain linatex (red) 1
8b 202-3381 Shroud curtain gum rubber (tan) 1
8c 202-6613 Curtain,Wiper,Urethane 1
9 202-5123 Wiper band 1
10 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 2
11 202-2832 Bolt 3/8 - 16 x 1 carriage head stainless steel 4
12 999-1482 Nut 3/8-16 nylon lock stainless steel 4
13 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel 2
14 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
15 202-2208 Compression spring 2
16 999-1633 Clevis pin 3/8 x 3 1/2 1
17 202-2036 Cotter pin 1
N/S 202-6612 Cylindrical Wiper,LH Complete Assembly for GTX/250, Urethane 1

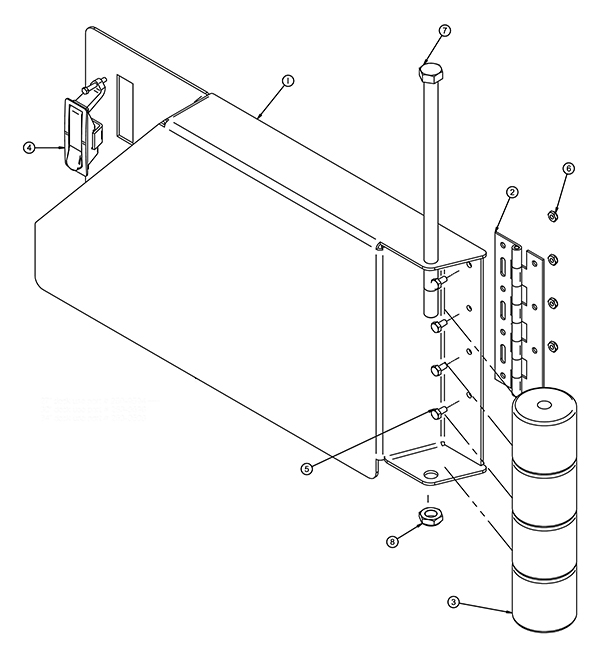

Cylindrical Door Assembly - 202-2502
RefNbr Part Number Description Req Notes
1a 202-5158 27 inch right side cylindrical door 1
1b 202-5159 27 inch left side cylindrical door 1
1c 202-5160 30 inch right side cylindrical door 1
1d 202-5161 30 inch left side cylindrical door 1
1e 202-5162 34 inch right side cylindrical door 1
1f 202-5163 34 inch left side cylindrical door 1
2 202-0403 Hinge 1
3 202-0756 Guide roller 4
4 202-0404 Latch 1
5 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 4
6 999-0304 Nut 1/4-20 nylon lock jam stainless steel 4
7 999-0989 Bolt 5/8-11 x 13 hex head grade 5 zinc plated 1
8 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1

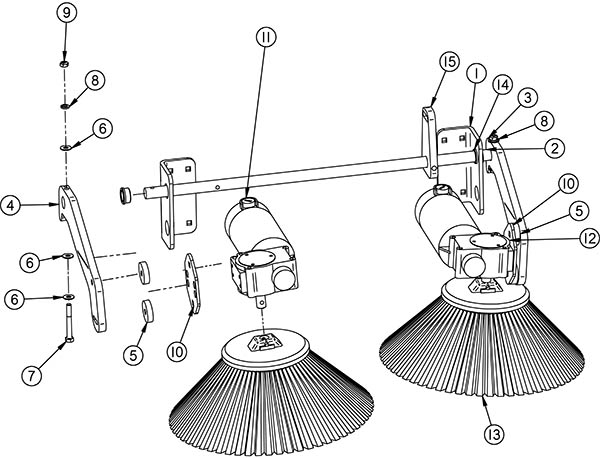

Side Brooms Assembly - 202-2503
RefNbr Part Number Description Req Notes
1 202-2139 Axle support bracket 2
2 202-2138 Side broom suspension axle shaft 1
3 202-3068 Left side lifting arm 1
4 202-3069 Right side lifting arm 1
5 202-0151 Grommet 4
6 999-0964 Washer 5/16 x 3/4 flat stainless steel 6
7 999-0911 Screw 5/16-18 x 3 hex head stainless steel 2
8 999-0553 Washer 5/16 medium split lock stainless steel 2
9 999-1019 Nut 5/16-18 hex jam stainless steel 2
10 202-3073 Mounting plate 2
12 202-3079 36V motor 1
13 202-1495 Polypropylene side broom 2
14 202-1397 Flanged bushing 2
15 202-6665 Arm,Side Broom Lift,Center (OBSOLETE) 1

- Batteries, Brushes and Charger - 34 inch - 202-8987
RefNbr Part Number Description Req Notes
0.9835 996-0751 17 inch Pad driver 2
0.9835 996-0749 17 inch Lite grit scrubbing brush - 500 grit 2
0.9835 202-0036 17 inch Heavy grit stripping brush - 46 grit 2
0.9835 996-0748 17 inch polypropylene scrubbing brush 2
0.9835 996-0750 17 inch Medium grit scrubbing brush - 180 grit 2

- Batteries, Brushes and Charger - 30 inch - 202-8990
RefNbr Part Number Description Req Notes
0.9835 996-1508 Extra heavy grit stripping brush - 46 grit 2
0.9835 996-1142 Lite grit scrubbing brush - 500 grit 2
0.9835 996-1140 15 inch polypropelene scrubbing brush 2
0.9835 996-0746 Pad driver 2
0.9835 996-0748 17 inch polypropylene scrubbing brush 2

- Pads - 15 inch - 255-1500
RefNbr Part Number Description Req Notes
01 255-1540 15 inch aqua plus burnishing pad (pkg of 5)
02 255-1535 15 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1564 15 inch Blue ace pad (pkg of 5)
04 255-1542 15 inch Blue Jay burnishing pad (pkg of 5)
05 255-1512 15 inch Cure white pad (pkg of 5)
06 255-1577 15 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1538 15 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
09 255-1550 15 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1565 15 inch Heat concrete bonding pad (pkg of 5)
11 255-1530 15 inch jaguar burnishing pad (pkg of 5)
12 255-1590 15 inch premium black stripping pad (pkg of 5)
13 255-1570 15 inch premium blue cleaning pad (pkg of 5)
14 255-1592 15 inch premium brown stripping pad (pkg of 5)
15 255-1580 15 inch premium green scrubbing pad (pkg of 5)
16 255-1560 15 inch premium red scrubbing pad (pkg of 5)
17 255-1552 15 inch premium tan polishing pad (pkg of 5)
18 255-1520 15 inch premium white polishing pad (pkg of 5)
19 255-1595 15 inch razorback stripping pad (pkg of 5)
20 255-1547 15 inch Redwood maroon floor prep pad (pkg of 10)
21 255-1511 15 inch superspeed rubberized pad (pkg of 5)
22 255-1555 15 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1523 15 inch sand screen driver pad (pkg of 2)
24 255-0125 15 inch Professional sand screen 100 grit (pkg of 10)
25 255-0126 15 inch Professional sand screen 120 grit (pkg of 10)
26 255-0127 15 inch Professional sand screen 150 grit (pkg of 10)
27 255-0128 15 inch Professional sand screen 180 grit (pkg of 10)
28 255-0129 15 inch Professional sand screen 220 grit (pkg of 10)
29 255-0123 15 inch Professional sand screen 60 grit (pkg of 10)
30 255-0124 15 inch Professional sand screen 80 grit (pkg of 10)
31 255-0210 15 inch Superscreen sand screen 100 grit (pkg of 10)
32 255-0211 15 inch Superscreen sand screen 120 grit (pkg of 10)
33 255-0212 15 inch Superscreen sand screen 150 grit (pkg of 10)
34 255-0213 15 inch Superscreen sand screen 180 grit (pkg of 10)
35 255-0214 15 inch Superscreen sand screen 220 grit (pkg of 10)
36 255-0208 15 inch Superscreen sand screen 60 grit (pkg of 10)
37 255-0209 15 inch Superscreen sand screen 80 grit (pkg of 10)
38 255-1524 15 inch Tiger carpet bonnet (pkg of 2)
39 255-9556 15 inch Diamond by Gorilla 11000 Grit (pkg of 2)
40 255-9553 15 inch Diamond by Gorilla 1500 Grit (pkg of 2)
41 255-9550 15 inch Diamond by Gorilla 200 Grit (pkg of 2)
42 255-9554 15 inch Diamond by Gorilla 3000 Grit (pkg of 2)
43 255-9551 15 inch Diamond by Gorilla 400 Grit (pkg of 2)
44 255-9552 15 inch Diamond by Gorilla 800 Grit (pkg of 2)
45 255-9555 15 inch Diamond by Gorilla 8000 Grit (pkg of 2)
46 255-9640 15 inch Diamond starter pack (1 of each grit)
47 255-1582 15 inch Turbostrip segmented rotary pad (pkg of 4)
48 255-1515 15 inch Duala clean and shine pad - low speed (pkg of 5)
49 255-1516 15 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pads - 18 inch - 255-1800
RefNbr Part Number Description Req Notes
01 255-1840 18 inch aqua plus burnishing pad (pkg of 5)
02 255-1835 18 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1864 18 inch Blue ace pad (pkg of 5)
04 255-1842 18 inch Blue Jay burnishing pad (pkg of 5)
05 255-1812 18 inch Cure white pad (pkg of 5)
06 255-1877 18 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1838 18 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1821 18 inch gorilla lite burnishing pad (pkg of 5)
09 255-1850 18 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1865 18 inch Heat concrete bonding pad (pkg of 5)
11 255-1830 18 inch jaguar burnishing pad (pkg of 5)
12 255-1890 18 inch premium black stripping pad (pkg of 5)
13 255-1870 18 inch premium blue cleaning pad (pkg of 5)
14 255-1892 18 inch premium brown stripping pad (pkg of 5)
15 255-1880 18 inch premium green scrubbing pad (pkg of 5)
16 255-1860 18 inch premium red scrubbing pad (pkg of 5)
17 255-1852 18 inch premium tan polishing pad (pkg of 5)
18 255-1820 18 inch premium white polishing pad (pkg of 5)
19 255-1811 18 inch superspeed rubberized pad (pkg of 5)
20 255-1895 18 inch razorback stripping pad (pkg of 5)
21 255-1847 18 inch Redwood maroon floor prep pad (pkg of 10)
22 255-1855 18 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1823 18 inch sand screen driver pad (pkg of 2)
24 255-0023 18 inch Professional sand screen 100 grit (pkg of 10)
25 255-0145 18 inch Professional sand screen 120 grit (pkg of 10)
26 255-0146 18 inch Professional sand screen 150 grit (pkg of 10)
27 255-0147 18 inch Professional sand screen 180 grit (pkg of 10)
28 255-0148 18 inch Professional sand screen 220 grit (pkg of 10)
29 255-0149 18 inch Professional sand screen 400 grit (pkg of 10)
30 255-0022 18 inch Professional sand screen 60 grit (pkg of 10)
31 255-0144 18 inch Professional sand screen 80 grit (pkg of 10)
32 255-0233 18 inch Superscreen sand screen 100 grit (pkg of 10)
33 255-0234 18 inch Superscreen sand screen 120 grit (pkg of 10)
34 255-0235 18 inch Superscreen sand screen 150 grit (pkg of 10)
35 255-0236 18 inch Superscreen sand screen 180 grit (pkg of 10)
36 255-0237 18 inch Superscreen sand screen 220 grit (pkg of 10)
37 255-0238 18 inch Superscreen sand screen 400 grit (pkg of 10)
38 255-0231 18 inch Superscreen sand screen 60 grit (pkg of 10)
39 255-0232 18 inch Superscreen sand screen 80 grit (pkg of 10)
40 255-1824 18 inch Tiger carpet bonnet (pkg of 2)
41 255-9577 18 inch Diamond by Gorilla 11000 Grit (pkg of 2)
42 255-9574 18 inch Diamond by Gorilla 1500 Grit (pkg of 2)
43 255-9571 18 inch Diamond by Gorilla 200 Grit (pkg of 2)
44 255-9575 18 inch Diamond by Gorilla 3000 Grit (pkg of 2)
45 255-9572 18 inch Diamond by Gorilla 400 Grit (pkg of 2)
46 255-9573 18 inch Diamond by Gorilla 800 Grit (pkg of 2)
47 255-9576 18 inch Diamond by Gorilla 8000 Grit (pkg of 2)
48 255-9643 18 inch Diamond starter pack (1 of each grit)
49 255-1882 18 inch Turbostrip segmented rotary pad (pkg of 4)
50 255-1815 18 inch Duala clean and shine pad - low speed (pkg of 5)
51 255-1816 18 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
