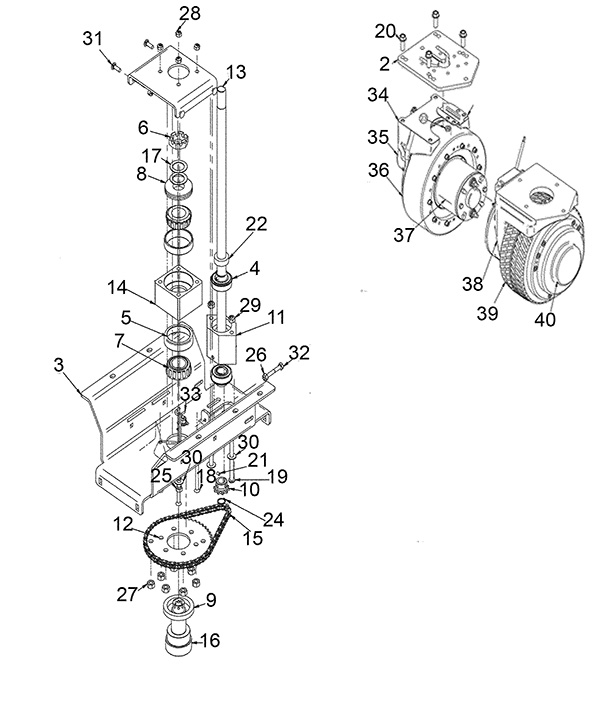

Front Drive Wheel -Top Assembly - 202-9114 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
302-0004 |
10 inch drop plate |
1 |
|
| 6 |
202-1166 |
Slotted castle nut |
1 |
|
| 7 |
202-5067 |
Tapered roller bearing |
2 |
|
| 8 |
202-5036 |
Preload sleeve |
1 |
|
| 9 |
202-5068 |
Bearing seal |
1 |
|
| 10 |
202-0280 |
10 toothed sprocket |
1 |
|
| 11a |
302-0008 |
Bearing block |
1 |
|
| 11b |
202-5549 |
Bearing housing assembly |
1 |
|
| 12 |
202-5550 |
48 tooth steering sprocket |
1 |
|
| 13 |
202-4296 |
Lower steering shaft |
1 |
|
| 14 |
202-9637 |
Bearing block assembly |
1 |
|
| 15 |
302-0005 |
Steering chain 60 tooth |
1 |
|
| 16 |
202-9638 |
Steering spindle |
1 |
|
| 18 |
999-9136 |
Screw 1/4-20 x 2 3/4 pan head phillips stainless steel |
4 |
|
| 19 |
999-1909 |
Screw 5/16-18 x 3 1/2 button socket cap SS |
2 |
|
| 20 |
999-9091 |
Screw M10-1.5 x 30mm hex head stainless steel |
4 |
|
| 21 |
999-1635 |
Screw 10-32 x 1/4 socket set |
3 |
|
| 22 |
202-2216 |
Shaft collar with set screw |
1 |
|
| 23 |
999-1151 |
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
| 25 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 26 |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 27 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
7 |
|
| 28 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 29 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
| 30 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
5 |
|
| 31 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
| 32 |
999-1892 |
Screw 1/4-20 x 2 hex cap stainless steel |
1 |
|
| 34 |
302-0006 |
24V front drive wheel 10 inch |
1 |
(Full assembly) |
| 35 |
202-5075 |
36V electric brake |
1 |
|
| 36 |
302-0007 |
10 inch wheel (black) |
1 |
|
| 38 |
302-0010 |
Drive motor w/ quiet no marking tire assembly |
1 |
(Full assembly) |
|
|

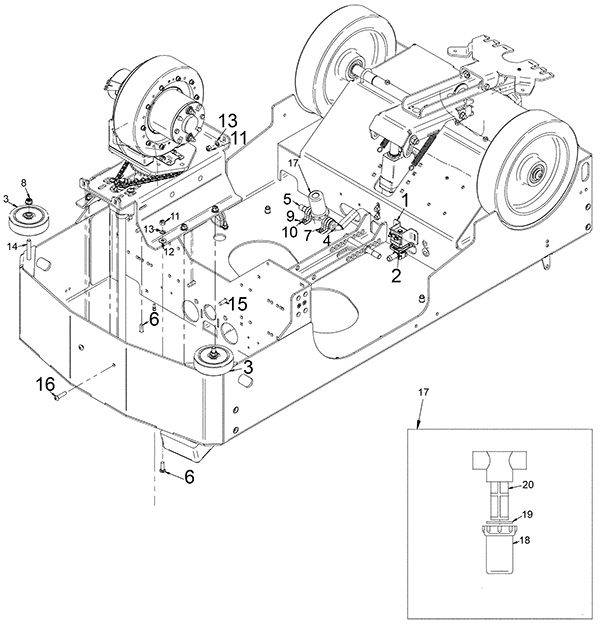

Front Drive Wheel - Bottom Assembly - 202-9115 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-6246 |
Solenoid,24V,3/8 inchNPTx3/8 inch |
1 |
|
| 3 |
202-2098 |
4 inch wheel (gray) |
2 |
|
| 5 |
202-3263 |
Fitting 1/2 x 1/2 inch |
1 |
|
| 6 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
2 |
|
| 7 |
202-9285 |
Screw,PFHM,#10-32x1/2 inch Zinc |
1 |
|
| 8 |
302-0013 |
Serrated flange nut 3/8-16 |
1 |
|
| 9 |
302-0014 |
Stap 1 inch 1 hole |
2 |
|
| 10 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 11 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
| 12 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 13 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
7 |
|
| 14 |
999-0894 |
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
| 15 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
1 |
|
| 16 |
999-1823 |
Screw 5/16-18 x 1 1/4 button head |
2 |
|
| 17 |
202-3584 |
Inline filter |
1 |
(includes 18-20) |
| 20 |
202-9782 |
Filter screen (black) |
1 |
|
|
|

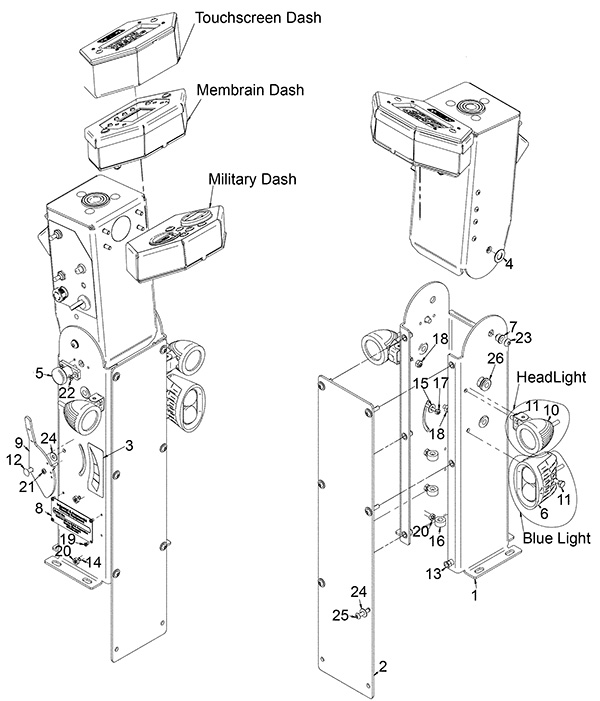

Upright Steering Column - Outside Assembly - 202-9116 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
302-0017 |
Lower steering pedestal |
1 |
|
| 2 |
302-0018 |
Steering tower front panel |
1 |
|
| 3 |
302-0019 |
K42 decal set |
1 |
|
| 4 |
202-1181 |
Washer 1/2 flat bronze |
1 |
|
| 5 |
202-0719 |
Index plunger |
1 |
|
| 6 |
202-7540 |
Light,48V,Blue,LED |
1 |
|
| 7 |
202-3312 |
Flanged bearing |
1 |
|
| 8 |
202-0720 |
Serial number plate |
1 |
|
| 10 |
202-5546 |
9-60V LED head light |
1 |
|
| 11 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 12 |
999-9240 |
Bolt 1/4-20 x 5/8 carriage |
1 |
|
| 13 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
|
| 14 |
202-9273 |
Screw,Set,1/4-20x1 inch Knurled |
1 |
|
| 15 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 16 |
202-2964 |
Shaft collar |
1 |
|
| 17 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 18 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 19 |
202-3315 |
Blind rivet |
1 |
|
| 20 |
202-1106 |
Nut 1/4-20 jam |
2 |
|
| 21 |
999-1918 |
Screw #8-32 x 1 1/4 phillips pan head SS |
1 |
|
| 22 |
999-1509 |
Screw 10-32 x 3/8 flat head phillips stainless steel |
1 |
|
| 23 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
1 |
|
| 24 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
2 |
|
| 25 |
999-1251 |
Screw 1/4-20 x 1 button head socket cap zinc plated |
1 |
|
| 26 |
202-3348 |
Rubber grommet |
1 |
|
|
|

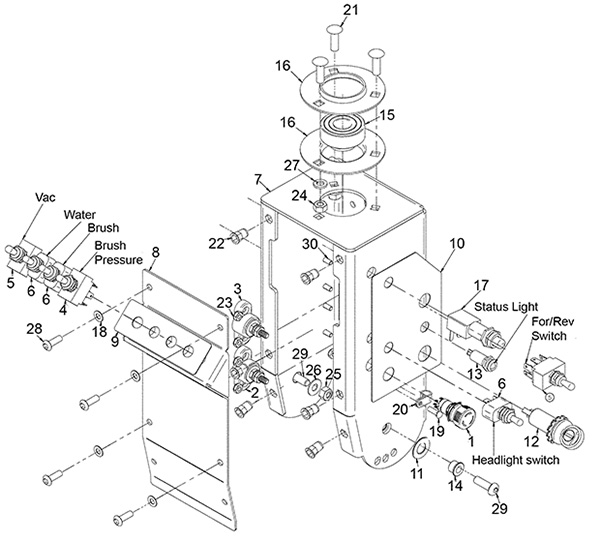

Top Upright Steering Assembly - 202-9117 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-4191 |
Emergency stop button |
1 |
|
| 2 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 3 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 4 |
302-0020 |
Toggle switch |
1 |
|
| 5 |
302-0021 |
Toggle switch ST2 on-on |
2 |
|
| 6 |
302-0023 |
Toggle switch SPST1 off-on |
3 |
|
| 7 |
302-0022 |
Upper steering pedastal (black) |
1 |
|
| 8 |
302-0024 |
Cover with switches (black) |
1 |
|
| 9 |
302-0019 |
K42 decal set |
1 |
|
| 10 |
302-0019 |
K42 decal set |
1 |
|
| 11 |
202-1181 |
Washer 1/2 flat bronze |
1 |
|
| 12 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 13 |
202-7204 |
Light,24V,Yellow,Bulb Style |
1 |
|
| 14 |
202-3312 |
Flanged bearing |
1 |
|
| 15 |
202-0142 |
Upper steering bearing |
1 |
|
| 16 |
202-0143 |
Bearing mount |
2 |
|
| 17 |
202-0381 |
Horn button |
1 |
|
| 18 |
202-1196 |
Washer 17/64 x 21/64 nylon flat |
1 |
|
| 19 |
999-1508 |
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
| 21 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
1 |
|
| 22 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
|
| 23 |
202-2067 |
Nut 10-32 keps |
1 |
|
| 24 |
999-0593 |
Nut 5/16-18 hex stainless steel |
1 |
|
| 25 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 26 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 27 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 28 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
1 |
|
| 29 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
2 |
|
| 30 |
302-0025 |
Screw #10-32 x 1/2 |
1 |
|
|
|

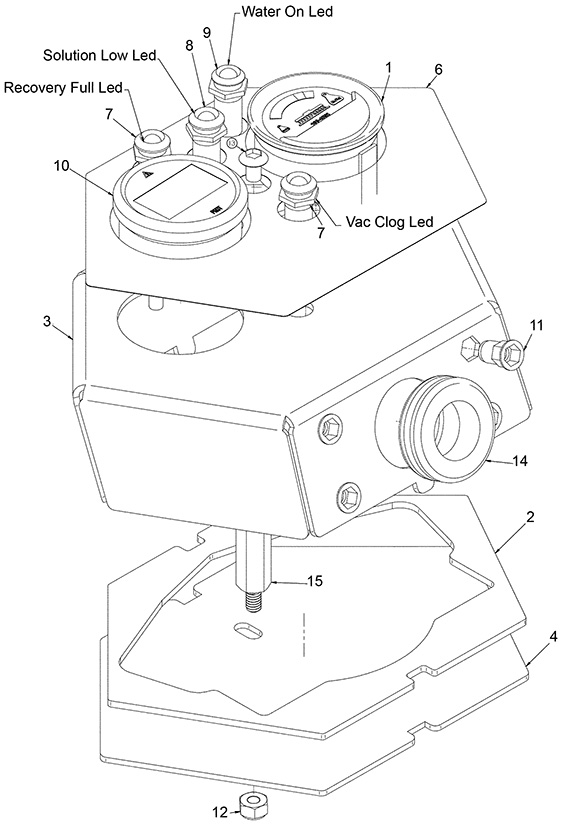

Dash Board Assembly - 202-9118 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 3 |
302-0027 |
Front dash cover |
1 |
|
| 4 |
302-0028 |
Rear front dash cover |
1 |
|
| 6 |
302-0019 |
K42 decal set |
1 |
|
| 7 |
202-0832 |
Full recovery indicator (red) |
2 |
|
| 8 |
202-7203 |
Light,24V,Green,Bulb Style |
1 |
|
| 9 |
202-7204 |
Light,24V,Yellow,Bulb Style |
1 |
|
| 10 |
302-0030 |
Battery Gauge |
1 |
|
| 11 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 12 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 13 |
999-1679 |
Screw 1/4-20 x 3/8 button head socket stainless steel |
1 |
|
|
|

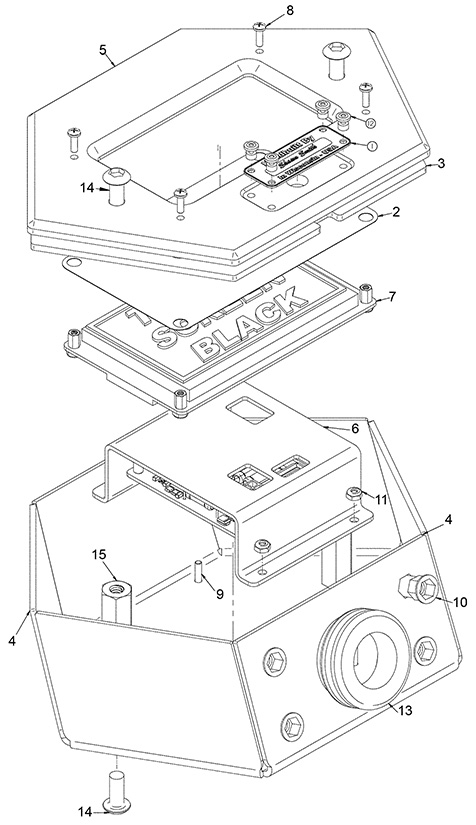

Touch Screen Dash Board Assembly - 202-9119 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
302-0032 |
Built by plate |
1 |
|
| 2 |
302-0033 |
Screen protector |
1 |
|
| 4 |
302-0034 |
Touchscreen dash board |
1 |
|
| 5 |
302-0035 |
Touchscreen dash top |
1 |
|
| 6 |
302-0036 |
4 inch display |
1 |
|
| 7 |
302-0036 |
4 inch display |
1 |
|
| 8 |
999-1059 |
Screw 4-40 x 3/4 pan head phillips zinc plated |
4 |
|
| 9 |
999-1330 |
Screw 4-40 x 1/2 pan head stainless steel |
4 |
|
| 10 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 11 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
4 |
|
| 12 |
202-3315 |
Blind rivet |
4 |
|
| 14 |
999-1480 |
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
4 |
|
| 15 |
302-0037 |
Female 1/4-20 x 2 1/2 standoff |
2 |
|
|
|

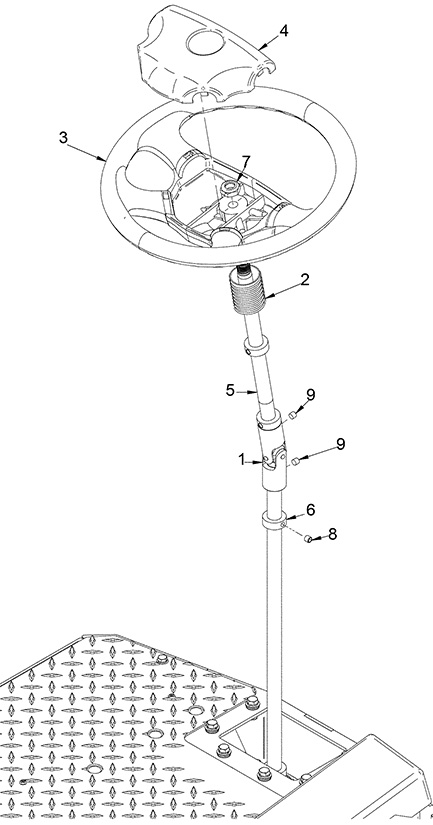

Steering Shaft Assembly - 202-9120 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
302-0039 |
Steering wheel |
1 |
|
| 4 |
302-0040 |
Steering wheel cover |
1 |
|
| 5 |
302-0041 |
Upper steering shaft |
1 |
|
| 6 |
202-2216 |
Shaft collar with set screw |
3 |
|
| 7 |
999-0968 |
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
| 8 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
3 |
|
| 9 |
999-1837 |
Screw 5/16-24 1/4 knurled point socket set |
4 |
|
|
|

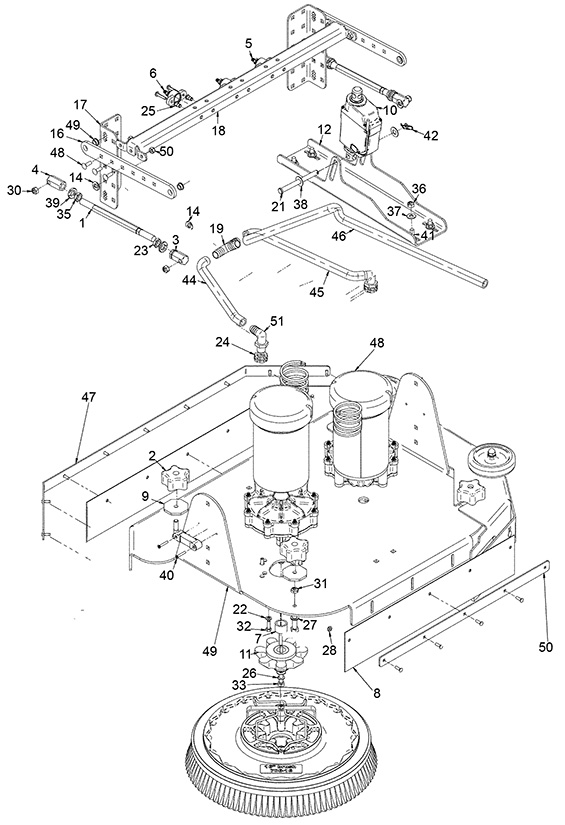

28, 30, and 32 inch Scrub Deck - Disc Assembly - 202-9121 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-4300 |
Adjustable lateral arm body |
2 |
|
| 3 |
202-6102 |
Adjustable Rod End, LH |
2 |
|
| 4 |
202-6103 |
Adjustable Rod End, RH |
2 |
|
| 5 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 6 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 7 |
202-6418 |
Spacer, Driver |
1 |
|
| 8 |
202-1948 |
34 inch rear curtain band |
1 |
|
| 9 |
202-1946 |
Adjustment knob plate |
3 |
|
| 10 |
202-9851 |
24V actuator |
1 |
|
| 11 |
202-9852 |
Brush driver |
1 |
|
| 14 |
202-1181 |
Washer 1/2 flat bronze |
4 |
|
| 15 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
| 16 |
202-0324 |
Scrub head lateral arm |
2 |
|
| 17 |
202-9644 |
Scrub arm bracket |
2 |
|
| 18 |
302-0045 |
Lift arm cross bar |
1 |
|
| 20 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
5 |
|
| 22 |
999-1049 |
Washer 1/4 split lock zinc plated |
3 |
|
| 23 |
202-9159 |
Nut,Hex Jam,1/2-20,LH |
2 |
|
| 24 |
999-0330 |
Nut 1/2-13 acorn brass |
1 |
|
| 25 |
202-3601 |
Nut #10-32 hex crimp |
2 |
|
| 26 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 27 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
1 |
|
| 28 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 29 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
5 |
|
| 30 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 31 |
999-1151 |
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
| 32 |
999-1304 |
Screw M6-1 x 16mm hex head zinc |
1 |
|
| 33 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
| 34 |
202-2211 |
Screw 3/8-16 x 2 hex cap stainless steel |
2 |
|
| 35 |
202-9358 |
Nut,Hex Jam,1/2-20 |
2 |
|
| 36 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
| 37 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 38 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 39 |
999-0560 |
Washer 1/2 lock stainless steel |
4 |
|
| 40 |
999-1603 |
Screw 8-32 x 1 flat head phillips SS |
1 |
|
| 41 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
| 43 |
202-9970 |
Key 1/4 inch x 1 inch |
1 |
|
| 44 |
302-0046 |
Hose 1/2 x 11 |
1 |
|
| 45 |
302-0047 |
Hose 1/2 x 12 |
1 |
|
| 46 |
302-0048 |
Hose 1/2 x 14 |
1 |
|
| 47a |
202-2259 |
26 inch front curtain band |
1 |
(28 inch) |
| 47b |
202-1956 |
34 inch front curtain band |
1 |
(30 and 32 inch) |
| 49a |
302-0049 |
28 inch scrub deck |
1 |
|
| 49b |
302-0044 |
30/32 scrub deck |
1 |
|
| 50a |
202-1947 |
26 and 30 inch rear curtain band |
1 |
(28 inch) |
| 50b |
202-1963 |
34 inch rear curtain band |
1 |
(30 and 32 inch) |
|
|
- Brushes - 14, 15, and 16 inch Disc, 26 and 30 inch Cylindrical - 202-9122 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
302-0050 |
14 inch brush midi-grit 7 lobe |
2 |
|
|
302-0051 |
15 inch brush midi-grit 7 lobe |
2 |
|
|
302-0052 |
16 inch brush midi-grit 7 lobe |
2 |
|
|
302-0053 |
14 inch brush light-grit 7 lobe |
2 |
|
|
302-0054 |
15 inch brush light-grit 7 lobe |
2 |
|
|
302-0055 |
16 inch brush light-grit 7 lobe |
2 |
|
|
302-0056 |
14 inch brush nylon7 lobe |
2 |
|
|
302-0057 |
15 inch brush nylon7 lobe |
2 |
|
|
302-0058 |
16 inch brush nylon7 lobe |
2 |
|
|
302-0059 |
14 inch pad driver 7 lobe |
2 |
|
|
302-0060 |
15 inch pad driver 7 lobe |
2 |
|
|
302-0061 |
16 inch pad driver 7 lobe |
2 |
|
|
302-0062 |
24 inch cylindrical midi-grit brush 7 spline |
1 |
|
|
302-0064 |
24 inch cylindrical light-grit brush 7 spline |
1 |
|
|
302-0065 |
24 inch cylindrical nylon brush |
1 |
|
|
302-0063 |
28 inch cylindrical midi-grit brush 7 spline |
1 |
|
|
302-0066 |
28 inch cylindrical light-grit brush |
1 |
|
|
302-0063 |
28 inch cylindrical midi-grit brush 7 spline |
1 |
|
|
|
- Pads - OEM - 14, 15, 16 inch - 202-9123 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
202-3930 |
14 inch super black pad (pkg of 5) |
2 |
|
|
302-0074 |
15 inch super black pad (pkg of 5) |
2 |
|
|
302-0067 |
16 inch super black pad (pkg of 5) |
2 |
|
|
202-5989 |
Floor Pads, 14 inch Black - Case of 5 pads |
2 |
|
|
202-6128 |
Floor Pads, 15 inch Black - Case of 5 pads |
2 |
|
|
302-0068 |
16 inch black pad (pkg of 5) |
2 |
|
|
202-3932 |
14 inch brown pads (pkg of 5) |
2 |
|
|
302-0075 |
15 inch brown pad (pkg of 5) |
2 |
|
|
302-0069 |
16 inch brown pad (pkg of 5) |
2 |
|
|
202-3934 |
14 inch green pads (pkg of 5) |
2 |
|
|
302-0076 |
15 inch green pad (pkg of 5) |
2 |
|
|
302-0070 |
16 inch green pad (pkg of 5) |
2 |
|
|
202-3935 |
14 inch blue pads (pkg 5) |
2 |
|
|
302-0077 |
15 inch blue pad (pkg of 5) |
2 |
|
|
302-0071 |
16 inch blue pad (pkg of 5) |
2 |
|
|
202-3937 |
14 inch red pad (pkg of 5) |
2 |
|
|
302-0078 |
15 inch red pad (pkg of 5) |
2 |
|
|
302-0072 |
16 inch red pad (pkg of 5) |
2 |
|
|
202-3939 |
14 inch white pad (pkg of 5) |
2 |
|
|
302-0079 |
15 inch white pad (pkg of 5) |
2 |
|
|
302-0073 |
16 inch white pad (pkg of 5) |
2 |
|
|
|

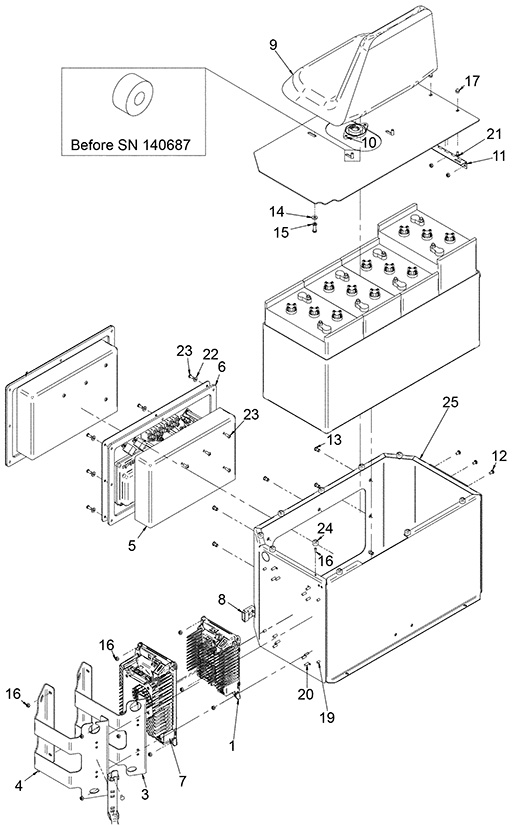

- Batteries and Chargers - 202-9124 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0003 |
6V 225Ah wet battery (SNSR) |
4 |
(Standard) |
|
162-0005 |
6V 305Ah wet battery (SNSR) |
4 |
(Option) |
|
162-0019 |
6V 390Ah wet battery (SNSR) |
4 |
(Option) |
|
162-0043 |
6V 224Ah AGM battery (Group GC2) |
4 |
(Option) |
|
162-0048 |
6V 415Ah AGM battery (Group L16) |
4 |
(Option) |
|
202-5723 |
12V 27AH onboard charger |
1 |
(Standard) |
|
202-7022 |
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
(Tall) |
|
|

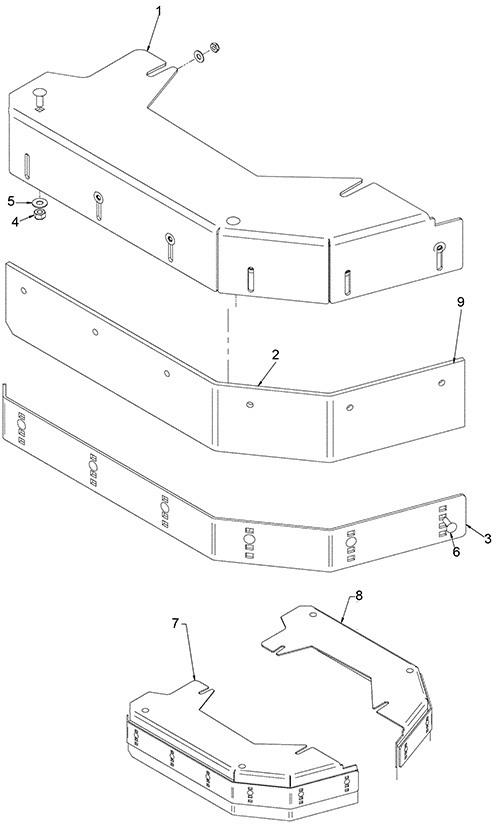

Deck Shrouds - Disc Assembly - 202-9125 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
202-4310 |
26 inch left hand shroud |
1 |
|
| 1b |
202-4311 |
26 inch right hand shroud |
1 |
|
| 1c |
202-4312 |
28 inch left hand shroud |
1 |
|
| 1d |
202-4313 |
28 inch right hand shroud |
1 |
|
| 1e |
202-4314 |
30 inch left hand shroud |
1 |
|
| 1f |
202-4315 |
30 inch right hand shroud |
1 |
|
| 1g |
202-4316 |
34 inch left hand shroud |
1 |
|
| 1h |
202-4317 |
34 inch right hand shroud |
1 |
|
| 2 |
202-1995 |
Shroud curtain gum rubber (tan) |
1 |
|
| 3 |
202-4309 |
Shroud curtain band |
1 |
|
| 4 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 5 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 6 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
6 |
|
| 7a |
202-4322 |
26 inch complete left hand shroud |
1 |
(full assembly) |
| 7b |
202-4323 |
28 inch complete left hand shroud |
1 |
(full assembly) |
| 7c |
202-4324 |
30 inch complete left hand shroud |
1 |
(full assembly) |
| 7d |
202-4325 |
34 inch complete left hand shroud |
1 |
(full assembly) |
| 8a |
202-4318 |
26 inch complete right hand shroud |
1 |
(full assembly) |
| 8b |
202-4319 |
28 inch complete right hand shroud |
1 |
(full assembly) |
| 8c |
202-4320 |
30 inch complete right hand shroud |
1 |
(full assembly) |
| 8d |
202-4321 |
34 inch complete right hand shroud |
1 |
(full assembly) |
| 9b |
202-1995 |
Shroud curtain gum rubber (tan) |
1 |
|
| 9c |
202-3560 |
Shroud curtain urethane |
1 |
|
| N/S |
202-5079 |
4 inch wheel |
2 |
|
| N/S |
999-1632 |
Nut 3/8-16 acorn stainless steel |
1 |
|
| N/S |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
| N/S |
999-0659 |
Washer 3/8 medium split lock stainless steel |
1 |
|
| N/S |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
| N/S |
999-1149 |
Bolt 3/8-16 x 2 carriage head stainless steel |
1 |
|
| N/S |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
|
|

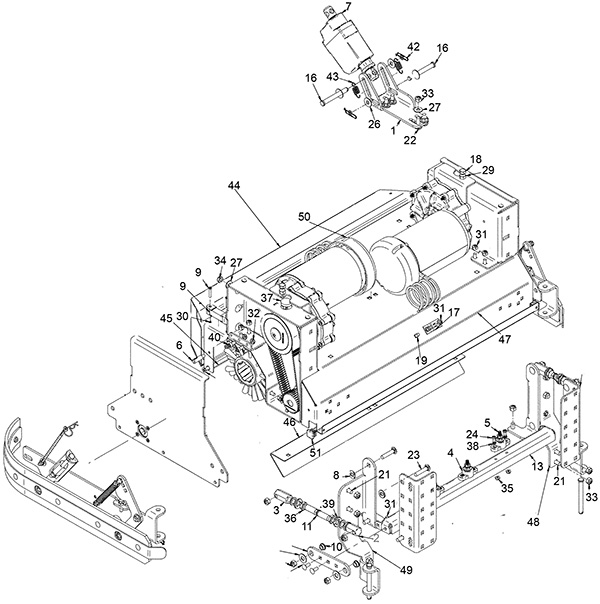

26 and 30 inch Cylindrical Deck Assembly - 202-9126 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6095 |
Bracket, Deck Lifting |
1 |
|
| 2 |
202-6102 |
Adjustable Rod End, LH |
2 |
|
| 3 |
202-6103 |
Adjustable Rod End, RH |
2 |
|
| 4 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 5 |
202-6397 |
Power Post, Red, 1/4 Terminal |
2 |
|
| 6 |
202-3136 |
Retaining pin |
1 |
|
| 7 |
202-9851 |
24V actuator |
1 |
|
| 8 |
202-1181 |
Washer 1/2 flat bronze |
2 |
|
| 9 |
202-5098 |
2 inch bolt on level |
1 |
|
| 10 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
1 |
|
| 11 |
202-3738 |
Adjustable lateral arm body |
2 |
|
| 12 |
202-3730 |
Cylindrical lateral arm |
1 |
|
| 13 |
202-4307 |
Lift arm cross bar |
1 |
|
| 14 |
202-9644 |
Scrub arm bracket |
2 |
|
| 17 |
202-9642 |
3/4 inch clamp zinc |
1 |
|
| 18 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
| 19 |
999-9239 |
Bolt 1/4-20 x 1/2 carriage |
1 |
|
| 20 |
999-9240 |
Bolt 1/4-20 x 5/8 carriage |
4 |
|
| 21 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
1 |
|
| 22 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
1 |
|
| 23 |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
| 24 |
202-2122 |
Screw 10-32 x 5/8 inch phillips pan head |
4 |
|
| 26 |
202-1214 |
Washer 1/4 uss |
4 |
|
| 27 |
202-1201 |
Washer 5/16 uss |
5 |
|
| 28 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
3 |
|
| 29 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 30 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
3 |
|
| 32 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
| 33 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
16 |
|
| 34 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
|
| 35 |
999-1269 |
Nut 10-32 nylon insert jam stainless steel |
1 |
|
| 36 |
202-9358 |
Nut,Hex Jam,1/2-20 |
2 |
|
| 37 |
202-2244 |
Hole plug 7/8 |
1 |
|
| 38 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
| 39 |
999-0560 |
Washer 1/2 lock stainless steel |
4 |
|
| 40 |
999-9293 |
Screw 1/4-20 x 1/2 socket head cap |
2 |
|
| 41 |
999-0990 |
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
1 |
|
| 43 |
202-9533 |
Spring,1/2 inchIDx1.5 inchL |
2 |
|
| 44a |
302-0081 |
30 inch hopper |
1 |
|
| 44b |
302-0082 |
26 inch hopper |
1 |
|
| 45a |
302-0083 |
30 inch cylindrical stiffener |
1 |
|
| 45b |
302-0084 |
26 inch cylindrical stiffener |
1 |
|
| 46a |
302-0085 |
30 inch cylindrical attinuator |
1 |
|
| 46b |
302-0086 |
26 inch cylindrical attinuator |
1 |
|
| 47a |
302-0087 |
30 inch cylindrical shell |
1 |
|
| 47b |
302-0088 |
26 inch cylindrical shell |
1 |
|
| 48a |
302-0089 |
30 inch left hand bracket |
1 |
|
| 48b |
302-0090 |
26 inch left hand bracket |
1 |
|
| 49a |
302-0091 |
30 inch right hand bracket |
1 |
|
| 49b |
302-0092 |
26 inch right hand bracket |
1 |
|
| 51 |
202-9545 |
Plug,Square,3/4 inch,Black |
2 |
|
| N/S |
999-9067 |
Screw 10-32 x 1 pan head phillips zinc plated |
2 |
|
|
|

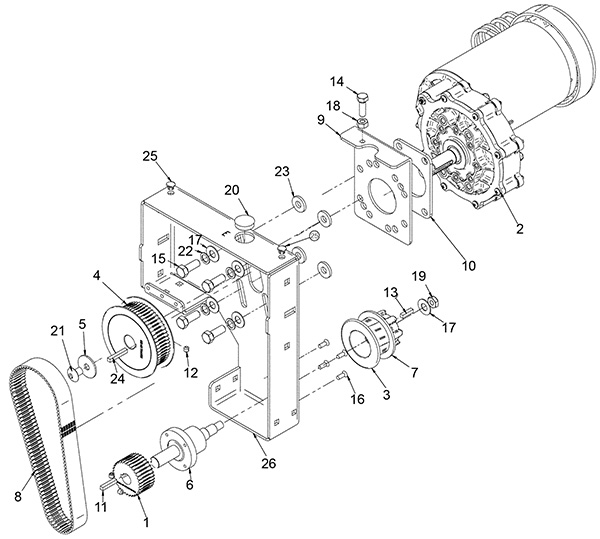

26 and 30 inch Cylindrical Motor Assembly - 202-9127 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-3140 |
32 toothed sprocket |
1 |
|
| 3 |
302-0094 |
Cylindrical driver spiral 7 spline |
1 |
|
| 4 |
202-7059 |
Sprocket, Timing, 56 Tooth |
1 |
|
| 6 |
202-3146 |
Bearing housing |
1 |
|
| 7 |
202-7788 |
Seal,Cylindrical Driver |
1 |
|
| 8 |
202-0023 |
Cylindrical belt |
1 |
|
| 9 |
202-9650 |
Motor adjustment bracket |
1 |
|
| 10 |
202-2175 |
Motor spacer |
1 |
|
| 11 |
202-0847 |
Square keyway |
1 |
|
| 13 |
202-3153 |
Square keyway |
1 |
|
| 14 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
1 |
|
| 15 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
| 16 |
202-9285 |
Screw,PFHM,#10-32x1/2 inch Zinc |
4 |
|
| 17 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
5 |
|
| 18 |
999-0069 |
Nut 5/16-18 hex |
1 |
|
| 19 |
999-1151 |
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
| 20 |
202-2244 |
Hole plug 7/8 |
1 |
|
| 21 |
999-1481 |
Screw 3/8-16 x 1/2 button head stainless steel |
1 |
|
| 22 |
202-3158 |
Washer 3/8 inch serrated stainless steel |
4 |
|
| 23 |
999-0120 |
Washer 3/8 SAE flat |
4 |
|
| 24 |
202-0140 |
Steering shaft key |
1 |
|
| 25 |
202-9555 |
Plug,Hole,5/16 inch |
2 |
|
| 26 |
202-2173 |
Side support |
1 |
|
|
|

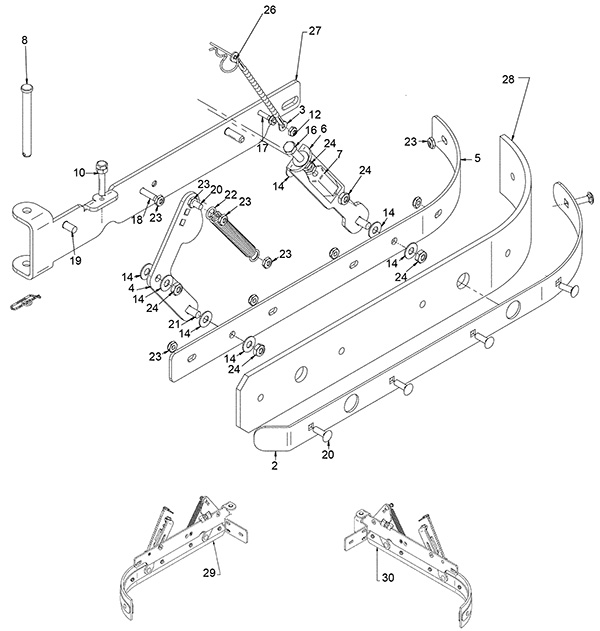

26 and 30 inch Cylindrical Wiper Assembly - 202-9128 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
202-3127 |
4 inch chain (6 inch no longer available) |
1 |
|
| 4 |
202-9647 |
Vertical arm shroud |
1 |
|
| 6 |
202-3734 |
Adjustable wiper arm |
1 |
|
| 7 |
202-3735 |
Adjustable rod end |
1 |
|
| 8 |
999-1633 |
Clevis pin 3/8 x 3 1/2 |
1 |
|
| 10 |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 12 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 14 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
| 16 |
999-9294 |
Screw 5/16-18 x 2 hex stainless steel |
1 |
|
| 17 |
999-1189 |
Screw 10-32 x 3/4 flat head phillips stainless steel |
1 |
|
| 18 |
202-3539 |
Screw 1/4-20 x 1 fillister head stainless steel |
1 |
|
| 19 |
202-2831 |
Screw 5/16-18 x 3/4 flat head socket stainless steel |
1 |
|
| 20 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
6 |
|
| 21 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
| 22 |
202-2208 |
Compression spring |
1 |
|
| 23 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
9 |
|
| 24 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
5 |
|
| 27a |
202-9726 |
Left hand horizontal arm shroud |
1 |
|
| 27b |
202-9725 |
Right hand horizontal arm shroud |
1 |
|
| 28a |
202-3019 |
Shroud curtain linatex (red) |
1 |
|
| 28b |
202-3381 |
Shroud curtain gum rubber (tan) |
1 |
|
| 28c |
202-6613 |
Curtain,Wiper,Urethane |
1 |
|
| 29 |
202-9727 |
Left hand horizontal arm shroud complete |
1 |
(Full assembly) |
| 30 |
202-9724 |
Right hand horizontal arm shroud complete |
1 |
(Full assembly) |
| N/S |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| N/S |
202-2067 |
Nut 10-32 keps |
1 |
|
| N/S |
302-0097 |
Bolt 1/4-20 x 1-1/4 inch tap |
1 |
|
| N/S |
202-2036 |
Cotter pin |
1 |
|
|
|

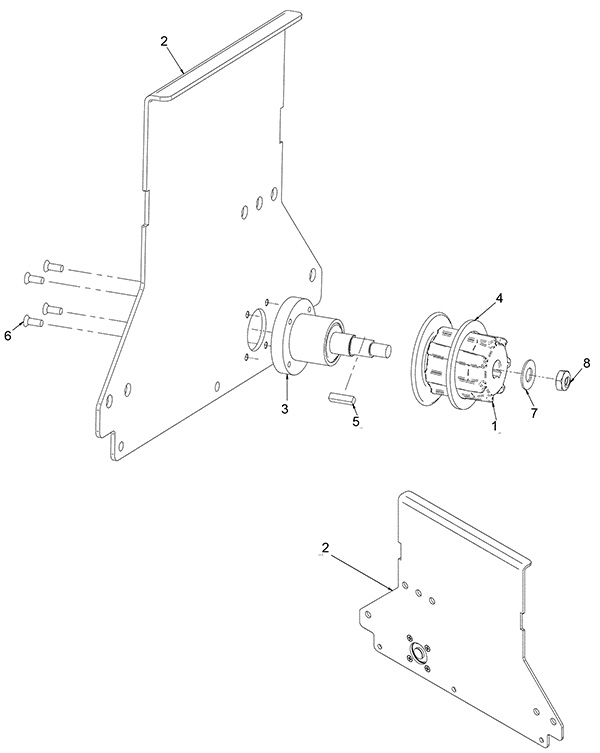

26 and 30 inch Cylindrical Deck Door Assembly - 202-9129 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
202-3168 |
Idler drive bearing |
1 |
|
| 4 |
202-7788 |
Seal,Cylindrical Driver |
1 |
|
| 5 |
202-3153 |
Square keyway |
1 |
|
| 6 |
202-9285 |
Screw,PFHM,#10-32x1/2 inch Zinc |
4 |
|
| 7 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 8 |
999-1151 |
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
|
|
Seatbox and Central Command Assembly - 202-9130 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5723 |
12V 27AH onboard charger |
1 |
|
| 3 |
302-0102 |
Small charger bracket |
1 |
|
| 4 |
302-0103 |
Charger bracket |
1 |
|
| 5 |
302-0104 |
Central command cover |
1 |
|
| 7 |
202-7022 |
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
|
| 8 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 10 |
202-5638 |
Seat switch |
1 |
|
| 12 |
999-9239 |
Bolt 1/4-20 x 1/2 carriage |
5 |
|
| 13 |
999-0190 |
Nut 1/4-20 hex plain finish |
5 |
|
| 14 |
202-1201 |
Washer 5/16 uss |
4 |
|
| 15 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 17 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
2 |
|
| 18 |
999-0965 |
Screw 10-32 x 1/2 button head socket cap stainless steel |
10 |
|
| 19 |
202-3109 |
Screw 1/4 x 5/8 button head socket stainless steel |
4 |
|
| 20 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
12 |
|
| 21 |
999-1442 |
Bolt 1/4-20 x 1/2 carriage stainless steel |
2 |
|
| 22 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
1 |
|
| 23 |
999-1480 |
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
9 |
|
| 24 |
202-3275 |
Rubber bumper |
10 |
|
| 25a |
302-0101 |
Battery seat box short |
1 |
(Standard) |
| 25b |
302-0106 |
Battery seat box tall |
1 |
(HD) |
| 26 |
202-8691 |
Spacer,.38 inchIDx1 inchODx.50 inchThick |
1 |
(Before SN 140687) |
|
|

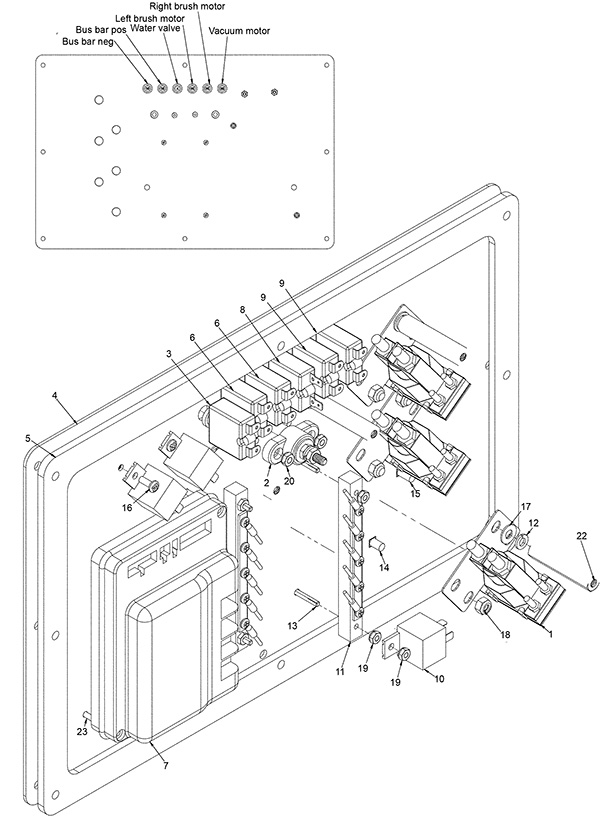

Central Command Panel Assembly - 202-9131 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 3 |
202-2241 |
25amp resettable fuse |
1 |
|
| 4 |
302-0107 |
Central command panel |
1 |
|
| 7 |
202-5254 |
I-drive controller |
1 |
|
| 10 |
202-0348 |
15amp relay |
1 |
|
| 12 |
999-1049 |
Washer 1/4 split lock zinc plated |
4 |
|
| 13 |
302-0108 |
Screw 8-32 x 1 1/2 |
1 |
|
| 14 |
999-9239 |
Bolt 1/4-20 x 1/2 carriage |
1 |
|
| 15 |
999-9240 |
Bolt 1/4-20 x 5/8 carriage |
2 |
|
| 16 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 17 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 19 |
999-0077 |
Nut 8-32 k-lock zinc plated |
2 |
|
| 20 |
202-2067 |
Nut 10-32 keps |
1 |
|
| 21 |
999-0965 |
Screw 10-32 x 1/2 button head socket cap stainless steel |
1 |
|
| 22 |
302-0037 |
Female 1/4-20 x 2 1/2 standoff |
4 |
|
|
|

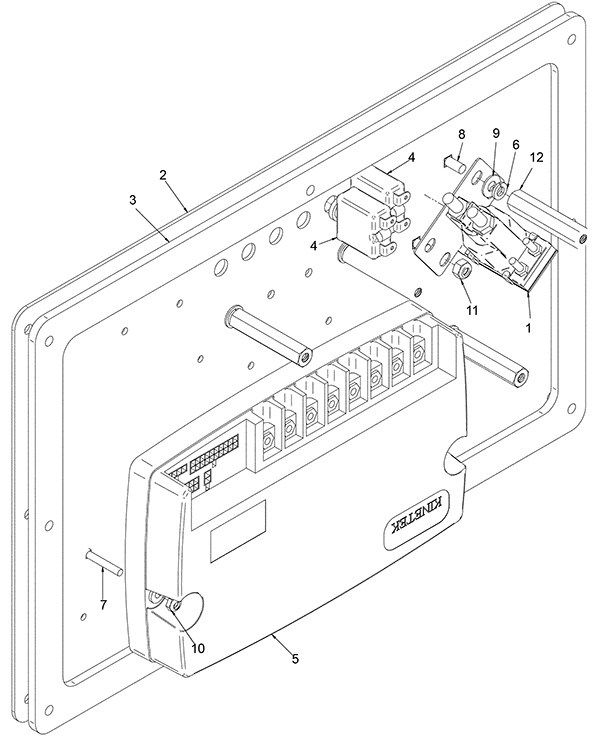

Touch Screen Central Command Assembly - 202-9132 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
302-0107 |
Central command panel |
1 |
|
| 5 |
202-8389 |
Controller, Touch Screen |
1 |
|
| 6 |
999-1049 |
Washer 1/4 split lock zinc plated |
4 |
|
| 7 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
| 8 |
999-9240 |
Bolt 1/4-20 x 5/8 carriage |
2 |
|
| 9 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 10 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 12 |
302-0037 |
Female 1/4-20 x 2 1/2 standoff |
4 |
|
|
|

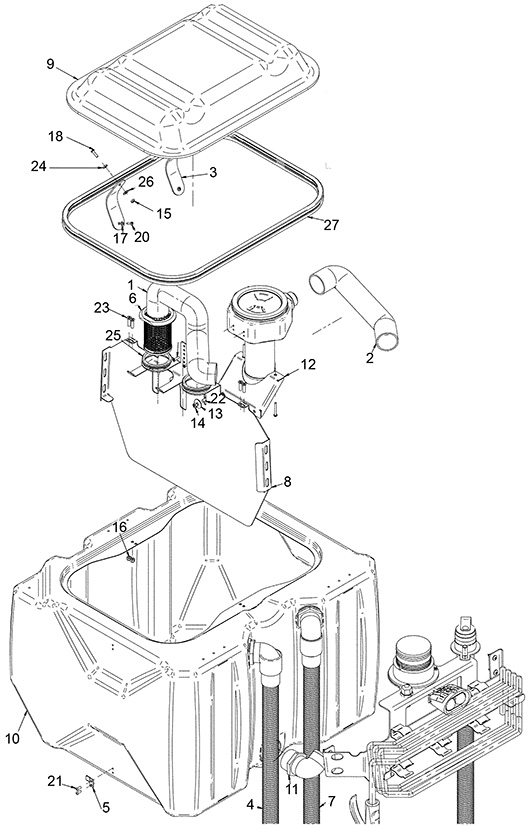

Recovery Tank Assembly - 202-9133 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6304 |
Hose, Inner Tank |
1 |
|
| 2 |
202-6304 |
Hose, Inner Tank |
1 |
|
| 3 |
202-6381 |
Tank Lid Strap W/Grommets |
2 |
|
| 4 |
202-4204 |
Squeegee vacuum hose |
1 |
|
| 5 |
202-5630 |
Soft draw latch |
2 |
|
| 6 |
302-0109 |
Strainer screen yellow |
1 |
|
| 7 |
302-0110 |
43 inch vacuum hose |
1 |
|
| 9 |
302-0112 |
Tinted cover |
1 |
|
| 10 |
302-0113 |
Recovery tank (Timberline,blue) |
1 |
|
| 12 |
202-9808 |
Baffle bracket |
1 |
|
| 13 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
2 |
|
| 15 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 16 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 17 |
999-0266 |
Washer #8 SAE flat stainless steel |
2 |
|
| 18 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
| 19 |
999-1189 |
Screw 10-32 x 3/4 flat head phillips stainless steel |
2 |
|
| 20 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
| 21 |
999-0965 |
Screw 10-32 x 1/2 button head socket cap stainless steel |
4 |
|
| 22 |
202-3109 |
Screw 1/4 x 5/8 button head socket stainless steel |
2 |
|
| 23 |
202-3539 |
Screw 1/4-20 x 1 fillister head stainless steel |
4 |
|
| 24 |
202-3244 |
Neoprene washer |
2 |
|
| 27 |
302-0115 |
Push-on rubber gasket |
1 |
|
|
|

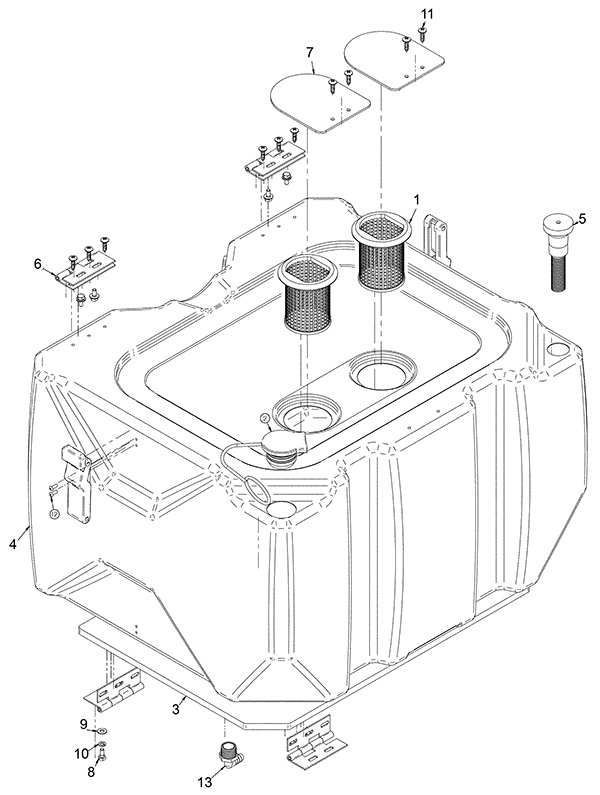

Solution Tank Assembly - 202-9134 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-3036 |
Strainer screen |
2 |
|
| 2 |
302-0116 |
Plug with strap |
1 |
|
| 3 |
302-0117 |
Recovery tank gasket |
1 |
|
| 4 |
302-0118 |
Solution tank (black) |
1 |
|
| 6 |
202-5648 |
4 inch hinge stainless steel |
1 |
|
| 7 |
302-0119 |
Solution fill cover |
2 |
|
| 8 |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
8 |
|
| 9 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
| 10 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 11 |
999-1290 |
Screw #14 x 1 truss head phillips stainless steel |
10 |
|
| 12 |
999-0965 |
Screw 10-32 x 1/2 button head socket cap stainless steel |
4 |
|
| 13 |
302-0120 |
Elbow 3/4 npt x 1/2 inch barb |
1 |
|
|
|

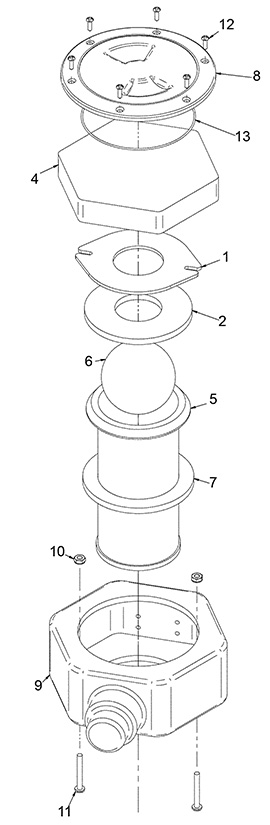

Ball Float Assembly - 202-9135 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-4326 |
Top stainer with gasket |
1 |
|
| 2 |
202-6414 |
Gasket, Ball Float |
1 |
|
| 4 |
202-7033 |
Vac Box Filter |
1 |
|
| 5 |
202-7090 |
Strainer,Screen 6 inch |
1 |
|
| 6 |
202-0232 |
Float shut-off ball |
1 |
|
| 7 |
202-0230 |
Strainer gasket |
1 |
|
| 8 |
202-8038 |
4 inch Clear Access Port |
1 |
|
| 9 |
202-9805 |
Vac screen box |
1 |
|
| 10 |
202-2067 |
Nut 10-32 keps |
2 |
|
| 11 |
999-1631 |
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 12 |
999-1882 |
Screw #6 x 1/2 inch pan head phillips stainless steel |
6 |
|
| 13 |
202-9537 |
O-Ring,3-1/2ID x 3-5/8 OD x 1/16 inch |
1 |
|
| N/S |
202-6417 |
Knob,Yellow |
2 |
|
|
|

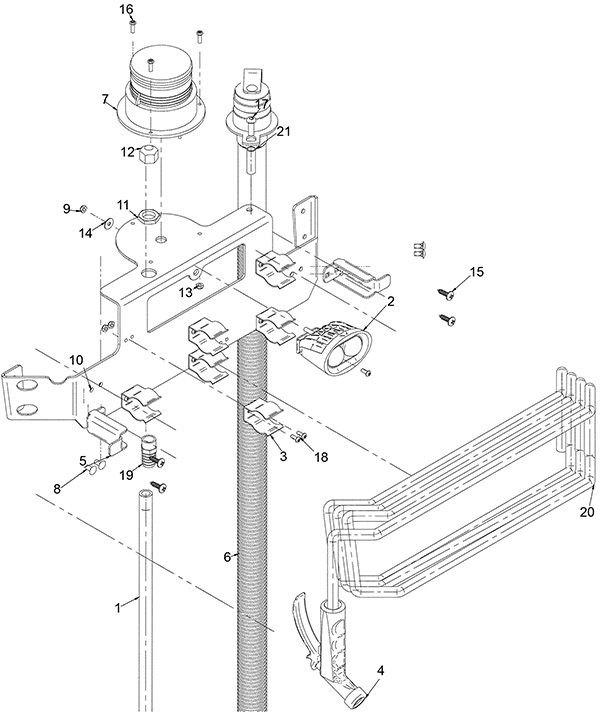

Tank Utility Handle Assembly - 202-9136 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-7540 |
Light,48V,Blue,LED |
1 |
|
| 4 |
202-0103 |
Spray nozzle |
1 |
|
| 6 |
202-3785 |
Recovery drain hose w/ turn cap |
1 |
|
| 7 |
202-0383 |
Strobe light |
1 |
|
| 8 |
999-9239 |
Bolt 1/4-20 x 1/2 carriage |
4 |
|
| 9 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
13 |
|
| 11 |
999-1928 |
Nut 1/2 inch lock brass |
1 |
|
| 12 |
999-1929 |
Pipe cap 1/2 inch female brass |
1 |
|
| 13 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
3 |
|
| 14 |
202-3316 |
Washer flat stainless steel |
1 |
|
| 15 |
999-1290 |
Screw #14 x 1 truss head phillips stainless steel |
4 |
|
| 16 |
202-2122 |
Screw 10-32 x 5/8 inch phillips pan head |
3 |
|
| 17 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
1 |
|
| 18 |
302-0025 |
Screw #10-32 x 1/2 |
13 |
|
| 19 |
202-3439 |
Male brass fitting |
1 |
|
| 20 |
N/A |
Not available |
1 |
(Spray hose) |
| 21 |
202-3805 |
Tubing cover |
1 |
|
|
|
Vacuum Box Assembly - 202-9137 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6320 |
Flap,Drain Saver Basket |
1 |
|
| 2 |
202-6389 |
Switch,Recovery Vac Shutoff |
1 |
|
| 3 |
202-3277 |
Hose 2 x 27 inch (gray) |
1 |
|
| 4 |
302-0122 |
24V vacuum motor 2 stage |
1 |
|
| 6 |
202-9681 |
Vac muffler housing |
1 |
|
| 7 |
202-9682 |
2 1/8 inch plastic spacer |
3 |
|
| 8 |
202-9683 |
Vac motor gasket set |
2 |
|
| 9 |
202-9255 |
PPH SMS #10 x 1/2 inch SBO |
2 |
|
| 11 |
202-9338 |
Screw,Hex Cap,1/4-20x3 inch Stainless |
3 |
|
| 12 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 13 |
999-0632 |
Washer 1/4 split lock stainless steel |
3 |
|
| 14 |
202-9488 |
Fitting,1/4 inchNPTx1/8 inchBarb |
2 |
|
| 15 |
202-1986 |
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
3 |
|
| 16 |
302-0125 |
Vacuum swith hose |
1 |
|
| 17 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
(Vacuum box drain) |
| 18 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
(Duck bill valve hose) |
| 19 |
302-0110 |
43 inch vacuum hose |
1 |
|
|
|

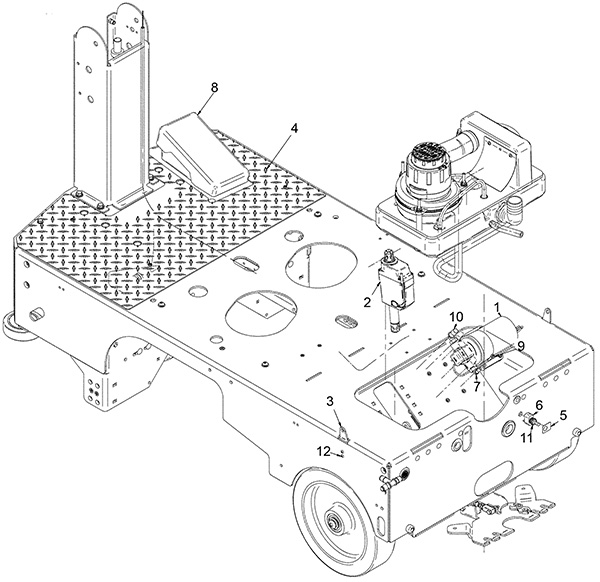

Vacuum Box Frame Assembly - 202-9138 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6852 |
Pump,24V,High PSI |
1 |
|
| 2 |
302-0126 |
24V actuator |
1 |
|
| 5 |
302-0019 |
K42 decal set |
1 |
|
| 6 |
202-0097 |
Toggle switch |
1 |
|
| 7 |
202-5011 |
90 degree hose barb |
1 |
|
| 8 |
202-0362 |
Foot pedal assembly (includes potentiometer) |
1 |
|
| 9 |
302-0129 |
Screw #10-32 x 1 |
1 |
|
| 10 |
202-3236 |
Threaded barb |
1 |
|
| 11 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 12 |
302-0130 |
Screw #10-32 x 3/4 |
1 |
|
|
|

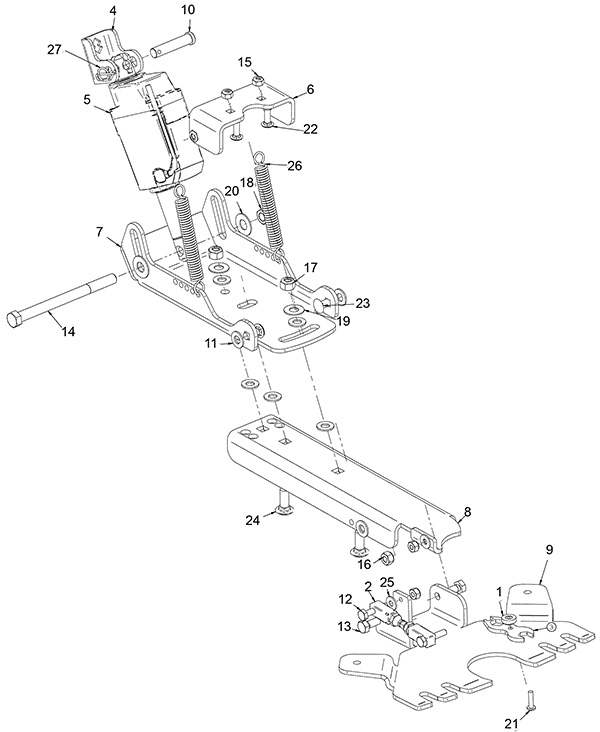

Squeegee Linkage Assembly - 202-9139 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-6432 |
Body, Adjustable Lateral Arm Assy |
1 |
|
| 4 |
202-9833 |
Upper actuator bracket |
1 |
|
| 5 |
302-0126 |
24V actuator |
1 |
|
| 6 |
202-9663 |
Squeegee arm bracket |
1 |
|
| 7 |
202-9664 |
Squeegee lift plate |
1 |
|
| 8 |
202-8256 |
Arm, Squeegee Trail |
1 |
|
| 9 |
202-9665 |
Squeegee triangle plate |
1 |
|
| 10 |
302-0133 |
Clevis pin 7/16 x 2 |
1 |
|
| 11 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
9 |
|
| 12 |
999-0298 |
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
2 |
|
| 13 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 14 |
302-0134 |
Screw 7/16-14 x 5-1/2 hex cap |
1 |
|
| 15 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 16 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
| 17 |
999-1482 |
Nut 3/8-16 nylon lock stainless steel |
2 |
|
| 18 |
202-3744 |
Nut 7/16-14 nylock stainless steel |
1 |
|
| 19 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 20 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
| 21 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 22 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
2 |
|
| 23 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
| 24 |
202-2832 |
Bolt 3/8 - 16 x 1 carriage head stainless steel |
2 |
|
| 25 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
2 |
|
| 26 |
202-2208 |
Compression spring |
2 |
|
| 27 |
302-0135 |
Cotter rue ring 7/16 inch |
1 |
|
|
|

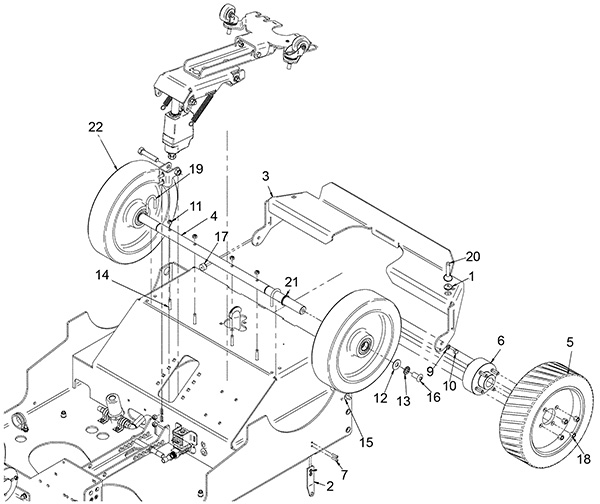

Rear Axle and Linkage Assembly - 202-9140 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 5 |
202-0724 |
Rear wheel (black) |
1 |
|
| 7 |
202-3601 |
Nut #10-32 hex crimp |
1 |
|
| 8 |
202-1201 |
Washer 5/16 uss |
1 |
|
| 9 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 10 |
999-1458 |
Nut 5/16-18 acorn nickel plated |
1 |
|
| 11 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
9 |
|
| 12 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
1 |
|
| 13 |
999-0560 |
Washer 1/2 lock stainless steel |
1 |
|
| 14 |
999-6765 |
Screw 1/4-20 x 1 1/4 philips flat head stainless steel |
4 |
|
| 15 |
302-0130 |
Screw #10-32 x 3/4 |
1 |
|
| 16 |
999-1917 |
Screw 1/2-13 x 1 button socket cap SS |
1 |
|
| 17 |
202-3275 |
Rubber bumper |
1 |
|
| 19 |
202-5603 |
U-bolt 1/4-20 x 1 |
2 |
|
| 21 |
302-0141 |
External retaining wing |
1 |
|
| 22a |
202-5601 |
Poly wheel assembly (gray) |
2 |
|
| 22b |
202-8252 |
Wheel Assembly,Rear,Poly,2.7 inchW Black Poly, 65 ShA, Groov |
2 |
|
|
|

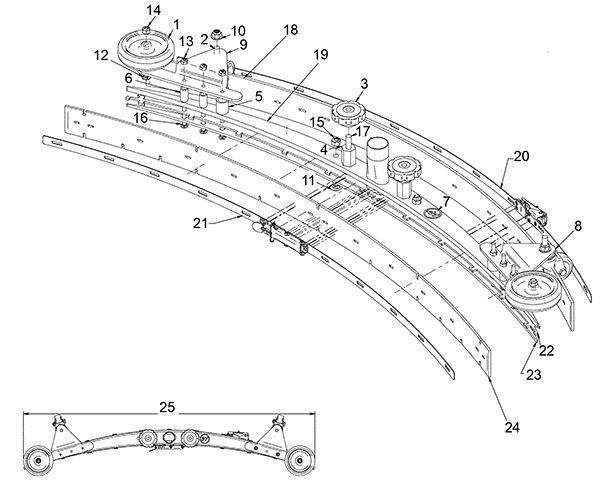

Squeegee Assembly - 202-9141 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5079 |
4 inch wheel |
2 |
|
| 2 |
202-3590 |
2 inch caster (gray) |
2 |
|
| 3 |
202-9853 |
3/8-16 star knob |
2 |
|
| 6 |
202-3655 |
Roller spacer |
1 |
|
| 7 |
202-3656 |
41 inch squeegee decal |
1 |
|
| 8 |
202-9739 |
Left hand squeegee caster bracket |
1 |
|
| 9 |
202-3658 |
Right hand squeegee castor bracket |
1 |
|
| 10 |
999-0488 |
Nut 3/8-16 flange lock serrated zinc plated |
1 |
|
| 11 |
302-0142 |
Bolt 3/8-16 x 1 1/4 |
1 |
|
| 12 |
999-0404 |
Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc |
2 |
|
| 14 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 15 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 16 |
999-9136 |
Screw 1/4-20 x 2 3/4 pan head phillips stainless steel |
6 |
|
| 17 |
999-0626 |
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
| 18a |
302-0143 |
37 inch squeegee rear |
1 |
|
| 18b |
302-0144 |
41 inch squeegee rear |
1 |
|
| 19a |
302-0145 |
37 inch squeegee body |
1 |
|
| 19b |
302-0146 |
41 inch squeegee body |
1 |
|
| 20a |
202-3673 |
Squeegee band 37 inch rear with latch |
1 |
|
| 20b |
202-9610 |
Squeege band rear |
1 |
|
| 21a |
202-3677 |
Squeegee band 37 inch front with latch |
1 |
|
| 21b |
202-3678 |
Squeegee band 41 inch front with latch |
1 |
|
| 22a |
302-0147 |
37 inch front squeegee body |
1 |
|
| 22b |
302-0148 |
41 inch middle squeegee body |
1 |
|
| 23a |
302-0149 |
37 inch squeegee under body |
1 |
|
| 23b |
302-0150 |
41 inch squeegee bottom |
1 |
|
| 24a |
302-0151 |
37 inch front squeegee |
1 |
|
| 24b |
302-0152 |
41 inch front squeegee |
1 |
|
| 25a |
302-0153 |
37 inch squeegee assembly |
1 |
|
| 25b |
302-0154 |
41 inch squeegee assembly |
1 |
|
| N/S |
202-3921 |
37 inch linatex squeegee kit |
1 |
|
| N/S |
202-3923 |
37 inch gum rubber squeegee kit |
1 |
|
| N/S |
202-3924 |
41 inch gum rubber squeegee kit |
1 |
|
| N/S |
202-3925 |
37 inch urethane squeegee kit |
1 |
|
| N/S |
202-3926 |
41 inch urethane squeegee kit |
1 |
|
| N/S |
302-0155 |
37 inch squeegee kit |
1 |
|
| N/S |
302-0156 |
41 inch squeegee blade kit nanorade |
1 |
|
| N/S |
302-0157 |
37 inch squeegee complete with nanorade |
1 |
|
| N/S |
302-0158 |
41 inch squeegee complete with nanorade blades |
1 |
|
|
|

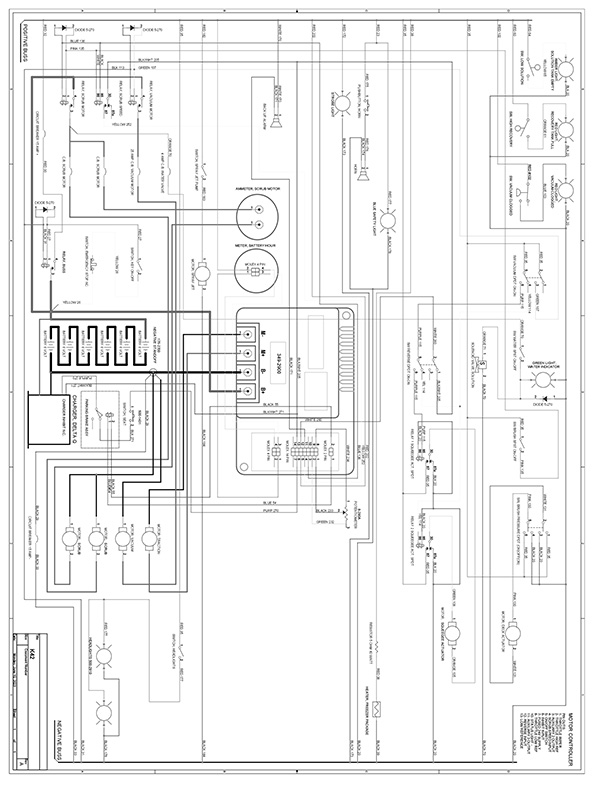

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pads - 14 inch - 255-1400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1440 |
14 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1435 |
14 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1464 |
14 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1442 |
14 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1412 |
14 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1477 |
14 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1438 |
14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1421 |
14 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1450 |
14 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1465 |
14 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1430 |
14 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1487 |
14 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1490 |
14 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1470 |
14 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1492 |
14 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1480 |
14 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1460 |
14 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1452 |
14 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1420 |
14 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1411 |
14 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1495 |
14 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1447 |
14 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1455 |
14 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1423 |
14 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0120 |
14 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0121 |
14 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0122 |
14 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0119 |
14 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 29 |
255-0205 |
14 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 30 |
255-0206 |
14 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 31 |
255-0207 |
14 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0204 |
14 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 33 |
255-1424 |
14 x 20 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 34 |
255-9549 |
14 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 35 |
255-9546 |
14 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 36 |
255-9543 |
14 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 37 |
255-9547 |
14 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 38 |
255-9544 |
14 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 39 |
255-9545 |
14 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 40 |
255-9548 |
14 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 41 |
255-9639 |
14 inch Diamond starter pack (1 of each grit) |
|
|
| 42 |
255-1482 |
14 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 43 |
255-1415 |
14 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1416 |
14 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
- Pads - 15 inch - 255-1500 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1540 |
15 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1535 |
15 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1564 |
15 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1542 |
15 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1512 |
15 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1577 |
15 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1538 |
15 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 09 |
255-1550 |
15 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1565 |
15 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1530 |
15 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1590 |
15 inch premium black stripping pad (pkg of 5) |
|
|
| 13 |
255-1570 |
15 inch premium blue cleaning pad (pkg of 5) |
|
|
| 14 |
255-1592 |
15 inch premium brown stripping pad (pkg of 5) |
|
|
| 15 |
255-1580 |
15 inch premium green scrubbing pad (pkg of 5) |
|
|
| 16 |
255-1560 |
15 inch premium red scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1552 |
15 inch premium tan polishing pad (pkg of 5) |
|
|
| 18 |
255-1520 |
15 inch premium white polishing pad (pkg of 5) |
|
|
| 19 |
255-1595 |
15 inch razorback stripping pad (pkg of 5) |
|
|
| 20 |
255-1547 |
15 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 21 |
255-1511 |
15 inch superspeed rubberized pad (pkg of 5) |
|
|
| 22 |
255-1555 |
15 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 23 |
255-1523 |
15 inch sand screen driver pad (pkg of 2) |
|
|
| 24 |
255-0125 |
15 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 25 |
255-0126 |
15 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 26 |
255-0127 |
15 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 27 |
255-0128 |
15 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0129 |
15 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 29 |
255-0123 |
15 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 30 |
255-0124 |
15 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 31 |
255-0210 |
15 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 32 |
255-0211 |
15 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 33 |
255-0212 |
15 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 34 |
255-0213 |
15 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 35 |
255-0214 |
15 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 36 |
255-0208 |
15 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 37 |
255-0209 |
15 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 38 |
255-1524 |
15 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 39 |
255-9556 |
15 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 40 |
255-9553 |
15 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 41 |
255-9550 |
15 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 42 |
255-9554 |
15 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 43 |
255-9551 |
15 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 44 |
255-9552 |
15 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 45 |
255-9555 |
15 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 46 |
255-9640 |
15 inch Diamond starter pack (1 of each grit) |
|
|
| 47 |
255-1582 |
15 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 48 |
255-1515 |
15 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 49 |
255-1516 |
15 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 16 inch - 255-1600 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1640 |
16 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1635 |
16 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1664 |
16 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1642 |
16 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1612 |
16 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1677 |
16 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1638 |
16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1621 |
16 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1650 |
16 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1665 |
16 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1630 |
16 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1687 |
16 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1690 |
16 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1670 |
16 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1692 |
16 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1680 |
16 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1660 |
16 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1652 |
16 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1620 |
16 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1611 |
16 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1695 |
16 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1647 |
16 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1655 |
16 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1623 |
16 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0132 |
16 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0133 |
16 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0134 |
16 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0135 |
16 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0136 |
16 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0137 |
16 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0130 |
16 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0131 |
16 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0217 |
16 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0218 |
16 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0219 |
16 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0220 |
16 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0221 |
16 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0222 |
16 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0215 |
16 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0216 |
16 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1624 |
16 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9563 |
16 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9560 |
16 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9557 |
16 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9561 |
16 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9558 |
16 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9559 |
16 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9562 |
16 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9641 |
16 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1682 |
16 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1615 |
16 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1616 |
16 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
