Frame Assembly - 202-0735 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5064 |
Caster wheel |
2 |
|
| 2 |
202-5363 |
3/8 inch ball valve |
1 |
|
| 6 |
202-9829 |
Lifting bracket |
2 |
|
| 7 |
202-3901 |
Lift bracket spacer |
3 |
|
| 9 |
202-9833 |
Upper actuator bracket |
1 |
|
| 10 |
302-0167 |
Left hand 24V frame bracket |
1 |
|
| 11 |
302-0168 |
Right hand 24V frame bracket |
1 |
|
| 13 |
202-9837 |
Solution valve cable |
1 |
|
| 14 |
202-9964 |
Transaxle hub with moutning |
2 |
|
| 15 |
202-3902 |
24V transaxle w/ connectors |
1 |
|
| 17 |
202-3234 |
Inline filter |
1 |
|
| 18 |
202-5284 |
Nut 1/4-20 hex crimp long |
4 |
|
| 19 |
999-1049 |
Washer 1/4 split lock zinc plated |
8 |
|
| 20 |
999-1215 |
Washer #6 SAE flat zinc plated |
1 |
|
| 21 |
202-3236 |
Threaded barb |
2 |
|
| 22 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
20 |
|
| 23 |
999-1334 |
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
| 24 |
999-1468 |
Screw 1/4-20 x 1/2 knurled point set alloy steel |
1 |
|
| 25 |
999-0447 |
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 26 |
202-9285 |
Screw,PFHM,#10-32x1/2 inch Zinc |
2 |
|
| 27 |
999-9235 |
Screw #10-32 x 1 flat head phillips zinc plated |
11 |
|
| 28 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 29 |
999-0069 |
Nut 5/16-18 hex |
8 |
|
| 30 |
999-6688 |
Nut 6-32 hex nylon insert lock stainless steel |
1 |
|
| 31 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 32 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
12 |
|
| 33 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
39 |
|
| 34 |
202-2067 |
Nut 10-32 keps |
2 |
|
| 35 |
202-4070 |
90 degree barbed elbow |
1 |
|
| 37 |
202-3316 |
Washer flat stainless steel |
1 |
|
| 38 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 39 |
999-0990 |
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
1 |
|
| 40 |
999-1258 |
Screw 5/16-18 x 3/4 flat head phillips stainless steel |
4 |
|
| 41 |
999-9243 |
Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) |
6 |
|
| 42 |
202-9839 |
Screw 5/16-18 x 4 1/4 flat head socket cap screw zinc |
4 |
|
| 43 |
202-3275 |
Rubber bumper |
2 |
|
| 44 |
202-0585 |
Cotter ring |
2 |
|
| 46 |
202-9642 |
3/4 inch clamp zinc |
2 |
|
| 47 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 48 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 49 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 50 |
202-9840 |
1/2 inch ID x 5 foot clear hose |
1 |
|
| 51a |
202-9827 |
8 inch poly tire (grey) |
2 |
|
| 51b |
302-0171 |
Wheel solid (black) |
2 |
|
|
|
Squeegee Trail Arm Assembly - 202-0736 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6432 |
Body, Adjustable Lateral Arm Assy |
1 |
|
| 2 |
202-9841 |
Squeegee swing plate |
1 |
|
| 3 |
202-9842 |
Squeegee trail arm |
1 |
|
| 5 |
202-9843 |
Triangle plate |
1 |
|
| 6 |
999-1215 |
Washer #6 SAE flat zinc plated |
1 |
|
| 7 |
999-9072 |
Bolt 1/4-20 x 1 hex head cap |
4 |
|
| 8 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
| 9 |
999-9236 |
Bolt 1/4-20 x 6 carriage head zinc plated |
1 |
|
| 10 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
4 |
|
| 11 |
999-9235 |
Screw #10-32 x 1 flat head phillips zinc plated |
1 |
|
| 12 |
999-0006 |
Washer 3/16 flat zinc plated |
1 |
|
| 13 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
|
| 14 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 15 |
999-6688 |
Nut 6-32 hex nylon insert lock stainless steel |
1 |
|
| 16 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 17 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
7 |
|
| 18 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| 19 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
6 |
|
| 20 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 21 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
| 22 |
999-1109 |
Screw 6-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 23 |
202-3275 |
Rubber bumper |
1 |
|
| 24 |
302-0172 |
6 inch ground chain |
1 |
|
| 25 |
202-9845 |
23-1/4 squeegee lift cable (black) |
1 |
|
|
|

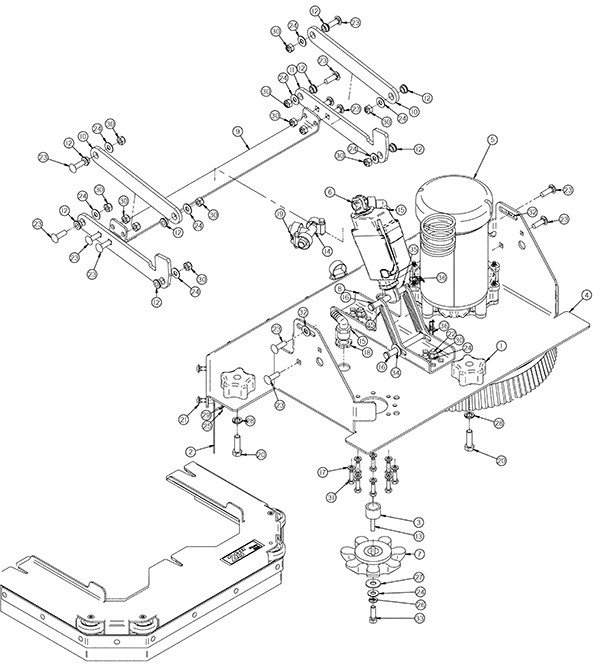

28 inch Disk Scrub Deck Assembly - 202-0739 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-6326 |
Curtain, Deck, Rear, 28 inch |
1 |
|
| 3 |
202-6418 |
Spacer, Driver |
2 |
|
| 4 |
302-0177 |
28 inch disk deck |
1 |
|
| 6 |
202-9851 |
24V actuator |
1 |
|
| 7 |
202-9852 |
Brush driver |
2 |
|
| 8 |
302-0175 |
Lifting bracket for 26 and 28 inch disk |
1 |
|
| 9 |
302-0178 |
Lift arm cross bar |
1 |
|
| 10 |
202-9856 |
Lateral disk arm (short) |
2 |
|
| 11 |
202-9857 |
Lateral disk arm (dog leg) |
2 |
|
| 12 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
8 |
|
| 13 |
202-0331 |
Brush driver key (pkg of 2) |
2 |
|
| 14 |
202-0332 |
1/2 inch barbed tee |
1 |
|
| 16 |
999-1633 |
Clevis pin 3/8 x 3 1/2 |
2 |
|
| 17 |
999-1049 |
Washer 1/4 split lock zinc plated |
16 |
|
| 18 |
999-0330 |
Nut 1/2-13 acorn brass |
4 |
|
| 20 |
999-9237 |
Screw 3/8-16 x 1 1/4 hex cap |
3 |
|
| 21 |
999-9239 |
Bolt 1/4-20 x 1/2 carriage |
9 |
|
| 22 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
4 |
|
| 23 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
12 |
|
| 24 |
202-1201 |
Washer 5/16 uss |
14 |
|
| 25 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
9 |
|
| 26 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 27 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
2 |
|
| 28 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
3 |
|
| 29 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
9 |
|
| 30 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
16 |
|
| 31 |
999-1304 |
Screw M6-1 x 16mm hex head zinc |
16 |
|
| 32 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
2 |
|
| 33 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 34 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 35 |
202-2208 |
Compression spring |
2 |
|
|
|

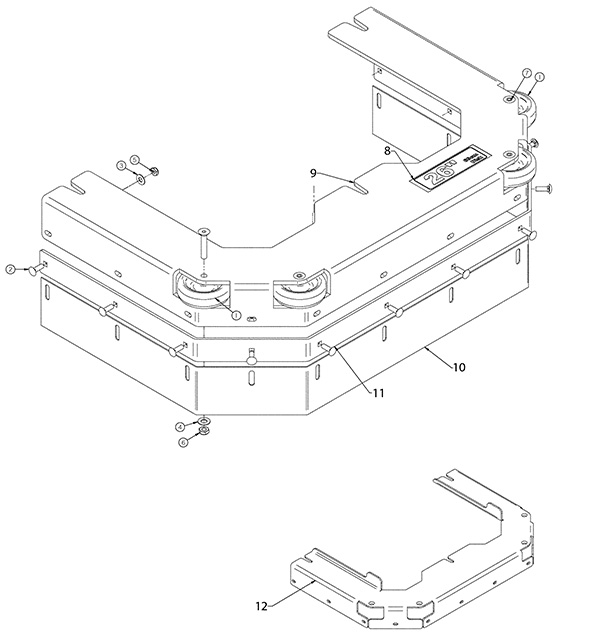

26 and 28 inch Disk Shroud Assembly - 202-0740 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5405 |
3 inch wheel |
4 |
|
| 2 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
12 |
|
| 3 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
12 |
|
| 4 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 5 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
12 |
|
| 6 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
4 |
|
| 7 |
999-1177 |
Screw 5/16-18 x 1 3/4 flat head socket stainless steel |
4 |
|
| 8a |
302-0179 |
26 inch shroud decal |
1 |
(26 inch) |
| 8b |
302-0180 |
28 inch shroud decal |
1 |
(28 inch) |
| 9a |
302-0181 |
26 inch shroud poly |
1 |
(26 inch) |
| 9b |
302-0182 |
28 inch shroud poly |
1 |
(28 inch) |
| 10a |
202-6355 |
Curtain, Shroud, 26 inch |
1 |
(26 inch) |
| 10b |
202-6356 |
Curtain, Shroud, 28 inch |
1 |
(28 inch) |
| 11a |
202-6357 |
Band, Shroud, 26 inch |
1 |
(26 inch) |
| 11b |
202-6358 |
Band, Shroud, 28 inch |
1 |
(28 inch) |
| 12a |
302-0183 |
26 inch shroud metal |
1 |
(26 inch) |
| 12b |
302-0184 |
28 inch shroud metal |
1 |
(28 inch) |
|
|
Orbital Lift Arm Assembly - 202-0741 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-9851 |
24V actuator |
1 |
|
| 2 |
202-9859 |
Left hand deck lifting bracket |
1 |
|
| 3 |
202-9860 |
Right hand deck lifting bracket |
1 |
|
| 4 |
202-9861 |
Edge lateral arm |
1 |
|
| 5 |
202-3716 |
Adjustable lateral arm |
2 |
|
| 6 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
| 7 |
999-0981 |
Screw 5-16-18 x 1/2 hex head grade 5 zinc plated |
6 |
|
| 8 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
4 |
|
| 9 |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
| 10 |
202-1201 |
Washer 5/16 uss |
14 |
|
| 11 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 12 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
| 13 |
999-9223 |
Screw M12-1.75 x 60 hex cap zinc |
2 |
|
| 14 |
999-1122 |
Nut M12-1.75 hex nylon insert lock stainless steel |
2 |
|
| 15 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
4 |
|
|
|

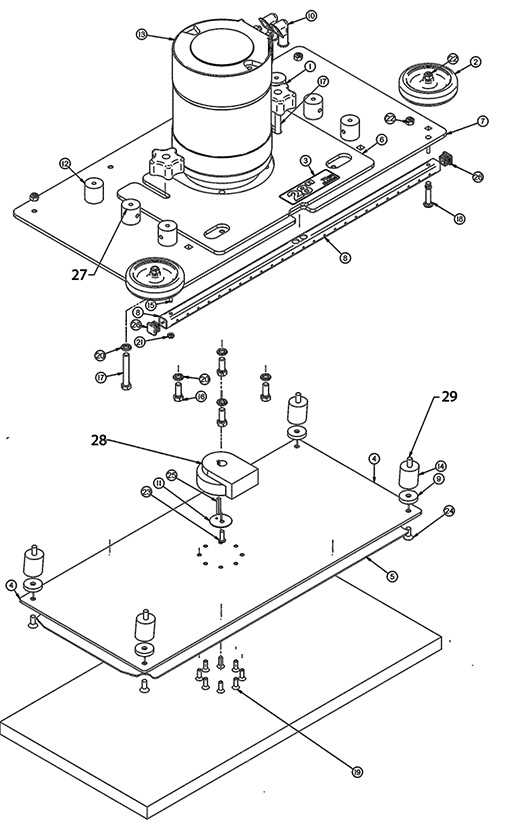

28 inch Orbital Deck Assembly - 202-0744 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-5079 |
4 inch wheel |
2 |
|
| 3 |
302-0190 |
28 inch orbital decal |
1 |
|
| 4 |
202-2183 |
28 inch driver plate aluminum |
1 |
|
| 5 |
202-2185 |
28 inch grip face |
1 |
|
| 6 |
202-9867 |
Weight (yellow) |
1 |
|
| 7 |
302-0191 |
28 inch square deck head |
1 |
|
| 8 |
302-0192 |
28 inch solution feed tube |
1 |
|
| 10 |
202-2961 |
Terminal cover (black) |
2 |
|
| 11 |
202-5084 |
Crush washer |
1 |
|
| 12 |
202-5213 |
20 inch isolator kit (pkg of 4) |
6 |
|
| 13 |
202-5531 |
24V 1 HP motor |
1 |
|
| 15 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
2 |
|
| 16 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
| 17 |
999-0041 |
Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated |
2 |
|
| 18 |
999-0404 |
Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc |
2 |
|
| 19 |
999-0457 |
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
8 |
|
| 20 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
6 |
|
| 21 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 22 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
12 |
|
| 23 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
1 |
|
| 24 |
999-1258 |
Screw 5/16-18 x 3/4 flat head phillips stainless steel |
4 |
|
| 25 |
202-0140 |
Steering shaft key |
1 |
|
| 26 |
202-9545 |
Plug,Square,3/4 inch,Black |
2 |
|
| 27 |
202-9862 |
Upper isolator kit (orbital) |
1 |
|
| 28 |
202-9863 |
Orbital eccentric kit |
1 |
(includes 1-eccentric, 8-bolts, 1-gasket, 1-sticker seal, 1-pack blue loctite) |
| 29 |
202-9864 |
Orbital isolator kit |
1 |
(includes 4-isolators, 4-bolts, 4-nuts, 1-gasket, 1-sticker seal) |
|
|
Solution Tank Assembly - 202-0748 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-9869 |
Solution fill screen |
1 |
|
| 3 |
302-0204 |
Solution fill curtain |
1 |
|
| 4 |
302-0203 |
Vac motor insulation |
1 |
|
| 5 |
302-0205 |
Battery plate |
1 |
|
| 6 |
202-9874 |
Kodiak decal |
1 |
|
| 7 |
202-9875 |
Timberline decal |
1 |
|
| 8 |
202-9876 |
Strainer screen (blue) |
1 |
|
| 12 |
202-5648 |
4 inch hinge stainless steel |
2 |
|
| 13 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 14 |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
|
| 15 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 16 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 17 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
4 |
|
| 18 |
202-3440 |
Barbed elbow |
1 |
|
| 21a |
302-0207 |
Solution tank (black) |
1 |
|
| 21b |
302-0208 |
Solution tank (blue) |
1 |
|
| 21c |
302-0209 |
Solution tank (antimicrobial) |
1 |
|
|
|
Recovery Tank Assembly - 202-0749 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5376 |
1 1/2 inch elbow |
1 |
|
| 2 |
202-3582 |
Drain hose assembly |
1 |
|
| 10 |
302-0212 |
Ball chain lanyard |
1 |
|
| 11 |
202-9886 |
Ball float top |
1 |
|
| 13 |
202-9887 |
Push-on rubber gasket |
1 |
|
| 14 |
202-9888 |
Ball float gasket |
1 |
|
| 15 |
202-9889 |
4 inch lid gasket |
1 |
|
| 17 |
202-9891 |
36V 3 stage vacuum motor |
1 |
|
| 19 |
202-9894 |
Tank curtain |
1 |
|
| 20 |
202-9895 |
Strainer gasket |
1 |
|
| 21 |
202-7033 |
Vac Box Filter |
1 |
|
| 22 |
202-7090 |
Strainer,Screen 6 inch |
1 |
|
| 23 |
202-0232 |
Float shut-off ball |
1 |
|
| 25 |
202-8038 |
4 inch Clear Access Port |
1 |
|
| 26 |
302-0213 |
Screw #8-32 x 1.875 phillips pan head |
2 |
|
| 27 |
202-0898 |
Stud 1/4-20 x 5 threaded stainless steel |
3 |
|
| 28 |
202-2067 |
Nut 10-32 keps |
3 |
|
| 30 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
| 31 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 32 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
6 |
|
| 33 |
202-1986 |
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
3 |
|
| 34a |
302-0214 |
Recovery tank (blue) |
1 |
|
| 34b |
302-0215 |
Recovery tank (green) |
1 |
|
| 34c |
302-0216 |
Recovery tank (granite) |
1 |
|
| 34d |
302-0217 |
Recovery tank (antimicrobial) |
1 |
|
| N/S |
202-9880 |
Vacuum motor gasket |
1 |
|
|
|
Squeegee Lift Bracket Assembly - 202-0750 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-0515 |
Solution flow control knob |
1 |
|
| 3 |
202-9897 |
Lever bracket |
1 |
|
| 4 |
202-9845 |
23-1/4 squeegee lift cable (black) |
1 |
|
| 5 |
202-9898 |
Stud 1/4-20 x 3 1/2 full |
4 |
|
| 6 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 7 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 8 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 9 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 10 |
999-9241 |
Washer 1 1/2 x 25/64 x 39/64 flat nylon |
2 |
|
| 11 |
999-9242 |
Screw 1/4-20 x 1 1/4 button head socket cap |
1 |
|
| 12 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
1 |
|
| 13 |
999-9243 |
Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) |
1 |
|
| 14 |
302-0218 |
Flanged bearing |
1 |
|
|
|
Central Command Assembly - 1 - 202-0751 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 2 |
202-5386 |
Handle grip (blue) |
1 |
|
| 3 |
202-6182 |
Handlebar,Dual Button |
1 |
|
| 4 |
202-4191 |
Emergency stop button |
1 |
|
| 5 |
202-6396 |
Power Post, Black, 1/4 Terminal |
2 |
|
| 6 |
202-6397 |
Power Post, Red, 1/4 Terminal |
2 |
|
| 8 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 9 |
202-2855 |
Battery meter |
1 |
|
| 10 |
202-4160 |
40amp resettable fuse |
1 |
|
| 11 |
202-0721 |
Microswitch |
1 |
|
| 12 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 14 |
202-9901 |
Control panel weight |
1 |
|
| 15 |
202-9902 |
Control panel cover |
1 |
|
| 16 |
202-9903 |
Valve lever |
1 |
|
| 17 |
202-9904 |
Control panel |
1 |
|
| 22 |
202-9906 |
Central command spacer |
4 |
|
| 23 |
202-3634 |
Drive controller |
1 |
|
| 24 |
202-9907 |
20amp resettable fuse |
1 |
|
| 25 |
202-0832 |
Full recovery indicator (red) |
2 |
|
| 26 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 27 |
991-1634 |
Key (pkg of 2) |
1 |
|
| 31 |
202-1992 |
Toggle switch |
2 |
|
| 32 |
202-0097 |
Toggle switch |
1 |
|
| 33 |
202-0720 |
Serial number plate |
1 |
|
| 34 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 35 |
202-0341 |
6 Amp circuit breaker |
2 |
|
| 36 |
202-0348 |
15amp relay |
2 |
|
| 37 |
202-0869 |
Switch cover |
2 |
|
| 38 |
202-0879 |
Push button switch |
2 |
|
| 39 |
202-0521 |
Toggle switch |
1 |
|
| 40 |
202-0535 |
Speed control potentiometer |
1 |
|
| 41 |
202-3625 |
Dual USB ports |
1 |
|
| 43 |
202-9136 |
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
| 44 |
202-3302 |
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
| 45 |
202-3601 |
Nut #10-32 hex crimp |
10 |
|
| 47 |
202-1976 |
Toggle switch protective boot (white) |
1 |
|
| 48 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 49 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 50 |
202-1355 |
Toggle switch protective boot (black) |
1 |
|
| 51 |
202-2221 |
Toggle switch protective boot (gray) |
1 |
|
| 52 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 53 |
202-2964 |
Shaft collar |
4 |
|
| 54 |
202-3315 |
Blind rivet |
4 |
|
| 55 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 56 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
2 |
|
| 57 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
9 |
|
| 58 |
202-2067 |
Nut 10-32 keps |
3 |
|
| 59 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
4 |
|
| 60 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 61 |
999-0150 |
Washer #8 medium split lock |
4 |
|
| 62 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 63 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 64 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
8 |
|
| 65 |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
| 66 |
202-3109 |
Screw 1/4 x 5/8 button head socket stainless steel |
4 |
|
| 67 |
999-1400 |
Screw 1/4-20 x 1 3/4 carriage head stainless steel |
2 |
|
| 68 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
6 |
|
| 69 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
| N/S |
202-1196 |
Washer 17/64 x 21/64 nylon flat |
2 |
|
| N/S |
202-2254 |
Heat shrink |
4 |
|
|
|
Central Command Assembly - After SN 125571 - 202-0752 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 2 |
202-5386 |
Handle grip (blue) |
1 |
|
| 3 |
202-4191 |
Emergency stop button |
1 |
|
| 4 |
202-4191 |
Emergency stop button |
1 |
|
| 5 |
202-6396 |
Power Post, Black, 1/4 Terminal |
2 |
|
| 6 |
202-6397 |
Power Post, Red, 1/4 Terminal |
2 |
|
| 8 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 9 |
202-2855 |
Battery meter |
1 |
|
| 10 |
202-4160 |
40amp resettable fuse |
1 |
|
| 11 |
202-0721 |
Microswitch |
1 |
|
| 12 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 14 |
202-9901 |
Control panel weight |
1 |
|
| 15 |
202-9902 |
Control panel cover |
1 |
|
| 16 |
202-9903 |
Valve lever |
1 |
|
| 17 |
202-9904 |
Control panel |
1 |
|
| 22 |
202-9906 |
Central command spacer |
4 |
|
| 23 |
202-9927 |
24V controller 90amp |
1 |
|
| 24 |
202-9907 |
20amp resettable fuse |
1 |
|
| 25 |
202-0832 |
Full recovery indicator (red) |
2 |
|
| 26 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 27 |
991-1634 |
Key (pkg of 2) |
1 |
|
| 31 |
202-1992 |
Toggle switch |
2 |
|
| 32 |
202-0097 |
Toggle switch |
1 |
|
| 33 |
202-0720 |
Serial number plate |
1 |
|
| 34 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 35 |
202-0341 |
6 Amp circuit breaker |
2 |
|
| 36 |
202-0348 |
15amp relay |
2 |
|
| 37 |
202-0869 |
Switch cover |
2 |
|
| 38 |
302-0219 |
Push button switch |
2 |
|
| 39 |
202-0521 |
Toggle switch |
1 |
|
| 40 |
202-0535 |
Speed control potentiometer |
1 |
|
| 41 |
202-3625 |
Dual USB ports |
1 |
|
| 43 |
202-9136 |
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
| 44 |
202-3302 |
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
| 45 |
202-3601 |
Nut #10-32 hex crimp |
10 |
|
| 47 |
202-1976 |
Toggle switch protective boot (white) |
1 |
|
| 48 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 49 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 50 |
202-1355 |
Toggle switch protective boot (black) |
1 |
|
| 51 |
202-2221 |
Toggle switch protective boot (gray) |
1 |
|
| 52 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 53 |
202-2964 |
Shaft collar |
4 |
|
| 54 |
202-3315 |
Blind rivet |
4 |
|
| 55 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 56 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
2 |
|
| 57 |
202-2067 |
Nut 10-32 keps |
9 |
|
| 58 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 59 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 60 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 61 |
999-0150 |
Washer #8 medium split lock |
4 |
|
| 62 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 63 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 64 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
8 |
|
| 66 |
202-3109 |
Screw 1/4 x 5/8 button head socket stainless steel |
4 |
|
| 67 |
999-1400 |
Screw 1/4-20 x 1 3/4 carriage head stainless steel |
2 |
|
| 68 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
6 |
|
| 69 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
| N/S |
202-1196 |
Washer 17/64 x 21/64 nylon flat |
2 |
|
| N/S |
202-2254 |
Heat shrink |
4 |
|
| N/S |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
|
|
Central Command Assembly - 2 - 202-0753 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 2 |
202-4191 |
Emergency stop button |
1 |
|
| 3 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 4 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 9 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 10 |
302-0220 |
24V controller |
1 |
|
| 11 |
302-0222 |
Dash panel assembly |
1 |
|
| 16 |
302-0226 |
Central command orion RG |
1 |
|
| 17 |
202-9902 |
Control panel cover |
1 |
|
| 20 |
202-9906 |
Central command spacer |
4 |
|
| 23 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 24 |
991-1634 |
Key (pkg of 2) |
1 |
|
| 26 |
202-0720 |
Serial number plate |
1 |
|
| 27 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 28 |
202-0348 |
15amp relay |
1 |
|
| 31 |
202-0535 |
Speed control potentiometer |
1 |
|
| 32 |
202-3625 |
Dual USB ports |
1 |
|
| 33 |
202-5284 |
Nut 1/4-20 hex crimp long |
2 |
|
| 34 |
202-9136 |
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
| 35 |
202-3302 |
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
| 37 |
202-3601 |
Nut #10-32 hex crimp |
8 |
|
| 39 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 40 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 41 |
202-3315 |
Blind rivet |
4 |
|
| 42 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 43 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
2 |
|
| 44 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 45 |
202-2067 |
Nut 10-32 keps |
1 |
|
| 47 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 48 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
12 |
|
| 51 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
2 |
|
| 52 |
999-1400 |
Screw 1/4-20 x 1 3/4 carriage head stainless steel |
2 |
|
| N/S |
202-2866 |
12 inch large 16 Gage red wire |
2 |
|
| N/S |
202-2251 |
Yellow wire, 16 gage |
2 |
|
| N/S |
302-0221 |
Dash Panel SED |
1 |
|
| N/S |
302-0223 |
Membrane display |
1 |
|
| N/S |
302-0224 |
Handle bar (dual button) |
1 |
|
| N/S |
202-0869 |
Switch cover |
2 |
|
| N/S |
202-0879 |
Push button switch |
2 |
|
| N/S |
202-2253 |
Nut 1/4-.3/8 x 3/8 long flanged bearing nylon |
1 |
|
| N/S |
202-2254 |
Heat shrink |
4 |
|
| N/S |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| N/S |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
| N/S |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
1 |
|
| N/S |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
2 |
|
|
|
Batteries and Chargers - 202-0754 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 3 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 4 |
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
| 5 |
162-0045 |
12V 140Ah AGM battery |
2 |
|
| 6 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 7 |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 8 |
302-0001 |
24v Lithium Ion battery |
1 |
|
| N/S |
202-2883 |
24V 12amp dual model console charger |
1 |
(before ordering confirm battery) |
| N/S |
202-5181 |
24V AGM onboard battery charger |
1 |
(before ordering confirm battery) |
| N/S |
202-5723 |
12V 27AH onboard charger |
1 |
(before ordering confirm battery) (optional on-board charger) |
| N/S |
202-7022 |
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
(before ordering confirm battery) (optional on-board charger) |
|
|
Optional Assembly - 202-0755 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-9930 |
24V onboard charger with power cord |
1 |
|
| 2 |
202-6852 |
Pump,24V,High PSI |
1 |
|
| 3 |
302-0230 |
Utilities plate |
1 |
|
| 4 |
202-7091 |
Bracket, Charger Connector |
1 |
|
| 5 |
202-5085 |
20 and 28 inch spacer |
4 |
|
| 6 |
991-2103 |
50amp charger plug SB50 with pins (red) |
2 |
|
| 7 |
202-5011 |
90 degree hose barb |
1 |
|
| 8 |
999-1982 |
Bolt 10-32 x 1 round carriage head stainless steel |
1 |
|
| 9 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
| 10 |
202-3236 |
Threaded barb |
1 |
|
| 11 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
2 |
|
| 12 |
999-0006 |
Washer 3/16 flat zinc plated |
8 |
|
| 13 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
8 |
|
| 14 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 15 |
202-2067 |
Nut 10-32 keps |
3 |
|
|
|
Squeegee Assembly - 202-0756 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
9 |
(Flat head socket #6-32 x 3/8 screw) |
| 3 |
202-5079 |
4 inch wheel |
2 |
|
| 4 |
202-3590 |
2 inch caster (gray) |
2 |
|
| 5 |
202-9913 |
Squeegee latch |
1 |
|
| 7 |
202-3649 |
Front band clip |
1 |
|
| 8 |
202-9914 |
Front band clip |
1 |
|
| 11 |
202-3660 |
Rod end bolt |
1 |
|
| 12 |
202-9917 |
Eye bolt 1/4-20 x 3 |
1 |
|
| 14 |
202-9919 |
Squeegee caster bracket |
2 |
|
| 16 |
202-3670 |
45 inch squeegee weight |
2 |
|
| 17 |
999-1443 |
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
4 |
|
| 18 |
999-9246 |
Bolt 1/4-20 x 3 carriage zinc |
4 |
|
| 19 |
999-6688 |
Nut 6-32 hex nylon insert lock stainless steel |
9 |
|
| 20 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
| 21 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 22 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
| 23 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 24 |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
| 25 |
999-0626 |
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
| 26 |
999-1913 |
Screw 5/16-18 x 1 3/4 button head socket cap stainless steel |
2 |
|
| 27a |
302-0244 |
Squeegee blade 33 inch linatex rear |
1 |
(33 inch) |
| 27b |
302-0165 |
33 inch rear squeegee blade urethane |
1 |
(33 inch) |
| 27c |
202-9921 |
Rear squeegee blade (nanorade) |
1 |
(33 inch) |
| 27d |
202-3664 |
Squeegee blade 37 inch linatex rear |
1 |
(37 inch) |
| 27e |
202-9692 |
Squeegee blade 37 inch urethane rear |
1 |
(37 inch) |
| 27f |
302-0231 |
Squeege blade rear nanorade |
1 |
(37 inch) |
| 27g |
202-9613 |
Squeegee blade rear linatex |
1 |
(41 inch) |
| 27h |
302-0162 |
41 inch squeegee blade rear urethane |
1 |
(41 inch) |
| 27i |
302-0232 |
Squeege blade rear nanorade |
1 |
(41 inch) |
| 28a |
202-3691 |
Squeegee blade 33 inch linatex front |
1 |
(33 inch) |
| 28b |
302-0243 |
Squeegee blade 33 inch urethane front |
1 |
(33 inch) |
| 28c |
202-9924 |
33 inch front squeegee blade (nanorade) |
1 |
(33 inch) |
| 28d |
202-3692 |
Squeegee blade 37 inch linatex front |
1 |
(37 inch) |
| 28e |
202-9695 |
Squeegee blade 37 inch urethane front |
1 |
(37 inch) |
| 28f |
302-0233 |
Squeege blade front nanorade |
1 |
(37 inch) |
| 28g |
202-9611 |
Squeegee blade front linatex |
1 |
(41 inch) |
| 28h |
202-9612 |
Squeegee blade front urethane |
1 |
(41 inch) |
| 28i |
302-0234 |
Squeege blade front nanorade |
1 |
(41 inch) |
| 30a |
202-3672 |
Squeegee band 33 inch rear with latch |
1 |
(33 inch) |
| 30b |
202-3673 |
Squeegee band 37 inch rear with latch |
1 |
(37 inch) |
| 30c |
202-9610 |
Squeege band rear |
1 |
(41 inch) |
| 31a |
202-3672 |
Squeegee band 33 inch rear with latch |
1 |
(33 inch) (left and right side bands) |
| 31b |
202-3673 |
Squeegee band 37 inch rear with latch |
1 |
(37 inch)(left and right side bands) |
| 31c |
202-9610 |
Squeege band rear |
1 |
(41 inch)(left and right side bands) |
| 32a |
202-3676 |
Squeegee band 33 inch front with latch |
1 |
(33 inch)(left and right side bands) |
| 32b |
202-3677 |
Squeegee band 37 inch front with latch |
1 |
(37 inch)(left and right side bands) |
| 32c |
202-3678 |
Squeegee band 41 inch front with latch |
1 |
(41 inch)(left and right side bands) |
| 33a |
202-3676 |
Squeegee band 33 inch front with latch |
1 |
(33 inch)(left and right side bands) |
| 33b |
202-3677 |
Squeegee band 37 inch front with latch |
1 |
(37 inch)(left and right side bands) |
| 33c |
202-3678 |
Squeegee band 41 inch front with latch |
1 |
(41 inch)(left and right side bands) |
| 34a |
302-0235 |
33 inch squeegee body |
1 |
(33 inch) |
| 34b |
302-0236 |
37 inch squeegee body |
1 |
(37 inch) |
| 34c |
302-0237 |
41 inch squeegee body |
1 |
(41 inch) |
| 35a |
202-9923 |
33 inch squeegee body bottom |
1 |
(33 inch) |
| 35b |
302-0238 |
37 inch squeegee body bottom |
1 |
(37 inch) |
| 35c |
302-0239 |
41 inch squeegee body bottom |
1 |
(41 inch) |
| 36a |
202-9922 |
33 inch squeegee decal |
1 |
(33 inch) |
| 36b |
202-4349 |
37 inch squeegee decal |
1 |
(37 inch) |
| 36b |
202-3656 |
41 inch squeegee decal |
1 |
(41 inch) |
| 37a |
202-9925 |
33 inch squeegee assembly with nanorade blades |
1 |
(33 inch) |
| 37b |
302-0157 |
37 inch squeegee complete with nanorade |
1 |
(37 inch) |
| 37c |
302-0158 |
41 inch squeegee complete with nanorade blades |
1 |
(41 inch) |
|
|
- 14 inch Brushes - Disc - 202-0758 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
302-0050 |
14 inch brush midi-grit 7 lobe |
2 |
|
| 2 |
302-0053 |
14 inch brush light-grit 7 lobe |
2 |
|
| 3 |
302-0056 |
14 inch brush nylon7 lobe |
2 |
|
| 4 |
302-0059 |
14 inch pad driver 7 lobe |
2 |
|
|
|
-Pads and Screens - Orbital - 202-0759 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
202-8981 |
Pad, 14 inch X 20 inch White Scrub Case of 5 |
1 |
(20 inch) |
|
202-8980 |
Pad, 14 inch X 20 inch, Red Case of 5 |
1 |
(20 inch) |
|
202-8979 |
Pad, 14 inch X 20 inch, Blue Case of 5 |
1 |
(20 inch) |
|
202-8978 |
Pad, 14 inch X 20 inch, Green Case of 5 |
1 |
(20 inch) |
|
202-8977 |
Pad, 14 inch X 20 inch, Black Case of 5 |
1 |
(20 inch) |
|
202-8999 |
Pad 14 X20x1/4 inch White Driver Pad, Case of 10 |
1 |
(20 inch) |
|
202-9034 |
Tile / Grout Renovator Pad 20 inch, Blue |
1 |
(20 inch) |
|
202-8982 |
HI-Output Strip Pad, 14 inch X 20 inch Case of 5 |
1 |
(20 inch) |
|
202-8983 |
Prep Pad, 14 inch X 20 inch - Case of 10 - QP |
1 |
(20 inch) |
|
202-9009 |
Microfiber Pad, 14 inch X 20 inch |
1 |
(20 inch) |
|
202-3559 |
14 x 24 inch pad (red) (pkg of 5) |
1 |
(24 inch) |
|
202-8954 |
Pad, 14 inch X 24 inch, Blue - Case of 5 |
1 |
(24 inch) |
|
202-8953 |
Pad, 14 inch X 24 inch, Green - Case of 5 |
1 |
(24 inch) |
|
202-8952 |
Pad, 14 inch X 24 inch, Black - Case of 5 |
1 |
(24 inch) |
|
202-8957 |
Prep Pad, 14 inch X 24 inch - Case of 10 - QP |
1 |
(24 inch) |
|
202-8962 |
Microfiber, Blue, 14 inch X 24 inch |
1 |
(24 inch) |
|
202-9023 |
Pad, 14 inch X 28 inch, White - Case of 5 |
1 |
(24 inch) |
|
202-9022 |
Pad, 14 inch X 28 inch, Red - Case of 5 |
1 |
(28 inch) |
|
202-9021 |
Pad, 14 inch X 28 inch, Blue - Case of 5 |
1 |
(28 inch) |
|
202-9020 |
Pad, 14 inch X 28 inch, Green - Case of 5 |
1 |
(28 inch) |
|
202-9019 |
Pad, 14 inch X 28 inch, Black - Case of 5 |
1 |
(28 inch) |
|
202-9027 |
Pad 14 inch X 28 inch White Sand Paper Driver, Case of 10 |
1 |
(28 inch) |
|
202-9028 |
Sand Screen, 14 inch X 28 inch 60 Grit, Case of 10 |
1 |
(28 inch) |
|
202-9029 |
Sand Screen, 14 inch X 28 inch 80 Grit, Case of 10 |
1 |
(28 inch) |
|
202-9030 |
Sand Screen, 14 inch X 28 inch 100 Grit, Case of 10 |
1 |
(28 inch) |
|
202-9031 |
Sand Screen, 14 inch X 28 inch 120 Grit, Case of 10 |
1 |
(28 inch) |
|
202-9032 |
Sand Screen, 14 inch X 28 inch 150 Grit, Case of 10 |
1 |
(28 inch) |
|
202-7390 |
HD Non Woven Polishing Pad 400 Grit 20 inchx14 inch - 1/ea |
1 |
(28 inch) |
|
202-7391 |
HD Non Woven Polishing Pad 800 Grit 20 inchx14 inch - 1/ea |
1 |
(28 inch) |
|
202-7387 |
HD Non Woven Polishing Pad 1500 Grit 20 inchx14 inch - 1/ea |
1 |
(28 inch) |
|
202-7389 |
HD Non Woven Polishing Pad 3000 Grit 20 inchx14 inch - 1/ea |
1 |
(28 inch) |
|
202-9035 |
Diamond Poly Pad 6000Grit14x20 Case of 5 |
1 |
(28 inch) |
|
202-9018 |
Tile / Grout Renovator Pad 28 inch, Blue |
1 |
(28 inch) |
|
202-9024 |
Hi-Output Strip Pad , 14 inch X 28 - Case of 5 |
1 |
(28 inch) |
|
202-9025 |
Prep Pad, 14 inch X 28 inch - Case of 10 |
1 |
(28 inch) |
|
202-9066 |
Microfiber Pad, 14 inch X 28 inch |
1 |
(28 inch) |
|
|
- Pads - 255-1400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1440 |
14 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1435 |
14 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1464 |
14 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1442 |
14 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1412 |
14 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1477 |
14 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1438 |
14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1421 |
14 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1450 |
14 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1465 |
14 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1430 |
14 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1487 |
14 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1490 |
14 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1470 |
14 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1492 |
14 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1480 |
14 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1460 |
14 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1452 |
14 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1420 |
14 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1411 |
14 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1495 |
14 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1447 |
14 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1455 |
14 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1423 |
14 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0120 |
14 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0121 |
14 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0122 |
14 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0119 |
14 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 29 |
255-0205 |
14 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 30 |
255-0206 |
14 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 31 |
255-0207 |
14 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0204 |
14 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 33 |
255-1424 |
14 x 20 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 34 |
255-9549 |
14 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 35 |
255-9546 |
14 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 36 |
255-9543 |
14 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 37 |
255-9547 |
14 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 38 |
255-9544 |
14 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 39 |
255-9545 |
14 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 40 |
255-9548 |
14 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 41 |
255-9639 |
14 inch Diamond starter pack (1 of each grit) |
|
|
| 42 |
255-1482 |
14 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 43 |
255-1415 |
14 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1416 |
14 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Commonly Asked For Parts - 999-9171 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
202-9927 |
24V controller 90amp |
|
|
|
|
|
