Parts List Complete for TIMBERLINE M26


Frame Assembly - 202-0735
RefNbr Part Number Description Req Notes
1 202-5064 Caster wheel 2
2 202-5363 3/8 inch ball valve 1
3 202-5567 Cable guide 1
4 202-6417 Knob,Yellow 1
5 302-0132 3 in 1 tool 1
6 202-9829 Lifting bracket 2
7 202-3901 Lift bracket spacer 3
8 302-0166 Frame brace 2
9 202-9833 Upper actuator bracket 1
10 302-0167 Left hand 24V frame bracket 1
11 302-0168 Right hand 24V frame bracket 1
12 302-0169 Frame base 1
13 202-9837 Solution valve cable 1
14 202-9964 Transaxle hub with moutning 2
15 202-3902 24V transaxle w/ connectors 1
16 302-0170 24V valve 1
17 202-3234 Inline filter 1
18 202-5284 Nut 1/4-20 hex crimp long 4
19 999-1049 Washer 1/4 split lock zinc plated 8
20 999-1215 Washer #6 SAE flat zinc plated 1
21 202-3236 Threaded barb 2
22 999-9069 Bolt 5/16-18 x 3/4 carriage head 20
23 999-1334 Bolt 5/16-18 x 1 1/4 carriage head stainless steel 4
24 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel 1
25 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 1
26 202-9285 Screw,PFHM,#10-32x1/2 inch Zinc 2
27 999-9235 Screw #10-32 x 1 flat head phillips zinc plated 11
28 999-0553 Washer 5/16 medium split lock stainless steel 6
29 999-0069 Nut 5/16-18 hex 8
30 999-6688 Nut 6-32 hex nylon insert lock stainless steel 1
31 999-0086 Nut 10-32 nylon insert lock zinc plated 1
32 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 12
33 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 39
34 202-2067 Nut 10-32 keps 2
35 202-4070 90 degree barbed elbow 1
36 202-9966 Clevis pin 2
37 202-3316 Washer flat stainless steel 1
38 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 1
39 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 1
40 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel 4
41 999-9243 Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) 6
42 202-9839 Screw 5/16-18 x 4 1/4 flat head socket cap screw zinc 4
43 202-3275 Rubber bumper 2
44 202-0585 Cotter ring 2
45 202-3239 Tee 1
46 202-9642 3/4 inch clamp zinc 2
47 202-9840 1/2 inch ID x 5 foot clear hose 1
48 202-9840 1/2 inch ID x 5 foot clear hose 1
49 202-9840 1/2 inch ID x 5 foot clear hose 1
50 202-9840 1/2 inch ID x 5 foot clear hose 1
51a 202-9827 8 inch poly tire (grey) 2
51b 302-0171 Wheel solid (black) 2

Squeegee Trail Arm Assembly - 202-0736
RefNbr Part Number Description Req Notes
1 202-6432 Body, Adjustable Lateral Arm Assy 1
2 202-9841 Squeegee swing plate 1
3 202-9842 Squeegee trail arm 1
4 202-9844 Spring 1
5 202-9843 Triangle plate 1
6 999-1215 Washer #6 SAE flat zinc plated 1
7 999-9072 Bolt 1/4-20 x 1 hex head cap 4
8 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 2
9 999-9236 Bolt 1/4-20 x 6 carriage head zinc plated 1
10 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 4
11 999-9235 Screw #10-32 x 1 flat head phillips zinc plated 1
12 999-0006 Washer 3/16 flat zinc plated 1
13 999-0123 Washer 1/4 SAE flat zinc plated 2
14 999-0190 Nut 1/4-20 hex plain finish 2
15 999-6688 Nut 6-32 hex nylon insert lock stainless steel 1
16 999-0086 Nut 10-32 nylon insert lock zinc plated 1
17 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 7
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
19 202-2210 Washer 3/8 x 3/4 flat nylon 6
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
21 999-0998 Washer #10 flat stainless steel 1
22 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel 1
23 202-3275 Rubber bumper 1
24 302-0172 6 inch ground chain 1
25 202-9845 23-1/4 squeegee lift cable (black) 1

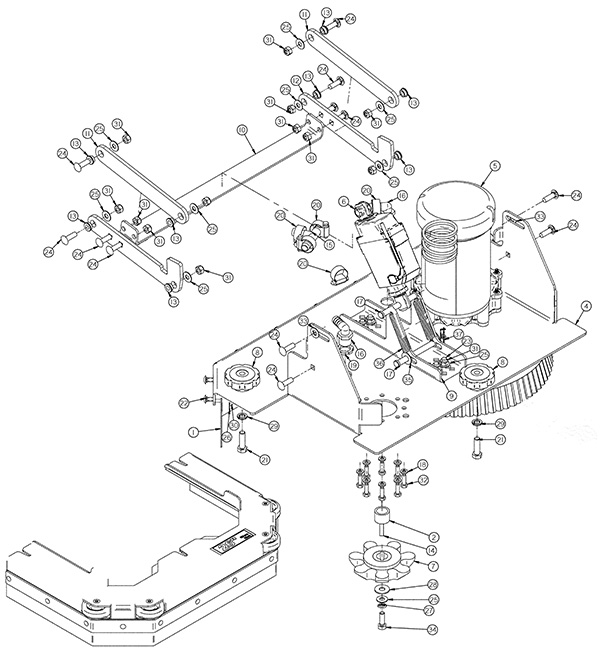

26 inch Disk Scrub Deck Assembly - 202-0738
RefNbr Part Number Description Req Notes
1 202-6325 Curtain, Deck, Rear, 26 inch 1
2 202-6418 Spacer, Driver 2
4 302-0174 26 inch disk deck 1
5 302-0093 24v motor 2
6 202-9851 24V actuator 1
7 202-9852 Brush driver 2
8 202-9853 3/8-16 star knob 3
9 302-0175 Lifting bracket for 26 and 28 inch disk 1
10 302-0176 Lift arm cross bar 1
11 202-9856 Lateral disk arm (short) 2
12 202-9857 Lateral disk arm (dog leg) 2
13 202-7656 Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S 8
14 202-0331 Brush driver key (pkg of 2) 2
15 202-0332 1/2 inch barbed tee 1
16 202-0333 Elbow barb 2
17 999-1633 Clevis pin 3/8 x 3 1/2 2
18 999-1049 Washer 1/4 split lock zinc plated 16
19 999-0330 Nut 1/2-13 acorn brass 4
20 202-0680 Hose clamp 5
21 999-9237 Screw 3/8-16 x 1 1/4 hex cap 3
22 999-9239 Bolt 1/4-20 x 1/2 carriage 9
23 999-9069 Bolt 5/16-18 x 3/4 carriage head 4
24 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 12
25 202-1201 Washer 5/16 uss 14
26 999-1288 Washer 1/4 x 1 OD fender stainless steel 9
27 999-0553 Washer 5/16 medium split lock stainless steel 2
28 999-0659 Washer 3/8 medium split lock stainless steel 2
29 999-0659 Washer 3/8 medium split lock stainless steel 3
30 999-0304 Nut 1/4-20 nylon lock jam stainless steel 9
31 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 16
32 999-1304 Screw M6-1 x 16mm hex head zinc 16
33 202-2210 Washer 3/8 x 3/4 flat nylon 2
34 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
35 999-0617 Washer 3/8 x 1 flat stainless steel 2
36 202-2208 Compression spring 2
37 202-2036 Cotter pin 2
N/S 302-0173 Right hand 36V motor side broom 1

26 and 28 inch Disk Shroud Assembly - 202-0740
RefNbr Part Number Description Req Notes
1 202-5405 3 inch wheel 4
2 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 12
3 999-0123 Washer 1/4 SAE flat zinc plated 12
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
5 999-0304 Nut 1/4-20 nylon lock jam stainless steel 12
6 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated 4
7 999-1177 Screw 5/16-18 x 1 3/4 flat head socket stainless steel 4
8a 302-0179 26 inch shroud decal 1 (26 inch)
8b 302-0180 28 inch shroud decal 1 (28 inch)
9a 302-0181 26 inch shroud poly 1 (26 inch)
9b 302-0182 28 inch shroud poly 1 (28 inch)
10a 202-6355 Curtain, Shroud, 26 inch 1 (26 inch)
10b 202-6356 Curtain, Shroud, 28 inch 1 (28 inch)
11a 202-6357 Band, Shroud, 26 inch 1 (26 inch)
11b 202-6358 Band, Shroud, 28 inch 1 (28 inch)
12a 302-0183 26 inch shroud metal 1 (26 inch)
12b 302-0184 28 inch shroud metal 1 (28 inch)

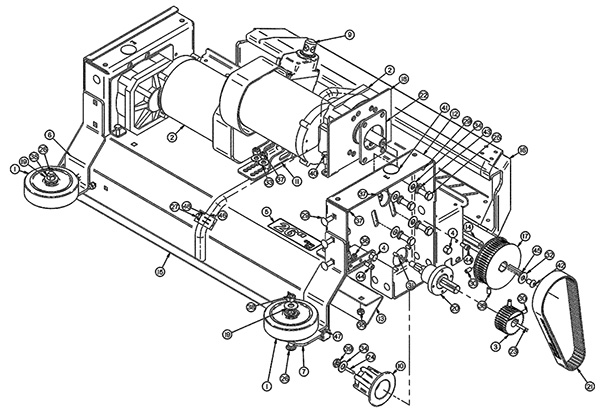

26 inch Cylindrical Deck Assembly - 202-0745
RefNbr Part Number Description Req Notes
1 202-2098 4 inch wheel (gray) 2
2 202-9616 24V 3/4HP brush motor w/ connectors 2
3 202-3140 32 toothed sprocket 2
4 202-4023 Thumb screw 4
5 302-0193 26 inch cylindrical decal 1
6 302-0194 Right hand bracket 1
7 302-0195 Left hand bracket 1
9 202-9851 24V actuator 1
10 302-0094 Cylindrical driver spiral 7 spline 2
11 302-0196 Deck lifting bracket 1
12 202-2173 Side support 2
13 302-0086 26 inch cylindrical attinuator 1
14 302-0084 26 inch cylindrical stiffener 1
15 302-0088 26 inch cylindrical shell 1
16 302-0197 26 inch hopper 1
17 202-7059 Sprocket, Timing, 56 Tooth 2
18 202-7071 Bracket, Motor Adjustment 2
19 999-0617 Washer 3/8 x 1 flat stainless steel 2
20 202-3146 Bearing housing 2
21 202-0023 Cylindrical belt 2
22 202-2175 Motor spacer 2
23 202-0847 Square keyway 2
24 202-3153 Square keyway 2
25 999-1469 Screw 3/8-24 x 7/8 hex head zinc plated 8
26 999-1638 Bolt 3/8-16 x 2 1/4 carriage stainless steel 2
27 999-9239 Bolt 1/4-20 x 1/2 carriage 2
29 999-9069 Bolt 5/16-18 x 3/4 carriage head 22
30 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel 8
31 202-9285 Screw,PFHM,#10-32x1/2 inch Zinc 8
32 202-1214 Washer 1/4 uss 2
33 202-1201 Washer 5/16 uss 10
34 999-0617 Washer 3/8 x 1 flat stainless steel 10
35 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 22
36 999-0304 Nut 1/4-20 nylon lock jam stainless steel 6
37 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 22
38 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
39 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 2
40 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
41 202-2244 Hole plug 7/8 2
42 999-1459 Screw 5/16-18 x 1/2 button socket head stainless steel 2
43 202-3158 Washer 3/8 inch serrated stainless steel 8
44 999-9293 Screw 1/4-20 x 1/2 socket head cap 5
45 202-0140 Steering shaft key 2
46 202-9642 3/4 inch clamp zinc 1
47 202-9545 Plug,Square,3/4 inch,Black 2
48 202-5106 Reinforced hose 1/2 x 60 inch 1
N/S 999-9240 Bolt 1/4-20 x 5/8 carriage 22
N/S 302-0093 24v motor 1

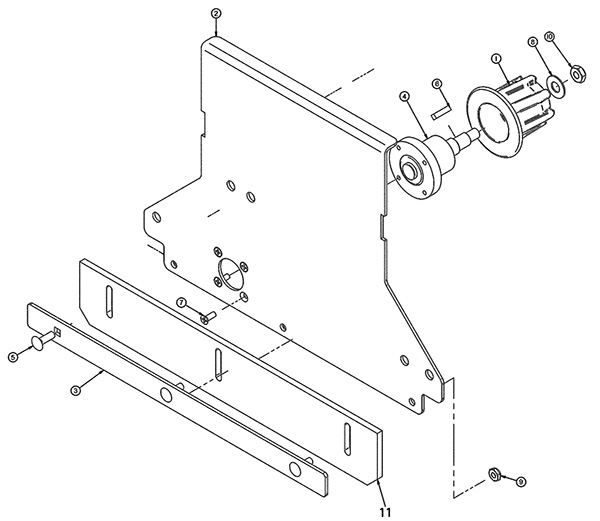

Cylindrical Deck Door Assembly - 202-0746
RefNbr Part Number Description Req Notes
1 302-0099 Idler 1
2 302-0100 Drive cover 1
3 202-7075 Band, Wiper 1
4 202-3168 Idler drive bearing 1
5 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 3
6 202-3153 Square keyway 1
7 202-9285 Screw,PFHM,#10-32x1/2 inch Zinc 4
8 999-0617 Washer 3/8 x 1 flat stainless steel 1
9 999-0304 Nut 1/4-20 nylon lock jam stainless steel 3
10 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 1
11a 202-7073 Wiper, Cylindrical, linatex 1
11b 202-7072 Wiper, Cylindrical, Gum 1
11c 202-7074 Wiper, Cylindrical, Urethane 1

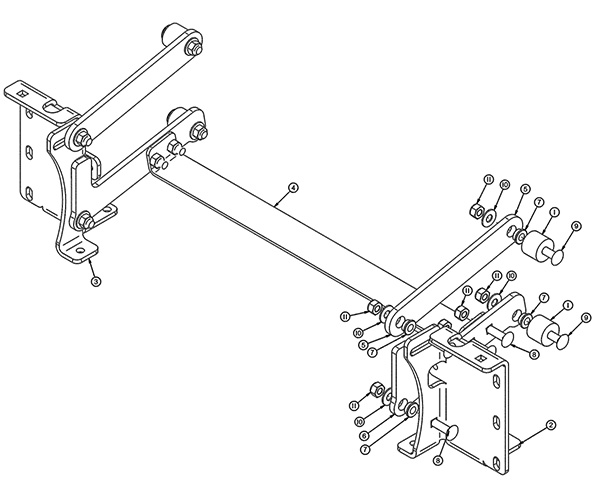

Cylindrical Deck Arm Assembly - 202-0747
RefNbr Part Number Description Req Notes
1 202-4288 Standoff 4
2 302-0198 26 inch left hand bracket 1
3 302-0199 26 inch right hand bracket 1
4 302-0176 Lift arm cross bar 1
5 302-0200 Lateral arm 2
6 302-0201 Lateral arm 2
7 202-7656 Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S 8
8 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 8
9 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc 4
10 202-1201 Washer 5/16 uss 8
11 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12

Solution Tank Assembly - 202-0748
RefNbr Part Number Description Req Notes
1 302-0202 Strap 1
2 202-9869 Solution fill screen 1
3 302-0204 Solution fill curtain 1
4 302-0203 Vac motor insulation 1
5 302-0205 Battery plate 1
6 202-9874 Kodiak decal 1
7 202-9875 Timberline decal 1
8 202-9876 Strainer screen (blue) 1
9 302-0206 Spacer 4
10 202-1487 Latch 1
11 202-4200 Fill hose 1
12 202-5648 4 inch hinge stainless steel 2
13 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
14 999-0006 Washer 3/16 flat zinc plated 2
15 999-0123 Washer 1/4 SAE flat zinc plated 4
16 999-0060 Washer 1/4 split lock plain finish 4
17 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4
18 202-3440 Barbed elbow 1
19 202-9877 Elbow 1
20 202-4225 Hose 1
21a 302-0207 Solution tank (black) 1
21b 302-0208 Solution tank (blue) 1
21c 302-0209 Solution tank (antimicrobial) 1

Recovery Tank Assembly - 202-0749
RefNbr Part Number Description Req Notes
1 202-5376 1 1/2 inch elbow 1
2 202-3582 Drain hose assembly 1
3 203-7216 Vacuum hose 1
4 202-9878 Tank gasket 1
5 302-0210 Insulation 1
6 302-0211 Gasket 1
8 202-9882 Vac muffler 1
9 202-9883 Vac cover 1
10 302-0212 Ball chain lanyard 1
11 202-9886 Ball float top 1
12 202-9981 Vac screen 1
13 202-9887 Push-on rubber gasket 1
14 202-9888 Ball float gasket 1
15 202-9889 4 inch lid gasket 1
16 202-3914 Knob (red) 2
17 202-9891 36V 3 stage vacuum motor 1
18 202-9893 Baffle 1
19 202-9894 Tank curtain 1
20 202-9895 Strainer gasket 1
21 202-7033 Vac Box Filter 1
22 202-7090 Strainer,Screen 6 inch 1
23 202-0232 Float shut-off ball 1
25 202-8038 4 inch Clear Access Port 1
26 302-0213 Screw #8-32 x 1.875 phillips pan head 2
27 202-0898 Stud 1/4-20 x 5 threaded stainless steel 3
28 202-2067 Nut 10-32 keps 3
29 302-0124 Clamp 2
30 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
32 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 6
33 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread 3
34a 302-0214 Recovery tank (blue) 1
34b 302-0215 Recovery tank (green) 1
34c 302-0216 Recovery tank (granite) 1
34d 302-0217 Recovery tank (antimicrobial) 1
N/S 202-9880 Vacuum motor gasket 1
N/S 202-1487 Latch 1

Squeegee Lift Bracket Assembly - 202-0750
RefNbr Part Number Description Req Notes
1 202-0515 Solution flow control knob 1
2 202-9896 Lever 1
3 202-9897 Lever bracket 1
4 202-9845 23-1/4 squeegee lift cable (black) 1
5 202-9898 Stud 1/4-20 x 3 1/2 full 4
6 999-0123 Washer 1/4 SAE flat zinc plated 4
7 999-0190 Nut 1/4-20 hex plain finish 2
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 5
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
10 999-9241 Washer 1 1/2 x 25/64 x 39/64 flat nylon 2
11 999-9242 Screw 1/4-20 x 1 1/4 button head socket cap 1
12 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 1
13 999-9243 Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) 1
14 302-0218 Flanged bearing 1

Central Command Assembly - 1 - 202-0751
RefNbr Part Number Description Req Notes
1 202-5396 Toggle switch 1
2 202-5386 Handle grip (blue) 1
3 202-6182 Handlebar,Dual Button 1
4 202-4191 Emergency stop button 1
5 202-6396 Power Post, Black, 1/4 Terminal 2
6 202-6397 Power Post, Red, 1/4 Terminal 2
7 202-2252 End cap 2
8 202-4159 40amp brush pressure gauge 1
9 202-2855 Battery meter 1
10 202-4160 40amp resettable fuse 1
11 202-0721 Microswitch 1
12 202-0989 Control knob with washer (red) 1
13 202-9900 Hand guard 1
14 202-9901 Control panel weight 1
15 202-9902 Control panel cover 1
16 202-9903 Valve lever 1
17 202-9904 Control panel 1
18 202-9905 Decal set 1
19 202-9905 Decal set 1
20 202-9905 Decal set 2
21 202-9905 Decal set 1
22 202-9906 Central command spacer 4
23 202-3634 Drive controller 1
24 202-9907 20amp resettable fuse 1
25 202-0832 Full recovery indicator (red) 2
26 202-2300 Key switch with key entry (red) and ring (black) 1
27 991-1634 Key (pkg of 2) 1
28 202-2242 30amp fuse 2
29 202-5253 24V relay 2
30 202-7595 Breaker,4a 1
31 202-1992 Toggle switch 2
32 202-0097 Toggle switch 1
33 202-0720 Serial number plate 1
34 991-2103 50amp charger plug SB50 with pins (red) 1
35 202-0341 6 Amp circuit breaker 2
36 202-0348 15amp relay 2
37 202-0869 Switch cover 2
38 202-0879 Push button switch 2
39 202-0521 Toggle switch 1
40 202-0535 Speed control potentiometer 1
41 202-3625 Dual USB ports 1
43 202-9136 Nut,Hex,3/8-32 inch,Zinc 1
44 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 1
45 202-3601 Nut #10-32 hex crimp 10
47 202-1976 Toggle switch protective boot (white) 1
48 202-1864 Toggle switch protective boot (red) 1
49 202-1865 Toggle switch protective boot (blue) 1
50 202-1355 Toggle switch protective boot (black) 1
51 202-2221 Toggle switch protective boot (gray) 1
52 202-2371 Screw 4-40 x 3/4 round pan head 2
53 202-2964 Shaft collar 4
54 202-3315 Blind rivet 4
55 999-0295 Nut 4-40 nylon insert lock stainless steel 2
56 999-0357 Nut 8-32 nylon insert lock stainless steel 2
57 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 9
58 202-2067 Nut 10-32 keps 3
59 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 4
60 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
61 999-0150 Washer #8 medium split lock 4
62 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
63 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
64 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 8
65 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
66 202-3109 Screw 1/4 x 5/8 button head socket stainless steel 4
67 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
68 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 6
69 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 1
70 202-3636 Grommet 1
N/S 202-1196 Washer 17/64 x 21/64 nylon flat 2
N/S 202-2254 Heat shrink 4

Central Command Assembly - After SN 125571 - 202-0752
RefNbr Part Number Description Req Notes
1 202-5396 Toggle switch 1
2 202-5386 Handle grip (blue) 1
3 202-4191 Emergency stop button 1
4 202-4191 Emergency stop button 1
5 202-6396 Power Post, Black, 1/4 Terminal 2
6 202-6397 Power Post, Red, 1/4 Terminal 2
7 202-2252 End cap 2
8 202-4159 40amp brush pressure gauge 1
9 202-2855 Battery meter 1
10 202-4160 40amp resettable fuse 1
11 202-0721 Microswitch 1
12 202-0989 Control knob with washer (red) 1
13 202-9900 Hand guard 1
14 202-9901 Control panel weight 1
15 202-9902 Control panel cover 1
16 202-9903 Valve lever 1
17 202-9904 Control panel 1
18 202-9905 Decal set 1
19 202-9905 Decal set 1
20 202-9905 Decal set 2
21 202-9905 Decal set 1
22 202-9906 Central command spacer 4
23 202-9927 24V controller 90amp 1
24 202-9907 20amp resettable fuse 1
25 202-0832 Full recovery indicator (red) 2
26 202-2300 Key switch with key entry (red) and ring (black) 1
27 991-1634 Key (pkg of 2) 1
28 202-2242 30amp fuse 2
29 202-5253 24V relay 2
30 202-7595 Breaker,4a 1
31 202-1992 Toggle switch 2
32 202-0097 Toggle switch 1
33 202-0720 Serial number plate 1
34 991-2103 50amp charger plug SB50 with pins (red) 1
35 202-0341 6 Amp circuit breaker 2
36 202-0348 15amp relay 2
37 202-0869 Switch cover 2
38 302-0219 Push button switch 2
39 202-0521 Toggle switch 1
40 202-0535 Speed control potentiometer 1
41 202-3625 Dual USB ports 1
43 202-9136 Nut,Hex,3/8-32 inch,Zinc 1
44 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 1
45 202-3601 Nut #10-32 hex crimp 10
47 202-1976 Toggle switch protective boot (white) 1
48 202-1864 Toggle switch protective boot (red) 1
49 202-1865 Toggle switch protective boot (blue) 1
50 202-1355 Toggle switch protective boot (black) 1
51 202-2221 Toggle switch protective boot (gray) 1
52 202-2371 Screw 4-40 x 3/4 round pan head 2
53 202-2964 Shaft collar 4
54 202-3315 Blind rivet 4
55 999-0295 Nut 4-40 nylon insert lock stainless steel 2
56 999-0357 Nut 8-32 nylon insert lock stainless steel 2
57 202-2067 Nut 10-32 keps 9
58 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
59 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
60 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
61 999-0150 Washer #8 medium split lock 4
62 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
63 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
64 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 8
66 202-3109 Screw 1/4 x 5/8 button head socket stainless steel 4
67 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
68 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 6
69 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 1
70 202-3636 Grommet 1
N/S 202-1196 Washer 17/64 x 21/64 nylon flat 2
N/S 202-2254 Heat shrink 4
N/S 999-0986 Screw 10-32 x 1 round pan head stainless steel 2

Central Command Assembly - 2 - 202-0753
RefNbr Part Number Description Req Notes
1 202-5396 Toggle switch 1
2 202-4191 Emergency stop button 1
3 202-6396 Power Post, Black, 1/4 Terminal 1
4 202-6397 Power Post, Red, 1/4 Terminal 1
8 202-0721 Microswitch 1
9 202-0989 Control knob with washer (red) 1
10 302-0220 24V controller 1
11 302-0222 Dash panel assembly 1
16 302-0226 Central command orion RG 1
17 202-9902 Control panel cover 1
18 202-9905 Decal set 1
19 202-9905 Decal set 1
20 202-9906 Central command spacer 4
21 302-0227 E-stop 1
22 302-0228 Cover 1
23 202-2300 Key switch with key entry (red) and ring (black) 1
24 991-1634 Key (pkg of 2) 1
25 202-2499 15amp fuse 2
26 202-0720 Serial number plate 1
27 991-2103 50amp charger plug SB50 with pins (red) 1
28 202-0348 15amp relay 1
31 202-0535 Speed control potentiometer 1
32 202-3625 Dual USB ports 1
33 202-5284 Nut 1/4-20 hex crimp long 2
34 202-9136 Nut,Hex,3/8-32 inch,Zinc 1
35 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 1
37 202-3601 Nut #10-32 hex crimp 8
39 202-1864 Toggle switch protective boot (red) 1
40 202-2371 Screw 4-40 x 3/4 round pan head 2
41 202-3315 Blind rivet 4
42 999-0295 Nut 4-40 nylon insert lock stainless steel 2
43 999-0357 Nut 8-32 nylon insert lock stainless steel 2
44 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
45 202-2067 Nut 10-32 keps 1
47 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
48 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 12
51 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 2
52 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
54 202-3636 Grommet 1
N/S 202-2866 12 inch large 16 Gage red wire 2
N/S 202-2251 Yellow wire, 16 gage 2
N/S 202-2252 End cap 2
N/S 302-0221 Dash Panel SED 1
N/S 302-0223 Membrane display 1
N/S 302-0224 Handle bar (dual button) 1
N/S 302-0225 Gasket 1
N/S 202-0869 Switch cover 2
N/S 202-0879 Push button switch 2
N/S 202-2253 Nut 1/4-.3/8 x 3/8 long flanged bearing nylon 1
N/S 202-2254 Heat shrink 4
N/S 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
N/S 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
N/S 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 1
N/S 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 2
N/S 302-0229 Nylock M4 4

Batteries and Chargers - 202-0754
RefNbr Part Number Description Req Notes
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0057 12V 150Ah wet battery 2
3 162-0057 12V 150Ah wet battery 2
4 162-0042 12V 115Ah AGM battery (Group 31) 2
5 162-0045 12V 140Ah AGM battery 2
6 162-0057 12V 150Ah wet battery 2
7 162-0011 12V 105Ah wet battery (SNSR) 2
8 302-0001 24v Lithium Ion battery 1
N/S 202-2883 24V 12amp dual model console charger 1 (before ordering confirm battery)
N/S 202-5181 24V AGM onboard battery charger 1 (before ordering confirm battery)
N/S 202-5723 12V 27AH onboard charger 1 (before ordering confirm battery) (optional on-board charger)
N/S 202-7022 Charger, 24V,37A Onboard, Universal Charger w/Power Cord 1 (before ordering confirm battery) (optional on-board charger)

Optional Assembly - 202-0755
RefNbr Part Number Description Req Notes
1 202-9930 24V onboard charger with power cord 1
2 202-6852 Pump,24V,High PSI 1
3 302-0230 Utilities plate 1
4 202-7091 Bracket, Charger Connector 1
5 202-5085 20 and 28 inch spacer 4
6 991-2103 50amp charger plug SB50 with pins (red) 2
7 202-5011 90 degree hose barb 1
8 999-1982 Bolt 10-32 x 1 round carriage head stainless steel 1
9 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel 1
10 202-3236 Threaded barb 1
11 999-9069 Bolt 5/16-18 x 3/4 carriage head 2
12 999-0006 Washer 3/16 flat zinc plated 8
13 999-0086 Nut 10-32 nylon insert lock zinc plated 8
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
15 202-2067 Nut 10-32 keps 3
16 202-2592 Grommet 3

Squeegee Assembly - 202-0756
RefNbr Part Number Description Req Notes
1 N/A Not available 9 (Flat head socket #6-32 x 3/8 screw)
2 202-5078 Star knob 2
3 202-5079 4 inch wheel 2
4 202-3590 2 inch caster (gray) 2
5 202-9913 Squeegee latch 1
6 202-3648 Band clip 1
7 202-3649 Front band clip 1
8 202-9914 Front band clip 1
9 202-9915 PVC tube 2
10 202-9916 PVC tube 2
11 202-3660 Rod end bolt 1
12 202-9917 Eye bolt 1/4-20 x 3 1
13 202-9918 Ram tip 1
14 202-9919 Squeegee caster bracket 2
15 202-9920 Standoff 2
16 202-3670 45 inch squeegee weight 2
17 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel 4
18 999-9246 Bolt 1/4-20 x 3 carriage zinc 4
19 999-6688 Nut 6-32 hex nylon insert lock stainless steel 9
20 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
21 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
22 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
23 999-0086 Nut 10-32 nylon insert lock zinc plated 2
24 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
25 999-0626 Screw 3/8-16 x 3 carriage head stainless steel 2
26 999-1913 Screw 5/16-18 x 1 3/4 button head socket cap stainless steel 2
27a 302-0244 Squeegee blade 33 inch linatex rear 1 (33 inch)
27b 302-0165 33 inch rear squeegee blade urethane 1 (33 inch)
27c 202-9921 Rear squeegee blade (nanorade) 1 (33 inch)
27d 202-3664 Squeegee blade 37 inch linatex rear 1 (37 inch)
27e 202-9692 Squeegee blade 37 inch urethane rear 1 (37 inch)
27f 302-0231 Squeege blade rear nanorade 1 (37 inch)
27g 202-9613 Squeegee blade rear linatex 1 (41 inch)
27h 302-0162 41 inch squeegee blade rear urethane 1 (41 inch)
27i 302-0232 Squeege blade rear nanorade 1 (41 inch)
28a 202-3691 Squeegee blade 33 inch linatex front 1 (33 inch)
28b 302-0243 Squeegee blade 33 inch urethane front 1 (33 inch)
28c 202-9924 33 inch front squeegee blade (nanorade) 1 (33 inch)
28d 202-3692 Squeegee blade 37 inch linatex front 1 (37 inch)
28e 202-9695 Squeegee blade 37 inch urethane front 1 (37 inch)
28f 302-0233 Squeege blade front nanorade 1 (37 inch)
28g 202-9611 Squeegee blade front linatex 1 (41 inch)
28h 202-9612 Squeegee blade front urethane 1 (41 inch)
28i 302-0234 Squeege blade front nanorade 1 (41 inch)
30a 202-3672 Squeegee band 33 inch rear with latch 1 (33 inch)
30b 202-3673 Squeegee band 37 inch rear with latch 1 (37 inch)
30c 202-9610 Squeege band rear 1 (41 inch)
31a 202-3672 Squeegee band 33 inch rear with latch 1 (33 inch) (left and right side bands)
31b 202-3673 Squeegee band 37 inch rear with latch 1 (37 inch)(left and right side bands)
31c 202-9610 Squeege band rear 1 (41 inch)(left and right side bands)
32a 202-3676 Squeegee band 33 inch front with latch 1 (33 inch)(left and right side bands)
32b 202-3677 Squeegee band 37 inch front with latch 1 (37 inch)(left and right side bands)
32c 202-3678 Squeegee band 41 inch front with latch 1 (41 inch)(left and right side bands)
33a 202-3676 Squeegee band 33 inch front with latch 1 (33 inch)(left and right side bands)
33b 202-3677 Squeegee band 37 inch front with latch 1 (37 inch)(left and right side bands)
33c 202-3678 Squeegee band 41 inch front with latch 1 (41 inch)(left and right side bands)
34a 302-0235 33 inch squeegee body 1 (33 inch)
34b 302-0236 37 inch squeegee body 1 (37 inch)
34c 302-0237 41 inch squeegee body 1 (41 inch)
35a 202-9923 33 inch squeegee body bottom 1 (33 inch)
35b 302-0238 37 inch squeegee body bottom 1 (37 inch)
35c 302-0239 41 inch squeegee body bottom 1 (41 inch)
36a 202-9922 33 inch squeegee decal 1 (33 inch)
36b 202-4349 37 inch squeegee decal 1 (37 inch)
36b 202-3656 41 inch squeegee decal 1 (41 inch)
37a 202-9925 33 inch squeegee assembly with nanorade blades 1 (33 inch)
37b 302-0157 37 inch squeegee complete with nanorade 1 (37 inch)
37c 302-0158 41 inch squeegee complete with nanorade blades 1 (41 inch)

-Brushes - Disc and Cylindrical - 202-0757
RefNbr Part Number Description Req Notes
1 302-0240 13 inch brush medium grit 2
2 302-0241 13 inch brush light grit 2
3 202-3698 13 inch nylon brush (orange) 2
4 302-0242 13 inch pad driver 2
5 302-0062 24 inch cylindrical midi-grit brush 7 spline 2
6 302-0064 24 inch cylindrical light-grit brush 7 spline 2
7 302-0065 24 inch cylindrical nylon brush 2

- Pads - 255-1300
RefNbr Part Number Description Req Notes
01 255-1340 13 inch aqua plus burnishing pad (pkg of 5)
02 255-1335 13 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1364 13 inch Blue ace pad (pkg of 5)
04 255-1342 13 inch Blue Jay burnishing pad (pkg of 5)
05 255-1312 13 inch Cure white pad (pkg of 5)
06 255-1377 13 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1338 13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1321 13 inch gorilla lite burnishing pad (pkg of 5)
09 255-1350 13 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1365 13 inch Heat concrete bonding pad (pkg of 5)
11 255-1330 13 inch jaguar burnishing pad (pkg of 5)
12 255-1387 13 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1390 13 inch premium black stripping pad (pkg of 5)
14 255-1370 13 inch premium blue cleaning pad (pkg of 5)
15 255-1392 13 inch premium brown stripping pad (pkg of 5)
16 255-1380 13 inch premium green scrubbing pad (pkg of 5)
17 255-1360 13 inch premium red scrubbing pad (pkg of 5)
18 255-1352 13 inch premium tan polishing pad (pkg of 5)
19 255-1320 13 inch premium white polishing pad (pkg of 5)
20 255-1311 13 inch superspeed rubberized pad (pkg of 5)
21 255-1395 13 inch razorback stripping pad (pkg of 5)
22 255-1347 13 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1355 13 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1323 13 inch sand screen driver pad (pkg of 2)
25 255-0198 13 inch Superscreen sand screen 100 grit (pkg of 10)
26 255-0199 13 inch Superscreen sand screen 120 grit (pkg of 10)
27 255-0200 13 inch Superscreen sand screen 150 grit (pkg of 10)
28 255-0201 13 inch Superscreen sand screen 180 grit (pkg of 10)
29 255-0202 13 inch Superscreen sand screen 220 grit (pkg of 10)
30 255-0203 13 inch Superscreen sand screen 400 grit (pkg of 10)
31 255-0196 13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE
32 255-0197 13 inch Superscreen sand screen 80 grit (pkg of 10)
33 255-0113 13 inch Professional sand screen 100 grit (pkg of 10)
34 255-0114 13 inch Professional sand screen 120 grit (pkg of 10)
35 255-0115 13 inch Professional sand screen 150 grit (pkg of 10)
36 255-0116 13 inch Professional sand screen 180 grit (pkg of 10)
37 255-0117 13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE)
38 255-0118 13 inch Professional sand screen 400 grit (pkg of 10)
39 255-0111 13 inch Professional sand screen 60 grit (pkg of 10)
40 255-0112 13 inch Professional sand screen 80 grit (pkg of 10)
41 255-1324 13 inch Tiger carpet bonnet (pkg of 2)
42 255-9542 13 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9539 13 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9536 13 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9540 13 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9537 13 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9538 13 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9541 13 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9638 13 inch Diamond starter pack (1 of each grit)
50 255-1382 13 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1315 13 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1316 13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
