Parts List Complete for TIMBERLINE M24


Frame Assembly - 202-0735
RefNbr Part Number Description Req Notes
1 202-5064 Caster wheel 2
2 202-5363 3/8 inch ball valve 1
3 202-5567 Cable guide 1
4 202-6417 Knob,Yellow 1
5 302-0132 3 in 1 tool 1
6 202-9829 Lifting bracket 2
7 202-3901 Lift bracket spacer 3
8 302-0166 Frame brace 2
9 202-9833 Upper actuator bracket 1
10 302-0167 Left hand 24V frame bracket 1
11 302-0168 Right hand 24V frame bracket 1
12 302-0169 Frame base 1
13 202-9837 Solution valve cable 1
14 202-9964 Transaxle hub with moutning 2
15 202-3902 24V transaxle w/ connectors 1
16 302-0170 24V valve 1
17 202-3234 Inline filter 1
18 202-5284 Nut 1/4-20 hex crimp long 4
19 999-1049 Washer 1/4 split lock zinc plated 8
20 999-1215 Washer #6 SAE flat zinc plated 1
21 202-3236 Threaded barb 2
22 999-9069 Bolt 5/16-18 x 3/4 carriage head 20
23 999-1334 Bolt 5/16-18 x 1 1/4 carriage head stainless steel 4
24 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel 1
25 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 1
26 202-9285 Screw,PFHM,#10-32x1/2 inch Zinc 2
27 999-9235 Screw #10-32 x 1 flat head phillips zinc plated 11
28 999-0553 Washer 5/16 medium split lock stainless steel 6
29 999-0069 Nut 5/16-18 hex 8
30 999-6688 Nut 6-32 hex nylon insert lock stainless steel 1
31 999-0086 Nut 10-32 nylon insert lock zinc plated 1
32 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 12
33 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 39
34 202-2067 Nut 10-32 keps 2
35 202-4070 90 degree barbed elbow 1
36 202-9966 Clevis pin 2
37 202-3316 Washer flat stainless steel 1
38 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 1
39 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 1
40 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel 4
41 999-9243 Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) 6
42 202-9839 Screw 5/16-18 x 4 1/4 flat head socket cap screw zinc 4
43 202-3275 Rubber bumper 2
44 202-0585 Cotter ring 2
45 202-3239 Tee 1
46 202-9642 3/4 inch clamp zinc 2
47 202-9840 1/2 inch ID x 5 foot clear hose 1
48 202-9840 1/2 inch ID x 5 foot clear hose 1
49 202-9840 1/2 inch ID x 5 foot clear hose 1
50 202-9840 1/2 inch ID x 5 foot clear hose 1
51a 202-9827 8 inch poly tire (grey) 2
51b 302-0171 Wheel solid (black) 2

Squeegee Trail Arm Assembly - 202-0736
RefNbr Part Number Description Req Notes
1 202-6432 Body, Adjustable Lateral Arm Assy 1
2 202-9841 Squeegee swing plate 1
3 202-9842 Squeegee trail arm 1
4 202-9844 Spring 1
5 202-9843 Triangle plate 1
6 999-1215 Washer #6 SAE flat zinc plated 1
7 999-9072 Bolt 1/4-20 x 1 hex head cap 4
8 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 2
9 999-9236 Bolt 1/4-20 x 6 carriage head zinc plated 1
10 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 4
11 999-9235 Screw #10-32 x 1 flat head phillips zinc plated 1
12 999-0006 Washer 3/16 flat zinc plated 1
13 999-0123 Washer 1/4 SAE flat zinc plated 2
14 999-0190 Nut 1/4-20 hex plain finish 2
15 999-6688 Nut 6-32 hex nylon insert lock stainless steel 1
16 999-0086 Nut 10-32 nylon insert lock zinc plated 1
17 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 7
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
19 202-2210 Washer 3/8 x 3/4 flat nylon 6
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
21 999-0998 Washer #10 flat stainless steel 1
22 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel 1
23 202-3275 Rubber bumper 1
24 302-0172 6 inch ground chain 1
25 202-9845 23-1/4 squeegee lift cable (black) 1

Orbital Lift Arm Assembly - 202-0741
RefNbr Part Number Description Req Notes
1 202-9851 24V actuator 1
2 202-9859 Left hand deck lifting bracket 1
3 202-9860 Right hand deck lifting bracket 1
4 202-9861 Edge lateral arm 1
5 202-3716 Adjustable lateral arm 2
6 202-7656 Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S 4
7 999-0981 Screw 5-16-18 x 1/2 hex head grade 5 zinc plated 6
8 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc 4
9 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel 4
10 202-1201 Washer 5/16 uss 14
11 999-0553 Washer 5/16 medium split lock stainless steel 6
12 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 8
13 999-9223 Screw M12-1.75 x 60 hex cap zinc 2
14 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel 2
15 202-2210 Washer 3/8 x 3/4 flat nylon 4

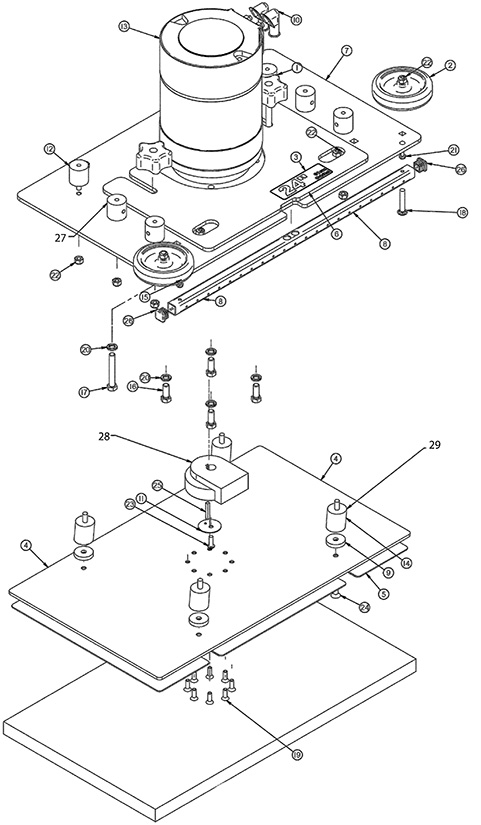

24 inch Orbital Deck Assembly - 202-0743
RefNbr Part Number Description Req Notes
1 202-5078 Star knob 2
2 202-5079 4 inch wheel 2
3 302-0186 24 inch orbital decal 1
4 202-2182 24 inch driver plate aluminum 1
5 202-2184 24 inch grip face 1
6 202-9867 Weight (yellow) 1
7 302-0187 24 inch square deck head 1
8 302-0188 24 inch solution feed tube 1
9 202-4230 Spacer 4
10 302-0189 Terminal boot (black) 2
11 202-5084 Crush washer 1
12 202-5213 20 inch isolator kit (pkg of 4) 6
13 202-5531 24V 1 HP motor 1
14 202-9662 Isolator 4
15 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel 2
16 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
17 999-0041 Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated 2
18 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc 2
19 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 8
20 999-0659 Washer 3/8 medium split lock stainless steel 6
21 999-0086 Nut 10-32 nylon insert lock zinc plated 2
22 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
23 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 1
24 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel 4
25 202-0140 Steering shaft key 1
26 202-9545 Plug,Square,3/4 inch,Black 2
27 202-9862 Upper isolator kit (orbital) 1
28 202-9863 Orbital eccentric kit 1 (includes 1-eccentric, 8-bolts, 1-gasket, 1- sticker seal, 1 pack blue loctite)
29 202-9864 Orbital isolator kit 1 (includes 4-isolators, 4-bolts, 4-nuts, 1-gasket, 1-sticker seal)

Solution Tank Assembly - 202-0748
RefNbr Part Number Description Req Notes
1 302-0202 Strap 1
2 202-9869 Solution fill screen 1
3 302-0204 Solution fill curtain 1
4 302-0203 Vac motor insulation 1
5 302-0205 Battery plate 1
6 202-9874 Kodiak decal 1
7 202-9875 Timberline decal 1
8 202-9876 Strainer screen (blue) 1
9 302-0206 Spacer 4
10 202-1487 Latch 1
11 202-4200 Fill hose 1
12 202-5648 4 inch hinge stainless steel 2
13 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
14 999-0006 Washer 3/16 flat zinc plated 2
15 999-0123 Washer 1/4 SAE flat zinc plated 4
16 999-0060 Washer 1/4 split lock plain finish 4
17 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4
18 202-3440 Barbed elbow 1
19 202-9877 Elbow 1
20 202-4225 Hose 1
21a 302-0207 Solution tank (black) 1
21b 302-0208 Solution tank (blue) 1
21c 302-0209 Solution tank (antimicrobial) 1

Recovery Tank Assembly - 202-0749
RefNbr Part Number Description Req Notes
1 202-5376 1 1/2 inch elbow 1
2 202-3582 Drain hose assembly 1
3 203-7216 Vacuum hose 1
4 202-9878 Tank gasket 1
5 302-0210 Insulation 1
6 302-0211 Gasket 1
8 202-9882 Vac muffler 1
9 202-9883 Vac cover 1
10 302-0212 Ball chain lanyard 1
11 202-9886 Ball float top 1
12 202-9981 Vac screen 1
13 202-9887 Push-on rubber gasket 1
14 202-9888 Ball float gasket 1
15 202-9889 4 inch lid gasket 1
16 202-3914 Knob (red) 2
17 202-9891 36V 3 stage vacuum motor 1
18 202-9893 Baffle 1
19 202-9894 Tank curtain 1
20 202-9895 Strainer gasket 1
21 202-7033 Vac Box Filter 1
22 202-7090 Strainer,Screen 6 inch 1
23 202-0232 Float shut-off ball 1
25 202-8038 4 inch Clear Access Port 1
26 302-0213 Screw #8-32 x 1.875 phillips pan head 2
27 202-0898 Stud 1/4-20 x 5 threaded stainless steel 3
28 202-2067 Nut 10-32 keps 3
29 302-0124 Clamp 2
30 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
32 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 6
33 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread 3
34a 302-0214 Recovery tank (blue) 1
34b 302-0215 Recovery tank (green) 1
34c 302-0216 Recovery tank (granite) 1
34d 302-0217 Recovery tank (antimicrobial) 1
N/S 202-9880 Vacuum motor gasket 1
N/S 202-1487 Latch 1

Squeegee Lift Bracket Assembly - 202-0750
RefNbr Part Number Description Req Notes
1 202-0515 Solution flow control knob 1
2 202-9896 Lever 1
3 202-9897 Lever bracket 1
4 202-9845 23-1/4 squeegee lift cable (black) 1
5 202-9898 Stud 1/4-20 x 3 1/2 full 4
6 999-0123 Washer 1/4 SAE flat zinc plated 4
7 999-0190 Nut 1/4-20 hex plain finish 2
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 5
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
10 999-9241 Washer 1 1/2 x 25/64 x 39/64 flat nylon 2
11 999-9242 Screw 1/4-20 x 1 1/4 button head socket cap 1
12 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 1
13 999-9243 Screw 5/16-18 x 1 flat head socket cap (3/16 hex drive) 1
14 302-0218 Flanged bearing 1

Central Command Assembly - 1 - 202-0751
RefNbr Part Number Description Req Notes
1 202-5396 Toggle switch 1
2 202-5386 Handle grip (blue) 1
3 202-6182 Handlebar,Dual Button 1
4 202-4191 Emergency stop button 1
5 202-6396 Power Post, Black, 1/4 Terminal 2
6 202-6397 Power Post, Red, 1/4 Terminal 2
7 202-2252 End cap 2
8 202-4159 40amp brush pressure gauge 1
9 202-2855 Battery meter 1
10 202-4160 40amp resettable fuse 1
11 202-0721 Microswitch 1
12 202-0989 Control knob with washer (red) 1
13 202-9900 Hand guard 1
14 202-9901 Control panel weight 1
15 202-9902 Control panel cover 1
16 202-9903 Valve lever 1
17 202-9904 Control panel 1
18 202-9905 Decal set 1
19 202-9905 Decal set 1
20 202-9905 Decal set 2
21 202-9905 Decal set 1
22 202-9906 Central command spacer 4
23 202-3634 Drive controller 1
24 202-9907 20amp resettable fuse 1
25 202-0832 Full recovery indicator (red) 2
26 202-2300 Key switch with key entry (red) and ring (black) 1
27 991-1634 Key (pkg of 2) 1
28 202-2242 30amp fuse 2
29 202-5253 24V relay 2
30 202-7595 Breaker,4a 1
31 202-1992 Toggle switch 2
32 202-0097 Toggle switch 1
33 202-0720 Serial number plate 1
34 991-2103 50amp charger plug SB50 with pins (red) 1
35 202-0341 6 Amp circuit breaker 2
36 202-0348 15amp relay 2
37 202-0869 Switch cover 2
38 202-0879 Push button switch 2
39 202-0521 Toggle switch 1
40 202-0535 Speed control potentiometer 1
41 202-3625 Dual USB ports 1
43 202-9136 Nut,Hex,3/8-32 inch,Zinc 1
44 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 1
45 202-3601 Nut #10-32 hex crimp 10
47 202-1976 Toggle switch protective boot (white) 1
48 202-1864 Toggle switch protective boot (red) 1
49 202-1865 Toggle switch protective boot (blue) 1
50 202-1355 Toggle switch protective boot (black) 1
51 202-2221 Toggle switch protective boot (gray) 1
52 202-2371 Screw 4-40 x 3/4 round pan head 2
53 202-2964 Shaft collar 4
54 202-3315 Blind rivet 4
55 999-0295 Nut 4-40 nylon insert lock stainless steel 2
56 999-0357 Nut 8-32 nylon insert lock stainless steel 2
57 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 9
58 202-2067 Nut 10-32 keps 3
59 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 4
60 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
61 999-0150 Washer #8 medium split lock 4
62 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
63 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
64 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 8
65 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
66 202-3109 Screw 1/4 x 5/8 button head socket stainless steel 4
67 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
68 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 6
69 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 1
70 202-3636 Grommet 1
N/S 202-1196 Washer 17/64 x 21/64 nylon flat 2
N/S 202-2254 Heat shrink 4

Central Command Assembly - After SN 125571 - 202-0752
RefNbr Part Number Description Req Notes
1 202-5396 Toggle switch 1
2 202-5386 Handle grip (blue) 1
3 202-4191 Emergency stop button 1
4 202-4191 Emergency stop button 1
5 202-6396 Power Post, Black, 1/4 Terminal 2
6 202-6397 Power Post, Red, 1/4 Terminal 2
7 202-2252 End cap 2
8 202-4159 40amp brush pressure gauge 1
9 202-2855 Battery meter 1
10 202-4160 40amp resettable fuse 1
11 202-0721 Microswitch 1
12 202-0989 Control knob with washer (red) 1
13 202-9900 Hand guard 1
14 202-9901 Control panel weight 1
15 202-9902 Control panel cover 1
16 202-9903 Valve lever 1
17 202-9904 Control panel 1
18 202-9905 Decal set 1
19 202-9905 Decal set 1
20 202-9905 Decal set 2
21 202-9905 Decal set 1
22 202-9906 Central command spacer 4
23 202-9927 24V controller 90amp 1
24 202-9907 20amp resettable fuse 1
25 202-0832 Full recovery indicator (red) 2
26 202-2300 Key switch with key entry (red) and ring (black) 1
27 991-1634 Key (pkg of 2) 1
28 202-2242 30amp fuse 2
29 202-5253 24V relay 2
30 202-7595 Breaker,4a 1
31 202-1992 Toggle switch 2
32 202-0097 Toggle switch 1
33 202-0720 Serial number plate 1
34 991-2103 50amp charger plug SB50 with pins (red) 1
35 202-0341 6 Amp circuit breaker 2
36 202-0348 15amp relay 2
37 202-0869 Switch cover 2
38 302-0219 Push button switch 2
39 202-0521 Toggle switch 1
40 202-0535 Speed control potentiometer 1
41 202-3625 Dual USB ports 1
43 202-9136 Nut,Hex,3/8-32 inch,Zinc 1
44 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 1
45 202-3601 Nut #10-32 hex crimp 10
47 202-1976 Toggle switch protective boot (white) 1
48 202-1864 Toggle switch protective boot (red) 1
49 202-1865 Toggle switch protective boot (blue) 1
50 202-1355 Toggle switch protective boot (black) 1
51 202-2221 Toggle switch protective boot (gray) 1
52 202-2371 Screw 4-40 x 3/4 round pan head 2
53 202-2964 Shaft collar 4
54 202-3315 Blind rivet 4
55 999-0295 Nut 4-40 nylon insert lock stainless steel 2
56 999-0357 Nut 8-32 nylon insert lock stainless steel 2
57 202-2067 Nut 10-32 keps 9
58 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
59 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
60 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
61 999-0150 Washer #8 medium split lock 4
62 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
63 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
64 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 8
66 202-3109 Screw 1/4 x 5/8 button head socket stainless steel 4
67 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
68 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 6
69 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 1
70 202-3636 Grommet 1
N/S 202-1196 Washer 17/64 x 21/64 nylon flat 2
N/S 202-2254 Heat shrink 4
N/S 999-0986 Screw 10-32 x 1 round pan head stainless steel 2

Central Command Assembly - 2 - 202-0753
RefNbr Part Number Description Req Notes
1 202-5396 Toggle switch 1
2 202-4191 Emergency stop button 1
3 202-6396 Power Post, Black, 1/4 Terminal 1
4 202-6397 Power Post, Red, 1/4 Terminal 1
8 202-0721 Microswitch 1
9 202-0989 Control knob with washer (red) 1
10 302-0220 24V controller 1
11 302-0222 Dash panel assembly 1
16 302-0226 Central command orion RG 1
17 202-9902 Control panel cover 1
18 202-9905 Decal set 1
19 202-9905 Decal set 1
20 202-9906 Central command spacer 4
21 302-0227 E-stop 1
22 302-0228 Cover 1
23 202-2300 Key switch with key entry (red) and ring (black) 1
24 991-1634 Key (pkg of 2) 1
25 202-2499 15amp fuse 2
26 202-0720 Serial number plate 1
27 991-2103 50amp charger plug SB50 with pins (red) 1
28 202-0348 15amp relay 1
31 202-0535 Speed control potentiometer 1
32 202-3625 Dual USB ports 1
33 202-5284 Nut 1/4-20 hex crimp long 2
34 202-9136 Nut,Hex,3/8-32 inch,Zinc 1
35 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 1
37 202-3601 Nut #10-32 hex crimp 8
39 202-1864 Toggle switch protective boot (red) 1
40 202-2371 Screw 4-40 x 3/4 round pan head 2
41 202-3315 Blind rivet 4
42 999-0295 Nut 4-40 nylon insert lock stainless steel 2
43 999-0357 Nut 8-32 nylon insert lock stainless steel 2
44 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
45 202-2067 Nut 10-32 keps 1
47 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 2
48 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 12
51 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 2
52 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel 2
54 202-3636 Grommet 1
N/S 202-2866 12 inch large 16 Gage red wire 2
N/S 202-2251 Yellow wire, 16 gage 2
N/S 202-2252 End cap 2
N/S 302-0221 Dash Panel SED 1
N/S 302-0223 Membrane display 1
N/S 302-0224 Handle bar (dual button) 1
N/S 302-0225 Gasket 1
N/S 202-0869 Switch cover 2
N/S 202-0879 Push button switch 2
N/S 202-2253 Nut 1/4-.3/8 x 3/8 long flanged bearing nylon 1
N/S 202-2254 Heat shrink 4
N/S 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
N/S 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
N/S 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 1
N/S 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 2
N/S 302-0229 Nylock M4 4

Batteries and Chargers - 202-0754
RefNbr Part Number Description Req Notes
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0057 12V 150Ah wet battery 2
3 162-0057 12V 150Ah wet battery 2
4 162-0042 12V 115Ah AGM battery (Group 31) 2
5 162-0045 12V 140Ah AGM battery 2
6 162-0057 12V 150Ah wet battery 2
7 162-0011 12V 105Ah wet battery (SNSR) 2
8 302-0001 24v Lithium Ion battery 1
N/S 202-2883 24V 12amp dual model console charger 1 (before ordering confirm battery)
N/S 202-5181 24V AGM onboard battery charger 1 (before ordering confirm battery)
N/S 202-5723 12V 27AH onboard charger 1 (before ordering confirm battery) (optional on-board charger)
N/S 202-7022 Charger, 24V,37A Onboard, Universal Charger w/Power Cord 1 (before ordering confirm battery) (optional on-board charger)

Optional Assembly - 202-0755
RefNbr Part Number Description Req Notes
1 202-9930 24V onboard charger with power cord 1
2 202-6852 Pump,24V,High PSI 1
3 302-0230 Utilities plate 1
4 202-7091 Bracket, Charger Connector 1
5 202-5085 20 and 28 inch spacer 4
6 991-2103 50amp charger plug SB50 with pins (red) 2
7 202-5011 90 degree hose barb 1
8 999-1982 Bolt 10-32 x 1 round carriage head stainless steel 1
9 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel 1
10 202-3236 Threaded barb 1
11 999-9069 Bolt 5/16-18 x 3/4 carriage head 2
12 999-0006 Washer 3/16 flat zinc plated 8
13 999-0086 Nut 10-32 nylon insert lock zinc plated 8
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
15 202-2067 Nut 10-32 keps 3
16 202-2592 Grommet 3

Squeegee Assembly - 202-0756
RefNbr Part Number Description Req Notes
1 N/A Not available 9 (Flat head socket #6-32 x 3/8 screw)
2 202-5078 Star knob 2
3 202-5079 4 inch wheel 2
4 202-3590 2 inch caster (gray) 2
5 202-9913 Squeegee latch 1
6 202-3648 Band clip 1
7 202-3649 Front band clip 1
8 202-9914 Front band clip 1
9 202-9915 PVC tube 2
10 202-9916 PVC tube 2
11 202-3660 Rod end bolt 1
12 202-9917 Eye bolt 1/4-20 x 3 1
13 202-9918 Ram tip 1
14 202-9919 Squeegee caster bracket 2
15 202-9920 Standoff 2
16 202-3670 45 inch squeegee weight 2
17 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel 4
18 999-9246 Bolt 1/4-20 x 3 carriage zinc 4
19 999-6688 Nut 6-32 hex nylon insert lock stainless steel 9
20 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
21 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
22 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
23 999-0086 Nut 10-32 nylon insert lock zinc plated 2
24 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
25 999-0626 Screw 3/8-16 x 3 carriage head stainless steel 2
26 999-1913 Screw 5/16-18 x 1 3/4 button head socket cap stainless steel 2
27a 302-0244 Squeegee blade 33 inch linatex rear 1 (33 inch)
27b 302-0165 33 inch rear squeegee blade urethane 1 (33 inch)
27c 202-9921 Rear squeegee blade (nanorade) 1 (33 inch)
27d 202-3664 Squeegee blade 37 inch linatex rear 1 (37 inch)
27e 202-9692 Squeegee blade 37 inch urethane rear 1 (37 inch)
27f 302-0231 Squeege blade rear nanorade 1 (37 inch)
27g 202-9613 Squeegee blade rear linatex 1 (41 inch)
27h 302-0162 41 inch squeegee blade rear urethane 1 (41 inch)
27i 302-0232 Squeege blade rear nanorade 1 (41 inch)
28a 202-3691 Squeegee blade 33 inch linatex front 1 (33 inch)
28b 302-0243 Squeegee blade 33 inch urethane front 1 (33 inch)
28c 202-9924 33 inch front squeegee blade (nanorade) 1 (33 inch)
28d 202-3692 Squeegee blade 37 inch linatex front 1 (37 inch)
28e 202-9695 Squeegee blade 37 inch urethane front 1 (37 inch)
28f 302-0233 Squeege blade front nanorade 1 (37 inch)
28g 202-9611 Squeegee blade front linatex 1 (41 inch)
28h 202-9612 Squeegee blade front urethane 1 (41 inch)
28i 302-0234 Squeege blade front nanorade 1 (41 inch)
30a 202-3672 Squeegee band 33 inch rear with latch 1 (33 inch)
30b 202-3673 Squeegee band 37 inch rear with latch 1 (37 inch)
30c 202-9610 Squeege band rear 1 (41 inch)
31a 202-3672 Squeegee band 33 inch rear with latch 1 (33 inch) (left and right side bands)
31b 202-3673 Squeegee band 37 inch rear with latch 1 (37 inch)(left and right side bands)
31c 202-9610 Squeege band rear 1 (41 inch)(left and right side bands)
32a 202-3676 Squeegee band 33 inch front with latch 1 (33 inch)(left and right side bands)
32b 202-3677 Squeegee band 37 inch front with latch 1 (37 inch)(left and right side bands)
32c 202-3678 Squeegee band 41 inch front with latch 1 (41 inch)(left and right side bands)
33a 202-3676 Squeegee band 33 inch front with latch 1 (33 inch)(left and right side bands)
33b 202-3677 Squeegee band 37 inch front with latch 1 (37 inch)(left and right side bands)
33c 202-3678 Squeegee band 41 inch front with latch 1 (41 inch)(left and right side bands)
34a 302-0235 33 inch squeegee body 1 (33 inch)
34b 302-0236 37 inch squeegee body 1 (37 inch)
34c 302-0237 41 inch squeegee body 1 (41 inch)
35a 202-9923 33 inch squeegee body bottom 1 (33 inch)
35b 302-0238 37 inch squeegee body bottom 1 (37 inch)
35c 302-0239 41 inch squeegee body bottom 1 (41 inch)
36a 202-9922 33 inch squeegee decal 1 (33 inch)
36b 202-4349 37 inch squeegee decal 1 (37 inch)
36b 202-3656 41 inch squeegee decal 1 (41 inch)
37a 202-9925 33 inch squeegee assembly with nanorade blades 1 (33 inch)
37b 302-0157 37 inch squeegee complete with nanorade 1 (37 inch)
37c 302-0158 41 inch squeegee complete with nanorade blades 1 (41 inch)

-Pads and Screens - Orbital - 202-0759
RefNbr Part Number Description Req Notes
202-8981 Pad, 14 inch X 20 inch White Scrub Case of 5 1 (20 inch)
202-8980 Pad, 14 inch X 20 inch, Red Case of 5 1 (20 inch)
202-8979 Pad, 14 inch X 20 inch, Blue Case of 5 1 (20 inch)
202-8978 Pad, 14 inch X 20 inch, Green Case of 5 1 (20 inch)
202-8977 Pad, 14 inch X 20 inch, Black Case of 5 1 (20 inch)
202-8999 Pad 14 X20x1/4 inch White Driver Pad, Case of 10 1 (20 inch)
202-9034 Tile / Grout Renovator Pad 20 inch, Blue 1 (20 inch)
202-8982 HI-Output Strip Pad, 14 inch X 20 inch Case of 5 1 (20 inch)
202-8983 Prep Pad, 14 inch X 20 inch - Case of 10 - QP 1 (20 inch)
202-9009 Microfiber Pad, 14 inch X 20 inch 1 (20 inch)
202-3559 14 x 24 inch pad (red) (pkg of 5) 1 (24 inch)
202-8954 Pad, 14 inch X 24 inch, Blue - Case of 5 1 (24 inch)
202-8953 Pad, 14 inch X 24 inch, Green - Case of 5 1 (24 inch)
202-8952 Pad, 14 inch X 24 inch, Black - Case of 5 1 (24 inch)
202-8957 Prep Pad, 14 inch X 24 inch - Case of 10 - QP 1 (24 inch)
202-8962 Microfiber, Blue, 14 inch X 24 inch 1 (24 inch)
202-9023 Pad, 14 inch X 28 inch, White - Case of 5 1 (24 inch)
202-9022 Pad, 14 inch X 28 inch, Red - Case of 5 1 (28 inch)
202-9021 Pad, 14 inch X 28 inch, Blue - Case of 5 1 (28 inch)
202-9020 Pad, 14 inch X 28 inch, Green - Case of 5 1 (28 inch)
202-9019 Pad, 14 inch X 28 inch, Black - Case of 5 1 (28 inch)
202-9027 Pad 14 inch X 28 inch White Sand Paper Driver, Case of 10 1 (28 inch)
202-9028 Sand Screen, 14 inch X 28 inch 60 Grit, Case of 10 1 (28 inch)
202-9029 Sand Screen, 14 inch X 28 inch 80 Grit, Case of 10 1 (28 inch)
202-9030 Sand Screen, 14 inch X 28 inch 100 Grit, Case of 10 1 (28 inch)
202-9031 Sand Screen, 14 inch X 28 inch 120 Grit, Case of 10 1 (28 inch)
202-9032 Sand Screen, 14 inch X 28 inch 150 Grit, Case of 10 1 (28 inch)
202-7390 HD Non Woven Polishing Pad 400 Grit 20 inchx14 inch - 1/ea 1 (28 inch)
202-7391 HD Non Woven Polishing Pad 800 Grit 20 inchx14 inch - 1/ea 1 (28 inch)
202-7387 HD Non Woven Polishing Pad 1500 Grit 20 inchx14 inch - 1/ea 1 (28 inch)
202-7389 HD Non Woven Polishing Pad 3000 Grit 20 inchx14 inch - 1/ea 1 (28 inch)
202-9035 Diamond Poly Pad 6000Grit14x20 Case of 5 1 (28 inch)
202-9018 Tile / Grout Renovator Pad 28 inch, Blue 1 (28 inch)
202-9024 Hi-Output Strip Pad , 14 inch X 28 - Case of 5 1 (28 inch)
202-9025 Prep Pad, 14 inch X 28 inch - Case of 10 1 (28 inch)
202-9066 Microfiber Pad, 14 inch X 28 inch 1 (28 inch)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
