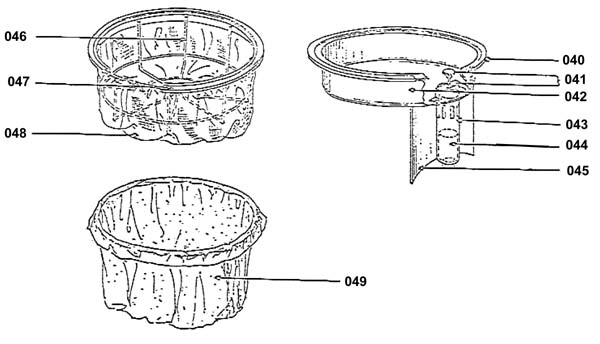

Filter Assembly - 217-2001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 040 |
217-0826 |
Rim gasket for water pan (OBSOLETE) |
|
|
| 041 |
217-0827 |
Pump out valve assembly (OBSOLETE) |
|
|
| 042 |
217-0828 |
Water pan (OBSOLETE) |
|
16 inch |
| 043 |
217-0829 |
Float tube (OBSOLETE) |
|
|
| 044 |
217-0831 |
Float (OBSOLETE) |
|
|
| 045 |
217-0830 |
Baffle for water pan (OBSOLETE) |
|
|
| 046 |
217-0832 |
Filter basket 16 inch (OBSOLETE) |
|
|
| 047 |
217-0826 |
Rim gasket for water pan (OBSOLETE) |
|
|
| 048 |
217-0833 |
Dacron filter bag (OBSOLETE) |
|
|
| 049 |
217-0834 |
Paper replacement filters (OBSOLETE) |
|
|
| N/S |
217-0837 |
16 inch dacron filter bag and cage assembly (OBSOLETE) |
|
|
| N/S |
217-0835 |
16 inch water pan assembly (OBSOLETE) |
|
|
| N/S |
217-0836 |
16 inch water pan plus pump-out valve assembly (OBSOLETE) |
|
|
| N/S |
217-0833 |
Dacron filter bag (OBSOLETE) |
|
|
|
|

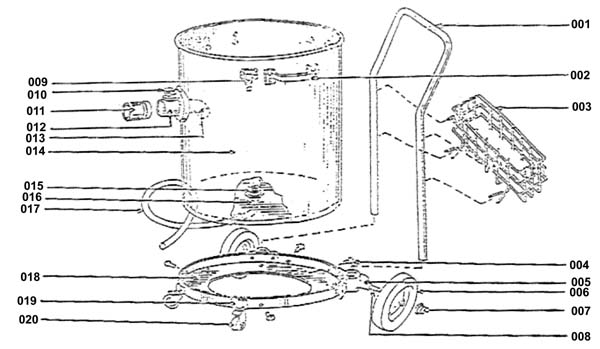

Lower Assembly - 217-2002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
217-0839 |
Carriage handle (OBSOLETE) |
|
|
| 002 |
217-0840 |
Container handle (OBSOLETE) |
|
|
| 003 |
217-0841 |
Tool basket (OBSOLETE) |
|
|
| 004 |
217-0842 |
Caster pan screws (OBSOLETE) |
|
|
| 005 |
217-0843 |
Carriage casting 16 inch (OBSOLETE) |
|
|
| 006 |
217-0844 |
8 inch ball bearing wheel (OBSOLETE) |
|
|
| 007 |
217-0845 |
Axle hub cap (OBSOLETE) |
|
|
| 008 |
217-0846 |
Wheel axle (OBSOLETE) |
|
|
| 010 |
217-0848 |
Intake lock screw (OBSOLETE) |
|
|
| 011 |
217-0849 |
Intake steel hose connector (OBSOLETE) |
|
|
| 012 |
217-0850 |
Intake casting (OBSOLETE) |
|
|
| 013 |
217-0851 |
Intake elbow (OBSOLETE) |
|
|
| 014 |
217-0852 |
Container (OBSOLETE) |
|
|
| 015 |
N/A |
Not available |
|
Threaded drain plug |
| 016 |
217-0854 |
Pump out brass drain assembly (OBSOLETE) |
|
|
| 017 |
217-0855 |
Drain hose assembly (OBSOLETE) |
|
|
| 018 |
217-0856 |
Caster pan 16 inch (OBSOLETE) |
|
|
| 019 |
217-0857 |
Caster bracket (OBSOLETE) |
|
|
| 020 |
206-1119 |
3 inch caster (OBSOLETE) |
|
|
| N/S |
217-0860 |
Carriage handle assembly wtih tool basket (OBSOLETE) |
|
|
| N/S |
217-0859 |
Container complete with hardware (OBSOLETE) |
|
|
|
|

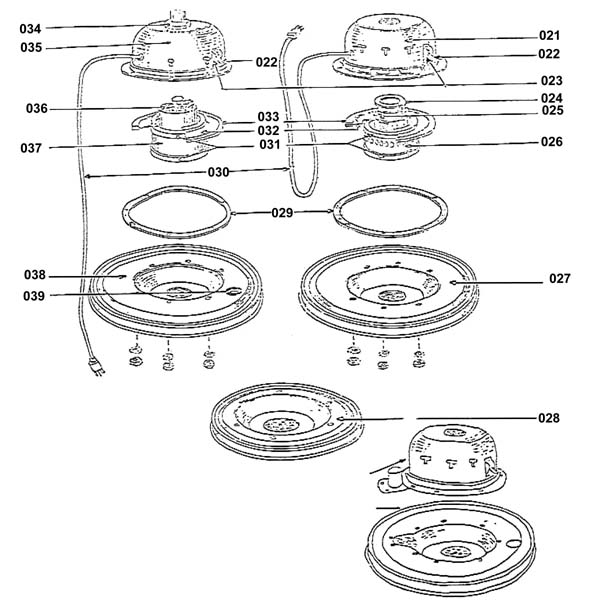

Upper Assembly - 217-2003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 021 |
217-0861 |
Dome for by-pass motor (OBSOLETE) |
|
|
| 022 |
217-0862 |
Switch plate (OBSOLETE) |
|
|
| 023 |
217-0863 |
Switch (OBSOLETE) |
|
|
| 024 |
217-0506 |
Motor top gasket (OBSOLETE) |
|
|
| 025 |
217-0865 |
Carbon brush for by-pass motor (OBSOLETE) |
|
|
| 026 |
206-0066 |
Vacuum motor (OBSOLETE) |
|
|
| 027 |
217-0867 |
Main lid for by-pass motor (OBSOLETE) |
|
|
| 028 |
217-0868 |
Main lid for all LM models (OBSOLETE) |
|
|
| 029 |
217-0503 |
Main lid gasket |
|
|
| 030 |
217-0500 |
Power supply cord (OBSOLETE) |
|
|
| 031 |
217-0509 |
Motor hold down gasket |
|
|
| 032 |
217-0504 |
Motor hold down ring (OBSOLETE) |
|
|
| 034 |
217-0874 |
Exhaust casting (OBSOLETE) |
|
|
| 035 |
217-0875 |
Dome for air cooled motor (OBSOLETE) |
|
|
| 036 |
217-0876 |
Carbon brush for air cooled motor (OBSOLETE) |
|
|
| 037 |
217-0878 |
Air cooled motor, 2.33 hp (OBSOLETE) |
|
|
| 038 |
217-0877 |
Main lid for air cooled motor (OBSOLETE) |
|
|
| 039 |
217-0879 |
Yellow plug for air intake on main lid (OBSOLETE) |
|
|
| N/S |
217-0881 |
Power head for air cooled 14 inch (OBSOLETE) |
|
|
| N/S |
217-0880 |
Power head for air cooled 16 inch vacuum (OBSOLETE) |
|
|
| N/S |
217-0883 |
Power head for by-pass 16 inch (OBSOLETE) |
|
|
| N/S |
217-0882 |
Power head for by-pass 14 inch (OBSOLETE) |
|
|
|
|
