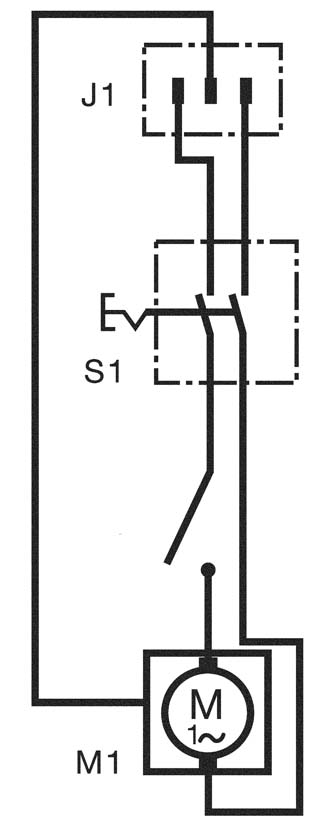

Wiring Diagram - 175-1193 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| M1 |
275-9146 |
120V vacuum motor |
1 |
|
|
|
Body Assembly - 175-1194 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 6 |
275-4525 |
Insulation cover (top) |
|
|
| 7 |
275-4526 |
Insulation cover (middle) |
|
|
| 8 |
275-4527 |
Insulation cover (bottom) |
|
|
| 10 |
175-9911 |
Filter holder |
|
|
| 11 |
275-4528 |
Center exhaust guide |
|
|
| 12 |
275-4529 |
Exhaust housing |
|
|
| 13 |
275-4530 |
Noise suppressor with cable |
|
|
| 15 |
275-4531 |
Motor housing (top) |
|
|
| 16 |
275-4532 |
Motor dampener seal |
|
|
| 17 |
275-4533 |
Motor dampener |
|
|
| 18 |
275-4534 |
Motor support |
|
|
| 19 |
275-9146 |
120V vacuum motor |
|
|
| 20 |
175-9903 |
Motor support |
|
|
| 21 |
275-4535 |
Motor dampener |
|
|
| 24 |
275-4538 |
Distance ring |
|
|
| 25 |
275-4539 |
Bottom vacuum head |
|
|
| 27 |
275-4541 |
Cable assembly |
|
|
| 28a |
275-4542 |
Tennant decal (white) (OBSOLETE) |
|
|
| 28b |
275-4543 |
Nobles decal (OBSOLETE) |
|
|
| 31a |
275-4699 |
Paper filter bags (package of 10) |
|
|
| 31b |
991-9015 |
Paper vacuum bags (pkg of 10) (OBSOLETE) |
|
(NON-OEM) |
| 40 |
275-4544 |
Rubber bumper |
|
|
| 41 |
275-4545 |
Tank (white) (OBSOLETE) |
|
|
| 42 |
275-4546 |
Wheel axle clip |
|
|
| 43 |
175-3606 |
Wheel with rubber tire (gray) |
|
|
| 44 |
275-4547 |
Axle (OBSOLETE) |
|
|
| 45 |
175-3605 |
Caster wheel kit |
|
|
| 46 |
175-3605 |
Caster wheel kit |
|
|
| 47 |
275-4549 |
Tank coupling |
|
|
| 50a |
175-4444 |
1 1/4 inch hose connector |
|
(standard) |
| 50b |
275-4551 |
1 1/2 inch hose connector |
|
(optional) |
| 51 |
175-4445 |
Seal (OBSOLETE) |
|
|
| 53b |
275-4552 |
1 1/2 inch slanted swivel cuff |
|
(optional) |
| 54a |
275-4553 |
1 1/4 inch hose |
|
(standard) (includes 50, 51, 53) |
| 54b |
275-4554 |
1 1/2 inch hose |
|
(optional) (includes 50, 51, 53) |
| 55a |
275-4555 |
1 1/4 inch bent tube |
|
(standard) |
| 55b |
275-4556 |
1 1/2 inch bent tube |
|
(optional) |
| 56a |
275-4557 |
1 1/4 inch hand tube |
|
(standard) |
| 56b |
N/A |
Not available |
|
(optional) (1 1/2 inch hand tube) |
| 57a |
175-4458 |
1 1/4 inch combination floor tool |
|
(standard) |
| 57b |
275-4559 |
1 1/2 inch combination floor tool |
|
(optional) |
| 58 |
275-4560 |
Tool kit with 1 1/4 inch and 1 1/2 inch adaptor (OBSOLETE) |
|
|
| 59 |
275-8006 |
Warning decal |
|
|
|
|
- Frequently Replaced Parts - 999-9614 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 02 |
275-9145 |
On/off switch |
|
|
| 03 |
275-9146 |
120V vacuum motor |
|
|
| 04 |
175-3605 |
Caster wheel kit |
|
|
| 05 |
175-3606 |
Wheel with rubber tire (gray) |
|
|
|
|
|
