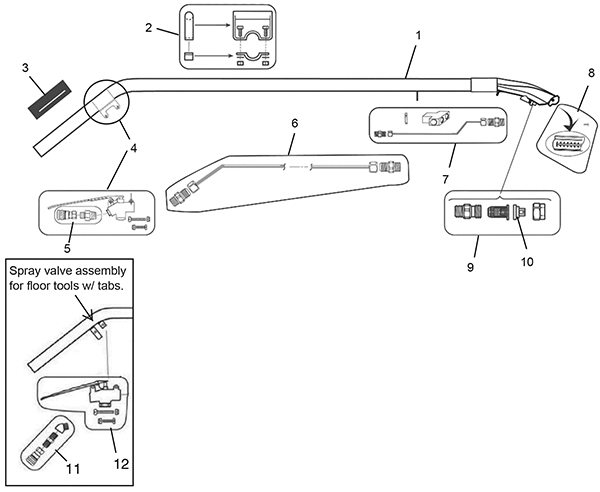

High Flow Titanium Floor Tool Assembly - 175-8363 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-5486 |
13 inch floor tool |
1 |
|
| 2 |
175-5546 |
Handle assembly |
1 |
|
| 3 |
175-5911 |
Handle grip sleeve |
1 |
|
| 4 |
175-5122 |
Water valve |
1 |
(includes 5) (includes hardware) |
| 5 |
175-5369 |
Female coupling with adapter |
1 |
|
| 8 |
175-6120 |
Glide plate |
1 |
(includes hardware) |
| 9 |
275-6884 |
Spray tip fitting |
1 |
(includes 10) |
| 10 |
275-6885 |
Spray tip fitting |
1 |
|
| 11 |
275-5353 |
Quick disconnect/brass fitting assembly |
1 |
|
| 12 |
175-5122 |
Water valve |
1 |
|
|
|
- Commonly Asked For Parts - 275-8500 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
375-1623 |
500PSI pump assembly kit |
|
|
| 02 |
475-2549 |
TOOL, HAND [100 - 500 PSI] |
|
|
| 03 |
175-5065 |
Washer flat (OBSOLETE) |
|
|
| 04 |
175-5064 |
Female coupling |
|
(end of tool and machine side of hose) |
| 05 |
275-6360 |
Male coupling |
|
(Machine and tool side of hose) |
| 06 |
175-5066 |
15 foot pressure hose |
|
|
| 07 |
175-5108 |
25 foot pressure hose |
|
|
|
|

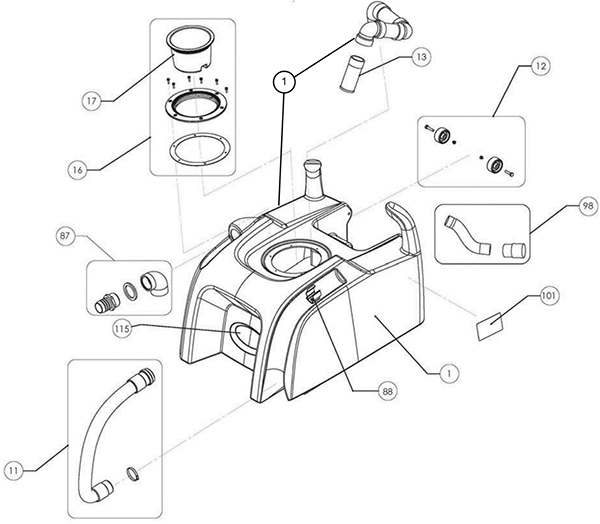

Recovery Tank Assembly - 375-1036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
275-9738 |
Recovery tank |
1 |
|
| 11 |
275-9739 |
Recovery tank drain hose kit |
1 |
|
| 12 |
175-0475 |
Recovery tank support wheel kit |
1 |
|
| 13 |
175-0476 |
Ball float kit |
1 |
|
| 16 |
175-0477 |
Recovery tank cover repair kit |
1 |
(includes 17) |
| 17 |
175-0489 |
Recovery tank cover kit |
1 |
|
| 87 |
175-0507 |
Barb fitting hose kit with gasket |
1 |
|
| 88 |
175-1991 |
Recovery tank retainer clip |
1 |
|
| 98 |
175-1993 |
Vacuum hose |
1 |
|
| 101 |
475-1244 |
LABEL, MODEL [EH5] |
1 |
|
| 115 |
275-7106 |
Tennant nameplate |
1 |
|
|
|

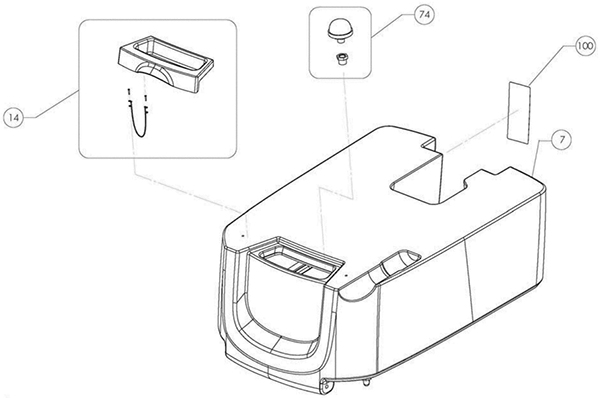

Solution Tank Assembly - 375-1037 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 7 |
475-2615 |
TANK, SOLTN, W/LBLS [EH5] |
1 |
|
| 14 |
175-4015 |
Fill cover kit |
1 |
|
| 74 |
175-2885 |
Solution tank strainer |
1 |
|
| 100 |
175-2886 |
Warning decal |
1 |
|
|
|

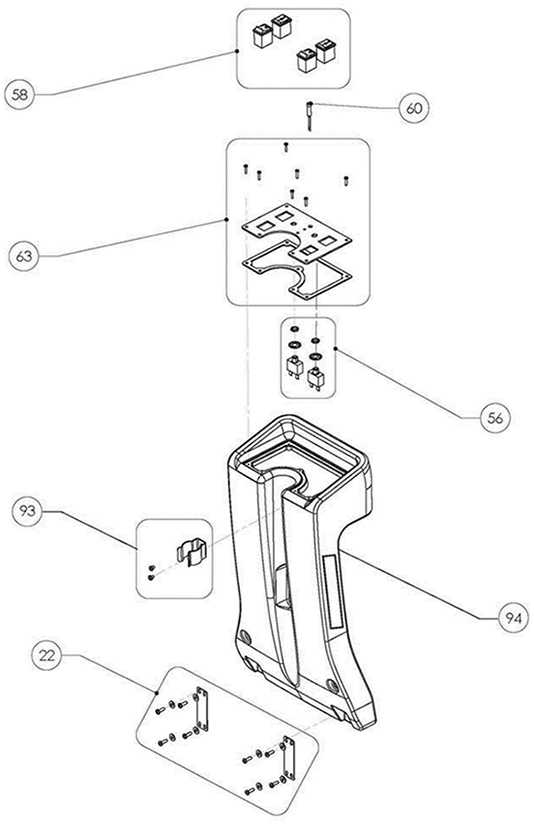

Switch Housing Assembly - 375-1038 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 22 |
175-2887 |
Service plate kit |
1 |
|
| 56 |
175-2891 |
15amp circuit breaker (pkg of 2) |
1 |
|
| 58 |
475-2089 |
SWITCH, ELE, KIT [EH5, EXP H5] |
1 |
|
| 60 |
175-2920 |
Light indicator kit |
1 |
|
| 63 |
475-2013 |
PLATE, SWITCH KIT [EH5, EXP H5] |
1 |
|
| 93 |
175-2955 |
Control housing retainer clip |
1 |
|
| 94 |
175-3445 |
Control housing |
1 |
|
|
|

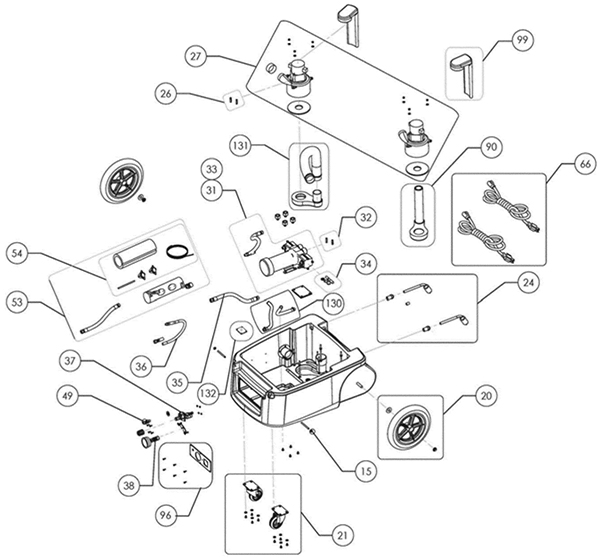

Base Assembly - 375-1039 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 15 |
275-6353 |
Tank cover hinge kit |
1 |
|
| 20 |
275-6354 |
Wheel assembly kit (pkg of 2) |
1 |
|
| 21 |
275-6355 |
Caster assembly kit (pkg of 2) |
1 |
|
| 24 |
275-6356 |
Electric cord kit (pkg of 2) |
1 |
|
| 26 |
275-6358 |
Carbon brush kit |
1 |
|
| 27 |
375-1673 |
Vacuum motor kit |
1 |
|
| 31 |
375-1623 |
500PSI pump assembly kit |
1 |
|
| 32 |
475-1931 |
BRUSH, MOTOR, PUMP KIT, REPLMT [500 PSI] |
1 |
|
| 33 |
475-2321 |
PUMP, VALVE KIT, REPAIR [500 PSI] |
1 |
|
| 34 |
475-2524 |
PUMP, SEAL, CAM KIT, REPAIR [500 PSI] |
1 |
|
| 35 |
475-2120 |
HOSE, PUMP, PULSE, BYPASS KIT, REPLMT |
1 |
|
| 36 |
475-2085 |
HOSE, HEATER, PULSE, BYPASS KIT, REPLMT |
1 |
|
| 37 |
475-2661 |
VALVE, HYD, UNLOADER KIT, REPLMT |
1 |
|
| 38 |
475-2388 |
GAUGE, ASSY KIT, REPLMT [EH5, EXP H5] |
1 |
|
| 49 |
275-6360 |
Male coupling |
1 |
|
| 53 |
275-6361 |
Heater assembly kit |
1 |
(includes 54) |
| 54 |
275-6362 |
Heater assembly repair kit |
1 |
|
| 66 |
275-6363 |
15amp extension cord (pkg of 2) |
1 |
|
| 90 |
275-6365 |
Vacuum hose adapter |
1 |
|
| 96 |
475-2054 |
PLATE, OUTLET, KIT [EH5, EXP H5] |
1 |
|
| 99 |
275-9737 |
Vacuum intake adapter |
2 |
|
| 130 |
475-2217 |
HOSE, KIT, SOLTN & RECYCLE [EH5, EXP H5] |
1 |
|
| 131 |
475-2325 |
HOSE, VACUUM, ADAPTER, KIT[EH5, EXP H5] |
1 |
|
| 132 |
475-2011 |
RECTIFIER [EH5, EXP H5] |
1 |
|
| N/S |
475-2749 |
WIRE HARNESS KIT [EH5, EXP H5] |
1 |
|
|
|

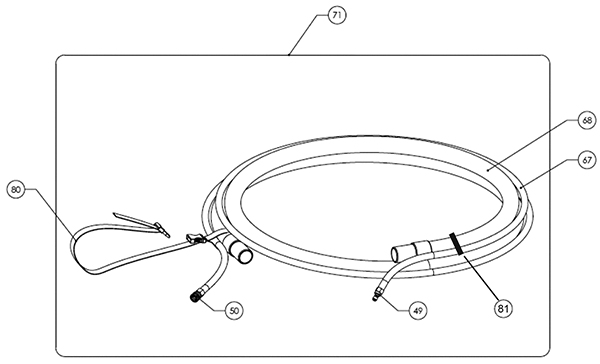

Vacuum Pressure Hose Assembly - 375-1040 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 49 |
275-6360 |
Male coupling |
1 |
|
| 50 |
175-5064 |
Female coupling |
1 |
|
| 67a |
175-5066 |
15 foot pressure hose |
1 |
|
| 67b |
175-5108 |
25 foot pressure hose |
1 |
|
| 68a |
175-5098 |
15 foot vacuum hose |
1 |
|
| 68b |
175-5111 |
25 foot vacuum hose |
1 |
|
| 71a |
175-5099 |
15 foot hose assembly kit |
1 |
(includes 49-67a, 68a, 80-81) |
| 71b |
275-6729 |
25 foot hose assembly kit |
1 |
(includes 49-67b, 68b, 80-81) |
| 80 |
175-5106 |
Mounting hose strap |
1 |
|
| 81 |
375-3914 |
Velcro hose mounting strap |
1 |
|
|
|

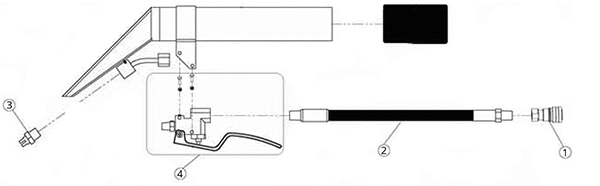

Hand Tool Assembly - 375-1041 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-5064 |
Female coupling |
1 |
|
| 2 |
275-6886 |
Pressure hose |
1 |
|
| 3 |
275-6887 |
Spray tip fitting |
1 |
|
| 4a |
275-6888 |
Trigger valve assembly |
1 |
|
| 4b |
375-9826 |
Valve rebuild kit |
1 |
|
|
|

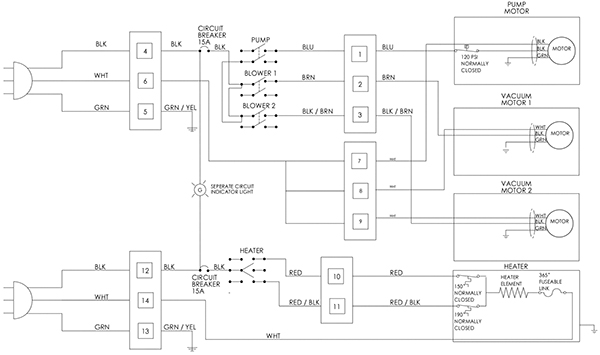

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
|
