Parts List Complete for TENNANT BR-2500

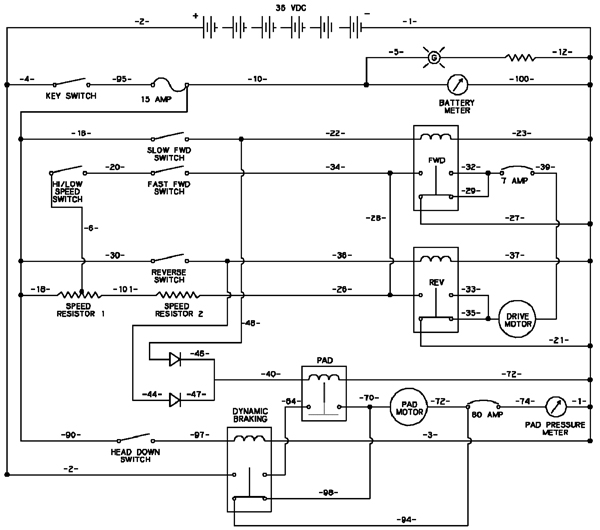

Wiring Diagram - Drive Model -

RefNbr Part Number Description Req Notes

Ladder Diagram - Drive Model -

RefNbr Part Number Description Req Notes

Frame Assembly - 175-8210
RefNbr Part Number Description Req Notes
1a 175-2854 Screw M8-1.25 x 45mm hex head stainless steel 2 (2500XPD)
1b 999-0801 Screw M8-1.25 x 45mm hex head zinc 2 (BR-2250 and BR-2500)
2 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
3 999-0802 Screw M8-1.25 x 16mm socket head 2
4 175-1403 Chassis (OBSOLETE) 1
5 175-1179 Grommet 1
6a 175-4351 General hazard decal 1 (2500XPD)
6b 175-4351 General hazard decal 1 (BR-2250 and BR-2500)
7 175-1405 Roller bracket 1
8 175-1406 Frame support bracket 1 (2500XPD drive model) (BR-2500)
9 175-0117 Guide wheel with bushing 2
10 175-3226 Insulated stand off 1
11 175-1407 Hinge 1
12 999-0553 Washer 5/16 medium split lock stainless steel 2
13a 999-1424 Nut M8-1.25 hex stainless steel 2 (2500XPD)
13b 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2 (BR-2250 and BR-2500)
14 175-0464 Caster wheel 1
15 175-1185 80amp circuit breaker 1
16 999-0389 Screw 10-32 x 1 round head slotted zinc plated 2
17 999-0998 Washer #10 flat stainless steel 2
18 175-1408 7amp circuit breaker 1 (2500XPD drive model) (BR-2500)
19 999-0671 Washer M10 split lock plain finish 4
20 175-0421 Bolt M10 x 25mm hex head (OBSOLETE) 4
21 175-1409 Frame support bracket (OBSOLETE) 1 (2500XPD drive model) (BR-2500)
22a 275-6298 1/8 inch plastic edging 20 in (2500XPD)
22b 175-8621 Plastic edging 20 in (BR-2250 and BR-2500)
23 999-0460 Nut 10-32 hex 2
24 999-0053 Washer #10 split lock plain finish 2
25 999-9069 Bolt 5/16-18 x 3/4 carriage head 8 (qty 14 for drive model and BR-2500)
26a 999-0123 Washer 1/4 SAE flat zinc plated 2 (2500XPD drive model)
26b 999-0016 Washer 1/4 flat plain finish 2 (BR-2500)
27 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4 (qty 6 for drive model and BR-2500)
28a 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2 (2500XPD drive model)
28b 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2 (BR-2500)
29 175-5045 Bolt 1/4-20 UNC X 1/2 hex head 2
30 999-0632 Washer 1/4 split lock stainless steel 2
31 999-1261 Washer M6 flat stainless steel 2
32 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2 (2500XPD drive model) (BR-2500)
33 999-0024 Washer 5/16 flat stainless steel 2 (2500XPD drive model) (BR-2500)
34 175-5113 Bolt M6 x 12mm hex head 4
35 999-0632 Washer 1/4 split lock stainless steel 7
36 999-0006 Washer 3/16 flat zinc plated 7
37 175-0988 P clamp 1 (2500XPD drive model) (BR-2500)
38 999-1031 Screw 10-24 x 1 truss head phillips stainless steel 1 (2500XPD drive model) (BR-2500)
39 999-0442 Nut 10-24 nylon insert lock stainless steel 1 (2500XPD drive model) (BR-2500)
40 175-5013 Resistor (OBSOLETE) 1 (BR-2500)
41 175-1137 Screw 10-24 x 3/4 flat head phillips 2 (BR-2500)
42 999-0803 Washer M5 flat plain finish 2 (BR-2500)
43 999-0356 Nut 10-24 lock stainless steel 2 (BR-2500)
44 175-1357 Battery plate (OBSOLETE) 1
45 999-0024 Washer 5/16 flat stainless steel 4
46 N/A Not available 1 (Decal)
47 175-1362 Nylon spacer 3
48a 999-1312 Screw M6-1 x 20mm hex head stainless steel 3 (2500XPD)
49 999-0120 Washer 3/8 SAE flat 4
50 999-0356 Nut 10-24 lock stainless steel 1 (2500XPD drive model) (BR-2500)
51 175-1410 Dome plug 1 (2500XPD push model) (BR-2250)

Wheel Assembly - 175-8211
RefNbr Part Number Description Req Notes
1 175-1385 Wheel assembly (OBSOLETE) 2 (includes 2, 3, 5 and 9) (qty 1 for 2500XPD drive model and BR-2500)
2 175-1386 Thrust washer 4
3 175-1387 Spanner bushing 2 (qty 1 for 2500XPD drive model and BR-2500)
4a 999-0024 Washer 5/16 flat stainless steel 4 (2500XPD)
4b 999-0024 Washer 5/16 flat stainless steel 4 (BR-2250 and BR-2500)
5 175-1388 Wheel bearing 2 (qty 1 for 2500XPD drive model and BR-2500)
6 175-1389 Wheel 1 (2500XPD drive model) (BR-2500)
7 175-1390 Wheel mounting bracket (OBSOLETE) 2
8a 999-0123 Washer 1/4 SAE flat zinc plated 4
8b 999-0016 Washer 1/4 flat plain finish 4
9 999-0182 Nut 1/2-20 hex plain finish 2
10 175-1391 Axle 2 (qty 1 for 2500XPD drive model and BR-2500)
11 175-1392 Sprocket 1
12 175-1393 Set screw 2
13 175-1394 Chain 1
14 175-1395 Axle 1 (2500XPD drive model) (BR-2500)
15 175-1396 Sprocket 1
16 175-1397 Wheel spacer 1
17a 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
17b 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
18 999-0632 Washer 1/4 split lock stainless steel 2
19 175-1398 36V drive motor 1 (includes 20)
20 175-0430 Carbon brush (sold individually) 1
21 175-1399 Spacer 4
22 175-1400 Wheel mounting support 1
23 999-0244 Bolt 1/4-20 x 2 1/2 hex head grade 5 zinc plated cap 4
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4 (qty 8 for 2500XPD drive model and BR-2500)
25 999-0187 Washer 1/2 flat plain finish 4 (qty 5 for 2500XPD drive model and BR-2500)
26 999-1261 Washer M6 flat stainless steel 2
27 999-0588 Washer 7/8 flat stainless steel 4
28a 999-1312 Screw M6-1 x 20mm hex head stainless steel 2
N/S 175-1401 Wheel shims service kit (OBSOLETE) 1

Cover Assembly - 175-8212
RefNbr Part Number Description Req Notes
1a 275-6299 Front hood (gray) (OBSOLETE) 1 (2500XPD)
1b 175-1368 Front hood (green) (OBSOLETE) 1 (BR-2250 and BR-2500)
2a 175-7326 Tennant decal 1 (2500XPD)
2b 275-5867 Front decal 1 (BR-2250 and BR-2500)
3 175-1370 Maintenance decal (OBSOLETE) 1 (BR-2250 and BR-2500)
4a 175-1371 Battery wiring diagram decal (OBSOLETE) 1
4b N/A Not available 1 (Decal) (2500XPD)
4c 175-1372 Battery wiring diagram decal (OBSOLETE) 1 (BR-2250 and BR-2500)
5 175-5110 Warning decal (OBSOLETE) 1 (BR-2250 and BR-2500)
6a 275-6300 Rear shroud assembly with decal (gray) (OBSOLETE) 1 (includes 24) (2500XPD)
6b 175-1373 Rear cover (green) (OBSOLETE) 1 (BR-2250 and BR-2500)
7a N/A Not available 2 (Decal) (2500XPD)
7b 175-1374 BR-2250 decal (OBSOLETE) 2 (BR-2250)
7c 175-1375 BR-2500 decal (OBSOLETE) 2 (BR-2500)
8 999-1053 Washer 5/16 internal star lock stainless steel 2
9 175-1376 Vacuum door 1
10a 999-0024 Washer 5/16 flat stainless steel 2 (2500XPD)
10b 999-0024 Washer 5/16 flat stainless steel 2 (BR-2250 and BR-2500)
11 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
12 175-1377 Plate (OBSOLETE) 2
14a 999-0024 Washer 5/16 flat stainless steel 2 (2500XPD)
14b 999-0024 Washer 5/16 flat stainless steel 2 (BR-2250 and BR-2500)
15a 175-1379 Paper vacuum bags (pkg of 10) 1
15b 175-1380 Cloth vacuum bag 1
16 175-1381 Dust control hose 1
17 175-1382 Hose cuff 1
18 175-1383 Washer #6 flat nylon (OBSOLETE) 2
19 175-1384 Thumb nut 1
20a 999-0469 Nut M6-1 nylon insert lock zinc plated 1 (2500XPD)
20b 999-0469 Nut M6-1 nylon insert lock zinc plated 1 (BR-2250 and BR-2500)
21 999-0778 Screw M6-1 x 10mm hex head 4
22 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel 2
23 999-0779 Screw M6-1 x 25mm hex head plain finish 1
24 175-2868 Warning decal 1 (2500XPD)

Control Panel Assembly - 175-8213
RefNbr Part Number Description Req Notes
1 175-5020 100amp contactor (OBSOLETE) 1 (dynamic brake)
2 175-1360 Hour meter kit (OBSOLETE) 1
3 N/A Not available 1 (Electrical panel)
4 275-0639 36V solenoid 1 (pad motor)
5 175-1362 Nylon spacer 2
6 175-5013 Resistor (OBSOLETE) 1
7a 275-6301 Plastic edging (sold by the inch) (OBSOLETE) 8 in (2500XPD)
7b 175-8621 Plastic edging 8 in (BR-2250 and BR-2500)
8 175-5020 100amp contactor (OBSOLETE) 2 (forward and reverse)
9 999-1530 Washer 3/8 flat nylon 2
10 175-1365 Heat shield 1
11a N/A Not available 1 (Decal) (2500XPD drive model)
11b 175-1366 Caution hot decal (OBSOLETE) 1 (BR-2500)
12 175-5113 Bolt M6 x 12mm hex head 2
13 999-0364 Washer #6 internal star lock zinc plated 2
14 999-1261 Washer M6 flat stainless steel 2
15 999-0798 Bolt 1/4-20 x 1/2 flange grade 8.2 zinc plated 4 (qty 10 for 2500XPD drive model and BR-2500)
16a 999-1312 Screw M6-1 x 20mm hex head stainless steel 2 (2500XPD)
17 999-1261 Washer M6 flat stainless steel 2
18 999-0024 Washer 5/16 flat stainless steel 4 (qty 8 for 2500XPD drive model and BR-2500)
19 999-0632 Washer 1/4 split lock stainless steel 4 (qty 10 for 2500XPD drive model and BR-2500)
20 175-1131 Nut 1/4-20 4 (qty 10 for 2500XPD drive model and BR-2500)
N/S 275-6302 Main wiring harness (OBSOLETE) 1 (2500XPD push model)
N/S 275-6303 Main wiring harness (OBSOLETE) 1 (2500XPD drive model)

Instrument Panel Assembly - Drive Model - 175-8215
RefNbr Part Number Description Req Notes
1 275-6304 Ball joint (OBSOLETE) 2
2 275-6305 Arm 1
3 275-6306 Rod 1
4 275-6307 Nylon spacer (OBSOLETE) 3
6 275-6308 Nylon washer (OBSOLETE) 3
7 275-6309 Scissor link 2
8 175-1417 Shaft collar 2
9 175-1419 Plate 1
10 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
11 275-6310 Bracket (OBSOLETE) 1
12 275-6311 Switch bracket 1
13 175-1418 Spring 1
14 175-1420 Switch actuator collar 1
15 999-1146 Screw 5/16-18 x 3/4 truss head phillips stainless steel 2
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
17 999-0553 Washer 5/16 medium split lock stainless steel 1
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
19 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
20 999-0869 Nut M4-.7 hex coarse thread plain finish 2
21 999-1083 Washer #8 internal star lock stainless steel 2
22 999-0266 Washer #8 SAE flat stainless steel 2
23 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 2
24 999-1215 Washer #6 SAE flat zinc plated 4
25 999-0051 Washer #6 medium split lock 6
26 999-0195 Nut 6-32 hex plain 6
27 999-0805 Bolt M3-.5 x 16mm hex head 2
28 175-0472 Washer M3 lock (OBSOLETE) 2
29 999-0053 Washer #10 split lock plain finish 1
30 999-0460 Nut 10-32 hex 1
31a 675-9894 Handle grip 2
31b 991-8571 Handle grip 2 (NON-OEM)
32 175-0384 Handlebar 1
33 175-5010 Fuse holder 1
34 175-5011 15amp slow-blow fuse 1
35 175-3727 Key switch (OBSOLETE) 1 (includes 36)
36 175-0185 Double sided key (steel) 1
37 999-0804 Washer M20 internal lock 1
38 999-1598 Screw 5/16-18 x 1 truss head stainless steel 1
39 175-2829 Dome plug 2
40 275-6312 Travel speed decal (OBSOLETE) 1
41 275-6051 Toggle switch with plate 1
42 999-1167 Bolt 6-32 x 1 hex head stainless steel 4
43 999-1042 Screw M4-1 x 12mm pan head phillips zinc 2
44 175-2701 Plug 1
45 175-1422 Key switch bracket 1
46 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc 2
48 175-1413 Pilot light (amber) 1
49 175-0393 Pilot light (green) 1
50 175-1412 Pad pressure meter (OBSOLETE) 1
51 175-1414 Battery meter 1
52 N/A Not available 2 (Washer)

Pad Shroud Linkage Assembly - 175-8216
RefNbr Part Number Description Req Notes
1 175-5080 Cotter pin 2
2 175-1443 Pin (OBSOLETE) 1
3 999-0808 Bolt 3/8-16 x 10 turned eye zinc plated 1
4 175-1444 Spring support bracket 1
5 999-1156 Washer M12-.7 nylon 22
6 999-1653 Screw M8-1.25 x 30mm hex head stainless steel 2
7 175-1445 Pressure adjustment spring 1
8 999-0120 Washer 3/8 SAE flat 2
9 175-1446 Adjusting knob 1
10 175-1447 Screw 10-24 x 3/8 nylon set (OBSOLETE) 1
11 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
12 175-1448 Extension spring 2
13 999-0182 Nut 1/2-20 hex plain finish 1
14 999-0187 Washer 1/2 flat plain finish 1
15 175-1449 Spring adjustment plate (OBSOLETE) 1
16 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 5
17 999-0024 Washer 5/16 flat stainless steel 11
18 175-5070 Sleeved bearing 8
19 175-1450 Washer 25/64 x 17/64 (OBSOLETE) 2
20 175-1451 Suspension link (OBSOLETE) 4
21 999-0469 Nut M6-1 nylon insert lock zinc plated 2
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated 10
23 999-0024 Washer 5/16 flat stainless steel 4
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
25 175-1452 Spacer 4
26 999-1653 Screw M8-1.25 x 30mm hex head stainless steel 2
27 999-0553 Washer 5/16 medium split lock stainless steel 4
28 175-1453 Grommet (OBSOLETE) 4
29 175-1454 Spacer (OBSOLETE) 4
30 175-1455 Bracket 2
31 175-5040 Bolt M8-1.25 x 50mm hex head (OBSOLETE) 5
32 175-1456 Sleeved bearing 2
33 175-1457 Rod end mount 2
34 175-5088 Rod end 2
35 175-1423 36V 3HP brush drive motor 1 (includes 36)
36 175-1113 Carbon brush (sold individually) 4
37 999-0364 Washer #6 internal star lock zinc plated 4
38 175-1424 Washer flat 4
39 175-1458 Cross arm 1
40 999-1564 Screw 1/2-20 x 6 hex head zinc plated 1
41 175-1459 Spacer (OBSOLETE) 1
42 999-1167 Bolt 6-32 x 1 hex head stainless steel 2
43 675-9886 Snap switch 1
44 175-1460 Switch bracket 1
45 999-0195 Nut 6-32 hex plain 2
46 999-0051 Washer #6 medium split lock 2
47 999-1215 Washer #6 SAE flat zinc plated 2
48 175-1425 Bracket 1
49 175-1426 Screw 3/8-16 x 5/8 carriage (OBSOLETE) 1
50 999-0034 Washer 3/8 split lock plain finish 1
51 999-0234 Nut 3/8-16 acorn nickel plated 1
52 999-1312 Screw M6-1 x 20mm hex head stainless steel 4

Pad Driver Assembly - 175-8217
RefNbr Part Number Description Req Notes
1 175-1423 36V 3HP brush drive motor 1
2 175-1113 Carbon brush (sold individually) 2
3 999-1312 Screw M6-1 x 20mm hex head stainless steel 4
4 999-0364 Washer #6 internal star lock zinc plated 4
5 175-1424 Washer flat 4
6 175-1425 Bracket 1
7 175-1426 Screw 3/8-16 x 5/8 carriage (OBSOLETE) 1
8 999-0034 Washer 3/8 split lock plain finish 5
9 999-0234 Nut 3/8-16 acorn nickel plated 1
10 999-0742 Screw M8-1.25 x 40mm pan head phillips zinc 1
11a 999-0123 Washer 1/4 SAE flat zinc plated 1 (2500XPD)
11b 999-0016 Washer 1/4 flat plain finish 1 (BR-2250 and BR-2500)
12 175-0293 Washer 1/2 compression zinc plated 1
13 175-0117 Guide wheel with bushing 1
14 175-1238 Moving parts decal 1
15 175-1427 Scrub head (OBSOLETE) 1
16a 275-6132 Skirt assembly (OBSOLETE) 1 (includes 16b and 17)
16b 175-1430 Skid strip 1
17a 175-1429 Skirt strap assembly 1 (includes 17b)
17b 175-1428 Adjustment band fastener 1
18 999-0032 Washer 3/8 USS flat plain finish 4 (2500XPD)
19 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 4 (2500XPD)
20 175-1431 Flexible pad driver assembly (OBSOLETE) 1 (includes 21-27)
21 175-7917 Water containment ring 1
22 175-1432 O-ring (OBSOLETE) 1
23 996-0372 Big mouth pad holder (left hand thread) 1
24 999-0266 Washer #8 SAE flat stainless steel 3
25 999-0411 Screw 8-32 x 3/8 pan head slotted zinc plated 3
26 175-5850 Pad driver retainer 1
27 175-1434 Removable centerlock (OBSOLETE) 1
28 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
29 999-1407 Washer 5/16 belleville 1
30 175-1116 Screw .31-24 x 1 1/4mm hex head 1
31 175-1435 Motor cover (OBSOLETE) 1
32 175-1436 Washer .786 x 1.5 x .3 1
33 175-1437 Spacer 3
34 999-0807 Screw M6-1 x 10mm flat head phillips 1
35 999-0632 Washer 1/4 split lock stainless steel 1
36 175-5045 Bolt 1/4-20 UNC X 1/2 hex head 8 (includes 37 and 38)
37 999-0632 Washer 1/4 split lock stainless steel 8
38 999-0190 Nut 1/4-20 hex plain finish 8

Pad Motor Assembly - 175-8218
RefNbr Part Number Description Req Notes
0 175-1423 36V 3HP brush drive motor 1 (includes 1-11)
1 175-1438 Lead assembly 1 (positive)
2 175-1438 Lead assembly 1 (negative)
3 175-1113 Carbon brush (sold individually) 4
4 175-1439 Brush board assembly (OBSOLETE) 1
5 175-0370 Helical washer 1
6 175-0957 Brush bearing 1
7 175-1440 Armature assembly 1
8 175-1441 Shaft key (OBSOLETE) 1
9 175-2781 Wheel bearing 1
10 175-0375 Brush spring (pkg of 4) 4
11 175-1442 Bracket (OBSOLETE) 1

Drive Motor Assembly - 175-8219
RefNbr Part Number Description Req Notes
0 175-1398 36V drive motor 1 (includes 1-13)
1 175-0428 Bracket 1
2 175-0370 Helical washer 1
3 175-0957 Brush bearing 1
4 175-0415 Woodruff key (OBSOLETE) 1
5 175-0429 Armature assembly 1
6 175-0430 Carbon brush (sold individually) 2
7 175-0431 Brush board assembly (OBSOLETE) 1
8 175-0432 Commutator bracket (OBSOLETE) 1
9 175-0433 Negative lead 1
10 175-1402 Connector 1
11 175-0435 Positive lead 1
12 175-0375 Brush spring (pkg of 4) 2
13 175-0957 Brush bearing 1

Battery Assembly - 175-8220
RefNbr Part Number Description Req Notes
1 175-1349 Battery wiring harness 1
2 175-1350 Battery cable assembly (OBSOLETE) 1
3 175-9022 Battery cable 2
4 175-1103 Battery cable boot (black) 6
5 175-1103 Battery cable boot (black) 6
6 175-2121 Battery terminal cover (clear) 12
7 175-1351 Upper battery tray 1
8 175-9009 Cable 3
9 175-1352 Battery insert 2
10 175-1353 Battery insert 2 (2500XPD drive model and BR-2500)
11 175-1354 Battery support plate 1
12 175-1355 Lower battery tray (OBSOLETE) 1
13 175-1356 Battery cable assembly (OBSOLETE) 1
15 999-0779 Screw M6-1 x 25mm hex head plain finish 2
16 999-0469 Nut M6-1 nylon insert lock zinc plated 2
17 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 12
18 999-0024 Washer 5/16 flat stainless steel 24
19 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
20 175-1357 Battery plate (OBSOLETE) 1 (BR-2250 and BR-2500)

- Batteries and Chargers - 175-8221
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6
5 175-1358 36V 25amp battery charger 1 OEM
6 162-5062 36V 20amp battery charger with small SB50 gray plug 1 (NON-OEM)
162-9024 36V 12amp battery charger with small SB50 gray plug

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Commonly Asked For Parts - 275-8527
RefNbr Part Number Description Req Notes
0.9835 175-1380 Cloth vacuum bag
0.9835 175-0185 Double sided key (steel)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
