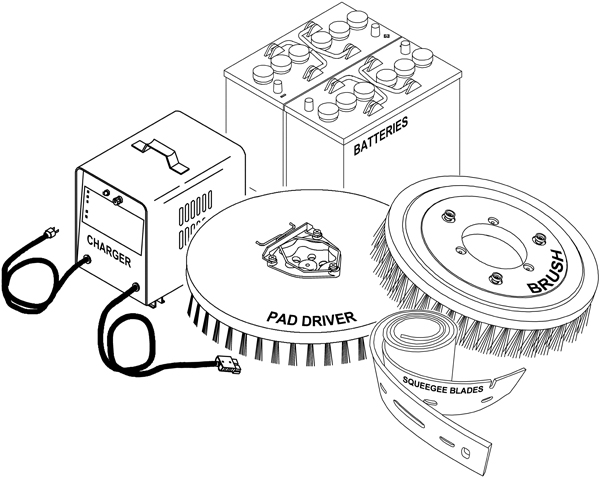

Parts List Complete for TENNANT B7


- Frequently Replaced Parts - 172-9971
RefNbr Part Number Description Req Notes
1 162-0005 6V 305Ah wet battery (SNSR) 6
2 162-0046 6V 335Ah AGM battery (Group J305) 6
4 162-5062 36V 20amp battery charger with small SB50 gray plug 1
5 275-5447 36V 25amp onboard battery charger 1
6a 275-5446 16/3 power cord 15 foot (black) 1 (OEM)
6b 991-8576 16/3 power cord 15 foot (black) 1 (NON-OEM)
7 991-2105 SB50 50amp charger plug with pins (gray) 1
8 998-0010 Battery jumper cable - ring type (red) 1
9a 175-7872 Key switch with 2 keys 1
9b 991-5161 Key switch with keys 1 (NON-OEM)
10 275-6578 Paper vacuum bags (pkg of 10) 1
11 275-5415 Cloth dust bag 1
12a 275-1449 Wheel with taper 2
12b 991-7142 Wheel with taper 2
13 275-5195 Caster wheel kit 1
14a 275-7527 20 inch (500mm) pad driver assembly 1
14b 275-5379 24 inch (600mm) pad driver assembly 1
14c 275-7525 27 inch (680mm) pad driver assembly 1
15 175-0182 Universal center lock 1

Cover Assembly - 175-8300
RefNbr Part Number Description Req Notes
1a 175-3515 Battery cover 1 (SPEEDGLEAM 5)
1b 275-5184 Battery cover 1 (B5)
1c 275-5185 Battery cover 1 (B7)
2 999-1383 Screw M6-1 x 16mm hex head stainless steel 1
3 275-5186 Bracket 1
4 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 4
5 999-1083 Washer #8 internal star lock stainless steel 4
6 275-5187 Latch with keeper 2
7 275-5188 Ball stud 1
8 275-5189 Damper 1
9 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 3
10 999-1083 Washer #8 internal star lock stainless steel 3
11 275-5190 Ball stud bracket 1

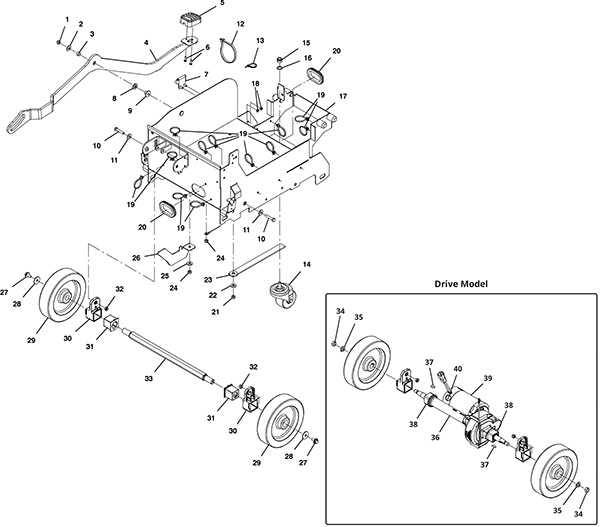

Frame Assembly - 175-8302
RefNbr Part Number Description Req Notes
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
3 275-5191 Bearing 1
4a 275-5192 Pedal weldment 1 (SPEEDGLEAM 5 and B5)
4b 275-5361 Pedal weldment 1 (B7)
5 275-5193 Pedal cover 1
6 175-7660 Screw #10-14 x .675 shoulder self-tapping 2
7 175-7883 Foot pedal locking bracket 1
8 999-9214 Washer M8 flat nylon 1
9 275-5194 Bushing 1
10 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
12 175-2226 Nylon wire tie 1
13 175-7795 Cable tie 1
14 275-5195 Caster wheel kit 1 (includes 15-16)
15 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
16 175-1825 Washer 2
17a 275-5196 Main frame weldment 1 (SPEEDGLEAM 5 and B5 before SN 11047953)
17b 375-9325 Needle bearing 1 (SPEEDGLEAM 5 and B5 after SN 11047952)
17c 275-5362 Main frame weldment 1 (B7 before SN 11049836)
17d 375-9314 Frame weldment 1 (B7 after SN 11049835)
18 999-0497 Nut M6-1 nylon insert lock stainless steel 2
19 275-5197 Fir tree clip 15
20 275-9295 Rubber grommet 2
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
22 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
23 275-9261 Static strip with grommet 1
24 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
26a 275-5198 Bracket 1 (SPEEDGLEAM 5 and B5)
26b 475-0757 BRACKET, FOLLOWER, HEAD 1 (B7)
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (push)
28 275-7133 Washer .34B x 1.25D x .11 flat stainless steel 2 (push)
29a 275-5199 Wheel 2 (SPEEDGLEAM 5 push and B5 push before SN 11047953)
29b 375-3176 Wheel with bearing 2 (SPEEDGLEAM 5 push and B5 push after SN 11047952)
29c 275-1449 Wheel with taper 2 (SPEEDGLEAM 5 drive, B5 drive and B7 before SN 11049836)
29d 375-3173 Wheel with taper 2 (SPEEDGLEAM 5 drive, B5 drive and B7 after SN 11049835)
29e 991-7142 Wheel with taper 2 (NON-OEM)
30 275-5900 Axle mount 2
31 275-5901 Grommet 2 (push)
32 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
33 275-5360 Axle 1 (push)
34 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive)
35 175-1825 Washer 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive)
36a 275-5363 Transaxle 1 (includes 37-40) (SPEEDGLEAM 5 drive and B5 drive)
36b 275-5364 Transaxle 1 (includes 37-40) (B7)
37 275-1448 Square keyway 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive)
38 175-3660 Transaxle sleeve 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive)
39 175-4018 24V transaxle motor 1 (includes 40) (SPEEDGLEAM 5 drive, B5 drive and B7 drive)
40 175-4019 Carbon brush kit (pkg of 4) 1 (SPEEDGLEAM 5 drive, B5 drive and B7 drive)

Head Assembly - 175-8303
RefNbr Part Number Description Req Notes
1a 175-4197 Motor cover 1 (SPEEDGLEAM 5 before SN 11044942)
1c 275-5365 Motor cover 1 (B5 and B7 before SN 11044940)
2 991-5122 1/4 nylon tree push-in rivet 4
3a 275-5366 Motor 1 (includes 3c) (SPEEDGLEAM 5 and B5)
3b 275-5367 Motor 1 (includes 3c) (B7)
3c 275-5368 Carbon brush assembly 1
4 175-5356 Square keyway 1
5 999-1383 Screw M6-1 x 16mm hex head stainless steel 1
6 275-5369 Roller guide 1
7 175-7660 Screw #10-14 x .675 shoulder self-tapping 1
8 275-5370 Clip 1
9 175-7795 Cable tie 1
10 999-1407 Washer 5/16 belleville 4
11 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 4
12a 375-0045 20 inch motor weldment 1 (SPEEDGLEAM 5 and B5)
12b 475-2475 24 inch motor weldment 1 (B7) (after SN 10729500)
12c 275-5372 24 inch motor weldment 1 (B7) (before SN 10729501)
12d 475-2455 27 inch motor weldment 1 (B7 after SN 10729500)
12e 275-5381 27 inch motor weldment 1 (B7 before SN 10729501)
13 275-5373 Bumper wheel kit 1 (includes 14-17)
14 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
16 999-6674 Washer 5/16 x 1 1/2 wave stainless steel 1
17 275-5376 Bushing 1
18a 275-5377 20 inch (500mm) dust shroud 1 (SPEEDGLEAM 5 and B5)
18b 275-5378 24 inch (600mm) dust shroud 1 (B7)
18c 275-5382 27 inch (680mm) dust shroud 1 (B7)
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
21a 275-7528 20 inch skirt assembly 1 (SPEEDGLEAM 5 and B5)
21b 275-7008 24 inch (600mm) skirt assembly 1 (B7)
21c 275-7015 27 inch (680mm) skirt assembly 1 (B7)
22 175-2869 Gasket 1
23a 275-7527 20 inch (500mm) pad driver assembly 1 (includes 24-25) (SPEEDGLEAM 5 and B5)
23b 275-5379 24 inch (600mm) pad driver assembly 1 (includes 24-25) (B7)
23c 275-7525 27 inch (680mm) pad driver assembly 1 (includes 24-25) (B7)
24 175-0182 Universal center lock 1
25 275-7012 Locking collar 1
27 999-1407 Washer 5/16 belleville 1
28 999-0617 Washer 3/8 x 1 flat stainless steel 1
29 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 1

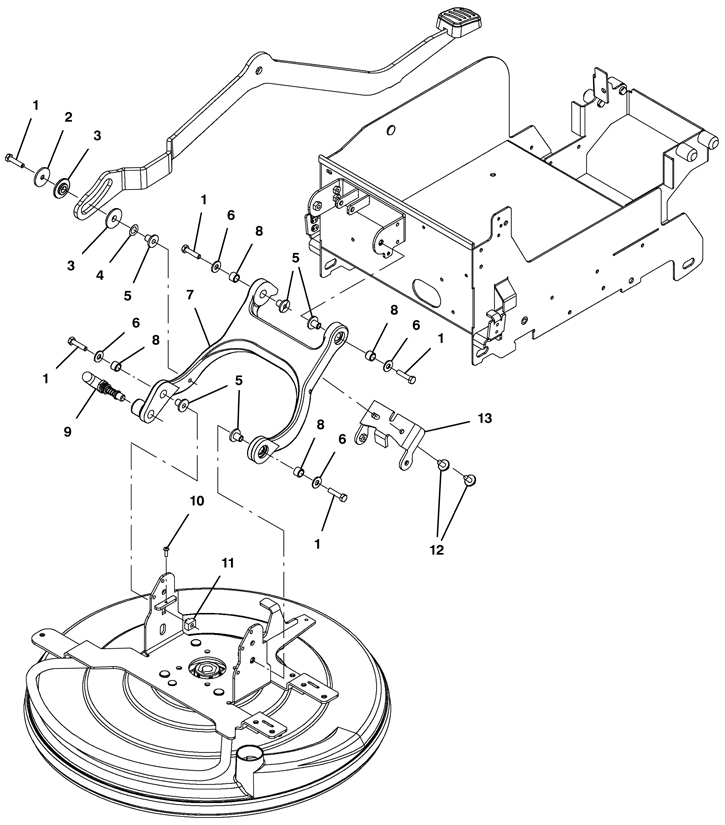

Head Lift Assembly - 175-8304
RefNbr Part Number Description Req Notes
1 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 5
2 275-5384 Flat washer (Tennant Industrial) 1
3 275-5385 Roller 2
4 999-6674 Washer 5/16 x 1 1/2 wave stainless steel 1
5 275-5386 Bushing 5
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
7 275-5387 Lifting arm 1 (includes 8)
8 275-5388 Bearing kit (pkg of 4) 1
9 275-5389 Spring pin 1
10 999-1403 Screw M8 x 16mm torx head 1
11 375-1348 Nut M8 x 1.25mm 1
12 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2
13 275-5391 Guide weldment 1

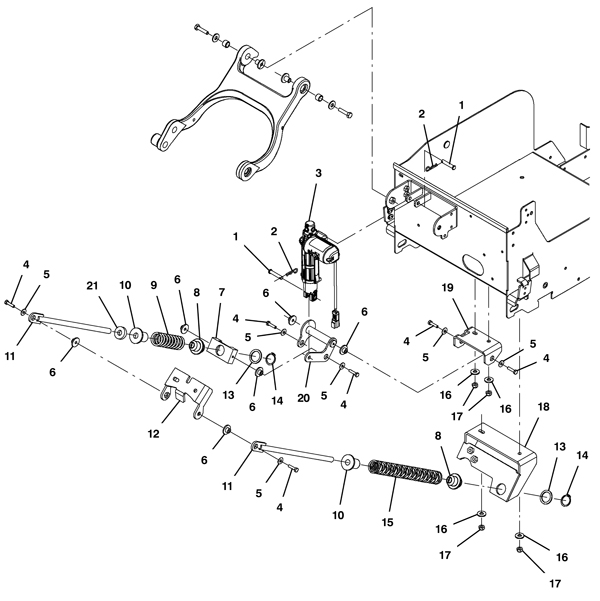

Down Pressure Assembly - Automated - 175-8305
RefNbr Part Number Description Req Notes
1 275-5392 Clevis pin 2
2 175-2117 Cotter pin 2
3 275-5393 36V actuator 1
4 999-1087 Bolt M6-1 x 25mm hex head stainless steel 6
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
6 275-5376 Bushing 6
7 275-5394 Guide block 1
8 275-5395 Guide bushing 2
9a 475-1390 SPRING, CMPR,1.364OD .162WIR 4.462L[BRN] 1 (SPEEDGLEAM 5 and B5)
9b 275-5396 Spring 1 (B7) (24 inch)
9c 475-1510 SPRING, CMPR,1.424OD .192WIR 4.40L[BLUE] 1 (B7) (27 inch)
10 275-5397 Spring bushing 2
11 275-5398 Guide rod 2
12 275-5391 Guide weldment 1
13 275-5399 Flat nylon washer 2
14 275-5400 Retaining ring 2
15a 275-5401 Spring 1 (SPEEDGLEAM 5 and B5)
15b 475-1442 SPRING, CMPR, 1.35OD .156WIR 11L[PURPLE] 1 (B7) (24 inch)
15c 375-1384 Compression spring 1 (B7) (27 inch)
16 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
18 275-5402 Rod bracket weldment 1
19 275-5403 Bellcrank bracket 1
20 275-5404 Bellcrank actuator bracket weldment 1
21 999-0187 Washer 1/2 flat plain finish 1 (SPEEDGLEAM 5 and B5)

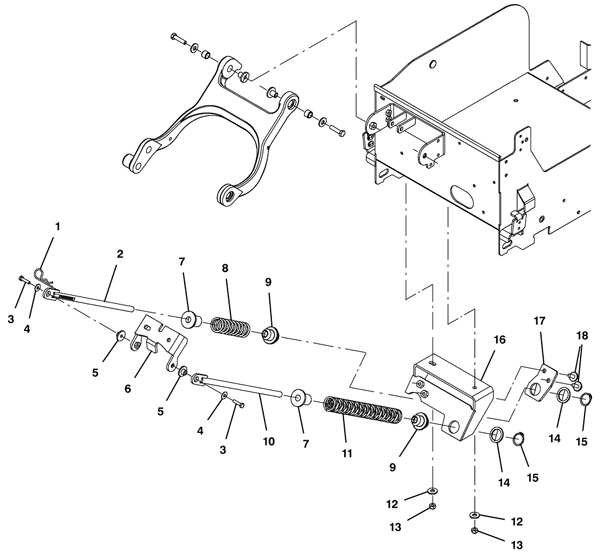

Down Pressure Assembly - Mechanical - 175-8306
RefNbr Part Number Description Req Notes
1 175-2106 Cotter hair pin 1
2 275-5405 Adjustable guide rod 1
3 999-1087 Bolt M6-1 x 25mm hex head stainless steel 2
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
5 275-5376 Bushing 2
6 275-5391 Guide weldment 1
7 275-5397 Spring bushing 2
8 375-1659 Compression spring 1
9 275-5395 Guide bushing 2
10 275-5398 Guide rod 1
11a 275-5401 Spring 1 (B5 and SPEEDGLEAM 5)
11b 475-1442 SPRING, CMPR, 1.35OD .156WIR 11L[PURPLE] 1 (B7) (24 inch)
11c 375-1384 Compression spring 1 (B7) (27 inch)
12 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
13 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
14 275-5399 Flat nylon washer 2
15 275-5400 Retaining ring 2
16 275-5402 Rod bracket weldment 1
17 275-5406 Spring plate 1
18 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2

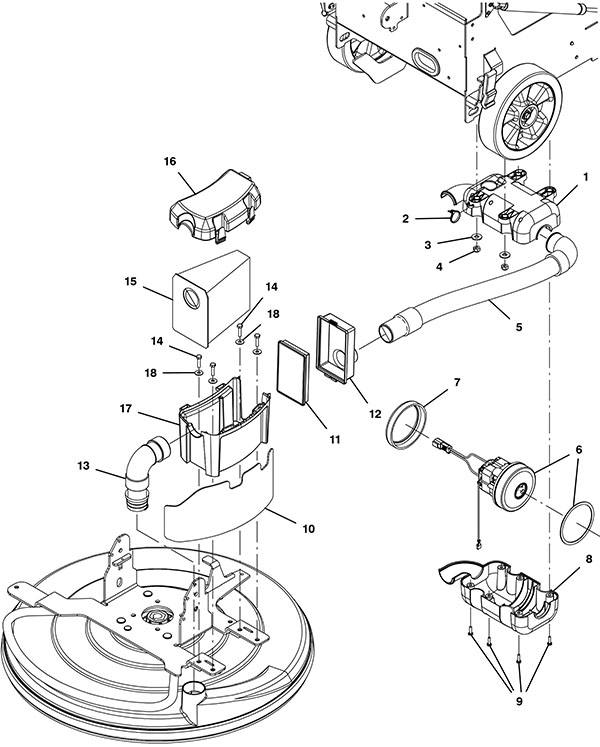

Dust Control Assembly - 175-8307
RefNbr Part Number Description Req Notes
1a 275-5407 Left hand vacuum motor housing 1 (active model)
1b 375-7888 Dust control cover 1 (passive model) (SPEEDGLEAM 5, B5 and B7 after SN 11044941)
1c 175-3828 Dust control cover (dark green) 1 (passive model) (SPEEDGLEAM 5 before SN 11044942)
1d 275-5413 Dust control cover (OBSOLETE) 1 (passive model) (B5 and B7 before SN 11044942)
2 175-7795 Cable tie 1 (active model)
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4 (active model)
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4 (active model)
5 175-9825 Vacuum hose 1 1/2 x 33 inch 1 (active model)
6 275-5408 36V vacuum motor 1 (active model)
7 275-5409 Vacuum motor gasket 1 (active model)
8 275-5410 Right hand vacuum motor housing 1 (active model)
9 175-7660 Screw #10-14 x .675 shoulder self-tapping 6 (active model)
10a 375-4012 Dust box guard weldment 1 (after SN 10729500)
10b 275-5411 Dust box weldment 1 (before SN 10729501)
11a 275-6577 HEPA filter 1 (active model)
11b 175-4017 Dust box cover gasket 1 (passive model)
12a 175-3522 HEPA filter housing 1 (SPEEDGLEAM 5 before SN 11044942)
12b 275-5412 HEPA filter housing 1 (B5 and B7 before SN 11044942)
12c 275-5412 HEPA filter housing 1 (SPEEDGLEAM 5, B5 and B7 after SN 11044941)
13 275-7526 1 1/2 inch hose assembly 1
14 999-1087 Bolt M6-1 x 25mm hex head stainless steel 4
15a 275-6578 Paper vacuum bags (pkg of 10) 1 (active model)
15b 275-5415 Cloth dust bag 1 (passive model) (optional)
16a 175-3828 Dust control cover (dark green) 1 (SPEEDGLEAM 5 before SN 11044942)
16b 275-5413 Dust control cover (OBSOLETE) 1 (B5 and B7)
16c 375-7888 Dust control cover 1 (after SN 11044941)
17a 175-4016 Dust control base (dark green) 1 (SPEEDGLEAM 5 before SN 11044942)
17b 675-9780 Dust control base 1 (SPEEDGLEAM 5, B5 AND B7 after SN 11044941)
17c 275-5414 Dust control base (teal) 1 (B5 and B7 before SN 11044942)
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4

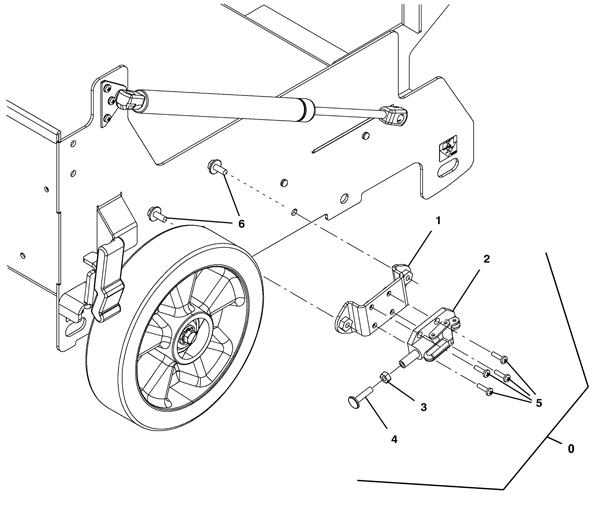

Parking Brake Assembly - 175-8309
RefNbr Part Number Description Req Notes
0 275-5416 Parking brake kit 1 (includes 1-6)
1 275-5417 Brake weldment (OBSOLETE) 1
2 275-5960 Parking brake clamp 1
3 999-1308 Nut M6-1 hex stainless steel 1
4 275-1444 Screw M6 x 25mm stainless steel 1
5 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4
6 999-1383 Screw M6-1 x 16mm hex head stainless steel 2

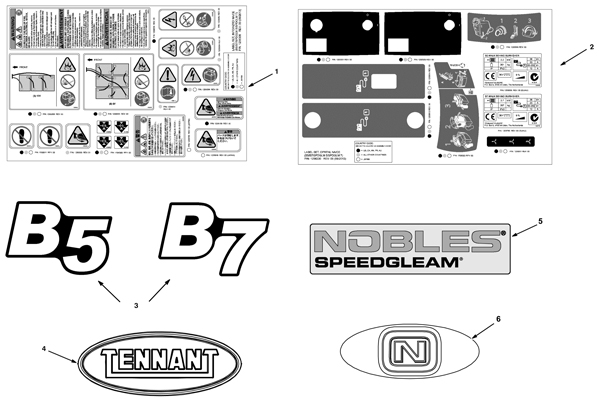

Decal Assembly - 175-8310
RefNbr Part Number Description Req Notes
1 275-5418 Hazard decal 1
2 275-5419 Operation decal 1
3a 275-5420 B5 decal 2 (B5)
3b 275-5421 B7 decal 2 (B7)
4 275-7106 Tennant nameplate 1 (B5 and B7)
5 275-6725 SpeedGleam decal (Tennant Industrial) 2 (SpeedGleam 5)
6 175-4198 Nobles logo decal 1 (SpeedGleam 5)

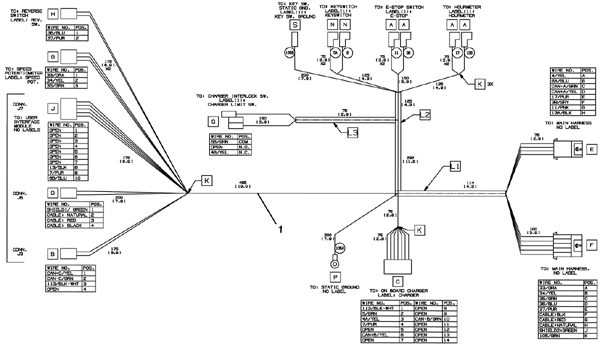

Console Wiring Harness - Drive Model - 175-8316
RefNbr Part Number Description Req Notes
1 275-5426 Wiring harness 1 (B5 & B7)

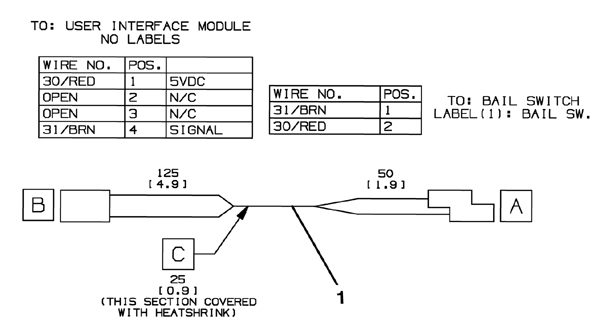

Bail Switch Wiring Harness - 175-8317
RefNbr Part Number Description Req Notes
1 275-5427 Wiring harness 1

Key Switch Wiring Harness - 175-8318
RefNbr Part Number Description Req Notes
1 275-5428 Wiring harness 1

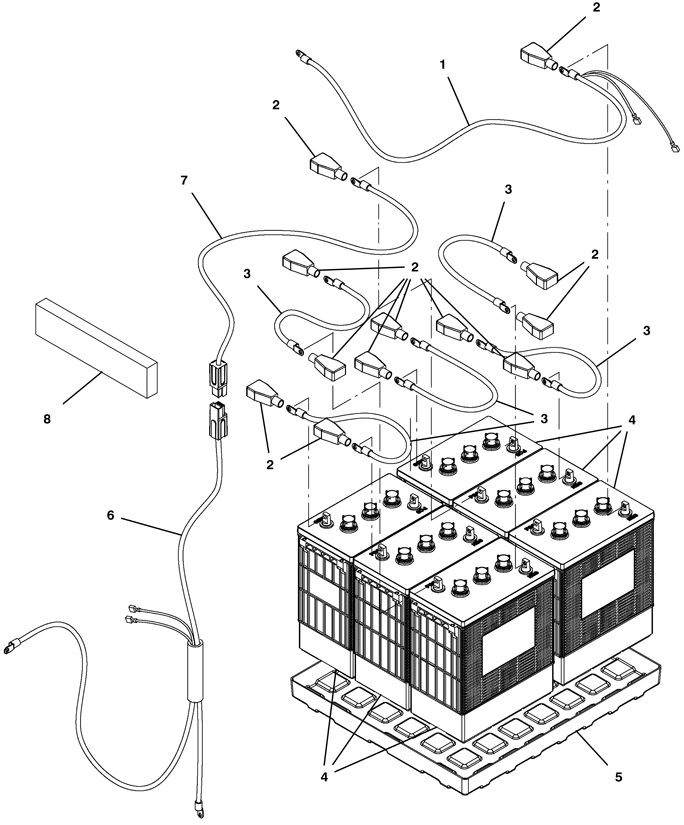

Battery Assembly - 175-8326
RefNbr Part Number Description Req Notes
1 275-5441 Cable assembly 1
2 275-7113 Terminal boot (black) 12
3 275-5457 Battery jumper cable 5
4a 162-0003 6V 225Ah wet battery (SNSR) 6
4b 162-0005 6V 305Ah wet battery (SNSR) 6
4c 162-0046 6V 335Ah AGM battery (Group J305) 6
5 275-5461 Battery tray 1
6 275-5462 100amp fuse cable assembly 1
7 275-5459 Cable (red) 1
8 175-1352 Battery insert 2 (AGM sealed)
N/S 275-5948 Battery terminal cover (black) 12

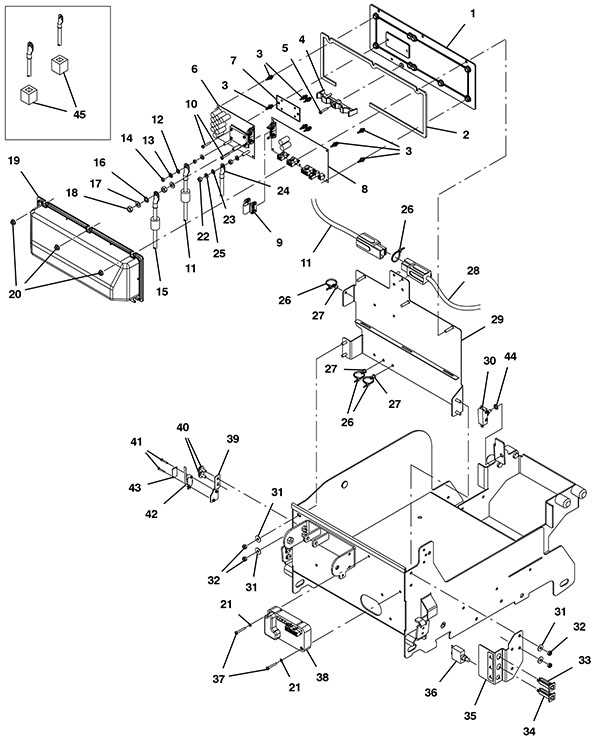

Electrical Components Assembly - 175-8327
RefNbr Part Number Description Req Notes
1 275-5463 Mounting panel 1
2 275-5464 Circuit board cover gasket 1
3 275-5465 Standoff 9
4 275-5466 Terminal spacer 1
5 275-4705 Screw M4-.7 x25mm pan head phillips 1
6 275-5467 Circuit board bridge kit 1 (includes 7)
7 275-5468 Circuit board pad 1
8a 275-5469 Circuit board base kit 1 (for models with mechanical pad pressure and passive dust control)
8b 275-5470 Circuit board optional kit 1 (for models with automated pad pressure and/or active dust control)
9 275-5471 Ribbon cable assembly 1
10 275-4705 Screw M4-.7 x25mm pan head phillips 2
11a 275-5460 100amp fuse cable assembly 1 (SPEEDGLEAM 5 and B5)
11b 275-5462 100amp fuse cable assembly 1 (B7)
12 175-4544 Washer M6 locking 1
13 999-0016 Washer 1/4 flat plain finish 1
14 275-5473 Nut M5 x .8 hex brass 1
15 275-5474 Cable (blue) 1
16 999-1053 Washer 5/16 internal star lock stainless steel 1
17 275-5475 Washer M8-.4 x 1.6mm brass 1
18 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) 1
19 275-5477 Control board cover 1
20 999-6694 Nut M6-1 hex serrated flange stainless steel 3
21 999-1083 Washer #8 internal star lock stainless steel 2
22 275-5479 Nut M6 x 1 (Tennant Industrial) 1
23 175-4544 Washer M6 locking 1
24 275-5441 Cable assembly 1
25 999-0016 Washer 1/4 flat plain finish 1
26 175-7795 Cable tie 4
27 275-5370 Clip 3 (SPEEDGLEAM 5 and B5)
28 275-5459 Cable (red) 1
29 275-5481 Panel mounting weldment 1 (SPEEDGLEAM 5 and B5)
30 275-5482 Push switch 1
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2 (SPEEDGLEAM 5 and B5)
32a 999-0497 Nut M6-1 nylon insert lock stainless steel 2 (SPEEDGLEAM 5 and B5)
32b 999-1383 Screw M6-1 x 16mm hex head stainless steel 2 (B7)
33 275-5483 2.5amp circuit breaker 1
34 175-5969 15amp circuit breaker (Tennant Industrial) 1
35 275-5484 Circuit breaker bracket 1
36 175-2151 30amp circuit breaker 1
37 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel 2
38 275-5485 Drive controller 1 (requires Tennant True service or an authorized Tennant service provider)
39 375-0047 Switch bracket 1
40 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
41 999-1040 Screw M3-.5 x 20mm pan head 2
42 275-5433 Switch 1
43 175-1200 Switch backing plate 1
44 999-0201 Washer 3/8 internal star lock 1
45a 275-5460 100amp fuse cable assembly 2
45b 275-5474 Cable (blue) 2 (includes ferrite)

- Pads - 24 inch - 255-2400
RefNbr Part Number Description Req Notes
01 255-2440 24 inch aqua plus burnishing pad (pkg of 5)
02 255-2435 24 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2464 24 inch Blue ace pad (pkg of 5)
04 255-2442 24 inch Blue Jay burnishing pad (pkg of 5)
05 255-2412 24 inch Cure white pad (pkg of 5)
06 255-2477 24 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2438 24 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2421 24 inch gorilla lite burnishing pad (pkg of 5)
09 255-2450 24 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2465 24 inch Heat concrete bonding pad (pkg of 5)
11 255-2430 24 inch jaguar burnishing pad (pkg of 5)
12 255-2469 24 inch Micropolish polishing and burnishing pad (pkg of 2)
13 255-2490 24 inch premium black stripping pad (pkg of 5)
14 255-2470 24 inch premium blue cleaning pad (pkg of 5)
15 255-2492 24 inch premium brown stripping pad (pkg of 5)
16 255-2480 24 inch premium green scrubbing pad (pkg of 5)
17 255-2460 24 inch premium red scrubbing pad (pkg of 5)
18 255-2452 24 inch premium tan polishing pad (pkg of 5)
19 255-2420 24 inch premium white polishing pad (pkg of 5)
20 255-2411 24 inch superspped rubberized pad (pkg of 5)
21 255-2495 24 inch razorback stripping pad (pkg of 5)
22 255-2447 24 inch Redwood maroon floor prep pad (pkg of 10)
23 255-0174 24 inch Professional sand screen 100 grit (pkg of 10)
24 255-0175 24 inch Professional sand screen 180 grit (pkg of 10)
25 255-0176 24 inch Professional sand screen 220 grit (pkg of 10)
26 255-0267 24 inch Superscreen sand screen 100 grit (pkg of 10)
27 255-0268 24 inch Superscreen sand screen 180 grit (pkg of 10)
28 255-0269 24 inch Superscreen sand screen 220 grit (pkg of 10)
29 255-9619 24 inch Diamond by Gorilla 11000 Grit (pkg of 2)
30 255-9616 24 inch Diamond by Gorilla 1500 Grit (pkg of 2)
31 255-9613 24 inch Diamond by Gorilla 200 Grit (pkg of 2)
32 255-9617 24 inch Diamond by Gorilla 3000 Grit (pkg of 2)
33 255-9614 24 inch Diamond by Gorilla 400 Grit (pkg of 2)
34 255-9615 24 inch Diamond by Gorilla 800 Grit (pkg of 2)
35 255-9618 24 inch Diamond by Gorilla 8000 Grit (pkg of 2)
36 255-9649 24 inch Diamond starter pack (1 of each grit)
37 255-2415 24 inch Duala clean and shine pad - low speed (pkg of 5)
38 255-2416 24 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pads - 27 inch - 255-2700
RefNbr Part Number Description Req Notes
01 255-2740 27 inch aqua plus burnishing pad (pkg of 5)
02 255-2735 27 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2770 27 inch Blue Ace pad (pkg of 5)
04 255-2742 27 inch Blue Jay burnishing pad (pkg of 5)
05 255-0065 27 inch Cure white pad (pkg of 5)
07 255-2777 27 inch Diamondback extreme stripping pad (pkg of 5)
08 255-2738 27 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
09 255-2721 27 inch gorilla lite burnishing pad (pkg of 5)
10 255-2750 27 inch gorilla spray buff/polish/burnish pad (pkg of 5)
11 255-2765 27 inch Heat concrete bonding pad (pkg of 5)
12 255-2730 27 inch jaguar burnishing pad (pkg of 5)
13 255-2767 27 inch Laminated 2001 Gorilla polish pad (pkg of 5)
14 255-2769 27 inch Micropolish polishing and burnishing pad (pkg of 2)
15 255-2790 27 inch premium black stripping pad (pkg of 5)
17 255-2764 27 inch premium blue cleaning pad (pkg of 5)
18 255-2792 27 inch premium brown stripping pad (pkg of 5)
19 255-2780 27 inch premium green scrubbing pad (pkg of 5)
20 255-2760 27 inch premium red scrubbing pad (pkg of 5)
21 255-2752 27 inch premium tan polishing pad (pkg of 5)
22 255-2720 27 inch premium white polishing pad (pkg of 5)
23 255-2795 27 inch razorback stripping pad (pkg of 5)
24 255-2747 27 inch Redwood maroon floor prep pad (pkg of 10)
25 255-2711 27 inch superspeed rubberized pad (pkg of 5)
26 255-9626 27 inch Diamond by Gorilla 11000 Grit (pkg of 2)
27 255-9623 27 inch Diamond by Gorilla 1500 Grit (pkg of 2)
28 255-9620 27 inch Diamond by Gorilla 200 Grit (pkg of 2)
29 255-9624 27 inch Diamond by Gorilla 3000 Grit (pkg of 2)
30 255-9621 27 inch Diamond by Gorilla 400 Grit (pkg of 2)
31 255-9622 27 inch Diamond by Gorilla 800 Grit (pkg of 2)
32 255-9625 27 inch Diamond by Gorilla 8000 Grit (pkg of 2)
33 255-9650 27 inch Diamond starter pack (1 of each grit)
34 255-2715 27 inch Duala clean and shine pad - low speed (pkg of 5)
35 255-2716 27 inch 2001 Duala clean and shine pad - high speed (pkg 5)

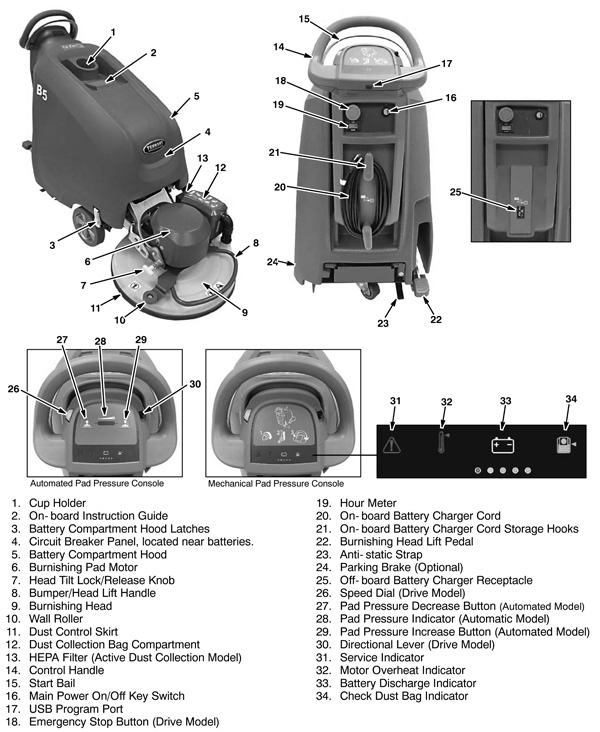

- Know Your Machine -

RefNbr Part Number Description Req Notes

- Batteries and Chargers - 275-9026
RefNbr Part Number Description Req Notes
162-0003 6V 225Ah wet battery (SNSR) 6
162-0005 6V 305Ah wet battery (SNSR) 6
162-0046 6V 335Ah AGM battery (Group J305) 6
991-2105 SB50 50amp charger plug with pins (gray) 1
275-5445 36V 25amp off board battery charger 1
375-1210 36V 25amp off board battery charger 1
375-1396 36V 25amp off board battery charger 1
275-5447 36V 25amp onboard battery charger 1
162-5062 36V 20amp battery charger with small SB50 gray plug 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

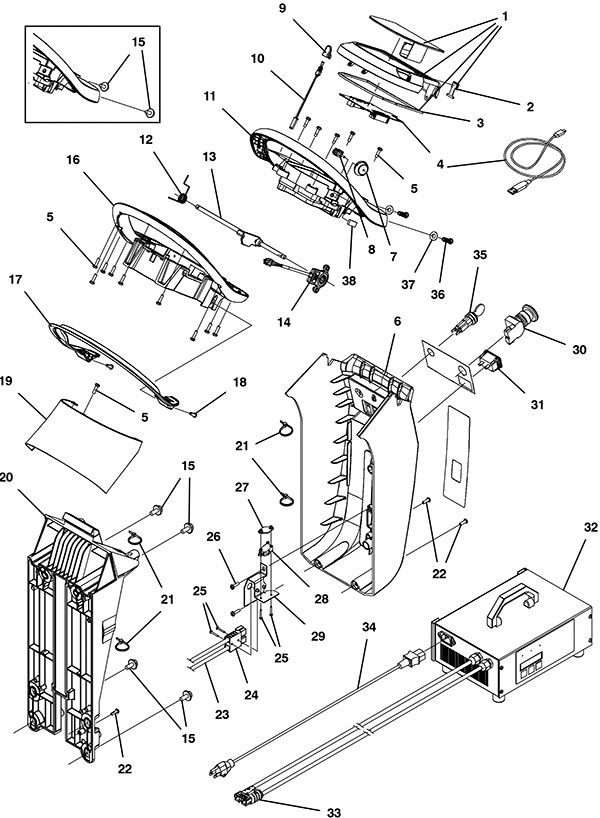

Charger Console Assembly - 375-0111
RefNbr Part Number Description Req Notes
1a 275-5455 Bezel kit (power drive model) 1 (power drive model) (includes 2-3) (requires Tennant True service or an authorized Tennant service provider)
1b 275-5450 Bezel kit (propel model) 1 (propel model) (includes 2-3) (requires Tennant True service or an authorized Tennant service provider)
2 275-5430 USB cap 1
3 375-9374 Console gasket 1 (after March 2020)
4a 275-5431 Circuit board kit (includes USB cable) 1 (includes 4b) (requires Tennant True service or an authorized Tennant service provider)
4b 375-1351 USB to USB mini cable 1
5 175-7660 Screw #10-14 x .675 shoulder self-tapping 16
6 275-5444 Console cover 1
7 375-4600 Speed range dial 1
8 275-5452 Potentiometer 1
9 275-5453 Toggle cap 1
10 275-5454 Toggle switch assembly 1
11 275-5434 Top handle housing 1
12 275-5435 Spring 1
13 275-5436 Handle shaft assembly 1
14a 275-5456 Rotary sensor 1 (power drive model)
15 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (qty 4 for models before SN 10795905)
16 275-5437 Bottom handle housing 1
17 275-5438 Bail 1
18 999-1403 Screw M8 x 16mm torx head 2
19 275-5439 Handle cover 1
20 375-0185 Control column frame 1
21 175-7795 Cable tie 4
22 999-1403 Screw M8 x 16mm torx head 3
23 275-5441 Cable assembly 1 (includes 25)
25 999-1040 Screw M3-.5 x 20mm pan head 1
26 175-7660 Screw #10-14 x .675 shoulder self-tapping 4
27 175-7839 Switch plate 1
28 375-0226 Mircroswitch 1
29 375-0046 Charger plug bracket 1
30 275-1416 Safety shut-off switch 1
31 275-9900 Hour meter 1
32a 275-5445 36V 25amp off board battery charger 1 (includes 33) (180-250ah WET batteries)
32b 375-1210 36V 25amp off board battery charger 1 (includes 33) (200-350ah AGM batteries)
32c 375-1396 36V 25amp off board battery charger 1 (includes 33) (260-360ah WET batteries)
33 991-2105 SB50 50amp charger plug with pins (gray) 1
34 275-5446 16/3 power cord 15 foot (black) 1
35a 175-7872 Key switch with 2 keys 1 (includes 35b)
35b 991-1634 Key (pkg of 2) 1
36 375-3186 Screw 2 (after SN 10795904)
37 999-0024 Washer 5/16 flat stainless steel 2 (after SN 10795904)
38 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT 1 (after March 2020)

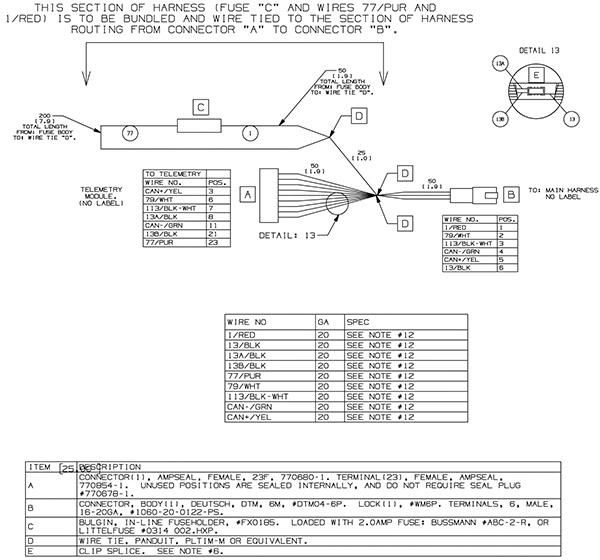

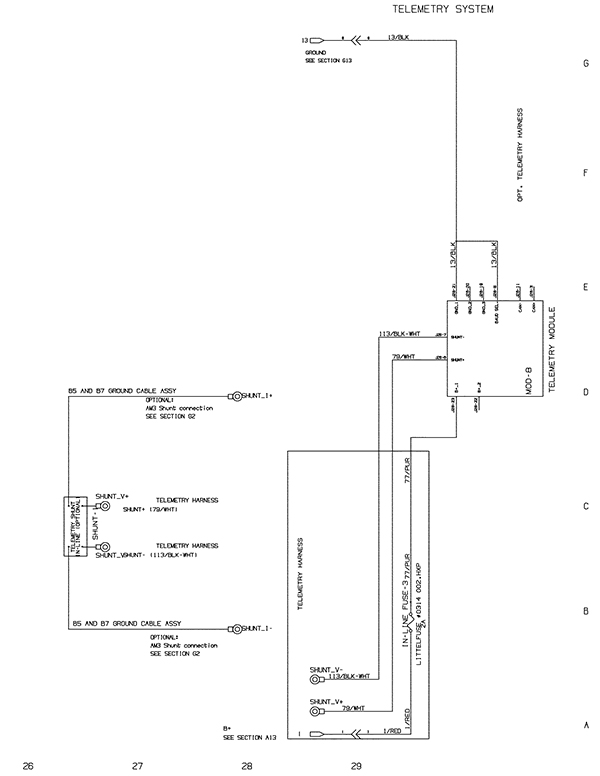

Telemetry Wire Harness Diagram - 375-0113
RefNbr Part Number Description Req Notes
475-2009 HARNESS, ELE [TELEM, T500e] 1

Hydrolink Battery Watering System - Before SN 11027797 - 375-1028
RefNbr Part Number Description Req Notes
0 375-2524 Battery fill kit 1 (includes 1-5)
1 275-6999 Battery fill pump kit 1
2 375-0000 Battery water tube 1
3 375-0001 Battery fill cap 6
4 375-0002 Battery tag decal 1
5 175-7795 Cable tie 2

Manual Battery Watering System - After SN 11027796 - 375-1029
RefNbr Part Number Description Req Notes
0 375-2524 Battery fill kit 1 (includes 1-5) (to be used with Trojan batteries)
1 375-9383 Battery hand pump 1
2 375-7833 Battery water distribution assembly 1
3 375-9385 Battery tag decal 1
4 375-9385 Battery tag decal 1
5 175-7795 Cable tie 2

Telemetry Assembly - 375-1030
RefNbr Part Number Description Req Notes
0a 375-5031 Telemetry kit 1 (before April 2020) (requires Tennant True service or an authorized Tennant service provider)
0b 475-2857 TELEMETRY KIT, CI [B7/SG7 B5/SG5 USA] 1 (requires Tennant True service or an authorized Tennant service provider)
1 275-2615 Telemetry control box assembly kit 1 (requires Tennant True service or an authorized Tennant service provider)
2a 375-7808 Telem antenna 2 (after May 2020)
2b 275-7897 Antenna 1 (before April 2020)
3 999-0998 Washer #10 flat stainless steel 4
4 175-7660 Screw #10-14 x .675 shoulder self-tapping 4
5 175-2162 Nylon wire tie 5
6a 475-3617 HARNESS, ELE [TELEMETRY, 6200E] 1
6b 275-7904 Fuse (Tennant Industrial) 1
7 375-1155 Heatshrink sleeve 1
8 275-7899 Telemetry decal 1
9 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
10 999-1053 Washer 5/16 internal star lock stainless steel 2
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
12 175-2120 6 gauge black wire jumper cable 1
13 375-1151 Shunt 1

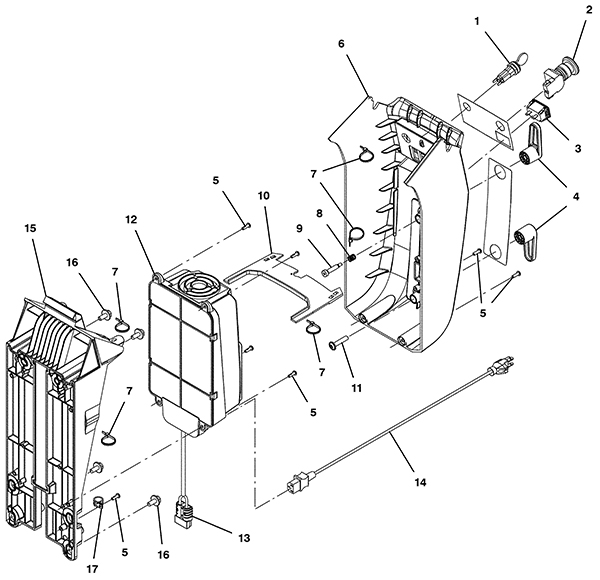

On-Board Battery Charger Assembly - 375-1031
RefNbr Part Number Description Req Notes
1a 175-7872 Key switch with 2 keys 1 (includes 1b)
1b 991-1634 Key (pkg of 2) 1
2 275-1416 Safety shut-off switch 1
3 275-9900 Hour meter 1
4 275-5449 Cord hook 2
5 999-1403 Screw M8 x 16mm torx head 7
6 275-5444 Console cover 1
7 175-7795 Cable tie 1
8 175-7507 Compression spring 1
9 175-9855 Bolt M6-.8 x 30mm shield 4
10 275-5448 Charger cover 1
11 375-9373 Screw M6 x 1 x 30, 10.9 2
12 275-5447 36V 25amp onboard battery charger 1 (includes 13)
13 991-2105 SB50 50amp charger plug with pins (gray) 2
14 275-5446 16/3 power cord 15 foot (black) 1
15 375-0185 Control column frame 1
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
17 275-5443 P clamp 1

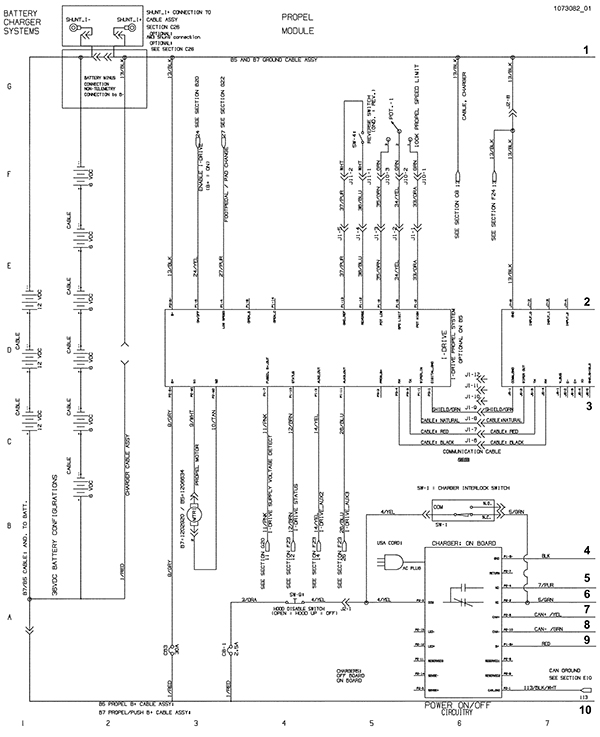

Electrical Diagram - Drive Model - Part 1 -

RefNbr Part Number Description Req Notes

Electrical Diagram - Drive Model - Part 2 -

RefNbr Part Number Description Req Notes

Electrical Diagram - Drive Model - Part 3 -

RefNbr Part Number Description Req Notes

Electrical Diagram - Drive Model - Part 4 -

RefNbr Part Number Description Req Notes

Electrical Diagram - Drive Model - Part 5 -

RefNbr Part Number Description Req Notes
Webpage Problem Reporting
