Parts List Complete for TENNANT 6100E


Replacement Brushes - 175-8395
RefNbr Part Number Description Req Notes
1a 175-9207 Polypropelene side brush 1
1b 275-7362 Polypropelene side brush (SPCL PURP) 1
1c 175-9208 Polypropelene side brush (outdoor) 1
2a 275-5312 Polypropelene sweeping brush 1
2b 275-6166 Union mix sweeping brush 1
3 275-4995 Polypropelene sweeping wedge brush 1
4 275-6167 Polypropelene window style sweeping brush 1

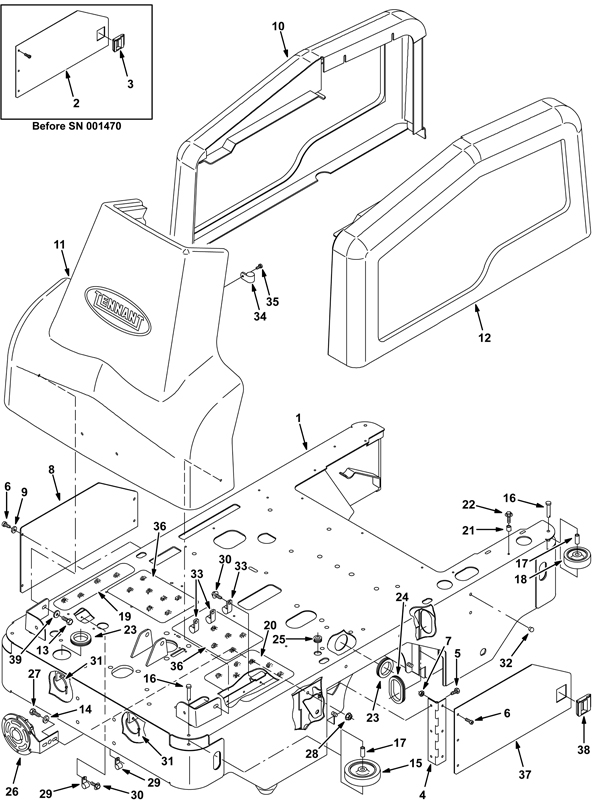

Main Frame Assembly - 175-8396
RefNbr Part Number Description Req Notes
1 N/A Not available 1 Sweeper frame weldment
2 275-0649 DOOR KIT, BRUSH, CI [6100] (Tennant Industrial) 1 (Before SN 001470)
3 275-0255 Push latch 1 1/2 x 1.8 1 (Before SN 001470)
4 275-0251 Hinge 1
5 175-5113 Bolt M6 x 12mm hex head 3
6 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 7
7 999-0497 Nut M6-1 nylon insert lock stainless steel 6
8 275-6905 Brush compartment access cover 1
9 999-0016 Washer 1/4 flat plain finish 4
10 275-6906 Right hand side cover 1
11 275-0652 Front shroud 1
12 275-6907 Left hand side cover 1
13 999-0783 Screw M8-1.25 x 16mm hex head 4
14 999-0024 Washer 5/16 flat stainless steel 3
15 175-3156 Bumper wheel 2
16 275-0041 Clevis pin 5/16 x 1 3/4 inch 4
17 175-3157 Sleeve .318 x .437 x 1.06 inch 4
18 175-2066 3 inch bumper wheel 2
19 175-3307 Non-skid tread 1
20 275-0653 Floor tread 1
21 175-2249 Sleeve 1
22 999-0779 Screw M6-1 x 25mm hex head plain finish 1
23 275-0543 Rubber grommet 2
24 275-8203 Molding 1
25 175-9590 Rubber grommet 1
26 175-3160 Horn 1
27 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
28 999-0665 Nut M8-1.25 flange lock 1
29 175-3170 P clamp 2
30 175-3166 Bolt M6-1 x 16mm hex head 5
31 175-2162 Nylon wire tie 2
32 175-2359 Plug 6
33 175-3179 P clamp 3
34 275-0656 Cable clamp 2
35 175-3223 Screw 12-16 x 1/2 pan head plastic 2
36 275-0240 Non-skid hand floor tread 6 x 9 inch 2
37 275-0616 Left brush door plate 1 (After SN 001469)
38 275-0250 Push latch 1 x 1 1/2 1 (After SN 001469)
39 175-7920 Washer M8 flat stainless steel 2

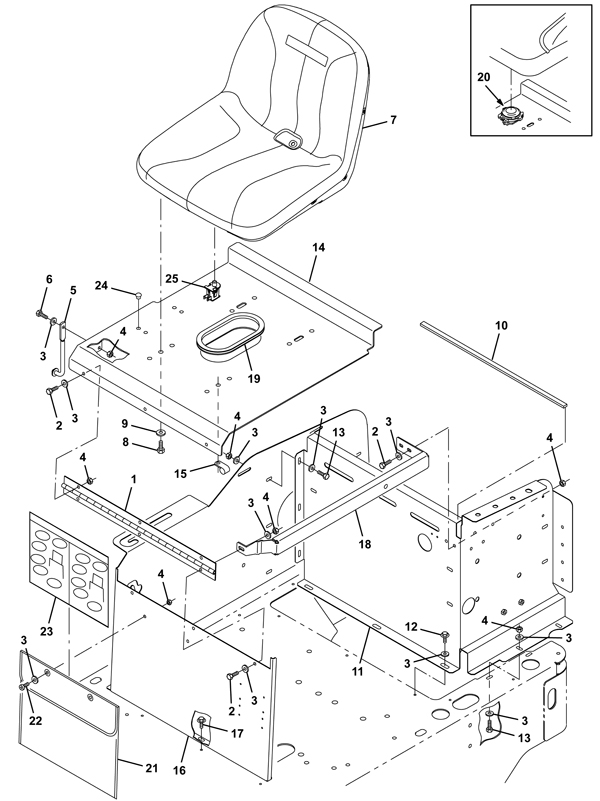

Seat and Shroud Assembly - 175-8397
RefNbr Part Number Description Req Notes
1 275-0665 Seat support hinge 1
2 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
3 999-0123 Washer 1/4 SAE flat zinc plated 26
4 999-0469 Nut M6-1 nylon insert lock zinc plated 17
5 175-3181 Safety support arm 1
6 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
7a 275-9328 Seat kit (includes screw and spacer) 1 (before SN 004017)
7b 275-6563 Seat kit 1 (after SN 004016)
8a 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4 (before SN 004017)
8b 275-3879 SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) 4 (after SN 004016)
9 999-0024 Washer 5/16 flat stainless steel 4
10 275-6908 Closed rubber seal 1
11a 275-6909 Rear lintel weldment 1 (before SN 003718)
11b 275-6910 Rear lintel weldment (TENNANT INDUSTRIAL) 1 (after SN 003718)
12 999-0778 Screw M6-1 x 10mm hex head 3
13 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 5
14 275-6911 Seat plate assembly with decal 1
15 175-3168 P clamp 1
16 275-6912 Seat support 1
17 175-3298 Bolt M6-1 x 12mm hex head 8
18 275-6913 Seat support brace 1
19 275-8075 Trim 1
20 175-0596 Seat switch 1 (before SN 004017)
21 275-0664 Pouch 1
22 175-3229 Screw 6mm-1 x 16 pan head 2
23 275-0659 Use and care instrustion 1
24 175-9924 White nylon plug 4
25 275-9280 Seat switch 1 (after SN 004016)

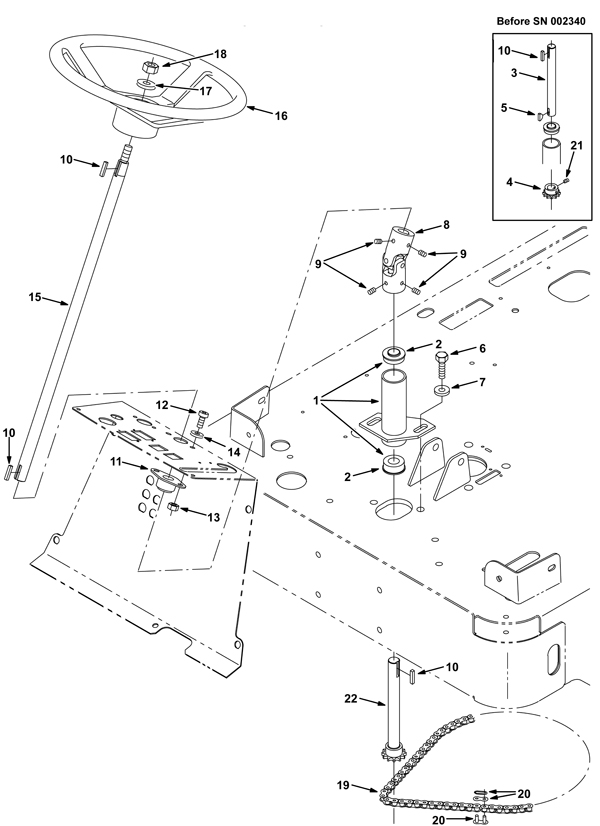

Steering Assembly - 175-8398
RefNbr Part Number Description Req Notes
1 275-0669 Bearing housing assembly 1 (includes item 2)
2 175-3195 Ball bearing 2
3 175-3196 Steering shaft 1 (before SN 002340) (replaced by 175-3196)
4 175-3197 Sprocket 1 (before SN 002340) (replaced by 175-3196)
5 175-3198 Woodruff key 1 (before SN 002340)
6 275-0033 Screw M10-1.5 x 30mm hex head 8.8 2
7 175-2305 Washer 2
8 275-5323 U joint 1
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock 4
10 175-3200 Square keyway 4
11 175-3201 Flanged bearing 1
12 175-3202 Screw M8-1.25 x 20mm 2
13 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
15 175-3203 Upper steering shaft 1
16 275-4653 Steering wheel 1
17 999-0187 Washer 1/2 flat plain finish 1
18 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
19 275-0671 #35 roller chain 1
20 175-3207 Master link 1
21 175-9930 Screw 1/4-20 x 1/4 aluminum set 2
22 175-3196 Steering shaft 1

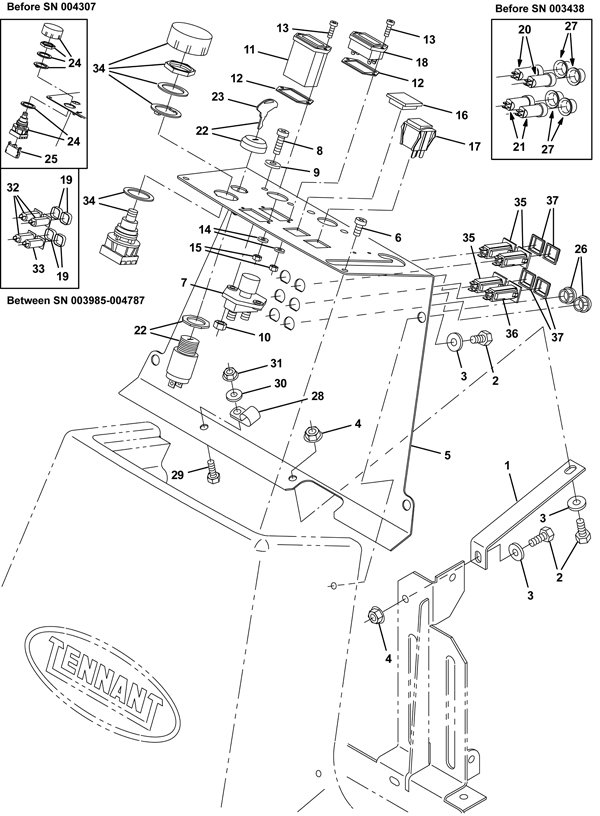

Instrument Panel Assembly - 175-8399
RefNbr Part Number Description Req Notes
1 275-0673 Brace 1
2 999-0783 Screw M8-1.25 x 16mm hex head 6
3 999-0024 Washer 5/16 flat stainless steel 6
4 999-0665 Nut M8-1.25 flange lock 2
5 275-6914 Electrical instrument panel 1
6 175-3223 Screw 12-16 x 1/2 pan head plastic 2
7 175-3218 Push switch SPST 1
8 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel 2
9 999-0006 Washer 3/16 flat zinc plated 2
10 999-0469 Nut M6-1 nylon insert lock zinc plated 2
11a 275-1176 Hour meter gauge kit 1 (before SN 003438)
11b 275-6915 Hourmeter gauge 1 (after SN 003439)
11c 991-7137 Hour meter 1 (NON-OEM)
12 175-2327 Gasket 2
13 175-4933 Screw M3-.5 x 12mm pan head 4
14 999-0479 Washer #4 internal star lock zinc plated 4
15 999-0768 Nut M3-.5 hex coarse thread plain finish 4
16 175-2537 Switch plug 1
17 275-0278 Rocker switch DPDT mom/off/on 1
18 175-2272 36V battery gauge 1
19 275-2596 Circuit breaker boot (Tennant Industrial) 4 (between SN 003985-004787)
20 275-7477 5amp circuit breaker 2 (before SN 003438)
21 175-2542 10amp circuit breaker 2 (before SN 003438)
22 175-3214 Key switch 1 (includes 23)
23 175-3215 Key (sold individually) 1
24 175-3220 Push switch 1 (before SN 004307)
25 175-3221 Switch contact 1 (before SN 004307)
26 175-9940 Black nylon plug (Tennant Industrial) 2
27 275-2596 Circuit breaker boot (Tennant Industrial) 4 (before SN 003984)
28 275-0559 P clamp 1
29 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
30 999-0016 Washer 1/4 flat plain finish 1
31 999-6694 Nut M6-1 hex serrated flange stainless steel 1
32 275-5483 2.5amp circuit breaker 3 (between SN 003985-004787)
33 275-9986 10amp circuit breaker (Tennant Industrial) 1 (between SN 003985-004787)
34 175-3220 Push switch 1 (after SN 004308)
35 275-5483 2.5amp circuit breaker 3 (after SN 004788)
36 275-9986 10amp circuit breaker (Tennant Industrial) 1 (after SN 004788)
37 275-2596 Circuit breaker boot (Tennant Industrial) 1 (after SN 004788)

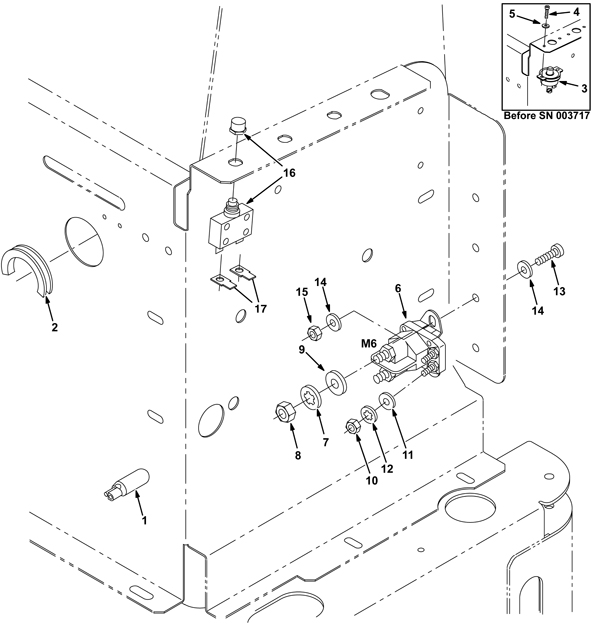

Electrical Panel Assembly - 175-8400
RefNbr Part Number Description Req Notes
1 175-2545 25amp circuit breaker 2 (before SN 003718)
2 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 4 (before SN 003718)
3 999-0092 Washer #8 internal star lock zinc plated 4 (before SN 003718)
4 175-2542 10amp circuit breaker 1 (before SN 003985)
5 275-2596 Circuit breaker boot (Tennant Industrial) 1 (before SN 003985)
6 175-3238 Fuse 1
7 991-1227 36V solenoid 4 post (2 large 2 small) 1
8 999-0089 Washer #10 internal star lock zinc plated 6
9 999-0460 Nut 10-32 hex 6
10 999-0406 Washer 5/16 internal star lock zinc plated 6
11 175-0849 Nut 5/16-24 hex 6
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
13 175-2373 36V contactor 2
14 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 6
15 999-0006 Washer 3/16 flat zinc plated 69
16 175-2894 Nut M5-.8 hex nylon locking 6
17 175-3179 P clamp 1
18 175-3226 Insulated stand off 3
19 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 3
20 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 2
21 999-0016 Washer 1/4 flat plain finish 6
22 999-0238 Washer 1/4 internal star lock zinc plated 6
23 275-8203 Molding 1
24 175-2375 Curtis board 1 (before SN 002015)
25 175-5310 Screw 4 x 45/64 x 16 pan head 4
26 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
27 175-3244 CONTROLLER, MOTOR, 36VDC 090A [CURT1226] 1
28 275-6917 Controller harness 1 (before SN 002015)
29 175-3227 Threaded rod 1
30 999-0190 Nut 1/4-20 hex plain finish 1
31 991-1631 25amp circuit breaker 2
32 275-9986 10amp circuit breaker (Tennant Industrial) 1 (between SN 003985 - SN004787)
33 275-2596 Circuit breaker boot (Tennant Industrial) 1 (between SN 003985 - SN004787)
34 275-9986 10amp circuit breaker (Tennant Industrial) 1
35 275-2596 Circuit breaker boot (Tennant Industrial) 1

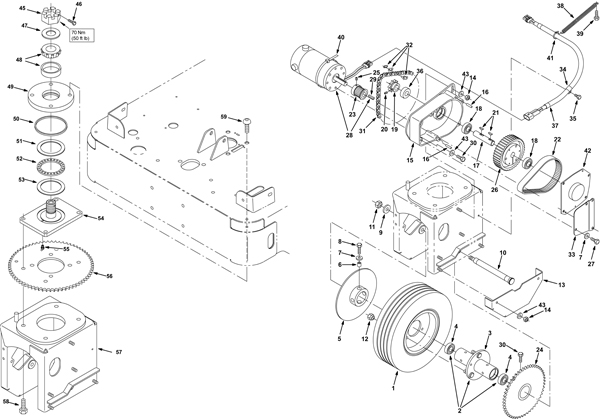

Front Drive Wheel Pivot Assembly - Before SN 002362 - 175-8402
RefNbr Part Number Description Req Notes
1 175-3296 Solid tire assembly 1
2 275-0717 Front wheel bearing assembly 1 (includes 3 and 4)
3 275-0718 Front wheel housing 1
4 175-9998 Ball bearing 2
5 275-0719 Brake disc weldment 1
6 175-2249 Sleeve 4
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 9
8 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 4
9 999-0114 Washer 1/2 SAE flat 1
10 275-0720 Front wheel axle 1
11 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
12 175-2288 Lug nut 3
13 275-6918 Front drive chain guard 1
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
15 275-6919 Front drive belt housing 1
16 275-6920 Dowel pin 2
17 275-6921 Shaft 1
18 175-9998 Ball bearing 2
19 275-6922 Sprocket 1 (includes 20)
20 275-0724 Screw M1/4 - 20 x 5/16 socket set 2
21 175-3198 Woodruff key 2
22 275-6495 Synchronous belt 1
23 275-8628 Timing sprocket 23 tooth 1
24 275-6923 Sprocket 1
25 275-0724 Screw M1/4 - 20 x 5/16 socket set 2
26a 275-6924 Timing sprocket 1 (includes 26b)
26b 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 3
27 999-0783 Screw M8-1.25 x 16mm hex head 6
28 275-9867 36V drive motor (OBSOLETE) 1 (includes 29)
29 275-0192 Square key 1
30 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 6
31 275-6925 Chain 1 (includes 32)
32 275-0726 Masterlink 1
33 N/A Not available 1 (Belt cover plate)
34 175-3170 P clamp 1
35 175-3298 Bolt M6-1 x 12mm hex head 1
36 275-6926 Foam seal 1
37 175-6051 Motor cord assembly 1
38 175-3263 Extension spring 1
39 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
40 175-2226 Nylon wire tie 1
41 175-2162 Nylon wire tie 1
42 275-6927 Front wheel drive belt cover weldment 1
43 999-1407 Washer 5/16 belleville 5
45 175-3255 Nut hexslot 1 1/4 x 12 1
46 175-3166 Bolt M6-1 x 16mm hex head 1
47 175-3254 Washer 1
48 175-3253 Bearing assembly cup/cone 1
49 175-3252 Bottom swivel plate 1
50 175-3251 Felt seal 1
51b 175-3249 Washer thrust 2
51a 175-4946 Front drive wheel replacement bearing kit 2 (includes 48, 50, 51b, 52 and 53)
52 175-3250 Thrust bearing 1
53 175-3249 Washer thrust 1
54 275-0714 Swivel plate weldment 1
55 275-0716 Grease fitting 1
56 175-9970 Drive steering sprocket 1
57 375-3815 Front wheel housing weldment 1
58 175-6784 Screw M12- 1.75 x 30mm hexhead 4
59 175-3256 Screw M12-1.75 x 25mm button head 4

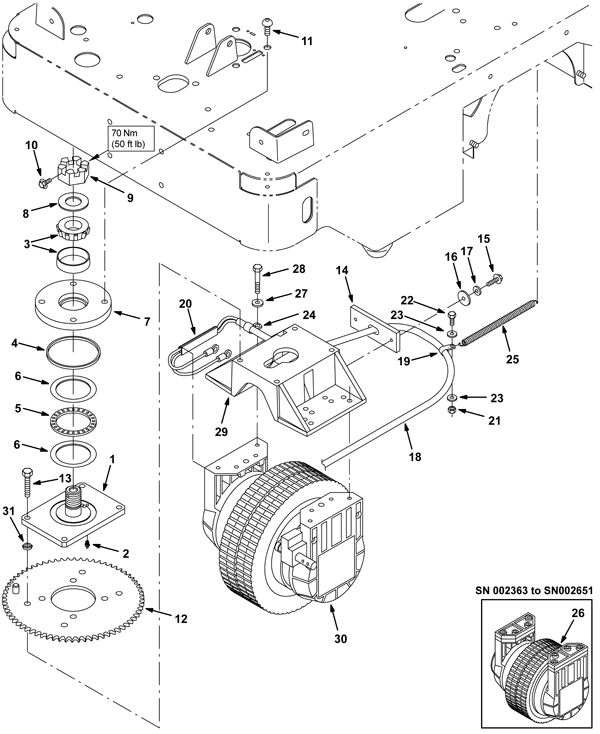

Front Drive Wheel Assembly - After SN 002363 - 175-8403
RefNbr Part Number Description Req Notes
1 175-3247 Swivel plate weldment 1
2 175-3248 Grease fitting 1 (includes 3-6)
3a 175-4946 Front drive wheel replacement bearing kit 1
3b 175-3253 Bearing assembly cup/cone 1
4 175-3251 Felt seal 1
5 175-3250 Thrust bearing 1
6 175-3249 Washer thrust 2
7 175-3252 Bottom swivel plate 1
8 175-3254 Washer 1
9 175-3255 Nut hexslot 1 1/4 x 12 1
10 175-3166 Bolt M6-1 x 16mm hex head 1
11 175-3256 Screw M12-1.75 x 25mm button head 4
12 275-6928 Sprocket weldment 1
13 175-3259 Screw M10-1.5 x 45mm hex head 4
14 175-4948 Strain relief flap 1
15 999-0779 Screw M6-1 x 25mm hex head plain finish 2
16 999-0123 Washer 1/4 SAE flat zinc plated 2
17 999-1288 Washer 1/4 x 1 OD fender stainless steel 2
18 275-6929 Receptacle cord 1
19 175-3170 P clamp 1
20 175-3261 PVC duct 1
21 999-0497 Nut M6-1 nylon insert lock stainless steel 1
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
23 999-0016 Washer 1/4 flat plain finish 2
24 175-3168 P clamp 1
25 175-3263 Extension spring 1
26 175-4950 Front wheel gearbox assembly 1 (SN 002363 to 002651)
27 999-9097 Washer M8 flat stainless steel 6
28 999-0788 Screw M8-1.25 x 55mm hex head stainless steel 6
29 275-2748 Wheel adapter plate 1
30 175-4952 Break wheel gearbox 1 (After SN 002651)
31 275-6930 Spacer (TENNANT INDUSTRIAL) 4

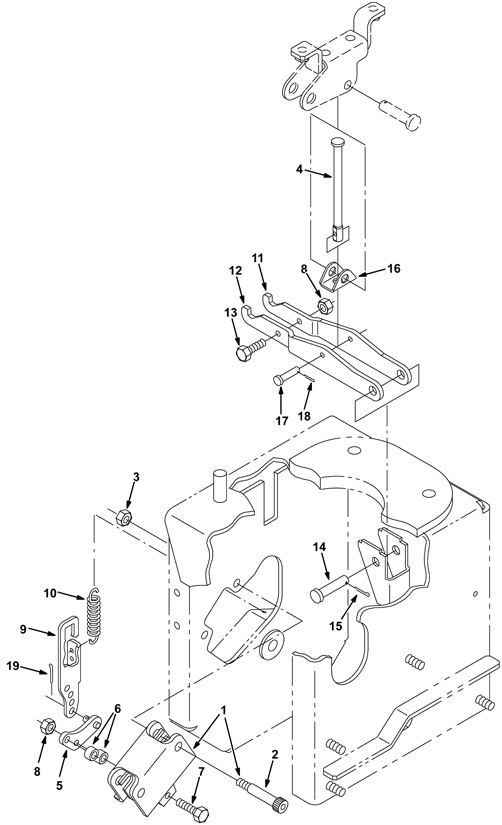

Front Brake Linkage Assembly - Before SN 002362 - 175-8404
RefNbr Part Number Description Req Notes
1a 275-0730 Brake caliper (OBSOLETE) 1 (includes 1b and 2)
1b 275-0731 Stator brake disc kit replacement 1
2 275-0800 Screw 3/8 x 1 1/2 shoulder (OBSOLETE) 2
3 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated 2
4 275-2754 Brake linkage replacement kit 1
5 N/A Not available 1 Brake arm weldment
6 175-0550 Sleeve 2
7 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 2
8 999-0469 Nut M6-1 nylon insert lock zinc plated 3
9 275-0803 Brake link 1
10 175-7129 Tension spring 1
11 N/A Not available 1 Right hand lift arm brake
12 275-0805 Left lift brake arm 1
13 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
14 175-2111 Clevis pin 1
15 175-6176 Cotter pin 1
16 275-2754 Brake linkage replacement kit 1
17 175-3271 Clevis pin 1
18 175-3272 Cotter pin 1
19 175-6176 Cotter pin 1

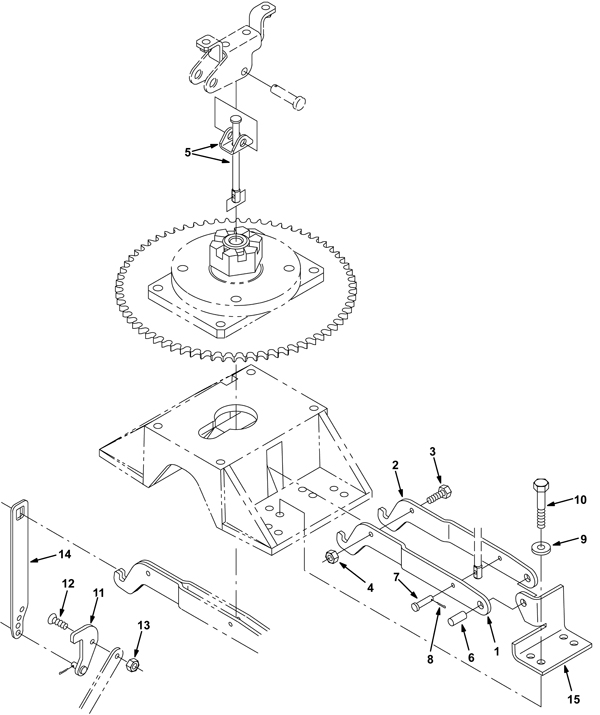

Front Brake Linkage Assembly - Between SN 002363-002651 - 175-8405
RefNbr Part Number Description Req Notes
1 175-3267 Left side brake arm link (OBSOLETE) 1
2 175-3268 Right side brake arm link (OBSOLETE) 1
3 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
4 999-0497 Nut M6-1 nylon insert lock stainless steel 1
5 275-2754 Brake linkage replacement kit 1
6 175-3277 Brake pin (OBSOLETE) 1
7 175-3271 Clevis pin 1
8 175-3272 Cotter pin 2
9 999-9097 Washer M8 flat stainless steel 2
10 175-3163 Screw M8-1.25 x 60mm hex head 2
11 175-3273 Brake arm weldment (OBSOLETE) 1
12 175-3274 Screw M6-1 x 16mm flat 1
13 999-0469 Nut M6-1 nylon insert lock zinc plated 1
14 175-4953 Brake link (OBSOLETE) 1
15 175-3276 Brake pivot bracket (OBSOLETE) 1

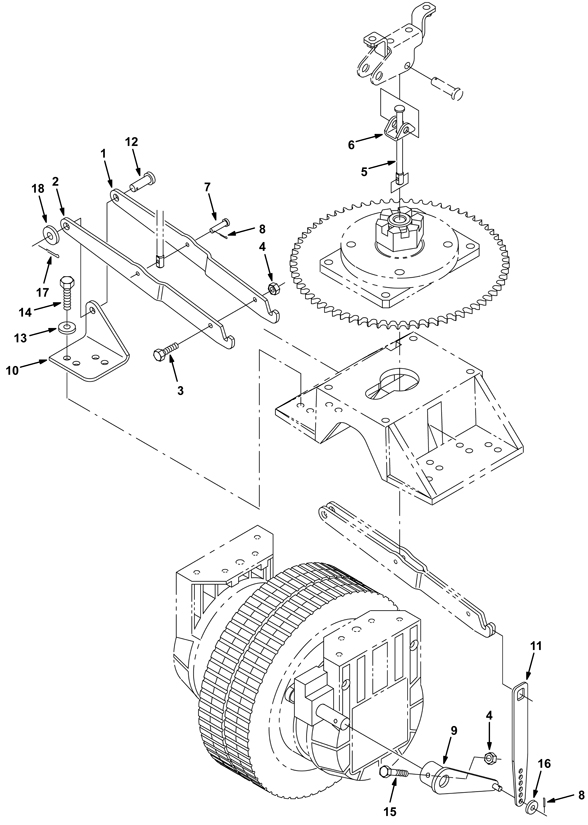

Front Brake Linkage Assembly - After 002652 - 175-8406
RefNbr Part Number Description Req Notes
1 275-2749 Left side brake arm link 1
2 275-2750 Right side brake arm link 1
3 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
4 999-0497 Nut M6-1 nylon insert lock stainless steel 2
5 275-2751 Brake link 1
6 275-2752 Brake channel 1
7 175-3271 Clevis pin 1
8 175-3272 Cotter pin 2
9 175-4956 Brake arm weldment 1
10 175-4957 Pivot brake bracket 1
11 175-4958 LINK, BRAKE (Tennant Industrial) 1
12 275-2753 PIN, CLEVIS, 0.38D X 1.13L (Tennant Industrial) 1
13 999-9097 Washer M8 flat stainless steel 2
14 175-3163 Screw M8-1.25 x 60mm hex head 2
15 175-0758 Bolt M6-1 x 40mm hex head stainless steel 1
16 999-0016 Washer 1/4 flat plain finish 1
17 175-3281 Cotter pin 1
18 999-0032 Washer 3/8 USS flat plain finish 1

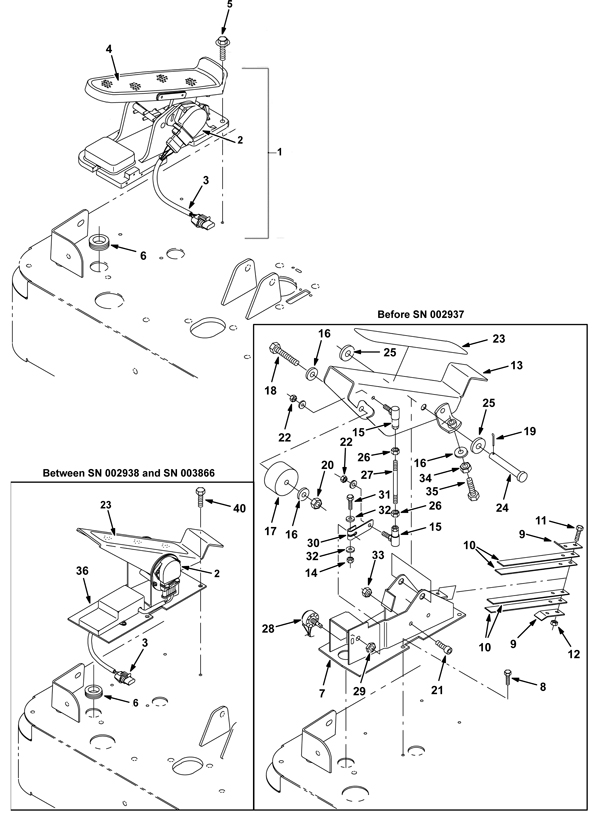

Directional Pedal Assembly - 175-8407
RefNbr Part Number Description Req Notes
1 275-6931 Propel pedal assembly 1 (includes 2-4) (after SN 003867)
2 175-4966 Pedal postion sensor 1 (after SN 002938)
3 175-4967 Pedal harness 1 (after SN 002938)
4 275-9283 Non-skid tread 1 (after SN 003867)
5 999-0779 Screw M6-1 x 25mm hex head plain finish 4 (after SN 003867)
6 175-3311 Rubber grommet 1 (after SN 002938)
7 175-3297 Control plate weldment (Tennant Industrial) 1 (before SN 002937)
8 175-3298 Bolt M6-1 x 12mm hex head 4 (before SN 002937)
9 175-3299 Spring retainer 2 (before SN 002937)
10 175-3300 Strip stainless 4 (before SN 002937)
11 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 2 (before SN 002937)
12 999-0469 Nut M6-1 nylon insert lock zinc plated 2 (before SN 002937)
13 175-3301 Accelerator pedal weldment 1 (before SN 002937)
14 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1 (before SN 002937)
15 175-3302 Balljoint 1/4-28 2 (before SN 002937)
16 999-0120 Washer 3/8 SAE flat 3 (before SN 002937)
17 175-3303 Spacer 1 (before SN 002937)
18 999-9081 Screw M10-1.5 x 65mm hex head stainless steel 1 (before SN 002937)
19 175-3281 Cotter pin 1 (before SN 002937)
20 999-9133 Nut M10-1.5 nut hex head stainless steel 1 (before SN 002937)
21 999-0802 Screw M8-1.25 x 16mm socket head 2 (before SN 002937)
22 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel 1 (before SN 002937)
23 175-3307 Non-skid tread 1 (before SN 003860)
24 175-3280 Clevis pin 1 (before SN 002937)
25 999-0114 Washer 1/2 SAE flat 2 (before SN 002937)
26 999-0651 Nut 1/4-28 hex stainless steel 2 (before SN 002937)
27 175-3308 2 end threaded rod 1 (before SN 002937)
28 175-3309 Potentiometer 1 (before SN 002937)
29 175-2277 Nut hex head 1 (before SN 002937)
30 175-3310 Lever 1 (before SN 002937)
31 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 1 (before SN 002937)
32 999-0016 Washer 1/4 flat plain finish 2 (before SN 002937)
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2 (before SN 002937)
34 999-0767 Nut M10-1.5 hex coarse thread 1 (before SN 002937)
35 175-3258 Bolt M10-1.5 x 35mm hex head 1 (before SN 002937)
36 175-4964 Foot pedal assembly 1 (between SN 002938-003866)
37 175-4966 Pedal postion sensor 1 (between SN 002938-003866)
38 175-4967 Pedal harness 1 (between SN 002938-003866)
39 175-3307 Non-skid tread 1 (between SN 002938-003866)
40 175-3298 Bolt M6-1 x 12mm hex head 4 (between SN 002938-003866)

Rear Wheel Assembly - 175-8408
RefNbr Part Number Description Req Notes
1 275-0807 Rear wheel assembly 2
2 275-0808 Rear wheel bearing assembly 2 (includes 3 and 4)
3 275-0809 Rear wheel housing weldment 2
4 175-9998 Ball bearing 4
5 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 6
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
7 275-0810 Washer 2
8 275-0811 Rear axle pin 2
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
10 999-0114 Washer 1/2 SAE flat 2

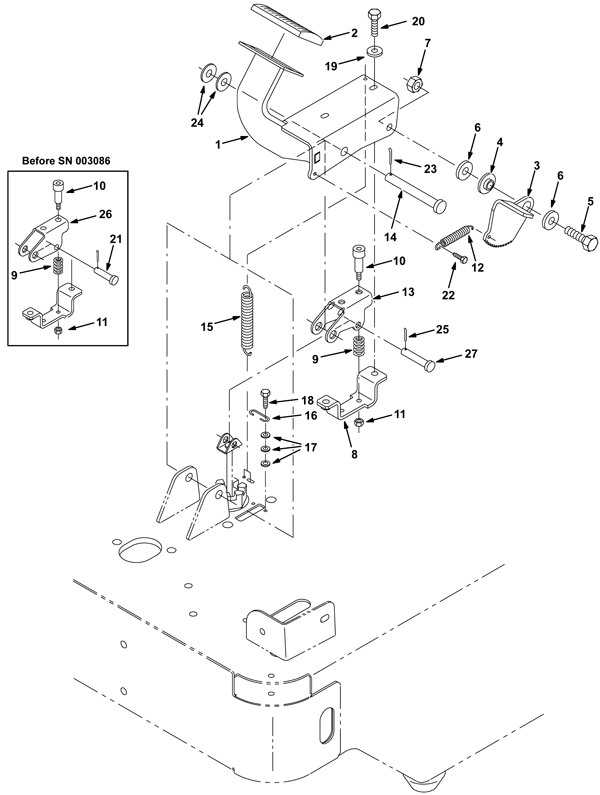

Brake Pedal Assembly - 175-8409
RefNbr Part Number Description Req Notes
0 N/A Not available 1 (Brake pedal assembly) (includes 1-14) (not saleable)
1 275-5336 Brake pedal weldment 1
2 175-3279 Pedal pad 1
3 175-3286 Brake pedal lock 1
4 175-3287 Flanged bushing 1
5 275-0033 Screw M10-1.5 x 30mm hex head 8.8 1
6 999-0032 Washer 3/8 USS flat plain finish 2
7 999-9133 Nut M10-1.5 nut hex head stainless steel 1
8 175-4961 Spring mounting channel weldment 1
9 175-3284 Compression spring 2
10 175-3285 Bolt 1/4-20 x 5/16-1 shoulder 2
11 999-0609 Nut 1/4-20 hex stainless steel 2
12 175-2065 Extension spring 1
13 275-5337 Brake channel mounting bracket 1 (after SN 003085)
14 175-4960 Clevis pin 1
15 175-2064 Extension spring 1
16 175-3290 Parking brake spring 1
17 999-0006 Washer 3/16 flat zinc plated 6
18 999-1228 Screw M5-.8 x 10mm hex head stainless steel 2
19 999-0016 Washer 1/4 flat plain finish 2
20 175-4963 Bolt M6-1 x 20mm hex head 2
21 175-2111 Clevis pin 1 (before SN 003085)
22 175-3289 Bolt M5-.8 x 16mm hex head 1
23 175-3281 Cotter pin 1
24 999-0114 Washer 1/2 SAE flat 2
25 175-6176 Cotter pin 1
26 275-2754 Brake linkage replacement kit 1 (before SN 003085)
27 173-1595 Clevis pin (OBSOLETE) 1 (after SN 003085)

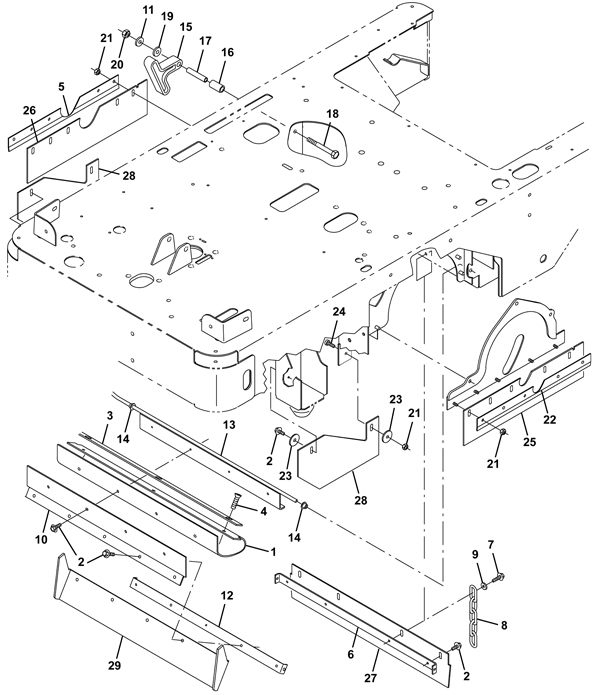

Main Brush Skirts Assembly - 175-8410
RefNbr Part Number Description Req Notes
1 275-0813 Recirculation skirt 1
2 175-3166 Bolt M6-1 x 16mm hex head 14
3 275-0814 Retainer 1
4 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 3
5 275-0435 Recirculation flap retainer 1
6 275-0815 Recirculation flap retainer 1
7 999-0779 Screw M6-1 x 25mm hex head plain finish 1
8 175-5303 Coil link chain 1
9 999-0123 Washer 1/4 SAE flat zinc plated 1
10 275-0816 Recirculation support bracket 1
11 275-0817 Thrust bearing 1
12 275-0818 Retainer strip 1
13 275-0819 Recirculation support weldment 1
14 275-0820 Bearing 2
15 275-0441 Recirculation adjustment lever 1
16 275-6932 Sleeve 1
17 275-0821 Sleeve 1
18 275-0066 Screw M8-1.25 x 80mm hex head 8.8 1
19 999-0024 Washer 5/16 flat stainless steel 1
20 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
21 999-0497 Nut M6-1 nylon insert lock stainless steel 12
22 275-0432 Recirculation flap retainer 1
23 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
24 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel 2
25 275-0448 Left hand side skirt 1
26 275-0449 Right hand side skirt 1
27 275-0823 Recirculation skirt 1
28 275-0824 Side skirt 2
29 275-0825 Recirculation skirt 1
N/S 275-0822 Skirt kit 1 (Skirt kit) (includes 25-29)

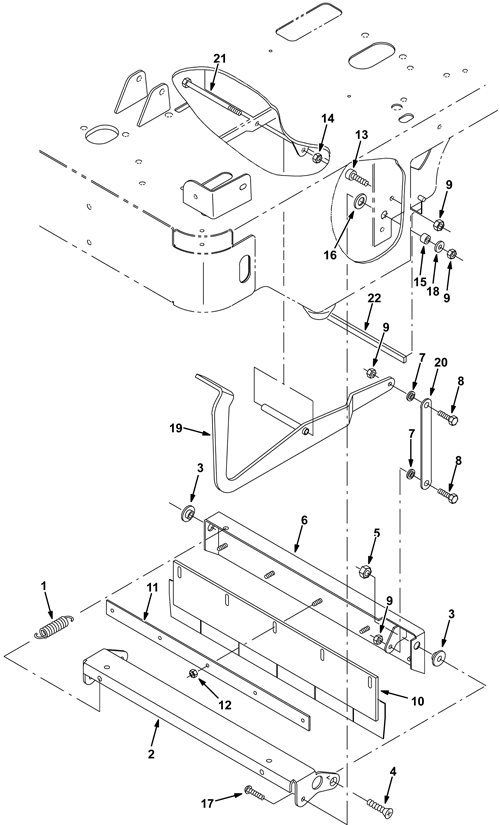

Main Brush Front Flap Assembly - 175-8411
RefNbr Part Number Description Req Notes
1 175-7129 Tension spring 1
2 275-0827 Front skirt bracket 1
3 175-3287 Flanged bushing 2
4 999-9142 Screw M10-1.5 x 35mm flat head 2
5 999-9133 Nut M10-1.5 nut hex head stainless steel 2
6 275-6933 Front flap bracket weldment 1
7 175-9165 Bushing 2
8 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
9 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
10 275-0828 Front skirt 1
11 275-0829 Retainer 1
12 999-0497 Nut M6-1 nylon insert lock stainless steel 5
13 999-0802 Screw M8-1.25 x 16mm socket head 2
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
15 175-0755 Sleeve 2
16 275-0061 Washer .64b 1.19d .06 flat nylon 2
17 999-9143 Screw M8-1.25 x 35mm button 2
18 999-0024 Washer 5/16 flat stainless steel 2
19 275-0830 Pedal weldment 1
20 275-0457 Link plate 1
21 999-9144 Screw M8-1.25 x 150mm 8.8 hex 1
22 275-0668 Foam rubber seal 1

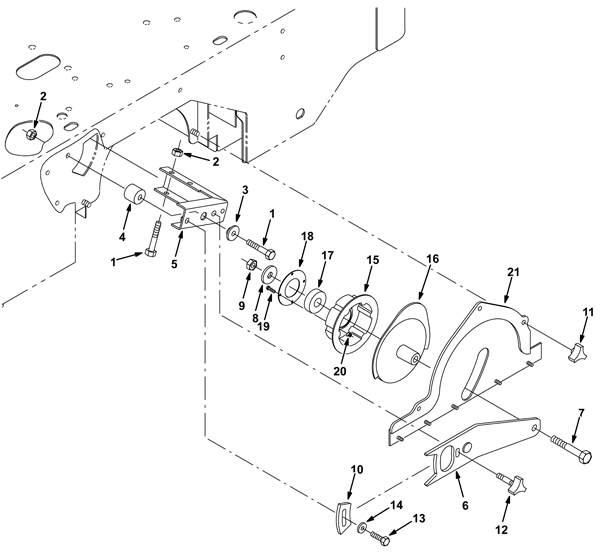

Main Brush Idler Assembly - 175-8412
RefNbr Part Number Description Req Notes
1 999-9081 Screw M10-1.5 x 65mm hex head stainless steel 3
2 999-9133 Nut M10-1.5 nut hex head stainless steel 3
3 175-3287 Flanged bushing 1
4 275-0460 Steel spacer 1
5 275-0834 Brush arm bracket 1
6 275-0835 Brush lift plate 1
7 275-0463 Screw M12-1.75 x 120mm hex head 1
8 275-0464 Washer 1/2 flat belleville 1
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
10 275-0465 Adjustment arm plate 1
11 175-2525 Knob 3
12 275-0466 Replacement knob 1
13 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
14 999-0024 Washer 5/16 flat stainless steel 1
15 275-0467 Special drive brush plug 1
16 275-0468 Brush idler plug weldment 1
17 175-9072 Ball bearing 1
18 275-0469 Bearing retainer 1
19 175-0852 Bolt 5mm-.8 x 12 hex head 4
20 175-2894 Nut M5-.8 hex nylon locking 4
21 275-0470 Brush door weldment 1

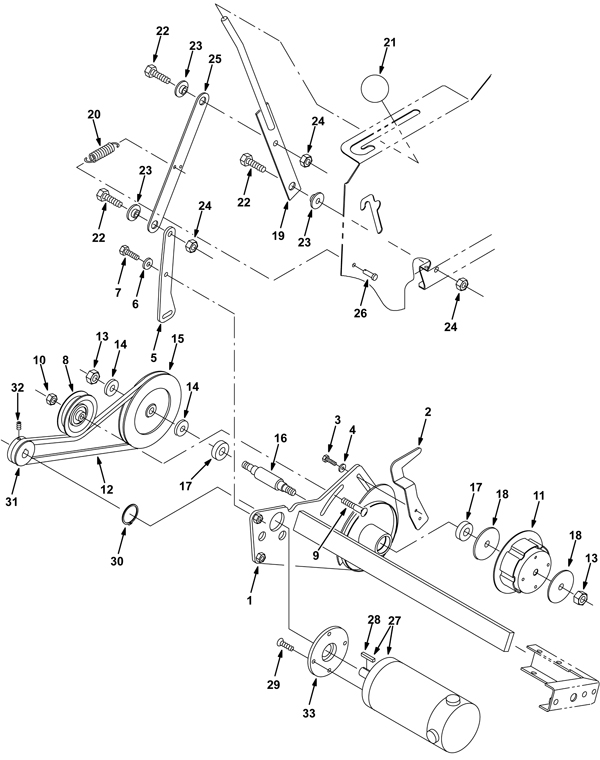

Main Brush Drive Assembly - 175-8413
RefNbr Part Number Description Req Notes
1 275-0836 Brush arm weldment 1
2 275-6934 Rear flap plate 1
3 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2
4 999-0123 Washer 1/4 SAE flat zinc plated 4
5 275-0473 Brush lift bellcrank arm 1
6 999-0024 Washer 5/16 flat stainless steel 2
7 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
8 275-0474 Flat sheave 1
9 999-1150 Bolt 3/8-16 x 1 1/4 carriage head stainless steel 1
10 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
11 275-0475 Splined brush drive plug 1
12 275-0837 Belt 3v 1
13 275-0477 Nut 1/2-13 hex standard left hand thread 2
14 999-0114 Washer 1/2 SAE flat 2
15 275-0838 Pulley 1
16 275-0480 Main drive shaft 1
17 175-9094 Ball bearing 2
18 275-0481 Washer 1/2 x 2 3/5 flat steel plated 2
19 275-0839 Handle weldment 1
20 275-0840 Tension spring 1
21 275-0483 2 inch plastic knob 1
22 275-0033 Screw M10-1.5 x 30mm hex head 8.8 3
23 175-3287 Flanged bushing 3
24 999-9133 Nut M10-1.5 nut hex head stainless steel 2
25 275-0484 Link 1
26 275-0485 Clevis pin 1
27a 275-0079 36V .6hp electric motor 1 (before SN 002818)
27b 275-7231 36V .6hp electric motor 1 (between SN 002819-004222)
27c 275-7231 36V .6hp electric motor 1 (includes 28) (after SN 004223)
28 275-0192 Square key 1
29 175-9240 Screw M8-1.25 x 25mm flat head socket nylok stainless steel 4
30 275-0494 32mm external retaining ring 1
31 275-6935 Sheave 1
32 175-9339 Screw M6-1 x 8mm set socket 2
33 275-0488 Motor pivot hub 1

Left and Right Hand Side Brush Lift Assembly - 175-8414
RefNbr Part Number Description Req Notes
1a 275-0845 Right hand lift sidebrush cable 1 (Right hand side)
1b 275-0581 Left hand lift sidebrush cable 1 (Left hand side)
2 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) 3
3 175-2249 Sleeve 3
4 175-9263 Sleeve 1
5 275-0058 Cable keeper angle bracket 3
6 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 3
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
8 275-0498 Screw M12-1.75 x 20mm hex head 1
9 999-0187 Washer 1/2 flat plain finish 1
10 275-0499 Side brush lift plate 1
11 275-0847 Handle 1
12 999-0768 Nut M3-.5 hex coarse thread plain finish 2
13 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 4
14 999-0024 Washer 5/16 flat stainless steel 4
15 275-6936 Side brush support 1
16 275-0483 2 inch plastic knob 1
17 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 1
18 999-0469 Nut M6-1 nylon insert lock zinc plated 1
19a 175-0337 Snap switch 1
20 999-1221 Screw M3-.5 x 25mm pan head stainless steel 2
21 999-0479 Washer #4 internal star lock zinc plated 2
22 275-0499 Side brush lift plate 1
23 275-0498 Screw M12-1.75 x 20mm hex head 1
24 999-0187 Washer 1/2 flat plain finish 1
25 999-0470 Bolt M8-1.25 x 45mm hex head part thread zinc 1

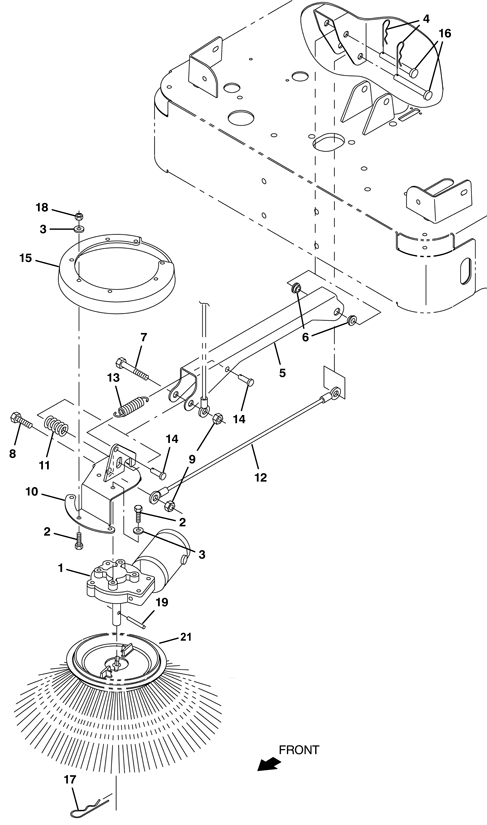

Side Brush Motor Assembly - 175-8415
RefNbr Part Number Description Req Notes
1a 275-0108 36V sidebrush motor 1 (Right hand) (includes 1c-1f)
1b 275-4683 Electric motor 36VDC .08hp 1 (Left hand) (includes 1c-1f)
1c 275-0109 Carbon brush assembly 1
1d 175-9270 Brush cap 2
1e 175-9271 Brush holder 2
1f 175-9272 Clip 2
2 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 9
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 9
4 175-2117 Cotter pin 2
5 275-0913 Sidebrush channel bracket 1
6 175-3335 Flanged bushing 2
7 175-6824 Screw M12-1 3/4 x 60mm hex 1
8 175-0615 Bolt M12-1.75 x 25mm hex head 1
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
10a 275-0503 Right hand side brush bracket weldment 1
10b 275-0582 Lefthand side brush bracket weldment 1
11 275-0504 Spring 1
12 275-0850 Side brush cable 1
13 175-3345 Extension spring 1
14 175-3344 Clevis pin 2
15 275-0851 Sidebrush guard 1
16 175-2362 Washer 17 x 30 x 3 flat stainless steel 1
17 175-2106 Cotter hair pin 1
18 999-0497 Nut M6-1 nylon insert lock stainless steel 5
19 175-9273 Roll pin 1
20 175-0716 Clevis pin 2
21 175-9207 Polypropelene side brush 1

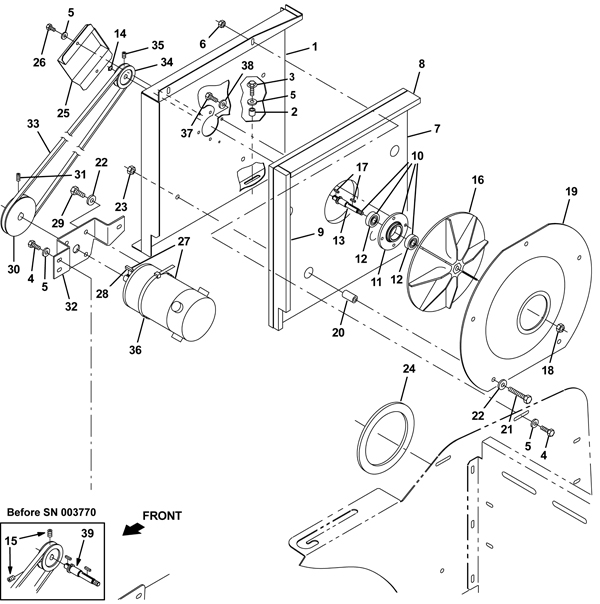

Vacuum Fan Assembly - 175-8416
RefNbr Part Number Description Req Notes
1 275-0852 Housing bearing plate 1
2 175-2249 Sleeve 2
3 999-0779 Screw M6-1 x 25mm hex head plain finish 2
4 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
5 999-0123 Washer 1/4 SAE flat zinc plated 9
6 999-0469 Nut M6-1 nylon insert lock zinc plated 2
7 275-6937 Insulation 1
8 275-0853 Insulation 1
9 275-6938 Insulation 1
10 275-0509 Vacuum fan bearing replacement kit 1 (includes 11-14)
11 275-0510 Vacuum fan bearing housing 1
12 275-0511 Ball bearing 2
13 275-0512 Vacuum fan drive shaft 1
14 175-6752 RING, RETAINING, EXT, 0.38D, [SELFLOCK] (Tennant Industrial 1
15 175-9339 Screw M6-1 x 8mm set socket 2 (before SN 003770)
16 275-0514 Impeller 1
17 175-9158 Square key 1/8 x 1/8 inch 2
18 175-9286 Nut 5/16 x 24 hex flex lock thin plated 1
19 275-0854 Fan (painted) plate 1
20 275-0855 Tube 5
21 999-0309 Bolt M8-1.25 x 50mm hex head part thread zinc 5
22 999-0024 Washer 5/16 flat stainless steel 9
23 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
24 275-0856 Vac fan seal 1
25 275-0507 Fan sheave guard 1
26 175-5113 Bolt M6 x 12mm hex head 2
27 275-5097 Electric motor assembly 1 (includes 28)
28 175-3200 Square keyway 1
29 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 4
30 275-6940 Sheave 1
31 275-0086 Screw M6-1 x 16 set socket head 2
32 275-6941 Vacuum motor mounting bracket 1
33 275-6078 52 inch v belt 1
34 275-6942 Sheave 1
35 175-9339 Screw M6-1 x 8mm set socket 1
36 175-2226 Nylon wire tie 1
37 999-9116 Screw M6-1 x 12mm hex head stainless steel 4
38 275-0092 Washer 1/4 flat belleville 4
39 275-0512 Vacuum fan drive shaft 1 (before SN 003770)

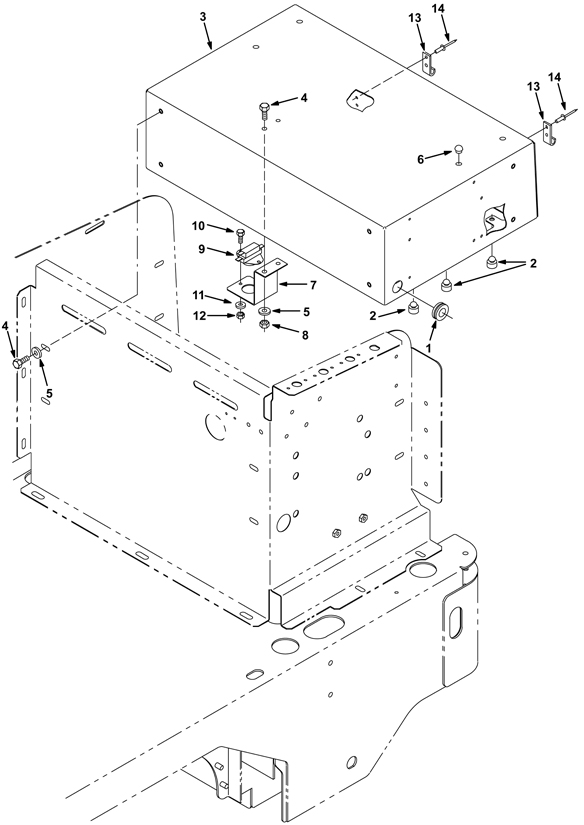

Vacuum Fan Box Assembly - 175-8417
RefNbr Part Number Description Req Notes
1 275-6943 Grommet (Tennant Industrial) 1
2 275-0858 Rubber bumper 3
3 275-6944 Vacuum box assembly with decal 1
4 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 10
5 999-0123 Washer 1/4 SAE flat zinc plated 10
6 175-9924 White nylon plug 4
7 275-6945 Thermal sensor bracket 1
8 999-0469 Nut M6-1 nylon insert lock zinc plated 2
9 175-7132 Thermostat switch 1
10 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 2
11 999-0412 Washer #8 SAE flat 2
12 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
13 275-0533 Latch bracket 2
14 175-8930 Blind rivet 4

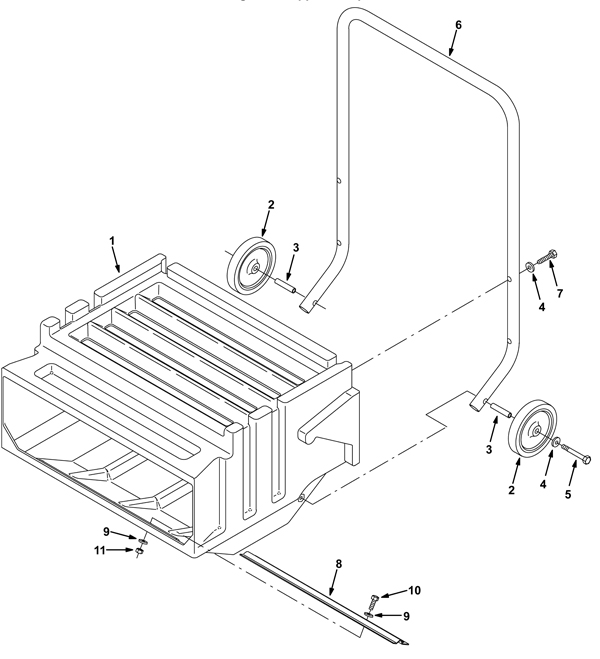

Hopper Assembly - 175-8418
RefNbr Part Number Description Req Notes
1 275-0862 Rear hopper 1
2 275-0863 Hopper wheel 2
3 275-0864 Axle tube 2
4 999-0024 Washer 5/16 flat stainless steel 6
5 175-7120 Screw M8 x 1.25 x 50mm hex 2
6 275-0865 Hopper handle 1
7 175-3436 Bolt 8mm-1.25 x 40mm hex head 4
8 275-0866 Hopper bracket 1
9 999-0123 Washer 1/4 SAE flat zinc plated 10
10 999-1312 Screw M6-1 x 20mm hex head stainless steel 5
11 999-0469 Nut M6-1 nylon insert lock zinc plated 5

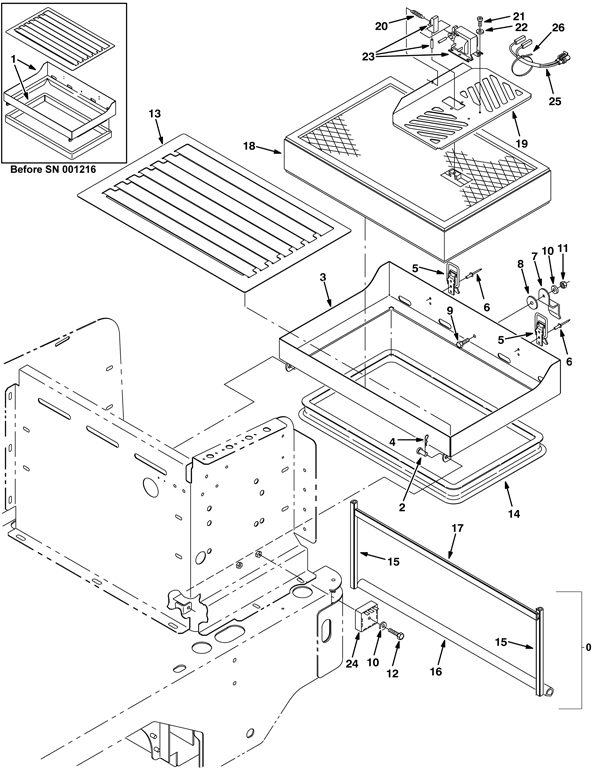

Filter Shaker Assembly - 175-8419
RefNbr Part Number Description Req Notes
0 275-0894 Hopper seal kit 1 (includes 15-17)
1 275-0867 Filter panel assembly (Tennant Industrial) 1
2 275-0485 Clevis pin 2
3 275-0868 PANEL WLDT, FLTR (Tennant Industrial) 1
4 175-7107 Cotter hair pin 2
5 175-8927 Catch 2
6 275-0869 Pop rivet 4
7 275-0890 Hopper bracket latch 1
8 275-0891 Washer 1
9 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
10 999-0123 Washer 1/4 SAE flat zinc plated 2
11 999-0469 Nut M6-1 nylon insert lock zinc plated 1
12 175-6758 Screw M6-1 x 30mm hex head 1
13 275-0892 Perma-filter panel 1
14 275-0893 GASKET, PANL, FLTR (Tennant Industrial) 1
15 275-0895 Bulb 1/2 x1/2 seal 2
16 275-0896 Foam seal 1
17 275-6155 Upper seal (TENNANT INDUSTRIAL) 1
18 275-0640 Dust filter 1
19 275-0898 Shaker panel weldment 1
20 275-6153 Spring 1
21 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 4
22 999-0412 Washer #8 SAE flat 4
23 275-8495 Filter shaker solenoid 1
24 275-8537 Module 1
25 275-0547 Shaker harness 1
26 175-2162 Nylon wire tie 1

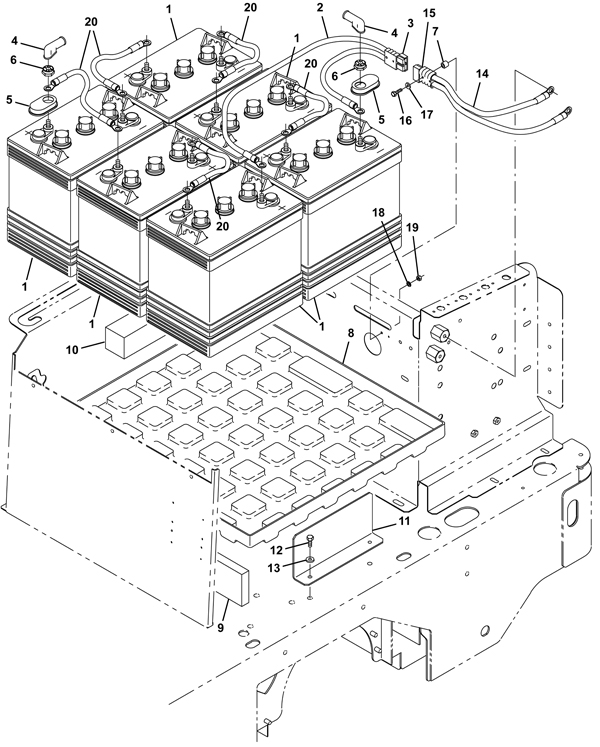

Battery Assembly - 175-8420
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 175-2123 6 gauge battery cable assembly 1 (includes item 3)
3 991-2105 SB50 50amp charger plug with pins (gray) 1
4 175-2122 90 degree cable boot 12
5 275-5948 Battery terminal cover (black) 12
6 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
7 275-6946 Spacer 2
8 275-6947 Battery tray 1
9 175-2127 Battery spacer 1
10 275-9405 Battery spacer (Tennant Industrial) (OBSOLETE) 1
11 275-6948 Battery brace 1
12 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
13 999-0016 Washer 1/4 flat plain finish 2
14 275-6949 Main battery cable harness 1 (includes 15)
15 991-2105 SB50 50amp charger plug with pins (gray) 1
17 999-0377 Washer 6 SAE flat plain finish 2
18 999-0364 Washer #6 internal star lock zinc plated 2
19 999-0768 Nut M3-.5 hex coarse thread plain finish 2
20 175-2120 6 gauge black wire jumper cable 5

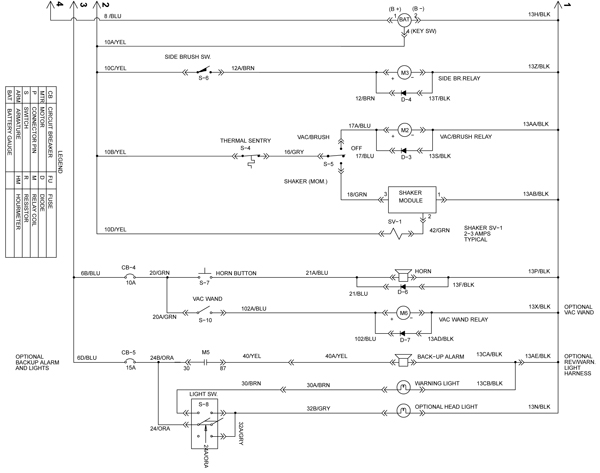

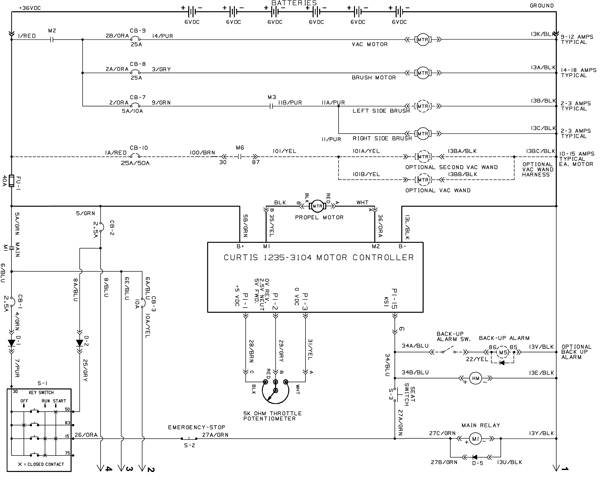

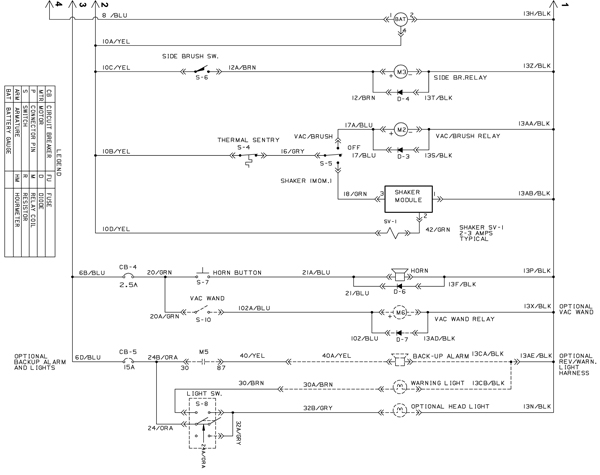

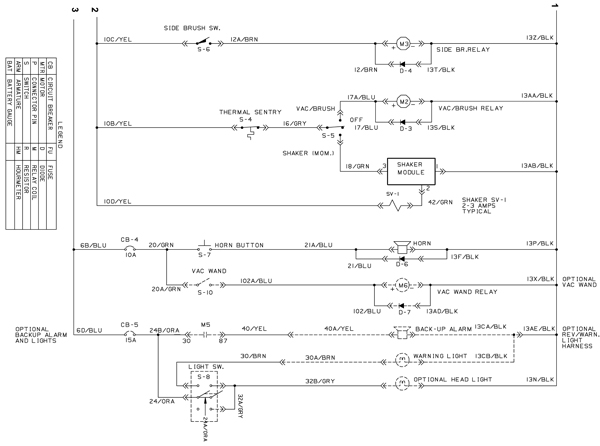

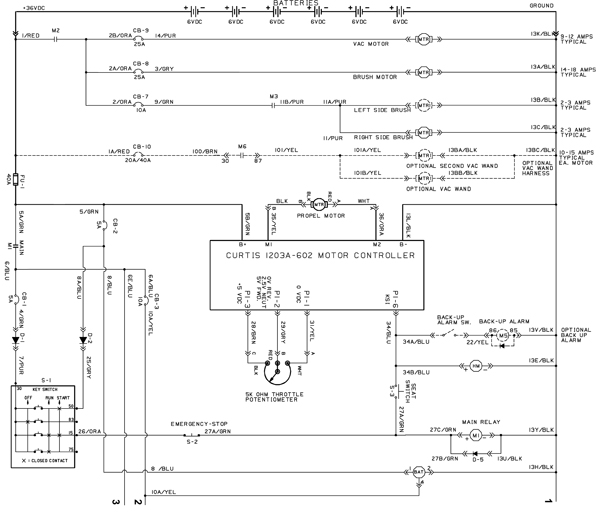

Electrical Diagram - Before SN 00214 - 1 -

RefNbr Part Number Description Req Notes

Electrical Diagram - Before SN 00214 - 2 -

RefNbr Part Number Description Req Notes

Electrical Diagram- Between SN 002015-005103 - 1 -

RefNbr Part Number Description Req Notes

Electrical Diagram - Between SN 002015-005103 - 2 -

RefNbr Part Number Description Req Notes

Electrical Diagram - After SN 005104 - 1 -

RefNbr Part Number Description Req Notes

Electrical Diagram - After SN 005104 - 2 -

RefNbr Part Number Description Req Notes

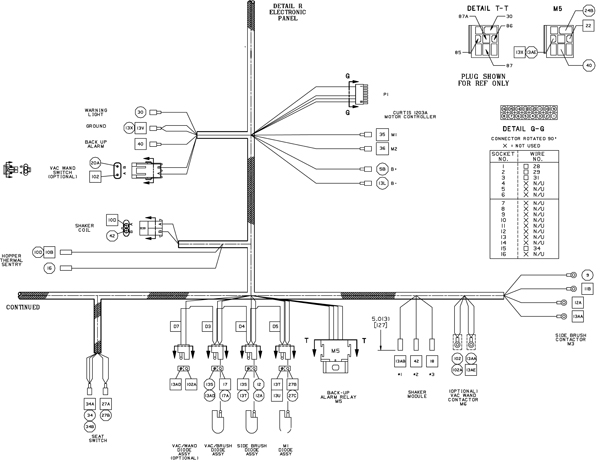

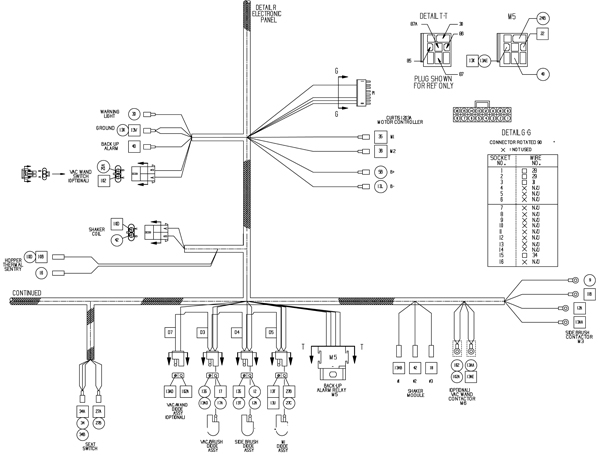

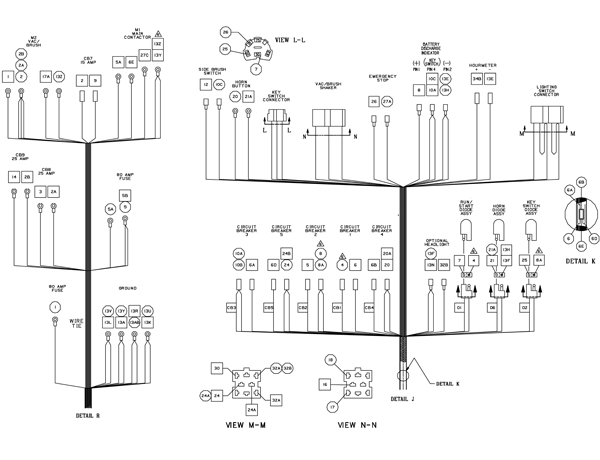

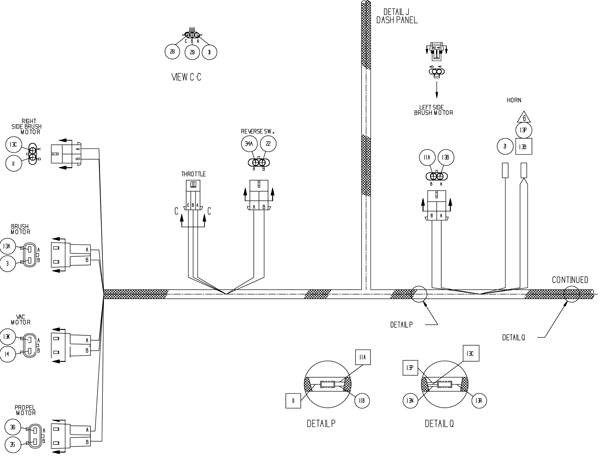

Wire Harnesses Assembly - Part 1 -

RefNbr Part Number Description Req Notes

Wire Harnesses Assembly - Part 2 -

RefNbr Part Number Description Req Notes

Wire Harnesses Assembly - Part 3 -

RefNbr Part Number Description Req Notes

Wire Harnesses Assembly - Part 4 -

RefNbr Part Number Description Req Notes

Wire Harnesses Assembly - Part 5 -

RefNbr Part Number Description Req Notes

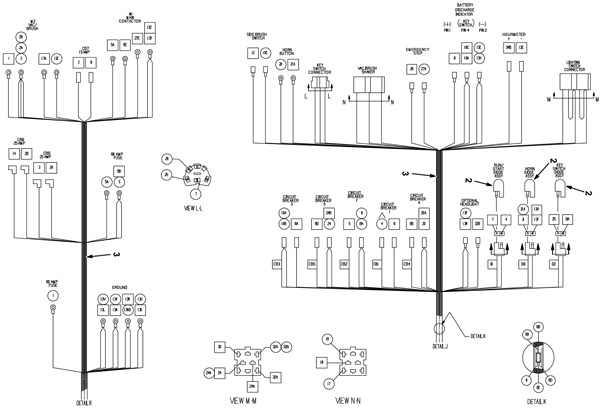

Wire Harnesses Assembly - Part 6 - 175-8432
RefNbr Part Number Description Req Notes
1 275-6950 Main harness 1
2 175-2216 Diode plug 6
3 275-6951 Main harness 1

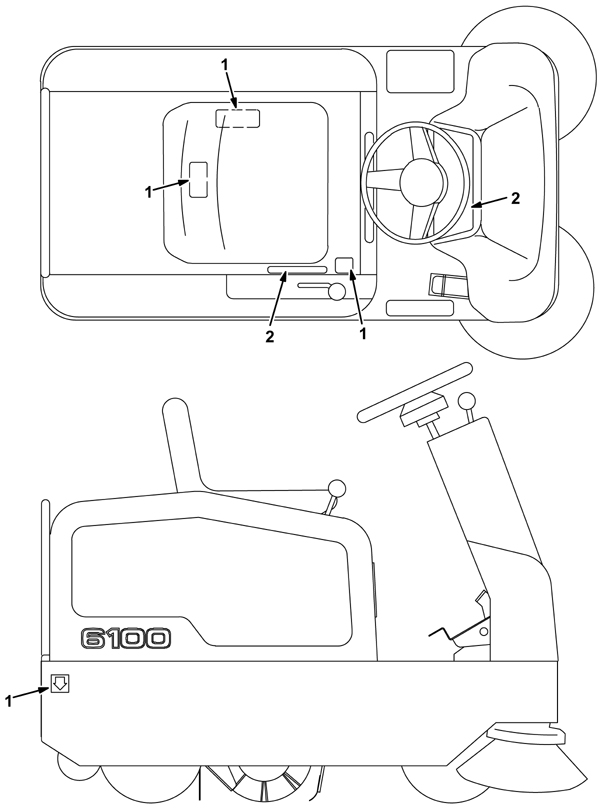

Label Assembly - 175-8433
RefNbr Part Number Description Req Notes
1 275-0902 Information and hazard label set 1
2 275-6952 Operational decal set 1

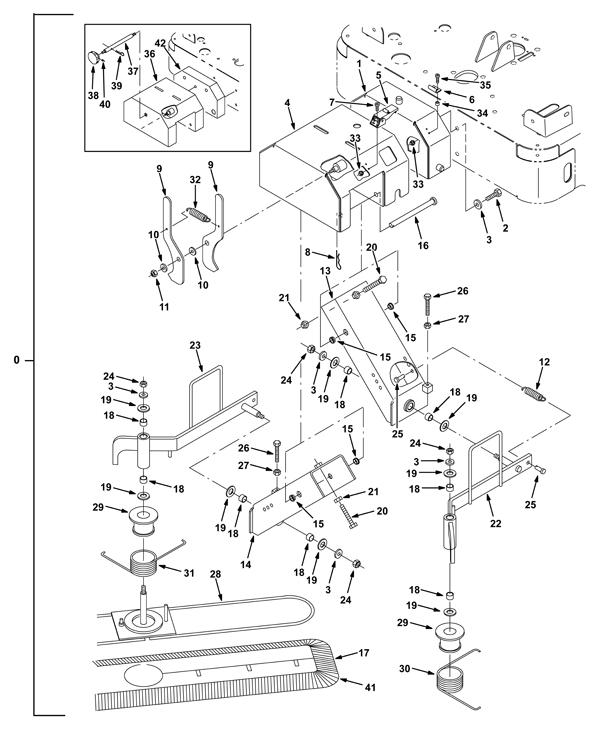

Quick Mop Assembly - 175-8434
RefNbr Part Number Description Req Notes
0 275-0904 Quick mop kit, 6100 1 (includes 1-35)
1 275-0614 V-mop bumper weldment 1
2 275-0025 Screw M10-1.5 x 25 hex head 8.8 4
3 999-0032 Washer 3/8 USS flat plain finish 8
4 275-0615 HOUSING WLDT, MTG, V-MOP (Tennant Industrial) 1
5 175-5324 Door latch 2
6 175-5325 Keeper bracket 2
7 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 4
8 175-2106 Cotter hair pin 2
9 275-0617 V-mop latch plate 2
10 175-3354 Thrust washer 2
11 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
12 175-3345 Extension spring 2
13 275-0618 Left lift channel weldment 1
14 275-0619 Right lift channel weldment 1
15 175-3335 Flanged bushing 4
16 175-5332 Clevis pin 1/2 x 6 2
17 175-5342 Dust mop 2
18 175-5333 Sleeve bushing 8
19 175-3347 Washer .61 thrust 8
20 175-5334 Screw M10 x 1.5 x 90mm hex 2
21 999-0767 Nut M10-1.5 hex coarse thread 2
22 275-0620 Left arm weldment 1
23 275-0621 Right arm weldment 1
24 999-9133 Nut M10-1.5 nut hex head stainless steel 4
25 175-3344 Clevis pin 4
26 175-5337 Screw M8 x 1.25 x 60mm hex 2
27 999-0579 Nut M8-1.25 hex coarse thread zinc 2
28 275-0622 V-mop frame weldment 2
29 175-5339 Spring spacer 2
30 175-5340 Torsion spring 1
31 175-5340 Torsion spring 1
32 175-0770 Extension spring 1
33 999-0954 Nut M4-.7 nylon insert lock stainless steel 8
34 175-5327 Spacer 4
35 175-5326 Screw 4 x 45/64 x 20 pan head stainless steel 4
36 N/A Not available 1 (V-mop housing weldment)
37 275-0906 Threaded rod 1
38 275-0008 Round plastic knob 2.37d 1.3l .38h 1
39 175-2106 Cotter hair pin 1
40 275-0907 Screw #10 - 32 x 3/8 set 1
41 175-5343 Industrial dust mop (OBSOLETE) 1
42 275-0911 V-mop bumper weldment (TENNANT INDUSTRIAL) 1

Vacuum Wand Assembly - 175-8435
RefNbr Part Number Description Req Notes
1 175-9306 Hose cuff 1
2 175-9417 Flex hose 1
3 175-9418 Vacuum hose nozzle 1
4 175-9419 Vacuum hose coupling 1
5 275-6028 24 inch vacuum wand 1
6 175-9409 Vacuum wand coupling 1
7 275-6953 Wand bracket 1
8 275-0025 Screw M10-1.5 x 25 hex head 8.8 2
9 999-0032 Washer 3/8 USS flat plain finish 3
10 175-0791 Nut M10 x 1.5 hex flange 2
11 275-6954 Snap switch 1
12 175-0837 Bolt M5-.8 x 16mm hex head 2
13 999-0006 Washer 3/16 flat zinc plated 2
14 175-2183 Adjustment cam 1
15 275-6955 Handle rod 1
16 275-6956 Flange bearing 1
17 275-6957 Tube 1
18 275-7611 Thrust washer 2
19 175-3259 Screw M10-1.5 x 45mm hex head 1
20 999-9133 Nut M10-1.5 nut hex head stainless steel 1
21 275-0840 Tension spring 1
22 275-6958 Vacuum wand rod 1
23 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 1
24 999-0123 Washer 1/4 SAE flat zinc plated 2
25 999-0469 Nut M6-1 nylon insert lock zinc plated 1
26 175-2309 Washer 1
27 999-0309 Bolt M8-1.25 x 50mm hex head part thread zinc 1
28 275-3218 Washer 2
29 999-0024 Washer 5/16 flat stainless steel 2
30 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1

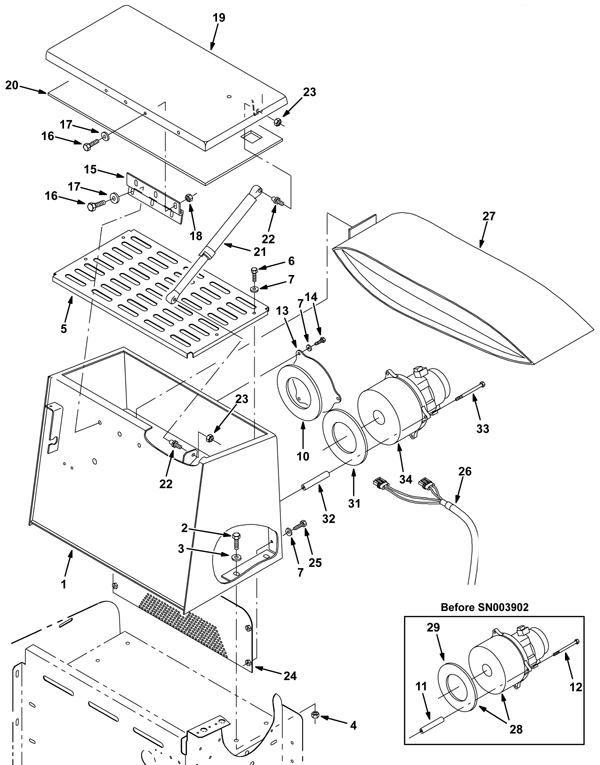

Single Vacuum Motor Wand Box Assembly - 175-8436
RefNbr Part Number Description Req Notes
1 275-6959 Vacuum wand box assembly 1
2 275-0025 Screw M10-1.5 x 25 hex head 8.8 4
3 999-0032 Washer 3/8 USS flat plain finish 4
4 999-0665 Nut M8-1.25 flange lock 4
5 275-6960 Vacuum box panel 1
6 175-6758 Screw M6-1 x 30mm hex head 4
7 999-0123 Washer 1/4 SAE flat zinc plated 11
10a 164-0881 Vacuum motor gasket 1 (before SN 003902)
10b 175-4200 SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) 1 (after SN 003903)
10c 991-3029 Vacuum motor gasket 1 (NON-OEM)
11 N/A Not available 3 (before SN 003902) (steel tube)
12 275-2133 Bolt M6 x 1 hex, SS 3 (before SN 003902)
13 275-6961 Cover plate 1
14 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 3
15 275-6962 Hinge 1
16 175-5113 Bolt M6 x 12mm hex head 6
17 999-0016 Washer 1/4 flat plain finish 6
18 999-6694 Nut M6-1 hex serrated flange stainless steel 3
19 275-6963 Vacuum box weldment 1
20 275-6964 Gasket 1
21 275-6965 Gas spring 1
22 175-0761 Gas spring ball stud 2
23 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
24 275-6966 Vacuum box screen 1
25 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
26 275-6967 Vacuum wand harness 1
27 275-5809 Vacuum bags (pkg of 10) 1
28a 275-5200 36V 3 stage vacuum motor kit 1 (includes 29) (before SN 003902)
28b 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug 1 (NON OEM) (before SN 003902)
29a 164-0881 Vacuum motor gasket 1 (before SN 003902)
29b 991-3029 Vacuum motor gasket 1 (NON-OEM)
31 175-4200 SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) 1 (after SN 003903)
32 275-5606 Tube 3 (after SN 003903)
33 275-5607 Screw M6-1 x 110mm hex stainless steel 6 (after SN 003903)
34a 275-6969 36V 3 stage vacuum motor 1 (OEM)(after SN 003903)
34b 275-5816 Carbon brush kit (pkg of 2) 1
34c 175-6954 Cooling fan cover 1

Single And Dual Vacuum Motor Wand Electrical Assembly - 175-8437
RefNbr Part Number Description Req Notes
1 175-2216 Diode plug 1
2 275-6968 Grommet 1
3 175-2544 20amp circuit breaker 1 (before SN 003717)
4 275-4655 Screw #8-32 x 0.88, G1 Pan 2 (before SN 003717)
5 999-0412 Washer #8 SAE flat 2 (before SN 003717)
6 175-2373 36V contactor 1
7 999-0406 Washer 5/16 internal star lock zinc plated 2
8 999-0763 Nut 5/16-24 hex jam plain finish 2
9 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
10 999-0460 Nut 10-32 hex 2
11 999-0998 Washer #10 flat stainless steel 2
12 999-0089 Washer #10 internal star lock zinc plated 2
13 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 1
14 999-0006 Washer 3/16 flat zinc plated 2
15 175-2894 Nut M5-.8 hex nylon locking 1
16a 175-2337 20amp circuit breaker 1 (between SN 003718-003902)
16b 991-1631 25amp circuit breaker 1 (after SN 383724)
17 275-1863 TERMINAL, TAB, .25 .19H .84L (Tennant Industrial) 2 (Dual motor only)

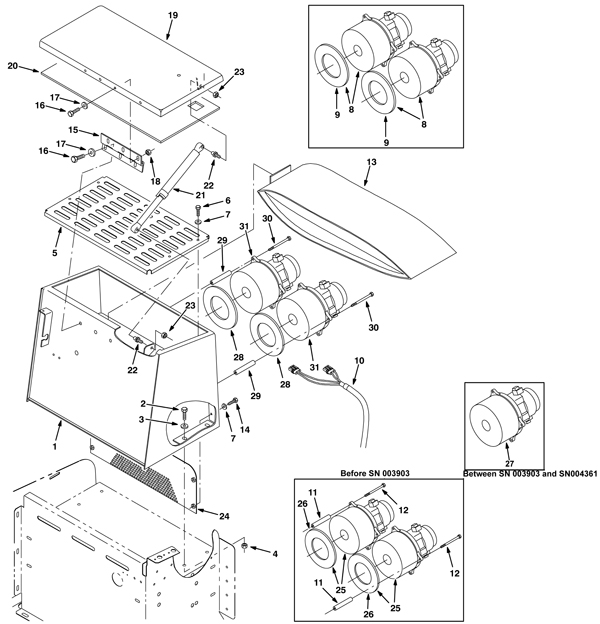

Dual Vacuum Motor Wand Box Assembly - 175-8438
RefNbr Part Number Description Req Notes
1 275-6959 Vacuum wand box assembly 1
2 275-0025 Screw M10-1.5 x 25 hex head 8.8 4
3 999-0032 Washer 3/8 USS flat plain finish 4
4 999-0665 Nut M8-1.25 flange lock 4
5 275-6960 Vacuum box panel 1
6 175-6758 Screw M6-1 x 30mm hex head 4
7 999-0123 Washer 1/4 SAE flat zinc plated 8
8 275-5200 36V 3 stage vacuum motor kit 2 (includes 9)
9a 164-0881 Vacuum motor gasket 1
9b 991-3029 Vacuum motor gasket 1 (NON-OEM)
10 275-6967 Vacuum wand harness 1
11 N/A Not available 6 (steel tube)
12 275-2133 Bolt M6 x 1 hex, SS 6
13 275-5809 Vacuum bags (pkg of 10) 1
14 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
15 275-6962 Hinge 1
16 175-5113 Bolt M6 x 12mm hex head 6
17 999-0016 Washer 1/4 flat plain finish 6
18 999-6694 Nut M6-1 hex serrated flange stainless steel 3
19 275-6963 Vacuum box weldment 1
20 275-6964 Gasket 1
21 275-6965 Gas spring 1
22 175-0761 Gas spring ball stud 2
23 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
24 275-6966 Vacuum box screen 1
25 275-5200 36V 3 stage vacuum motor kit 2 (includes 26) (before SN 0039003)
26a 164-0881 Vacuum motor gasket 1
26b 991-3029 Vacuum motor gasket 1 (NON-OEM)
27a 275-6969 36V 3 stage vacuum motor 1 (includes 27b and 27c) (OEM) (between SN 003903 and SN 004361)
27b 275-5816 Carbon brush kit (pkg of 2) 2 (between SN 003903 and SN 004361)
27c 175-6954 Cooling fan cover 1 (between SN 003903 and SN 004361)
28 175-4200 SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) 2
29 275-5606 Tube 6
30 275-5607 Screw M6-1 x 110mm hex stainless steel 6
31a 275-6969 36V 3 stage vacuum motor 2 (after SN 004362) (OEM)
31b 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug 2 (NON OEM)
27d 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug 2 (NON OEM)

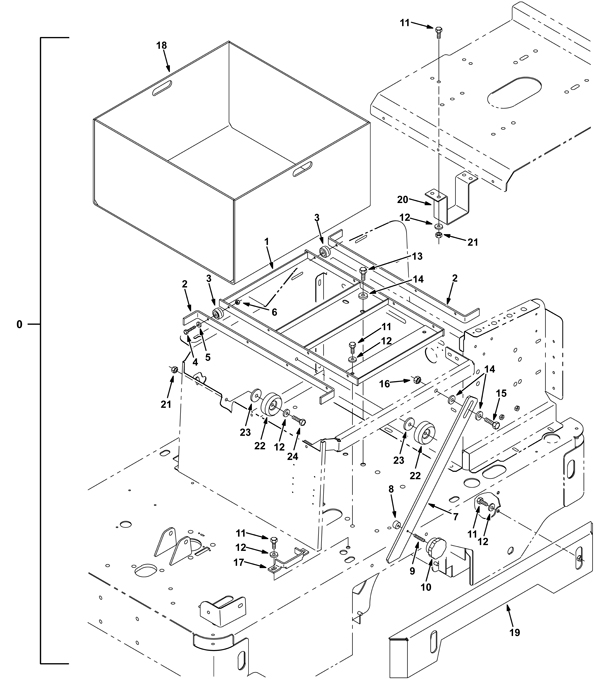

Rollout Battery Case Assembly - 175-8442
RefNbr Part Number Description Req Notes
0 275-6971 Rollout battery kit 1 (includes 1-24)
1 275-6972 Battery roller bracket 1
2 275-6973 Channel 2
3 275-0003 Bearing 8
4 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 8
5 999-0123 Washer 1/4 SAE flat zinc plated 8
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
7 275-6974 Battery case brace 1
8 275-6975 Bumper 1
9 275-6976 Threaded rod 1
10 275-6977 Knob 1
11 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 14
12 999-0024 Washer 5/16 flat stainless steel 14
13 175-6774 Screw M10-1 1/2 x 20 hex 2
14 999-0032 Washer 3/8 USS flat plain finish 4
15 175-3258 Bolt M10-1.5 x 35mm hex head 1
16 999-9133 Nut M10-1.5 nut hex head stainless steel 1
17 275-6978 Support bracket brace 1
18 275-6979 Battery housing bucket 1
19 275-6980 Bumper channel weldment 1
20 275-6981 Battery case stop bracket 1
21 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
22 275-0029 Rubber bumper 2
23 275-6982 Washer 2
24 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2

Rollout Battery Pack Assembly - 175-8443
RefNbr Part Number Description Req Notes
0 275-6983 Rollout battery pack kit 1 (includes 1-8)
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 175-2123 6 gauge battery cable assembly 1 (includes item 3)
3 991-2105 SB50 50amp charger plug with pins (gray) 1
4 175-2120 6 gauge black wire jumper cable 5
5 175-2122 90 degree cable boot 12
6 275-5948 Battery terminal cover (black) 12
7 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
8 275-6979 Battery housing bucket 1

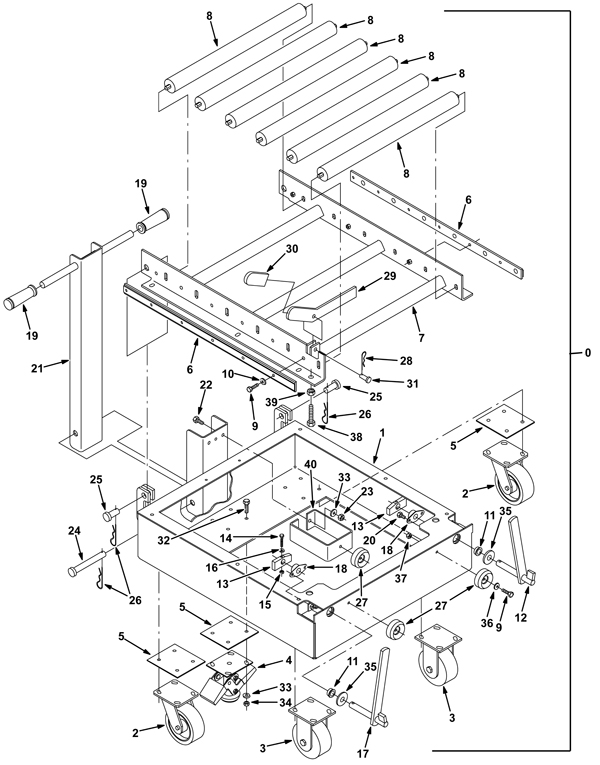

Rollout Battery Cart Assembly - 175-8444
RefNbr Part Number Description Req Notes
0 275-0012 CI rollout battery cart kit 1 (includes 1-40)
1 275-0013 Battery cart frame 1
2a 175-2100 5 inch caster wheel assembly (gray) 2
2b 991-2011 Caster wheel assembly 2 (NON-OEM)
3 275-7218 5 inch rigid caster 2
4 275-0015 Floor lock 1
5 275-0016 Spacer plate 3
6 275-0017 Roller shaft retainer 2
7 275-0018 Roller mounting frame weldment 1
8 275-0019 Steel roller assembly 6
9 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 12
10 999-9097 Washer M8 flat stainless steel 12
11 275-0020 Nylon grommet 2
12 275-0021 Left hand lock weldment 1
13 275-0022 Battery cart lock stop block 2
14 999-0780 Screw M6-1 x 40mm hex head 2
15 999-0469 Nut M6-1 nylon insert lock zinc plated 2
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
17 275-0023 Right hand lock weldment 1
18 175-3201 Flanged bearing 2
19a 675-9894 Handle grip 2
19b 991-8571 Handle grip 2 (NON-OEM)
20 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
21 275-0024 Battery cart handle weldment 1
22 275-0025 Screw M10-1.5 x 25 hex head 8.8 2
23 275-0026 Nut M10-1.25 hex standard 2
24 175-9742 Clevis pin 1
25 275-0027 Clevis pin 2
26 275-0028 Cotter hair pin 3
27 275-0029 Rubber bumper 3
28 175-5402 Cotter hair pin 1
29 275-0030 Battery stop flat arm 1
30 275-0031 Handle grip 1
31 275-0032 Clevis pin 1
32 275-0033 Screw M10-1.5 x 30mm hex head 8.8 20
33 999-0032 Washer 3/8 USS flat plain finish 22
34 999-9133 Nut M10-1.5 nut hex head stainless steel 20
35 999-0630 Washer 3/4 SAE flat 2
36 999-0024 Washer 5/16 flat stainless steel 3
37 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
38 275-0034 Screw M12-1.75 x 50 hex head fl 2
39 275-0035 Nut M12-1.75 hex standard 2
40 275-0036 Battery case stop bracket 1

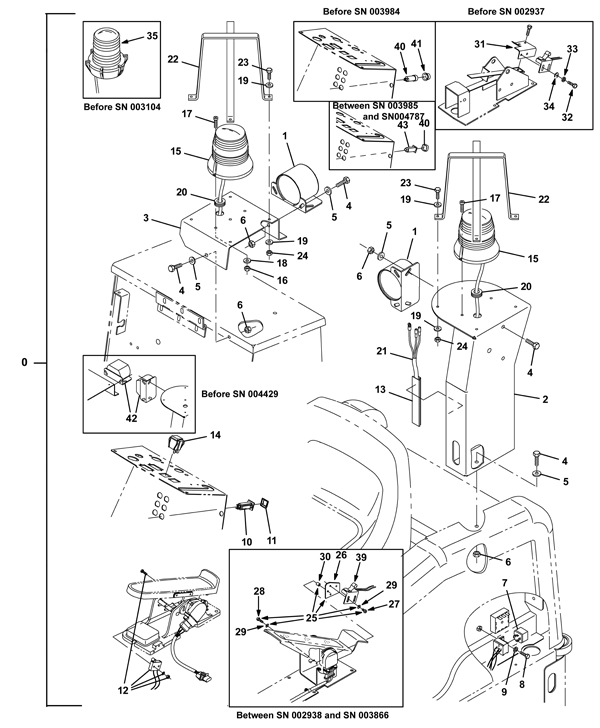

Backup Alarm and Flashing Light Assembly - 175-8447
RefNbr Part Number Description Req Notes
0 275-6995 Back up alarm kit 1 (includes 1-24)
1 275-2542 Backup alarm assembly 1 (after SN 004480)
2 275-6985 Pedestal 1
3 275-6986 Bracket 1
4 999-0783 Screw M8-1.25 x 16mm hex head 4
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
6 999-0665 Nut M8-1.25 flange lock 4
7 175-2265 36V 5amp relay 1
8 175-0852 Bolt 5mm-.8 x 12 hex head 1
9 999-0089 Washer #10 internal star lock zinc plated 1
10 175-5969 15amp circuit breaker (Tennant Industrial) 1 (after SN 004788)
11 275-2596 Circuit breaker boot (Tennant Industrial) 1 (after SN 004788)
12 275-6990 Back up alarm switch kit 1 (after SN 003867)
13 175-3261 PVC duct 1
14 175-0569 Rocker switch 1
15a 275-7765 Strobe light 1 (includes 16-18)
15b 275-4675 Lens 1 (after SN 003105)
15c 275-4678 Bulb 1 (after SN 003105)
15d 175-5964 Plug 2 (after SN 003105)
15e 275-7186 Lens (red) (Tennant Industrial) 1 (after SN 003105)
15f 275-7187 Lens (blue) (Tennant Industrial) 1 (after SN 003105)
16 175-2894 Nut M5-.8 hex nylon locking 2 (after SN 003105)
17 175-2895 Screw M5-0.8 x 20mm pan head 2 (after SN 003105)
18 999-0006 Washer 3/16 flat zinc plated 2 (after SN 003105)
19 999-0006 Washer 3/16 flat zinc plated 8
20 175-5419 Grommet 5/8 1
21 275-6987 Warning/backup wire harness 1
22 275-6988 Light guard weldment (TENNANT INDUSTRIAL) 1
23 275-0923 Screw M5 - 7/8 hex lock 4
24 175-2894 Nut M5-.8 hex nylon locking 4
25 275-6991 Back up alarm bracket kit 1 (includes 26-30) (between SN 002938-003866)
26 275-6992 Switch adapter bracket 1 (between SN 002938-003866)
27 175-0598 Screw 5mm-.8 x 6 pan head 2 (between SN 002938-003866)
28 175-2895 Screw M5-0.8 x 20mm pan head 2 (between SN 002938-003866)
29 999-1026 Washer #10 internal lock stainless steel 4 (between SN 002938-003866)
30 375-3820 Plastic spacer 2 (Spacer) (between SN 002938-003866)
31 275-0608 Roller switch mounting angle bracket 1 (before SN 002937)
32 175-0852 Bolt 5mm-.8 x 12 hex head 2 (before SN 002937)
33 999-0089 Washer #10 internal star lock zinc plated 2 (before SN 002937)
34 999-0006 Washer 3/16 flat zinc plated 2 (before SN 002937)
35a 175-5417 Lamp 1 (before SN 003104)
35b 175-5427 Flashing light amber lens 1 (before SN 003104)
35c 175-5428 Flashing light red lens 1 (before SN 003104)
35d 175-5429 Flashing light blue lens 1 (before SN 003104)
39 275-0140 Roller snap switch 15A no 1 (before SN 003866)
40 175-5969 15amp circuit breaker (Tennant Industrial) 1 (before SN 003984)
41 275-2596 Circuit breaker boot (Tennant Industrial) 1 (before SN 003984)
43 175-5969 15amp circuit breaker (Tennant Industrial) 1 (between SN 003985-004787)
44 275-2596 Circuit breaker boot (Tennant Industrial) 1 (between SN 003985-004787)

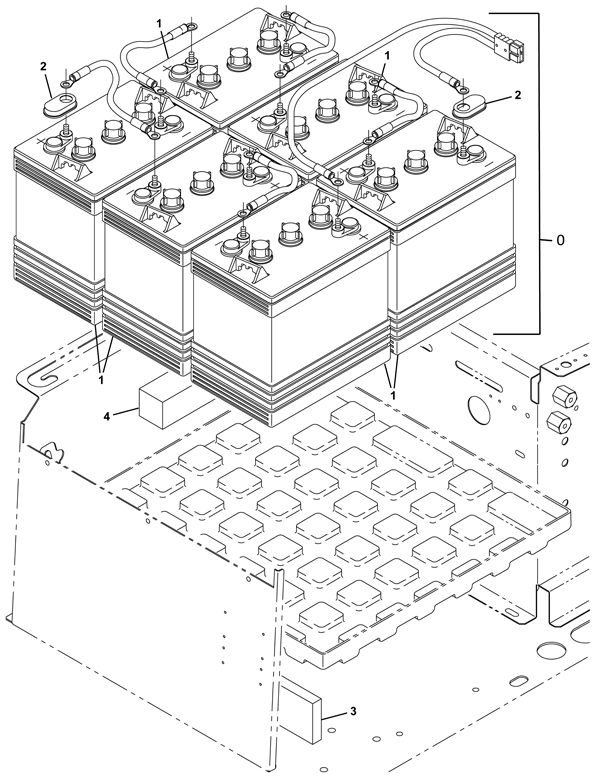

36V 220 AH Wet Battery Assembly - 175-8448
RefNbr Part Number Description Req Notes
0 162-0003 6V 225Ah wet battery (SNSR) 1 (includes 1-4)
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 275-5948 Battery terminal cover (black) 12
3 175-2127 Battery spacer 1
4 275-9405 Battery spacer (Tennant Industrial) (OBSOLETE) 1

Hydrolink Battery Watering System Assembly - 175-8449
RefNbr Part Number Description Req Notes
0 275-6998 HYDROLINK battery fill kit 1 (includes 1-5)
1 275-6999 Battery fill pump kit 1
2 375-0000 Battery water tube 1
3 375-0001 Battery fill cap 6
4 375-0002 Battery tag decal 1
5 175-7795 Cable tie 2

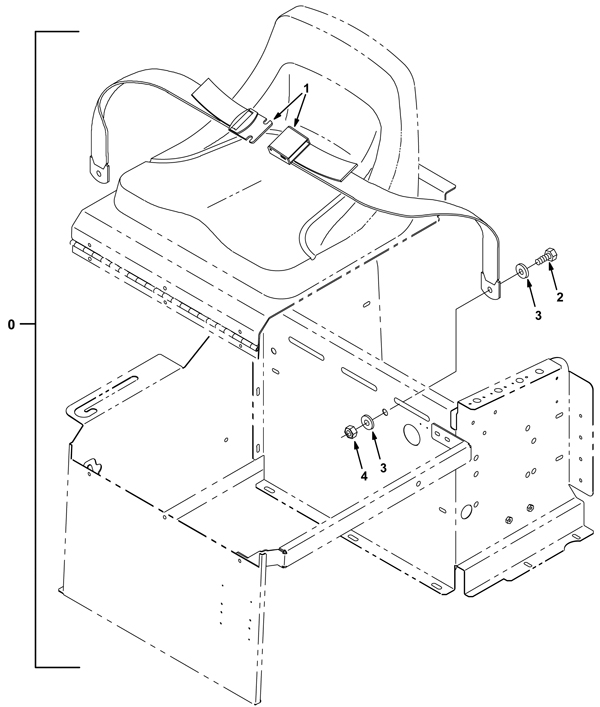

Seat Belt Assembly - 175-8450
RefNbr Part Number Description Req Notes
0 275-0925 Seatbelt kit 6100 1 (includes 1-4)
1 275-0167 Seat belt 1
2 175-0615 Bolt M12-1.75 x 25mm hex head 2
3 999-0114 Washer 1/2 SAE flat 4
4 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2

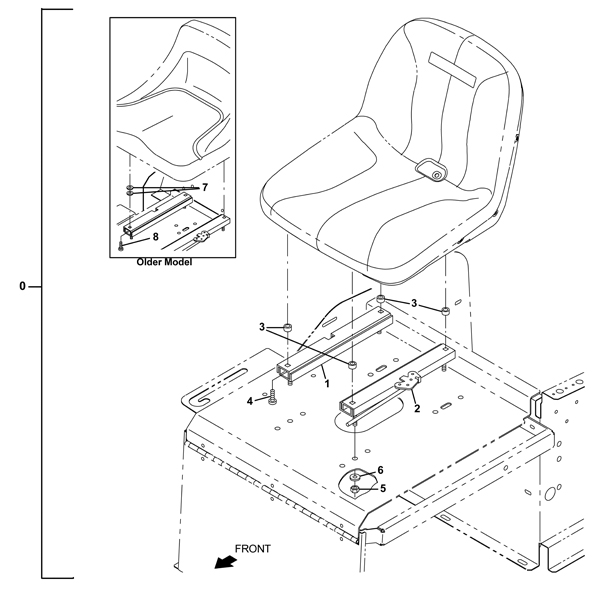

Seat Slide Assembly - 175-8451
RefNbr Part Number Description Req Notes
0 275-0926 Slide seat kit 1 (includes 1-6)
1 175-3174 12 1/2 inch adjustable seat slide track 1
2 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) 1
3 275-9333 Spacer 4
4 999-0814 Screw 5/16-18 x 1 1/2 pan head phillips zinc plated 4
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
6 999-0024 Washer 5/16 flat stainless steel 4
7 175-3176 Washer 3/8 flat steel plated 8 (older model)
8 275-9278 SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) 4 (older model)

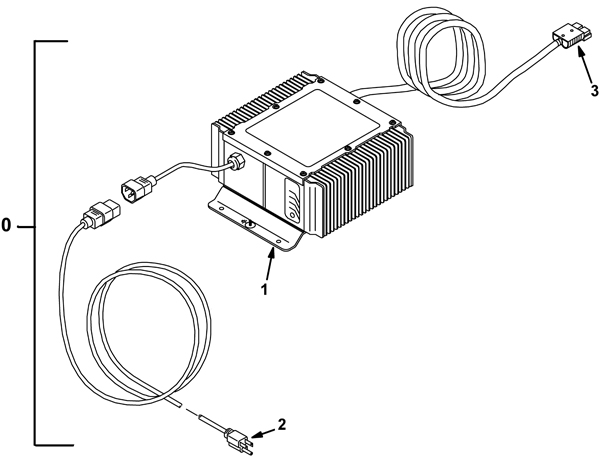

Battery Charger Assembly - On Board - 175-8452
RefNbr Part Number Description Req Notes
0a 275-1247 36V 21amp onboard flooded, gel, and AGM battery charger 1 (includes 1-3)
0b 991-3049 36V 20amp charger (NON-OEM)
1a N/A Not available 1 (charger)
1b N/A Not available 1 (charger)
2a 275-0052 16/3 charger extension cord 10 foot 1 (OEM)
2b 164-6477 Onboard charger extension cord 1 (NON-OEM)
2c 991-3048 Charger cord 1 (NON-OEM)
3 991-2105 SB50 50amp charger plug with pins (gray) 1

Side Molding Assembly - 175-8453
RefNbr Part Number Description Req Notes
0 275-0927 Side molding kit 1 (includes 1-4)
1 275-0928 Bumper retainer 2
2 275-0929 Bumper strip 2
3 275-0930 Pop rivet 12
4 275-0931 Washer 1/8 flat steel plated 24

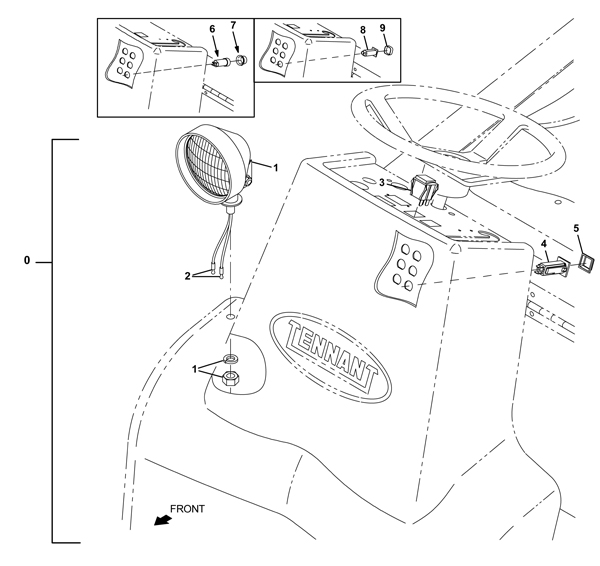

Worklight Assembly - 175-8454
RefNbr Part Number Description Req Notes
0 375-0004 Work light kit 1 (includes 1-5)
1 375-0005 LED light 1
2 175-5964 Plug 2
3 175-0569 Rocker switch 1
5 275-2596 Circuit breaker boot (Tennant Industrial) 1 (after SN 004788)
6 175-5969 15amp circuit breaker (Tennant Industrial) 1 (before SN 003984)
7 275-2596 Circuit breaker boot (Tennant Industrial) 1 (before SN 003984)
8 175-5969 15amp circuit breaker (Tennant Industrial) 1 (between SN 003985-004787)
9 275-2596 Circuit breaker boot (Tennant Industrial) 1 (between SN 003985-004787)

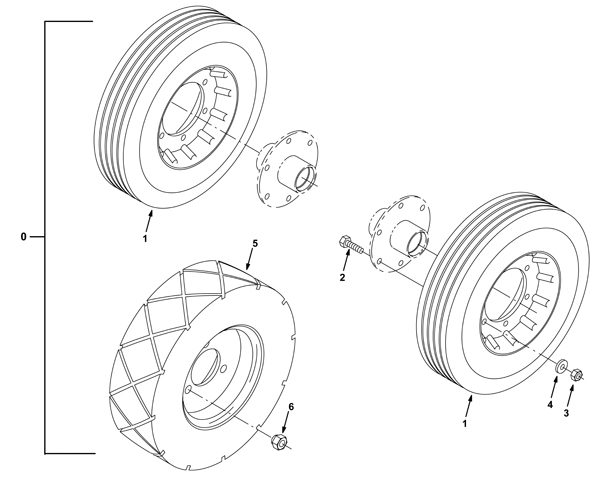

Non-Marking Tire Assembly - 175-8455
RefNbr Part Number Description Req Notes
0a 275-0934 Non-marking tire kit (Tennant Industrial) 1 (includes 1-4 and 6) (before SN 002362)
0b 375-0006 Non-marking tire assembly 1 (includes 1-3) (after SN 02363)
1 275-0935 Solid non marking rear wheel assembly 2
2 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 6
3 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
5 275-5338 Solid tire assembly 1
6 175-2288 Lug nut 3

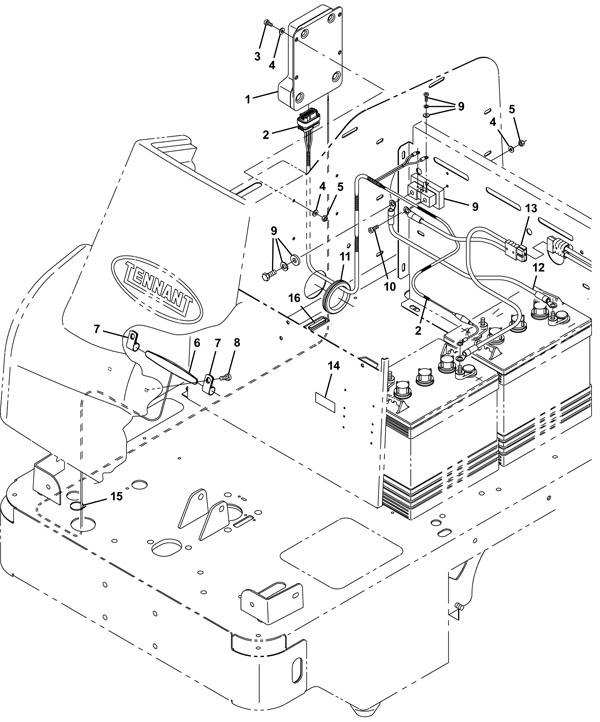

Telemetry Assembly - After SN 005104 - 175-8457
RefNbr Part Number Description Req Notes
1 275-2615 Telemetry control box assembly kit 1
2a 375-0007 Electric harness 1 (includes 2b)
2b 275-7904 Fuse (Tennant Industrial) 1
3 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 4
4 999-0998 Washer #10 flat stainless steel 10
5 175-2894 Nut M5-.8 hex nylon locking 6
6 375-0008 Telemetry antenna 1
7 175-0988 P clamp 2
8 175-3223 Screw 12-16 x 1/2 pan head plastic 2
9 275-7898 250amp shunt 1
10 175-2895 Screw M5-0.8 x 20mm pan head 2
11 275-9295 Rubber grommet 1
12 375-0009 Cable (black) 1
13 375-0010 Cable assembly 1
14 275-7899 Telemetry decal 1
15 175-2162 Nylon wire tie 3
16 275-8203 Molding 1

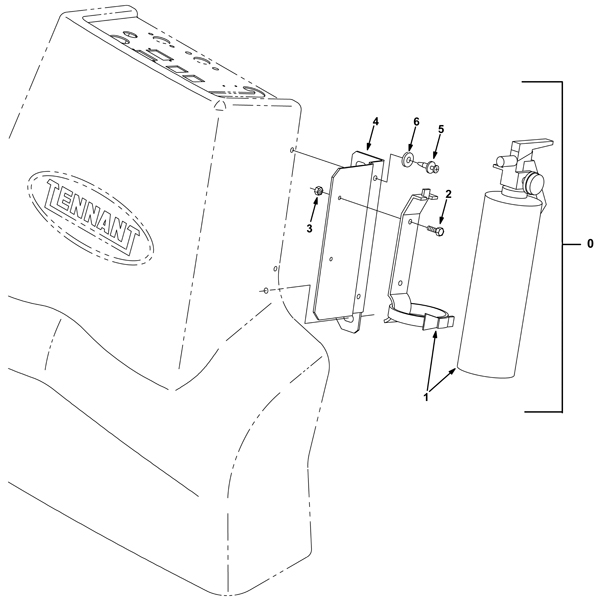

Fire Extinguisher Assembly - 175-8458
RefNbr Part Number Description Req Notes
0 375-0011 Fire extinguisher assembly 1 (includes 1-6)
1 175-8153 Fire extinguisher 1
2 175-0852 Bolt 5mm-.8 x 12 hex head 2
3 175-2894 Nut M5-.8 hex nylon locking 2
4 375-0012 Fire extinguisher bracket 1
5 175-5971 Plastic rivet 2
6 999-0024 Washer 5/16 flat stainless steel 2

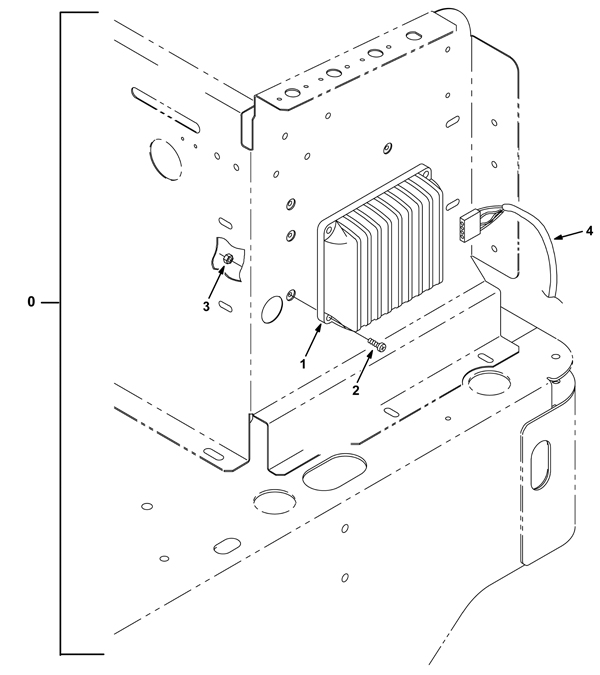

Heavy Duty Controller Assembly - 175-8459
RefNbr Part Number Description Req Notes
0 375-0013 CONTROLLER KIT, CURT 1226 [6100E] (OBSOLETE) 1 (includes 1-4)
1 175-3244 CONTROLLER, MOTOR, 36VDC 090A [CURT1226] 1
2 175-5310 Screw 4 x 45/64 x 16 pan head 4
3 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
4 275-6917 Controller harness 1

Heavy Duty Controller Electical Diagram - 1 -

RefNbr Part Number Description Req Notes

Heavy Duty Controller Electical Diagram - 2 -

RefNbr Part Number Description Req Notes

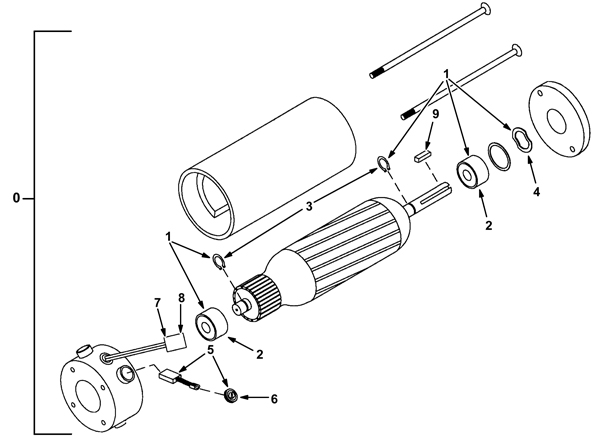

36V Electric Motor Assembly - 175-8466
RefNbr Part Number Description Req Notes
0a 275-9867 36V drive motor (OBSOLETE) 1 (includes 1a, 2-8 and 9a)
0b 275-0079 36V .6hp electric motor 1 (includes 1a, 2-8 and 9a)
0c 275-7231 36V .6hp electric motor 1 (includes 1b, 5-8 and 9a)
0d 275-5097 Electric motor assembly 1 (includes 1c, 5-8 and 9b)
1a N/A Not available 1 (includes 2-4) (for motor 0a and 0b)
1b 275-4686 Motor bearing kit (Tennant Industrial) (OBSOLETE) 1 (for motor 0c) ( does not include 2-4)
1c 175-5358 Motor bearing kit (OBSOLETE) 1 (for motor 0d) (does not include 2-4)
2 175-5359 Bearing (OBSOLETE) 2 ( for 0a and 0b)
3 175-5360 Snap ring 2 (for 0a and 0b)
4 275-0191 Electric motor wavy washer 1 (for 0a and 0b)
5 175-5366 Carbon brush kit (pkg of 4) (OBSOLETE) 1 (includes 6)
6 175-5368 Brush holder cap 4
7 175-5293 Female connector 1
8 175-5365 Female terminal 2
9a 275-0192 Square key 1 (for motor 0a-0c)
9b 175-3200 Square keyway 1 (for motor 0d)

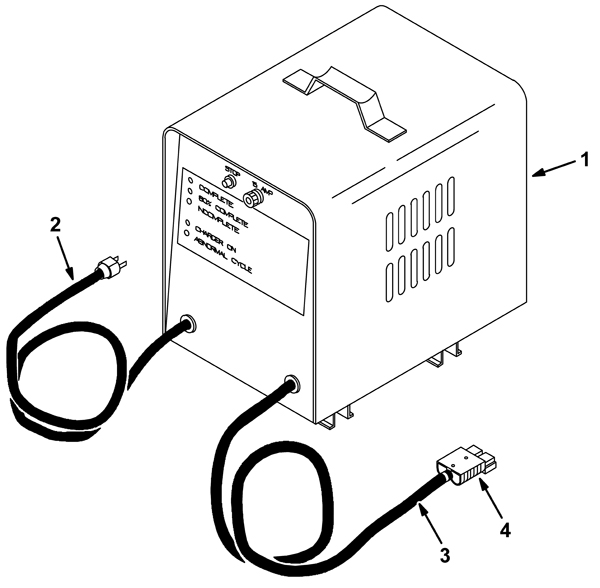

Battery Charger Assembly - Off Board - 175-8470
RefNbr Part Number Description Req Notes
1a 275-1247 36V 21amp onboard flooded, gel, and AGM battery charger 1
1b 991-3049 36V 20amp charger 1 (NON-OEM)
2a 275-1224 A.C cord assembly 1 (20 amp)
2b 275-1219 Cord assembly a.c. 1 (36 amp)
3a 275-1220 Cord assembly - offboard charger to machine 1 (20 amp)
3b 375-0014 Cord assembly (TENNANT INDUSTRIAL) 1 (36 amp)
4 991-2105 SB50 50amp charger plug with pins (gray) 1

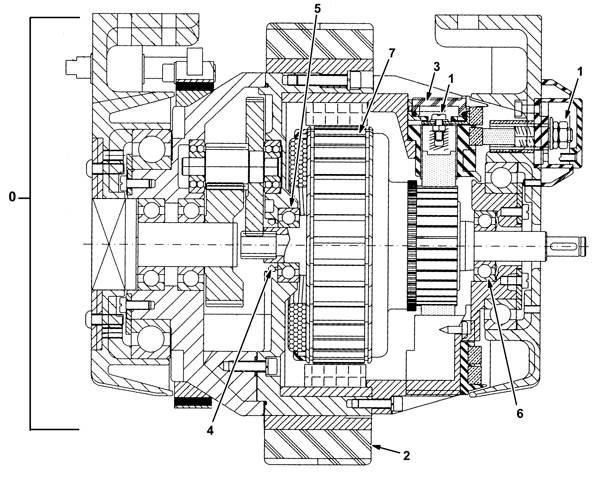

Front Brake Wheel Gearbox Assembly - Part 2 - 175-8476
RefNbr Part Number Description Req Notes
0 175-4950 Front wheel gearbox assembly 1 (includes 1-7, 175-5378 and 175-8379)
1 175-5371 Carbon and motor brush kit 1
2 275-8259 Solid tire (red) 1
3 175-5373 Carbon brush cover 1
4 175-5374 Ring seal 1
5 175-5375 Gearbox side bearing 1
6 175-5376 Motor side bearing 1
7 175-5377 250mm armature assembly 1
N/S 175-5378 Brake caliper 1
N/S 175-5379 Brake rotor 14mm 1

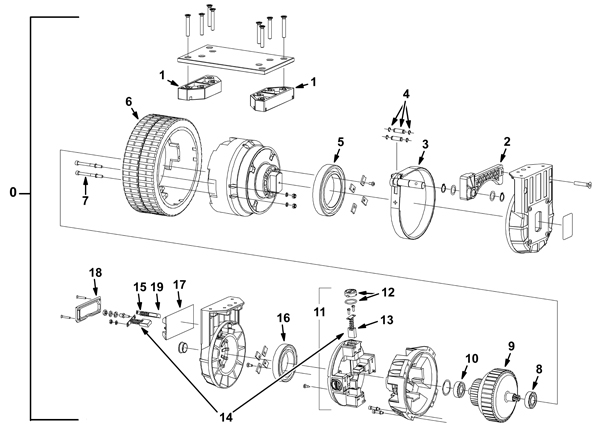

Front Wheel Gearbox Assembly - Part 1 - 175-8477
RefNbr Part Number Description Req Notes
0 175-4952 Break wheel gearbox 1 (includes 1-19)
1 375-0015 Spacer 2
2 275-6097 Brake bracket assembly 1
3 175-5380 Brake band 1 (includes 4)
4 275-6098 Pin kit with snap ring 1
5 275-8270 Steering bearing 1
6 275-8259 Solid tire (red) 1
7 275-4977 Wheel mounting screw 8
8 175-5375 Gearbox side bearing 1
9 375-0016 Motor Armature 1
10 175-5376 Motor side bearing 1
11 275-4976 Carbon brush holder ring 1 (includes 12-13b)
12 175-5373 Carbon brush cover 4
13a 275-4972 Carbon brush kit (pkg of 4) 1 (4 pieces)
13b 275-4973 Carbon brush (sold individually) 4 (1 piece)
13c 275-4972 Carbon brush kit (pkg of 4) 1 (4 pieces)
13d 275-4973 Carbon brush (sold individually) 4 (1 piece)
14 175-5371 Carbon and motor brush kit 1 (includes 13c-15b)
15a 275-4974 Motor brush kit (pkg of 2) 1 (2 pieces)
15b 275-8262 Motor brush (sold individually) 2 (1 piece)
16 275-4975 Bearing 1
17 275-8260 Connection box 1
18 275-8261 Connection cover 1
19 275-8269 Brush holder guide 1

- Commonly Asked For Parts - 175-9919
RefNbr Part Number Description Req Notes
01 175-6051 Motor cord assembly
02 991-1227 36V solenoid 4 post (2 large 2 small) 1
03 175-2373 36V contactor 2
04 275-6028 24 inch vacuum wand
05 275-9867 36V drive motor (OBSOLETE)
06 275-5809 Vacuum bags (pkg of 10)
07a 275-1247 36V 21amp onboard flooded, gel, and AGM battery charger
07b 991-3049 36V 20amp charger (NON-OEM)
09 162-0003 6V 225Ah wet battery (SNSR)
10 162-0043 6V 224Ah AGM battery (Group GC2)
11 162-5062 36V 20amp battery charger with small SB50 gray plug
13 375-1678 8 gauge propel cable
Webpage Problem Reporting
