Parts List Complete for TENNANT 5700 SERIES


- Simplified Solution System -

RefNbr Part Number Description Req Notes

- Simplified Recovery System -

RefNbr Part Number Description Req Notes

Steering Control Assembly - 175-6581
RefNbr Part Number Description Req Notes
1 175-2132 Speed control handle 1
2a 675-9894 Handle grip 2
2b 991-8571 Handle grip 1 (NON-OEM)
3 175-2134 Speed control gear handle 1
4 175-2135 Washer 1
5 175-2136 Nylon snap bushing 2
6 175-2137 Torsion spring 1
7a 175-2138 Potentiometer assembly 1 (5680) (before SN 10714325)
7b 375-1203 Potentiometer assembly 1 (5680) (after SN 10714324)
7c 175-2532 Potentiometer assembly 1 (5700)
7d 175-2410 Electronic potentiometer assembly 1 (SN 10000000- )
8 175-2277 Nut hex head 1
9 175-2139 Gear 1
10 999-0780 Screw M6-1 x 40mm hex head 1
11 999-0016 Washer 1/4 flat plain finish 2
12 999-0469 Nut M6-1 nylon insert lock zinc plated 1
13 999-0201 Washer 3/8 internal star lock 1
14 175-2140 Shield plate 1
15 999-0772 Screw M3-.5 x 6mm flat socket head stainless steel 2

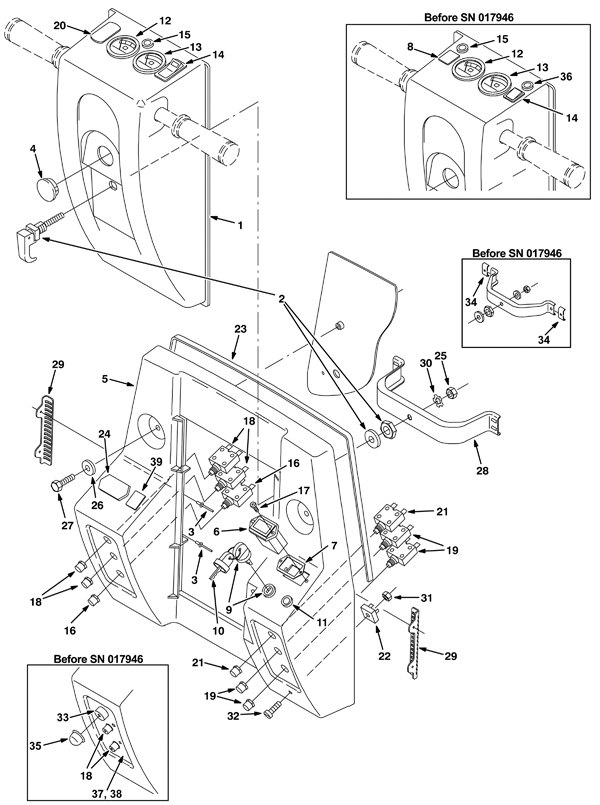

Console Assembly - 175-6583
RefNbr Part Number Description Req Notes
1a 175-2533 Steering housing with decal 1 (before SN 017946)
1b 175-2553 Shroud and decal kit 1 (after SN 017945)
2 175-2534 Latch assembly 1
3 175-2129 Rivet 1/8 x 5/16 x 1/4 blind steel 4
4 175-2147 Nylon plug (black) 1
5a 175-2535 Rear panel replacement kit 1 (before SN 017946)
5b 175-2554 Rear panel replacement kit 1 (after SN 017945)
6a 175-2536 Hour meter 1 (before SN 022000)
6b 275-1176 Hour meter gauge kit 1 (from SN 022000 to SN 024592)
6c 175-7079 Hour meter 1 (after SN 024592)
6d 991-7137 Hour meter 1 (NON-OEM)
7 175-2327 Gasket 1
8a 175-2537 Switch plug 2 (before SN 017946)
8b 175-2537 Switch plug 1 (SN 10000000- )
9 175-2149 Key switch assembly with keys 1 (includes 10)
10 175-2150 Keys (pkg of 2) 1
11 175-2538 Indicator light assembly (green) 1
12 175-2119 Battery volt meter 1
13 175-2539 Brush down pressure meter 1
14a 175-2540 Scrub switch 1 (before SN 017946)
14b 175-2555 Rocker switch 1 (after SN 017945) (scrub)
15 175-2541 Indicator light assembly (red) 1
16 175-2336 10amp circuit breaker 1 (after SN 017945) (machine controls)
17 175-2146 Screw 6-20 x 1/2 pan head 2
18a 175-2544 20amp circuit breaker 3 (before SN 017946) (scrub brush)
18b 175-2337 20amp circuit breaker 2 (after SN 017945) (scrub brush)
19a 175-2545 25amp circuit breaker 1 (before SN 017946) (machine propel)
19b 991-1631 25amp circuit breaker 2 (after SN 017945) (vacuum fan and machine propel)
20 175-2556 Switch plug 1 (after SN 017945)
21a 175-2547 2.5amp circuit breaker 1 (before SN 017946) (machine power)
21b 175-2557 5amp circuit breaker 1 (after SN 017945) (machine power)
22 175-2548 12amp bridge diode 1
23 175-2323 Rubber seal 1
24 175-3646 Hour meter plug 1
25 999-0579 Nut M8-1.25 hex coarse thread zinc 1
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
27 175-2892 SCREW, SOC, M10 X 1.50 X 40, 12.9 (Tennant Industrial) 2
28 175-2551 Shroud locking bracket 1
29 175-2552 Steering adjustment bracket 2
30 175-2893 Washer 5/16 internal/external locking 1
31 175-2894 Nut M5-.8 hex nylon locking 1
32 175-2895 Screw M5-0.8 x 20mm pan head 1
33 175-2542 10amp circuit breaker 1 (before SN 017946) (machine controls)
34 175-2543 Adjustable shroud stop strip 2 (before SN 017946)
35 375-4772 Circuit breaker boot (OBSOLETE) 2 (before SN 017946)
36 175-2550 Indicator light assemby (blue) 1 (before SN 017946)
37 275-4655 Screw #8-32 x 0.88, G1 Pan 8 (before SN 017946)
38 999-0412 Washer #8 SAE flat 8 (before SN 017946)
39 175-2537 Switch plug 2

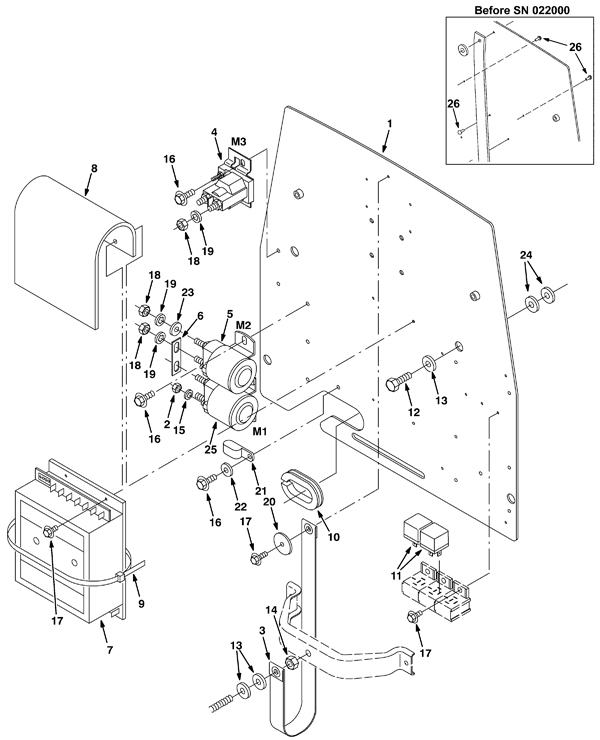

Electrical Panel Assembly - 175-6586
RefNbr Part Number Description Req Notes
1a 175-2371 Electronic plate weldment 1 (before SN 022000)
1b 275-0900 Electrical plate weldment 1 (after SN 021999)
2 999-0460 Nut 10-32 hex 2 (after SN 021999)
3 175-2320 Strap 1
4 175-2373 36V contactor 1
5 991-1227 36V solenoid 4 post (2 large 2 small) 1
6 175-2357 BUSBAR, .06 0.6W 2.1L 2/.34X.63SL (Tennant Industrial) 1 (after SN 021999)
7 175-2375 Curtis board 1 (will not work for 5700XP model. Control board for 5700XP is obsolete)
8 175-2376 Curtis board splash guard 1
9 175-2226 Nylon wire tie 2
10 175-2366 Rubber grommet 1
11 175-2265 36V 5amp relay 2
12 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
13 999-9097 Washer M8 flat stainless steel 6
14 999-0579 Nut M8-1.25 hex coarse thread zinc 1
15 999-0089 Washer #10 internal star lock zinc plated 2 (after SN 021999)
16 999-0778 Screw M6-1 x 10mm hex head 6 (after SN 021999)
17 999-0777 Screw M4-.7 x 10mm hex head plain finish 7 (after SN 021999)
18 999-0763 Nut 5/16-24 hex jam plain finish 6 (after SN 021999)
19 999-0406 Washer 5/16 internal star lock zinc plated 6 (after SN 021999)
20 999-1288 Washer 1/4 x 1 OD fender stainless steel 1 (after SN 021999)
21 275-0901 CLAMP, CABLE, STL, 0.6X1.2X0.75W, 1HOLE (Tennant Industrial 1 (after SN 021999)
22 999-0123 Washer 1/4 SAE flat zinc plated 1 (after SN 021999)
23 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2 (after SN 021999)
24 175-2367 Steel plated washer 8 (after SN 10455247)
25a 175-2374 Power contactor 1 (before SN 022000)
25b 175-2122 90 degree cable boot 2 (before SN 022000)
25c 991-1227 36V solenoid 4 post (2 large 2 small) 1 (after SN 021999)
26 175-2372 Canoe clip (OBSOLETE) 3 (before SN 022000)

Squeegee Lift Assembly - 175-6587
RefNbr Part Number Description Req Notes
1 175-2249 Sleeve 1
2 175-2280 Squeegee lift linkage 1
3a N/A Not available 1 (Handle grip) (before SN 10536098) (replaced with 3b)
3b 675-9894 Handle grip 1 (after SN 10536097)
3c 991-8571 Handle grip 1 (NON-OEM)
4 175-2325 Handle bumper 1
5 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 1
6 999-9097 Washer M8 flat stainless steel 2
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
8 175-2319 Squeegee lift lever 1
9a 175-0337 Snap switch 1 (before SN 10000000)
9b 275-6120 Snap switch 1 (after SN 9999999)
10 175-2314 Fan switch bracket 1
11 999-1221 Screw M3-.5 x 25mm pan head stainless steel 2
12 999-0377 Washer 6 SAE flat plain finish 2
13 999-1305 Washer M3 split lock stainless steel 2
14 999-0768 Nut M3-.5 hex coarse thread plain finish 2
15 175-2331 Pivot 1
16 175-2313 Fan switch cam 1
17 175-2330 Bronze flanged bushing 1
18 175-2329 Squeegee pivot plate 1
19 175-2203 Compression spring 1
20 999-0781 Screw M6-1 x 45mm hex head 1
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2 (5680 qty 4 and 5700 qty 5 before SN 10000000)
22 999-0469 Nut M6-1 nylon insert lock zinc plated 1
23 999-1288 Washer 1/4 x 1 OD fender stainless steel 2
24 175-2279 Catch bracket 1
25 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2 (before SN 10000000) (5680)
26 175-2294 Cable 1
27 999-1383 Screw M6-1 x 16mm hex head stainless steel 3 (after SN 9999999) (5680)
28 999-0497 Nut M6-1 nylon insert lock stainless steel 2
29 175-2129 Rivet 1/8 x 5/16 x 1/4 blind steel 2
30 175-2558 Squeegee pivot replacement kit 1 (before SN 001430) (5700)

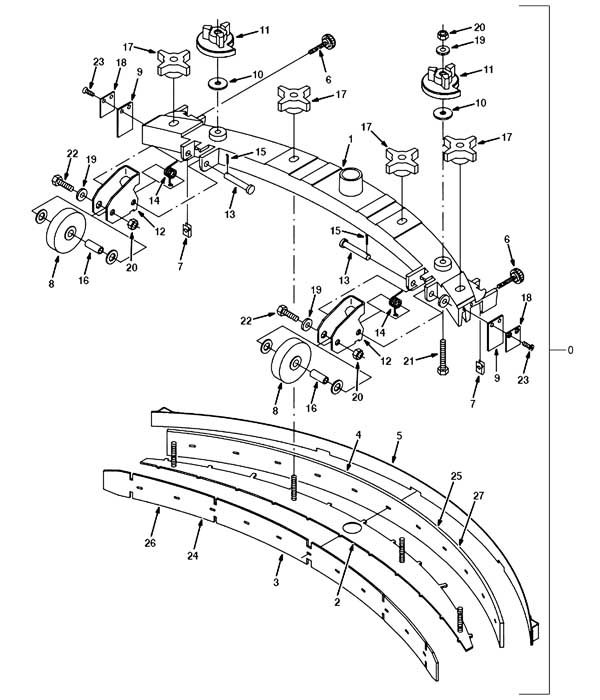

Squeegee Linkage Assembly - 175-6589
RefNbr Part Number Description Req Notes
1a 175-2312 Pivot machine block 1 (before SN 9999999)
1b 175-2312 Pivot machine block 1 (after SN 10000000)
2 175-2308 Clevis pin 1
3 175-2106 Cotter hair pin 1
4 175-2321 Roller 2
5 175-2361 Cotter pin 2
6 175-2360 Clevis pin 2
7a 175-2559 Upper right squeegee lift linkage 1 (before SN 024302)
7b 275-1179 Upper squeegee linkage 1 (SN 10000000 - )
8a 175-2560 Upper left squeegee linkage 1 (before SN 024302)
8b 175-2352 Upper squeegee linkage 1 (SN 10000000 - )
9 175-2561 Lower squeegee lift linkage 1
10 175-2562 Sleeve 1
11 175-2563 Sleeve 2
12 175-2295 Lower linkage bracket 1
13 175-2296 Upper linkage bracket 1
14 175-2370 Extension spring 2
15 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
16 175-2301 Squeegee adjustment block 1
17 175-2564 Knob 1
18 175-2896 Washer 5/16 1
19 175-2854 Screw M8-1.25 x 45mm hex head stainless steel 1
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel 7
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 10
22 999-1424 Nut M8-1.25 hex stainless steel 2
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
24 175-2562 Sleeve 4 (before SN 024302)
25 175-2854 Screw M8-1.25 x 45mm hex head stainless steel 4 (before SN 024302)
26 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4 (before SN 024302)
27 275-1179 Upper squeegee linkage 1 (after SN 024303)
28 175-2352 Upper squeegee linkage 1 (after SN 024303)
29 675-9890 Flanged bushing 4 (after SN 024303)
30 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2 (after SN 024303)
31 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2 (after SN 024303)

Squeegee Assembly - 175-6590
RefNbr Part Number Description Req Notes
0a 175-2195 28 inch (700mm) squeegee assembly 1 (includes 1-27)
0b 175-2174 32 inch (800mm) squeegee assembly 1 (includes 1-27)
0c 175-2345 36 inch (900mm) squeegee assembly (OBSOLETE) 1 (includes 1-27)
1a 175-2196 28 inch (700mm) squeegee weldment 1
1b 675-9889 32 inch (800mm) squeegee weldment 1
1c 275-6280 36 inch (900mm) squeegee weldment 1 (new style with oblong hole)
2a 175-2197 28 inch (700mm) squeegee blade retainer plate 1
2b 175-2176 32 inch (800mm) squeegee blade retainer plate 1
2c 275-0735 36 inch (900mm) squeegee blade retainer plate 1 (new style with oblong hole)
3a 175-2053 Squeegee blade 39 inch gum rubber front (tan) 1 (28 inch) (OEM)
3b 994-0043 Squeegee blade 39 inch gum rubber front (red) 1 (28 inch) (NON-OEM)
3c 175-2177 Squeegee blade 43 5/8 inch gum rubber front (red) 1 (32 inch) (OEM)
3d 994-0046 Squeegee blade 43 5/8 inch gum rubber front (red) 1 (32 inch) (NON-OEM)
3e 175-2032 Squeegee blade 36 inch gum rubber front (red) 1 (36 inch)
3f 175-2209 Squeegee blade kit 28 inch gum rubber (tan and red) 1 (includes 3a and 4f) (28 inch)
3g 175-2189 Squeegee blade kit 32 inch gum rubber (tan) 1 (includes 3c and 4h)
3h 175-2168 Squeegee blade kit 36 inch gum rubber (tan) 1 (includes 3e and 4j)
3i 175-2210 Squeegee blade 38 7/8 inch linatex front (red) 1 (28 inch) (OEM)
3j 994-0049 Squeegee blade 38 7/8 inch gum rubber front (red) 1 (28 inch) (NON-OEM)
3k 175-2825 Squeegee blade 43 5/8 inch linatex front (red) 1 (32 inch) (OEM)
3l 994-0051 Squeegee blade 43 5/8 inch gum rubber front (red) 1 (32 inch) (NON-OEM)
3m 175-9049 Squeegee blade 47.41 inch gum rubber front (red) 1 (36 inch) (OEM)
3n 994-0053 Squeegee blade 36 inch gum rubber front (red) 1 (36 inch) (NON-OEM)
3o 175-2212 Squeegee blade kit 28 inch urethane ribbed (clear) 1 (includes 3r and 4l)
3p 175-2192 Squeegee blade kit 32 inch urethane ribbed (clear) 1 (includes 3s and 4m)
3q 175-2171 Squeegee blade kit 36 inch urethane ribbed (clear) 1 (includes 3t and 4n)
3r 175-2213 Squeegee blade 28 inch urethane ribbed front (clear) 1 (28 inch)
3s 175-2193 Squeegee blade 32 inch urethane front (clear) 1 (32 inch)
3t 175-2172 Squeegee blade 47.41 inch urethane ribbed front (clear) 1 (36 inch)
4a 175-2054 Squeegee blade 40 7/8 inch linatex rear (red) 1 (28 inch) (OEM)
4b 994-0044 Squeegee blade 40 7/8 inch gum rubber rear (color may vary) 1 (28 inch) (NON-OEM)
4c 175-2178 Squeegee blade 45 5/8 inch linatex rear (red) 1 (32 inch) (OEM)
4d 994-0047 Squeegee blade 45 5/8 inch gum rubber rear (red) 1 (32 inch) (NON-OEM)
4e 175-2033 Squeegee blade 36 inch linatex rear (red) 1 (36 inch)
4f 175-2211 Squeegee blade 40 7/8 inch gum rubber rear (tan) 1 (28 inch) (OEM)
4g 994-0050 Squeegee blade 40 7/8 inch gum rubber rear (tan) 1 (28 inch) (NON-OEM)
4h 175-2191 Squeegee blade 45 7/8 inch gum rubber rear (tan) 1 (32 inch) (OEM)
4i 994-0048 Squeegee blade 45 7/8 inch gum rubber rear (tan) 1 (32 inch) (NON-OEM)
4j 175-2170 Squeegee blade 49 3/8 inch gum rubber rear (tan) 1 (36 inch) (OEM)
4k 994-0045 Squeegee blade 49 3/8 inch gum rubber rear (tan) 1 (36 inch) (NON-OEM)
4l 175-2214 Squeegee blade 28 inch urethane ribbed rear (clear) 1 (28 inch)
4m 175-2194 Squeegee blade 32 inch urethane ribbed rear (clear) 1 (32 inch)
4n 175-2173 Squeegee blade 36 inch urethane ribbed rear (clear) 1 (36 inch)
5a 175-2198 28 inch (700mm) squeegee band weldment 1
5b 175-2179 32 inch (800mm) squeegee band weldment 1
5c 175-2318 36 inch (900mm) squeegee band weldment 1
6 175-2180 Knob 2
7 175-2291 Nut 1/4-20 speed clip 2
8a 175-2181 Wheel 4 (OEM)
8b 991-3030 Wheel 4 (NON-OEM)
8c 991-3060 Bumper wheel 4 (NON-OEM)
9 175-2182 Sleeve 2
10 175-2309 Washer 2
11 175-2183 Adjustment cam 2
12 175-2184 Wheel mounting bracket 2
13 175-2185 Clevis pin 2
14 175-2273 Torsion spring 2
15 175-6176 Cotter pin 2
16 175-2207 Sleeve 2
17 175-2208 Plastic star knob 4
18 999-0769 Screw M8-1.25 x 40mm button head socket stainless steel 2
19 999-9097 Washer M8 flat stainless steel 8
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel 6
21 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel 2
22 999-1297 Screw M8 x 50mm hex head stainless steel 2
23 999-0114 Washer 1/2 SAE flat 4
28 175-9622 36 inch (900mm) squeegee frame replacement kit 1 (old style with round hole) (36 inch)
29 175-2317 36 inch (900mm) squeegee retainer blade plate 1 (old style with round hole) (36 inch)

Solution Pump Assembly - ec-H2O - After SN 10403556 - 175-6592
RefNbr Part Number Description Req Notes
1a 275-9935 ec-H20 module (OBSOLETE) 1 (after SN 10436743)
1b 275-9935 ec-H20 module (OBSOLETE) 1 (from SN 1043557-10436742
2 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 1
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1
5 175-2260 P clamp 1
6 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
7a 275-8062 Horn 1 (after SN 10446384)
7b 275-8062 Horn 1 (from SN 10403557-10446383)
8 175-5314 P clamp (Tennant Industrial) 2
9 275-1200 Inline filter 1 (includes 10)
10a 175-5866 Mesh filter screen 1 (OEM)
10b 991-8569 Mesh filter screen stainless steel 1 (NON-OEM)
11 275-9950 Module bracket 1
12 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
13 175-6924 Plastic strainer fitting 1
14 175-3594 Hose clamp 2
15 275-1534 3 foot PVC hose (braided) (Tennant Industrial) 1
16 175-7933 90 degree plastic elbow 1 (from SN 10403557 to SN1051869)
17 275-4753 24V solution pump 1
18 997-2009 Hose clamp 1
19 275-1201 Solution pump bracket 1
20 275-1199 Plastic fitting 1 (from SN 10403557 to SN1051869)

Solution Supply Assembly - ec-H2O - Disk - 175-6594
RefNbr Part Number Description Req Notes
1 175-1656 Hose clamp 10 (after SN 10403556)
2 175-1928 Plastic tee fitting 1 (from SN 10403557 to SN 10740686)
3 175-6347 Hose 1/4 inch x 13 foot 1 (from SN 10403557 to SN 10740686)
4 275-1796 Straight plastic fitting (Tennant Industrial) 1 (from SN 10403557 to SN 10740686)
5 275-4757 Fitting assembly 1 (from SN 10403557 to SN 10740686)
6 275-9954 Plastic strainer fitting (Tennant Industrial) 1 (from SN 10403557 to SN 10740686)
7 175-6081 Hose clamp 3
8 275-1192 Hose 1/2 x 3 foot (Tennant Industrial) 1 (before SN 10740687)
9 175-3329 Plastic tee fitting 1 (before SN 10740687)
10 275-4944 Pressure switch 1 (after SN 10403556)
11 175-3529 Brass fitting 1 (after SN 10403556)
12 175-7795 Cable tie 2 (after SN 10403556)
13 175-7303 1/4 inch union tee 1 (after SN 10403556)
14 175-1977 Fitting 1/4 x 3/8 1 (from SN 10403557 to SN 10740686)
15 175-6029 Straight tee 1 (from SN 10403557 to SN 10740686)
16 175-6024 Hosebarb 1 (from SN 10403557 to SN 10740686)
17 175-4307 Hosebarb 1 (from SN 10403557 to SN 10740686)
18 275-4752 Capacitor plug 1 (after SN 10403556)
19 175-5468 Barbed fitting 1 (from SN 10403557 to SN 10740686)
20 275-4756 Check valve 1 (from SN 10403557 to SN 10740686)
21 275-4750 64 inch hose 1 (from SN 10403557 to SN 10740686)
22 175-2108 P clamp 1 (after SN 10403556)
23 999-0016 Washer 1/4 flat plain finish 1 (after SN 10403556)
24 175-3289 Bolt M5-.8 x 16mm hex head 1 (after SN 10403556)

Solution Supply Assembly - ec-H2O - Cylindrical - 175-6595
RefNbr Part Number Description Req Notes
1 175-1656 Hose clamp 10 (from SN 10403557 to SN 10740686)
2 175-1928 Plastic tee fitting 1 (from SN 10403557 to SN 10740686)
3 175-6347 Hose 1/4 inch x 13 foot 1 (from SN 10403557 to SN 10740686)
4 275-1796 Straight plastic fitting (Tennant Industrial) 1 (from SN 10403557 to SN 10740686)
5 275-4757 Fitting assembly 1 (from SN 10403557 to SN 10740686)
6 275-9954 Plastic strainer fitting (Tennant Industrial) 1 (from SN 10403557 to SN 10740686)
7 175-6081 Hose clamp 3
8 275-1192 Hose 1/2 x 3 foot (Tennant Industrial) 1 (before SN 10740687)
9 175-3329 Plastic tee fitting 1 (before SN 10740687)
10 175-5234 Plastic fitting 1
11a 275-9955 28 inch cylindrical head bracket 1
11b 275-9956 32 inch cylindrical head bracket 1
11c 275-9957 36 inch cylindrical head bracket 1
12a 175-5239 28 inch spray bar bracket weldment 1
12b 175-5235 32 and 36 inch spray bar bracket weldment 1
13 999-9097 Washer M8 flat stainless steel 6
14 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
15 275-1505 Cap fitting 2
16a 275-9424 28 inch spray bar tube assembly 1 (28 inch)
16b 275-1512 32 and 36 inch spray bar tube assembly 1 (32 and 36 inch)
17 175-5236 Spray bar bracket 3
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
19 999-9116 Screw M6-1 x 12mm hex head stainless steel 3
20 175-2888 Bolt M8-1 1/4 x 25mm hex head 4
21 275-4944 Pressure switch 1 (after SN 10403556)
22 175-3529 Brass fitting 1 (after SN 10403556)
23 175-7795 Cable tie 2 (after SN 10403556)
24 175-7303 1/4 inch union tee 1 (after SN 10403556)
25 175-6024 Hosebarb 1 (from SN 10403557 to SN 10740686)
26 175-1977 Fitting 1/4 x 3/8 1 (from SN 10403557 to SN 10740686)
27 175-6029 Straight tee 1 (from SN 10403557 to SN 10740686)
28 175-4307 Hosebarb 1 (from SN 10403557 to SN 10740686)
29 275-4752 Capacitor plug 1 (after SN 10403556)
30 175-5468 Barbed fitting 1 (from SN 10403557 to SN 10740686)
31 275-4756 Check valve 1 (from SN 10403557 to SN 10740686)
32 275-4750 64 inch hose 1 (from SN 10403557 to SN 10740686)

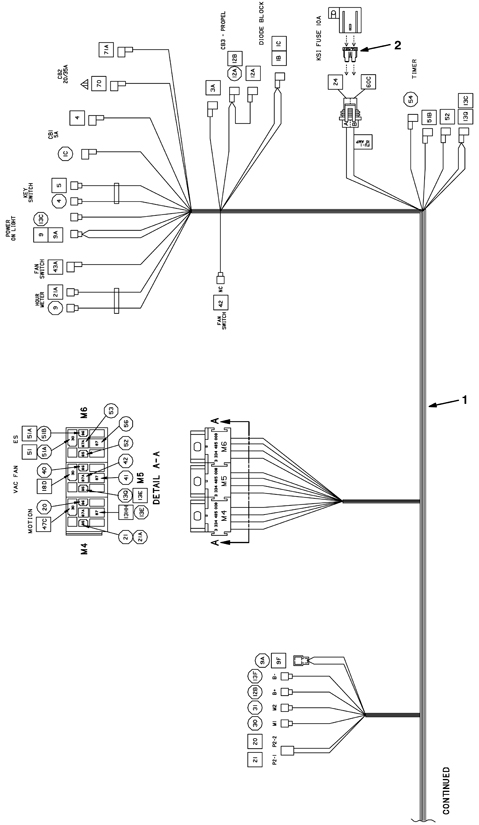

Wiring Diagram - Before SN 022000 -

RefNbr Part Number Description Req Notes

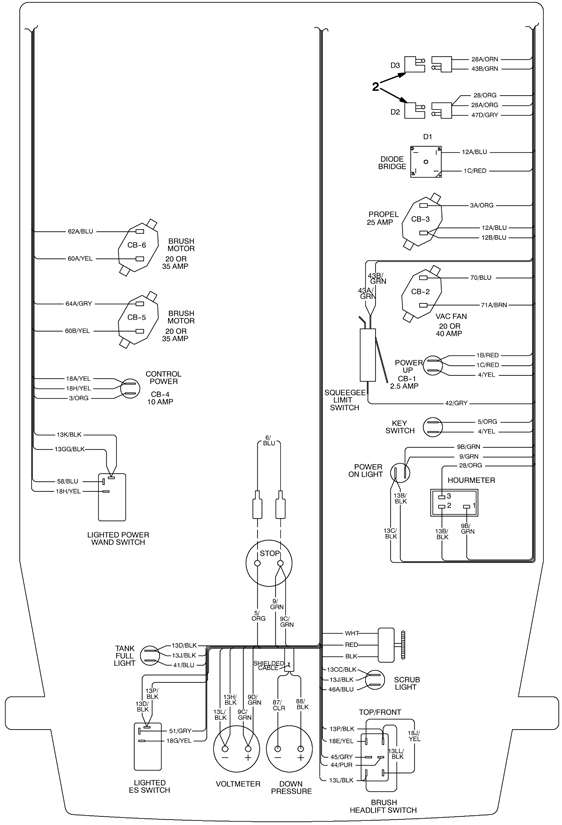

Wiring Diagram - After SN 0021999 -

RefNbr Part Number Description Req Notes

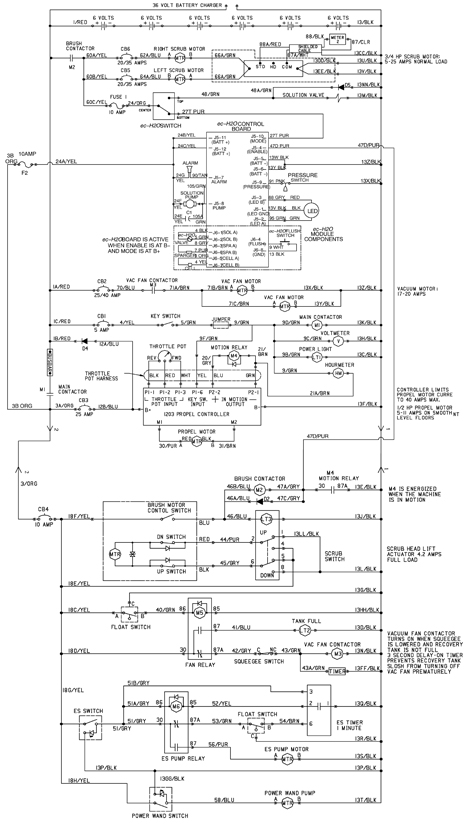

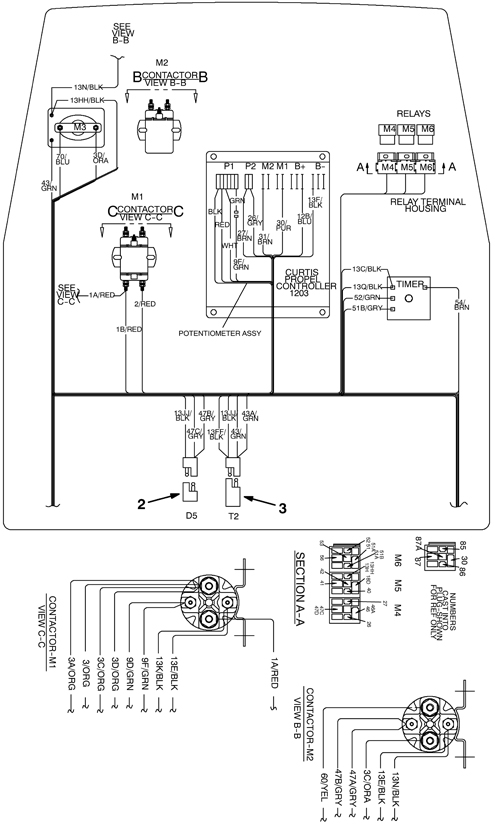

Wiring Diagram - ec-H2O -

RefNbr Part Number Description Req Notes

Solution Supply Assembly - FaST - Disk - 175-6603
RefNbr Part Number Description Req Notes
1 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 2 (5680 after SN 10361689) (5700 after SN 10361712)
2 175-3329 Plastic tee fitting 1
3 175-6081 Hose clamp 4
4a 275-5350 Check valve 1 (5680 from SN 10361690 to SN 10541113) (5700 after SN 10361712)
4b 275-9305 Check valve (Tennant Industrial) 1 (5680) (after SN10541113)
4c 275-9305 Check valve (Tennant Industrial) 1 (from SN 10541114 - )
5 175-3594 Hose clamp 2 (5680 after SN 10361689) (5700 after SN 10361712)
6 175-5906 Hose 3/8 x 5/8 x 18 1 (5680 after SN 10361689) (5700 after SN 10361712)
7 175-2108 P clamp 1 (5680 after SN 10361689) (5700 after SN 10361712)
8 999-0016 Washer 1/4 flat plain finish 1 (5680 after SN 10361689) (5700 after SN 10361712)
9 175-3289 Bolt M5-.8 x 16mm hex head 1 (5680 after SN 10361689) (5700 after SN 10361712)
10 275-1192 Hose 1/2 x 3 foot (Tennant Industrial) 1 (5680 before SN 10361690) (5700 before SN 10361713)

Solution Supply Assembly - FaST - Cylindrical - 175-6604
RefNbr Part Number Description Req Notes
1a 275-1192 Hose 1/2 x 3 foot (Tennant Industrial) 1 (5680 before SN 10361690) (5700 before SN 10361713)
1b 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 1 (5680 after SN 10361689)
1c 175-8711 Pvc board hose 1 (5700 after SN 10361712)
2 175-6081 Hose clamp 2 (qty 1 after SN 10361689)
3 175-5234 Plastic fitting 1
4a 275-9955 28 inch cylindrical head bracket 1
4b 275-9956 32 inch cylindrical head bracket 1 (32 and 36 inch)
5 175-2888 Bolt M8-1 1/4 x 25mm hex head 4
6 999-9097 Washer M8 flat stainless steel 6
7a 175-5239 28 inch spray bar bracket weldment 1
7b 175-5235 32 and 36 inch spray bar bracket weldment 1 (32 and 36 inch)
8 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
9 175-5236 Spray bar bracket 3
10 999-9116 Screw M6-1 x 12mm hex head stainless steel 3
11 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
12a 175-5238 28 inch spray tube assembly 1 (before SN 10361690)
12b 275-9424 28 inch spray bar tube assembly 1 (after SN 10361689)
12c 175-5232 32 inch spray tube assembly 1 (32 and 36 inch) (after SN 10361689)
12d 275-1512 32 and 36 inch spray bar tube assembly 1 (before SN 10361690)
13a 275-5350 Check valve 1 (5680 from SN 10361690 to SN 10541113) (5700 after SN 10361712)
13b 275-6305 Arm 1 (5680) (after SN 10541113)
14 175-5906 Hose 3/8 x 5/8 x 18 1 (5680 after SN 10361689) (5700 after SN 10361712)
15 175-3594 Hose clamp 2 (5680 after SN 10361689) (5700 after SN 10361712)
16 275-1505 Cap fitting 2

Foam Filter Assembly - FaST - 175-6605
RefNbr Part Number Description Req Notes
1 275-1195 Solenoid water valve 1
2 175-9366 Screw 8-10 x 1/2 pan head plastic 2
3 175-7937 90 degree plastic elbow 2
4 175-3594 Hose clamp 1
5a 175-8729 Plastic tee fitting (Tennant Industrial) 2 (5680 before SN 015147) (5700 before SN 022741)
5b 275-1196 Plastic tee fitting (Tennant Industrial) 2 (5680 from SN 015147 to SN 016745) (5700 from SN 022741 to SN 024027)
6 175-3594 Hose clamp 5 (5680 before SN 016746) (5700 before SN 024028)
7 175-3595 Plastic fitting 1 (5680 before SN 016746) (5700 before SN 024028)
8 175-3596 Plastic tube 1 (5680 before SN 016746) (5700 before SN 024028)
9 175-3597 Foam filter 3 (5680 before SN 016746) (5700 before SN 024028)
10 175-2523 Plastic fitting 1 (5680 before SN 016746) (5700 before SN 024028)
11 275-1534 3 foot PVC hose (braided) (Tennant Industrial) 1 (5680 before SN 016746) (5700 before SN 024028)
12 275-1198 Manifold 1 (5680 after SN 0016745) (5700 after SN 024027)

Solution Pump Assembly - FaST - 175-6606
RefNbr Part Number Description Req Notes
1 275-1199 Plastic fitting 1
2 275-1200 Inline filter 1 (includes item 3)
3a 175-5866 Mesh filter screen 1 (OEM)
3b 991-8569 Mesh filter screen stainless steel 1 (NON-OEM)
4 275-6326 Plastic strainer fitting (Tennant Industrial) 1
5a 275-1534 3 foot PVC hose (braided) (Tennant Industrial) 1 (5680 before SN 10361690) (5700 before SN 10361713)
5b 175-5898 Hose 3/8 x 24 inch 1 (5680 after SN 10361689) (5700 after SN 10361712)
6 275-1201 Solution pump bracket 1
7 997-2009 Hose clamp 1
8a 175-7933 90 degree plastic elbow 1 (5680 before SN 10361690) (5700 before SN 10361713)
8b 175-9868 Swivel fitting 1/2 x 3/8 inch 2 (5680 after SN 10361689) (5700 after SN 10361712)
9a 175-5242 36V solution pump 1 (before SN 10361690) (includes 9b)
9b 175-8752 Pump head kit 1 (before SN 10361690)
9c 275-5555 36V solution pump 1 (after SN 10361689)
10 175-3594 Hose clamp 4
11 175-5906 Hose 3/8 x 5/8 x 18 1 (5680 after SN 10361689) (5700 after SN 10361712)
12 275-6367 FaST injector kit 1 (5680 after SN 10361689) (5700 after SN 10361712)
13 175-4526 Spring clip 2 (5680 after SN 10361689) (5700 after SN 10361712)
14 999-0954 Nut M4-.7 nylon insert lock stainless steel 2 (5680 after SN 10361689) (5700 after SN 10361712)
15 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 2 (5680 after SN 10361689) (5700 after SN 10361712)
16 275-1203 Orifice plate 1 (5680 before SN 10361690) (5700 before SN 10361713)
17 175-5248 Mesh screen 1 (5680 before SN 10361690) (5700 before SN 10361713)
18 175-5217 Plastic nylon fitting (OBSOLETE) 1 (5680 before SN 10361690) (5700 before SN 10361713)
19 175-8701 Plastic fitting 1 (5680 before SN 10361690) (5700 before SN 10361713)
20 175-8726 Plastic spray cap fitting 1 (5680 before SN 10361690) (5700 before SN 10361713)
21 175-7948 Plastic spray body fitting 1 (5680 before SN 10361690) (5700 before SN 10361713)
22 175-5246 Washer 11/32 x 3/4 x 1/8 flat viton 1 (5680 before SN 10361690) (5700 before SN 10361713)
23 175-8702 Plastic strainer fitting 1 (5680 before SN 10361690) (5700 before SN 10361713)
24 275-1202 Plastic fitting cap assembly 1 (5680 before SN 10361690) (5700 before SN 10361713)
25 275-8710 Straight plastic fitting (Tennant Industrial) 1 (5680) (after SN 10581880)
26 275-7175 90 degree elbow (Tennant Industrial) 1 (5680) (after SN 10581880)

Scrub Head Frame Assembly - Cylindrical - 175-6608
RefNbr Part Number Description Req Notes
1a 175-2508 28 inch (700mm) cylindrical replacement housing 1 (5700 before SN 008919)
1b 275-1211 28 inch (700mm) cylindrical housing 1 (5680) (5700 after SN 008320)
1c 175-2502 32 inch (800mm) replacement cylindrical housing 1 (5700 before SN 008317)
1d 275-1252 32 inch (800mm) cylindrical housing 1 (5680) (5700 after SN 008318)
1e 175-2496 36 inch (900mm) Cylindrical replacement housing 1 (5700 before SN 009666)
1f 275-1251 36 inch (900mm) cylindrical housing 1 (5680) (5700 after SN 009665)
2 175-2510 Cylindrical head wiring harness 1 (5700)
3 175-2202 Nylon wire tie 2 (5700)
4 275-0646 Mounting bracket 1
5 175-2442 Sleeve 2 (5680 before SN 018647) (5700 before SN 025365)
6 175-2443 2 1/2 inch compression spring 2
7 175-2199 Compression spring 2
8 275-1212 Bolt kit (Tennant Industrial) 2 (5680 before SN 018647) (5700 before SN 025365)
9 175-2229 Pivot bracket 1
10 175-2230 Clevis pin 1
11 175-2040 Cotter pin 2
12 175-2234 Extension spring 2
13 175-2512 Bumper roller 2
14 175-2513 Roller mounting bracket 2
15 175-2116 Clevis pin 2
16 175-2040 Cotter pin 2
17a 175-2514 28 inch debris tray kit 1 (includes 17b, 18a and 19-24)
17b 175-2515 28 inch debris tray 1
17c 175-2504 32 inch debris tray kit 1 (includes 17d, 18b and 19-24)
17d 175-2505 32 inch debris tray 1
17e 175-2498 36 inch debris tray kit 1 (includes 17f, 18c and 19-24)
17f 175-2499 36 inch debris tray 1
17g 175-2515 28 inch debris tray 1 (SN 10000000 - )
18a 175-2516 28 inch debris tray lip 1
18b 175-2506 32 inch debris tray lip 1
18c 175-2500 36 inch debris tray lip 1
19 175-2517 Skirt 1
20 175-2399 Debris tray skirt 1
21 999-1087 Bolt M6-1 x 25mm hex head stainless steel 4
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
23 175-3298 Bolt M6-1 x 12mm hex head 2
24 999-0469 Nut M6-1 nylon insert lock zinc plated 4
25 175-2232 Clevis pin 1
26a 175-2106 Cotter hair pin 1 (qty 2 for 5680)
26b 175-2382 Clevis pin 1 (5680) (model 700C, 700mm) (28 in)
27 999-0775 Screw M10-1.5 x 40mm hex head stainless steel 1
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
29 999-0114 Washer 1/2 SAE flat 4 (5680 before SN 018647) (5700 before SN 025365)
30a 175-2519 Channel 1 (28 inch)
30b 175-2507 Channel 1 (32 inch)
30c 175-2501 Channel 1 (36 inch)
31a 275-1213 Front tray cover 1
31b 275-1213 Front tray cover 1 (5680/5700 Cyl)
32 175-2223 Plastic tee fitting 1
33 175-2521 Hose guide bracket 1
34 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
35 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
36 275-1214 Roller 1
37 175-2188 Washer 2
38 275-1215 Compression spring 2
39 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2 (5680 before SN 018647) (5700 before SN 025365)
40 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1 (5680 before SN 018647) (5700 before SN 025365)
41 999-0767 Nut M10-1.5 hex coarse thread 1
42 175-2888 Bolt M8-1 1/4 x 25mm hex head 2
43 175-2231 Roller head linkage 1 (5700)
44 275-1217 TUBE, 0.40ID 0.50OD 04.3L, SS (Tennant Industrial) 2 (5680 after SN 018648) (5700 after SN 025364)
45 675-9888 Sleeved bushing 2 (5680 after SN 018648) (5700 after SN 025364)
46 175-2298 Washer .38 x .06 stainless steel 3 (5680 after SN 018648) (5700 after SN 025364)
47 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2 (5680 after SN 018648) (5700 after SN 025364)
48a 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 3 (5680 after SN 018646)
48b 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel
49 275-1216 Screw 3/8-16 x 5 1/2 hex head (Tennant Industrial) 2 (5680 after SN 018648) (5700 after SN 025364)
50 999-0114 Washer 1/2 SAE flat 2 (5680 after SN 018648) (5700 after SN 025364)
51 175-2382 Clevis pin 1 (5680)

Scrub Head Drive Assembly - Cylindrical - 175-6609
RefNbr Part Number Description Req Notes
1a 175-2056 Brush motor assembly 2
1b 175-2056 Brush motor assembly 2 (SN 10355043 - )
2a 175-2463 Mounting motor bracket 2 (5700) (before SN 008921)
2b 175-2464 Mounting motor bracket 2 (5680) (5700 after SN 008920)
3 175-2465 Drive sprocket 2
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
5 175-2034 Cogged drive belt 2
6 175-2466 Right belt guard 1 (5700) (before SN 008921)
7 175-2467 Left belt guard 1 (5700) (before SN 008921)
8a 175-2468 Brush drive plug assembly 2 (includes 8b-11)
8b 175-2469 Shaft drive plug 1
9a 175-2470 Brush drive plug 2
9b 175-2470 Brush drive plug 1 (after SN 9999999)
10 175-2471 Ball bearing 4
11 175-2472 Retaining ring 2
12a 175-2473 Brush door assembly 2 (includes 12b-21)
12b 175-2474 Brush door 1
12c 175-2474 Brush door 1 (after SN 9999999)
13a 175-2475 Idler plug assembly 1 (includes 13b-16)
13b 175-2476 Idler plug shaft 1
14 175-2477 Roll pin 2
15a 175-2478 Brush idler plug 2
15b 175-2478 Brush idler plug 1 (after SN 9999999)
16 175-2472 Retaining ring 2
17 675-9892 Scrub head skirt 2
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
19 175-2481 Support bar 1
20 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 2
21 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok 1
22 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 4
23 175-2226 Nylon wire tie 2
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4 (before SN 10000000)
25 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 2
26 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
28 175-2482 Door spring 2
29 175-2483 Belt shield 2 (5700) (before SN 008921)
30 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 4
31 175-2484 Shield bracket 2 (5700) (before SN 008921)
32 175-2485 Deflector skirt 2 (5700) (before SN 008921)
33 175-2486 Water deflector 2 (5680) (5700 after SN 008920)
34 175-2487 Shield bracket 2 (5680) (5700 after SN 008920)
35 175-2488 Shield gasket 2 (5680) (5700 after SN 008920)
36 175-2489 Belt shield 2 (5680) (5700 after SN 008920)
37 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4 (5680) (5700 after SN 008920)
38 175-2490 Right belt guard 1 (5680) (5700 after SN 008920)
39 175-2491 Left belt guard 1 (5680) (5700 after SN 008920)
40 175-2888 Bolt M8-1 1/4 x 25mm hex head 4
41 675-9892 Scrub head skirt 2
42 175-2481 Support bar 2
43 175-2494 Seal replacement kit 2 (5700) (before SN 008921)
44 175-2495 Seal ring 2
45a 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4 (before SN 10000000)
45b 999-1383 Screw M6-1 x 16mm hex head stainless steel 4 (after SN 9999999)
46 275-1209 Shaft removal tool 1
47 275-1210 Brush motor harness 1 (5680)

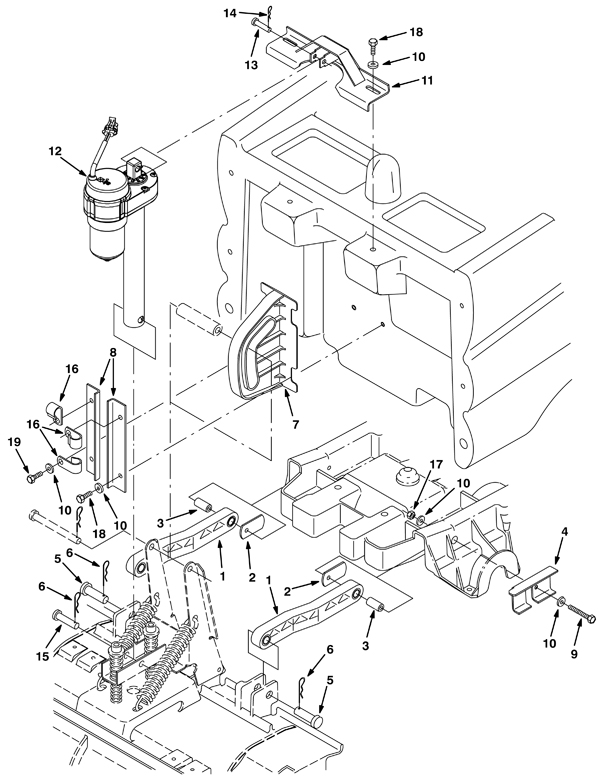

Scrub Head Lift Assembly - 175-6610
RefNbr Part Number Description Req Notes
1 175-2102 Scrub head lifting arm 2
2 175-2103 Lifting arm spacer 2
3 175-2104 Sleeve 2
4 175-2378 Tank support bracket 1
5 175-2105 Clevis pin 2
6 175-2106 Cotter hair pin 3
7 175-2107 Roller guide bracket 1
8 175-2379 Roller guide bracket 2
9 999-0788 Screw M8-1.25 x 55mm hex head stainless steel 2
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 9
11 175-2380 Actuator mounting bracket 1
12a 175-2381 Actuator 1
12b 175-2381 Actuator 1
13 175-2111 Clevis pin 1
14 175-2113 Cotter pin 1
15 175-2382 Clevis pin 1
16 175-2108 P clamp 3
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
18a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 6
18b 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
19 999-0783 Screw M8-1.25 x 16mm hex head 1

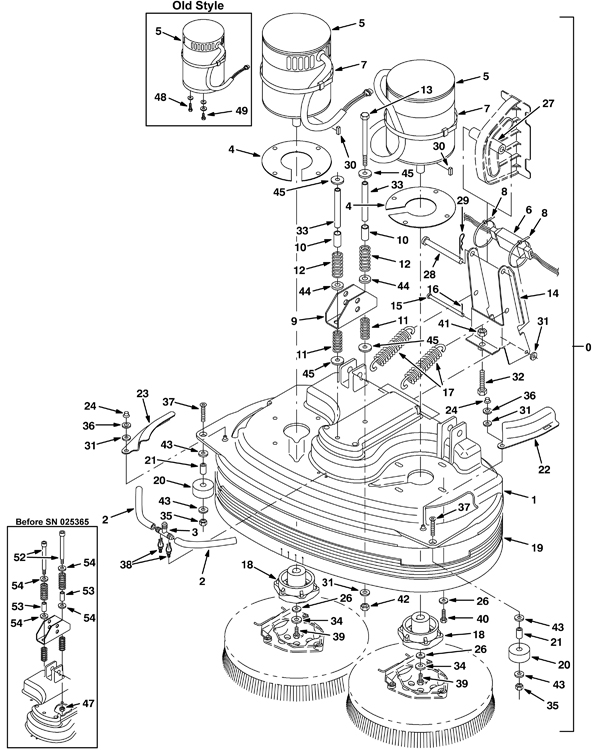

Scrub Head Assembly - Disk - 175-6611
RefNbr Part Number Description Req Notes
0a 175-2433 28 inch scrub head kit 1 (includes 1-46)
0b 175-2436 32 inch scrub head kit 1 (includes 1-46)
0c 175-2449 36 inch scrub head kit 1 (includes 1-46)
0d 175-2461 32 inch scrub head kit 1 (heavy duty) (includes 1-46)
1a 175-2434 28 inch (700mm) scrub head cover 1
1b 275-9065 32 inch scrub head cover 1
1c 175-2450 36 inch scrub head cover 1
1d 175-2434 28 inch (700mm) scrub head cover 1
2a 175-2222 PVC hose 2 (OEM)
2b 991-1409 Clear vinyl tubing 9/16 OD x 3/8 ID inch (sold by the inch) 9 in x 2 (NON-OEM)
3 175-2223 Plastic tee fitting 1
4 175-2438 End bell gasket 2
5a 175-2439 36V .50HP brush motor assembly 2 (standard)
5b 175-2451 36V 1.0HP brush motor assembly 2 (heavy duty option)
5c 991-8524 36V 1.0HP brush motor assembly with gear box 2 (NON-OEM)
6 175-2440 Disk head wiring harness 1
7 175-2226 Nylon wire tie 4
8 175-2202 Nylon wire tie 2
9 275-0646 Mounting bracket 1
10 675-9888 Sleeved bushing 2
11 175-2443 2 1/2 inch compression spring 2
12 175-2199 Compression spring 2
13 275-1216 Screw 3/8-16 x 5 1/2 hex head (Tennant Industrial) 2
14 175-2229 Pivot bracket 1
15 175-2230 Clevis pin 1
16 175-2040 Cotter pin 1
17 175-2234 Extension spring 2
18 175-9525 Brush drive hub 2
19a 175-2435 28 inch (700mm) skirt assembly 1
19b 175-2446 32 inch skirt assembly 1
19c 175-2457 36 inch skirt assembly 1
20a 175-2245 Wheel 2
20b 991-3044 2 inch wheel 2 MPVR01707
21 175-2182 Sleeve 2
22 175-2241 Left hand scrub head door 1
23 175-2242 Right hand scrub head door 1
24 175-2302 Retainer nut 2
26 999-1407 Washer 5/16 belleville 10
27 175-2231 Roller head linkage 1
28 175-2232 Clevis pin 1
29 175-2106 Cotter hair pin 1
30 175-2236 Square keyway 2
31 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 3
32 999-0775 Screw M10-1.5 x 40mm hex head stainless steel 1
33 275-1217 TUBE, 0.40ID 0.50OD 04.3L, SS (Tennant Industrial) 2
34 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
35 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
36 175-2293 Washer 2
37 999-0771 Screw M8-1.25 x 40mm flat head socket 2
38 175-2095 Keeper clip 2
39 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
40 999-1087 Bolt M6-1 x 25mm hex head stainless steel 8
41 999-0767 Nut M10-1.5 hex coarse thread 1
42 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
43 999-0123 Washer 1/4 SAE flat zinc plated 4
44 999-0114 Washer 1/2 SAE flat 2
45 175-2298 Washer .38 x .06 stainless steel 4
47 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2 (before SN 025365)
48 175-2860 Screw 1/4-20 x 1 hex stainless steel 8 (old style)
49 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2 (old style)
52 275-1212 Bolt kit (Tennant Industrial) 2 (before SN 025365)
53 175-2442 Sleeve 2 (before SN 025365)
54 999-0114 Washer 1/2 SAE flat 4 (before SN 025365)
N/S 275-0647 Front cover 1

Squeegee Assembly - Tight Aisle - 175-6613
RefNbr Part Number Description Req Notes
0 175-2565 Squeegee assembly tight aisle 22 inch (550mm) 1 (includes 1-23)
1 175-2566 FRAME, SQGE, TIGHT-AISLE, 77CM (Tennant Industrial) 1
2 175-2567 Squeegee blade retainer plate tight aisle 22 inch 1
3 175-2568 Squeegee blade 22 inch gum rubber front 1
4 175-2569 Squeegee blade 22 inch linatex rear 1
5 175-2570 RETAINER, BLADE, SQGE, TIGHT-AISLE (Tennant Industrial) 1
6 175-2180 Knob 2
7 175-2291 Nut 1/4-20 speed clip 2
8a 175-2181 Wheel 4
8b 991-3030 Wheel 4 (NON-OEM)
8c 991-3060 Bumper wheel 4 (NON-OEM)
9 175-2571 BLADE, SQGE, END, TIGHT-AISLE (Tennant Industrial) 2
10 175-2309 Washer 2
11 175-2183 Adjustment cam 2
12 175-2184 Wheel mounting bracket 2
13 175-2185 Clevis pin 2
14 175-2273 Torsion spring 2
15 175-6176 Cotter pin 2
16 175-2207 Sleeve 2
17 175-2208 Plastic star knob 4
18 175-2572 Squeegee end blade retainer tight aisle 2
19 999-9097 Washer M8 flat stainless steel 6
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
21 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel 2
22 999-1297 Screw M8 x 50mm hex head stainless steel 2
23 175-2897 Screw M5 x 16mm 4
24 175-2574 BLADE, SQGE, FRONT, TILE, TIGHT-AISLE 1
25 175-2575 BLADE, SQGE, REAR, TILE, TIGHT-AISLE 1
26 175-2577 BLADE, SQGE, FRONT, PYU, TIGHT-AISLE 1
27 175-2578 BLADE, SQGE, REAR, PYU, TIGHT-AISLE 1
KIT 175-2573 SQUEEGEE KIT, TILE, TIGHT-AISLE 1 (includes 24 and 25)
KIT 175-2576 Squeegee blade kit oil resistant tight aisle 22 inch 1 (includes 26 and 27)

Decal Assembly - Standard - 175-6614
RefNbr Part Number Description Req Notes
1a 175-2217 Numerals decal 2 (5680)
1b 275-0734 Decal kit 1 (5700) (before SN 10000000)
1c 375-1557 5700 side decal 2 (5700) (after SN 9999999)
1d 375-1557 5700 side decal 2 (5700)
2 175-2218 Hazard information decal set 1
3a 175-2219 Operational decal set 1 (5680) (after SN 9999999)
3b 175-2584 Operational decal set 1 (5700) (after SN 017945)
3c 175-2585 Operational decal set 1 (5700)
4 175-0316 Logo decal 1 (after SN 9999999)
5 175-2585 Operational decal set 1 (5700) (before SN 017946)

Decal Assembly - FaST - 175-6615
RefNbr Part Number Description Req Notes
1 175-5222 Attention users decal (FaST) 1 (after SN 9999999)
2 175-5223 FaST decal 2 (5680) (after SN 9999999)

Decal Assembly - ec-H2O - 175-6616
RefNbr Part Number Description Req Notes
1 275-5732 Attention users decal (ec-H2O) 1 (after SN 10403557)
2a 175-0311 Side decal - ec-H2O (OBSOLETE) 2 (5680 from SN 10403557 to SN 10740686)
2b 375-0248 ec-H2O Nano Tennant decal (OBSOLETE) 2 (5680 after SN 10740686)
2c 275-9896 Logo decal (Tennant Industrial) 2 (10403557-10741220)
3 175-0312 Front decal - ec-H2O 2 (5680/5700) (after SN 10403557)
4a 375-1139 ec-H2O instruction decal 1 (5680 from SN 10611329 to SN 10740686)
4b 375-1140 ec-H2O NanoClean instruction decal 1 (5680 after SN 10740686)

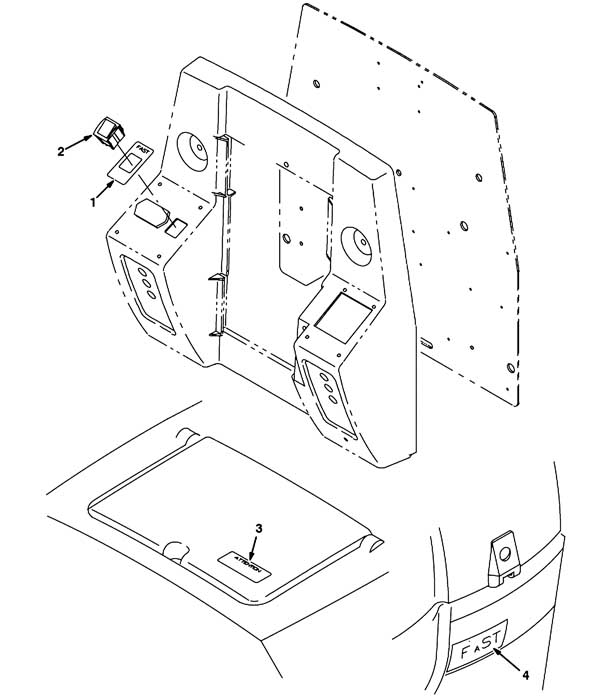

Operator Console Assembly - FaST - After SN 9999999 - 175-6617
RefNbr Part Number Description Req Notes
1 275-1206 FaST decal set 1
2a 175-2356 Rocker switch DPST 1 (power)
2b 991-3035 Rocker switch DPST 1 (NON-OEM)
3 175-5222 Attention users decal (FaST) 1
4a 175-5223 FaST decal 2
4b 275-9898 FaST side decal 2

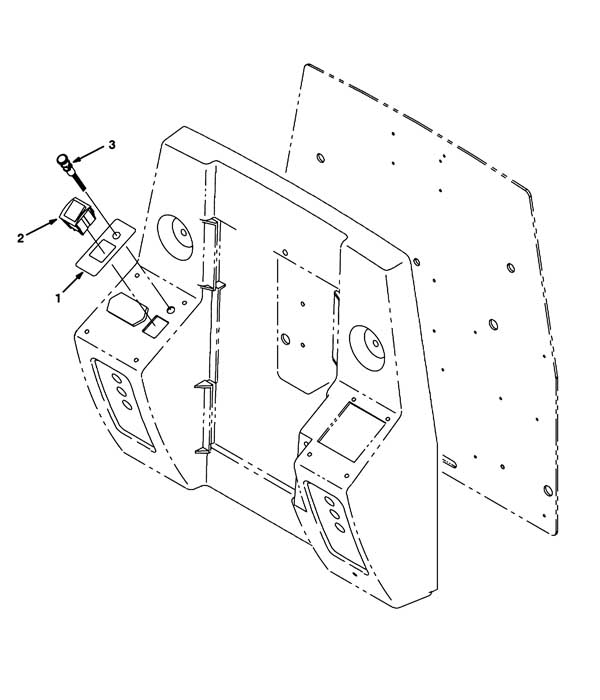

Operator Console Assembly - ec-H2O - After SN 10403556 - 175-6618
RefNbr Part Number Description Req Notes
1 175-0313 Switch decal - ec-H20 1
2a 175-2356 Rocker switch DPST 1 (power)
2b 991-3035 Rocker switch DPST 1 (NON-OEM)
3 275-4715 LED light 1

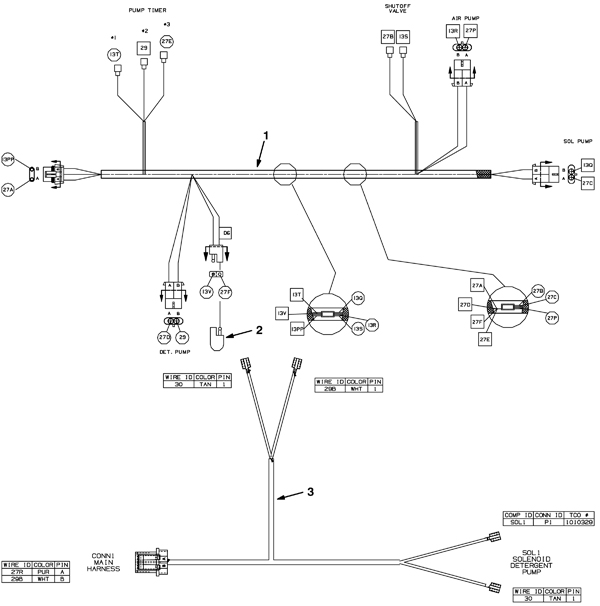

Wiring Harness Assembly - FaST - 175-6619
RefNbr Part Number Description Req Notes
1 275-6368 FaST wiring harness 1
2 175-2216 Diode plug 1
3 275-6369 Adaptor harness 1

Main Control Board Wiring Harness Assembly - After SN 10436742 - ec-H2O - 175-6620
RefNbr Part Number Description Req Notes
5 275-4958 Main wiring harness 1

Wiring Harness Assembly - ec-H2O - 175-6622
RefNbr Part Number Description Req Notes
1a 275-6373 Wiring harness assembly 1 (from SN 10403557 to SN 10446383)
1b 275-6373 Wiring harness assembly 1 (after SN 10446383)

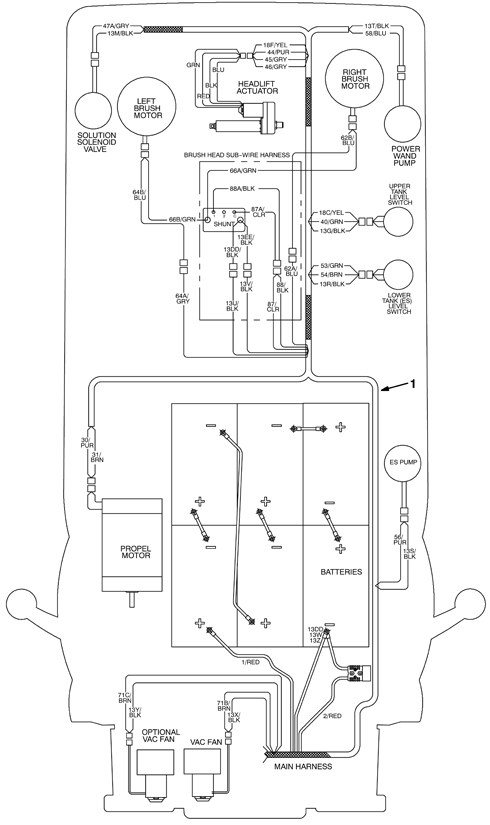

Main Wiring Assembly 1 - Before SN 022000 - 175-6631
RefNbr Part Number Description Req Notes
1a 175-2579 Standard main wiring harness (OBSOLETE) 1 (before SN 07946)
1b 175-2580 Standard main wiring harness 1 (from SN 017946 to SN 021999)

Main Wiring Assembly 2 - Before SN 022000 - 175-6632
RefNbr Part Number Description Req Notes
2 175-2216 Diode plug 2

Main Wiring Assembly 3 - Before SN 022000 - 175-6633
RefNbr Part Number Description Req Notes
2 175-2216 Diode plug 1
3a 175-2581 Molded capacitor 1
3b 175-2582 Ribbon cable clamp 1

Main Wiring Assembly 1 - After SN 021999 - 175-6634
RefNbr Part Number Description Req Notes
1 275-0870 Main wiring harness 1
3 175-2216 Diode plug 1
4a 175-2581 Molded capacitor 1
4b 175-2582 Ribbon cable clamp 1

Main Wiring Assembly 2 - After SN 021999 - 175-6635
RefNbr Part Number Description Req Notes
1 275-0870 Main wiring harness 1
2 175-5266 10amp fuse 1

Main Wiring Assembly 3 - After SN 021999 - 175-6636
RefNbr Part Number Description Req Notes
1a 275-0870 Main wiring harness 1
1b 275-0870 Main wiring harness 1 (SN 10436743 - )
1c 275-0870 Main wiring harness 1 (replaced by 1b) (SN 10000000 - 10436742)
2 175-5266 10amp fuse 1
3 175-2216 Diode plug 2
4 175-2581 Molded capacitor 1
N/S 175-2582 Ribbon cable clamp 1

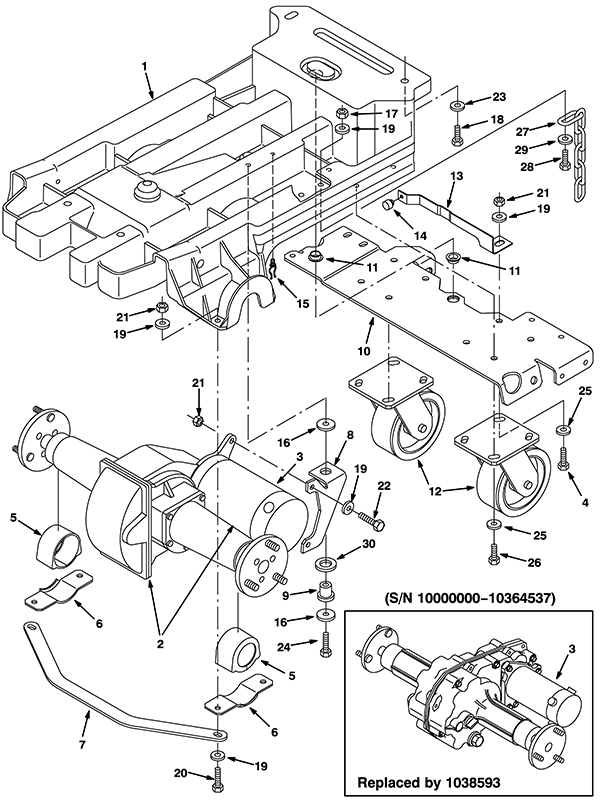

Main Frame and Drive Assembly - Before SN 10705715 - 175-7127
RefNbr Part Number Description Req Notes
1 175-2088 Chassis (OBSOLETE) 1 (after SN 9999999)
2a 175-2089 Transaxle assembly without parking brake 1 (SN 10000000 - 10705714)
2b 991-3078 Transaxle assembly without parking brake 1 (NON-OEM)
3b 275-6130 Carbon brush (pkg of 4) 1 (SN 10364538 - 10705714)
3c 475-4157 VR, TRANSAXLE KIT, W/ BRAKE [5680/5700] 1 (SN 10000000 - 10364537)
4 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2 (after SN 9999999)
5 175-2091 Transaxle isolator 2 (after SN 9999999)
6 175-2092 Isolator bracket 2 (after SN 9999999)
7 175-2428 Frame support bracket 1 (after SN 9999999)
8 175-2093 Transaxle bracket 1 (SN 10000000 - 10705714)
9 175-2429 Vibration isolator 1 (after SN 9999999)
10 175-2430 Caster bracket 1 (after SN 9999999)
11 175-2099 Flanged bushing 2 (after SN 9999999)
12a 175-2100 5 inch caster wheel assembly (gray) 2 (after SN 9999999)
12b 991-2011 Caster wheel assembly 2 (NON-OEM)
13 175-2097 Flat centering spring 1 (after SN 9999999)
14 175-2101 Rubber bumper cap 1 (after SN 9999999)
15 175-2095 Keeper clip 1 (after SN 9999999)
16 275-1169 Washer .40 x 12mm flat 2 (after SN 9999999)
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1 (after SN 9999999)
18 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4 (after SN 9999999)
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8 (after SN 9999999)
20 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4 (after SN 9999999)
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 8 (after SN 9999999)
22 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2 (after SN 9999999)
23 175-7920 Washer M8 flat stainless steel 8 (after SN 9999999)
24 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1 (after SN 9999999)
25 999-1407 Washer 5/16 belleville 8 (after SN 9999999)
26 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 6 (after SN 9999999)
27 175-2094 Chain 1 (after SN 9999999)
28 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1 (after SN 9999999)
29 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2 (after SN 9999999)
30 999-0630 Washer 3/4 SAE flat 1 (after SN 9999999)
31 275-1338 Wheel 7/16-20 x 1 13/64 stud 6

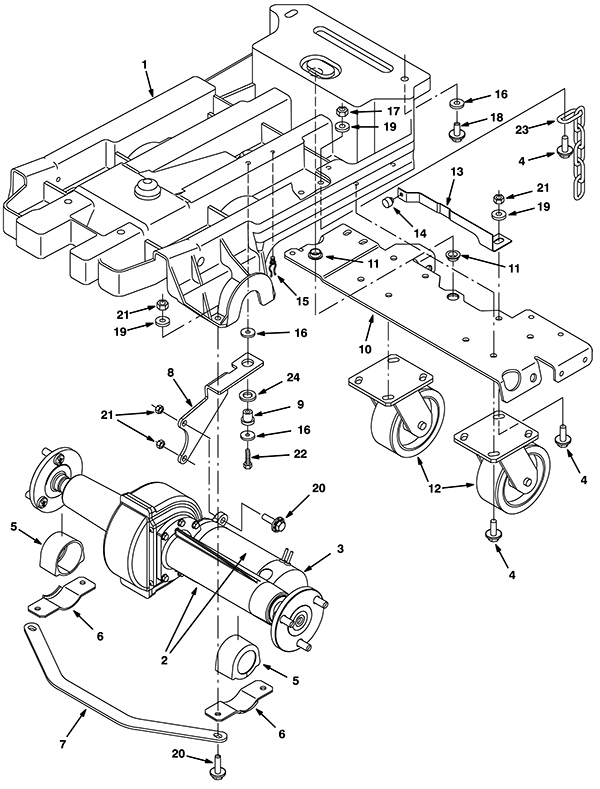

Main Frame and Drive Assembly - After SN 10705714 - 175-7128
RefNbr Part Number Description Req Notes
1 175-2088 Chassis (OBSOLETE) 1 (after SN 9999999)
2 375-1141 Transaxle assembly with motor 1 (after SN 10705714) (includes 3a - 3c)
3a 375-1142 Transaxle motor 1 (after SN 10705714) (includes 3b)
3b 375-1143 Carbon brush kit 1 (after SN 10705714)
3c 175-3655 Transaxle coupling 1 (after SN 10705714)
4 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 9 (after SN 9999999)
5 175-2091 Transaxle isolator 2 (after SN 9999999)
6 175-2092 Isolator bracket 2 (after SN 9999999)
7 175-2428 Frame support bracket 1 (after SN 9999999)
8 375-1144 Transaxle mounting bracket 1 (after SN 10705714)
9 175-2429 Vibration isolator 1 (after SN 9999999)
10 175-2430 Caster bracket 1 (after SN 9999999)
11 175-2099 Flanged bushing 2 (after SN 9999999)
12a 175-2100 5 inch caster wheel assembly (gray) 2 (after SN 9999999)
12b 991-2011 Caster wheel assembly 2 (NON-OEM)
13 175-2097 Flat centering spring 1 (after SN 9999999)
14 175-2101 Rubber bumper cap 1 (after SN 9999999)
15 175-2095 Keeper clip 1 (after SN 9999999)
16 275-1169 Washer .40 x 12mm flat 4 (after SN 9999999)
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1 (after SN 9999999)
18 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4 (after SN 9999999)
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 16 (after SN 9999999)
20 999-1653 Screw M8-1.25 x 30mm hex head stainless steel 6 (after SN 9999999)
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 8 (after SN 9999999)
22 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1 (after SN 9999999)
23 175-2094 Chain 1 (after SN 9999999)
24 999-0630 Washer 3/4 SAE flat 1 (after SN 9999999)

Recovery Tank Assembly - After SN 9999999 - 175-7129
RefNbr Part Number Description Req Notes
1 175-2246 Recovery Tank 1
2a 275-9116 Debris screen 1
2b 991-3077 Debris screen 1 (NON-OEM)
3 175-2311 Inlet hose 1
4a 175-2250 Drain hose assembly (recovery) 1 (includes 5-7)
4b 991-5153 Drain hose assembly (recovery) 1 (NON-OEM)
5 175-4214 Drain plug assembly 1 (includes 6-7)
6 175-4214 Drain plug assembly 1
7 175-5804 O-ring 1
8 175-2251 Hose assembly 1
9 175-2252 Drain tube 1
10 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2
11 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
12 175-2254 Hose clamp 2
13 175-2263 Sleeve 4
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
15 175-2256 Hose hanger clip 2
16 997-2003 Hose clamp 1
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
18a 175-2259 Vacuum fan filter 1
18b 991-9073 Vacuum fan filter 1 (NON-OEM)
19a 175-2258 Vacuum hose assembly with cuff 1
19b 991-3032 Vacuum hose assembly with cuff 1
20 175-2262 Magnetic float sensor 1
21 997-2000 Hose clamp 1
22 175-2326 Cable 1
23 175-2202 Nylon wire tie 1
24 175-2260 P clamp 2
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
26 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
27a 175-2253 Drain hose assembly (solution) 1 (includes 28-30)
27b 991-5133 Drain hose assembly (solution) 1 (NON-OEM)
28 175-4214 Drain plug assembly 1 (includes 29-30)
29 175-4214 Drain plug assembly 1
30 175-5804 O-ring 1
31a 275-6052 Tank update kit 1 (includes 32-37)
31b 991-3106 Tank update kit 1 (NON-OEM)
32 175-0096 Thumb knob 1 (after SN 10480873)
33 275-6284 Recovery tank cover 1 (after SN 10480873)
34 275-6285 Recovery tank cover gasket 1 (after SN 10480873)
35 175-5129 Ball chain #10 stainless steel 1 (after SN 10480873)
36 999-0586 Screw 10-24 x 1/2 truss head stainless steel 1 (after SN 10480873)
37 175-2146 Screw 6-20 x 1/2 pan head 1 (after SN 10480873)

- Simplified Electrical System -

RefNbr Part Number Description Req Notes

Brushes Assembly - 175-8083
RefNbr Part Number Description Req Notes
1a 996-3045 14 inch value daily cleaning brush assembly (OBSOLETE) 2
1b 996-1603 13 inch lite grit scrubbing brush - 500 grit 2
1c 996-1602 13 inch medium grit scrubbing brush - 180 grit 2
1d 996-1601 13 inch heavy grit stripping brush - 80 grit 2
1e 996-1843 13 inch nylon scrubbing brush 2
1f 996-3047 16 inch value daily cleaning brush assembly 2
1g 996-1577 15 inch lite grit scrubbing brush - 500 grit 2
1h 996-1576 15 inch medium grit scrubbing brush - 180 grit 2
1i 996-1575 15 inch heavy grit stripping brush - 80 grit 2
1j 996-1034 16 inch nylon scrubbing brush 2
1k 996-3049 17 inch value daily cleaning brush assembly (OBSOLETE) 2
1l 996-1751 17 inch lite grit scrubbing brush - 500 grit 2
1m 996-1765 17 inch medium grit scrubbing brush - 180 grit 2
1n 996-1749 17 inch heavy grit stripping brush - 80 grit 2
1o 996-1031 Nylon scrub brush 2
2 175-2071 Brush retaining spring 1
3a 175-2072 Spring retainer bracket 1
3b 991-3047 Spring retainer bracket 1 (NON-OEM)
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
5 175-0505 Screw M6-1 x 35mm pan head stainless steel 3
6a 996-1605 14 inch pad driver 2
6b 996-0185 16 inch pad driver 2
6c 996-1389 Pad driver 2
6d 175-2405 Pad driver assembly 2
6e 996-1818 17 inch Pad driver 2
6f 991-3046 Pad driver assembly 1 (NON-OEM)
7a 996-1388 Pad driver 1 (28 inch)
7b 996-1389 Pad driver 1 (32 inch)
7c 996-1390 Pad driver 1 (36 inch)
8 175-2335 Brush adaptor 1
9 175-2071 Brush retaining spring 1
10a 175-2072 Spring retainer bracket 1
10b 991-3047 Spring retainer bracket 1 (NON-OEM)
11a 275-6264 Pad centering device 1
11b 991-2206 Center-Lok 3 pad holder 1 (NON-OEM)
12 175-2079 Screw M4-.07 x 35mm pan head stainless steel 3
13 999-0266 Washer #8 SAE flat stainless steel 3
14 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
15 175-0505 Screw M6-1 x 35mm pan head stainless steel 3
17a 996-1039 Polypropelene grout scrubbing brush - CYLINDRICAL 2 (28 inch)
17b 996-1040 Polypropelene scrubbing brush - CYLINDRICAL 2 (28 inch)
17c 996-1041 Nylon scrubbing brush - CYLINDRICAL 2 (28 inch)
17d 996-1042 Abrasive scrubbing brush - CYLINDRICAL 2 (28 inch)
17e 996-1045 32 inch polypropelene grout scrubbing brush - CYLINDRICAL 2 (32 inch)
17f 175-2069 32 inch polypropelene scrubbing brush - CYLINDRICAL 2 (32 inch)
17g 175-2403 32 inch soft nylon scrubbing brush - CYLINDRICAL 2 (32 inch) (OEM)
17h 991-5105 Soft nylon scrubbing brush - CYLINDRICAL 2 (NON-OEM)
17i 175-2404 32 inch abrasive scrubbing brush - CYLINDRICAL 2 (32 inch) (OEM)
17j 991-5106 Abrasive scrubbing brush - CYLINDRICAL 2 (NON-OEM)
17k 175-2415 Polypropelene grout scrubbing brush - CYLINDRICAL 2 (36 inch) (OEM)
17l 991-5107 Polypropelene grout scrub brush - CYLINDRICAL 2 (NON-OEM)
17m 175-2416 Polypropelene scrubbing brush - CYLINDRICAL 2 (36 inch)
17n 175-2417 Nylon scrubbing brush - CYLINDRICAL 2 (36 inch) (OEM)
17o 991-5108 Nylon scrubbing brush - CYLINDRICAL 2 (NON-OEM)
17p 175-2418 Abrasive scrubbing brush - CYLINDRICAL 2 (36 inch) (OEM)
17q 991-5109 Abrasive scrubbing brush - CYLINDRICAL 2 (NON-OEM)
18a 375-1205 14 inch pad driver assembly 2 (5700) (includes 19-23)
18b 991-1267 PAD DRIVER ASSY. 14 inch 1 (NON-OEM)
19a 175-2072 Spring retainer bracket 1 (5700)
19b 991-3047 Spring retainer bracket 1 (NON-OEM)
20 175-2071 Brush retaining spring 1 (5700)
21 175-2335 Brush adaptor 1 (5700)
22 175-2393 Pad holder spacer 1 (5700)
23 996-1044 Tufted pad centering retainer 1 (5700)

Chassis and Drive Assembly - 175-8084
RefNbr Part Number Description Req Notes
1 175-2088 Chassis (OBSOLETE) 1
2a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 5 (5680)
2b 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1 (5700)
3 999-9097 Washer M8 flat stainless steel 16
4a 175-2089 Transaxle assembly without parking brake 1 (includes 5a) (5680 before SN 10705715) (5700 after SN 018732) (includes 4d-4k which are the necessary parts to install a new or defective transaxle - see transaxle replacement kit tech bulletin) (OEM)
4b 991-3078 Transaxle assembly without parking brake 1 (includes 5a) (5680 before SN 10705715) (5700 after SN 018732) (includes 4d-4k which are the necessary parts to install a new or defective transaxle - see transaxle replacement kit tech bulletin) (NON-OEM)
4c 175-2441 Spring mounting bracket 1 5700XPS
4d 275-0564 Motor gear kit
4e 375-1144 Transaxle mounting bracket 1
4f 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
4g 999-0548 Washer 5/16 external star lock stainless steel 2
4h 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
4i 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
4j 275-1169 Washer .40 x 12mm flat 2
4k 175-2429 Vibration isolator 1
4l 999-0630 Washer 3/4 SAE flat 1
5a 475-4157 VR, TRANSAXLE KIT, W/ BRAKE [5680/5700] 1 (before SN 10364538) (OEM)
5c 275-0564 Motor gear kit 1 (includes o-ring, gear and clip)
5d 175-5366 Carbon brush kit (pkg of 4) (OBSOLETE) 1 (before SN 10364538)
5e 375-9471 Transaxle motor 1 (includes 5d) (from SN 10364538 to SN 10705714)
5f 275-6130 Carbon brush (pkg of 4) 1 (from SN 10364538 to SN 10705714)
5g 275-1226 VR, BEARING KIT, MOTOR, ELE (Tennant Industrial)
5h 991-5167 Carbon brush kit 1 (NON-OEM)
5i 991-5166 Transaxle motor 1 (NON-OEM for 5e)
6 175-2091 Transaxle isolator 2 (NON-OEM)
7 175-2092 Isolator bracket 2
8a 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 6 (before SN 10000000)
8b 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 6 (after SN 9999999)
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel 9
10 175-2093 Transaxle bracket 1
11 175-2094 Chain 1
12 175-2095 Keeper clip 1
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
14a 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2 (before SN 10364539)
14b 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2 (after SN 10364538)
15 175-2298 Washer .38 x .06 stainless steel 2
16 175-2097 Flat centering spring 1
17a 175-2098 Foam tire assembly with 3 holes 2 (OEM)
17b 991-5127 Foam tire assembly with 3 holes 2 (NON-OEM)
17c 175-2098 Foam tire assembly with 3 holes 2
17e 991-3045 Drive wheel 2 (NON-OEM)
17d 175-9062 Pneumatic tire and rim assembly 2
18 175-2288 Lug nut 6
19a 175-2124 Caster bracket 1 5680
19b 175-2430 Caster bracket 1 5700
20 175-2099 Flanged bushing 2
21a 175-2100 5 inch caster wheel assembly (gray) 2
21b 991-2011 Caster wheel assembly 2 (NON-OEM)
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 6
23 999-1407 Washer 5/16 belleville 6
24 175-2101 Rubber bumper cap 1
25 175-7920 Washer M8 flat stainless steel 4
26 275-1169 Washer .40 x 12mm flat 4 (5680)
27 175-2431 Brass static chain 1 (5700) (before SN 012766)
28 175-2854 Screw M8-1.25 x 45mm hex head stainless steel 1 (5700) (before SN 012766)
29 175-2432 Transaxle assembly with parking brake (OBSOLETE) 1 (includes 30) (5700) (before SN 018732)
30a 475-4157 VR, TRANSAXLE KIT, W/ BRAKE [5680/5700] 1 (5700) (before SN 018732) (OEM)
30c 275-0564 Motor gear kit 1 (includes o-ring, gear and clip)
31 175-2428 Frame support bracket 1 (5700)
32 175-2429 Vibration isolator 1 (5700)
33 275-1169 Washer .40 x 12mm flat 2 (5700)

Recovery Tank Assembly - 175-8089
RefNbr Part Number Description Req Notes
1 175-2246 Recovery Tank 1 (includes item 2)
2a 175-2247 Plastic fitting 1 (5680 before SN 014333) (5700 before SN 022109)
2b 175-9552 Plastic fitting 1 (5680 after SN 014334) (5700 after SN 022108)
3a 275-1174 Front cover 1 (5680)
3b 275-0647 Front cover 1 (5700)
4a 175-2250 Drain hose assembly (recovery) 1 (includes 5-7) (OEM)
4b 991-5153 Drain hose assembly (recovery) 1 (NON-OEM)
5a 175-4214 Drain plug assembly 1 (5680 after SN 014334) (5700 after SN 022108) (OEM)
5b 991-3028 Drain plug assembly 1 (NON-OEM)
6 175-4214 Drain plug assembly 1 (5680 after SN 014334) (5700 after SN 022108)
7 175-5804 O-ring 1 (5680 after SN 014334) (5700 after SN 022108)
8 175-2251 Hose assembly 1
9 175-2252 Drain tube 1
10 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
11 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
12 175-2254 Hose clamp 2 (5700 models have a qty of 3 before SN 022109)
13 175-2263 Sleeve 4
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
15 175-2256 Hose hanger clip 2
16a 997-2006 Hose clamp 1 (5680 before SN 014333) (5700 before SN 022109)
16b 997-2003 Hose clamp 1 (5680 after SN 014334) (5700 after SN 022108)
17a 175-2262 Magnetic float sensor 1 (OEM)
17b 991-3037 Magnetic float sensor 1 (NON-OEM)
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
19a 175-2258 Vacuum hose assembly with cuff 1 (OEM)
19b 991-3032 Vacuum hose assembly with cuff 1 (NON-OEM)
20a 999-0767 Nut M10-1.5 hex coarse thread 2
20b 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1 (5680 after SN 014334)
21a 175-2259 Vacuum fan filter 1 (OEM)
21b 991-9073 Vacuum fan filter 1 (NON-OEM)
22 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
23 175-2260 P clamp 2
24a 175-2254 Hose clamp 1 (5680 before SN 014333) (5700 before SN 022109)
24b 997-2000 Hose clamp 1 (5680 after SN 014334) (5700 after SN 022108)
25a 175-2253 Drain hose assembly (solution) 1 (includes 26-28)
25b 991-5133 Drain hose assembly (solution) 1 (NON-OEM)
26 175-4214 Drain plug assembly 1 (includes 27 and 28) (5680 after SN 014334) (5700 after SN 022108) (OEM)
26b 991-3028 Drain plug assembly 1 (NON-OEM)
27 175-4214 Drain plug assembly 1 (5680 after SN 014334) (5700 after SN 022108)
28 175-5804 O-ring 1 (5680 after SN 014334) (5700 after SN 022108)
29 175-2247 Plastic fitting 1
30a 275-9116 Debris screen 1 (after SN 9999999) (OEM)
30b 991-3077 Debris screen 1 (after SN 9999999) (NON-OEM)
31a 275-6052 Tank update kit 1 (includes 32-37) (after SN 10480873) (OEM)
31b 991-3106 Tank update kit 1 (NON-OEM)
32 175-0096 Thumb knob 1 (after SN 10480873)
33 275-6284 Recovery tank cover 1 (after SN 10480873)
34 275-6285 Recovery tank cover gasket 1 (after SN 10480873)
35 175-5129 Ball chain #10 stainless steel 1 (after SN 10480873)
36 999-0586 Screw 10-24 x 1/2 truss head stainless steel 1 (after SN 10480873)
37 175-2146 Screw 6-20 x 1/2 pan head 1 (after SN 10480873)
38 175-2524 Plated stud 4 (5680 before SN 014333) (5700 before SN 022000)
39 175-2303 Rubber washer 1 (5680 before SN 012026) (5700 before SN 020103)
40 175-2362 Washer 17 x 30 x 3 flat stainless steel 2 (5680 before SN 012026) (5700 before SN 020103)
41 175-2525 Knob 4 (5680 before SN 014333) (5700 before SN 022000)
42 999-0776 Bolt M16-2 x 35mm hex head full thread 1 (5680) (before SN 012026)
43 999-0764 Nut M16-2 hex nylon insert lock zinc plated 1 (5680) (before SN 012026)
44 175-0184 Drain plug 1 (5680 before SN 014333) (5700 before SN 022109)
45a 175-4189 Expandable plug 1 (5680 before SN 014333) (5700 before SN 022109)
45b 991-3043 Expandable plug 1 (NON-OEM)
46 175-2311 Inlet hose 1
47 175-2202 Nylon wire tie 1 (5700)
48 175-2326 Cable 1 (5700)
49 175-2523 Plastic fitting 1 (5700)
50 175-2256 Hose hanger clip 1 (5700) (before SN 019217)
51 175-2522 Liquid level sensor kit 1 (5700) (before SN 020103)
52 175-2024 Drain hose strap 1 (5680 before SN 014333) (5700 before SN 022109)
53 175-2255 Strap 1 (5680 before SN 014333) (5700 before SN 022109)
55 175-2363 Screw 10-16 x 3/4 hex head thread forming 1 (5700) (before SN 019217)

Solution Tank Assembly - 175-8090
RefNbr Part Number Description Req Notes
1 175-2261 Arm prop bracket 1
2 175-2263 Sleeve 2
3 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
4 175-2264 Solution tank with decal 1
5 175-2247 Plastic fitting 3
6a 175-2266 Solution tank cover with decal 1 (OEM)
6b 991-1255 Cover with decal 1 (NON-OEM) (this is not an identical replacement and uses a cord instead of tabs to attach to machine - see documents section of model for more details)
7a 175-2267 Front tank gasket 1 (OEM)
7b 991-3026 Front tank gasket 1 (NON-OEM)
8a 175-2268 Rear tank gasket 1 (OEM)
8b 991-3027 Rear tank gasket 1 (NON-OEM)
9 175-2269 Tank Support 1
10 175-2249 Sleeve 1
11 175-2270 Torsion spring 1
12a 175-2271 Leaf hinge 2
12b 175-2271 Leaf hinge 2 (T7, 5680/5700)
13 175-2125 Front leaf hinge weldment 1 (5680 before SN 011843) (5700 before SN 019874)
14 999-1324 Screw M8-1.25 x 20mm flat head stainless steel 2
15 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
16 175-2240 Rear leaf hinge weldment 1 (5680 before SN 011843) (5700 before SN 019874)
17 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 3
18a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4 (before SN 10000000)
18b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (after SN 9999999)
19 275-0681 Hinge weldment 2 (5680 after SN 011842) (5700 after SN 019873)
20 175-2526 Solution tank plug (OBSOLETE) 1 (5700)

Vacuum Motor Assembly - 175-8091
RefNbr Part Number Description Req Notes
1a 275-5200 36V 3 stage vacuum motor kit 1 (includes 2-4) (OEM)
1b 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug 1 (NON-OEM)
1c 275-5200 36V 3 stage vacuum motor kit 1 (before SN 10355628) (includes 2a, 3b, and 4b)
2a 164-0881 Vacuum motor gasket 1 (OEM)
2b 991-3029 Vacuum motor gasket 1 (NON-OEM)
3a 991-1221 Carbon brush without plastic cover (pkg of 2) 1 (before SN 10355628)
3b 275-5816 Carbon brush kit (pkg of 2) 1 (after SN 10355629)
4a 175-5275 Housing 1 (5680) (before SN 10355628)
4b 175-6954 Cooling fan cover 1 (5680) (after SN 10355629)
5 175-2152 P clamp 1
6 175-2162 Nylon wire tie 2
7a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 3 (before SN 10000000)
7b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 3 (after SN 9999999)
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4 (before SN 10000000)
9 175-2311 Inlet hose 1
10 175-2202 Nylon wire tie 1
11 175-2326 Cable 1
12a 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1 (before SN 10000000)
12b 375-1163 Screw M8-1.25 x 16mm with washer stainless steel (OBSOLETE) 1 (after SN 9999999)
13 175-2153 Vacuum fan mounting bracket 3
14 175-2256 Hose hanger clip 1 (before SN 9999999)
15 175-2363 Screw 10-16 x 3/4 hex head thread forming 1 (before SN 9999999)
16a 175-2259 Vacuum fan filter 1 (5700) (before SN 006955)
16b 991-9073 Vacuum fan filter 1 (NON-OEM)
N/S 275-5200 36V 3 stage vacuum motor kit 1 (includes 2a, 3a, and 4a)

Solution Control Assembly - 175-8092
RefNbr Part Number Description Req Notes
1 175-2167 Control lever 1
2 175-2166 Handle grip 1
3 175-2165 Lever control housing 1
4 175-2164 Swivel bushing 2
5 999-0411 Screw 8-32 x 3/8 pan head slotted zinc plated 2
6 175-2289 Washer 2
7 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 1
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
9 999-1324 Screw M8-1.25 x 20mm flat head stainless steel 2
10 999-9097 Washer M8 flat stainless steel 2
11 175-2284 Push and pull cable 1
12 175-2351 Valve mounting bracket 1
13a 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2 (before SN 10000000)
13b 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 1 (after SN 9999999)
14 999-9097 Washer M8 flat stainless steel 3 (before SN 10000000)
15a 175-2333 36V solenoid valve 1 (5680 after SN 011002) (5700 after SN 019082) (OEM)
15b 991-0110 36V solenoid valve 1 (NON-OEM)
16a 175-2161 HOSE, PVC, WIR, 0.50ID 0.75OD 027.0L (Tennant Industrial) 1 (5680 before SN 011002)
16b 175-2334 PVC hose 1 (5680 from SN 011002 to SN 9999999) (5700 from SN 019083 to SN 9999999)
16c 175-6294 3 foot hose (clear) (Tennant Industrial) 1 (after SN 9999999)
17 175-2349 Rubber hose 1
18 175-0199 Hose clamp 1
19 175-6081 Hose clamp 2
20 175-2228 Valve lever 1
21a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 3 (before SN 10000000)
21b 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 2 (after SN 9999999)
22 175-2156 Solution filter 1 (5680) (5700 after SN 002491)
23 175-2157 Plastic fitting 1
24 175-2162 Nylon wire tie 1 (5680 before SN 011001)
25 999-0123 Washer 1/4 SAE flat zinc plated 2 (5680 before SN 011001)
26 175-2160 Plastic fitting 1 (5680 before SN 011001)
27 175-2527 36V solenoid valve kit 1 (5700 before SN 019083)
28 175-3500 Valve hose 1 (5700 before SN 019083)
29 175-2528 Solution filter 1 (5700 before SN 002492)
30 175-2163 36V solenoid valve kit 1 (5680 before SN 011001) (OEM)

Battery Assembly - 175-8093
RefNbr Part Number Description Req Notes
1a 175-2290 Battery cable (red) 1 (5680)
1b 275-0732 Wire assembly (red) 1 (5700)
2a 998-0010 Battery jumper cable - ring type (red) 5
2b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 5 (NON-OEM)
3 999-1305 Washer M3 split lock stainless steel 2
4a 175-2121 Battery terminal cover (clear) 12 (standard) (tall)
4b 275-5948 Battery terminal cover (black) 12 (optional) (short)
5 175-2122 90 degree cable boot 12
6 175-2123 6 gauge battery cable assembly 1 (includes 7)
7 991-2105 SB50 50amp charger plug with pins (gray) 1 (5680)
8 175-2127 Battery spacer 3 (qty 4 for heavy duty option)
9 175-2128 Battery spacer 1 (not used on heavy duty)
10a 162-0003 6V 225Ah wet battery (SNSR) 6
10b 162-0005 6V 305Ah wet battery (SNSR) 6
10c 162-0043 6V 224Ah AGM battery (Group GC2) 6
10d 162-0046 6V 335Ah AGM battery (Group J305) 6
11 175-2130 Strap 1
12 999-0768 Nut M3-.5 hex coarse thread plain finish 2
13 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
14a 999-1040 Screw M3-.5 x 20mm pan head 1 (before SN 9999999)
14b 999-1221 Screw M3-.5 x 25mm pan head stainless steel 2 (after SN 10000000)
15 175-6295 Connector bracket 1 (after SN 10000000)
16 175-6339 Switch plate (Tennant Industrial) 1 (after SN 10000000)
17 175-4578 Switch kit 1 (after SN 10000000)
18 999-1040 Screw M3-.5 x 20mm pan head 2 (after SN 10000000)
19 999-1305 Washer M3 split lock stainless steel 2 (after SN 10000000)
20 175-6365 Battery tray 1
21 999-9097 Washer M8 flat stainless steel 12 (before SN 9999999)
22 275-0733 Wire assembly (red) 1 (5700 after SN 021999) (includes 23)
23 175-6423 Connector assembly (OBSOLETE) 1 (5700 after SN 021999)
24 175-2290 Battery cable (red) 1 (5700) (before SN 022000)
25 175-2530 Battery cable 1 (5700) (before SN 022000)
26 175-9755 Battery cap 6 (heavy duty)
N/S 375-0041 Battery cable

- Pads - 16 inch - 255-1600
RefNbr Part Number Description Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5)
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1664 16 inch Blue ace pad (pkg of 5)
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5)
05 255-1612 16 inch Cure white pad (pkg of 5)
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5)
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5)
11 255-1630 16 inch jaguar burnishing pad (pkg of 5)
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1690 16 inch premium black stripping pad (pkg of 5)
14 255-1670 16 inch premium blue cleaning pad (pkg of 5)
15 255-1692 16 inch premium brown stripping pad (pkg of 5)
16 255-1680 16 inch premium green scrubbing pad (pkg of 5)
17 255-1660 16 inch premium red scrubbing pad (pkg of 5)
18 255-1652 16 inch premium tan polishing pad (pkg of 5)
19 255-1620 16 inch premium white polishing pad (pkg of 5)
20 255-1611 16 inch superspeed rubberized pad (pkg of 5)
21 255-1695 16 inch razorback stripping pad (pkg of 5)
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1623 16 inch sand screen driver pad (pkg of 2)
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10)
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10)
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10)
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10)
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10)
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10)
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10)
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10)
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10)
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10)
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10)
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10)
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10)
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10)
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10)
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10)
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2)
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9641 16 inch Diamond starter pack (1 of each grit)
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pads - 18 inch - 255-1800
RefNbr Part Number Description Req Notes
01 255-1840 18 inch aqua plus burnishing pad (pkg of 5)
02 255-1835 18 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1864 18 inch Blue ace pad (pkg of 5)
04 255-1842 18 inch Blue Jay burnishing pad (pkg of 5)
05 255-1812 18 inch Cure white pad (pkg of 5)
06 255-1877 18 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1838 18 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1821 18 inch gorilla lite burnishing pad (pkg of 5)
09 255-1850 18 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1865 18 inch Heat concrete bonding pad (pkg of 5)
11 255-1830 18 inch jaguar burnishing pad (pkg of 5)
12 255-1890 18 inch premium black stripping pad (pkg of 5)
13 255-1870 18 inch premium blue cleaning pad (pkg of 5)
14 255-1892 18 inch premium brown stripping pad (pkg of 5)
15 255-1880 18 inch premium green scrubbing pad (pkg of 5)
16 255-1860 18 inch premium red scrubbing pad (pkg of 5)
17 255-1852 18 inch premium tan polishing pad (pkg of 5)
18 255-1820 18 inch premium white polishing pad (pkg of 5)
19 255-1811 18 inch superspeed rubberized pad (pkg of 5)
20 255-1895 18 inch razorback stripping pad (pkg of 5)
21 255-1847 18 inch Redwood maroon floor prep pad (pkg of 10)
22 255-1855 18 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1823 18 inch sand screen driver pad (pkg of 2)
24 255-0023 18 inch Professional sand screen 100 grit (pkg of 10)
25 255-0145 18 inch Professional sand screen 120 grit (pkg of 10)
26 255-0146 18 inch Professional sand screen 150 grit (pkg of 10)
27 255-0147 18 inch Professional sand screen 180 grit (pkg of 10)
28 255-0148 18 inch Professional sand screen 220 grit (pkg of 10)
29 255-0149 18 inch Professional sand screen 400 grit (pkg of 10)
30 255-0022 18 inch Professional sand screen 60 grit (pkg of 10)
31 255-0144 18 inch Professional sand screen 80 grit (pkg of 10)
32 255-0233 18 inch Superscreen sand screen 100 grit (pkg of 10)
33 255-0234 18 inch Superscreen sand screen 120 grit (pkg of 10)
34 255-0235 18 inch Superscreen sand screen 150 grit (pkg of 10)
35 255-0236 18 inch Superscreen sand screen 180 grit (pkg of 10)
36 255-0237 18 inch Superscreen sand screen 220 grit (pkg of 10)
37 255-0238 18 inch Superscreen sand screen 400 grit (pkg of 10)
38 255-0231 18 inch Superscreen sand screen 60 grit (pkg of 10)
39 255-0232 18 inch Superscreen sand screen 80 grit (pkg of 10)
40 255-1824 18 inch Tiger carpet bonnet (pkg of 2)
41 255-9577 18 inch Diamond by Gorilla 11000 Grit (pkg of 2)
42 255-9574 18 inch Diamond by Gorilla 1500 Grit (pkg of 2)
43 255-9571 18 inch Diamond by Gorilla 200 Grit (pkg of 2)
44 255-9575 18 inch Diamond by Gorilla 3000 Grit (pkg of 2)
45 255-9572 18 inch Diamond by Gorilla 400 Grit (pkg of 2)
46 255-9573 18 inch Diamond by Gorilla 800 Grit (pkg of 2)
47 255-9576 18 inch Diamond by Gorilla 8000 Grit (pkg of 2)
48 255-9643 18 inch Diamond starter pack (1 of each grit)
49 255-1882 18 inch Turbostrip segmented rotary pad (pkg of 4)
50 255-1815 18 inch Duala clean and shine pad - low speed (pkg of 5)
51 255-1816 18 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Batteries, Brushes and Charger - 32 inch - 275-4189
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6
5 162-5062 36V 20amp battery charger with small SB50 gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
162-9024 36V 12amp battery charger with small SB50 gray plug
7 991-2105 SB50 50amp charger plug with pins (gray) 1
8 996-1575 15 inch heavy grit stripping brush - 80 grit 2
9 996-1576 15 inch medium grit scrubbing brush - 180 grit 2
10 996-1577 15 inch lite grit scrubbing brush - 500 grit 2
11 996-3047 16 inch value daily cleaning brush assembly 2
15 996-0185 16 inch pad driver 2
16 996-0086 Clutch plate 2

- Batteries, Brushes and Charger - 36 inch - 275-4190
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6
5 162-5062 36V 20amp battery charger with small SB50 gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
162-9024 36V 12amp battery charger with small SB50 gray plug
7 991-2105 SB50 50amp charger plug with pins (gray) 1
8 996-1749 17 inch heavy grit stripping brush - 80 grit 2
9 996-1750 17 inch medium grit scrubbing brush - 180 grit 2
10 996-1751 17 inch lite grit scrubbing brush - 500 grit 2
11 996-3049 17 inch value daily cleaning brush assembly (OBSOLETE) 2
12 996-1752 12 inch Pad driver 2
13 996-1875 18 inch nylon scrubbing brush 2
14 996-0086 Clutch plate 2

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Commonly Asked For Parts - 275-9901
RefNbr Part Number Description Req Notes
01 275-6259 Clear hose
02 375-1510 Blower fan kit
03 275-1338 Wheel 7/16-20 x 1 13/64 stud

- Batteries, Brushes and Charger - 28 inch - 275-9999
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6
5 162-5062 36V 20amp battery charger with small SB50 gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
162-9024 36V 12amp battery charger with small SB50 gray plug
7 991-2105 SB50 50amp charger plug with pins (gray) 1
8 996-1601 13 inch heavy grit stripping brush - 80 grit 2
9 996-1602 13 inch medium grit scrubbing brush - 180 grit 2
10 996-1603 13 inch lite grit scrubbing brush - 500 grit 2
11 996-1604 13 inch polypropylene scrubbing brush 2
12 996-1605 14 inch pad driver 2
13 996-0086 Clutch plate 2

- Batteries - 999-5046
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6

- Frequently Replaced Parts - 36 inch - 999-9914
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) (6)
2 162-0005 6V 305Ah wet battery (SNSR) (6)
3 162-0043 6V 224Ah AGM battery (Group GC2) (6)
4 162-0046 6V 335Ah AGM battery (Group J305) (6)
5 162-5062 36V 20amp battery charger with small SB50 gray plug
162-9024 36V 12amp battery charger with small SB50 gray plug
7 991-2105 SB50 50amp charger plug with pins (gray)
8 998-0010 Battery jumper cable - ring type (red)
9 175-2149 Key switch assembly with keys (power)
10 175-2150 Keys (pkg of 2)
11 175-0337 Snap switch (vacuum)
12 175-2540 Scrub switch (brush) (before SN 017945)
13 175-2555 Rocker switch (brush) (after SN 017946)
14 175-2333 36V solenoid valve
15 175-2170 Squeegee blade 49 3/8 inch gum rubber rear (tan) (OEM)
15.1 994-0045 Squeegee blade 49 3/8 inch gum rubber rear (tan) (NON-OEM)
16 175-2032 Squeegee blade 36 inch gum rubber front (red)
17 175-2033 Squeegee blade 36 inch linatex rear (red)
18 175-9049 Squeegee blade 47.41 inch gum rubber front (red) (OEM)
18.1 994-0053 Squeegee blade 36 inch gum rubber front (red) (NON-OEM)
19a 175-2258 Vacuum hose assembly with cuff
19b 991-3032 Vacuum hose assembly with cuff
20a 175-2267 Front tank gasket
20b 991-3026 Front tank gasket (NON-OEM)
21a 175-2268 Rear tank gasket
21b 991-3027 Rear tank gasket
22a 175-4214 Drain plug assembly
22b 991-3028 Drain plug assembly
23 175-2250 Drain hose assembly (recovery) (OEM)
23.1 991-5153 Drain hose assembly (recovery) (NON-OEM)
24 275-5200 36V 3 stage vacuum motor kit (Tennant)
25 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug (NON-OEM)
26 991-1221 Carbon brush without plastic cover (pkg of 2)
27 996-1749 17 inch heavy grit stripping brush - 80 grit
28 996-1750 17 inch medium grit scrubbing brush - 180 grit
29 996-1751 17 inch lite grit scrubbing brush - 500 grit
30 996-3049 17 inch value daily cleaning brush assembly (OBSOLETE)
34 996-1752 12 inch Pad driver
35 996-0086 Clutch plate
36 991-2206 Center-Lok 3 pad holder

- Frequently Replaced Parts - 32 inch - 999-9915
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) (6)
2 162-0005 6V 305Ah wet battery (SNSR) (6)
3 162-0043 6V 224Ah AGM battery (Group GC2) (6)
5 162-5062 36V 20amp battery charger with small SB50 gray plug
162-9024 36V 12amp battery charger with small SB50 gray plug
7 991-2105 SB50 50amp charger plug with pins (gray)
8 998-0010 Battery jumper cable - ring type (red)
9 175-2149 Key switch assembly with keys (power)
10 175-2150 Keys (pkg of 2)
11 175-0337 Snap switch (vacuum)
12 175-2540 Scrub switch (brush) (before SN 017945)
13 175-2555 Rocker switch (brush) (after SN 017946)
14 175-2333 36V solenoid valve
15 175-2191 Squeegee blade 45 7/8 inch gum rubber rear (tan) (OEM)
15.1 994-0048 Squeegee blade 45 7/8 inch gum rubber rear (tan) (NON-OEM)
16 175-2177 Squeegee blade 43 5/8 inch gum rubber front (red) (OEM)
16.1 994-0046 Squeegee blade 43 5/8 inch gum rubber front (red) (NON-OEM)
17 175-2178 Squeegee blade 45 5/8 inch linatex rear (red) (OEM)
17.1 994-0047 Squeegee blade 45 5/8 inch gum rubber rear (red) (NON-OEM)
18 175-2825 Squeegee blade 43 5/8 inch linatex front (red) (OEM)
18.1 994-0051 Squeegee blade 43 5/8 inch gum rubber front (red) (NON-OEM)
19a 175-2258 Vacuum hose assembly with cuff
19b 991-3032 Vacuum hose assembly with cuff
20a 175-2267 Front tank gasket
20b 991-3026 Front tank gasket (NON-OEM)
21a 175-2268 Rear tank gasket
21b 991-3027 Rear tank gasket
22a 175-4214 Drain plug assembly
22b 991-3028 Drain plug assembly
23 175-2250 Drain hose assembly (recovery) (OEM)
23.1 991-5153 Drain hose assembly (recovery) (NON-OEM)
24 275-5200 36V 3 stage vacuum motor kit (Tennant)
25 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug (NON-OEM)
26 991-1221 Carbon brush without plastic cover (pkg of 2) (2)
27 996-1575 15 inch heavy grit stripping brush - 80 grit
28 996-1576 15 inch medium grit scrubbing brush - 180 grit
29 996-1577 15 inch lite grit scrubbing brush - 500 grit
30 996-3047 16 inch value daily cleaning brush assembly
34 996-0185 16 inch pad driver
35 996-0086 Clutch plate
36 991-2206 Center-Lok 3 pad holder
37 475-3282 GASKET, PLT, FAN MTG
Webpage Problem Reporting
