Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

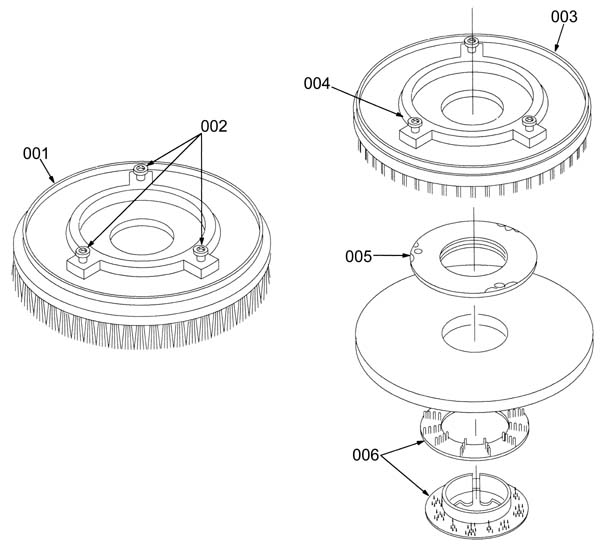

Brushes and Pad Driver Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Recovery Tank Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

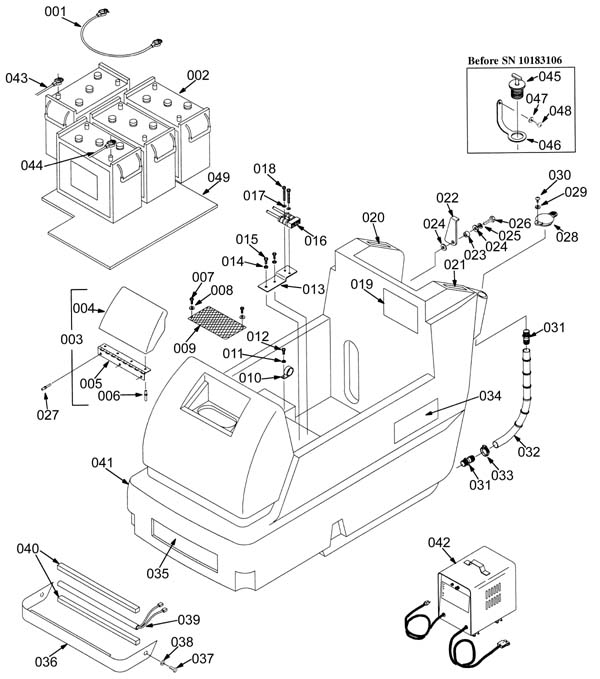

Chassis Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

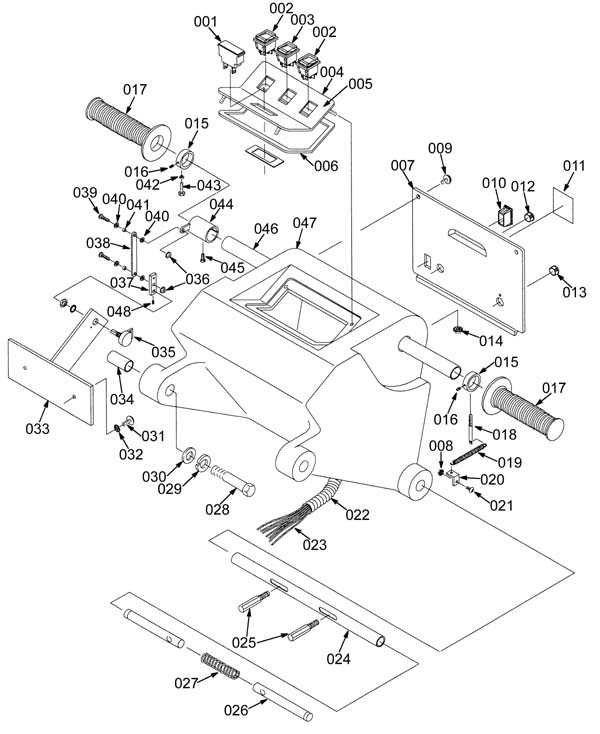

Control Console Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

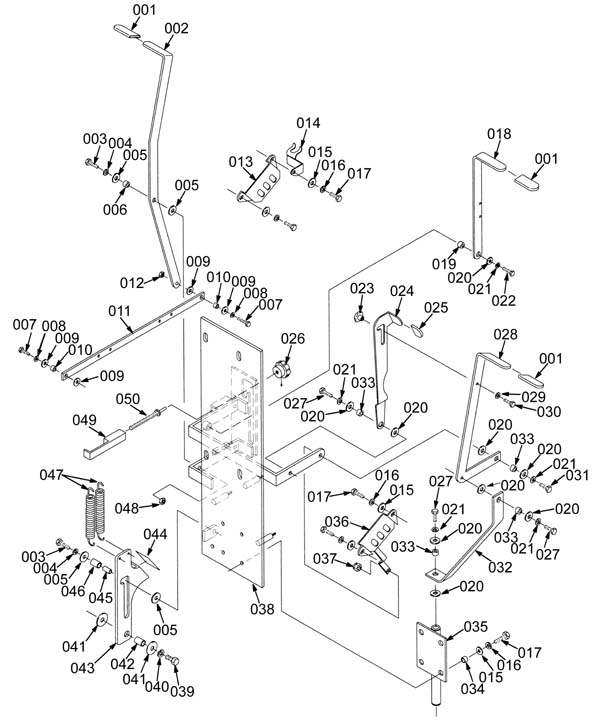

Lever Assembly - 175-0882 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 020 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
|
|
| 021 |
999-0034 |
Washer 3/8 split lock plain finish |
|
|
| 022 |
999-0812 |
Screw 3/8-16 x 7/8 hex head grade 5 plain finish |
|
|
| 031 |
999-0350 |
Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated |
|
|
| 037 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
|
|
|
|

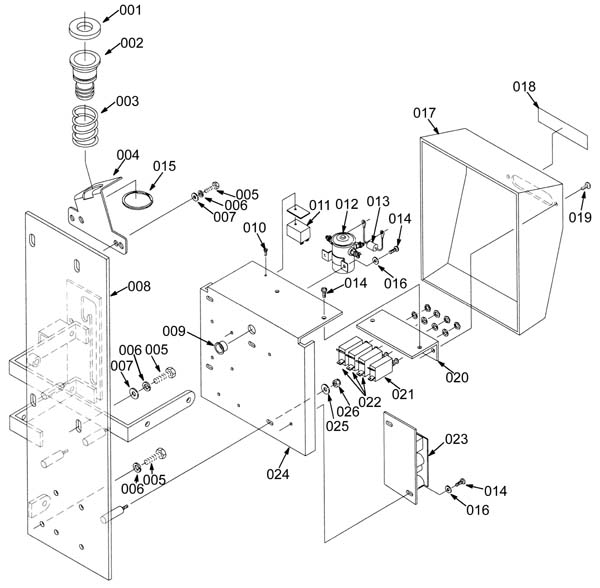

Electrical Panel Assembly - 175-0883 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 019 |
999-0999 |
Screw 10-24 x 3/8 truss head phillips stainless steel |
2 |
|
| 020 |
275-5746 |
Circuit breaker bracket |
1 |
|
| 021 |
175-2761 |
10amp circuit breaker |
1 |
|
| 022 |
175-2762 |
35amp circuit breaker |
3 |
|
|
|

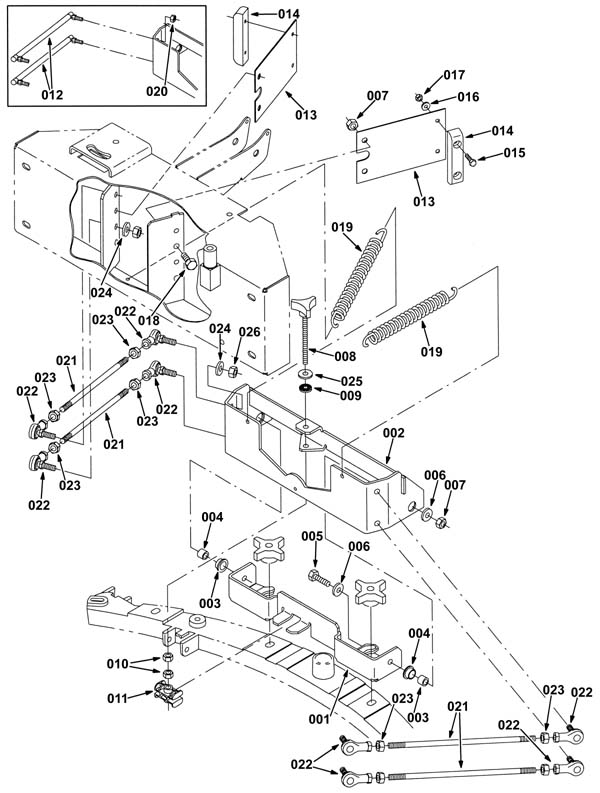

Drive Wheel Assembly - 175-0908 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
175-9610 |
Squeegee conversion kit 28 inch |
1 |
serial number 006072-007999 |
| 001b |
175-9611 |
Squeegee conversion kit 36 inch (Industrial) |
1 |
serial number 006072-007999 |
| 001c |
175-9612 |
Pivot bracket weldment |
1 |
serial number 008000 and up |
| 002a |
175-9614 |
BRACKET WLDT, LIFT, SQGE (Tennant Industrial) |
1 |
serial number 006072-007999 |
| 002b |
175-9614 |
BRACKET WLDT, LIFT, SQGE (Tennant Industrial) |
1 |
serial number 008000 and up |
| 003 |
175-3460 |
Flanged bushing |
2 |
|
| 004 |
175-9606 |
Round tube |
2 |
|
| 005 |
999-0246 |
Bolt M10-1.5 x 35mm hex head full thread |
2 |
|
| 006 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
| 007 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
6 |
|
| 009 |
175-2896 |
Washer 5/16 |
1 |
|
| 010 |
999-1424 |
Nut M8-1.25 hex stainless steel |
2 |
|
| 011 |
175-2301 |
Squeegee adjustment block |
1 |
|
| 012 |
175-9607 |
LINK KIT, SQGE, REPAIR (Tennant Industrial) |
1 |
|
| 013 |
175-9608 |
Centering spring |
2 |
|
| 014 |
175-3463 |
Centering block (OBSOLETE) |
2 |
|
| 015 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
| 016 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 017 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
4 |
|
| 018 |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
4 |
|
| 019 |
175-9609 |
Tension spring |
2 |
|
| 020 |
999-0296 |
Nut 5/16-24 nylon insert lock stainless steel |
8 |
|
| 021 |
175-9615 |
ROD, THRD, 2 END, .38-24 11.3L (Tennant Industrial) |
4 |
|
| 022 |
175-3321 |
Rod end right side |
8 |
|
| 023 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
8 |
|
| 024 |
999-0201 |
Washer 3/8 internal star lock |
8 |
|
| 025 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 026 |
999-1151 |
Nut 3/8-24 nylon insert jam lock stainless steel |
8 |
|
|
|

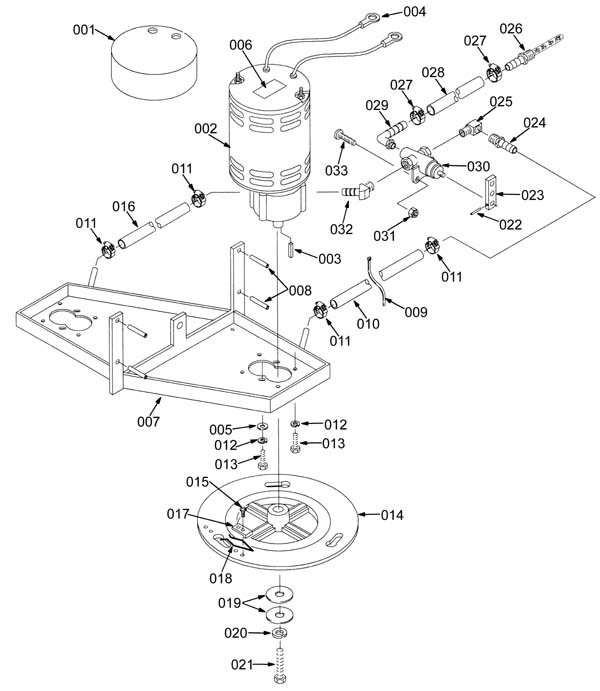

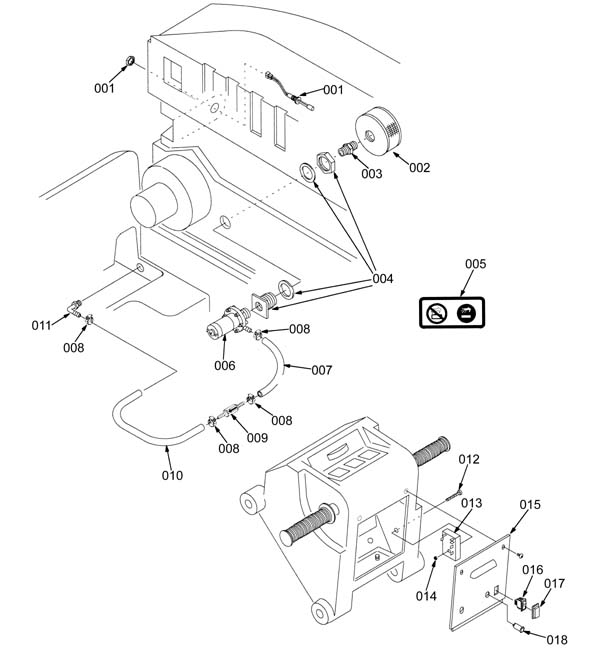

Brush Drive and Solution Hose Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

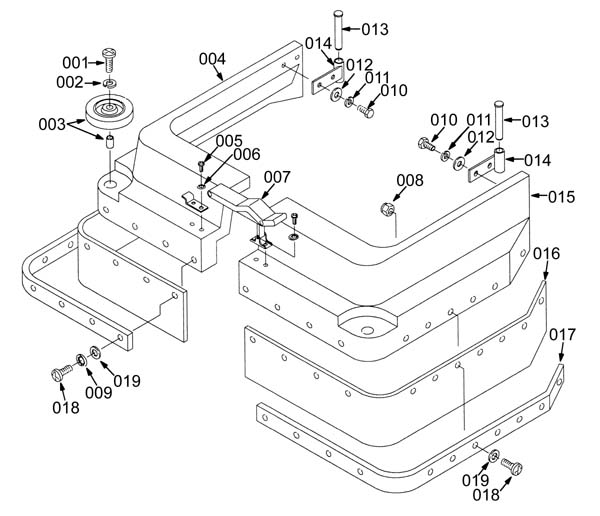

Skirt Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Squeegee Control Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
ES Kit - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

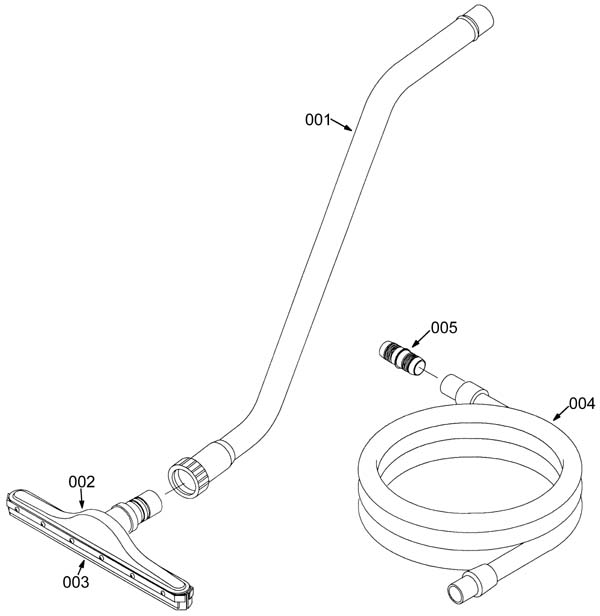

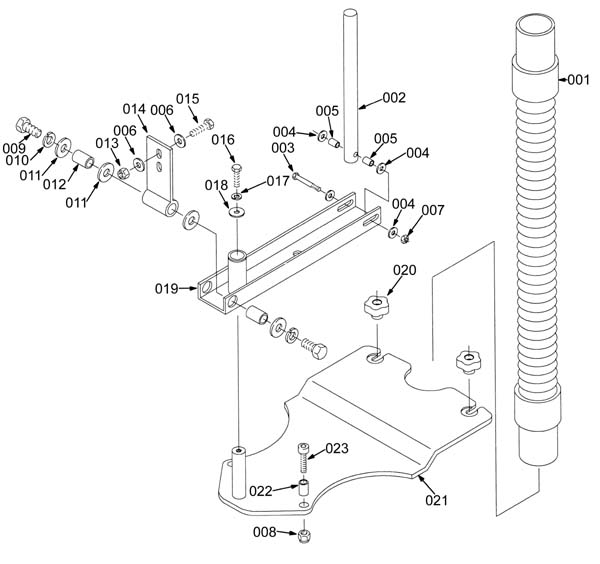

Wet Pickup Tool Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

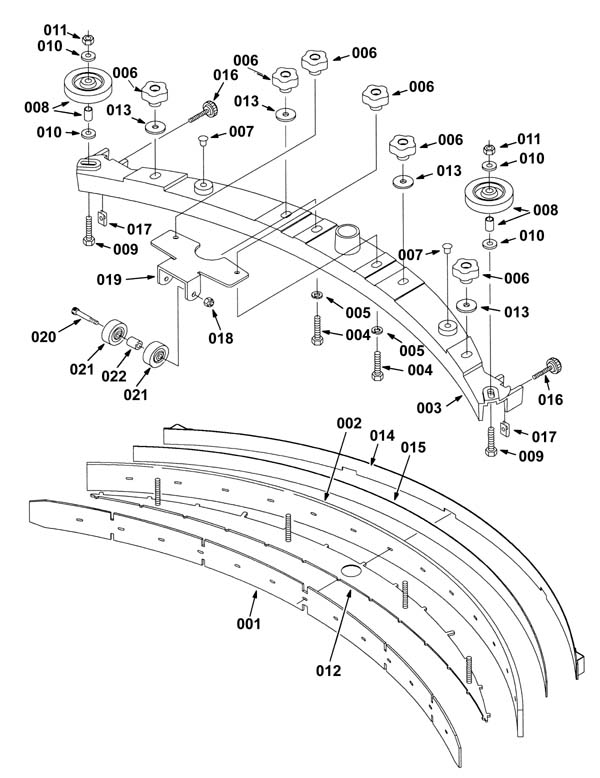

Curved Squeegee Group - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Batteries, Brushes, and Chargers - 275-4188 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
996-0417 |
16 inch Pad driver |
2 |
|
| 0.9835 |
996-0414 |
16 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 0.9835 |
996-0412 |
16 inch heavy grit stripping brush - 80 grit |
2 |
|
| 0.9835 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
2 |
|
| 0.9835 |
996-0415 |
16 inch polypropylene scrubbing brush |
2 |
|
| 0.9835 |
996-0413 |
16 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 0.9835 |
996-3078 |
16 inch value stripping brush assembly (OBSOLETE) |
2 |
Carlisle |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
