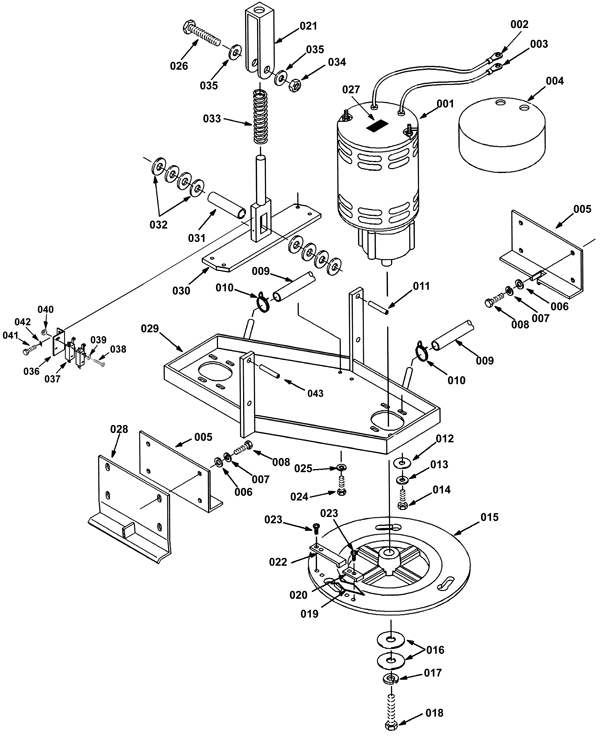

Brush Drive Assembly - 175-0365 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
175-2599 |
24V brush motor with gearbox |
2 |
|
| 001c |
175-3028 |
Brush card assembly |
1 |
|
| 001d |
175-2600 |
Carbon brush |
4 |
|
| 001e |
175-2601 |
Square keyway |
1 |
|
| 001f |
991-8524 |
36V 1.0HP brush motor assembly with gear box |
1 |
(NON-OEM) |
| 002a |
175-3032 |
Positive terminal ring |
1 |
(after 12.2001) |
| 002b |
175-3029 |
Terminal ring 1/4 inch |
2 |
(after 08.2001 and before 01.2002) |
| 003a |
175-3032 |
Positive terminal ring |
1 |
(after 12.2001) |
| 003b |
175-3030 |
Terminal ring (positive) left motor |
1 |
(after 08.2001 and before 01.2002) |
| 003c |
175-3032 |
Positive terminal ring |
1 |
(after 08.2001 and before 01.2002) |
| 004 |
175-2598 |
Brush motor cover |
2 |
|
| 005 |
175-3033 |
Guide plate |
2 |
|
| 006 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
8 |
|
| 007 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 008 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
8 |
|
| 009 |
175-5592 |
Hose 3/8 x 5/8 x 9 inch |
2 |
|
| 010 |
175-3671 |
Hose clamp |
2 |
|
| 012 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
8 |
|
| 013 |
999-0034 |
Washer 3/8 split lock plain finish |
8 |
|
| 014 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
8 |
|
| 015 |
175-2609 |
Drive plate |
2 |
|
| 016 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 017 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 018 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 019 |
175-2612 |
Spring clip |
2 |
|
| 020 |
175-2611 |
Brush plate clamp |
2 |
|
| 021a |
175-7900 |
Spring bracket |
1 |
(after 12.2001) |
| 021b |
175-3044 |
Spring bracket (OBSOLETE) |
1 |
(after 08.2001 and before 01.2002) |
| 022 |
175-3034 |
Driver release stop |
2 |
|
| 023 |
999-1114 |
Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc |
8 |
|
| 024 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
| 025 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 026 |
175-3031 |
Screw 3/8-16x2 |
1 |
|
| 027 |
175-0287 |
Acrylic foam tape 1 inch x 1 foot |
2 |
|
| 028 |
175-3037 |
Front lip skirt (OBSOLETE) |
1 |
|
| 029 |
175-3038 |
Motor mount bracket (OBSOLETE) |
1 |
|
| 030a |
175-9499 |
Spring mount bracket (OBSOLETE) |
1 |
(after 12.2001) |
| 030b |
175-3039 |
Spring mount bracket (OBSOLETE) |
1 |
(after 08.2001 and before 01.2002) |
| 032 |
175-3041 |
Washer flat |
8 |
|
| 034 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
| 035 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 036 |
175-9692 |
Brush switch bracket (OBSOLETE) |
1 |
(after 12.2001) |
| 037 |
175-2049 |
25amp roller switch (OBSOLETE) |
2 |
(after 12.2001) |
| 038 |
N/A |
Not available |
2 |
(after 12.2001) |
| 039 |
999-1158 |
Washer #6 flat stainless steel |
2 |
(after 12.2001) |
| 040 |
999-0144 |
Nut 6-32 k-lock zinc plated |
2 |
(after 12.2001) |
| 041 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
(after 12.2001) |
| 042 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
(after 12.2001) |
| 043a |
175-2606 |
Roll pin |
1 |
(after 12.2001) |
| 043b |
175-5592 |
Hose 3/8 x 5/8 x 9 inch |
1 |
(after 08.2001 and before 01.2002) |
|
|

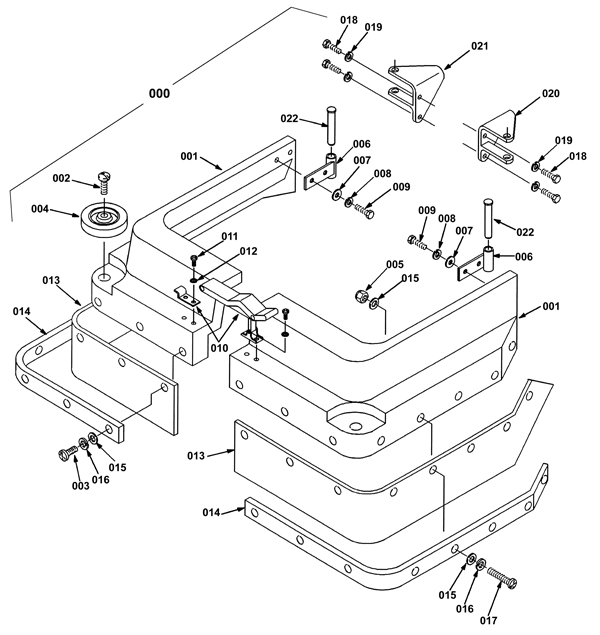

Brush Skirt Assembly - 175-0366 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
175-5769 |
Skirt operator left assembly (OBSOLETE) |
1 |
(5500) (includes 1-17) |
| 000b |
175-5768 |
Skirt operator left assembly |
1 |
(5520) |
| 000c |
175-5766 |
Skirt operator right assembly (OBSOLETE) |
1 |
(5500) |
| 000d |
175-5767 |
Skirt operator left teal assembly |
1 |
(5520) |
| 001a |
175-5772 |
Left operator skirt (OBSOLETE) |
1 |
(5500) |
| 001b |
175-5773 |
Right operator skirt |
1 |
(5520) |
| 001c |
175-5774 |
Right operator skirt (OBSOLETE) |
1 |
(5500) |
| 001d |
175-5775 |
Right operator skirt |
1 |
(5520) |
| 002 |
999-0742 |
Screw M8-1.25 x 40mm pan head phillips zinc |
2 |
|
| 003 |
999-0901 |
Screw M5-.8 x 16mm pan head phillips stainless steel |
10 |
|
| 004 |
175-0117 |
Guide wheel with bushing |
2 |
|
| 005 |
999-0495 |
Nut M5-.8 nylon insert lock zinc plated |
6 |
|
| 006 |
175-3049 |
Skirt mount bracket |
2 |
|
| 007 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 008 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 009 |
999-0900 |
Screw M8-1.25 x 18mm hex head stainless steel |
4 |
|
| 010a |
175-3369 |
Hood latch |
1 |
|
| 010b |
991-8561 |
Rubber draw latch with keeper |
1 |
|
| 011 |
999-0530 |
Screw M4-.7 x 8mm pan head slotted zinc |
4 |
|
| 012 |
999-1083 |
Washer #8 internal star lock stainless steel |
4 |
|
| 013a |
175-3052 |
Splash guard 2401 |
2 |
(5500) |
| 013b |
175-3053 |
Splash guard 2601 |
2 |
(5520) |
| 014a |
175-3054 |
Splash guard strap 2401 |
2 |
(5500) |
| 014b |
175-3055 |
Splash guard strap 2601 |
2 |
(5520) |
| 015 |
999-0393 |
Washer 3/16 flat aluminum |
22 |
|
| 016 |
999-1026 |
Washer #10 internal lock stainless steel |
16 |
|
| 017 |
999-0797 |
Screw M5-.8 x 30mm pan head phillips stainless steel |
6 |
|
| 018 |
175-3679 |
Screw M8 x 1 1/4 x 20 |
4 |
|
| 019 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 020 |
175-3050 |
Skirt mount bracket lefthand |
1 |
|
| 021 |
175-3051 |
Skirt mount bracket righthand |
1 |
|
|
|

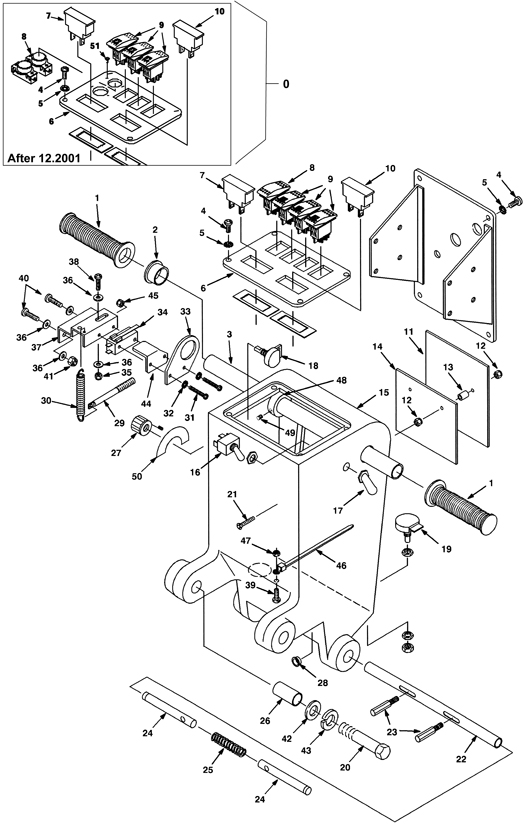

Console Assembly - 175-0367 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
175-0247 |
Switch panel assembly |
1 |
(after 12.2001) (includes 6a, 7, 8a, 9, 10, and 51) |
| 0b |
175-0247 |
Switch panel assembly |
1 |
(after 08.2001 and before 01.2002) (includes 6b, 7, 8b, 9, and 10) |
| 1a |
675-9894 |
Handle grip |
2 |
|
| 1b |
991-8571 |
Handle grip |
2 |
|
| 2 |
175-3093 |
Flanged bushing |
1 |
|
| 4 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
8 |
|
| 5 |
999-1026 |
Washer #10 internal lock stainless steel |
8 |
|
| 6a |
175-0256 |
Switch panel |
1 |
(after 12.2001) |
| 6b |
175-3096 |
Switch panel (OBSOLETE) |
1 |
(after 08.2001 and before 01.2002) |
| 7 |
175-3643 |
Brush pressure gauge |
1 |
|
| 8b |
175-3097 |
Momentary rocker switch |
1 |
(after 08.2001 and before 01.2002) |
| 9 |
175-3098 |
Lighted on/off rocker switch |
3 |
|
| 10 |
175-2691 |
Battery voltage meter |
1 |
|
| 11 |
175-3124 |
55amp speed control board |
1 |
|
| 15 |
175-4825 |
Control housing (teal) |
1 |
|
| 16 |
175-3103 |
Toggle switch |
1 |
|
| 17 |
175-3104 |
Switch boot |
1 |
|
| 18 |
175-3105 |
Potentiometer |
1 |
|
| 19 |
175-3106 |
Lockable potentiometer |
1 |
|
| 20 |
999-0619 |
Screw 10-24 x 3/4 truss head slotted stainless steel |
2 |
|
| 21 |
175-3107 |
Screw M4-.7 x 35mm flat head phillips |
2 |
|
| 22 |
175-3108 |
Handle adjustment tube |
1 |
|
| 23 |
175-2710 |
Handle adjustment pin |
2 |
|
| 24 |
175-3109 |
Handle locking pin |
2 |
|
| 27 |
175-1163 |
Speed control knob |
1 |
|
| 28 |
175-3111 |
Snap bushing |
1 |
|
| 29 |
175-3112 |
Spring return pin |
1 |
|
| 30 |
175-3113 |
Extension spring |
1 |
|
| 31 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 32 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 33 |
175-3115 |
Switch bracket |
1 |
|
| 34a |
175-3116 |
Snap switch |
1 |
|
| 34b |
991-5121 |
Charger interlock switch (OBSOLETE) |
1 |
(NON-OEM) |
| 35 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 36 |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 37 |
175-3117 |
Switch mount |
1 |
|
| 38 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
1 |
|
| 39 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
1 |
|
| 40 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
| 41 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 42 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
| 43 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 44 |
175-3122 |
Switch plate |
1 |
|
| 45 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 47 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 48 |
175-1168 |
Handle collar |
2 |
|
| 49 |
999-0096 |
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
| 50 |
175-1169 |
Speed control decal |
1 |
|
| 51 |
999-1145 |
Screw 6-32 x 1/4 truss head phillips zinc plated |
4 |
(after 12.2001) |
| N/S |
175-3120 |
Console harness with potentiometer |
1 |
|
| N/S |
175-0247 |
Switch panel assembly |
1 |
(after 12.2001) |
| N/S |
175-0247 |
Switch panel assembly |
1 |
(after 08.2001 and before 01.2002) |
|
|

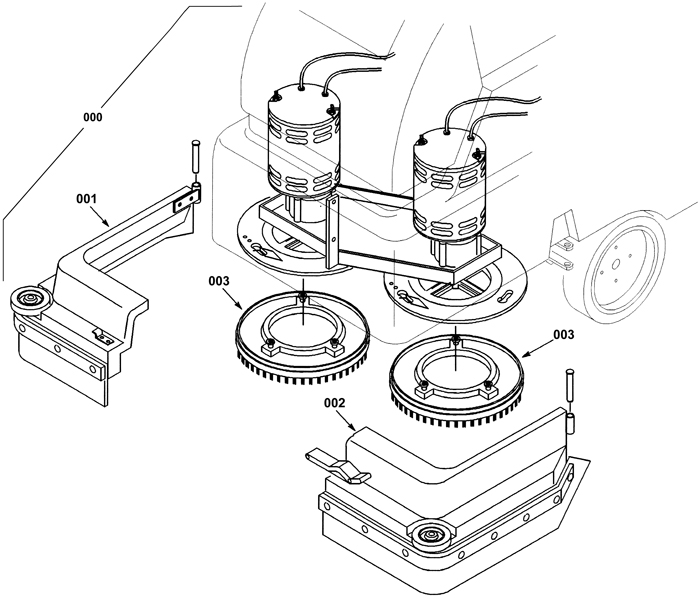

Conversion Kit - 175-0368 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
175-5764 |
Conversion kit to 5500 teal (OBSOLETE) |
1 |
(5500) (includes 1a, 2a, 3a, and N/S: 175-1054 & 175-5770) |
| 000b |
N/A |
Not available |
1 |
(conversion kit) (5520) (includes 1b, 2b, 3b, and N/S: 175-3082 & 175-5771) |
| 001a |
175-5766 |
Skirt operator right assembly (OBSOLETE) |
1 |
(5500) |
| 001b |
175-5767 |
Skirt operator left teal assembly |
1 |
(5520) |
| 002a |
175-5769 |
Skirt operator left assembly (OBSOLETE) |
1 |
(5500) |
| 002b |
175-5768 |
Skirt operator left assembly |
1 |
(5520) |
| 003a |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
(5500) |
| 003b |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
(5520) |
| N/S |
175-1054 |
Squeegee assembly curved 31 inch (780mm) (OBSOLETE) |
1 |
(5500) |
| N/S |
175-3082 |
28 inch (700mm) squeegee assembly |
1 |
(5520) |
| N/S |
175-5770 |
5500 Decal |
2 |
(5500) |
| N/S |
175-5771 |
5520 decal |
2 |
(5520) |
|
|

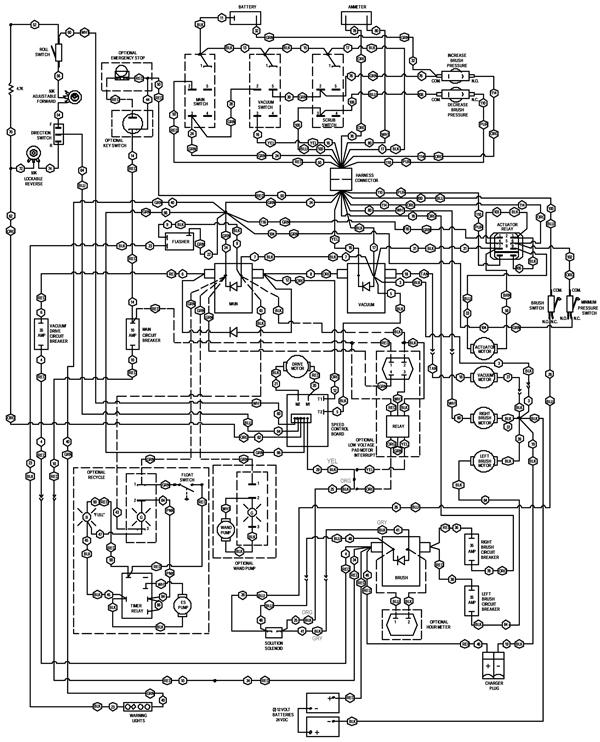

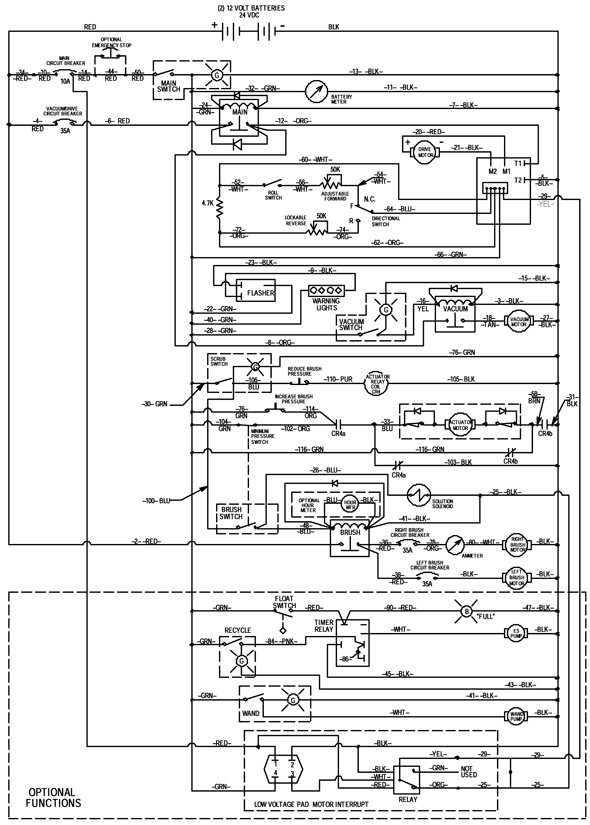

Electrical Diagram 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Electrical Diagram 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Solution Tank Assembly - 175-0372 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-6637 |
Teal solution tank cover assembly |
1 |
(includes 2-4) |
| 002a |
175-6638 |
Teal solution tank cover |
1 |
(after 12.2001) |
| 002b |
175-6638 |
Teal solution tank cover |
1 |
(after 08.2001 and before 01.2002) |
| 005 |
175-2982 |
Battery recharge decal |
1 |
|
| 006 |
675-9895 |
Vacuum motor gasket |
1 |
|
| 007 |
175-3635 |
Transition tube |
1 |
|
| 008 |
175-4353 |
Compression spring |
1 |
|
| 009 |
175-2676 |
Barbed fitting |
2 |
|
| 010 |
175-3636 |
Vacuum tube bracket |
1 |
|
| 011 |
999-0024 |
Washer 5/16 flat stainless steel |
3 |
|
| 012 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
3 |
|
| 013 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
| 014 |
175-2984 |
Plug strap (OBSOLETE) |
1 |
|
| 015 |
999-0393 |
Washer 3/16 flat aluminum |
1 |
|
| 016 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
1 |
|
| 017 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
| 018 |
175-2672 |
Recovery tank support |
1 |
|
| 020 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 021 |
N/A |
Not available |
1 |
Squeegee lever decal |
| 022 |
175-4888 |
Solution tank teal (OBSOLETE) |
1 |
|
| 023 |
175-3637 |
Drain hose with level indicator |
1 |
|
| 024 |
175-2666 |
Screen filter |
1 |
|
| 025 |
175-2678 |
Hose clamp |
1 |
|
| 026 |
175-2653 |
1 1/2 inch expansion plug |
1 |
|
| 027a |
175-5770 |
5500 Decal |
2 |
(5500) |
| 027b |
175-5771 |
5520 decal |
2 |
(5520) |
| 028a |
175-2991 |
4 inch caster wheel |
2 |
|
| 028b |
991-2016 |
4 inch caster wheel |
2 |
(NON-OEM) |
| 029 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
| 030 |
999-1081 |
Washer M10 split lock stainless steel |
8 |
|
| 031 |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
8 |
|
| 032 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 033 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
|
| 034 |
175-2993 |
Light shield |
1 |
|
| 036 |
175-2995 |
12 Inch safety light |
1 |
|
| 037 |
175-4891 |
Tennant decal |
1 |
|
| 038 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
2 |
|
| 039a |
175-4355 |
Retaining ring |
1 |
(after 12.2001) |
| 039b |
175-3008 |
Retaining ring |
1 |
(after 08.2001 and before 01.2002) |
|
|

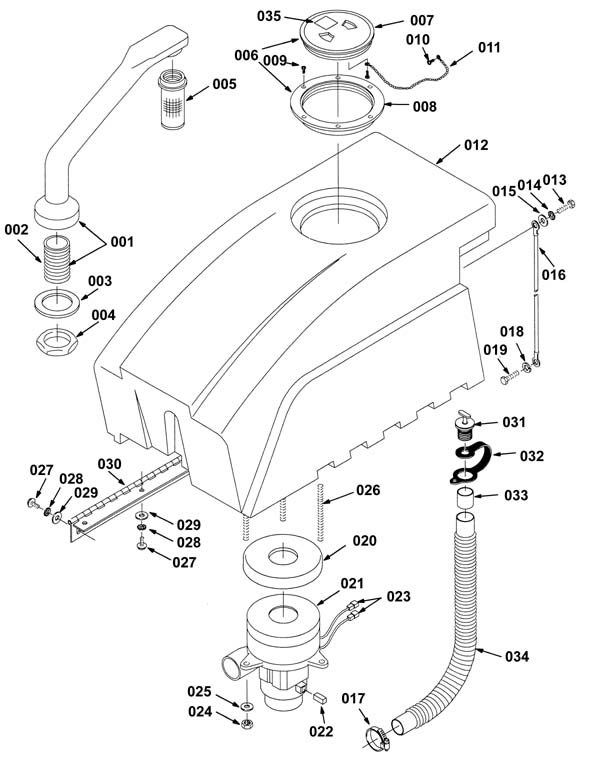

Recovery Tank Assembly - 175-0373 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-2998 |
Standpipe with nipple assembly |
1 |
(includes item 2) |
| 002 |
175-2639 |
1 1/2 inch nipple fitting |
1 |
|
| 004 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 005a |
675-9887 |
Shut-off float |
1 |
|
| 005b |
991-5136 |
Shut-off float |
1 |
(NON-OEM) |
| 006 |
164-0202 |
Tank lid assembly |
1 |
(includes 7 and 8) |
| 007a |
164-0044 |
Tank lid (clear) |
1 |
|
| 007b |
991-1928 |
Tank lid (clear) (OBSOLETE) |
1 |
(NON-OEM) |
| 008 |
164-0205 |
Tank lid ring (black) |
1 |
|
| 009 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
6 |
|
| 010 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
2 |
|
| 012 |
175-4879 |
Recovery tank teal |
1 |
|
| 013 |
999-1041 |
Screw M6-1 x 12mm pan head phillips stainless steel |
1 |
|
| 014 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
1 |
|
| 015 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 016 |
175-2651 |
Support cable |
1 |
|
| 017 |
175-2057 |
Hose clamp |
1 |
|
| 018 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 019 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
| 020 |
675-9893 |
Vacuum motor gasket |
1 |
|
| 021 |
275-5736 |
24V 3 stage vacuum motor |
1 |
(includes 22) |
| 022 |
175-2658 |
Carbon brush (pkg of 2) |
2 |
|
| 023 |
175-0923 |
Male terminal |
2 |
|
| 024 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
3 |
|
| 025 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 027 |
999-1041 |
Screw M6-1 x 12mm pan head phillips stainless steel |
11 |
|
| 028 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
11 |
|
| 029 |
999-0016 |
Washer 1/4 flat plain finish |
11 |
|
| 030 |
175-3001 |
Recovery tank hinge |
1 |
|
| 031 |
175-2653 |
1 1/2 inch expansion plug |
1 |
|
| 032 |
175-2654 |
Drain hose strap |
1 |
|
| 033 |
175-2655 |
Drain hose sleeve |
1 |
|
| 034 |
175-2656 |
Drain hose |
1 |
|
| 035 |
175-2649 |
Do not spray decal |
1 |
|
|
|

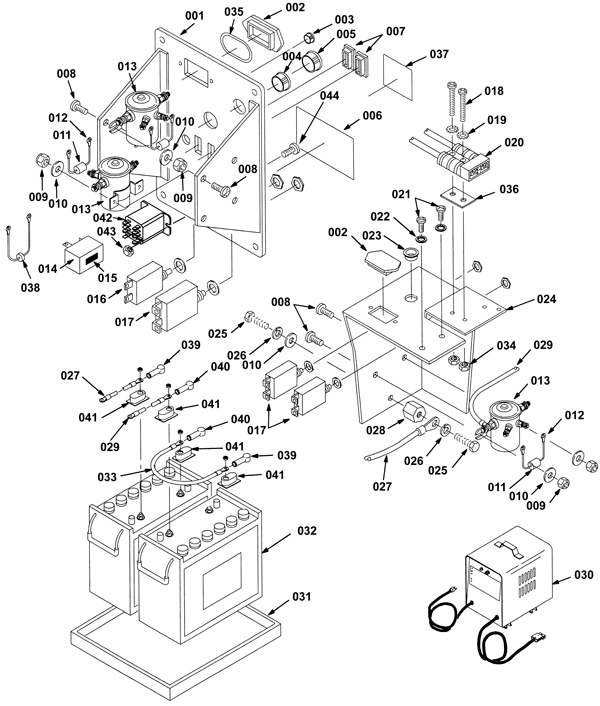

Electrical and Battery Assembly - 175-0375 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
175-0297 |
Control panel housing |
1 |
(after 12.2001) |
| 001b |
175-0297 |
Control panel housing |
1 |
(after 08.2001 and before 01.2002) |
| 002 |
175-3646 |
Hour meter plug |
2 |
|
| 006 |
275-1360 |
Warning decal |
1 |
|
| 007 |
175-2698 |
Switch plug |
2 |
|
| 008 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
6 |
|
| 009 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
6 |
|
| 010 |
999-0016 |
Washer 1/4 flat plain finish |
7 |
|
| 011 |
175-2757 |
Diode with ring terminals (small) |
3 |
|
| 012 |
175-0924 |
#10 ring terminal |
6 |
|
| 013 |
175-2023 |
24V solenoid contactor |
3 |
|
| 014 |
175-2756 |
24V flasher |
1 |
|
| 015 |
175-0287 |
Acrylic foam tape 1 inch x 1 foot |
1 |
|
| 016a |
175-3132 |
10amp brush circuit breaker (OBSOLETE) |
1 |
|
| 016b |
991-8538 |
10amp circuit breaker |
1 |
(NON-OEM) |
| 017 |
175-3133 |
35amp circuit breaker (OBSOLETE) |
3 |
|
| 018 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 019 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 020 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 021 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 022 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
|
| 023 |
175-3134 |
Snap bushing |
1 |
|
| 024 |
175-3135 |
Bracket (OBSOLETE) |
1 |
|
| 025 |
999-0018 |
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
| 026 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 027 |
175-3137 |
Battery cable (black) |
1 |
|
| 028a |
175-3226 |
Insulated stand off |
1 |
(after 12.2001) |
| 028b |
175-3226 |
Insulated stand off |
1 |
(after 08.2001 and before 01.2002) |
| 029 |
175-3138 |
Battery cable 5/16 x 3/8 (red) |
1 |
|
| 030 |
175-3139 |
24V 19amp off board battery charger |
1 |
|
| 031 |
175-3140 |
Battery tray |
1 |
|
| 032 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
| 033a |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 033b |
991-6025 |
Wire 4 x14.5, 3/8 ring x 3/8 ring |
1 |
(NON-OEM) |
| 034 |
999-0144 |
Nut 6-32 k-lock zinc plated |
2 |
|
| 037 |
275-2370 |
Read manual decal |
1 |
|
| 038 |
175-1182 |
Diode with ring terminals (large) |
1 |
|
| 039 |
175-1103 |
Battery cable boot (black) |
2 |
|
| 040 |
175-1103 |
Battery cable boot (black) |
2 |
|
| 041 |
175-2121 |
Battery terminal cover (clear) |
4 |
|
| 042 |
175-6635 |
24V relay |
1 |
(after 12.2001) |
| 043 |
999-0356 |
Nut 10-24 lock stainless steel |
2 |
(after 12.2001) |
| 044 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
2 |
(after 12.2001) |
|
|

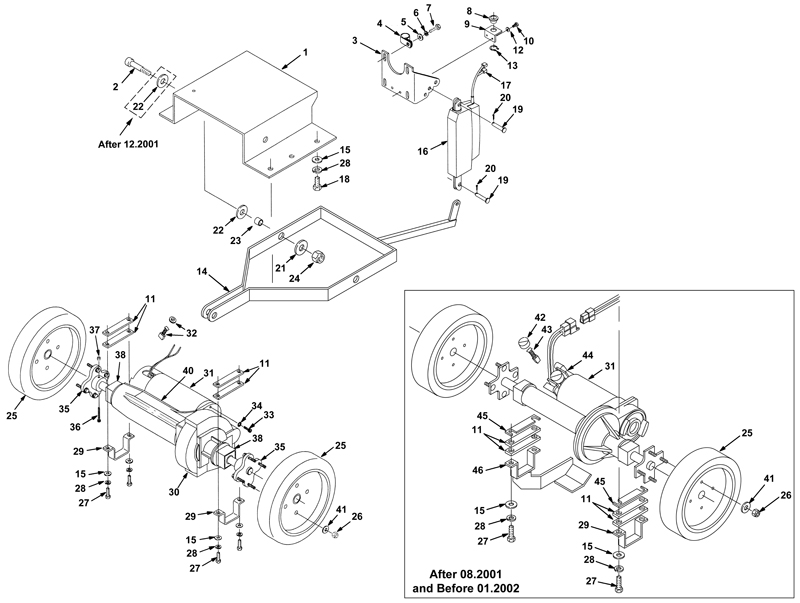

Drive Assembly - 175-0376 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3002 |
Base transaxle plate |
1 |
|
| 2a |
175-3648 |
Shoulder bolt (Tennant industrial) |
2 |
(after 12.2001) |
| 2b |
999-0687 |
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
2 |
(after 08.2001 and before 01.2002) |
| 3 |
275-4594 |
Actuator bracket |
1 |
|
| 5 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 6 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 7 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
| 8 |
175-8735 |
Cable bushing |
1 |
|
| 9 |
175-3007 |
Cable guide bracket |
1 |
|
| 11a |
175-3666 |
Axle spacer |
4 |
(after 12.2001) |
| 11b |
175-3021 |
Axle spacer (OBSOLETE) |
4 |
(after 08.2001 and before 01.2002) |
| 12a |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
(after 12.2001) |
| 12b |
999-0016 |
Washer 1/4 flat plain finish |
2 |
(after 08.2001 and before 01.2002) |
| 13 |
175-3008 |
Retaining ring |
1 |
|
| 14 |
175-3025 |
Lift dual motor bracket (OBSOLETE) |
1 |
|
| 15 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
6 |
|
| 17 |
175-3011 |
Female terminal |
2 |
|
| 18 |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
2 |
|
| 21a |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
(after 12.2001) |
| 21b |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
(after 08.2001 and before 01.2002) |
| 22 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
| 24a |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
(after 12.2001) |
| 24b |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
2 |
(after 08.2001 and before 01.2002) |
| 25a |
175-3017 |
Neoprene solid wheel |
2 |
|
| 25b |
675-9896 |
Air filled (pneumatic) tire |
2 |
|
| 25c |
175-3652 |
Foam filled wheel |
2 |
|
| 25d |
175-3146 |
Air filled (pneumatic) tire kit (pkg of 2) (OBSOLETE) |
1 |
|
| 25e |
175-3147 |
Foam filled tire kit (pkg of 2) (OBSOLETE) |
1 |
|
| 26a |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
8 |
(after 12.2001) |
| 26b |
999-1201 |
Nut 1/4-28 nylon insert lock hex stainless steel |
8 |
(after 08.2001 and before 01.2002) |
| 27 |
175-3019 |
Screw M10 x 35mm |
4 |
|
| 28 |
999-1081 |
Washer M10 split lock stainless steel |
6 |
|
| 29 |
175-3667 |
Transaxle MTG bracket |
2 |
(qty 1 for model after 08.2001 but before 01.2002) |
| 30a |
175-3622 |
24V transaxle motor assembly |
1 |
(includes 30b, 30c, 30d, 31a, 32-40) |
| 30b |
175-3654 |
Transaxle body |
1 |
|
| 30c |
175-3655 |
Transaxle coupling |
1 |
|
| 30d |
175-3656 |
Transaxle key |
1 |
|
| 31a |
175-3657 |
24V transaxle motor |
1 |
(after 12.2001) (includes 32) |
| 31b |
175-3013 |
24V transaxle kit |
1 |
(after 08.2001 and before 01.2002) (includes 42-44) |
| 32 |
175-7898 |
Carbon brush (pkg of 4) |
1 |
|
| 33 |
999-1320 |
Screw M6-1 x 20mm socket head stainless steel |
2 |
|
| 34 |
999-0238 |
Washer 1/4 internal star lock zinc plated |
2 |
|
| 35 |
275-5229 |
Transaxle wheel hub with retainer |
2 |
|
| 36 |
999-0745 |
Screw 10-24 x 1 1/4 socket head shoulder |
2 |
|
| 37 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 38 |
175-3660 |
Transaxle sleeve |
2 |
|
| 40 |
999-0458 |
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
2 |
|
| 41 |
999-0016 |
Washer 1/4 flat plain finish |
8 |
|
| 43 |
175-3015 |
Carbon brush (sold individually) |
2 |
|
| 44 |
175-3013 |
24V transaxle kit |
1 |
|
| 45 |
175-3022 |
Spacer (OBSOLETE) |
2 |
|
| 46 |
N/A |
Not available |
1 |
(transaxle mount guard) |
|
|

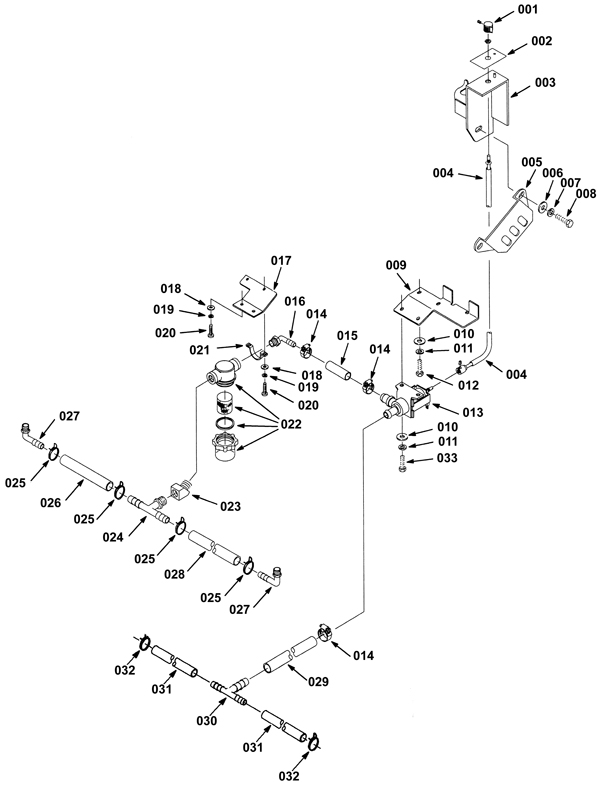

Solution Control Assembly - 175-0378 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-9027 |
Solution control knob |
1 |
|
| 002 |
175-3680 |
Solution control decal |
1 |
|
| 003 |
175-3681 |
Solution control bracket |
1 |
|
| 004 |
175-3682 |
Sol. flow control cable (OBSOLETE) |
1 |
|
| 005 |
175-2728 |
Locking plate |
1 |
|
| 006 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 007 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 008 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
| 009 |
175-3683 |
Solenoid mount bracket (OBSOLETE) |
1 |
|
| 010 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 011 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 012 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 013 |
175-3684 |
24V solenoid valve |
1 |
|
| 014 |
175-6081 |
Hose clamp |
3 |
|
| 015 |
175-1043 |
3 inch hose |
1 |
|
| 016 |
175-3685 |
90 degree elbow fitting |
1 |
|
| 017 |
175-3686 |
Filter bowl bracket |
1 |
|
| 018 |
175-3687 |
Washer m5 x 1 flat |
4 |
|
| 019 |
999-9132 |
Washer M5 split lock stainless steel |
4 |
|
| 020 |
175-3689 |
Screw M5-.8 x 12mm truss head phillips stainless steel |
4 |
|
| 022a |
175-9025 |
In-line screen filter assembly |
1 |
|
| 022b |
991-8582 |
Mesh inline filter |
1 |
|
| 023 |
175-3691 |
Brass fitting |
1 |
|
| 024 |
175-3692 |
Tee fitting |
1 |
|
| 025 |
375-0291 |
Hose clamp |
4 |
|
| 026 |
175-3694 |
Hose 1/2 x 6 inch |
1 |
|
| 027 |
175-3685 |
90 degree elbow fitting |
2 |
|
| 028 |
175-3696 |
Hose (OBSOLETE) |
1 |
|
| 029 |
175-3697 |
425mm hose (OBSOLETE) |
1 |
|
| 030 |
175-5591 |
Tee fitting 3/8 x 3/8 x 1/2 |
1 |
|
| 031 |
175-5592 |
Hose 3/8 x 5/8 x 9 inch |
2 |
|
| 032 |
175-3671 |
Hose clamp |
2 |
|
| 033b |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
(after 08.2001 and before 01.2002) |
|
|

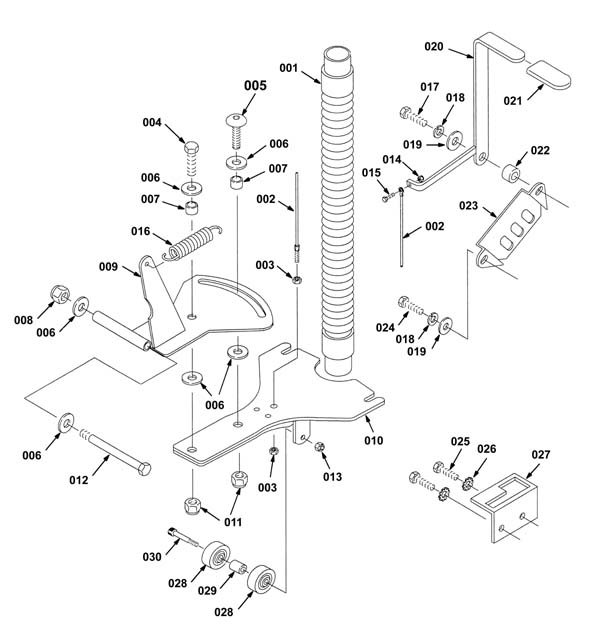

Squeegee Control Assembly - 175-0380 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-3067 |
Vacuum hose 1 1/2 x 30 inch with cuffs |
1 |
|
| 002 |
175-3068 |
Squeegee lift cable |
1 |
|
| 003 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 004 |
999-0687 |
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
1 |
|
| 005 |
175-3701 |
Screw 1/2 - 13 x 1 1/4 |
1 |
|
| 006 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
6 |
|
| 007 |
175-2743 |
Sleeved bushing |
2 |
|
| 008 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
| 009 |
275-6137 |
Squeegee pivot mounting bracket (OBSOLETE) |
1 |
|
| 010 |
275-4796 |
Squeegee caster kit |
1 |
|
| 011 |
999-0050 |
Nut 1/2-13 hex jam plain finish |
2 |
|
| 012 |
175-3069 |
Screw 1/2-13 x 5 1/2 |
1 |
|
| 013a |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
(after 12.2001) |
| 013b |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
(after 08.2001 and before 01.2002) |
| 014 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 015 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
| 017 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
| 018 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 019 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 020 |
175-3077 |
Squeegee lift handle |
1 |
|
| 021 |
175-2723 |
Handle grip (rubber) |
1 |
|
| 022 |
175-3078 |
Bushing spacer |
1 |
|
| 023 |
175-2728 |
Locking plate |
1 |
|
| 024 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
| 026 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 027 |
175-3080 |
Squeegee lock plate |
1 |
|
| 030 |
275-5175 |
Bolt shoulder 5/16-18 x 5 1/2 inch |
1 |
|
|
|

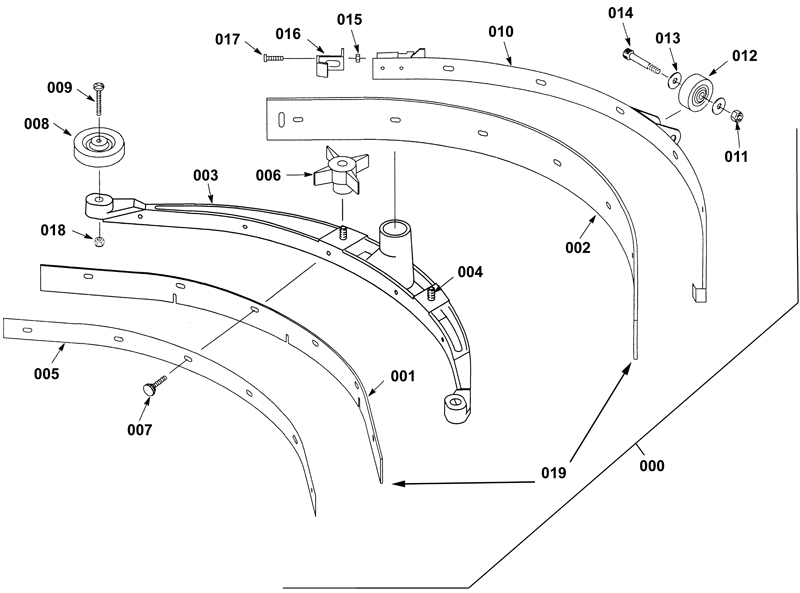

Squeegee Assembly - 175-0381 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
175-3706 |
Squeegee assembly linatex 28 inch (700mm) (OBSOLETE) |
1 |
(includes 3-18 and 19a) |
| 000b |
175-3710 |
Sgueegee assembly gum rubber (OBSOLETE) |
1 |
(includes 3-18 and 19b) |
| 001a |
175-2850 |
Squeegee blade 33 inch linatex curved front (red) |
1 |
|
| 001b |
175-3708 |
Squeegee blade front urethane white 33 inch |
1 |
|
| 001c |
175-3712 |
Squeegee blade 33 inch gum rubber front (tan) |
1 |
|
| 002a |
175-2851 |
Squeegee blade 33 inch linatex curved rear (red) |
1 |
|
| 002b |
175-3709 |
Squeegee blade rear urethane 33 inch (OBSOLETE) |
1 |
|
| 002c |
175-3713 |
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
|
| 003a |
175-8748 |
Squeegee casting |
1 |
(after 12.2001) |
| 003b |
175-8748 |
Squeegee casting |
1 |
(after 08.2001 and before 01.2002) |
| 004 |
999-1039 |
Screw 5/16-18 x 1 1/2 truss head phillips stainless steel |
2 |
|
| 005 |
175-3715 |
Front strip retainer |
1 |
|
| 006 |
175-2208 |
Plastic star knob |
2 |
|
| 008 |
175-0117 |
Guide wheel with bushing |
2 |
|
| 009 |
175-3716 |
Screw 5/16-18 x 1 3/4 |
2 |
|
| 010 |
175-3717 |
Squeegee rear ASM band |
1 |
|
| 011 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
|
| 013 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 014 |
175-3719 |
Screw 3/8 x 1 1/4 shoulder |
1 |
|
| 015 |
999-0495 |
Nut M5-.8 nylon insert lock zinc plated |
1 |
|
| 016 |
175-3720 |
Squeegee band clip |
1 |
|
| 017 |
175-3721 |
Screw M5-.8 x 45mm |
1 |
|
| 018 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 019a |
175-3707 |
Squeegee blades kit linatex 33 inch |
1 |
(includes 1a and 2a) |
| 019b |
175-3711 |
Squeegee blade kit curved gum rubber 33 inch (OBSOLETE) |
1 |
(includes 1c and 2c) |
|
|

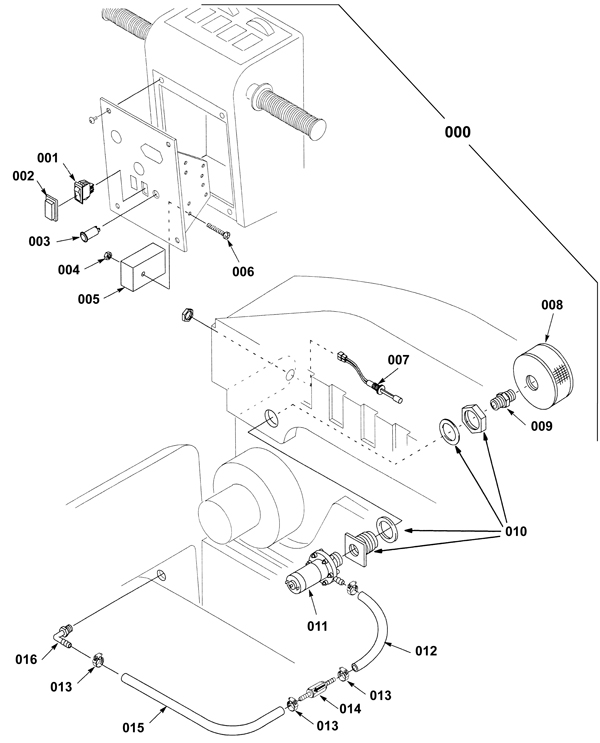

ES Kit - 175-0382 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-3722 |
ES kit (OBSOLETE) |
1 |
(includes 1-16 and the not shown parts) |
| 001 |
175-2847 |
Rocker switch |
1 |
|
| 002 |
175-2848 |
Rocker switch splash guard |
1 |
|
| 003 |
175-2849 |
Indicator light |
1 |
|
| 004 |
999-0495 |
Nut M5-.8 nylon insert lock zinc plated |
1 |
|
| 006 |
999-1085 |
Screw M5-.8 x 30mm pan head phillips zinc plated |
1 |
|
| 007 |
175-2835 |
Liquid level switch with nut |
1 |
|
| 008 |
175-2836 |
Screen filter (OBSOLETE) |
1 |
|
| 009 |
175-2837 |
3/4 inch nipple fitting (OBSOLETE) |
1 |
|
| 010 |
175-2838 |
Bulkhead fitting 3/4 inch (OBSOLETE) |
1 |
|
| 011 |
175-2840 |
24V solution pump |
1 |
|
| 012 |
175-6318 |
Hose 3/8 x 8 inch |
1 |
|
| 013 |
175-6081 |
Hose clamp |
4 |
|
| 014 |
175-2842 |
Check valve |
1 |
|
| 015 |
175-6318 |
Hose 3/8 x 8 inch |
1 |
|
| 016 |
175-2844 |
90 degree elbow fitting |
1 |
|
| N/S |
175-3724 |
Extended scrub wire harness (OBSOLETE) |
1 |
|
| N/S |
175-2839 |
Filter decal (OBSOLETE) |
1 |
|
|
|

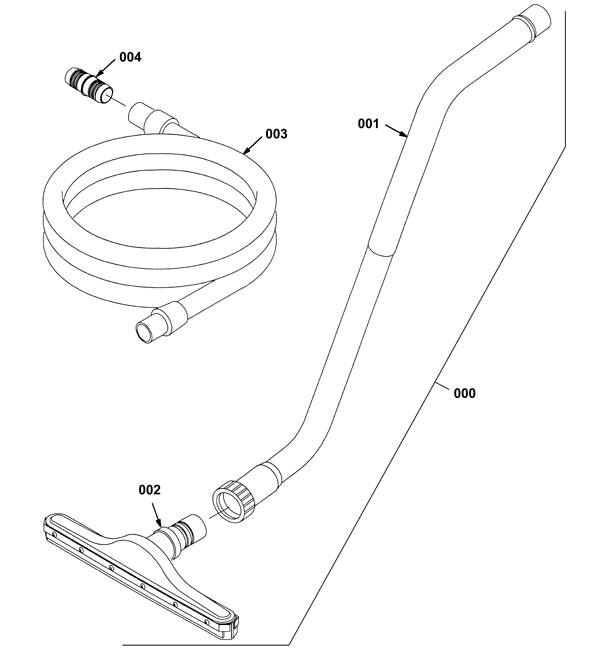

Squeegee Wand Assembly - 175-0383 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-2632 |
Wet pick-up carpet tool assembly |
1 |
|
| 001 |
175-2633 |
Aluminum double bend wand |
1 |
|
| 002 |
175-2634 |
14 inch squeegee floor tool |
1 |
|
| 003 |
175-2635 |
Vacuum hose 1 1/2 x 10 foot |
1 |
|
|
|

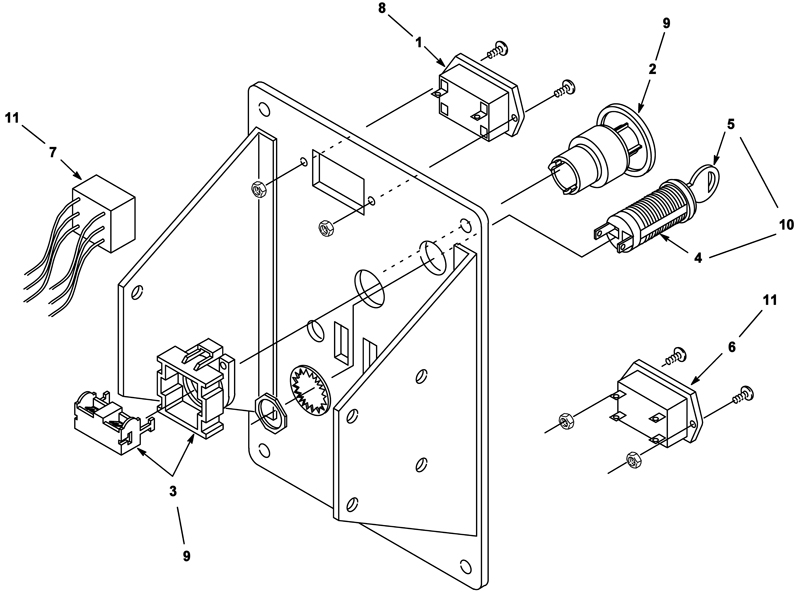

Hour Meter, Emergency Stop, Keyswitch, and Low Voltage Kits - 175-0384 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
275-1416 |
Safety shut-off switch |
1 |
|
| 3 |
275-1416 |
Safety shut-off switch |
1 |
|
| 4 |
175-3727 |
Key switch (OBSOLETE) |
1 |
(includes 5) |
| 5 |
175-0185 |
Double sided key (steel) |
1 |
|
| 6 |
175-3728 |
24V battery gauge with screw |
1 |
|
| 7 |
175-3149 |
Low voltage cutoff kit (OBSOLETE) |
1 |
|
| 8 |
175-3148 |
Hour meter kit |
1 |
(includes 1 and N/S: 175-3725 & 175-3726) |
| 9 |
175-3150 |
Emergency stop kit |
1 |
(includes 2-3 and N/S: 175-1220 & 175-1221) |
| 10 |
175-3145 |
Key switch kit |
1 |
(includes 4) |
| 11 |
175-3149 |
Low voltage cutoff kit (OBSOLETE) |
1 |
(includes 6-7 and N/S: 175-3730, 175-1216, 175-1214, & 175-0037) |
| N/S |
175-3725 |
Wire #18 x 5 inchblue ASM |
1 |
|
| N/S |
175-3726 |
Wire #18 x 5 inchblack ASM |
1 |
|
| N/S |
175-1220 |
5 inch wire assembly (red) |
1 |
|
| N/S |
175-1221 |
5 inch wire assembly (red) |
1 |
|
| N/S |
175-3730 |
9 inch wire assembly (green) |
1 |
|
| N/S |
175-1216 |
8 inch wire assembly with terminal ring (black) |
1 |
|
| N/S |
175-1214 |
12 inch wire assembly (red) |
1 |
|
|
|
- Pads - 255-1200 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1240 |
12 inch aqua plus burnishing pad (pkg of 20) |
|
|
| 02 |
255-1235 |
12 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1264 |
12 inch Blue ace pad (pkg of 20) |
|
|
| 04 |
255-1242 |
12 inch Blue Jay burnishing pad (pkg of 20) |
|
|
| 05 |
255-1212 |
12 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1277 |
12 inch Diamondback extreme stripping pad (pkg of 20) |
|
|
| 07 |
255-1238 |
12 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1221 |
12 inch gorilla lite burnishing pad (pkg of 20) |
|
|
| 09 |
255-1250 |
12 inch gorilla spray buff/polish/burnish pad (pkg of 20) |
|
|
| 10 |
255-1265 |
12 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1230 |
12 inch jaguar burnishing pad (pkg of 20) |
|
|
| 12 |
255-1290 |
12 inch premium black stripping pad (pkg of 20) |
|
|
| 13 |
255-1270 |
12 inch premium blue cleaning pad (pkg of 20) |
|
|
| 14 |
255-1292 |
12 inch premium brown stripping pad (pkg of 20) |
|
|
| 15 |
255-1280 |
12 inch premium green scrubbing pad (pkg of 20) |
|
|
| 16 |
255-1260 |
12 inch premium red scrubbing pad (pkg of 20) |
|
|
| 17 |
255-1252 |
12 inch premium tan polishing pad (pkg of 20) |
|
|
| 18 |
255-1220 |
12 inch premium white polishing pad (pkg of 20) |
|
|
| 19 |
255-1295 |
12 inch razorback stripping pad (pkg of 20) |
|
|
| 20 |
255-1247 |
12 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 21 |
255-1255 |
12 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 22 |
255-1211 |
12 inch superspeed rubberized pad (pkg of 20) |
|
|
| 23 |
255-0193 |
12 inch Superscreen sand screen 100grit(pkg of 10) (OBSOLETE |
|
|
| 24 |
255-0194 |
12 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 25 |
255-0195 |
12 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 26 |
255-0191 |
12 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 27 |
255-0192 |
12 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 28 |
255-0108 |
12 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0109 |
12 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0110 |
12 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0106 |
12 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0107 |
12 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 34 |
255-1224 |
12 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 35 |
255-9535 |
12 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 36 |
255-9532 |
12 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 37 |
255-9529 |
12 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 38 |
255-9533 |
12 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 39 |
255-9530 |
12 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 40 |
255-9531 |
12 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 41 |
255-9534 |
12 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 42 |
255-9637 |
12 inch Diamond starter pack (1 of each grit) |
|
|
| 43 |
255-1215 |
12 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1216 |
12 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Batteries, Brushes and Chargers - 275-9893 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 02 |
996-3236 |
11 inch heavy grit stripping brush - 80 grit |
2 |
(24 inch units) |
| 03 |
996-3237 |
12 inch heavy grit stripping brush - 80 grit |
2 |
(26 inch units) |
|
|
