Parts List Complete for TENNANT 3110

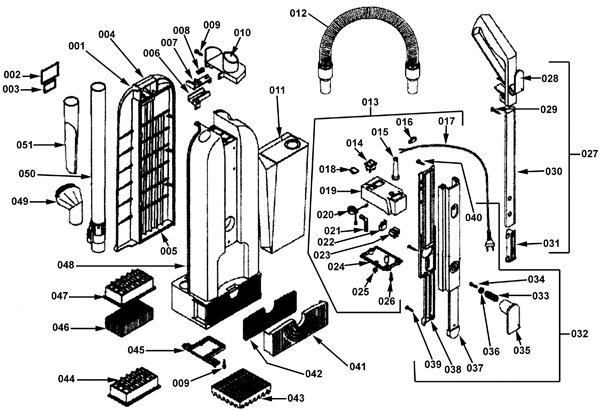

Body Assembly - 175-2279
RefNbr Part Number Description Req Notes
001a 175-7513 Housing cover with labels (black) 1 (includes 002, 003, 004, and 005)
001b 175-7513 Housing cover with labels (black) 1 (includes 002, 003, 004, and 005)
002 275-8006 Warning decal 1
003 175-7515 Important filter label 1
004 175-7516 Bag housing cover latch with spring 1
005 175-7517 Bag housing cover gasket 1
006 175-7518 Button guide 1
007 175-7519 Bag holder button 1
008 175-7520 Bag holder button spring 1
009 175-7521 Screw kit 3.9 x 16 (pkg of 20) 1
010 175-7522 Hose adapter 1
011a 175-7523 Paper vacuum bags and filters (pkg of 8 bags/2 filters) 1 (OEM)
011b 991-9011 Paper bags and filters (pkg of 10 and 2 filters) 1 (NON-OEM)
012 175-7524 Extension hose (OBSOLETE) 1 (Hose with handle has been discontinued)
013 175-7525 Switch housing assembly 1 (includes 014 thru 026)
014 175-7527 15amp main switch (OBSOLETE) 1
015 175-7526 Strain relief 1
016 175-7528 Cord clamp (OBSOLETE) 1
017a 175-7529 18/3 power cord 50 foot (OBSOLETE) 1 (OEM)
017b 991-5008 18/3 replacement power cord 50 foot (beige) 1 (NON-OEM)
017c 991-5007 18/3 replacement power cord 50 foot (black) 1 (NON-OEM)
018 175-7530 Full bag lense (red) 1
019 175-7531 Switch housing 1
020 175-7532 Vacuum sensor with light 1
021 175-7533 Sensor tube 1
022 175-7534 RFI electrical filter 1
023 175-0027 25amp terminal strip 1
025 175-7536 Seal 1
026 175-7539 Screw kit 3 9/10 x 32mm (pkg of 20) 1
027 175-7537 Handle assembly 1 (includes 028 thru 031)
028 175-7538 Handle 1
029 175-7540 Screw kit 3 9/10 x 13 (pkg of 20) 1
030 175-7541 Handle tube with buttons (OBSOLETE) 1 (includes 031)
031 175-7542 Handle button assembly 1
032 175-7543 Front electrical panel assembly 1 (includes 033 thru 040)
033 175-7544 Spring 1
034 175-7545 Screw kit 3 1/2 x 16mm (pkg of 20) 1
035 175-7546 Lower cord hook 1
036 175-7548 Ring clip 1
037 175-7547 Handle frame 1
038 175-7549 Handle cover 1
039 175-7550 Screw kit 3 9/10 x 9 1/2 (pkg of 20) 1
040 175-7551 Screw kit 3 1/2 x 16 (pkg of 20) 1
041 175-7552 Filter grill (OBSOLETE) 1
042 175-7553 Exhaust filter (pkg of 10) 1
043 175-7554 Foam filter (OBSOLETE) 1
044 175-7555 HEPA filter 1
045 175-7556 Conveyor 1
046 175-7557 Motor protection filter 1
047 175-7558 Filter housing 1
048a 175-7559 Bag housing (teal) 1
048b 275-8007 Bag housing (black) 1
049 175-7561 Dusting brush 1
050 172-1453 Telescopic wand 1
051 175-7562 Crevice tool 1

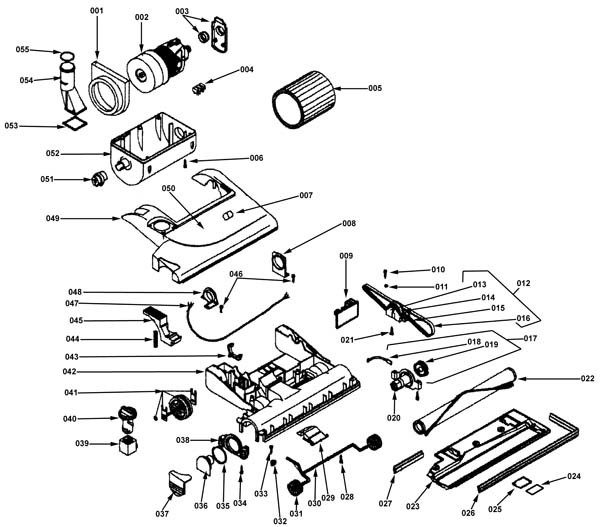

Power Head Assembly - 175-2291
RefNbr Part Number Description Req Notes
001 175-7564 Vacuum motor gasket 1
002 175-7565 120V vacuum motor with pulley 1
003 175-7566 Motor gasket and holder 1
004 175-7567 5 pole terminal block 1
005 175-7568 Vacuum motor filter (OBSOLETE) 1
006 175-7539 Screw kit 3 9/10 x 32mm (pkg of 20) 1
007 175-7569 Red and green lens kit (2 lenses) 1
008 175-7570 Left support 1
009 175-7571 Circuit board 1
010 175-7545 Screw kit 3 1/2 x 16mm (pkg of 20) 1
011 175-7572 Washer kit (pkg of 20) 1
012 175-7573 Transmission assembly 1 (includes 013 thru 016)
013 275-8010 Motor pulley assembly with bearings 1
014 175-7575 Pin (OBSOLETE) 1
015 175-7576 Support pulley 1
016 175-7577 Single motor timing belt 2
017 275-4625 Brush support assembly 1 (includes 018 and 019)
018 N/A Not available 1 (Speed sensor)
019 175-7579 Brush pulley with metal insert 1
020 175-7580 Drive clutch kit 1
021 175-7581 Screw kit 3 9/10 X 1 1/3mm (pkg of 20) 1
022a 175-7582 12 inch brush roller 1
022b 175-7583 15 inch brush roller 1
023a 175-7584 12 inch shoe with labels 1 (includes 024 and 025)
023b 175-7585 15 inch shoe with labels 1 (includes 024 and 025)
024 175-7586 Important decal 1
025 175-7587 Warning decal 1
026a 175-7588 12 inch front bumper 1
026b 175-7589 15 inch front bumper 1
027 175-7590 15 inch rear bumper 1
028 175-7591 Screw kit 4.8 x 13mm (pkg of 20) 1
029 175-7592 Cover 1
030 175-7593 Front axle 1
031 175-7594 Front wheel 2
032 175-7595 Cover clip kit (pkg of 20) 1
033 175-7596 Screw kit (pkg of 20) 1
034 175-7597 Screw kit (pkg of 20) 1
035 172-1489 O-ring 1
036 172-1479 Roller support 1
037 175-7600 Side cover 1
038 175-7601 Side support assembly with wheels 1
039 175-7602 Brush adjuster block 1
040 175-7603 Adjusting knob 1
041 175-7604 Rear wheel assembly 1
042a 175-7605 12 inch base 1
042b 175-7606 15 inch base 1
043 175-7607 Base lifting lever 1
044 175-7609 12 and 15 inch foot pedal kit 1
045 175-7609 12 and 15 inch foot pedal kit 1
046 175-7612 Screw kit 3.9 x 19mm (pkg of 20) 1
047 175-7613 Base cord 1
048 275-5787 Right hand support 1
049a 175-7615 12 inch cover with lens and labels (teal) 1
049b 175-7616 12 inch cover with lens and labels (black) (OBSOLETE) 1
049c 175-7617 15 inch cover with lens and labels (teal) 1
050 175-7618 3110 decal 1
051 175-7619 Latch pivot 1
052 175-7620 Vacuum motor housing 1
053 175-7622 Conveyor gasket 1
054 175-7621 Conveyor tube 1
055 175-7623 O-ring 1
N/S 175-7609 12 and 15 inch foot pedal kit 1 (includes 044 and 045)

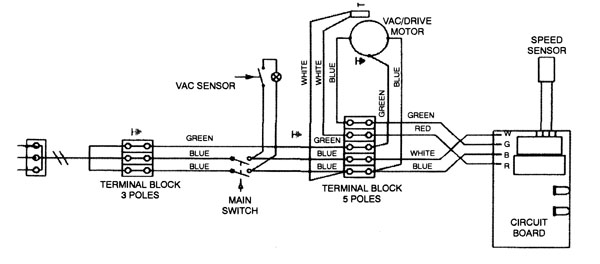

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Frequently Replaced Parts - 999-9934
RefNbr Part Number Description Req Notes
01 175-7529 18/3 power cord 50 foot (OBSOLETE) (OEM)
02 991-5007 18/3 replacement power cord 50 foot (black) (NON-OEM)
03 175-7526 Strain relief
04 175-7527 15amp main switch (OBSOLETE) (power)
05 175-7637 Timing belt (OBSOLETE)
06 275-8010 Motor pulley assembly with bearings
07 175-7583 15 inch brush roller
08 175-7632 120V brush motor
09 175-7624 120V vacuum motor with balancing disc
10 175-7557 Motor protection filter
11 175-7524 Extension hose (OBSOLETE) (before 12.2006) (Hose with handle has been discontinued)
13 175-7553 Exhaust filter (pkg of 10) (pkg of 10)
14 175-7554 Foam filter (OBSOLETE) (non-HEPA)
15 175-7555 HEPA filter
16 991-9011 Paper bags and filters (pkg of 10 and 2 filters) (pkg of 10 bags, 2 filters)
17 175-7523 Paper vacuum bags and filters (pkg of 8 bags/2 filters)
18 175-7546 Lower cord hook
19 175-7589 15 inch front bumper
