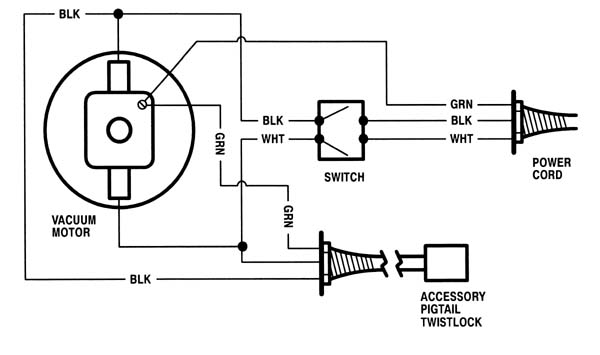

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

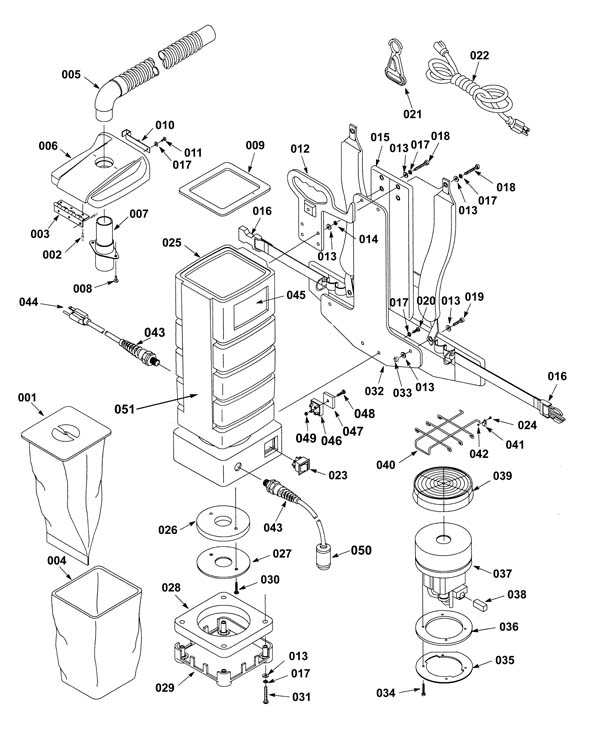

Chassis Assembly - 175-2989 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
175-0221 |
Cloth filter bag (OBSOLETE) |
1 |
|
| 001b |
175-0222 |
Enviro-filter paper bags (pkg of 10) |
1 |
OEM |
| 001c |
991-9020 |
Enviro-generic paper bags (pkg of 10) |
1 |
(NON-OEM) |
| 003 |
175-0223 |
Cover hinge |
1 |
|
| 004 |
175-0224 |
Secondary filter bag (OBSOLETE) |
1 |
|
| 005 |
175-0225 |
Hose 1 1/2 x 50 inch with 90 degree cuff (OBSOLETE) |
1 |
|
| 006 |
175-4397 |
Cover (teal) |
1 |
|
| 007 |
175-0050 |
Hose adapter |
1 |
|
| 008 |
999-0999 |
Screw 10-24 x 3/8 truss head phillips stainless steel |
1 |
|
| 009 |
175-0227 |
Cover gasket |
2 |
|
| 011 |
175-4398 |
Screw M5-.8 x 10mm phillips truss head zinc |
1 |
|
| 013 |
999-0393 |
Washer 3/16 flat aluminum |
16 |
|
| 015 |
175-0231 |
Harness assembly (OBSOLETE) |
1 |
|
| 016 |
175-0232 |
Belt buckle |
1 |
|
| 017 |
999-0053 |
Washer #10 split lock plain finish |
11 |
|
| 018 |
999-1031 |
Screw 10-24 x 1 truss head phillips stainless steel |
4 |
|
| 019 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
2 |
|
| 020 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
2 |
|
| 021 |
175-0236 |
Cord belt clip |
1 |
|
| 022a |
175-6091 |
16/3 extension cord 50 foot (yellow) |
1 |
(OEM) |
| 022b |
991-5002 |
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
| 022c |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 022d |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 023 |
175-0006 |
Rocker switch |
1 |
|
| 024 |
175-0238 |
Screw 8-32 x 1/2 (OBSOLETE) |
2 |
|
| 025 |
175-4399 |
Housing (teal) |
1 |
|
| 026 |
175-0241 |
Insulation foam (OBSOLETE) |
1 |
|
| 027 |
175-0242 |
Baffle plate |
1 |
|
| 028 |
175-0243 |
Vacuum motor filter (OBSOLETE) |
1 |
|
| 029 |
175-0244 |
Base plate |
1 |
|
| 030 |
999-1212 |
Screw 10-32 x 1/2 hex head stainless steel |
2 |
|
| 031 |
999-1195 |
Screw 10-24 x 1 1/4 round head phillips zinc plated |
4 |
|
| 032 |
175-0246 |
Back plate (OBSOLETE) |
1 |
|
| 033 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 034 |
999-1217 |
Screw 10-24 x 1 3/4 indented hex head unslotted zinc |
4 |
|
| 035 |
175-0248 |
Ring with tab |
1 |
|
| 036 |
175-0249 |
Vacuum motor gasket |
1 |
|
| 037a |
175-0252 |
120V vacuum motor |
1 |
(for 3000 model includes 037a and 038a) |
| 037b |
175-0252 |
120V vacuum motor |
1 |
(for 3040 and 3050 models includes 037b and 038b or 038c) |
| 038a |
175-0251 |
Carbon brush (pkg of 2) |
1 |
|
| 038b |
275-5835 |
Carbon brush (pkg of 2) |
11 |
|
| 038c |
175-0261 |
Rectifier kit |
1 |
(for 400Hz machine) |
| 039 |
991-5119 |
Vacuum motor filter |
1 |
|
| 040 |
175-0254 |
Wire bag support |
1 |
|
| 042 |
999-0151 |
Nut 8-32 nylon insert lock zinc plated |
2 |
|
| 043 |
175-0001 |
Strain relief |
2 |
|
| 044 |
175-1522 |
16/3 pigtail cord 18 inch |
1 |
|
| 045a |
175-4402 |
3000 decal |
2 |
|
| 045b |
175-4403 |
3040 decal |
2 |
|
| 045c |
175-4404 |
3050 decal |
2 |
|
| 046 |
175-0261 |
Rectifier kit |
1 |
|
| 047 |
175-0262 |
Heat sink plate |
1 |
|
| 048 |
999-0102 |
Screw 6-32 x 1 round head slotted zinc plated |
1 |
|
| 049 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
1 |
|
| 050 |
175-0260 |
Pigtail with twistlock |
1 |
|
| 051 |
275-5247 |
Explosion/fire/shock warning decal |
1 |
|
|
|

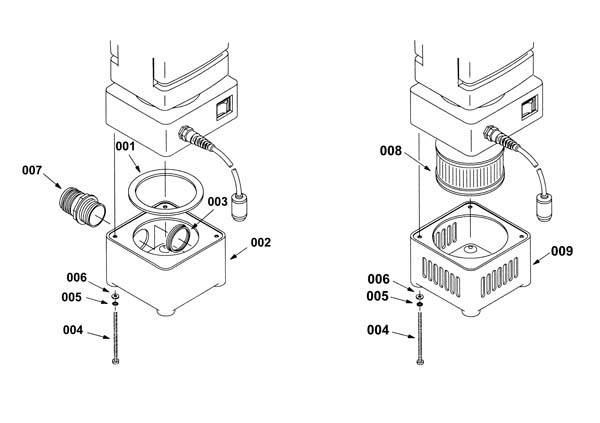

Filter Assembly - 175-2991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-0201 |
Blower gasket |
1 |
|
| 002 |
175-1779 |
Blower attachment housing (OBSOLETE) |
1 |
|
| 003 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 004 |
175-0202 |
Screw 10-24 x 4 1/2 |
4 |
|
| 005 |
999-0053 |
Washer #10 split lock plain finish |
4 |
|
| 006 |
999-0393 |
Washer 3/16 flat aluminum |
4 |
|
| 007 |
175-0203 |
Hose barb fitting |
1 |
|
| 008 |
175-0280 |
HEPA filter |
1 |
|
| 009 |
175-0281 |
HEPA attachment housing |
1 |
|
| N/S |
175-0200 |
Blower attachment kit |
1 |
(includes 001- 007, with a quantity of 4 each of 004-006) |
| N/S |
175-0279 |
HEPA filter attachment kit |
1 |
(includes 004-009, with a quantity of 4 each of 004-006) |
|
|

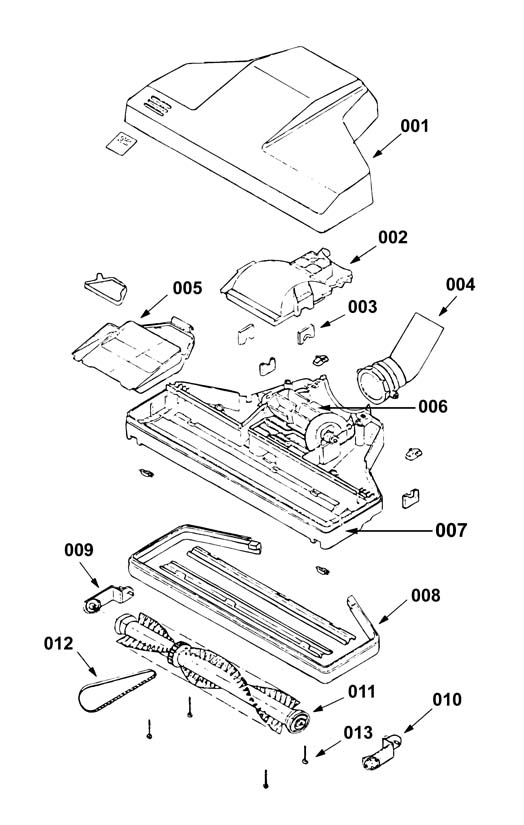

Base Assembly - 175-2992 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
175-0267 |
Turbine housing |
1 |
|
| 003 |
175-0268 |
Elastic bushing (OBSOLETE) |
1 |
|
| 004 |
175-0269 |
Swivel elbow |
1 |
|
| 005 |
175-0270 |
Cleaning flap |
1 |
|
| 007 |
175-0272 |
Base plate |
1 |
|
| 008 |
175-0273 |
Bumper guard (OBSOLETE) |
1 |
|
| 009 |
175-0274 |
Right brush arm assembly |
1 |
|
| 010 |
175-0275 |
Left brush arm assembly |
1 |
|
| 011 |
175-0276 |
Brush roller |
1 |
|
| 012 |
175-0277 |
Drive belt |
1 |
|
| N/S |
175-0265 |
Turbo brush attachment assembly |
1 |
(includes 001-013) |
|
|

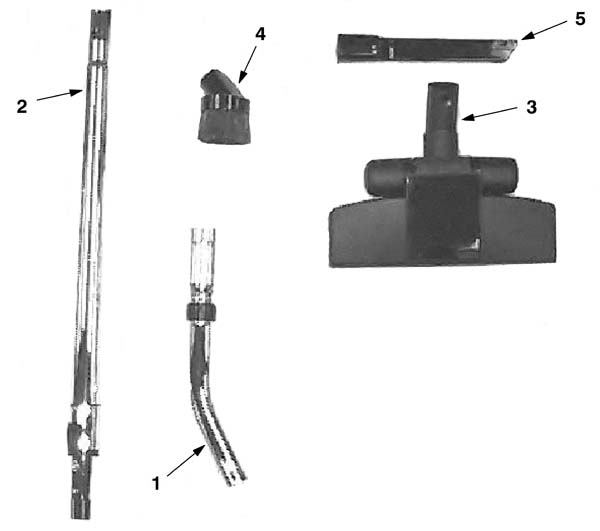

Standard Tool Assembly - 175-2993 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-4383 |
Hose end (chrome) (OBSOLETE) |
1 |
|
| 002a |
175-0220 |
Telescopic wand with button lock |
1 |
(OEM) |
| 002b |
991-5111 |
Telescopic wand with button lock |
1 |
(NON-OEM) |
| 003 |
175-3598 |
Pickup tool |
1 |
|
| 004 |
175-4384 |
Dusting brush |
1 |
|
| 005 |
175-0039 |
Crevice tool (OBSOLETE) |
1 |
|
| N/S |
175-4382 |
Standard attachment tool kit |
1 |
(includes 001-005) |
|
|
- Frequently Replaced Parts - 999-9937 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
175-1522 |
16/3 pigtail cord 18 inch |
|
|
| 02 |
991-5002 |
16/3 extension cord 50 foot (orange) |
|
|
| 03 |
175-0006 |
Rocker switch |
|
(power) |
| 04 |
175-0221 |
Cloth filter bag (OBSOLETE) |
|
|
| 05a |
175-0222 |
Enviro-filter paper bags (pkg of 10) |
|
(pkg of 10) |
| 05b |
991-9020 |
Enviro-generic paper bags (pkg of 10) |
|
|
| 06 |
991-5119 |
Vacuum motor filter |
|
|
| 07 |
175-0243 |
Vacuum motor filter (OBSOLETE) |
|
|
| 08 |
175-0231 |
Harness assembly (OBSOLETE) |
|
|
| 09 |
175-0225 |
Hose 1 1/2 x 50 inch with 90 degree cuff (OBSOLETE) |
|
|
|
|
