Parts List Complete for TENNANT 1520


Solution and Vacuum Hose Assembly - 175-3180
RefNbr Part Number Description Req Notes
1a 175-3586 15 foot solution hose assembly 1 (includes 2-4)
1b 175-3587 25 foot solution hose assembly 1 (includes 2-4)
1c 175-3588 50 foot solution hose assembly 1 (includes 2-4)
1d 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male 1 (NON-OEM)
2 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
3 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
4 175-6244 Nipple 2
5a 175-3589 15 foot vacuum hose assembly 1 (includes 6)
5b 175-3590 25 foot vacuum hose assembly 1 (includes 6)
5c 175-3591 50 foot vacuum hose assembly 1 (includes 6)
6 175-6269 1 1/2 inch hose cuff (OBSOLETE) 2
7 175-8758 Connector 1
N/S 175-2646 Hose bag with draw string 1

Low Pressure Upholstery Tool Assembly - 175-6128
RefNbr Part Number Description Req Notes
000 175-4855 Low pressure upholstery tool assembly 1 (includes 001-014)
001 175-4856 Upholstery tool cover 1
002 175-4857 Gasket 1
003 175-4858 Valve assembly 1
004 175-4859 Solution valve 1
005 175-4860 Nozzle 1
006 175-4861 Screw 6-32 x 3/4 inch 4
007 175-4862 Trigger 1
008 175-4863 Vacuum hose without cuffs 1
009 175-4864 Solution hose 1
010 175-4865 Fitting 1
011 175-4866 Inline filter assembly 1
012 175-4867 Filter screen 1
013 175-6239 1/4 inch nipple 1
014 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1

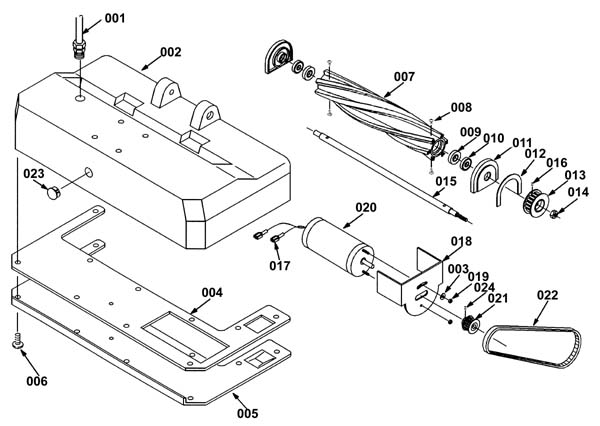

Brush Base Assembly - 175-6170
RefNbr Part Number Description Req Notes
001 175-4816 Interconnect cord 1
002 175-4316 22 inch base 1
003 999-9100 Washer M5 flat stainless steel 1
004 175-4317 Base plate gasket 1
005 175-4818 Base plate 1
006a 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 11
006b 175-4023 Brush assembly with bearings - CYLINDRICAL 1
007 175-4319 Brush - CYLINDRICAL 1
008 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
009 175-6134 Brush bearing seal 2
010a 175-0069 Brush bearing 2 (OEM)
010b 991-5125 Brush bearing 2 (NON-OEM)
011 175-6133 Bearing block 2
012 175-6143 Bearing block gasket 1
013 175-4321 Brush pulley 1
014 999-1019 Nut 5/16-18 hex jam stainless steel 1
015 175-4322 Brush shaft 1
016 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
017 175-0923 Male terminal 2
018 175-4324 Brush motor bracket 1
019 999-0239 Nut 10-32 k-lock zinc plated 2
020 175-4817 120V brush motor (OBSOLETE) 1
021 175-4326 Motor pulley 1
022 175-4327 Timing belt 1
023 275-7479 PLUGBTN, BLACKNYL (Tennant Industrial) 1
024 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1

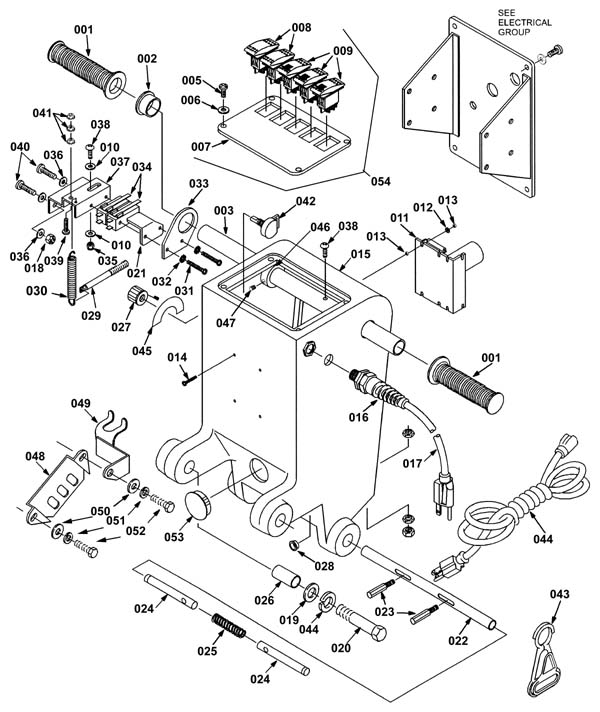

Console Assembly - 175-6171
RefNbr Part Number Description Req Notes
001a 675-9894 Handle grip 2
001b 991-8571 Handle grip 2
002 175-3093 Flanged bushing 1
003 175-3094 Handle tube 1
004 999-0126 Washer 1/2 split lock 2
005 999-1040 Screw M3-.5 x 20mm pan head 4
006 999-0053 Washer #10 split lock plain finish 4
007a 175-4820 Switch panel (OBSOLETE) 1 included in 054
007b 175-4821 Wire main harness (OBSOLETE) 1 included in 054
008 175-4822 Rocker switch 2 included in 054
009 175-4823 Lighted rocker 120v switch 3 included in 054
010 999-0006 Washer 3/16 flat zinc plated 2
011 175-4824 Board control 120v (OBSOLETE) 1
012 999-0377 Washer 6 SAE flat plain finish 4
013 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 8
014 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated 4
015 175-4825 Control housing (teal) 1
016 175-0340 Strain relief 1
017 175-6218 14/3 pigtail cord 34 inch (yellow) 1
018 999-0497 Nut M6-1 nylon insert lock stainless steel 2
019 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
020 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel 2
021 175-3122 Switch plate 1
022 175-3108 Handle adjustment tube 1
023 175-2710 Handle adjustment pin 2
024 175-3109 Handle locking pin 2
025 175-2712 Spring 1
026 175-2714 Bushing 2
027 175-1163 Speed control knob 1
028 175-3111 Snap bushing 1
029 175-3112 Spring return pin 1
030 175-3113 Extension spring 1
031 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc 2
032 999-0148 Washer #6 external star lock zinc plated 2
033 175-3115 Switch bracket 1
034a 175-3116 Snap switch 2
034b 991-5121 Charger interlock switch (OBSOLETE) 2 (NON-OEM)
035 999-0442 Nut 10-24 nylon insert lock stainless steel 1
036 175-1895 Carbon brush set for 802 watt motor 4
038 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 2
039 175-1851 Sound/exhaust assembly 1
040 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
041 999-0356 Nut 10-24 lock stainless steel 3
042a 175-2715 Potentiometer kit (OBSOLETE) 1
042b 172-2039 5K potentiometer 1 Potentiometer only
043 175-0236 Cord belt clip 1
045 175-1169 Speed control decal 1
046 175-1168 Handle collar 2
047 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
048 175-2728 Locking plate 2
049 175-2729 Hose hanger bracket 1
050 999-0024 Washer 5/16 flat stainless steel 4
052 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
053 175-4826 Dome plug 1
054 175-4819 Switch panel assembly (OBSOLETE) 1
37 175-3117 Switch mount 1

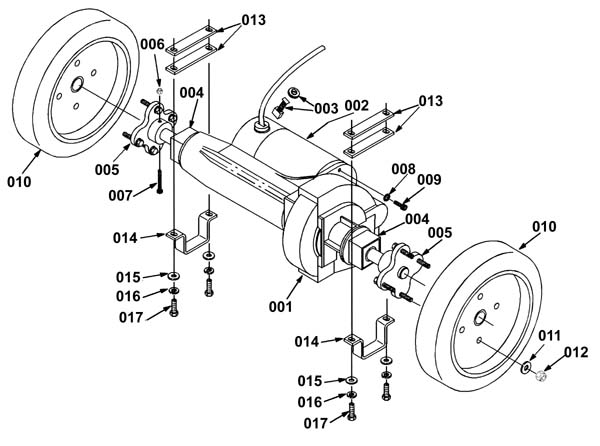

Drive Assembly - 175-6173
RefNbr Part Number Description Req Notes
001a 175-4833 Transaxle assembly 1
001b 175-3654 Transaxle body 1 included in 001a
001c 175-3655 Transaxle coupling 1 included in 001a
001d 175-3656 Transaxle key 1 included in 001a
002 175-4834 Transaxle motor 1
003 175-4835 Carbon kit brush 2
004 175-3660 Transaxle sleeve 2
005 275-5229 Transaxle wheel hub with retainer 2
006 999-0442 Nut 10-24 nylon insert lock stainless steel 2
007 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 2
008 999-0238 Washer 1/4 internal star lock zinc plated 2
009 N/A Not available 2 Screw 1/4-20 x 3/4 socket
010 175-4347 Wheel 2
011 175-1895 Carbon brush set for 802 watt motor 8
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
013 175-3666 Axle spacer 4
014 175-3667 Transaxle MTG bracket 2
015 999-0617 Washer 3/8 x 1 flat stainless steel 4
016 999-1081 Washer M10 split lock stainless steel 4
017 175-3019 Screw M10 x 35mm 4

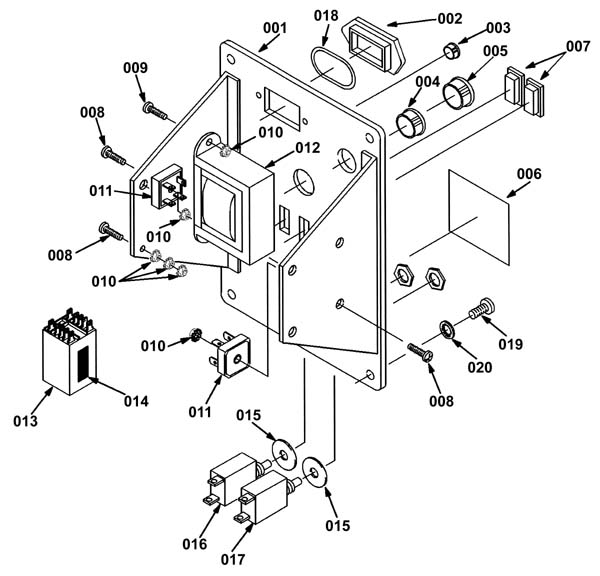

Electrical Assembly - 175-6174
RefNbr Part Number Description Req Notes
001 175-0297 Control panel housing 1
002 175-3646 Hour meter plug 1
003 175-2701 Plug 1
004 175-3126 Plug 1
005 175-3127 Plug 1
006 275-2369 Flammable material decal 1
007 N/A Not available 2 (Vacuum motor hose)
008 172-1851 Plastic hose with coupling (OBSOLETE) 3
009 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 2
010 999-0356 Nut 10-24 lock stainless steel 7
011 175-6052 15amp rectifier 2
012 175-4837 Transformer 120v (OBSOLETE) 1
013 175-4030 Complete wallbumpers, right side (OBSOLETE) 1
014 175-0287 Acrylic foam tape 1 inch x 1 foot 1
015 999-0617 Washer 3/8 x 1 flat stainless steel 2
016 175-4839 Circuit breaker 4.5a 1
017 275-5777 2amp circuit breaker 1
018 175-3144 O-ring 1
019 999-1040 Screw M3-.5 x 20mm pan head 4
020 999-0053 Washer #10 split lock plain finish 4

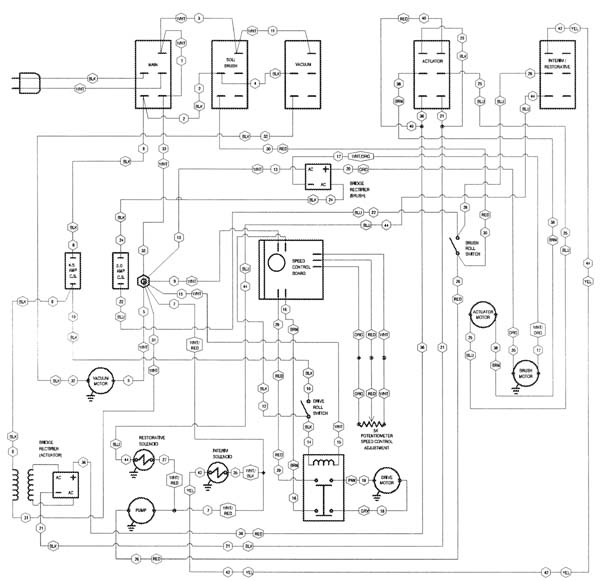

Ladder Diagram -

RefNbr Part Number Description Req Notes

Lift Assembly - 175-6177
RefNbr Part Number Description Req Notes
001 175-4842 Base plate 1
002 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel 2
003 999-0617 Washer 3/8 x 1 flat stainless steel 8
004 999-1081 Washer M10 split lock stainless steel 4
005 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel 4
006 275-4594 Actuator bracket 1
007 999-0024 Washer 5/16 flat stainless steel 10
008 999-0553 Washer 5/16 medium split lock stainless steel 8
009 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
010 999-1566 Screw 3/8-16 x 4 3/4 hex head zinc plated 2
011 175-0228 Hose cuff (black) 1
012 175-4844 Vacuum hose 1 1/2 x 15 inch with cuff 1
013 175-4545 Vacuum tube (OBSOLETE) 1
014 999-0016 Washer 1/4 flat plain finish 3
015 999-0632 Washer 1/4 split lock stainless steel 11
016 999-0436 Bolt M6-1 x 10mm hex head full thread zinc (350B) 3
017 175-2603 Female disconnect terminal (red) 2
018 175-3010 Actuator 1
019 175-3012 Clevis pin 2
020 175-5080 Cotter pin 2
021 999-1208 Nut 1/2-13 nylon insert lock stainless steel 3
022 999-0559 Washer 1/2 x 1/4 flat stainless steel 17
023 175-4846 Spring bracket 1
024 175-3023 Bushing 8
025 999-0126 Washer 1/2 split lock 6
026 999-1223 Screw M12-1.75 x 25mm hex head stainless steel 6
027 175-6156 Screw 3/8 x 3/4 shoulder 4
028 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
029 175-4847 Actuator lifting plate 1
030 999-0024 Washer 5/16 flat stainless steel 2
031 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
032 175-4848 Lifting bracket 1
033 175-4849 Carpet tool mounting bracket 1
034 175-4850 Spring 1
035 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
036 175-0955 Screw 5/16-18 x 2 1/2 2
037 999-0553 Washer 5/16 medium split lock stainless steel 4
038 175-4851 22 inch carpet tool 1
039 175-4852 Leveling bracket 1
040 175-3067 Vacuum hose 1 1/2 x 30 inch with cuffs 1
041 175-4853 Mounting bracket 1
042 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
043 175-2743 Sleeved bushing 2
044 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
045 175-4854 Bumper wheel bracket 1
046 991-2013 Wheel 8
047 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 4
048 175-3005 P clamp 2
049 175-3648 Shoulder bolt (Tennant industrial) 2
050 999-0032 Washer 3/8 USS flat plain finish 2

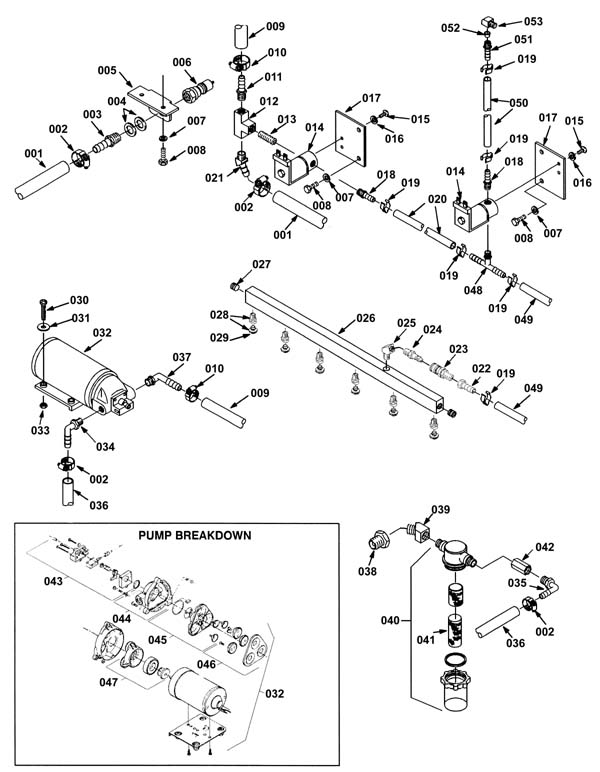

Plumbing Assembly - 175-6181
RefNbr Part Number Description Req Notes
001 175-4868 Hose 3/8 x 24 1/2 inch (gray) 1
002 175-6081 Hose clamp 4
003 175-2613 Straight brass fitting 1
004 175-1825 Washer 2
005 175-4869 Mounting bracket 1
006 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
007 999-0632 Washer 1/4 split lock stainless steel 8
008 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 6
009 175-4870 Hose 1
010 175-0199 Hose clamp 2
011 175-6030 Straight hosebarb 1
012 175-6253 1/4 inch brass tee 1
013 175-6244 Nipple 1
014a 175-6025 Solution solenoid valve 2 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
014b 991-8598 Replacement plunger with spring for solenoid valve 1
015 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
016 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
017 N/A Not available 2 Solenoid bracket
018 175-6024 Hosebarb 3
019 175-6170 Hose clamp 6
020 175-4872 Hose 1/4 x 18 inch (OBSOLETE) 1
021 175-3061 Hosebarb 1
022 175-3529 Brass fitting 1
023a 175-1652 1/8 inch female brass quick coupler 1
023b 175-4873 Spray bar assembly 1
024 175-1684 Quick disconnect fitting 1
025 175-6041 Elbow 1/8 x 1/8 inch 1
026 175-1786 22 inch spraybar 1
027 175-6121 Brass plug 2
028 175-6118 Spray tip assembly 6
029 175-3535 Brass spray tip 6
030 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated 2
031 999-0006 Washer 3/16 flat zinc plated 2
032a 175-6011 120V 100 PSI pump 1
032b 175-0923 Male terminal 1
032c 991-8225 Shurflo pump 1
033 999-0442 Nut 10-24 nylon insert lock stainless steel 2
034 175-6019 90 degree barbed elbow 1
035 175-2844 90 degree elbow fitting 1
036 175-7292 Vinyl tubing 3/8 x 30 inch (gray) 1
037 175-6016 Elbow 1
038 175-1944 Brass bushing 1
039 175-6031 Straight jet fitting 1
040 175-6249 Inline filter 1
041 175-4311 Mesh filter screen 1
042 175-4875 Coupling fitting 1
043a 175-6003 Pressure switch kit 1
043b 175-6004 Viton pressure switch kit 1
043c 175-6005 Shurflo diaphragm switch kit 1
044a 175-6006 Upper pump housing kit 1
044b 175-6007 Check valve kit 1
045 175-6008 Viton valve kit 1
046 175-6009 Shurflo valve kit 1
047 175-6010 Lower pump housing kit 1
048 175-4876 PVC hose 1/4 x 12 inch (gray) 1
049 175-1928 Plastic tee fitting 1
050 175-4877 Hose 1/4 x 9 1/2 inch (gray) 1
051 175-1655 Adapter fitting 1
052 175-4878 Plug fitting 1
053 175-2614 90 degree elbow fitting 1

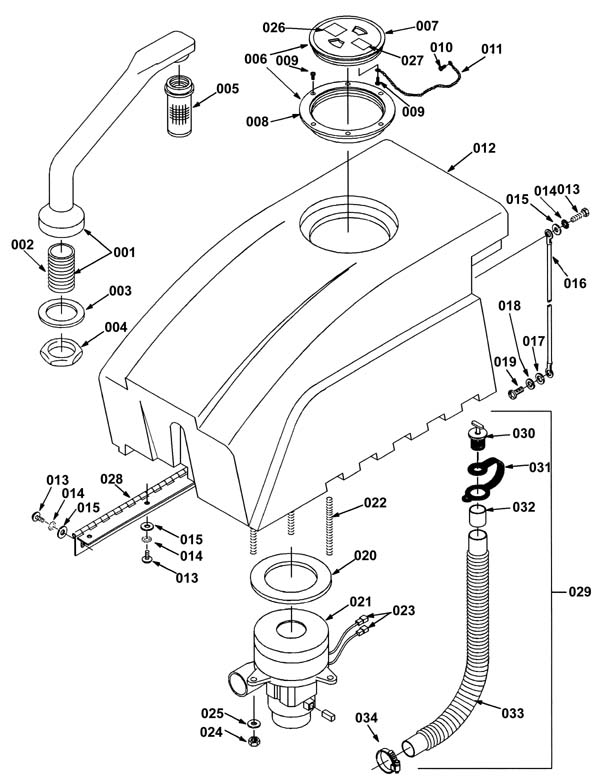

Recovery Tank Assembly - 175-6182
RefNbr Part Number Description Req Notes
001 175-2998 Standpipe with nipple assembly 1
002 175-2639 1 1/2 inch nipple fitting 1
003 175-2640 Gasket 1
004 175-2907 Nut 1 1/2 flanged hex 1
005a 675-9887 Shut-off float 1 (OEM)
005b 991-5136 Shut-off float 1 (NON-OEM)
006 164-0202 Tank lid assembly 1
007a 164-0044 Tank lid (clear) 1
007b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
008 164-0205 Tank lid ring (black) 1
009 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 7
010 999-0434 Screw 6 x 3/8 pan head phillips 1
011 175-2650 Chain 1
012 175-4879 Recovery tank teal 1
013 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 12
014 999-1024 Washer 1/4 external tooth lock stainless steel 12
015 999-0016 Washer 1/4 flat plain finish 15
016 175-2651 Support cable 1
017 999-0024 Washer 5/16 flat stainless steel 1
018 999-0553 Washer 5/16 medium split lock stainless steel 1
019 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
020 175-6085 Gasket 1
021a 175-0198 120V 3 stage vacuum motor 1
021b 175-6086 Carbon brush (pkg of 2) 2
021c 991-1213 120V 3 stage vacuum motor tangential 1 (NON-OEM)
022 175-3641 Stud 3
023 175-0142 1/4 inch male terminal 2
024 999-0497 Nut M6-1 nylon insert lock stainless steel 3
025 999-0016 Washer 1/4 flat plain finish 3
026 175-6107 Always drain decal 1
027 275-2370 Read manual decal 1
028 175-3001 Recovery tank hinge 1
029 175-4671 Drain hose assembly (OBSOLETE) 1
030 175-2653 1 1/2 inch expansion plug 1
031 175-2654 Drain hose strap 1
032 175-2655 Drain hose sleeve 1
033 175-2656 Drain hose 1
034 175-2057 Hose clamp 1

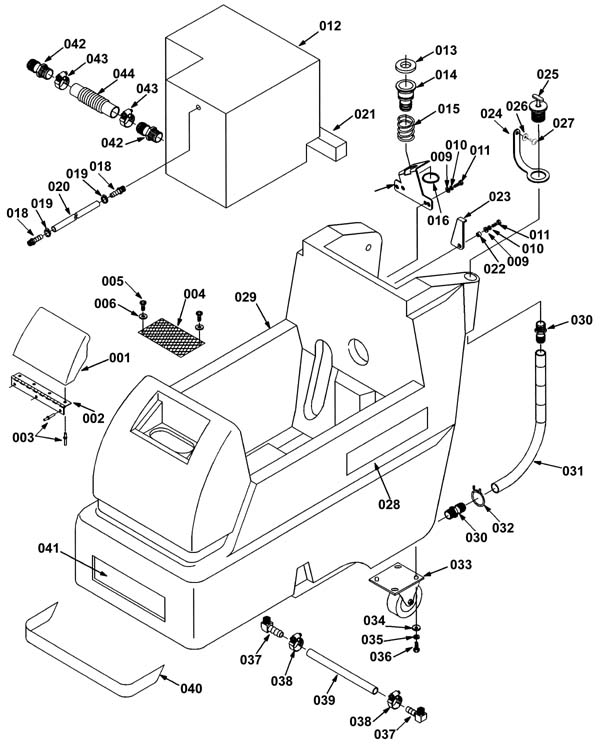

Solution Tank Assembly - 175-6184
RefNbr Part Number Description Req Notes
001 175-6638 Teal solution tank cover 1
002 175-3633 Hinge 1
004 175-2666 Screen filter 1
005 999-0434 Screw 6 x 3/8 pan head phillips 2
006 999-1158 Washer #6 flat stainless steel 2
007 175-2728 Locking plate 2
008 175-2729 Hose hanger bracket 1
009 999-0024 Washer 5/16 flat stainless steel 3
010 999-0553 Washer 5/16 medium split lock stainless steel 3
011 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
012 175-4884 Solution tank 10 gallon (OBSOLETE) 1
013 675-9895 Vacuum motor gasket 1
014 175-3635 Transition tube 1
015 175-4353 Compression spring 1
016 175-4355 Retaining ring 1
017 175-3636 Vacuum tube bracket 1
018 175-2613 Straight brass fitting 2
019 175-6081 Hose clamp 2
020 175-4885 Hose 3/8 x 8 1
021 175-4886 Counterweight 34 lbs (OBSOLETE) 1
022 175-2673 Bushing 1
023 175-2672 Recovery tank support 1
024 175-2984 Plug strap (OBSOLETE) 1
025 175-2653 1 1/2 inch expansion plug 1
026 999-0393 Washer 3/16 flat aluminum 1
027 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
028 175-4887 Decal 1520 (OBSOLETE) 2
029 175-4888 Solution tank teal (OBSOLETE) 1
030 175-2676 Barbed fitting 2
031 175-3637 Drain hose with level indicator 1
032 175-2678 Hose clamp 1
033a 175-2991 4 inch caster wheel 2 (OEM)
033b 991-2016 4 inch caster wheel 2 (NON-OEM)
034 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
035 999-1081 Washer M10 split lock stainless steel 8
036 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel 8
037 175-2997 Elbow 2
038 175-6081 Hose clamp 2
039 175-4889 Hose 3/8 x 17 1/2 inch 1
040 175-4890 Recess decal (OBSOLETE) 1
041 175-4891 Tennant decal 1
042 175-6258 Nylon hosebarb (OBSOLETE) 2
043 175-2678 Hose clamp 2
044 175-4892 Drain hose (OBSOLETE) 1

Wiring Diagram - 120V -

RefNbr Part Number Description Req Notes

Low Pressure Wand Assembly - 275-2221
RefNbr Part Number Description Req Notes
0a 175-3563 13 inch low pressure wand assembly 1 (Includes 1a, 2-3a, 4-19b, 20-26)
0b 175-4314 16 inch low pressure wand assembly 1 (Includes 1b-2, 3b-18, 19c-26)
1a 175-1810 13 inch floor tool 1
1b 175-4299 16 inch floor tool 1
2 175-3564 Low pressure tool decal 1
3a 175-1321 13 inch pick-up shoe plate stainless steel 2
3b 175-6146 16 inch pick-up shoe plate stainless steel 2
4 175-1812 Handle assembly (OBSOLETE) 1 (Includes 5-7)
5 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 2
6 175-1813 Foam grip 1
7 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 2
8 175-1816 Handle sleeve 1
9 175-1815 Trigger 1
10 175-1817 Handle pin 1
11 175-1818 Nut 1/4 push 2
12 175-6031 Straight jet fitting 1
13 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
14 175-1819 Manual valve assembly 1 (includes 15)
15 175-1820 Valve pin and spring kit 1
16 175-3565 Solution hose assembly 1
17 175-6239 1/4 inch nipple 1
18 175-1825 Washer 1
19a 175-1826 Spray bar without tips for 13 inch wand 1 (includes 19b, 20-22)
19b 175-1829 Tee fitting 1
19c 175-4313 Spray bar without tips for 16 inch wand 1 (includes 19d-22)
19d 175-6253 1/4 inch brass tee 1
19e 175-6029 Straight tee 2
20 175-6015 Nipple 2
21 175-6248 90 degree elbow 2
22 175-1830 1/4 inch male spray body 3 (qty 4 for 16 inch)
23 175-1802 Mesh screen filter 3 (qty 4 for 16 inch)
24 175-3566 T-jet tip fitting 3 (qty 4 for 16 inch)
25 175-1834 Spray nozzle cap 3 (qty 4 for 16 inch)
26 175-6244 Nipple 1

Hand Tool Assembly - 5 Inch - 275-4171
RefNbr Part Number Description Req Notes
0 175-3567 5 inch hand tool assembly 1 (Includes 1-12)
1 175-3568 5 inch hand tool 1
2 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
3 175-6239 1/4 inch nipple 2
4 175-3569 Hand tool trigger 1
5 175-3570 Valve 1
7 175-4841 Roll pin 1
8 175-6031 Straight jet fitting 1
9 175-3572 Spray body 1
10 175-1802 Mesh screen filter 1
11 175-3573 Spray tip 1
12 175-1834 Spray nozzle cap 1

Hand Tool Assembly - 3 inch - 275-4172
RefNbr Part Number Description Req Notes
000 175-4827 3 inch crevice tool assembly 1 (Includes 001-007)
001 175-4828 3 inch crevice tool 1
002 175-4829 Brass v-jet fitting 1
003 175-1939 Ball valve 1
004 175-4830 Valve handle 1
005 175-4831 Solution hose 1
006 175-4832 Straight fitting 1
007 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1

- Extractor Fit All Parts - 999-9400
RefNbr Part Number Description Req Notes
001a 991-8000 12 inch stainless head wand, 1 jet 120 PSI plastic valve (wands)
001b 991-8001 12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) (wands)
001c 991-8002 12 inch aluminum head wand, 3 jet, 120 PSI plastic valve (wands)
001d 991-8227 500psi brass valve (wands)
002a 991-8222 30 inch stair wand (open spray) (stair wand)
002b 991-8223 30 inch swivel head ergonomic stair wand (open spray) (stair wand)
004 991-8129 Handle 1-1/2 inch low profile comfort grip assist (wands)
005a 991-8128 120 PSI, acetel plastic valve, low heat 140 degrees (wands)
005b 991-8127 120 PSI, brass valve, stainless steel stem (wands)
005c 991-8226 Valve
005d 991-8171 400psi cast aluminum valve
007 991-8130 3-1/2 inch wide 120 PSI standard detailer, external spray (wands)
008 991-8132 10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
009 991-8133 20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
010 991-8136 10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml (hose assemblies and parts)
011 991-8137 20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml (hose assemblies and parts)
012 991-8134 10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi (hose assemblies and parts)
013 991-8135 20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings (hose assemblies and parts)
014 991-8138 10ft 100psi vac/sol hose assembly w/ 1/4 male fittings (hose assemblies and parts)
015 991-8139 20ft 100psi vac/sol hose assembly with male fittings (hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI)
016 991-8142 10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
017 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
018 991-8140 10ft 100psi vac/sol hose assembly w/ 1/4 female fittings (hose assemblies and parts)
021 991-8004 1 1/2 inch vacuum hose (sold by the foot) (hose assemblies and parts)
022 991-8005 1 1/2 inch replacement hose cuff (black) (hose assemblies and parts)
023 991-8131 1 1/2 inch hide-a-hose cuff (no swivel) (hose assemblies and parts)
026 991-8045 1/8 inch brass vee jet 8001 (1/8 brass vee jet)
027 991-8046 1/8 inch brass vee jet 8001.5 (1/8 brass vee jet)
028 991-8047 1/8 inch brass vee jet 8002 (1/8 brass vee jet)
029 991-8048 1/8 inch brass vee jet 8003 (1/8 brass vee jet)
030 991-8049 1/8 inch brass vee jet 8004 (1/8 brass vee jet)
031 991-8050 1/8 inch brass vee jet 8005 (OBSOLETE) (1/8 brass vee jet)
032 991-8051 1/8 inch brass vee jet 8006 (1/8 brass vee jet)
033 991-8052 1/8 inch brass vee jet 8008 (1/8 brass vee jet)
034 991-8053 1/8 inch brass vee jet 8010 (1/8 brass vee jet)
035 991-8054 1/8 inch brass vee jet 9502 (1/8 brass vee jet)
036 991-8055 1/8 inch brass vee jet 9503 (1/8 brass vee jet)
037 991-8056 1/8 inch brass vee jet 9504 (1/8 brass vee jet)
038 991-8057 1/8 inch brass vee jet 9505 (1/8 brass vee jet)
039 991-8058 1/8 inch brass vee jet 9506 (1/8 brass vee jet)
040 991-8059 1/8 inch brass vee jet 9508 (1/8 brass vee jet)
041 991-8060 1/8 inch brass vee jet 11001 (1/8 brass vee jet)
042 991-8061 1/8 inch brass vee jet 11001.5 (1/8 brass vee jet)
043 991-8062 1/8 inch brass vee jet 11002 (1/8 brass vee jet)
044 991-8063 1/8 inch brass vee jet 11003 (1/8 brass vee jet)
045 991-8064 1/8 inch brass vee jet 11004 (1/8 brass vee jet)
046 991-8065 1/8 inch brass vee jet 11005 (1/8 brass vee jet)
047 991-8066 1/8 inch brass vee jet 11006 (1/8 brass vee jet)
048 991-8067 1/8 inch brass vee jet 11008 (1/8 brass vee jet)
049 991-8068 1/8 inch brass vee jet 11010 (1/8 brass vee jet)
050 991-8021 1/4 inch brass vee jet 8001 (1/4 brass vee jet)
051 991-8022 1/4 inch brass vee jet 8001.5 (1/4 brass vee jet)
052 991-8023 1/4 inch brass vee jet 8002 (1/4 brass vee jet)
053 991-3005 1/4 inch brass vee jet 8003 (1/4 brass vee jet)
054 991-8025 1/4 inch brass vee jet 8004 (1/4 brass vee jet)
055 991-8026 1/4 inch brass vee jet 8005 (1/4 brass vee jet)
056 991-8027 1/4 inch brass vee jet 8006 (1/4 brass vee jet)
057 991-8028 1/4 inch brass vee jet 8008 (1/4 brass vee jet)
058 991-8029 1/4 inch brass vee jet 8010 (1/4 brass vee jet)
059 991-8030 1/4 inch brass vee jet 9502 (1/4 brass vee jet)
060 991-8031 1/4 inch brass vee jet 9503 (1/4 brass vee jet)
061 991-8032 1/4 inch brass vee jet 9504 (1/4 brass vee jet)
062 991-8033 1/4 inch brass vee jet 9505 (1/4 brass vee jet)
063 991-8034 1/4 inch brass vee jet 9506 (1/4 brass vee jet)
064 991-8035 1/4 inch brass vee jet 9508 (1/4 brass vee jet)
065 991-8036 1/4 inch brass vee jet 11001 (1/4 brass vee jet)
066 991-8037 1/4 inch brass vee jet 11001.5 (1/4 brass vee jet)
067 991-8038 1/4 inch brass vee jet 11002 (1/4 brass vee jet)
068 991-8039 1/4 inch brass vee jet 11003 (1/4 brass vee jet)
069 991-8040 1/4 inch brass vee jet 11004 (1/4 brass vee jet)
070 991-8041 1/4 inch brass vee jet 11005 (OBSOLETE) (1/4 brass vee jet)
071 991-8042 1/4 inch brass vee jet 11006 (1/4 brass vee jet)
072 991-3006 1/4 inch brass vee jet 11008 (1/4 brass vee jet)
073 991-8044 1/4 inch brass vee jet 11010 (1/4 brass vee jet)
074 991-8069 1/4 inch stainless vee jet 8001 (1/4 stainless vee jet)
075 991-8070 1/4 inch stainless vee jet 8002 (1/4 stainless vee jet)
076 991-8071 1/4 inch stainless vee jet 8003 (1/4 stainless vee jet)
077 991-8072 1/4 inch stainless vee jet 8004 (1/4 stainless vee jet)
078 991-8073 1/4 inch stainless vee jet 9501 (1/4 stainless vee jet)
079 991-8074 1/4 inch stainless vee jet 9502 (1/4 stainless vee jet)
080 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless vee jet)
081 991-8076 1/4 inch stainless vee jet 9504 (1/4 stainless vee jet)
082 991-8077 1/4 inch stainless vee jet 11003 (1/4 stainless vee jet)
083 991-8078 1/4 inch stainless vee jet 11004 (1/4 stainless vee jet)
084 991-8079 1/4 inch stainless vee jet 11006 (1/4 stainless vee jet)
085 991-8080 1/4 inch stainless vee jet 11008 (1/4 stainless vee jet)
086 991-8081 1/4 inch stainless/plastic tee jet 8002 (1/4 stainless/plastic tee jet)
087 991-8082 1/4 inch stainless/plastic tee jet 8003 (1/4 stainless/plastic tee jet)
088 991-8083 1/4 inch stainless/plastic tee jet 8004 (1/4 stainless/plastic tee jet)
089 991-8084 1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) (1/4 stainless/plastic tee jet)
090 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless/plastic tee jet)
091 991-8086 1/4 inch stainless/plastic tee jet 9504 (1/4 stainless/plastic tee jet)
092 991-3010 1/4 inch stainless/plastic tee jet 11003 (1/4 stainless/plastic tee jet)
093 991-8088 1/4 inch stainless/plastic tee jet 11004 (1/4 stainless/plastic tee jet)
094 991-8089 1/4 inch stainless/plastic tee jet 11006 (1/4 stainless/plastic tee jet)
095 991-8090 1/4 inch stainless/plastic tee jet 11008 (1/4 stainless/plastic tee jet)
096 991-8091 1/4 inch x 1/8 hex nipple H21
097 991-8092 1/4 inch x 1/4 hex nipple H22
098 991-8093 1/4 inch x 3/8 hex nipple H23
099 991-8094 45 degree street elbow 1/4 inch H24
100 991-8095 45 degree street elbow 1/8 inch H25
101 991-8096 45 degree union elbow 1/4 inch H26
102 991-8098 90 degree street elbow short 1/4 inch H28
103 991-8098 90 degree street elbow short 1/4 inch H28
104 991-8099 90 degree street elbow 1/8 inch H29
105 991-8100 90 degree street elbow short 1/8 inch H30
106 991-8101 90 degree union elbow 1/4 inch H31
107 991-8102 90 degree union elbow 1/8 inch H32
108 991-8103 30 degree union elbow 1/4 inch H33
109 991-8104 1/4 inch coupling H34
110 991-8105 1/8 inch coupling H35
111 991-8106 1/4 inch adapter H36
112 991-8107 1/8 inch adapter H37
113 991-8108 1/4 inch branch tee H38
114 991-8109 1/8 inch branch tee H39
115 991-8110 1/8 inch tee H40
116 991-8111 7/16 inch stainless steel hose clamp H41
117 997-2002 Hose clamp #6
118 991-8113 Strainer for 1/8 inch vee jets H43
119 991-8114 Strainer for 1/4 inch vee jets H44
120 991-8115 Strainer/check valve for 1/4 inch vee jets H45
121 991-8116 Brass strainer/check valve for tee jets H46
122 991-8117 500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47
123 991-8118 500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48
124 991-8119 500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49
125 991-8120 1/4 inch brass flood jets K1 or K2 H54
126 991-8158 1/4 inch BH2-60 female coupler (mate to QD40)
127 991-8150 1/4 inch BH2-61 male nipple (mate to QD80)
128 991-8144 B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55
129 991-8152 B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15
130 991-8145 B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55
131 991-8153 B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15
132 991-8146 BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65
133 991-8154 B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25
134 991-8147 BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65
135 991-8155 B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25
136 991-8148 Hansen 02 male nipple, mate to QD70
137 991-8156 Quick disconnect socket female to QD30
138 991-8149 1/8 inch male quick disconnect
139 991-8157 1/8 inch female quick disconnect socket
140 991-8151 BH3-61,3/8 inch FPT, Male Nipple, mate to QD85
141 991-8159 BH3-60, 3/8 inch fpt, female coupler, mate to QD45
142 991-8123 Bottom hex nut for Kingston or P valve H57
143 991-8121 1/8 inch brass flood jets K1 or K2 H55
144 991-8124 Inline filter H58
145 991-8122 1/8 inch special brass flood jets for V1245 H56
146 991-8008 120V 50 PSI Flo Jet pump (pumps)
147 991-8009 120V 100 PSI Flo Jet pump (pumps)
148 991-8218 120V 120 PSI pump (pumps)
149 991-8220 1/8 fpt brass female connector
150 991-1835 Crevice tool
Webpage Problem Reporting
