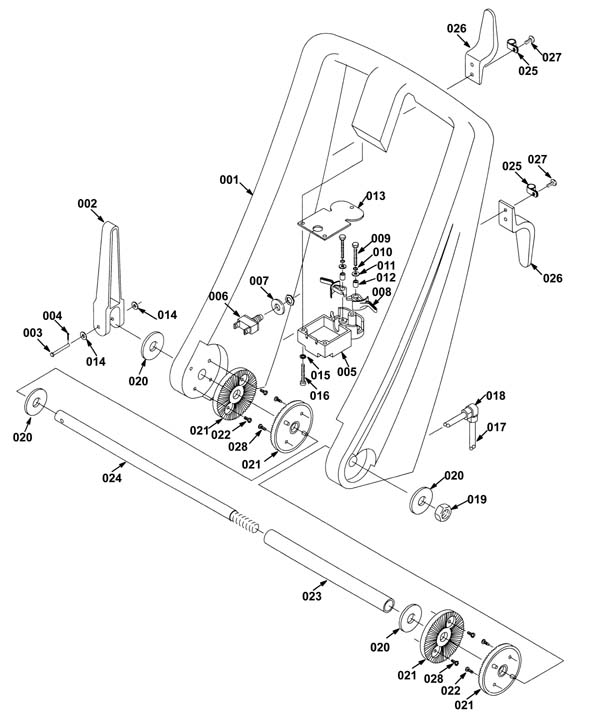

Handle Assembly - 175-6358 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-9874 |
Teal handle |
1 |
|
| 002 |
175-9842 |
Camlock lever |
1 |
|
| 003 |
175-9843 |
Clevis pin |
1 |
|
| 004a |
175-6176 |
Cotter pin |
1 |
|
| 004b |
275-4697 |
Right hand console trigger assembly |
1 |
Includes 005to 012 |
| 005 |
275-4697 |
Right hand console trigger assembly |
1 |
|
| 006 |
175-6400 |
Push button switch kit |
1 |
|
| 007 |
175-6386 |
Washer 1/2 flat spring disc zinc plated |
1 |
|
| 008 |
175-6383 |
Trigger arm (OBSOLETE) |
2 |
|
| 009 |
999-0805 |
Bolt M3-.5 x 16mm hex head |
2 |
|
| 010 |
999-0479 |
Washer #4 internal star lock zinc plated |
2 |
|
| 011 |
999-1115 |
Washer M4 flat zinc plated |
2 |
|
| 012 |
175-6384 |
Trigger spacer |
2 |
|
| 013 |
175-9844 |
Trigger console gasket |
1 |
|
| 014 |
999-0393 |
Washer 3/16 flat aluminum |
2 |
|
| 015 |
999-1083 |
Washer #8 internal star lock stainless steel |
3 |
|
| 016 |
999-1518 |
Screw M4-.7 x 30mm pan head phillips zinc plated |
3 |
|
| 017 |
175-9824 |
Cord 18/2 x 66 inch |
1 |
|
| 018 |
175-9845 |
Strain relief bushing |
1 |
|
| 019 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
| 020 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
| 021 |
175-9846 |
Pivot handle serrated pad |
4 |
|
| 022 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
4 |
|
| 023 |
175-9847 |
Tube 1/2 x 5/8 x 7-3/8 |
1 |
|
| 024 |
175-9848 |
Pivot shaft 1/2 x 13-1/8 |
1 |
|
| 027 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
4 |
|
| 028 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
4 |
|
|
|

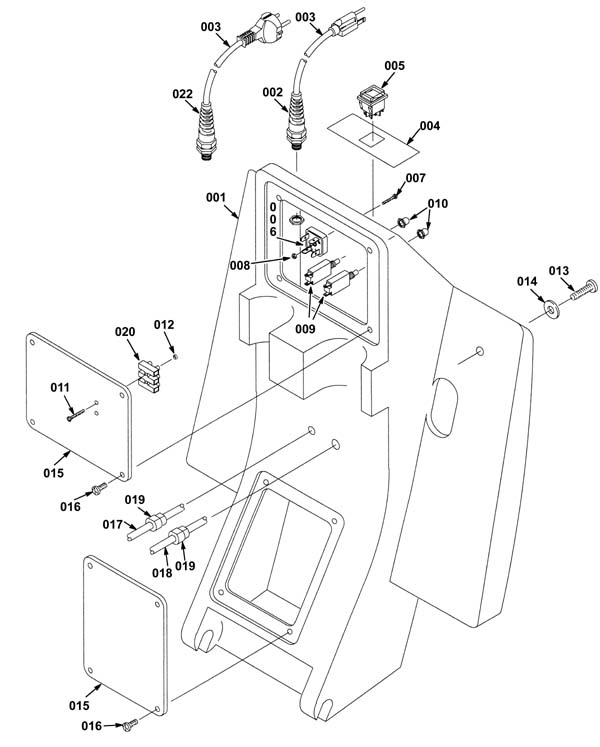

Rear Panel Assembly - 175-6359 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-9849 |
Rear panel |
1 |
|
| 002 |
175-0001 |
Strain relief |
1 |
|
| 003a |
175-9850 |
16/3 power cord 25 ft |
1 |
|
| 003b |
175-0341 |
Cord 3 x 1-1/2mm x 15 M 220 volt |
1 |
|
| 004 |
175-9852 |
Switch decal |
1 |
|
| 005 |
175-2693 |
Rocker switch |
1 |
|
| 006 |
175-6052 |
15amp rectifier |
1 |
|
| 007 |
999-1411 |
Screw 10-24 x 1 round head slotted nylon |
1 |
|
| 008 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
| 009 |
175-6060 |
1.5amp circuit breaker |
2 |
|
| 010 |
175-3556 |
Circuit breaker boot |
2 |
|
| 011 |
999-0475 |
Screw 6-32 x 3/4 pan head slotted zinc plated |
2 |
|
| 012 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
| 013 |
999-1168 |
Screw M6-1 x 20mm pan head phillips stainless steel |
2 |
|
| 014 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 015 |
175-9853 |
Plate cover |
2 |
|
| 016 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
8 |
|
| 017 |
175-9826 |
Cord 1/8/5x 41 inch |
1 |
|
| 018 |
175-9827 |
Cord 18/5 x 54 inch |
1 |
|
| 019 |
175-6591 |
Strain relief bushing |
2 |
|
| 020 |
175-0027 |
25amp terminal strip |
1 |
|
|
|

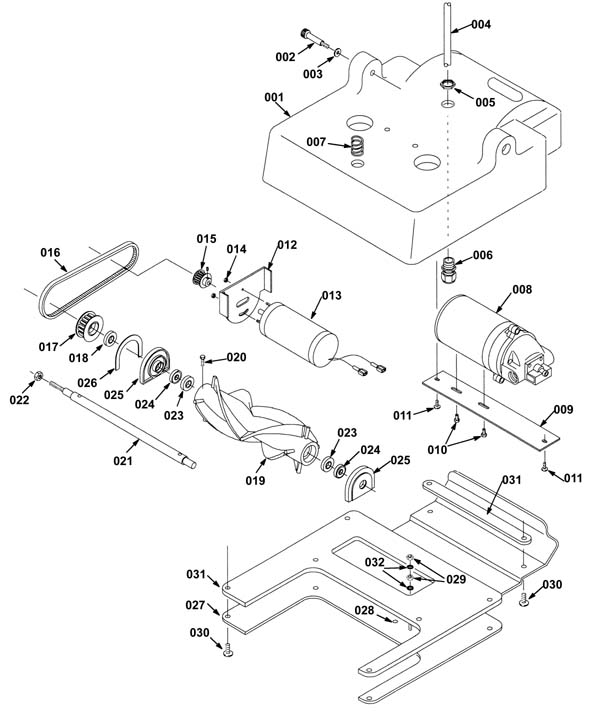

Brush Assembly - 175-6360 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-9854 |
Brush base 13 inch |
1 |
|
| 002 |
175-9855 |
Bolt M6-.8 x 30mm shield |
2 |
|
| 003 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 004 |
175-9827 |
Cord 18/5 x 54 inch |
1 |
|
| 005 |
175-9856 |
Nut 1/2 conduit |
1 |
|
| 007 |
175-9857 |
Compression spring |
1 |
|
| 008 |
175-9858 |
120V 65psi solution pump |
1 |
|
| 009 |
175-9859 |
Pump mounting plate |
1 |
|
| 010 |
999-1212 |
Screw 10-32 x 1/2 hex head stainless steel |
2 |
|
| 011 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
| 012 |
175-6130 |
Motor bracket |
1 |
|
| 013a |
175-6131 |
120V brush motor |
1 |
|
| 013b |
175-6132 |
Drive Motor Brush 230V |
1 |
|
| 014 |
999-0239 |
Nut 10-32 k-lock zinc plated |
2 |
|
| 015 |
175-6129 |
Motor pulley (Tennant Industrial) |
1 |
|
| 016a |
175-6141 |
Brush drive belt |
1 |
|
| 016b |
175-9861 |
Brush replacement kit |
1 |
Includes 017 to 026 |
| 017 |
175-6140 |
Brush pulley |
1 |
|
| 019 |
175-9862 |
13 inch brush |
1 |
|
| 020 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 021 |
175-9865 |
Brush shaft 13 inch |
1 |
|
| 022 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 023 |
175-6134 |
Brush bearing seal |
2 |
|
| 024a |
175-0069 |
Brush bearing |
2 |
(OEM) |
| 024b |
991-5125 |
Brush bearing |
2 |
(NON-OEM) |
| 025 |
175-6133 |
Bearing block |
2 |
|
| 026 |
175-6143 |
Bearing block gasket |
1 |
|
| 027 |
175-9863 |
Brush base plate |
1 |
|
| 028 |
175-3555 |
Textless ground decal |
1 |
|
| 029 |
999-0740 |
Nut M5-.8 hex stainless steel |
2 |
|
| 030 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
8 |
|
| 031 |
175-9864 |
Base plate gasket |
1 |
|
| 032 |
999-0053 |
Washer #10 split lock plain finish |
2 |
|
|
|

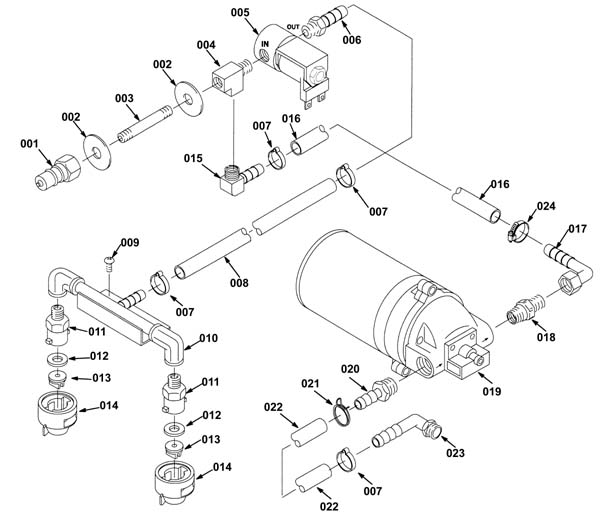

Solution Assembly - 175-6361 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
| 002 |
999-0187 |
Washer 1/2 flat plain finish |
2 |
|
| 003 |
175-9866 |
Brass nipple fitting 1/4 x 3 inch |
1 |
|
| 004 |
175-6029 |
Straight tee |
1 |
|
| 005a |
175-6025 |
Solution solenoid valve |
1 |
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
| 005b |
991-8598 |
Replacement plunger with spring for solenoid valve |
1 |
|
| 005c |
175-6026 |
Solenoid valve 220 v 50 hz |
1 |
|
| 006 |
175-2613 |
Straight brass fitting |
1 |
|
| 007 |
175-6032 |
Hose clamp |
5 |
|
| 008 |
175-8096 |
5 Inch gray hose (OBSOLETE) |
1 |
|
| 009 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
2 |
|
| 010 |
175-9867 |
Nozzle tube |
1 |
|
| 011 |
175-4192 |
Quick jet body |
2 |
|
| 012 |
175-4193 |
Quick jet gasket |
2 |
|
| 013 |
175-3566 |
T-jet tip fitting |
2 |
|
| 014 |
175-4194 |
Quick jet cap (green) |
2 |
|
| 016 |
175-6020 |
Braided hose 3/8 x 45 inch (gray) |
1 |
|
| 017 |
175-9868 |
Swivel fitting 1/2 x 3/8 inch |
1 |
|
| 018 |
175-9869 |
Reducer fitting 3/8 x 1/2 |
1 |
|
| 019 |
175-9858 |
120V 65psi solution pump |
1 |
|
| 021 |
175-3671 |
Hose clamp |
1 |
|
| 022 |
175-6020 |
Braided hose 3/8 x 45 inch (gray) |
1 |
|
| 023 |
175-2844 |
90 degree elbow fitting |
1 |
|
| 024 |
175-6081 |
Hose clamp |
1 |
|
|
|

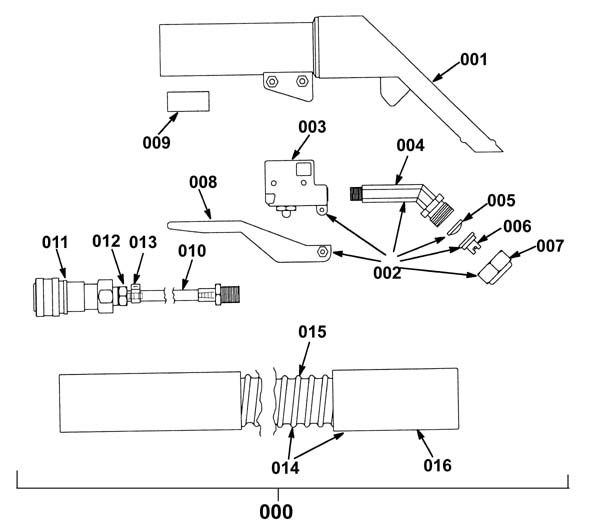

Hand Tool - 175-6362 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
175-9870 |
Hand tool assembly |
1 |
Includes 000b, 001, 002 |
| 001 |
275-5824 |
4 inch metal hand tool assembly with trigger and hose |
1 |
|
| 002 |
275-5824 |
4 inch metal hand tool assembly with trigger and hose |
1 |
Includes 003 to 016 and N/S |
| 003 |
175-1699 |
Valve body |
1 |
|
| 004 |
175-1700 |
Spray nozzle |
1 |
|
| 009 |
175-1705 |
Solution hose seal |
1 |
|
| 010 |
175-9871 |
Solution hose 1/8 x 105 inch |
1 |
|
| 011 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
| 012 |
175-9872 |
Barb brass fitting 1/4 x 1/8 (OBSOLETE) |
1 |
|
| 013 |
175-9873 |
Hose clamp 5/16 x 3/8 |
1 |
|
| 014 |
175-3913 |
10 ft vacuum and solution hose assembly |
1 |
Includes 015,016 |
| 015 |
175-3913 |
10 ft vacuum and solution hose assembly |
1 |
|
| 016 |
175-3913 |
10 ft vacuum and solution hose assembly |
1 |
|
| N/S |
175-2646 |
Hose bag with draw string |
1 |
|
|
|

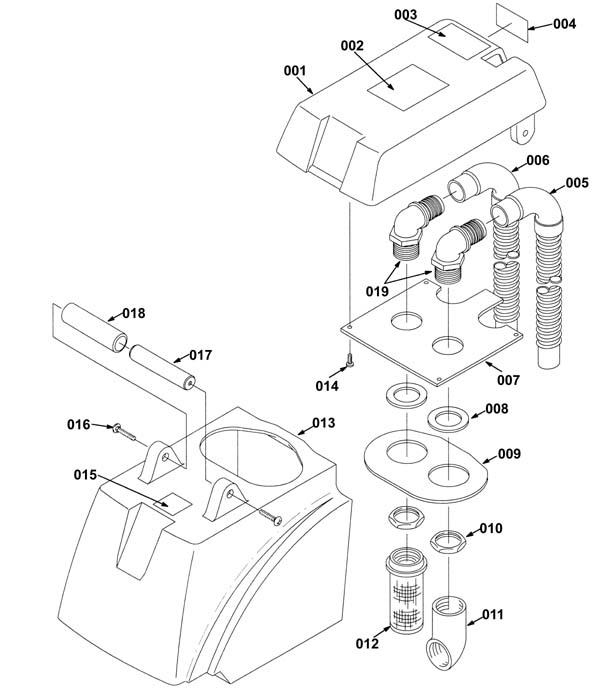

Recovery Tank Assembly - 175-6363 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-9875 |
Cover assembly |
1 |
Includes 003, 004 with labels |
| 003 |
275-9008 |
Warning decal |
1 |
|
| 004 |
275-9008 |
Warning decal |
1 |
|
| 005 |
175-9825 |
Vacuum hose 1 1/2 x 33 inch |
1 |
|
| 006 |
175-9830 |
Vacuum hose 1 1/2 x 19 inch |
1 |
|
| 007 |
175-9835 |
Cover plate |
1 |
Black |
| 008 |
175-1304 |
Drain valve gasket |
2 |
|
| 009 |
175-9836 |
Cover plate gasket |
1 |
|
| 010 |
175-2907 |
Nut 1 1/2 flanged hex |
2 |
|
| 011 |
175-9837 |
Fitting 1-1/2 pvc |
1 |
|
| 012 |
175-9838 |
Shut-off float |
1 |
|
| 013 |
175-9876 |
Recovery teal tank (OBSOLETE) |
1 |
|
| 014 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
4 |
|
| 015 |
275-2369 |
Flammable material decal |
1 |
|
| 016 |
175-9822 |
Screw M6 x 1 x 40 phillip truss |
2 |
|
| 017 |
175-9840 |
Bar 1 x 4-1/2 |
1 |
|
| 019 |
175-9834 |
Fitting 1-1/2 x 1-1/2 |
2 |
|
|
|

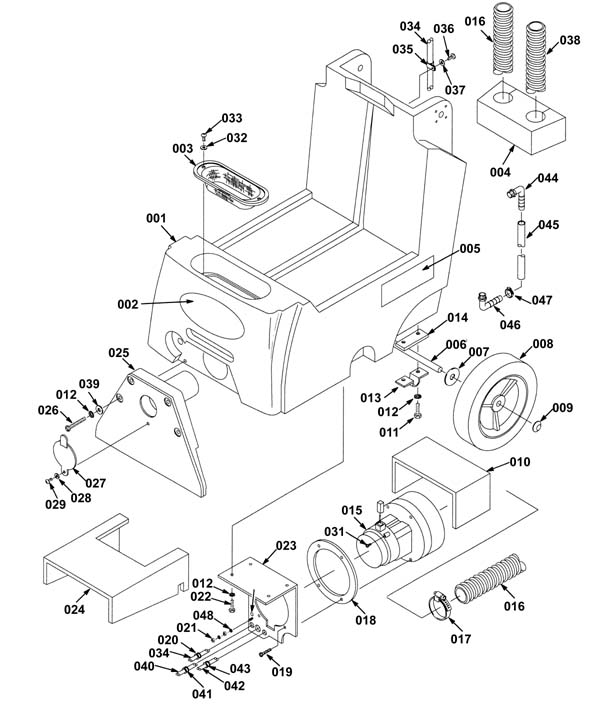

Solution Tank Assembly - 175-6364 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-9877 |
Solution teal tank |
1 |
|
| 002 |
175-4891 |
Tennant decal |
1 |
|
| 003 |
175-9812 |
Strainer screen |
1 |
|
| 004 |
175-9813 |
Sound foam 2 x 3-1/4 x 7-3/4 |
1 |
|
| 005 |
175-9878 |
Side decal (OBSOLETE) |
2 |
|
| 007 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
| 008 |
175-1690 |
8 inch wheel (gray) |
2 |
|
| 010 |
175-9815 |
Sound foam 1/2 x 5 x 22 |
1 |
|
| 011 |
999-1168 |
Screw M6-1 x 20mm pan head phillips stainless steel |
4 |
|
| 012 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
12 |
|
| 013 |
175-6098 |
Axle bracket |
2 |
|
| 014 |
175-9816 |
Shim plate 1/4 x 2 - 1/2 x 1-1/4 |
2 |
|
| 015a |
175-9817 |
120V 2 stage vacuum motor with snout (OBSOLETE) |
1 |
Includes 015b, 015c |
| 015b |
175-0251 |
Carbon brush (pkg of 2) |
2 |
|
| 015c |
175-0052 |
Carbon brush set |
2 |
|
| 016 |
175-9830 |
Vacuum hose 1 1/2 x 19 inch |
1 |
|
| 017 |
997-2007 |
Hose clamp |
1 |
|
| 019 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
|
| 021 |
999-0740 |
Nut M5-.8 hex stainless steel |
2 |
|
| 022 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
4 |
|
| 023 |
175-9819 |
Vacuum motor mounting plate |
1 |
|
| 024 |
175-9820 |
Sound foam |
1 |
|
| 025 |
175-9821 |
Pick-up tool assembly |
1 |
Includes 026 to 029 |
| 026 |
175-9822 |
Screw M6 x 1 x 40 phillip truss |
4 |
|
| 028 |
999-0393 |
Washer 3/16 flat aluminum |
1 |
|
| 029 |
999-1165 |
Screw 8-32 x 3/8 truss head phillips stainless steel |
1 |
|
| 030 |
175-3555 |
Textless ground decal |
1 |
|
| 031 |
175-4550 |
Ground screw |
1 |
|
| 032 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 033 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
2 |
|
| 034 |
175-9824 |
Cord 18/2 x 66 inch |
1 |
|
| 036 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
1 |
|
| 037 |
999-0393 |
Washer 3/16 flat aluminum |
1 |
|
| 038 |
175-9825 |
Vacuum hose 1 1/2 x 33 inch |
1 |
|
| 039 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 040 |
175-9826 |
Cord 1/8/5x 41 inch |
1 |
|
| 041 |
175-6591 |
Strain relief bushing |
1 |
|
| 042 |
175-9827 |
Cord 18/5 x 54 inch |
1 |
|
| 043 |
175-3134 |
Snap bushing |
1 |
|
| 044 |
175-9828 |
Fitting 1/4 x 3/8 |
1 |
|
| 045 |
175-9829 |
Drain hose |
1 |
|
| 046 |
175-2844 |
90 degree elbow fitting |
1 |
|
| 047 |
175-6032 |
Hose clamp |
1 |
|
| 048 |
999-0053 |
Washer #10 split lock plain finish |
2 |
|
|
|

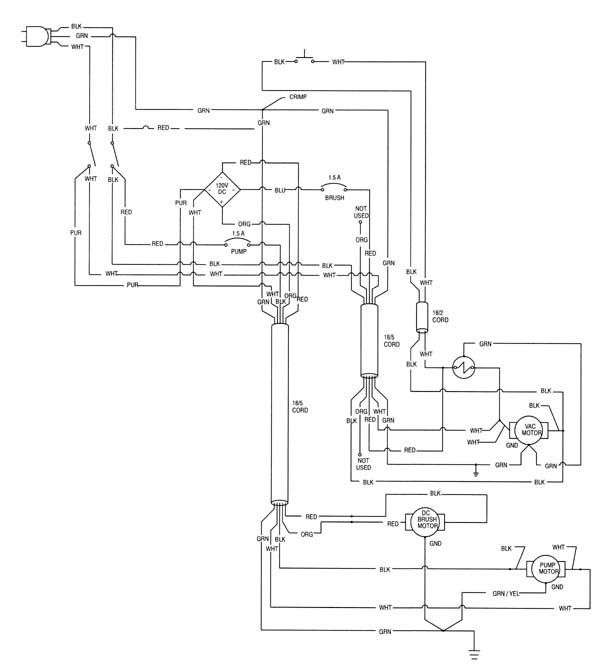

Electrical Diagrams 120V Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

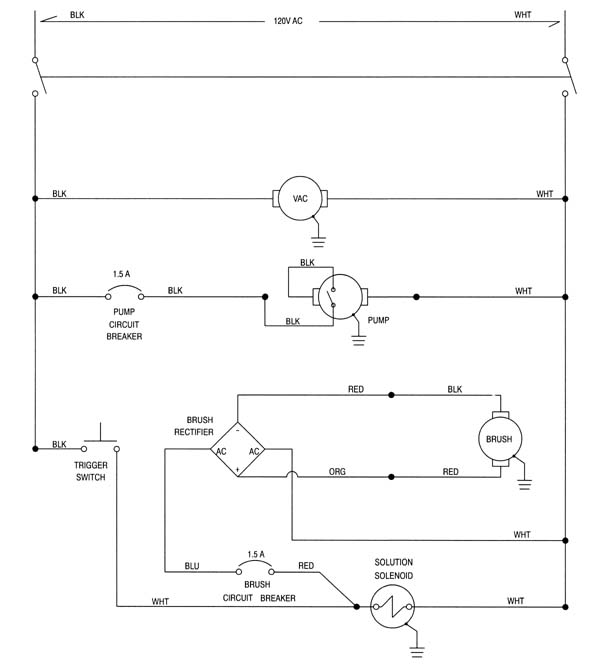

Electrical Diagrams 120 V Ladder Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

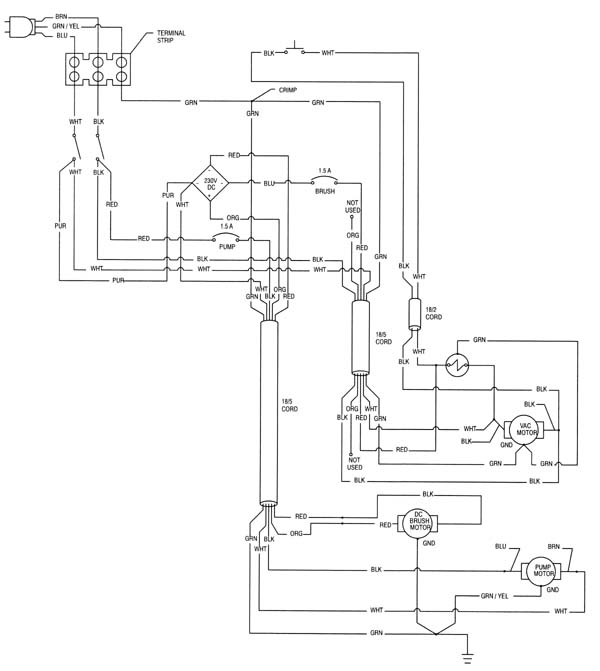

Electrical Diagrams 220V/230V Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Electrical Diagrams 220V/230V Ladder Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
- Frequently Replaced Parts - 999-9950 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
175-9850 |
16/3 power cord 25 ft |
|
(OEM) |
| 03 |
175-0136 |
On/off rocker switch |
|
(power) |
| 04 |
175-6400 |
Push button switch kit |
|
(vaccum and brush) |
| 05a |
175-6025 |
Solution solenoid valve |
|
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
| 05b |
991-8598 |
Replacement plunger with spring for solenoid valve |
1 |
|
| 06 |
175-9812 |
Strainer screen |
|
|
| 10 |
175-9836 |
Cover plate gasket |
|
|
| 12 |
175-9817 |
120V 2 stage vacuum motor with snout (OBSOLETE) |
|
|
| 14 |
175-9858 |
120V 65psi solution pump |
|
|
| 15 |
175-6141 |
Brush drive belt |
|
|
| 16 |
175-9862 |
13 inch brush |
|
|
| 17 |
175-9838 |
Shut-off float |
|
|
|
|
