Motor, Sheaves and Cover Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Replacement Brushes - 275-2700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
275-1598 |
Main brush, 6 row, wire and fiber (TENNANT INDUSTRIAL) |
1 |
|
| 0.9835 |
N/A |
Not available |
1 |
Abrassive bristle scrubbing brush 24 row |
| 0.9835 |
275-1605 |
Main brush, 6 row, bright wire (Tennant industrial) |
1 |
|
| 0.9835 |
275-1600 |
main brush, 6 row, nylon ( TENNANT INDUSTRIAL) |
1 |
|
| 0.9835 |
N/A |
Not available |
1 |
BRUSH, SCB, 26L, 24SR, PYP (Tennant Industrial) |
| 0.9835 |
N/A |
Not available |
1 |
Polypropylene sweeping/scrubbing brush |
| 0.9835 |
275-1601 |
main brush, 6 row, polypropylene (Tennant industrial) |
1 |
|
| 0.9835 |
175-0853 |
Side brush |
1 |
|
| 0.9835 |
N/A |
Not available |
1 |
Disk brush |
| 0.9835 |
N/A |
Not available |
1 |
Scrubbing 18 row main brush, ss |
| 0.9835 |
275-1610 |
Perlon side brush and hub assembly (Tennant Industrial) |
1 |
|
| 0.9835 |
175-0854 |
HUB, DRIVE, BRUSH, SIDE, 0.6B 01.75 BC (OBSOLETE) |
1 |
|
| 0.9835 |
275-1599 |
Main brush, 6 row, union mix (TENNANT INDUSTRIAL) |
1 |
|
| 0.9835 |
275-1602 |
Main brush, 18 row, natural fiber (Tennant industrial) |
1 |
|
| 0.9835 |
N/A |
Not available |
1 |
Tampico main brush |
| 0.9835 |
175-0854 |
HUB, DRIVE, BRUSH, SIDE, 0.6B 01.75 BC (OBSOLETE) |
1 |
|
|
|

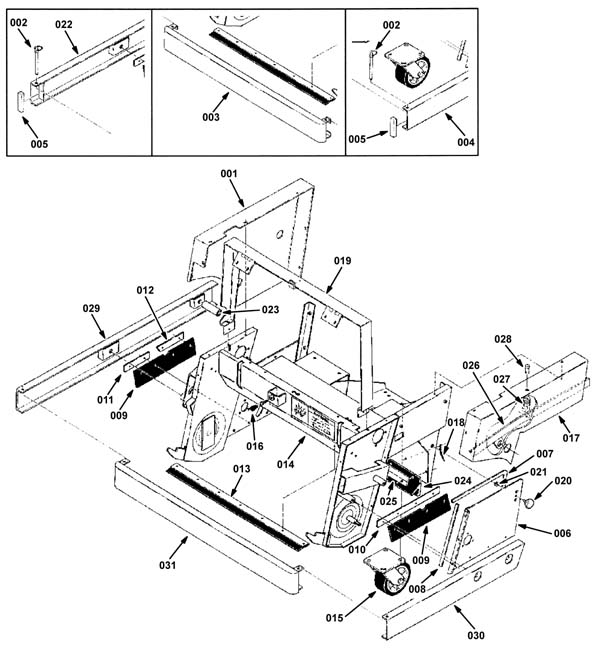

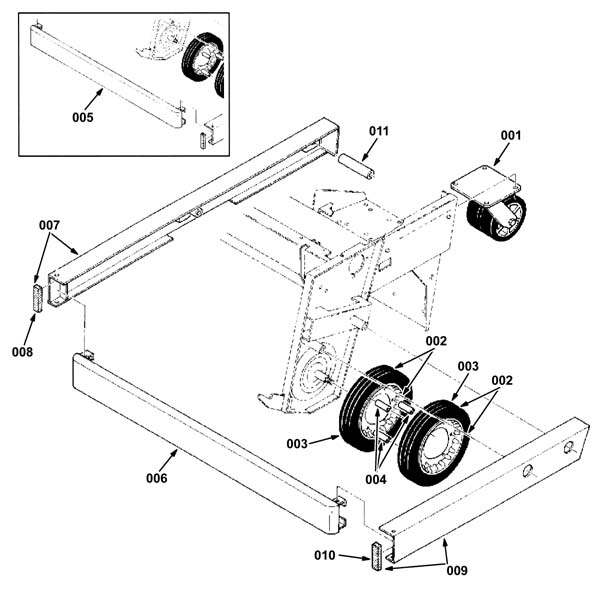

Main Frame Assembly - 275-2701 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Right hand cover |
| 002 |
N/A |
Not available |
2 |
Pivot pin |
| 003 |
N/A |
Not available |
1 |
Front bumper replacement kit |
| 004 |
N/A |
Not available |
1 |
Left hand bumper |
| 005 |
275-1616 |
Rubber seal (Tennant Industrial) (OBSOLETE) |
2 |
|
| 006 |
N/A |
Not available |
1 |
Door assembly |
| 007 |
275-1618 |
SEAL, RBR, OPEN, 0.19, 0.38W 19.2L (Tennant Industrial) |
1 |
|
| 008 |
275-1619 |
SEAL, RBR, OPEN, 0.19, 0.38W 09.6L (Tennant Industrial) |
1 |
|
| 009 |
275-1620 |
SKIRT, NEO, .12, 03.00W 12.80L, 04/ SL (Tennant Industrial) |
2 |
|
| 010 |
275-1621 |
RETAINER (Tennant Industrial) |
1 |
|
| 011 |
275-1622 |
BAR, FLAT, STL 0.12, 01.00 X 04.8L (Tennant Industrial) |
1 |
|
| 012 |
275-1623 |
RETAINER, SKIRT, .13, 1.0W X 05.2L, PL (Tennant Industrial) |
1 |
|
| 013 |
275-1624 |
SEAL ASSY, LIP, PAN (Tennant Industrial) |
1 |
|
| 014 |
N/A |
Not available |
1 |
Main frame and label assembly |
| 015 |
175-2100 |
5 inch caster wheel assembly (gray) |
1 |
|
| 015 |
175-2100 |
5 inch caster wheel assembly (gray) |
1 |
|
| 016 |
275-1628 |
TIP, RBR, 0.94D 0.59B 0.88L (Tennant Industrial) |
1 |
|
| 017 |
N/A |
Not available |
1 |
Left hand cover |
| 018 |
275-1630 |
CHAIN, SASH, #35, 03.5L 06 LINK (Tennant Industrial) |
1 |
|
| 019 |
N/A |
Not available |
1 |
Lintel |
| 020 |
275-1632 |
KNOB ASSY, RND, 1.38D .31-06 1.0L, METAL (Tennant Industria |
1 |
|
| 021 |
275-1633 |
RETAINER, SCREW (Tennant Industrial) |
1 |
|
| 022 |
N/A |
Not available |
1 |
Right hand bumper |
| 023 |
N/A |
Not available |
1 |
Tube |
| 024 |
275-1636 |
SKIRT, NEO, .19, 02.88W 27.38L, 07/ SL (Tennant Industrial) |
1 |
|
| 025 |
275-1637 |
RETAINER, SKIRT, .08, 1.3W X 26.9L, BLK (Tennant Industrial |
1 |
|
| 026 |
N/A |
Not available |
1 |
Brake lever |
| 027 |
275-0154 |
SPRING, EXTN, 1.10OD 0.15WIR 03.2L (Tennant Industrial) |
1 |
|
| 028 |
275-0146 |
PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) |
1 |
|
| 029 |
N/A |
Not available |
1 |
Right hand bumper weldment |
| 030 |
N/A |
Not available |
1 |
Left hand bumper |
| 031 |
N/A |
Not available |
1 |
Front bumper |
|
|

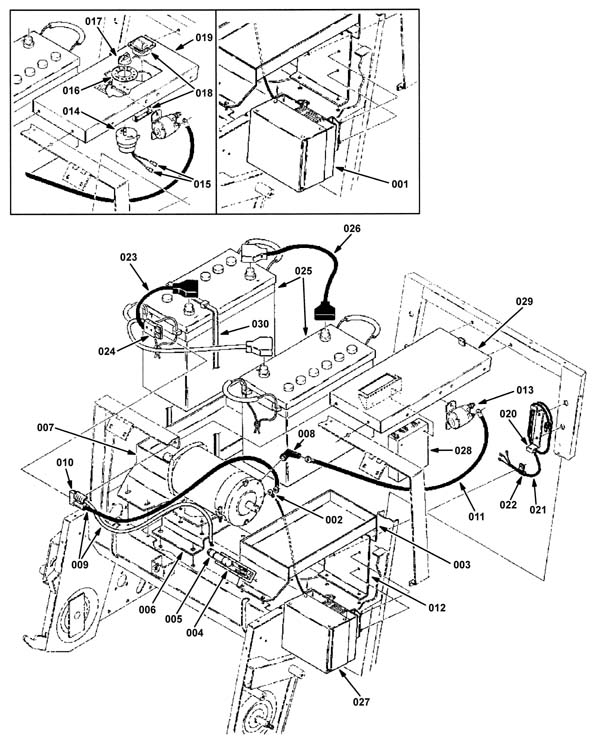

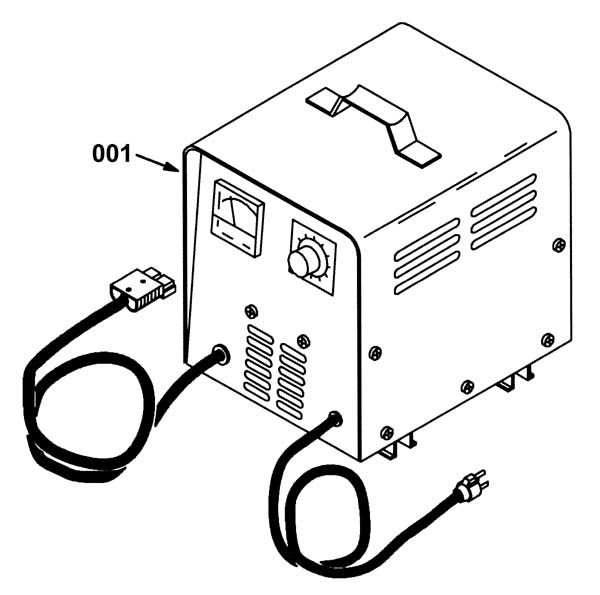

Battery and Charger Assembly - 275-2703 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Charger replacement kit |
| 002 |
275-1674 |
TERMINAL, RING, .25STUD 12-10GA (Tennant Industrial) |
1 |
|
| 003 |
N/A |
Not available |
1 |
Left hand battery tray |
| 004 |
275-1676 |
FUSEHOLDER, 060A MAX 1-FUSE 250VOLT (Tennant Industrial) |
1 |
|
| 005 |
275-1677 |
FUSE, 060A, CARTRIDGE, 0.81D, 10S DELAY (Tennant Industrial |
1 |
|
| 006 |
N/A |
Not available |
1 |
Motor mount bracket |
| 007 |
N/A |
Not available |
1 |
Right hand battery tray |
| 008 |
175-2122 |
90 degree cable boot |
1 |
|
| 009 |
275-1680 |
CABLE ASSY, 06GA .34RING / STRIPPED,050A (Tennant Industria |
1 |
|
| 010 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 011 |
275-1681 |
CABLE, 06GA 12.0L BLK .38RING /.38RING (Tennant Industrial) |
1 |
|
| 012 |
N/A |
Not available |
1 |
Battery tray support |
| 013 |
175-9139 |
24V 100amp relay |
1 |
|
| 014 |
175-9135 |
Switch (OBSOLETE) |
1 |
|
| 015 |
275-1683 |
TERMINAL, QM, .25 16-14GA, BLU, F-INS (Tennant Industrial) |
2 |
|
| 016 |
275-1684 |
LABEL, OPERTNL, TIMER, 50/60HZ (Tennant Industrial) |
1 |
|
| 017 |
N/A |
Not available |
1 |
Knob |
| 018 |
N/A |
Not available |
1 |
Charger gauge |
| 019 |
N/A |
Not available |
1 |
Center brace and label assembly |
| 020 |
N/A |
Not available |
1 |
Cord bracket |
| 021 |
N/A |
Not available |
1 |
Charger cord |
| 023 |
275-1688 |
CABLE ASSY, BATTERY, 06GA, 2CLAMP, 050A (Tennant Industrial |
1 |
|
| 024 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 025 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 026 |
N/A |
Not available |
1 |
Battery cable |
| 027 |
375-0186 |
24V battery charger |
1 |
|
| 028 |
175-4011 |
Control box (OBSOLETE) |
1 |
|
| 029 |
N/A |
Not available |
1 |
Center channel weldment |
| 030 |
175-0862 |
TIE, CABLE, NYL, 28.3L .50W 8.0 MAX D (Tennant Industrial) |
4 |
|
|
|

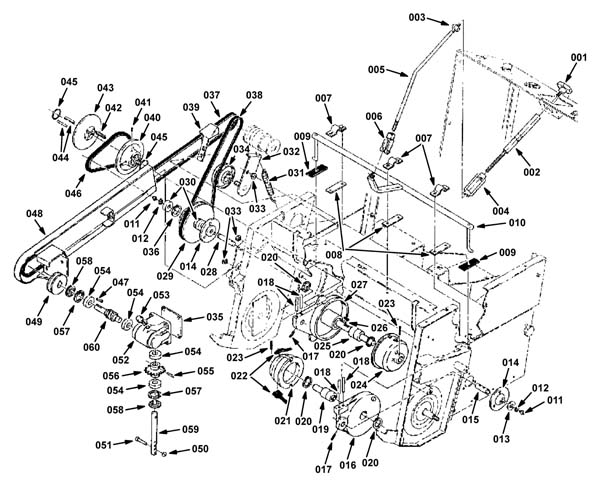

Brush Drive Assembly - 275-2704 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
275-1723 |
HANDLE, TEE (Tennant Industrial) |
1 |
|
| 002 |
N/A |
Not available |
1 |
Brush lift handle |
| 003 |
999-0752 |
Nut 3/4-16 hex jam zinc plated |
1 |
|
| 004 |
275-1725 |
TURNBUCKLE, BODY, .38THREAD, 03.9L (Tennant Industrial) |
1 |
|
| 005 |
N/A |
Not available |
1 |
Brush lift rod |
| 006 |
275-1727 |
CLEVIS, ADJ, 0.38PIN, 0.38-24 (Tennant Industrial) |
1 |
|
| 007 |
N/A |
Not available |
3 |
Conduit clamp |
| 008 |
N/A |
Not available |
3 |
Strip |
| 009 |
275-1730 |
SEAL (Tennant Industrial) |
2 |
|
| 010 |
N/A |
Not available |
1 |
Brush lift shaft |
| 011 |
175-3248 |
Grease fitting |
2 |
|
| 012 |
275-1732 |
Retaining ring (Tennant Industrial) |
2 |
|
| 013 |
275-1733 |
Thrust washer |
1 |
|
| 014 |
N/A |
Not available |
2 |
Brush shaft flange |
| 015 |
275-1735 |
SHAFT, SHORT (Tennant Industrial) (OBSOLETE) |
1 |
|
| 016 |
N/A |
Not available |
1 |
Arm |
| 017 |
275-1737 |
PIN, ROLL, .187D X 1.25L, .187/.192 (Tennant Industrial) |
2 |
|
| 018 |
275-1738 |
PIN, ROLL, .312D X 1.87L, .312/.318 (Tennant Industrial) |
4 |
|
| 019 |
275-1739 |
BEARING, W/ SHAFT, 1.18D 3.3L 0.63 (Tennant Industrial) |
1 |
|
| 020 |
275-1740 |
RING, RETAINING, INT, 1.18D, [INVERTED] (Tennant Industrial |
4 |
|
| 021 |
N/A |
Not available |
1 |
Plug assembly |
| 022 |
275-1693 |
FINGER (Tennant Industrial) |
2 |
|
| 023 |
275-1694 |
PIN, ROLL, .250D X 1.25L, .250/.256 (Tennant Industrial) |
2 |
|
| 025 |
N/A |
Not available |
1 |
Drive plug and pin assembly |
| 026 |
175-8818 |
Square keyway |
1 |
|
| 027 |
N/A |
Not available |
1 |
Arm |
| 028 |
275-1698 |
SHAFT, LONG (Tennant Industrial) (OBSOLETE) |
1 |
|
| 029 |
275-1699 |
SHEAVE, STEP (Tennant Industrial) (OBSOLETE) |
1 |
|
| 030 |
175-9094 |
Ball bearing |
2 |
|
| 031 |
275-1700 |
SPRING, EXTN, 0.62OD 0.07WIR 04.0L (Tennant Industrial) |
1 |
|
| 032 |
N/A |
Not available |
1 |
Idler arm and shaft assembly |
| 034 |
N/A |
Not available |
1 |
Pulley assembly |
| 035 |
275-1703 |
GASKET, .03, 03.00W 03.00L, 4/.31H (Tennant Industrial) |
1 |
|
| 036 |
175-9098 |
Basic retaining ring (Tennant Industrial) |
1 |
|
| 037 |
175-0857 |
BELT, V, 74.0L [3L] (Tennant Industrial) |
1 |
|
| 038 |
275-1704 |
BELT, V, 34.5L, SPCL [3L] (Tennant Industrial) |
1 |
|
| 039 |
275-1706 |
SHEAVE ASSY, VAR, 4.5D [A] (OBSOLETE) |
1 |
|
| 039 |
N/A |
Not available |
1 |
Belt guide |
| 040 |
275-1707 |
SHEAVE, HALF, VAR, 4.5D, INNER [A] (Tennant Industrial) |
1 |
|
| 041 |
N/A |
Not available |
2 |
Nylon set screw |
| 042 |
275-1709 |
SPRING, EXTN, 0.41OD 0.07WIR 01.6L (Tennant Industrial) |
3 |
|
| 043 |
275-1710 |
SHEAVE, HALF, VAR, 4.5D, OUTER [A] (Tennant Industrial) |
1 |
|
| 044 |
175-9238 |
Dowel pin 1/4 x 1-1/2 |
2 |
|
| 045 |
275-1711 |
RETAINER (Tennant Industrial) |
2 |
|
| 046 |
275-1712 |
BELT, V [A-16, HY-T] (Tennant Industrial) |
1 |
|
| 047 |
175-8818 |
Square keyway |
1 |
|
| 048 |
N/A |
Not available |
1 |
Side brush arm weldment |
| 049 |
275-1714 |
SHEAVE, 01GRV, 02.5PD 0.62B [3L] (Tennant Industrial) |
1 |
|
| 050 |
175-7107 |
Cotter hair pin |
1 |
|
| 051 |
175-9172 |
PIN, CLEVIS, 0.25D X 1.25L (Tennant Industrial) |
1 |
|
| 052 |
275-1716 |
Reducer assembly (Tennant Industrial) |
1 |
|
| 053 |
275-1717 |
BREATHER, HYD, 0.12NPT (Tennant Industrial) |
1 |
|
| 054 |
175-9094 |
Ball bearing |
4 |
|
| 055 |
175-7139 |
PIN, ROLL, .187D X 1.00L, .187/.192 (Tennant Industrial) |
1 |
|
| 056 |
N/A |
Not available |
1 |
Oil shaft |
| 059 |
N/A |
Not available |
1 |
Side brush drive shaft |
| 060 |
N/A |
Not available |
1 |
Worm |
|
|

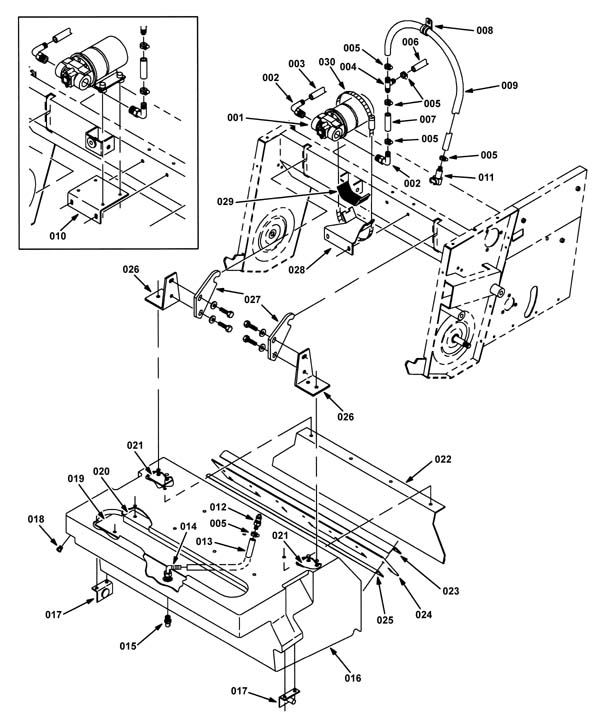

Sweeper/Scrubber Hopper Assembly - 275-2705 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Water pump assembly |
| 001 |
275-1743 |
PUMP KIT, WATER, REPAIR (Tennant Industrial) |
1 |
|
| 001 |
275-1742 |
Flojet pump housing |
1 |
|
| 002 |
N/A |
Not available |
2 |
Plastic fitting |
| 003 |
375-0936 |
Clear PVC hose (Tennant Industrial) |
1 |
|
| 004 |
275-1196 |
Plastic tee fitting (Tennant Industrial) |
1 |
|
| 005 |
175-3594 |
Hose clamp |
6 |
|
| 006 |
N/A |
Not available |
1 |
Hose |
| 007 |
N/A |
Not available |
1 |
Hose |
| 009 |
N/A |
Not available |
1 |
Hose |
| 010 |
N/A |
Not available |
1 |
Pump mount kit |
| 011 |
275-1750 |
FITTING, BRS, QDC, BM06/QF (Tennant Industrial) |
1 |
|
| 012 |
275-1751 |
FITTING, BRS, QDC, BM06/QM (Tennant Industrial) |
1 |
|
| 013 |
275-1752 |
Hose (OBSOLETE) |
1 |
|
| 014 |
275-1753 |
FITTING, PLSTC, E90, BM06/PM02 (Tennant Industrial) |
1 |
|
| 015 |
275-1754 |
NOZZLE, 95DEG, FLAT SPRAY (Tennant Industrial) |
1 |
|
| 016 |
N/A |
Not available |
1 |
Hopper |
| 017 |
N/A |
Not available |
2 |
Support pin bracket |
| 018 |
275-1757 |
FITTING, PLSTC, PLUG, PM02 (Tennant Industrial) |
1 |
|
| 019 |
N/A |
Not available |
1 |
Deflector strip |
| 020 |
N/A |
Not available |
1 |
Stiffener hopper angle |
| 021 |
N/A |
Not available |
2 |
Nut plate |
| 022 |
N/A |
Not available |
1 |
Deflector angle |
| 023 |
275-1762 |
ANGLE, RETAINER, LIP, HPPR (Tennant Industrial) |
1 |
|
| 024 |
275-1763 |
SKIRT, NEO, .06, 04.25W 25.75L, 07/ HOLE (OBSOLETE) |
1 |
|
| 025 |
N/A |
Not available |
1 |
Lower lip retainer angle |
| 026 |
N/A |
Not available |
2 |
Mounting bracket |
| 027 |
N/A |
Not available |
2 |
Hopper catch plate |
| 028 |
N/A |
Not available |
1 |
Pump mount bracket |
| 029 |
N/A |
Not available |
1 |
Flat rubber bar |
| 030 |
997-2009 |
Hose clamp |
1 |
|
|
|

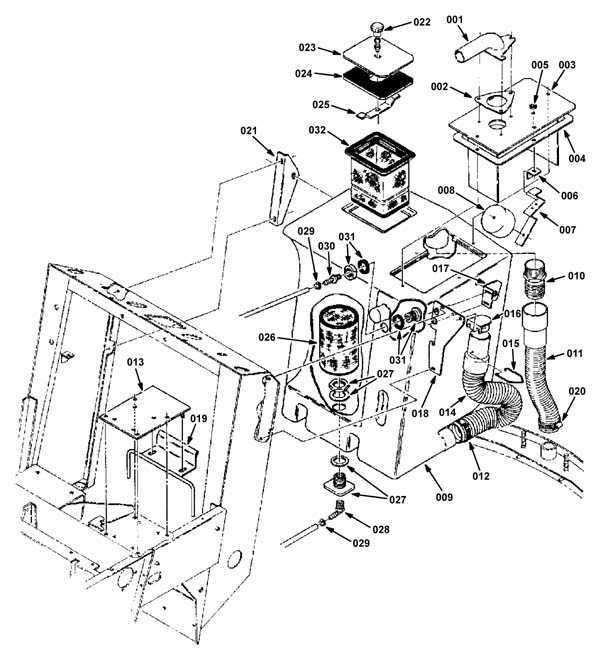

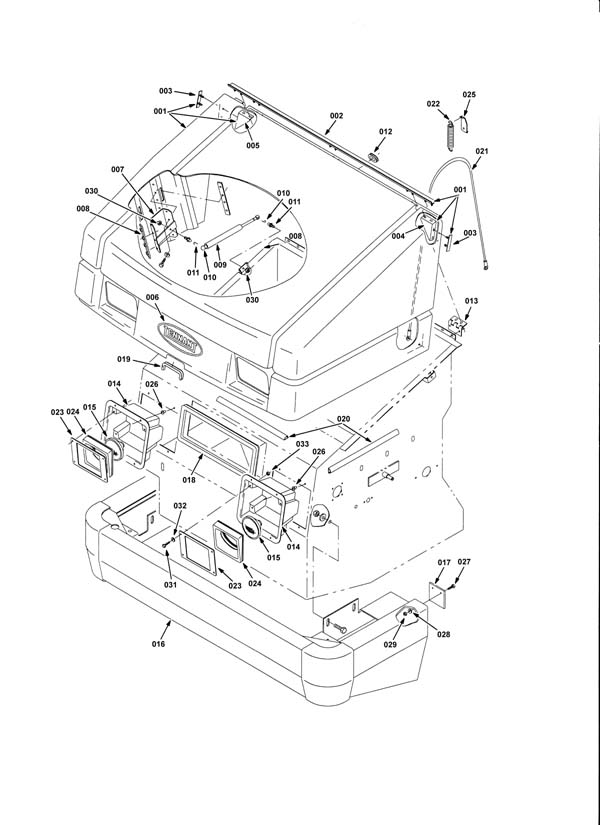

Solution and Recovery Tank Assembly - 275-2706 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Tube |
| 002 |
N/A |
Not available |
1 |
Gasket |
| 003 |
N/A |
Not available |
1 |
Float plate |
| 004 |
N/A |
Not available |
1 |
Float plate gasket |
| 005 |
175-2009 |
WASHER, SEALING, 0.28B 0.75D SS, NEO |
1 |
|
| 006 |
275-1774 |
ANGLE, MTG, STL, .06 1.0 1.0 01.0L (Tennant Industrial) |
1 |
|
| 007 |
275-1775 |
BRACKET WLDT, MTG, FLOAT (Tennant Industrial) (OBSOLETE) |
1 |
|
| 008 |
275-1776 |
FLOAT, VACFAN HD (Tennant Industrial) |
1 |
|
| 009 |
N/A |
Not available |
1 |
Solution/recovery tank |
| 010 |
N/A |
Not available |
1 |
Straight barbed fitting |
| 011 |
275-1779 |
HOSE ASSY, W/1CUFF, 1.5D 020L 2.0/ (Tennant Industrial) |
1 |
|
| 013 |
N/A |
Not available |
1 |
Tank support |
| 014 |
275-1781 |
HOSE ASSY, W/2CUFF, 1.5D 025L 1.5/2.0 (Tennant Industrial) |
1 |
|
| 015 |
N/A |
Not available |
1 |
Retainer clip |
| 016 |
N/A |
Not available |
1 |
Plug |
| 017 |
N/A |
Not available |
1 |
Left hand tie down bracket |
| 018 |
N/A |
Not available |
1 |
Pickup handle bracket |
| 019 |
N/A |
Not available |
1 |
Retainer |
| 020 |
997-2000 |
Hose clamp |
1 |
|
| 021 |
N/A |
Not available |
1 |
Recovery tank cover and seal assembly |
| 021 |
N/A |
Not available |
1 |
Right hand tie down bracket |
| 022 |
275-1789 |
LATCH (Tennant Industrial) |
1 |
|
| 023 |
275-1790 |
COVER, TANK, RECVY (Tennant Industrial) |
1 |
|
| 024 |
275-1791 |
GASKET, .25, 04.63W 05.63L, 1/1.3H, ADH (Tennant Industrial |
1 |
|
| 025 |
275-1792 |
PAWL, LATCH (Tennant Industrial) |
1 |
|
| 026 |
N/A |
Not available |
1 |
Filter screen |
| 027 |
175-9552 |
Plastic fitting |
1 |
|
| 028 |
N/A |
Not available |
1 |
Elbow fitting |
| 029 |
175-3594 |
Hose clamp |
2 |
|
| 030 |
275-1796 |
Straight plastic fitting (Tennant Industrial) |
1 |
|
| 031 |
N/A |
Not available |
1 |
Bulkhead fitting |
| 032 |
275-1798 |
SOAPBASKET (Tennant Industrial) |
1 |
|
|
|

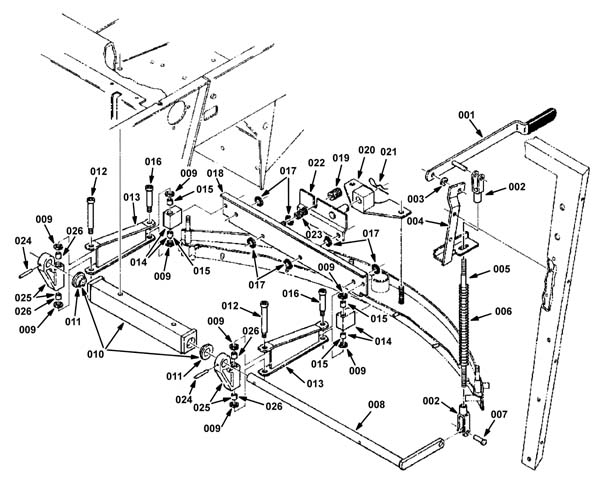

Rear Squeegee Lift Assembly - 275-2707 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Squeegee lift handle |
| 002 |
275-1727 |
CLEVIS, ADJ, 0.38PIN, 0.38-24 (Tennant Industrial) |
2 |
|
| 004 |
N/A |
Not available |
1 |
Pivot bracket |
| 005 |
N/A |
Not available |
1 |
Squeegee lift rod |
| 006 |
275-1802 |
SPRING, CMPR, 0.55OD .10WIR 13.2L (Tennant Industrial) |
1 |
|
| 007 |
275-1803 |
PIN, CLEVIS, 0.37D X 1.12L (Tennant Industrial) |
1 |
|
| 008 |
N/A |
Not available |
1 |
Squeegee lift shaft |
| 009 |
175-3435 |
Washer 25/64 x 3/4d x 1/16 nylon |
8 |
|
| 010 |
N/A |
Not available |
1 |
Pivot bar assembly |
| 011 |
N/A |
Not available |
2 |
Flange bearing |
| 012 |
N/A |
Not available |
2 |
Shoulder screw |
| 013 |
N/A |
Not available |
2 |
Squeegee link |
| 014 |
N/A |
Not available |
2 |
Hinge block assembly |
| 015 |
N/A |
Not available |
2 |
Sleeve bearing |
| 016 |
N/A |
Not available |
2 |
Shoulder screw |
| 017 |
275-1812 |
Washer (Tennant Industrial) (OBSOLETE) |
6 |
|
| 018 |
N/A |
Not available |
1 |
Squeegee rail |
| 019 |
N/A |
Not available |
1 |
Knob |
| 020 |
N/A |
Not available |
1 |
Squeegee mount |
| 021 |
175-2117 |
Cotter pin |
1 |
|
| 022 |
N/A |
Not available |
1 |
Pivot plate |
| 023 |
175-2203 |
Compression spring |
1 |
|
| 024 |
275-1694 |
PIN, ROLL, .250D X 1.25L, .250/.256 (Tennant Industrial) |
2 |
|
| 025 |
N/A |
Not available |
2 |
Arm hinge assembly |
| 026 |
N/A |
Not available |
2 |
Sleeve bearing |
|
|

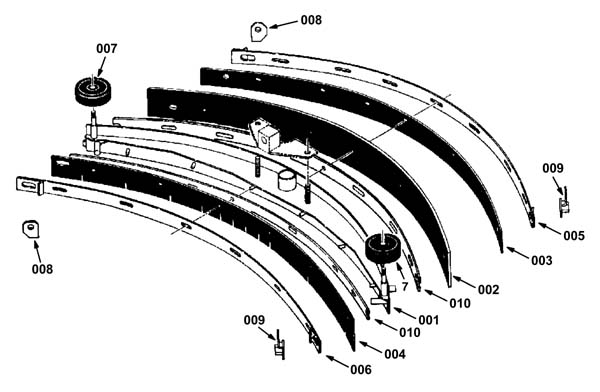

Rear Sqeegee Assembly - 275-2708 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
Squeegee assembly |
| 001 |
N/A |
Not available |
1 |
Squeegee performance package |
| 001 |
N/A |
Not available |
1 |
Squeegee frame |
| 002 |
275-1821 |
BLADE, SQGE, 42.5L (Tennant Industrial) |
1 |
|
| 003 |
275-1822 |
STRIP, BACKUP, REAR, NEO, 0.13 02.0W (Tennant Industrial) |
1 |
|
| 004 |
N/A |
Not available |
1 |
Squeegee blade |
| 005 |
275-1824 |
RETAINER WLDT, BLADE, SQGE, 1.3W 39.4L (Tennant Industrial) |
1 |
|
| 006 |
275-1825 |
RETAINER WLDT, SQGE, FRONT [432] (Tennant Industrial) |
1 |
|
| 007 |
275-1826 |
WHEEL, 03.0D 0.81W 0.39B (Tennant Industrial) |
2 |
|
| 008 |
275-1827 |
CAM (Tennant Industrial) |
2 |
|
| 009 |
275-1828 |
CAM WLDT (Tennant Industrial) |
2 |
|
| 010 |
N/A |
Not available |
2 |
Abrasive strip |
|
|

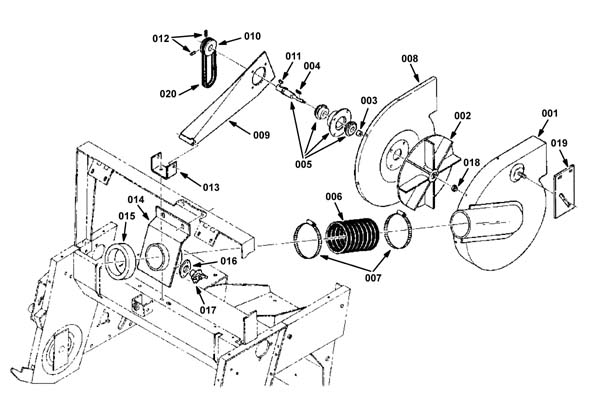

Vacuum Fan Assembly - 275-2710 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Vacuum fan housing |
| 002 |
175-9154 |
Impeller 9 x 3/8 |
1 |
|
| 004 |
175-9158 |
Square key 1/8 x 1/8 inch |
1 |
|
| 006 |
175-0858 |
HOSE, FLEX, VACUUM, 04.0D, 005.0L (Tennant Industrial) |
1 |
|
| 007 |
175-7146 |
Wormdrive clamp (Tennant Industrial) |
2 |
|
| 008 |
N/A |
Not available |
1 |
Rear impeller housing |
| 009 |
N/A |
Not available |
1 |
Fan mount arm |
| 010 |
275-9801 |
Sheave (Tennant Industrial) |
1 |
|
| 011 |
175-9159 |
Woodruff key |
1 |
|
| 012 |
175-4926 |
Screw 5/16-18 x 3/8 set nylon lock |
2 |
|
| 013 |
N/A |
Not available |
1 |
Fan pivot bracket |
| 014 |
N/A |
Not available |
1 |
Filter to fan adapter |
| 015 |
275-1852 |
SEAL, RBR, CLSD, 1.00, 4.9D 03.9H (Tennant Industrial) |
1 |
|
| 016 |
175-9365 |
Fire switch gasket |
1 |
|
| 017 |
175-9364 |
Thermostat assembly 140 degree |
1 |
|
| 018 |
175-9286 |
Nut 5/16 x 24 hex flex lock thin plated |
1 |
|
| 019 |
N/A |
Not available |
1 |
Backing plate |
| 020 |
275-1854 |
BELT, V, 19.0L, COGGED [4L] (Tennant Industrial) |
1 |
|
|
|

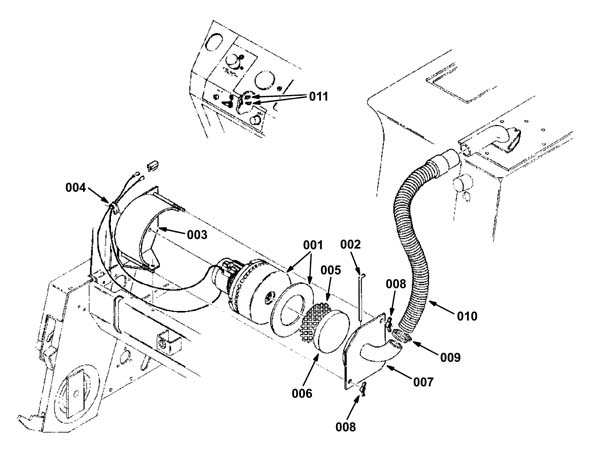

Scrub Vacuum Fan Assembly - 275-2711 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
N/A |
Not available |
1 |
Retainer rod |
| 003 |
N/A |
Not available |
1 |
Vacuum fan mount |
| 005 |
N/A |
Not available |
1 |
Screen |
| 006 |
275-1859 |
FILTER, PYU, 0.60, 04.5D (Tennant Industrial) |
1 |
|
| 007 |
N/A |
Not available |
1 |
Vacuum fan filter |
| 008 |
275-1861 |
NUT, WING, .31-18 (Tennant Industrial) |
2 |
|
| 009 |
997-2000 |
Hose clamp |
1 |
|
| 010 |
N/A |
Not available |
1 |
Hose and cuff assembly |
| 011 |
275-1863 |
TERMINAL, TAB, .25 .19H .84L (Tennant Industrial) |
2 |
|
|
|

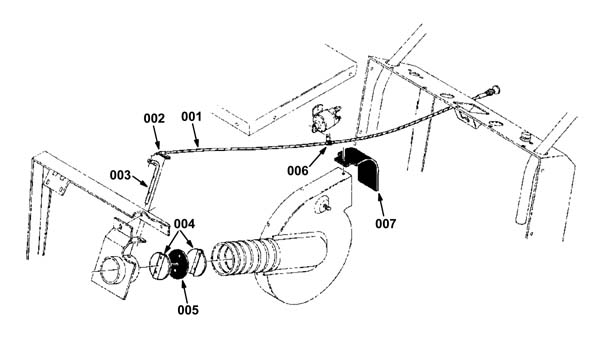

Vacuum Fan Shutoff Assembly - 275-2712 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Control cable |
| 002 |
175-6832 |
CLAMP, CABLE, STL, 0.19D X 0.50W, 1HOLE (Tennant Industrial |
1 |
|
| 003 |
N/A |
Not available |
1 |
Damper lever |
| 004 |
275-1866 |
DAMPER (Tennant Industrial) |
2 |
|
| 005 |
N/A |
Not available |
1 |
Seal |
| 006 |
175-6768 |
P clamp (Tennant Industrial) |
1 |
|
| 007 |
N/A |
Not available |
1 |
Deflector |
|
|

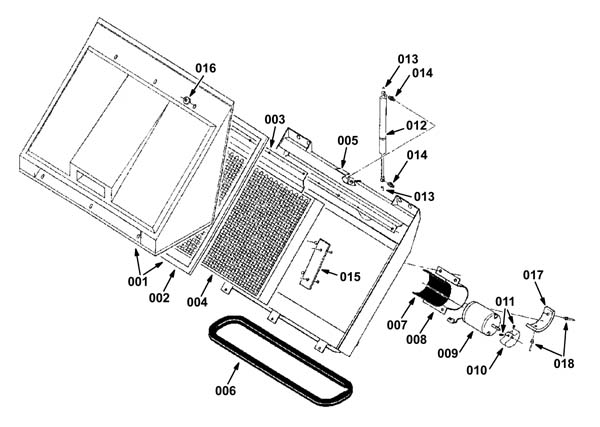

Filter and Shaker Motor Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

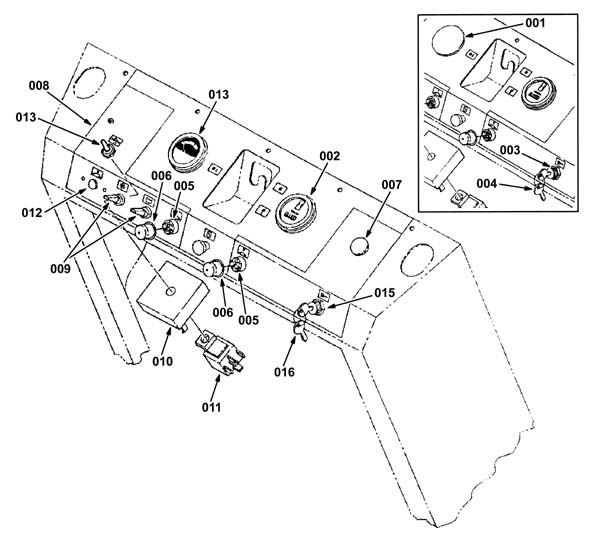

Instrument Panel Assembly - 275-2714 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-9134 |
Plug button (Tennant Industrial) |
1 |
|
| 002 |
175-1820 |
Valve pin and spring kit |
1 |
|
| 003 |
175-2149 |
Key switch assembly with keys |
1 |
|
| 004 |
175-2149 |
Key switch assembly with keys |
1 |
|
| 005 |
175-5969 |
15amp circuit breaker (Tennant Industrial) |
2 |
|
| 006 |
275-2596 |
Circuit breaker boot (Tennant Industrial) |
2 |
|
| 007 |
275-1882 |
PLUG, HOLE, RND, 1.00H .03-.12, BLK NYL (Tennant Industrial |
1 |
|
| 008 |
N/A |
Not available |
1 |
Instrument panel label |
| 009 |
275-1884 |
SWITCH, TOGGLE, 10A SPST, SEALED (Tennant Industrial) |
2 |
|
| 010 |
275-1885 |
TIMER, 12VDC, 1A, 20S DELAY [ON BREAK] (Tennant Industrial) |
1 |
|
| 011 |
275-1886 |
RELAY, 12VDC, 024A, SPDT, SEALED [BOSCH] (Tennant Industria |
1 |
|
| 012 |
275-1887 |
CIRCUITBREAKER, 17.5A, RESETABLE (Tennant Industrial) |
1 |
|
| 013 |
275-1888 |
GAUGE, DISCHARGE, BATTERY, 24VDC, RND (Tennant Industrial) |
1 |
|
| 014 |
N/A |
Not available |
1 |
Toggle switch |
| 015 |
275-1890 |
CAM, LOCK (Tennant Industrial) |
1 |
|
| 016 |
N/A |
Not available |
1 |
KEY, LOCK (Tennant Industrial) |
|
|

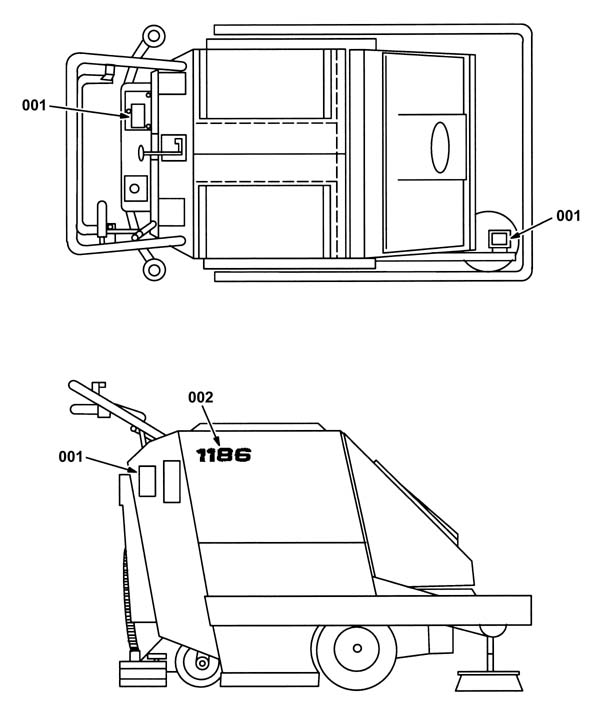

Label Assembly - 275-2715 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Information and haxard label kit |
| 002 |
N/A |
Not available |
1 |
Label |
|
|
Wire Harnesses Assembly - Part 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

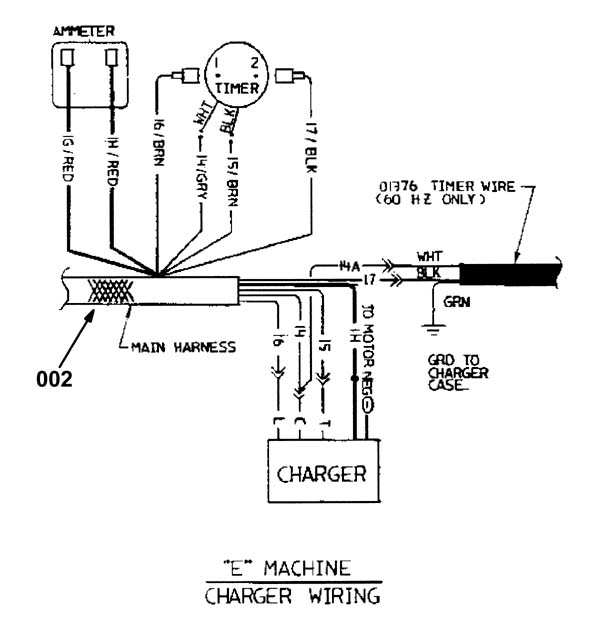

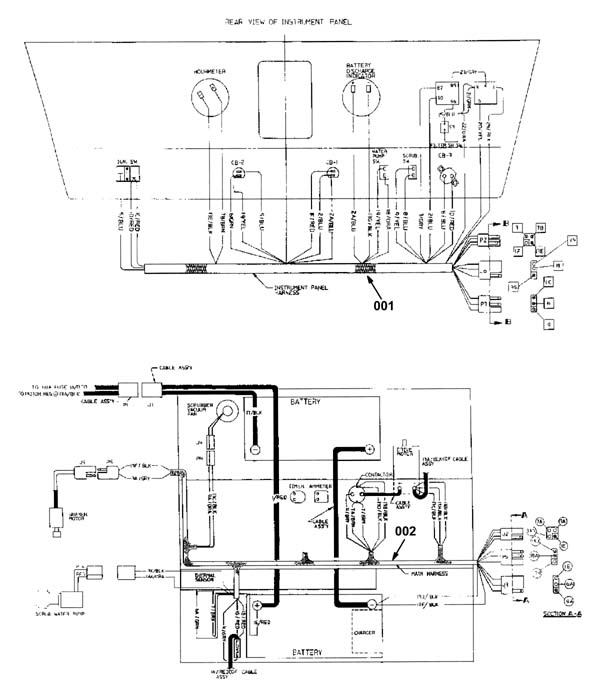

Wire Harnesses Assembly - Part 2 - 275-2717 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |

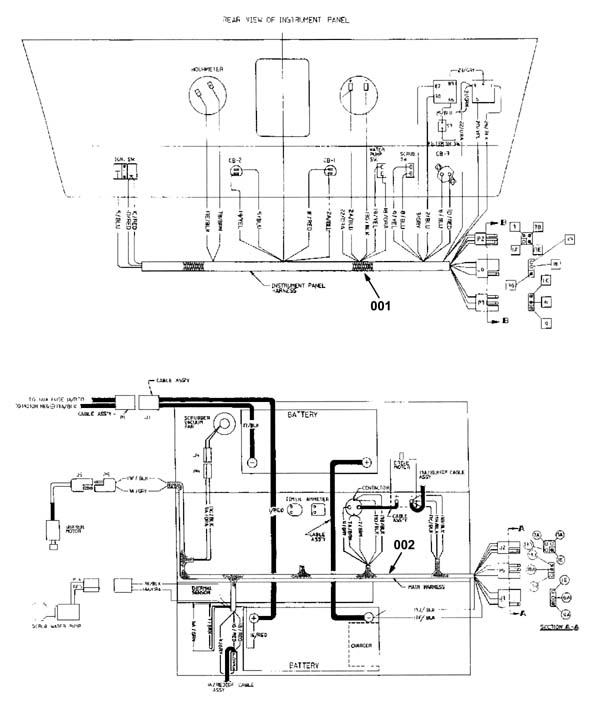

Instrument panel wire harness |
| 002 |
N/A |
Not available |
1 |
Main wire harness |
|
|
Wire Harnesses Assembly - Part 3 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

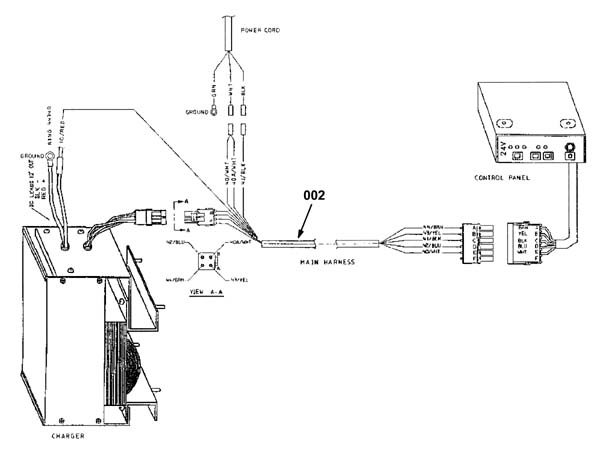

Wire HarnessesAssembly - Part 4 - 275-2719 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Instrument panel wire harness |
| 002 |
N/A |
Not available |
1 |
Main wire harness |
|
|

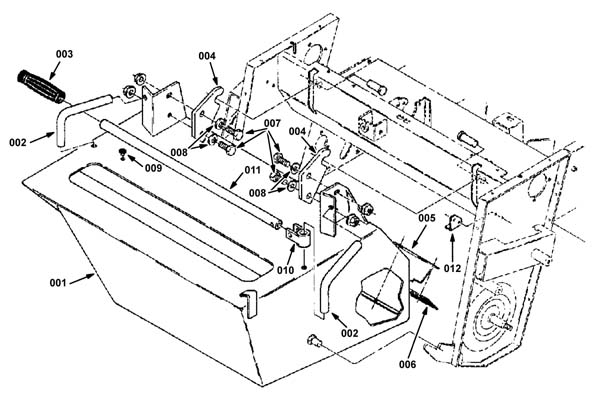

Hopper Assembly - 275-2720 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
Hopper assembly |
| 001 |
N/A |
Not available |
1 |
Hopper weldment |
| 002 |
N/A |
Not available |
2 |
Hopper lift handle |
| 003 |
275-1901 |
GRIP, HANDLE, RND (Tennant Industrial) |
1 |
|
| 004 |
N/A |
Not available |
2 |
Hopper catch plate |
| 005 |
N/A |
Not available |
1 |
Retainer |
| 006 |
275-1624 |
SEAL ASSY, LIP, PAN (Tennant Industrial) |
1 |
|
| 007 |
275-1903 |
SCREW, HEX, .31-18 X 1.00, G8 (Tennant Industrial) |
4 |
|
| 008 |
999-0105 |
Washer 5/16 external star lock zinc plated |
4 |
|
| 009 |
175-2101 |
Rubber bumper cap |
1 |
|
| 010 |
275-1904 |
Handle knuckle (Tennant Industrial) |
1 |
|
| 011 |
N/A |
Not available |
1 |
Lift handle |
| 012 |
N/A |
Not available |
1 |
Stop angle |
|
|

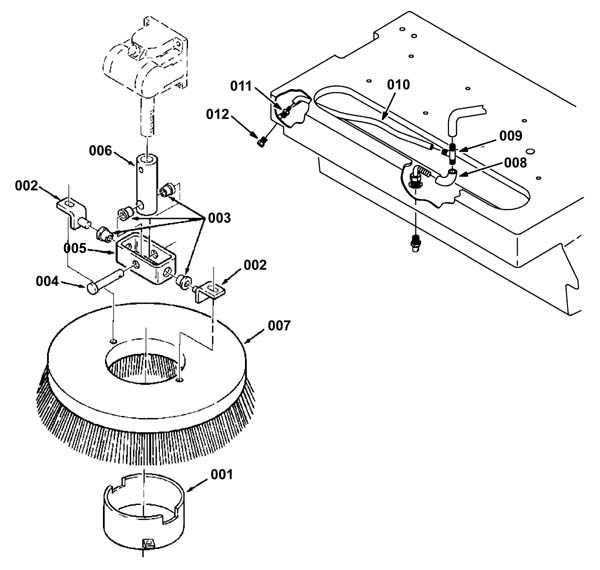

Side Scrub Brush Kit - 275-2721 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
Side scrub brush kit |
| 001 |
N/A |
Not available |
1 |
Ring |
| 002 |
N/A |
Not available |
2 |
Pivot |
| 003 |
N/A |
Not available |
4 |
Flange bushing |
| 004 |
175-2592 |
Clevis Pin 0.37 D X 1.75 L |
1 |
|
| 005 |
N/A |
Not available |
1 |
Swivel box tube |
| 006 |
N/A |
Not available |
1 |
Hub tube |
| 007 |
N/A |
Not available |
1 |
Disk brush |
| 008 |
N/A |
Not available |
1 |
Hose |
| 009 |
275-1196 |
Plastic tee fitting (Tennant Industrial) |
1 |
|
| 010 |
175-5306 |
HOSE, AFMKT, PVC, CLR, 0.25ID, 02FT (Tennant Industrial) |
1 |
|
| 011 |
N/A |
Not available |
1 |
Straight fitting |
| 012 |
N/A |
Not available |
1 |
Side brush nozzle |
|
|

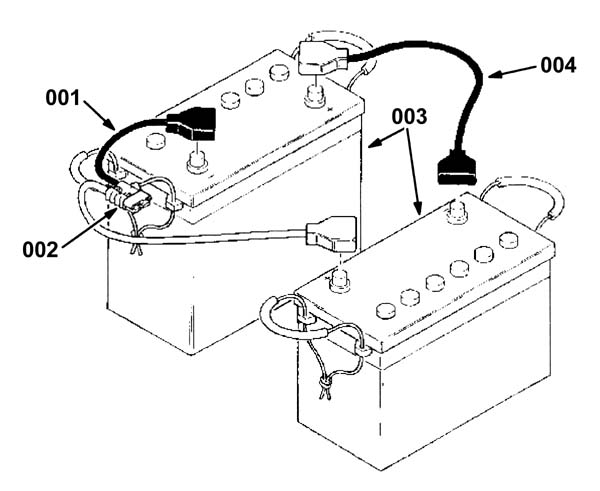

Battery Kit, Wet - 275-2722 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
Wet battery kit |
| 001 |
275-1688 |
CABLE ASSY, BATTERY, 06GA, 2CLAMP, 050A (Tennant Industrial |
1 |
|
| 002 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 003 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 004 |
N/A |
Not available |
1 |
Battery cable |
|
|

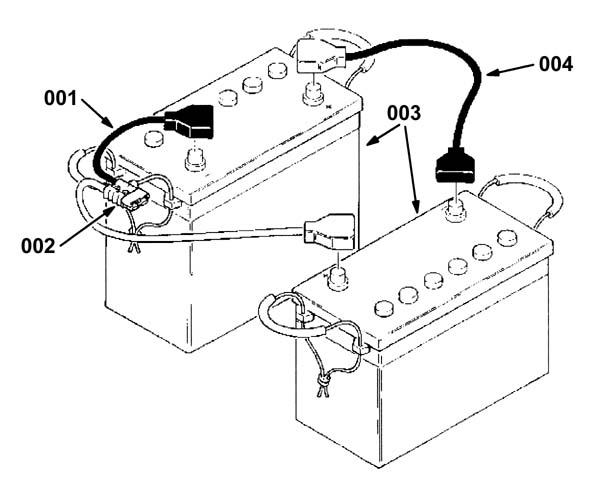

Battery Kit, Dry - 275-2723 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
Dry battery kit |
| 001 |
275-1688 |
CABLE ASSY, BATTERY, 06GA, 2CLAMP, 050A (Tennant Industrial |
1 |
|
| 002 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 003 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 004 |
N/A |
Not available |
1 |
Battery cable |
|
|
Battery Charger and Timer Assembly - 275-2724 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Battery charger |
| 002 |
275-1920 |
LABEL, INFO, CHRGR CONNECTION (Tennant Industrial) |
1 |
|
| 003 |
175-9135 |
Switch (OBSOLETE) |
1 |
|
|
|

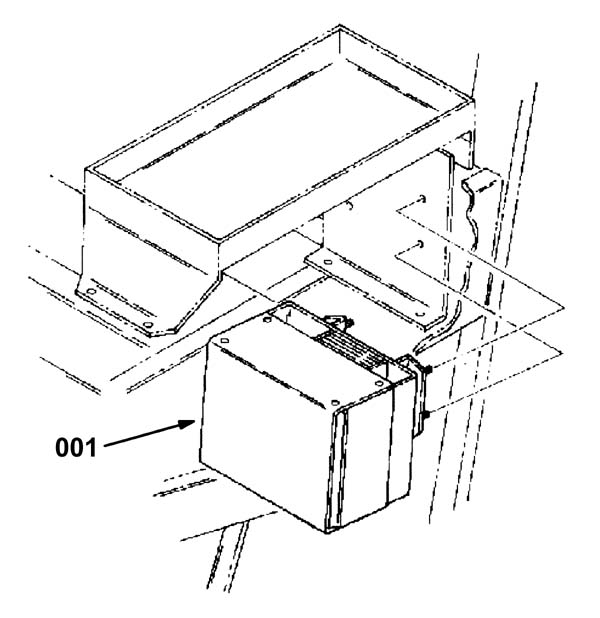

Battery Charger Assembly - Part 1 - 275-2725 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-8912 |
Charger 15 amp 50 hz (OBSOLETE) |
1 |
|
|
|
Battery Charger Assembly - Part 2 - 275-2726 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
275-1922 |
CHARGER KIT, 24VDC 017A 115VAC, CI (Tennant Industrial) |
1 |
|
|
|

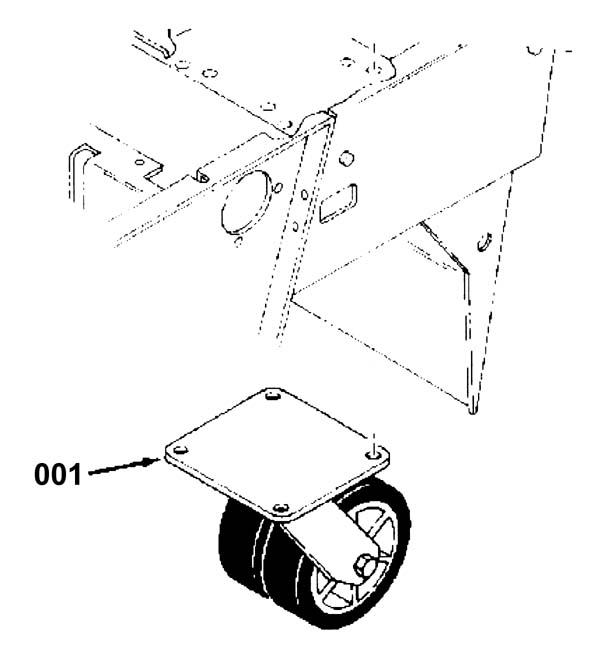

Dual Caster Assembly - 275-2727 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
275-2727 |
8 inch cable (red) (Tennant Industrial) |
1 |
|
|
|

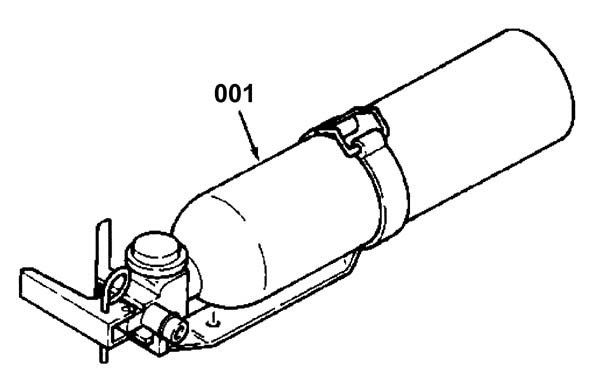

Fire Extinguisher Kit - 275-2728 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Fire extinguisher kit |
|
|

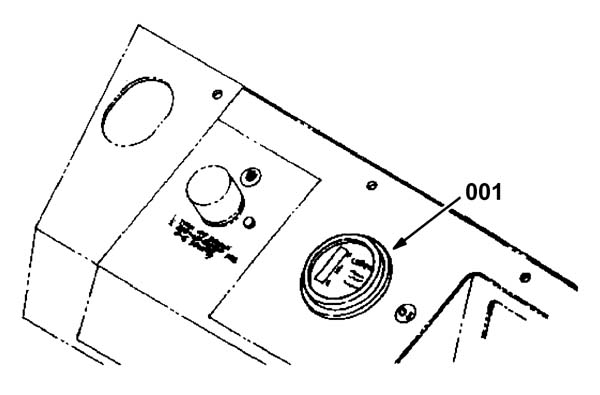

Battery Gauge Kit - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Double Wheel Kit - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

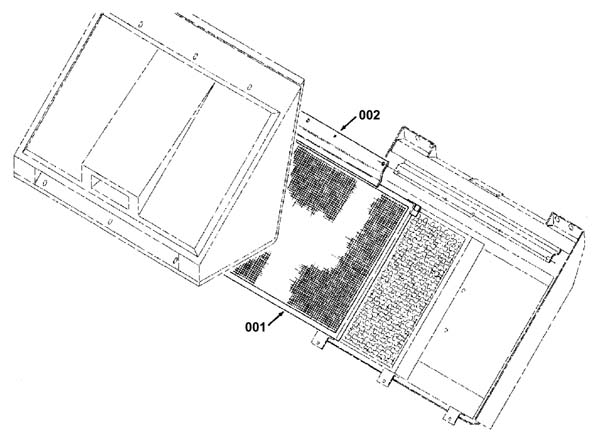

Fine Particle Filter Kit - 275-2731 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
Fine particle filter |
| 001 |
N/A |
Not available |
1 |
(Dust panel filter) |
| 002 |
N/A |
Not available |
1 |
Hold down bracket |
| 003 |
N/A |
Not available |
1 |
Sheave |
|
|

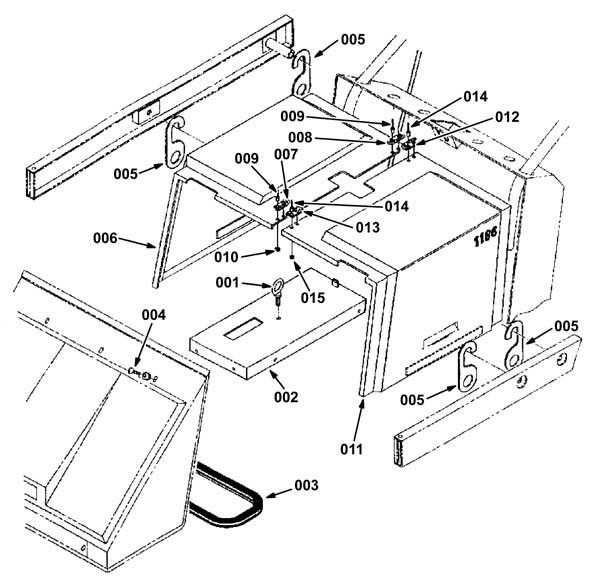

Lift and Tie-Down Kit - 275-2732 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
Lift and tie down kit |
| 000 |
N/A |
Not available |
1 |
Lift kit |
| 001 |
N/A |
Not available |
1 |
Eyebolt |
| 002 |
N/A |
Not available |
1 |
Center brace |
| 003 |
N/A |
Not available |
1 |
Protective filter cover |
| 004 |
N/A |
Not available |
6 |
Thumb screw |
| 005 |
N/A |
Not available |
4 |
Tie down |
| 006 |
N/A |
Not available |
1 |
Right hand cover assembly |
| 007 |
N/A |
Not available |
1 |
Left hand pull pin hinge |
| 008 |
N/A |
Not available |
1 |
Right hand pull pin hinge |
| 010 |
175-8904 |
Rubber bumper |
3 |
|
| 011 |
N/A |
Not available |
1 |
Left hand cover assembly |
| 012 |
N/A |
Not available |
1 |
Left hand pull pin hinge |
| 013 |
N/A |
Not available |
1 |
Right hand pull pin hinge |
| 015 |
175-8904 |
Rubber bumper |
3 |
|
|
|

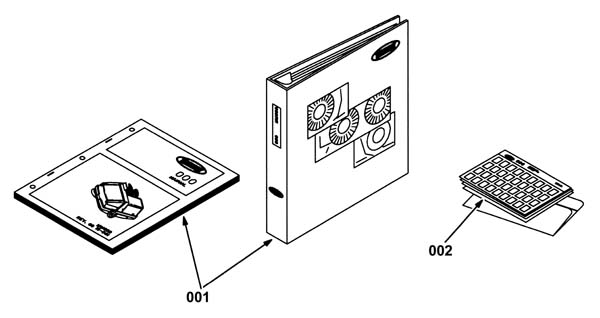

Documentation Assembly - 275-2733 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
275-1948 |
Manual package (OBSOLETE) |
1 |
|
| 002 |
N/A |
Not available |
1 |
Fiche package manual |
|
|

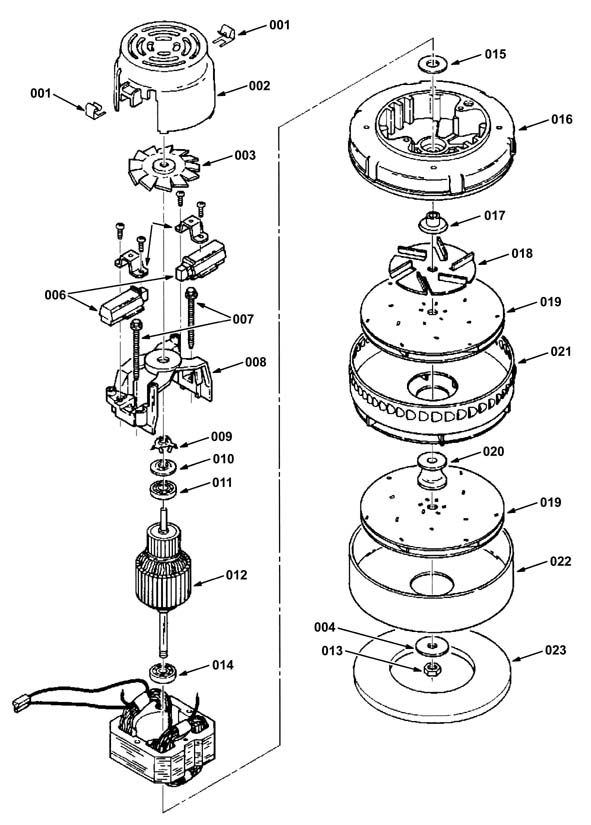

Motor Breakdown - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
|
