Parts List Complete for TASKI swingo 150

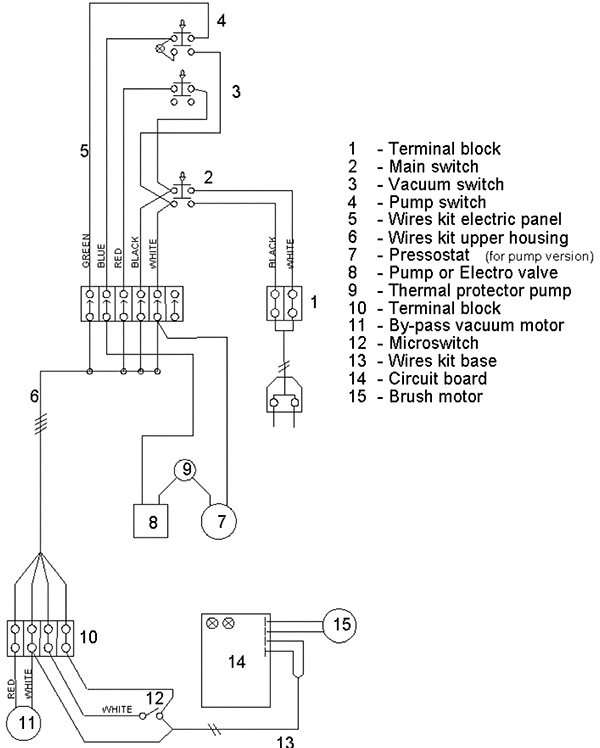

Wiring Diagram - 120V -

RefNbr Part Number Description Req Notes

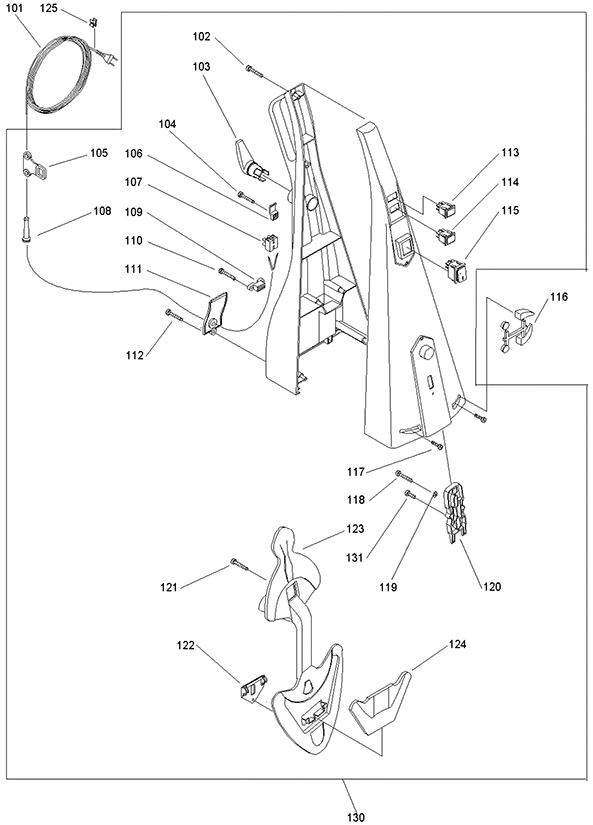

Handle Assembly - 192-0385
RefNbr Part Number Description Req Notes
101 192-4921 120V 16/2 power cord (black) 1
102 192-6281 Screw KA 40 x 35 6
103 192-9855 Cord hook 1
104 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 1
105 192-9856 Strain relief 1
106 192-9857 Hook 1
107 192-2895 2 way connection block 1
108 192-2541 Strain relief 1
109 192-2793 Clamp 1
110 192-5455 Screw M2-.9 x 16mm pan head tapping 2
111 192-9858 Bearing rail cover 1
112 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 1
113 192-9859 Water pump switch 1
114 192-9860 Vacuum motor switch 1
115 192-9861 Main switch 1
116 192-9862 Bushing 1
117 192-5931 Screw M6 x 12mm truss head phillips 4
118 228-2828 Single screw 4 x 45 hilo 1
119 192-0149 Washer 3
120 192-9863 Quick snap plug 1
121 192-6281 Screw KA 40 x 35 1
122 192-9864 Clamp clip 1
123 192-9865 Front handle 1
124 192-9866 Front hook 1
125 192-2500 Cable clamp 1
130 192-9867 Handle assembly 1 (includes 102-115, 117-124 and 131)
131 192-8250 Screw M3-.9 x 13mm pan head tapping 1

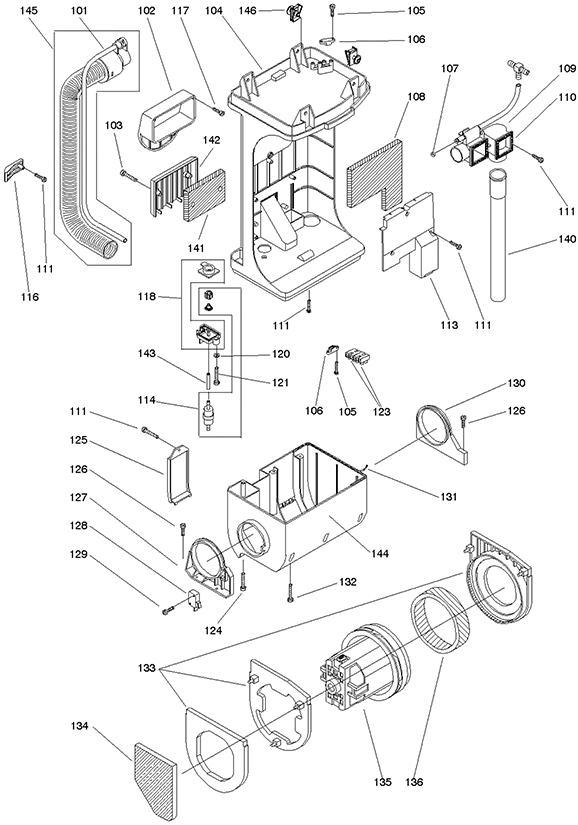

Vacuum Assembly - 192-0386
RefNbr Part Number Description Req Notes
102 192-9868 Handle 1
103 192-6284 Screw KA 35 x 25 2
104 192-9869 Upper housing 1
105 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 4
106 192-2793 Clamp 2
107 192-5382 O-ring 1
108 192-9870 Air filter 1
109 192-9871 Housing 1
110 192-9872 Gasket (pkg of 2) 1
111 192-0548 Screw KA 35 x 10 9
113 192-9873 Cover 1
114 192-9874 Water filter kit 1
116 192-9875 Hose holder 1
117 192-6286 Screw KA 40 x 18 3
118 192-9876 Water valve kit 1
120 192-0149 Washer 2
121 192-0767 Screw KA 40 x 10 2
123 192-2895 2 way connection block 2
124 192-6281 Screw KA 40 x 35 1
125 192-9877 Cover 1
126 192-0549 Screw KA 35 x 20 4
127 192-9878 Left motor support 1
128 192-9879 Microswitch 1
129 192-0452 Screw for plastic KA 30 x 16mm 1
130 192-9880 Right motor support 1
131 192-9881 Gasket 1
132 192-6284 Screw KA 35 x 25 5
133 192-9882 Gasket kit 1
134 192-9883 Filter 1
135a 192-9884 120V vacuum motor and gasket 1
135b 292-0864 240V vacuum motor 1
136 192-9885 Vacuum motor filter 1
140 192-9886 Tube with gasket 1
141 192-9887 Exhaust filter 1
142 192-9888 Filter housing 1
143 192-6437 Silicone hose (sold by the inch) 2 in
144 192-9889 Vacuum motor housing 1
145 192-9940 Vacuum hose 1 (includes 101)
146 292-5352 Clip 1

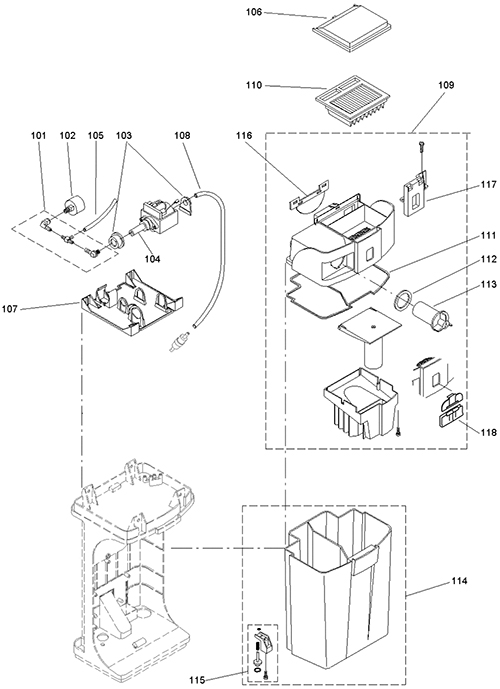

Pump and Tank Assembly - 192-0387
RefNbr Part Number Description Req Notes
101 192-9890 Connector assembly 1
102 192-9891 Sensor 1
103 192-9892 Support rubber 1
104a 192-9893 120V pump 1
104b 292-0865 240V pump 1
105 192-0654 Silicone hose (sold by the inch) 10 in
106 192-9894 Water filter cover 1
107 192-9895 Pump holder 1
108 192-6437 Silicone hose (sold by the inch) 29 in (includes 111-113, 116-118)
109 192-9896 Filter housing assembly 1
110 192-9897 Water filter 1
111 192-9898 Gasket 1
112 192-9899 Gasket 1
113 192-9900 Dosing cup 1
114 192-9901 Water tank 1 (includes 115)
115 192-9902 Valve kit 1
116 192-9903 Plate 1
117 292-5390 Support 1
118 292-0344 Latch 1

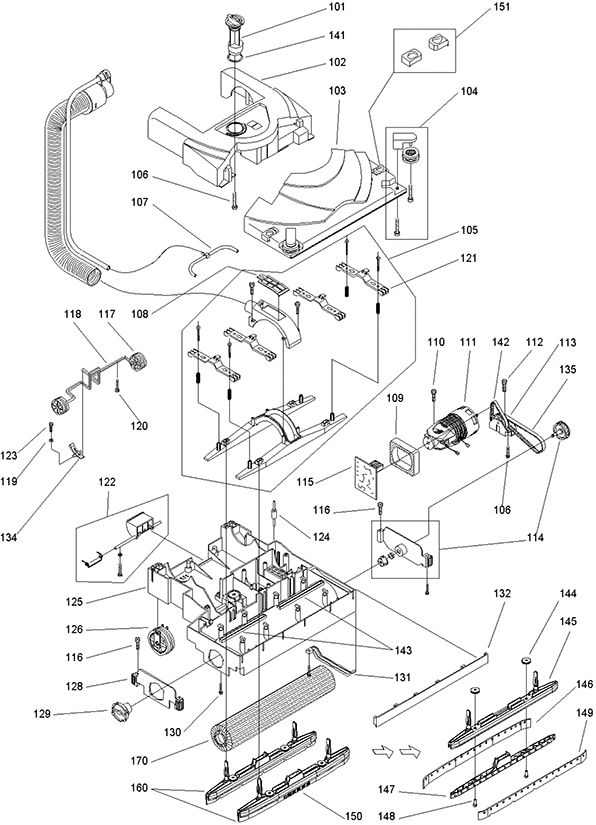

Power Head Assembly - 192-0388
RefNbr Part Number Description Req Notes
101 192-9904 Adjusting knob 1
102 192-9905 Brush housing 1
103 192-9906 Brush housing cover 1
104 192-9907 Guide wheel kit 2
105 192-9908 Bracket kit 1 (includes 108 and 121)
106 192-1595 Screw M40 x 16mm torx head 2
107 192-9909 Tubing kit 1
108 192-9910 Suction cover 1
109 192-3626 Filter 1
110 192-6286 Screw KA 40 x 18 3
111a 192-9911 120V 60Hz brush motor 1
111b 292-0866 120V motor 1
112 192-6285 Screw KA 40 x 16 2
113 192-9912 Belt support 1
114 192-9913 Transmission support 1
115a 192-9914 Circuit board 1 (120V)
115b 292-0867 Electronics 1 (240V)
116 192-5442 Screw 3 1/2 x 13 pan head tapping 4
117 192-9915 Wheel 2
118 192-9916 Axle 1
119 192-0149 Washer 1
120 192-1571 Screw M50 x 16mm 3
121 192-9917 Bracket 4
122 192-9918 Foot pedal 1
123 192-0548 Screw KA 35 x 10 1
124 192-9919 Bushing 1
125 192-9920 Brush housing 1
126 192-9921 Rear wheel 2
128 192-9922 Bracket 1
129 192-9923 Brush bearing 1
130 192-0548 Screw KA 35 x 10 8
131 192-9924 Belt cover 1
132 192-9925 Front bumper 1
134 192-9927 Base lifting lever 1
135 192-9928 Belt (long) 1
141 192-9931 O-ring 1
142 192-9932 Belt (short) 1
143 192-9933 Water channels (pkg of 2) 1
144 192-4682 Nut M5 knurled 4
145 292-0057 Squeegee retainer 2
146 292-0056 Squeegee blade rear un-notched (white) 2
147 292-0058 Squeegee weldment 2
148 192-4221 Screw M5 x 14mm hex head 4
149 292-0059 Squeegee blade front notched (clear) 2
150 292-8583 Squeegee assembly 2
151 292-8584 Latch 1
160 192-9926 Squeegee kit 1
170a 192-9929 13 inch brush assembly (black) - CYLINDRICAL 1
170b 192-9930 13 inch hard brush assembly (red) - CYLINDRICAL (OBSOLETE) 1
170c 292-5156 13 inch active fiber pad roll 1

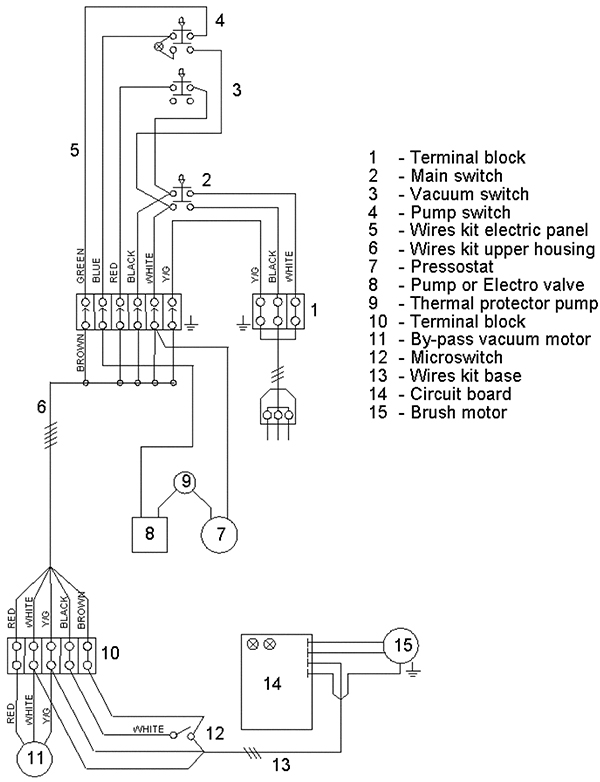

Wiring Diagram - 240V -

RefNbr Part Number Description Req Notes

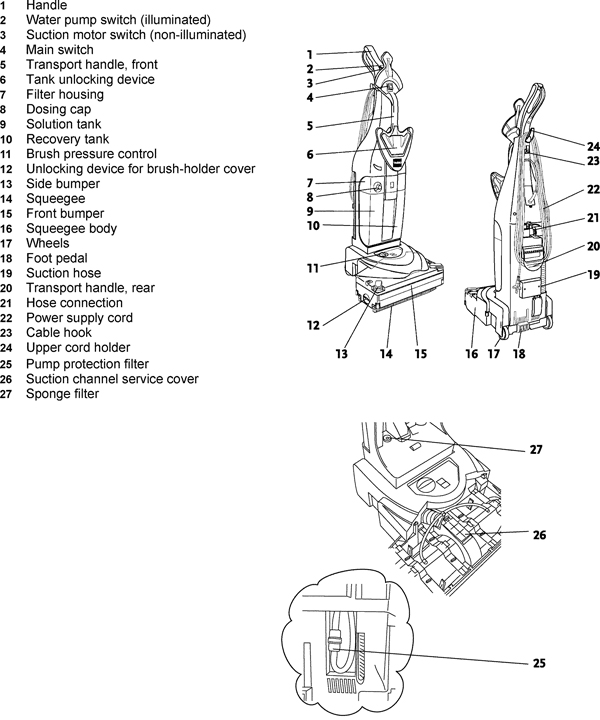

- Know Your Machine -

RefNbr Part Number Description Req Notes

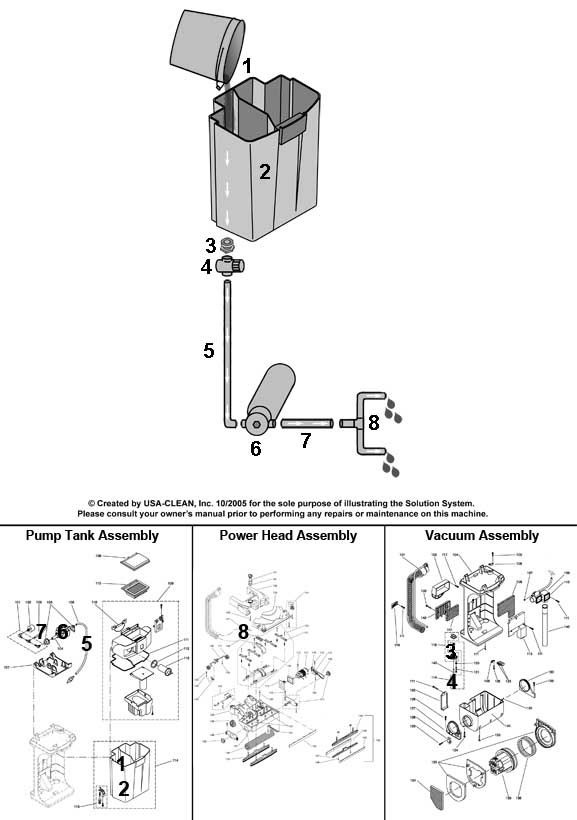

-Simplified Solution System -

RefNbr Part Number Description Req Notes

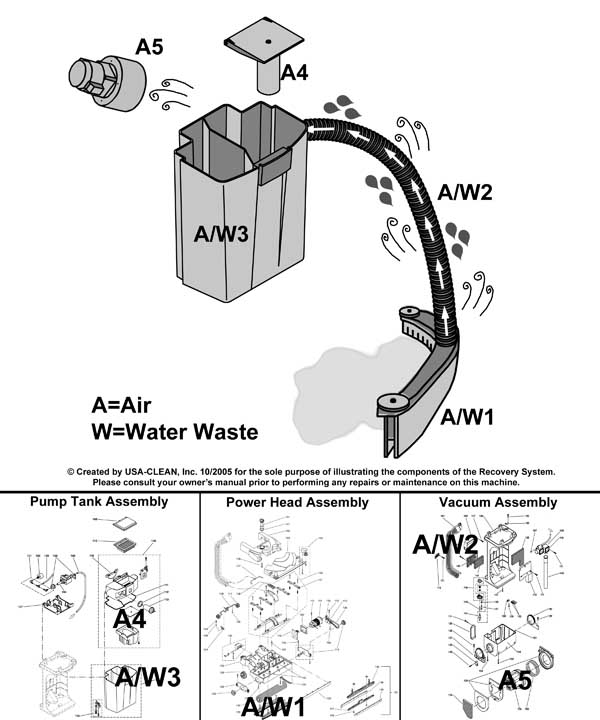

-Simplified Recovery System -

RefNbr Part Number Description Req Notes

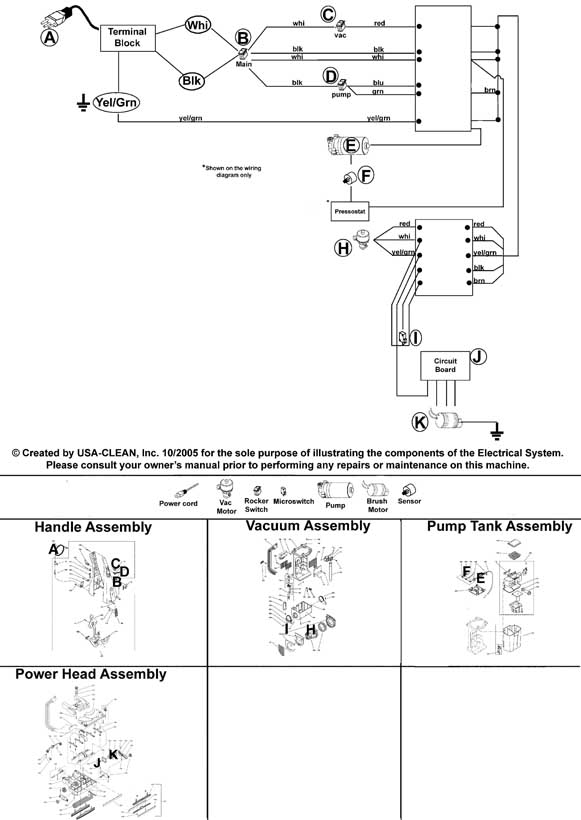

-Simplified Electrical System -

RefNbr Part Number Description Req Notes

- Frequently Replaced Parts - 192-9957
RefNbr Part Number Description Req Notes
181-1201 18/3 power cord 40 foot
991-5007 18/3 replacement power cord 50 foot (black)
192-2541 Strain relief
192-9856 Strain relief
192-9861 Main switch
192-9860 Vacuum motor switch
192-9859 Water pump switch
192-9893 120V pump
192-9874 Water filter kit
192-9897 Water filter
292-0056 Squeegee blade rear un-notched (white)
292-0059 Squeegee blade front notched (clear)
192-9940 Vacuum hose
192-9896 Filter housing assembly
192-9884 120V vacuum motor and gasket
192-9885 Vacuum motor filter
192-9929 13 inch brush assembly (black) - CYLINDRICAL
192-9930 13 inch hard brush assembly (red) - CYLINDRICAL (OBSOLETE)
392-9981 Swingo 150 B/E wear parts kit (blades,hose,cylindrical brush (includes 192-9926,192-9940,192-9929)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
