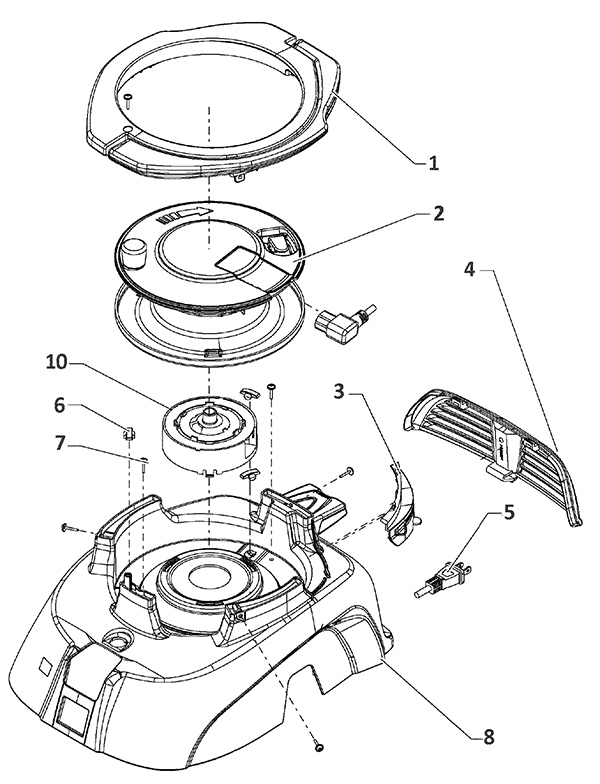

Hood Assembly - 192-8201 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
292-4666 |
Cable reeler |
1 |
|
| 3 |
292-4704 |
Cable router |
1 |
|
| 6 |
292-4702 |
Sliding block |
2 |
|
| 10 |
292-9091 |
Slip ring set |
1 |
|
|
|

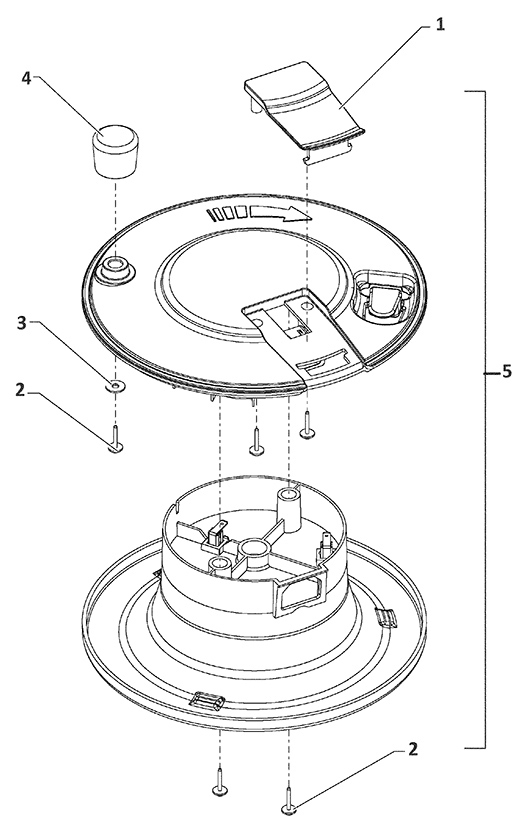

Cable Reel Assembly - 192-8202 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 5 |
292-4666 |
Cable reeler |
1 |
(Includes 1-4) |
|
|
Turbine Assembly - 192-8203 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
292-4670 |
Suction plate |
1 |
|
| 3 |
292-4672 |
Filter gasket |
1 |
|
| 4 |
292-4673 |
Filter basket |
1 |
|
| 7 |
292-4675 |
Fleece filter (pkg of 5) |
1 |
|
| 8 |
292-0811 |
Protecting ring (OBSOLETE) |
1 |
|
| 9a |
292-0812 |
230V vacuum motor |
1 |
|
| 9b |
292-4676 |
120V vacuum motor |
1 |
|
| 11 |
292-4677 |
Pressure spring |
1 |
|
| 13 |
292-0813 |
Noise absorbing set |
1 |
|
| 17a |
292-4682 |
Switch |
1 |
(aero 8 and aero15) |
| 17b |
292-4683 |
Switch (plus model) |
1 |
(aero 8 plus and aero 15 plus) |
| 18 |
292-0814 |
230V electronics |
1 |
(aero 8 plus and aero 15 plus) |
| 19 |
292-4684 |
120V electronic panel |
1 |
(aero 8 plus and aero 15 plus) |
| 20 |
292-4685 |
Filter frame |
1 |
|
| 21 |
292-4686 |
Exhaust filter pad (pkg of 10) |
1 |
|
| 22 |
292-4687 |
HEPA microfilter |
1 |
(aero 8 plus and aero 15 plus) |
|
|

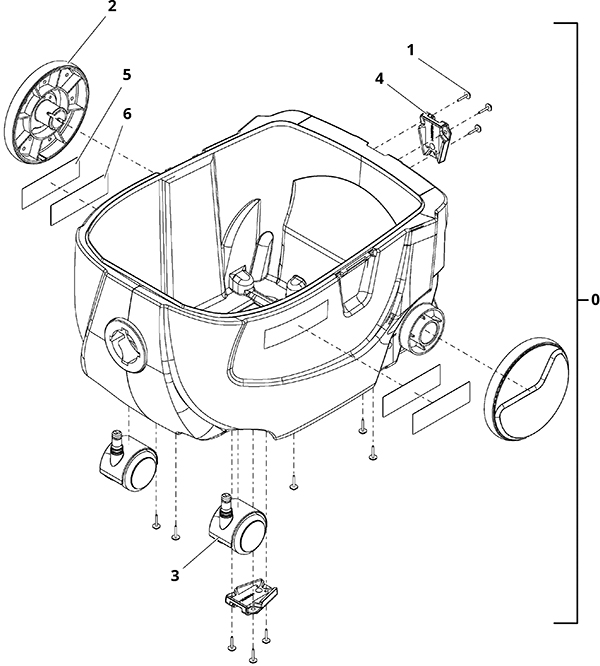

Tank Assembly - 192-8204 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
292-4696 |
15 gallon tank assembly |
1 |
(includes 1-6) |
| 2 |
292-4688 |
Wheel kit (pkg of 2) |
2 |
|
| 4 |
292-4690 |
Suction tube holder |
2 |
|
| 5 |
292-4693 |
Aero 15 decal |
2 |
|
| 6 |
292-4694 |
Aero 15 plus decal |
2 |
|
|
|

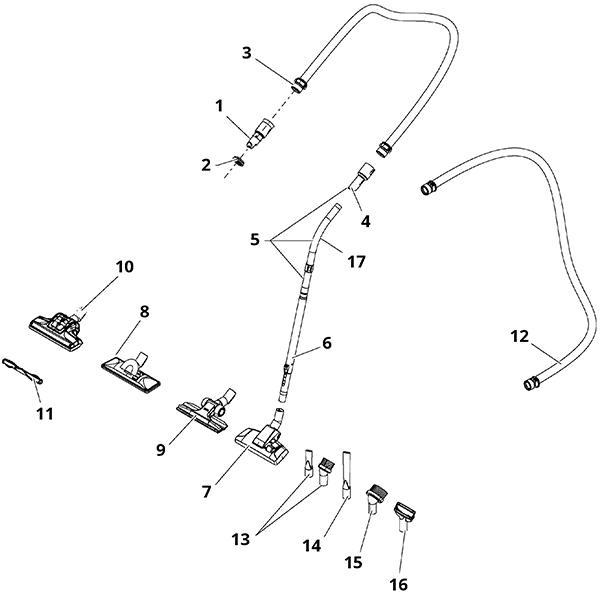

Wand Assembly - 192-8205 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
292-4661 |
Suction hose |
1 |
|
| 4 |
292-0815 |
Hose connector |
1 |
|
| 5 |
292-0816 |
Curved metal pipe |
1 |
|
| 6 |
292-0817 |
Telescopic rod |
1 |
|
| 7 |
292-5427 |
Standard dust nozzle RD |
1 |
|
| 8 |
292-0818 |
Combination sliding nozzle |
1 |
|
| 9 |
292-0819 |
Combination ultra flat nozzle |
1 |
|
| 10 |
292-0794 |
Turbo vacuum brush |
1 |
|
| 11 |
292-9112 |
Turbo vacuum brush set |
1 |
|
| 12 |
292-0821 |
Suction hose |
1 |
|
| 13 |
292-4665 |
Crevice and dusting brush |
1 |
|
| 14 |
292-0822 |
Long crevice nozzle |
1 |
|
| 15 |
292-0823 |
Long dusting brush |
1 |
|
| 16 |
292-0824 |
Upholstery nozzle |
1 |
|
| 17 |
292-0825 |
Accessory upgrade kit |
1 |
|
|
|

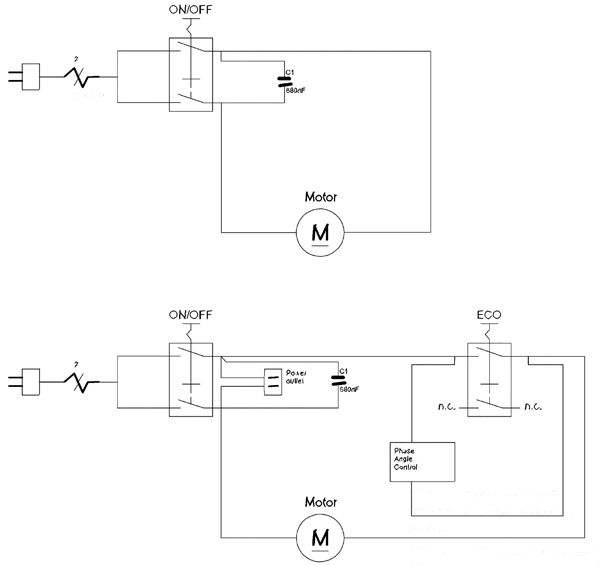

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
