Main Cord - 192-2103 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 102 |
192-2536 |
Cable grommet |
1 |
|
| 103 |
192-0548 |
Screw KA 35 x 10 |
4 |
|
| 104 |
192-0549 |
Screw KA 35 x 20 |
1 |
|
| 105 |
192-6057 |
Right angle plug |
1 |
|
| 106 |
192-0939 |
Plug cover |
1 |
|
|
|
Upper Assembly - 192-2104 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 201 |
192-3201 |
Covering strip (OBSOLETE) |
1 |
|
| 202 |
192-4135 |
Handle (OBSOLETE) |
1 |
|
| 203 |
192-6285 |
Screw KA 40 x 16 |
2 |
|
| 204 |
192-5610 |
Plug socket |
1 |
|
| 205a |
192-2605 |
Cap (OBSOLETE) |
1 |
|
| 205b |
192-5269 |
Noise absorbing strip (OBSOLETE) |
1 |
|
| 206 |
192-5932 |
Screw M6 x 20 raised cheese head (OBSOLETE) |
4 |
|
| 207 |
192-0706 |
Screw M50 x 16mm for plastic |
|
|
| 208 |
192-3103 |
Cover (OBSOLETE) |
1 |
|
| 209a |
192-5102 |
Motor fixation (OBSOLETE) |
1 |
|
| 209b |
192-5256 |
Noise absorbing plate (OBSOLETE) |
1 |
|
| 210 |
192-3238 |
Cylindrical screw M6 x 16 (OBSOLETE) |
4 |
|
| 212 |
192-5715 |
Print vacumat 120 volt (OBSOLETE) |
|
Plus |
| 213 |
192-3932 |
Gasket (OBSOLETE) |
1 |
|
| 215a |
192-6863 |
Support (OBSOLETE) |
|
Plus |
| 215b |
192-6862 |
Support (OBSOLETE) |
|
Standard |
| 216 |
192-5260 |
Noise absorbing ring |
1 |
|
| 217 |
192-6196 |
Rubber ring (OBSOLETE) |
1 |
|
| 218a |
192-5258 |
Right hand noise absorbing plate (OBSOLETE) |
1 |
|
| 218b |
192-5257 |
Left hand noise absorbing plate (OBSOLETE) |
1 |
|
| 219 |
192-4598 |
Intermediate piece (OBSOLETE) |
1 |
|
| 220 |
192-6861 |
Support (OBSOLETE) |
2 |
|
| 221 |
192-0151 |
Nut M6 hex |
4 |
|
| 222 |
192-4770 |
Lever (OBSOLETE) |
2 |
|
| 223 |
192-2844 |
Closing clamp (OBSOLETE) |
2 |
|
| 225 |
192-2996 |
Screw M6 x 16 countersunk head (OBSOLETE) |
1 |
|
| 226 |
192-0048 |
Nut M3 hex |
2 |
|
| 228 |
192-4253 |
Holder (OBSOLETE) |
2 |
|
| 229 |
192-6352 |
Sensor (OBSOLETE) |
2 |
|
| 230 |
192-5448 |
Screw B 4 1/2 x 13 pan head self tapping |
4 |
|
| 231 |
192-5935 |
Screw M6 x 40 raised cheese head |
4 |
|
| 232 |
192-1802 |
Axle (OBSOLETE) |
1 |
|
| 233 |
192-6332 |
Secondary filter (OBSOLETE) |
1 |
|
| 234 |
192-3934 |
Gasket (OBSOLETE) |
1 |
|
| 235 |
192-5715 |
Print vacumat 120 volt (OBSOLETE) |
|
Plus |
| 237 |
192-5453 |
Screw BZ 2 13/16 x 13 pan head tapp. (OBSOLETE) |
2 |
|
| 238 |
192-6100 |
Rocking switch (OBSOLETE) |
|
|
| 239 |
192-6101 |
Rocking switch (OBSOLETE) |
|
Plus |
| 243 |
192-7196 |
Turning knob (OBSOLETE) |
1 |
|
| 244 |
192-5261 |
Noise absorbing ring (OBSOLETE) |
1 |
|
| 245 |
192-5262 |
Noise absorbing ring (OBSOLETE) |
1 |
|
| 246a |
192-3933 |
Gasket (OBSOLETE) |
|
Plus |
| 246b |
192-6199 |
Rubber ring |
|
Standard |
| 247a |
192-7254 |
Vacuum motor 120 volt / 60hz (OBSOLETE) |
|
Plus |
| 247b |
192-7255 |
120V vacuum motor |
|
Standard |
| 249 |
192-6198 |
Rubber ring |
|
Standard |
| 250 |
192-5112 |
Motor housing |
1 |
|
| 251a |
192-4693 |
Label (OBSOLETE) |
|
Plus |
| 251b |
192-4692 |
Label (OBSOLETE) |
|
Standard |
| 252 |
192-7609 |
Permanent filter |
|
Plus |
| N/S |
192-0973 |
3 1/4 inch cable tie |
|
|
| N/S |
192-7607 |
Upper part vacuum cleaner |
|
|
| N/S |
192-6352 |
Sensor (OBSOLETE) |
|
|
|
|
Float - 192-2105 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 162 |
192-3796 |
Float-housing (OBSOLETE) |
1 |
|
| 261 |
192-3781 |
Float (OBSOLETE) |
1 |
|
|
|

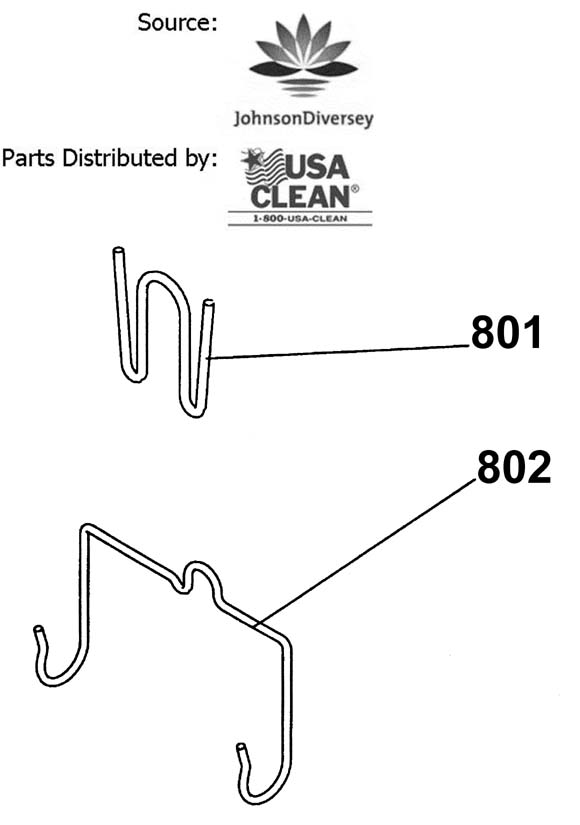

Deviating Parts Assembly - 192-2107 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 801 |
192-4284 |
Hook (OBSOLETE) |
1 |
|
| 802 |
192-4285 |
Hook (OBSOLETE) |
1 |
|
|
|

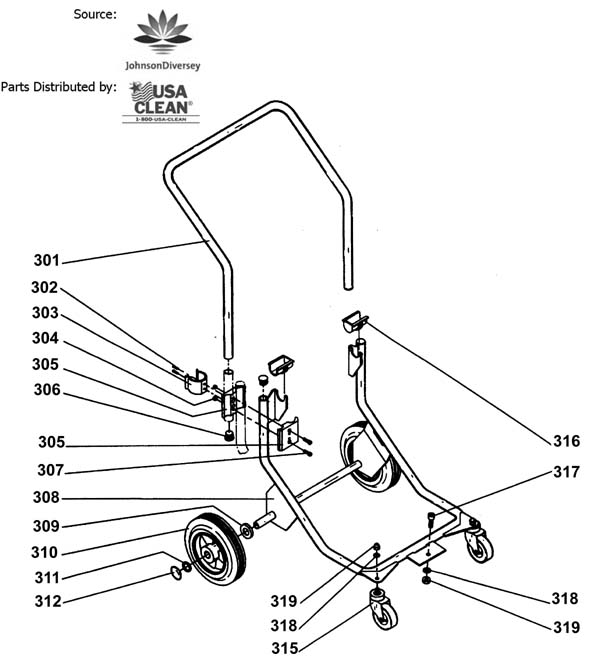

Cart Assembly - 192-2108 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 301 |
192-6751 |
Stir up handle (OBSOLETE) |
1 |
|
| 302 |
N/A |
Not available |
2 |
Rivet |
| 303 |
192-0099 |
Hose holder |
1 |
|
| 304 |
192-0151 |
Nut M6 hex |
4 |
|
| 305 |
192-3576 |
Fastening plate (OBSOLETE) |
4 |
|
| 307 |
192-0066 |
Screw M6 x 25mm socket head cap |
4 |
|
| 308 |
192-2673 |
Cart (OBSOLETE) |
1 |
|
| 309 |
N/A |
Not available |
2 |
Washer |
| 310 |
192-1135 |
Nut M10 hex |
2 |
|
| 311 |
N/A |
Not available |
2 |
Washer |
| 312 |
192-6673 |
Star disc D20 |
2 |
|
| 316 |
192-7026 |
Support tank (OBSOLETE) |
2 |
|
| 317 |
192-3439 |
Eccentric screw M10 |
1 |
|
| 318 |
192-0496 |
Washer M10 |
3 |
|
| 319 |
192-1135 |
Nut M10 hex |
3 |
|
|
|

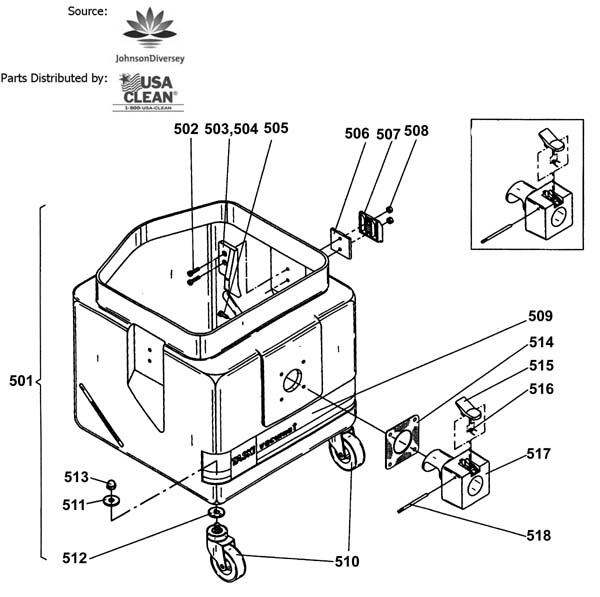

Tank Assembly - 192-2110 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 501 |
192-7614 |
Complete recovery tank 20 L (OBSOLETE) |
1 |
|
| 502 |
192-0899 |
Screw M6 x 25mm hex head |
4 |
|
| 503 |
192-4265 |
Left hand holder (OBSOLETE) |
1 |
|
| 504 |
192-4266 |
Right hand holder (OBSOLETE) |
1 |
|
| 505 |
192-6288 |
Screw for plastic KA 50 x 14 (OBSOLETE) |
4 |
|
| 506 |
192-3708 |
Fixation plate (OBSOLETE) |
2 |
|
| 507 |
192-5627 |
Positioning plate (OBSOLETE) |
2 |
|
| 508 |
192-0151 |
Nut M6 hex |
4 |
|
| 509 |
192-3258 |
Decorative strip vacumat (OBSOLETE) |
1 |
|
| 512 |
192-3930 |
Gasket (OBSOLETE) |
4 |
|
| 513 |
192-2624 |
Nut M10 cap |
4 |
|
| 515 |
192-4653 |
Key for hose coupling |
1 |
|
| 516 |
192-7152 |
Torsion spring |
1 |
|
| 517 |
192-4453 |
Complete socket hose (OBSOLETE) |
1 |
|
|
|
Squeegee - 192-2111 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 601 |
192-0066 |
Screw M6 x 25mm socket head cap |
2 |
|
| 602 |
192-4643 |
Journal (OBSOLETE) |
1 |
|
| 603 |
192-4772 |
Lever (OBSOLETE) |
1 |
|
| 604 |
192-6864 |
Support (OBSOLETE) |
1 |
|
| 605 |
192-1880 |
Pivot ball |
6 |
|
| 606 |
192-1880 |
Pivot ball |
6 |
|
| 607 |
192-0347 |
Nut M8 hex |
6 |
|
| 608 |
192-7092 |
Threaded bolt |
1 |
|
| 609 |
192-4678 |
Knurled nut (OBSOLETE) |
1 |
|
| 610 |
192-7091 |
Threaded bolt (OBSOLETE) |
2 |
|
| 611 |
192-7094 |
Threaded rod (OBSOLETE) |
1 |
|
| 612 |
192-6865 |
Support (OBSOLETE) |
1 |
|
| 613 |
192-6661 |
Squeegee mount (OBSOLETE) |
1 |
|
| 614 |
192-1510 |
Metering cup |
6 |
|
| 615 |
192-4254 |
Holder (OBSOLETE) |
1 |
|
| 616 |
192-0151 |
Nut M6 hex |
2 |
|
| 617 |
192-4810 |
Lock (OBSOLETE) |
1 |
|
| 619 |
192-1355 |
Star knob M6 |
2 |
|
| 622 |
192-4068 |
Grub screw M6 x 20 |
2 |
|
| 630 |
192-6401 |
Shoulder screw (OBSOLETE) |
2 |
|
| 631 |
192-0329 |
Bumper wheel |
2 |
|
| 632 |
192-1185 |
Screw M5 x 16mm countersunk head |
12 |
|
| 633 |
192-3189 |
Squeegee blade strap (OBSOLETE) |
2 |
|
| 634 |
N/A |
Not available |
4 |
(Squeegee blade support) |
| 635 |
192-2029 |
Squeegee blade (OBSOLETE) |
2 |
|
| 636 |
192-6365 |
Squeegee blades (OBSOLETE) |
|
|
| 637 |
192-3010 |
Coupling (OBSOLETE) |
1 |
|
| 638 |
192-6817 |
Suction hose (OBSOLETE) |
1 |
|
| 639 |
192-7090 |
Threaded adaptor (OBSOLETE) |
1 |
|
| 640 |
192-6638 |
Squeegee weldment (OBSOLETE) |
1 |
|
| 641 |
N/A |
Not available |
1 |
Squeegee |
| N/S |
192-7616 |
Fixomat vacumat |
1 |
|
|
|
Electrical Diagram - 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Electrical Diagram - 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
