Parts List Complete for TASKI TAPISET 45

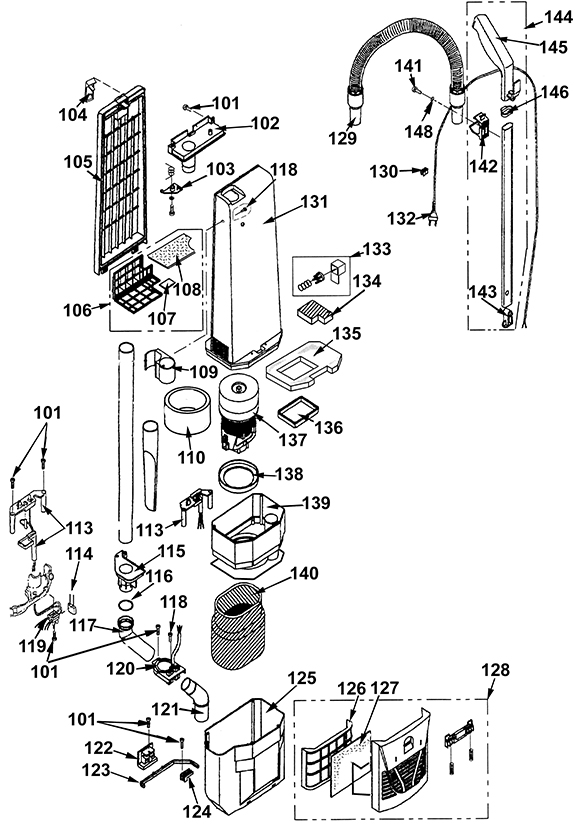

Body Assembly - 192-2000
RefNbr Part Number Description Req Notes
101 192-5464 Screw 3 1/2 x 19 pan head tapping 8
102 192-4593 Intake 1
103 192-4843 Locking assembly 1
104 192-2717 Catch with spring 1
105 192-3108 Cover 1
106 192-3682 Filter cartridge 1 (includes 107-108)
107 192-5476 Perfume filter (pkg of 10) 1
108 192-3621 Filter 1
109 192-4255 Holder 1
110 192-5272 Noise absorbing strip 1
113 192-4258 Cord clamp 1
114 192-5279 Noise support condenser 1
115 192-3217 Hose inlet (OBSOLETE) 1
116 192-9409 O-ring 1
117 192-7231 Upper curve tube 1
118 192-5442 Screw 3 1/2 x 13 pan head tapping 3
119 192-2895 2 way connection block 1
120 192-4407 Hose inlet (OBSOLETE) 1
121 192-4846 Lower curve tube 1
122 192-2953 Support 1
123 192-4642 Bracket 1
124 192-2064 Blocking joint pin 1
125 192-5116 Motor housing 1
126 192-1432 Inlet grill 1
127 192-1433 Filter (pkg of 5) (OBSOLETE) 1
128 192-1434 Cover assembly 1 (includes 126-127)
129 192-6820 Semi-flex hose with cuffs black 1
130 192-2500 Cable clamp 1
131 192-1844 Bag housing 1
132 192-4921 120V 16/2 power cord (black) 1
133 192-5695 Pressure valve 1
134 192-3625 Filter 1
135 192-3620 Filter 1
136 192-3833 Frame 1
137a 192-7252 120V vacuum motor 1
137b 272-6297 Carbon brush 2
138 181-1215 Gasket (OBSOLETE) 1
139 192-4496 Housing 1
140 192-5226 Foam motor filter 1
141 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 1
142 192-4404 Hose holder 1
143 192-4839 Locking set 1
144 192-4171 Complete handle 1 (includes 142-143, 145-146)
145 181-1196 Handle grip with cord hook 1
146 192-6021 Retainer 1
147 192-2541 Strain relief 1
148 999-0315 Washer #8 external star lock zinc plated 1
149 192-5393 O-ring 1
150 192-2198 Bracket 1
151 192-1630 Adapter 1
152 192-7296 Vacuum switch 1
153 192-6091 Rocker switch 1
154 192-7053 Control light 1
155 192-4288 Central handle hook 1
156 192-3114 Cover 1
157 192-2793 Clamp 1
158 181-1209 4 position contact housing (OBSOLETE) 1
159 192-9412 Contact cover 1
N/S 192-9410 Vacuum bag (pkg of 10) 1 (OEM)
N/S 991-9096 Vacuum bag (pkg of 10) 1 (NON-OEM)

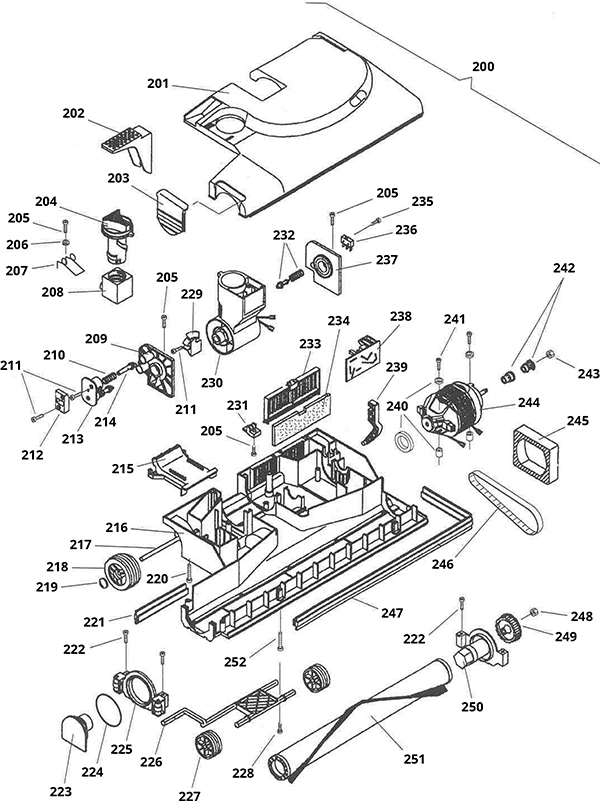

Electrical Suction Brush Assembly - 192-2001
RefNbr Part Number Description Req Notes
200a 192-3475 Electric suction brush 45 230 volt (OBSOLETE) 1 (includes 201a, 202-216a, 217-221a, 222-247a, 248-252)
200b 192-3475 Electric suction brush 45 230 volt (OBSOLETE) 1 (includes 201b, 202-215, 216b-220, 221b-246, 247b-252)
201a 192-3150 Cover 38 1
201b 192-3151 Cover 45 1
202 192-3826 Foot pedal 1
203 192-6450 Side cover 1
204 192-1637 Adjusting knob 1
205 192-8250 Screw M3-.9 x 13mm pan head tapping 4
206 192-0149 Washer 1
207 192-6601 Spring 1
208 192-8589 Brush adjuster 1
209 192-6885 Right hand support 1
210 192-5663 Pressure spring 2
211 192-5455 Screw M2-.9 x 16mm pan head tapping 3
212 192-5567 Plate 1
213 192-4105 Guide housing 1
214 192-5619 Plunger 2
215 192-3115 Cover 1
216a 192-4515 Housing 1 (38)
216b 192-4516 Housing 45 1 (45)
217 192-1807 Axle 1
218 192-7470 Wheel 2
219 192-6672 Cap 2
220 192-5440 Screw 4.8 x 50 pan head tapping 5 (qty 6 for 45)
221a 192-2347 Rear bumper 1 (38)
221b 192-2353 Bumper profile 45 1 (45)
222 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 4
223 192-6137 Roller support 1
224 192-5379 O-ring 1
225 192-7508 Wheel support 1
226 192-3845 Front axle 1
227 192-7469 Wheel 2
228 192-8249 Screw 3-1/2 x 13 pan head tapp 3
229 N/A Not available 1 (joint pin)
230 172-1458 Complete joint with pin slide (OBSOLETE) 1
231 192-2828 Clamping plate 1
232 192-2107 Bolt with spring 1
233 192-3116 Cover 1
234 192-3624 Filter 1
235 192-5456 Screw 2.2 x 16 pan head tapping 1
236 192-5022 Microswitch 1
237 192-6881 Left hand support 1
239 192-4641 Joint lever 1
240 192-4667 Motor gasket assembly 1
241 192-5443 Screw 3.5 x 25 pan head tapping 2
242 192-7126 Toothed gear with bushing 1
243 192-4206 Nut M4 hex 1
245 192-3626 Filter 1
246 192-7115 Toothed belt 1
247a 192-2348 Front bumper 1 (38)
247b 192-2354 Bumper profile 45 1 (45)
248 192-4209 Nut M6 left handed hex 1
249 192-7124 Toothed gear 1
250 192-2199 Bracket 1
252 192-5438 Screw 3 1/2 x 38 pan head tapping 2

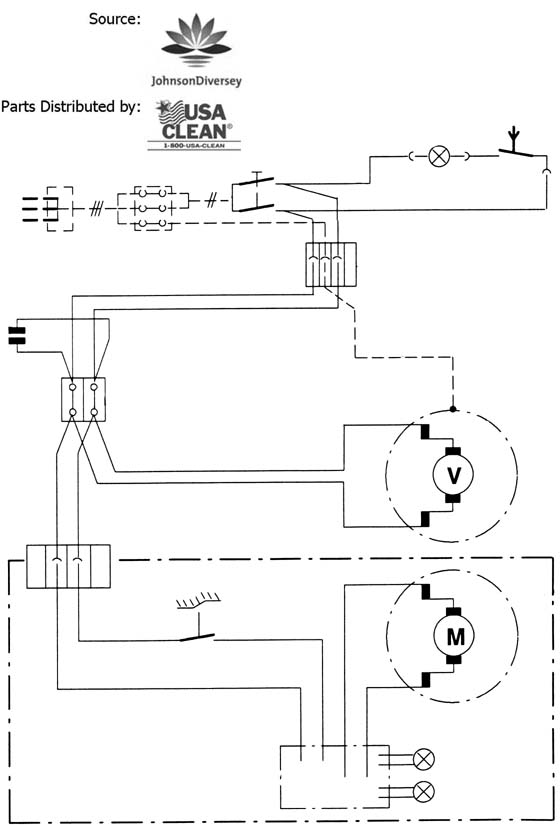

Electrical Diagram -

RefNbr Part Number Description Req Notes

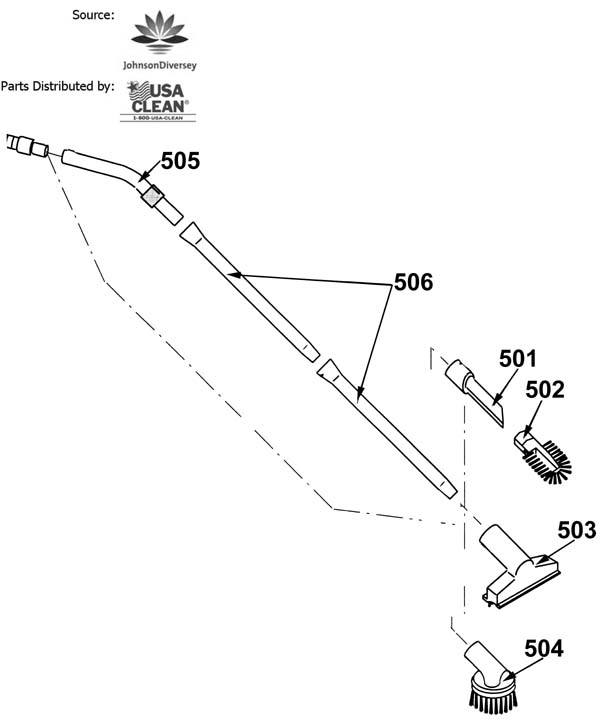

Hand Tool Assembly - 192-2005
RefNbr Part Number Description Req Notes
501 192-3210 Crevice nozzle 1
502 192-5916 Radiator nozzle 1
503 192-7227 Upholstery nozzle 1
504 192-3433 Dusting nozzle 1
505 192-6827 Curved extension tube 1
506 192-6833 Telescopic wand 2

Handle Assembly - 192-2038
RefNbr Part Number Description Req Notes
301 192-5393 O-ring 1
302 192-5464 Screw 3 1/2 x 19 pan head tapping 6
303 192-2198 Bracket 1
304 192-1630 Adapter 1
305 192-7296 Vacuum switch 1
306 192-2793 Clamp 1
307 192-8249 Screw 3-1/2 x 13 pan head tapp 1
308 192-3114 Cover 1
309 192-6091 Rocker switch 1
310 192-7053 Control light 1
311 192-4288 Central handle hook 1
312 192-2906 Connector 1
313 192-2905 Connector 1
314 192-5443 Screw 3.5 x 25 pan head tapping 1
315 N/A Not available 1 (cover)
316 N/A Not available 1 (connector housing)
317 N/A Not available 1 (wire holder)
318 192-2895 2 way connection block 1

- Commonly Asked For Parts - 192-9990
RefNbr Part Number Description Req Notes
0.9835 192-4843 Locking assembly
0.9835 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel
0.9835 292-0093 Cloth vacuum bag
0.9835 172-1997 18 inch front bumper gasket
0.9835 192-1448 18 inch brush roller assembly
0.9835 181-1196 Handle grip with cord hook
0.9835 192-3625 Filter
0.9835 192-1434 Cover assembly
0.9835 192-1433 Filter (pkg of 5) (OBSOLETE)
0.9835 192-3621 Filter
0.9835 181-1195 Upper hook for flex hose
0.9835 192-3621 Filter
N/S 991-9096 Vacuum bag (pkg of 10) 1
N/S 192-9410 Vacuum bag (pkg of 10) 1 (OEM)
