Parts List Complete for TASKI Swingo 955B

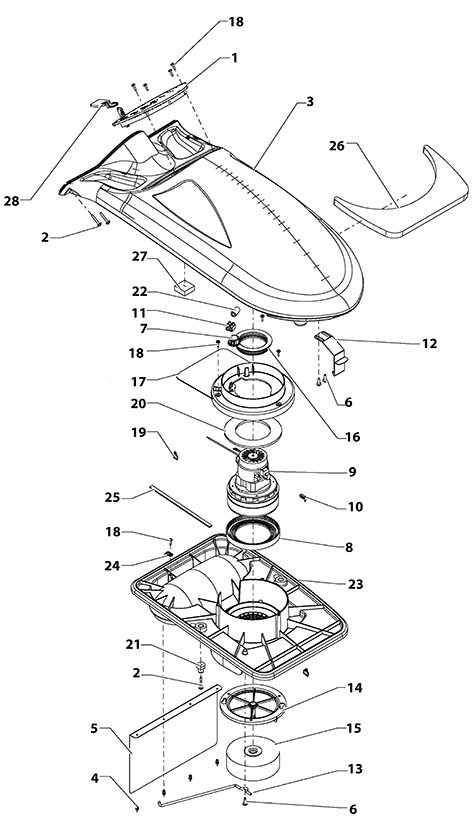

Upper Assembly - 192-0620
RefNbr Part Number Description Req Notes
1 192-9499 Electronic dashboard assembly (power) 1
2 192-1557 Screw 60 x 35 torx head 6
3 192-9501 Tank cover 1
4 192-1559 Retaining rivet 4
5 192-8942 Protection shield 1
6 192-1561 Screw 60 x 20 torx head 3
7 192-8948 Bushing 1
8 192-1562 Guide ring 1
9 192-0770 24V 2 stage vacuum motor 1
10 192-0771 Carbon brush plastic (black) (clip in) 1
11 192-0260 2-way connection block 1
12 192-4812 Locking lever 1
13 192-9502 Prop rod 1
14 192-3617 Filter 1
15 192-1490 Float 1
16 192-1569 Sealing ring 1
17 192-1570 Protection plate 1
18 192-1571 Screw M50 x 16mm 9
19 192-6334 Sealing profile (sold by the inch) 67 in
20 192-1573 Gasket 1
21 192-1575 Buffer 2
22 192-0732 Ferrite bushing 1
23 192-1564 Base plate 1
24 192-2501 P clamp 1
25 192-6310 Seal strip (sold by the inch) 55 in
26 192-1591 Noise absorbing plate 1
27 292-8608 Gasket 1
28 192-4662 Key ring 1

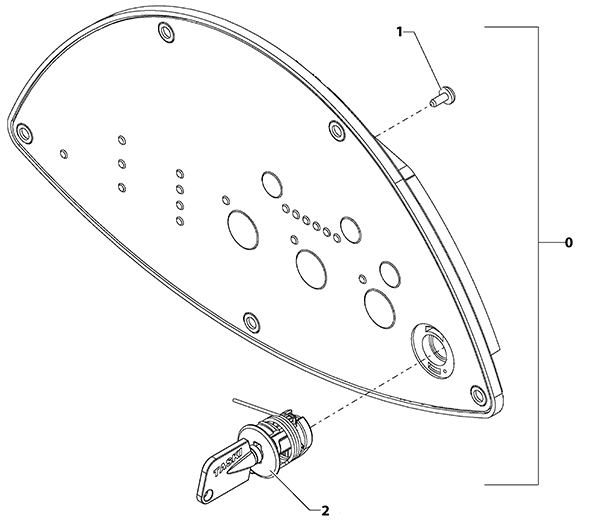

Electronics Assembly - 192-0621
RefNbr Part Number Description Req Notes
0 192-9499 Electronic dashboard assembly (power) 1 (includes 1-2)
1 192-8584 Screw 40 x 8 1 (0.8 NM for torque)
2 292-5708 Key switch 1

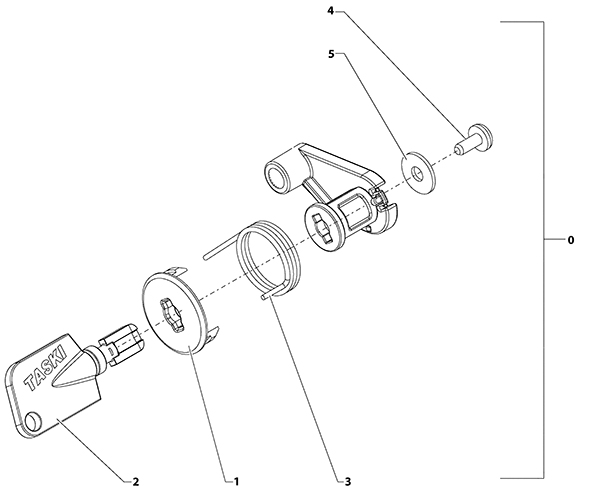

Key Assembly - 192-0622
RefNbr Part Number Description Req Notes
0 292-5708 Key switch 1 (includes 1-5)
1 292-5255 Switch cover 1
2 292-5254 Steel key 1
3 192-7068 Tension spring 1
4 192-8584 Screw 40 x 8 1 (0.8 NM for torque)
5 192-0149 Washer 1

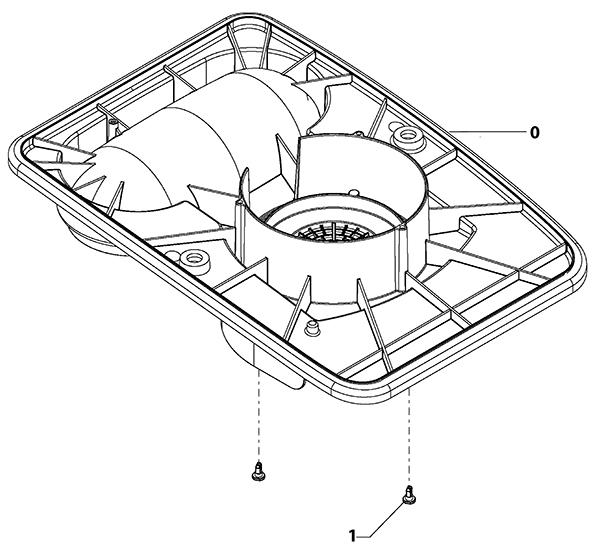

Suction Plate Assembly - 192-0623
RefNbr Part Number Description Req Notes
0 192-1564 Base plate 1 (includes 1)
1 192-8753 Flange bolt 2

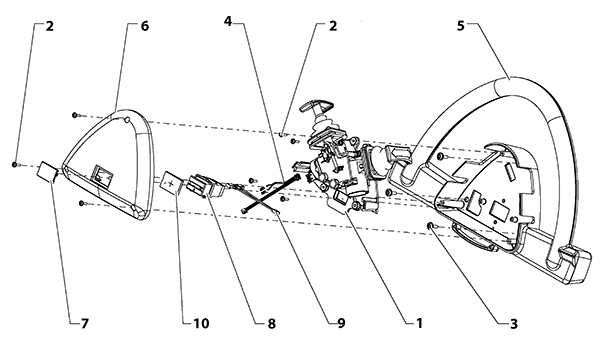

Handle Assembly - 192-0624
RefNbr Part Number Description Req Notes
1 192-5014 Mechanic hall sensor assembly 1
2 192-1595 Screw M40 x 16mm torx head 7
3 192-1561 Screw 60 x 20 torx head 3
4 192-8892 6-way ribbon cable 1
5 192-1587 Handle 1
6 192-8941 Handle cover 1
7 192-3548 False cover 1
8 192-0033 24V hour meter 1 (optional)
9 192-9486 Wiring harness 1 (optional)
10 192-8944 Cover 1 (optional)

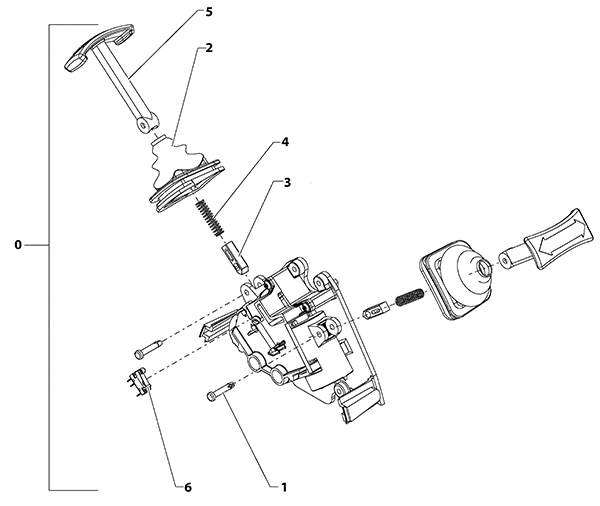

Operating Unit Assembly - 192-0625
RefNbr Part Number Description Req Notes
0 192-5014 Mechanic hall sensor assembly 1 (includes 1-6)
1 192-1582 Bolt 2
2 192-1977 Bellows 2
3 192-1584 Grid lever 2
4 192-1585 Pressure spring 2
5 192-6954 Switch lever 2
6 192-8721 Microswitch 1

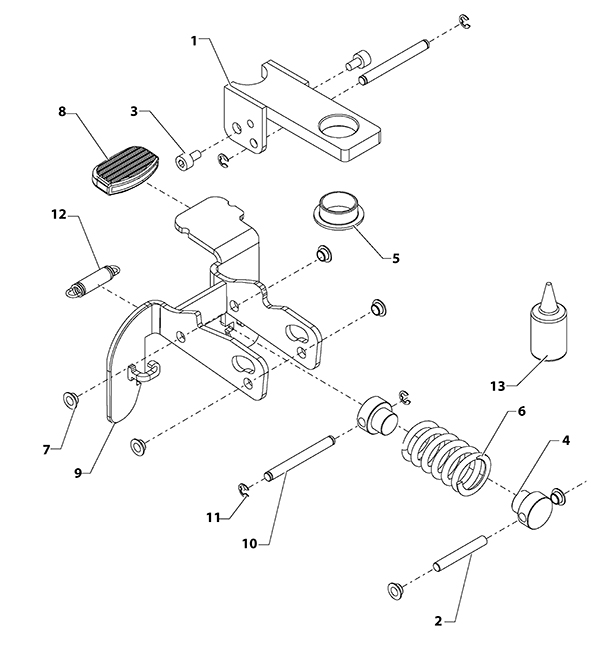

Squeegee Lowering Mechanism Assembly - 192-0626
RefNbr Part Number Description Req Notes
1 192-9504 Swing arm 1
2 192-9505 Axle 1
3 192-0364 Screw M8 x 12mm socket head 2
4 192-9506 Bolt 2
5 192-9507 Slide bearing 1
6 192-9508 Pressure spring 1
7 192-6448 Slide bearing 6
8 192-8983 Pedal pad 1
9 192-9509 Pedal weldment 1
10 192-9510 Axle 2
11 192-0840 Snap ring 4
12 192-9511 Tension spring 1
13 292-8528 .5ml capsule loctite medium strength thread lock (red) 1

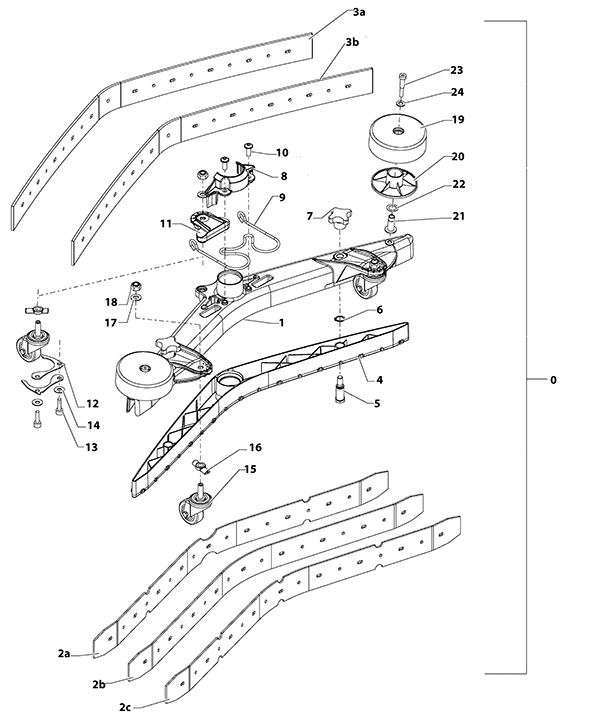

Squeegee Assembly After SN 56427 - 192-0627
RefNbr Part Number Description Req Notes
0 292-5665 Squeegee assembly 1 (includes 1-24)
1 292-5662 Squeegee weldment 1
2a 192-1483 Squeegee blade 32 1/4 inch front 1
2b 192-9563 Squeegee blade front 1 (optional)
2c 292-8031 Squeegee blade 1 (optional)
3a 192-1484 Squeegee blade 33 3/4 inch rear 1
3b 292-8032 Squeegee blade 1 (optional)
4 292-5663 Squeegee retainer 1
5 292-0005 Screw M10 hex head 2
6 192-0075 Retaining ring 2
7 292-0004 Star knob 2
8 192-9515 Cover 1
9 192-9516 Click spring 1
10 192-1524 Screw M8 x 20mm flange socket head 2
11 292-5664 Adapter 1
12 292-8549 Hook 2
13 192-0278 Screw M8 x 25mm socket head 2
14 192-7424 Washer 8.4/20 2
15 292-8548 Caster wheel 3
16 292-8550 Locking bolt 3
17 192-0496 Washer M10 3
18 192-6339 Nut M10 self locking 3
19 192-1397 Guide wheel 2
20 192-0108 Retaining disc 2
21 192-1354 Bushing 2
22 192-1344 Wave washer 2
23 192-0104 Screw M8 x 45mm socket head cap 2
24 192-0105 Washer M8 2

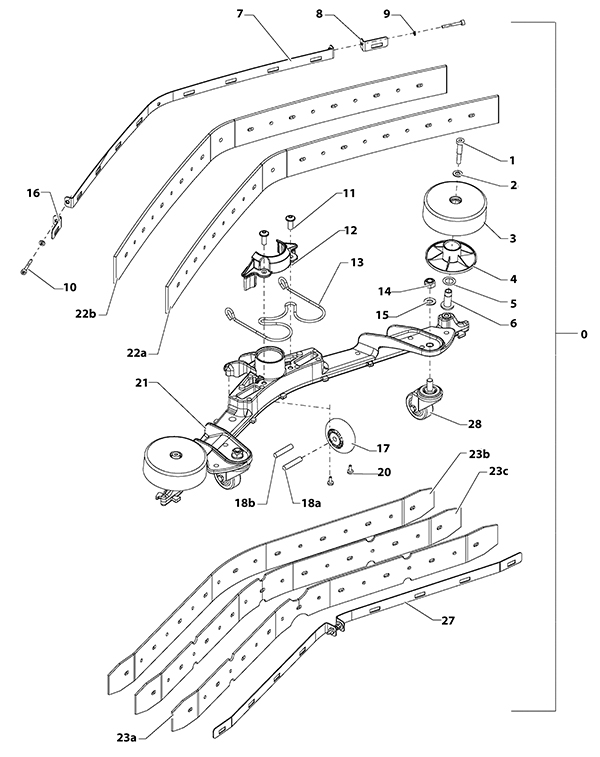

Squeegee Assembly Before SN 56428 - 192-0628
RefNbr Part Number Description Req Notes
0 192-9558 Squeegee assembly 1 (includes 1-28)
1 192-0104 Screw M8 x 45mm socket head cap 2
2 192-0105 Washer M8 2
3 192-1397 Guide wheel 2
4 192-0108 Retaining disc 2
5 192-1344 Wave washer 2
6 192-1354 Bushing 2
7 192-9559 Long rear squeegee strap 1
8 192-9514 Left rear squeegee strap 1
9 192-0206 Washer M5 2
10 192-1003 Screw M5 x 35mm raised cheese head torx 2
11 192-1524 Screw M8 x 20mm flange socket head 2
12 192-9515 Cover 1
13 192-9516 Click spring 1
14 192-6339 Nut M10 self locking 2
15 192-0496 Washer M10 2
16 192-9517 Rear right squeegee strap 1
17 192-8746 Wheel 2.5 x 1 inch 1
18a 192-9215 Axle 1
18b 292-8609 Bolt M8 x 10mm 1 (optional)
20 192-0101 Screw M5 x 12mm self tapping form 2
21 192-9560 Squeegee weldment 1
22a 192-1484 Squeegee blade 33 3/4 inch rear 1
22b 292-8032 Squeegee blade 1 (optional)
23a 192-1483 Squeegee blade 32 1/4 inch front 1
23b 192-9563 Squeegee blade front 1 (optional)
23c 292-8031 Squeegee blade 1 (optional)
27 192-9561 Front squeegee strap 1
28 192-9520 Caster wheel 2

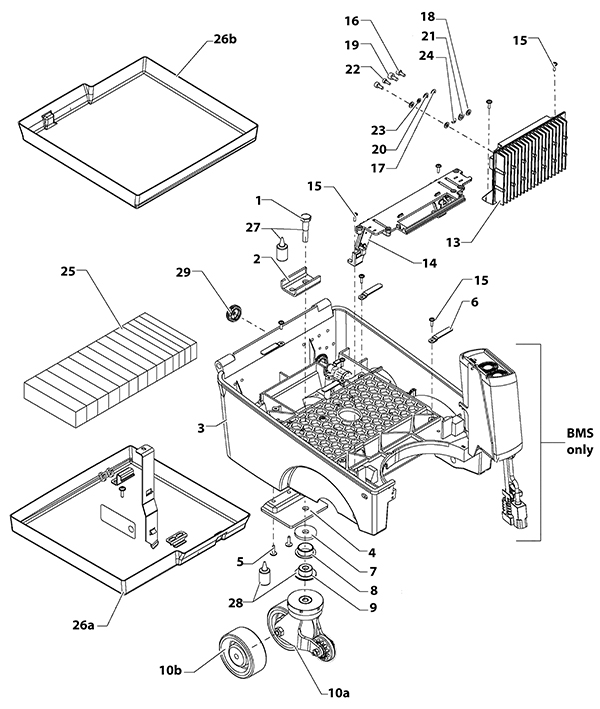

Lower Assembly - 192-0629
RefNbr Part Number Description Req Notes
1 192-4218 Screw M12 x 30mm hex head 1
2 192-1517 Reinforcement plate 1
3 192-1518 Chassis 1
4 192-9529 Bracket 1
5 192-1561 Screw 60 x 20 torx head 2
6 192-2791 Clamp 4
7 192-7394 Washer M13 1
8 192-9507 Slide bearing 1
9 192-9530 Bushing 1
10a 192-9000 Caster wheel assembly (rust) 1
10b 292-8621 Wheel 1 (optional)
13 192-9532 Power electronics with wiring harness 1
14 192-9309 Electronic support bracket 1
15 192-1571 Screw M50 x 16mm 8
16 192-0407 Screw M5 x 10mm socket head cap 2 (4 Nm torque)
17 192-1537 Washer M5 serrated lock 2
18 192-0880 Washer M5 2
19 192-0289 Screw M6 x 10mm socket head 1 (7 Nm torque)
20 192-0179 Washer M6 serrated lock 1
21 192-0200 Washer M6 1
22 192-0425 Screw M4 x 10mm socket head cap 1 (2.5 Nm torque)
23 999-0315 Washer #8 external star lock zinc plated 1
24 192-1195 Washer M4 1
25 192-9238 Spacer set 1
26a 192-9533 Wet battery tray kit 1
26b 192-7167 Battery tray 1 (optional)
27 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
28 192-1872 Grease 1
29 292-5561 Membrane 1

Charger Assembly - 192-0630
RefNbr Part Number Description Req Notes
1 192-5462 Screw M3.5 x 20mm pan head tap 2
2 192-2496 Cable clamp 1
3 192-9973 Onboard charger cord 1
4 292-8595 24V 13Ah onboard battery charger 1 (BMS only)
5 192-0407 Screw M5 x 10mm socket head cap 1
6 292-8607 Charger bracket (swingo 755B/855B) 1 (BMS only)
7 292-8595 24V 13Ah onboard battery charger 1 (BMS only)
8 192-1571 Screw M50 x 16mm 2
9 292-5561 Membrane 1
10 192-7083 T-handle 1 (optional)

- Frequently Replaced Parts - 192-0824
RefNbr Part Number Description Req Notes
292-8595 24V 13Ah onboard battery charger 1
292-8085 Protecting profile 2
292-9114 24V 52ah lithium battery 1
292-8595 24V 13Ah onboard battery charger 1 (BMS)
292-4738 24V 30amp Li-ion off board battery charger 1
192-0388 50amp charger plug SB50 with post (gray) 1
192-0389 50amp charger plug SB50 with hole (gray) 1
192-1266 50amp charger plug SB50 1
998-0010 Battery jumper cable - ring type (red) 1
292-5708 Key switch 1
292-5254 Steel key 1

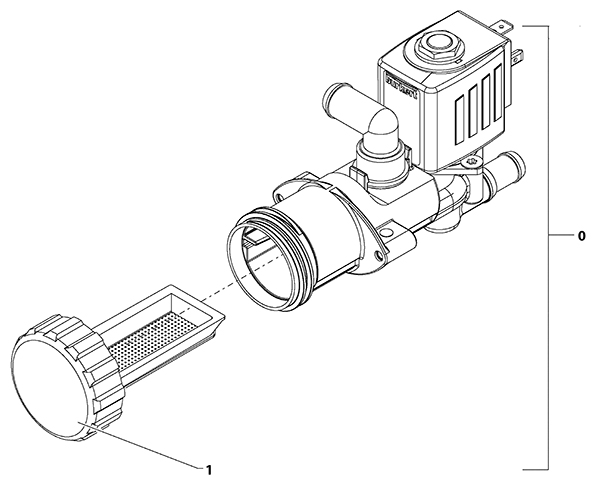

192-9276 Solenoid and filter assembly 1
292-0082 Filter kit 1
192-1483 Squeegee blade 32 1/4 inch front 1
192-9563 Squeegee blade front 1 (optional)
292-8031 Squeegee blade 1 (optional)
192-1484 Squeegee blade 33 3/4 inch rear 1
292-8032 Squeegee blade 1 (optional)
192-9501 Tank cover 1
192-6334 Sealing profile (sold by the inch) 67 in
192-8971 Drain hose with attached gray cap 2 (optional)
192-0770 24V 2 stage vacuum motor 1
192-0771 Carbon brush plastic (black) (clip in) 1
192-2665 Carbon brush (pkg of 2) 1
192-9430 11 inch pad driver 2
991-2214 Center-Lok II pad holder - left hand thread (red) 1
991-2201 Center-Lok II pad holder - right hand thread (black) 1
991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE) 1

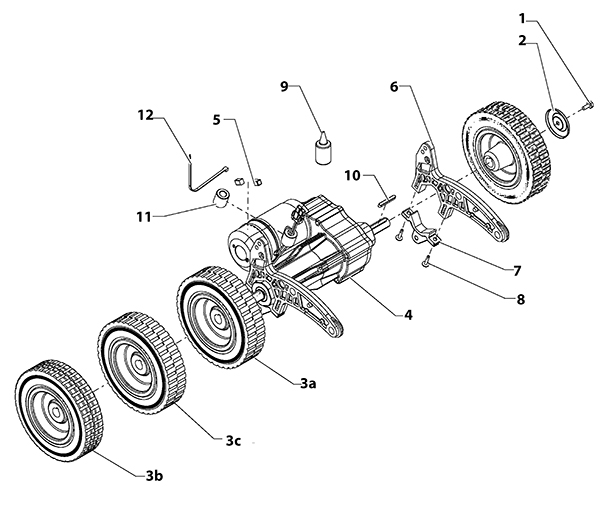

Drive Wheel Assembly - 192-1631
RefNbr Part Number Description Req Notes
1 999-0783 Screw M8-1.25 x 16mm hex head 2
2 192-3077 Disk 2
3a 192-7505 Drive wheel (standard) (gray) 2
3b 192-3397 Nonmarking drive wheel (gray) 2 (optional)
3c 192-7160 Traction drive wheel (brown) 2 (optional)
4 192-1500 Transaxle drive unit 1
5 192-2665 Carbon brush (pkg of 2) 1
6 192-3209 Cradle 2
7 192-2168 Bracket 2
8 192-1509 Screw 60 x 25 torx head 4
9 192-1872 Grease 1
10 192-4651 Square keyway 2
11 192-1153 Toroidal choke 1
12 192-0102 7 3/4 inch cable tie 2

Tool Lowering Unit Assembly - 192-1632
RefNbr Part Number Description Req Notes
1 192-1571 Screw M50 x 16mm 6
2 292-8035 Plate 1
3 192-8903 Pedal pad 1
4 292-8034 Lever 1
5 192-0200 Washer M6 1
6 192-8904 Bushing 1
7 192-0075 Retaining ring 4
8 192-0153 Screw M8 x 20mm hex head 1
9 292-8037 Plate 1
10 192-1776 Axle 2
11 192-1775 Axle 2
12 192-0347 Nut M8 hex 1
13 192-1774 Axle 1
14 192-0086 Snap ring 3
15 192-7407 Insulating washer 1
16 192-1595 Screw M40 x 16mm torx head 1
17 292-8036 Bolt 1
18 292-8033 Shackle 1
19 192-4799 Limit switch 1
20 192-0151 Nut M6 hex 1
21 192-0066 Screw M6 x 25mm socket head cap 1

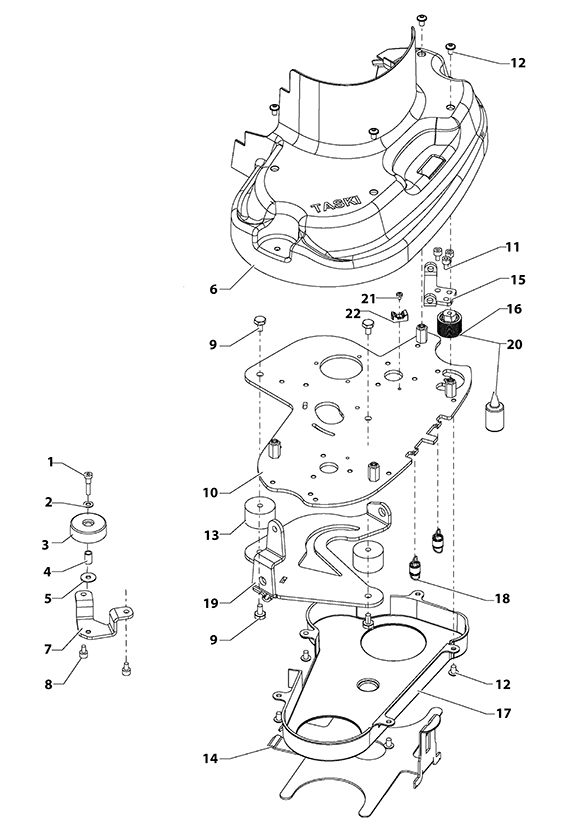

Base Assembly - 192-1634
RefNbr Part Number Description Req Notes
1 192-1289 Screw M8 x 35mm socket head cap 1
2 192-0105 Washer M8 1
3 192-0329 Bumper wheel 1
4 192-1290 Bushing 1
5 192-0604 Washer M8 1
6 292-8038 Brush housing 1
7 292-5103 Supporting angle 1
8 192-1575 Buffer 2
9 192-1455 Screw M10 x 16mm hex head 4
10 192-9567 Base plate 1
11 192-0364 Screw M8 x 12mm socket head 5
12 192-0348 Screw M8 x 12mm truss head 9
13 192-0492 Buffer 2
14 192-9568 Bracket 1
15 192-2826 Clamp 1
16 192-4543 Axle idler kit 1
17 192-9569 Protective cover 1
18 192-9265 Tension spring 2
19 192-9570 Bracket 1
20 192-1872 Grease 1
21 192-0162 Screw M5 x 8 self tapping forming 1
22 292-8039 Clamp 1

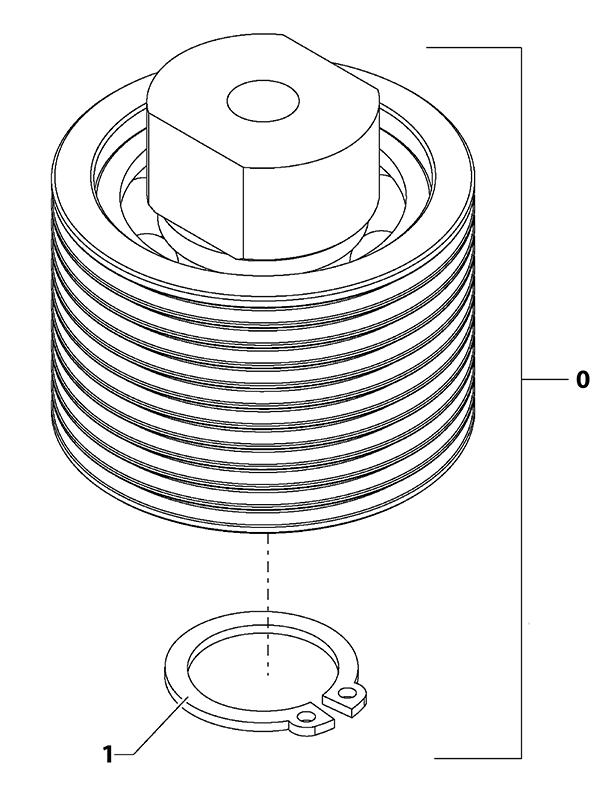

Axle Idler Assembly - 192-1635
RefNbr Part Number Description Req Notes
0 192-4543 Axle idler kit 1
1 192-0075 Retaining ring 1

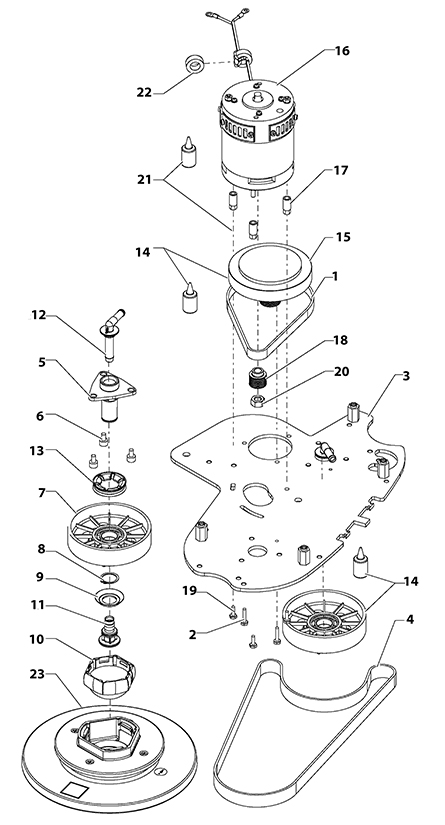

Drive Assembly - 192-1636
RefNbr Part Number Description Req Notes
1 192-5626 Poly v-belt 1
2 192-1285 Screw M6 x 25mm hex head 3
3 192-9567 Base plate 1
4 192-5623 Poly v-belt 1
5 192-0590 Pulley axle 2
6 192-0364 Screw M8 x 12mm socket head 6
7 192-5814 Pulley with bearings (bearings not available separate) 2
8 192-0503 Retaining ring 2
9 192-6320 Sealing ring 2
10 192-3032 Drive hub 2
11 192-2728 Flanged bushing 2
12 192-1677 Angled nipple 2
13 192-6321 Sealing ring 2
14 192-1872 Grease 1
15 292-0068 Pulley kit (includes bearings and clips) 1
16 192-5078 24V brush motor with noise suppression 1
17 192-8633 Stud 3
18 192-5815 Pulley 1
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3
20 192-0800 Nut M12 left hand thread hex 1
21 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
22 192-0712 Coil with toric core 1
23 192-9430 11 inch pad driver 2

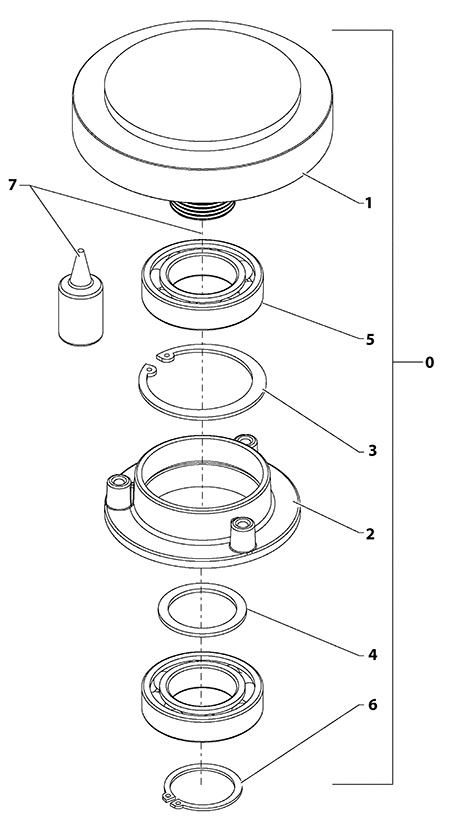

Intermediate Wheel Assembly - 192-1637
RefNbr Part Number Description Req Notes
0 292-0068 Pulley kit (includes bearings and clips) 1 (includes 1-7)
1 192-4607 Intermediate pulley 1
2 192-0484 Flanged bearing 1
3 192-0483 Retaining ring 1
4 192-0482 Spacer 1
5 192-0481 Ball bearing 2
6 192-0485 Retaining ring 1
7 192-1872 Grease 1

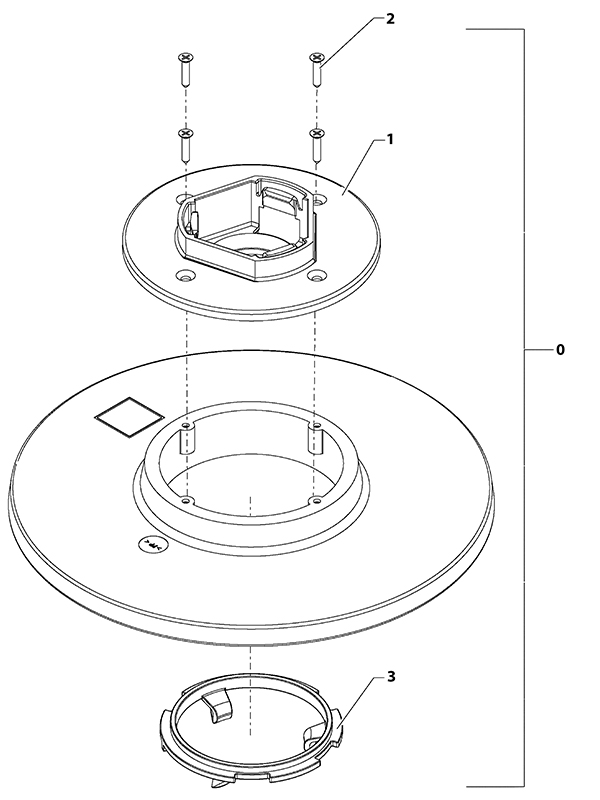

Pad Driver Assembly - 192-1638
RefNbr Part Number Description Req Notes
0 192-9430 11 inch pad driver 1 (includes 1-3)
1 192-3013 Brush coupling 1
2 192-0445 Screw M5 x 25mm pan head tap 4
3 292-8682 Ring (yellow) 1

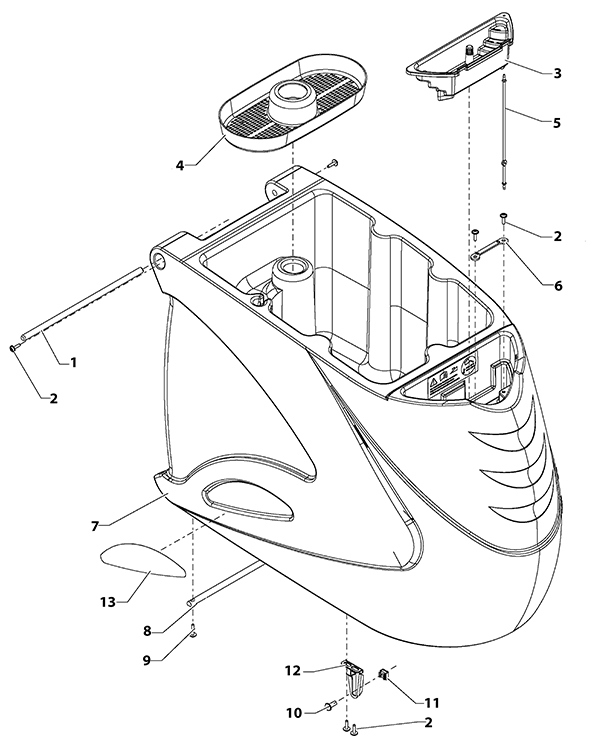

Tank Assembly - 192-1639
RefNbr Part Number Description Req Notes
1 192-9538 Axle 1
2 192-1561 Screw 60 x 20 torx head 8
3 192-9539 Dosing cup 1
4 192-1511 Basket filter 1
5 292-0096 Cord 1
6 192-1513 Locking plate 1
7 292-8041 Tank set 1
8 192-1508 Axle 1
9 192-1509 Screw 60 x 25 torx head 2
10 192-1524 Screw M8 x 20mm flange socket head 2
11 192-2591 Nut M8 caged 2
12 192-9541 Bracket 2
13 292-8040 Swingo 955b decorative decal 1

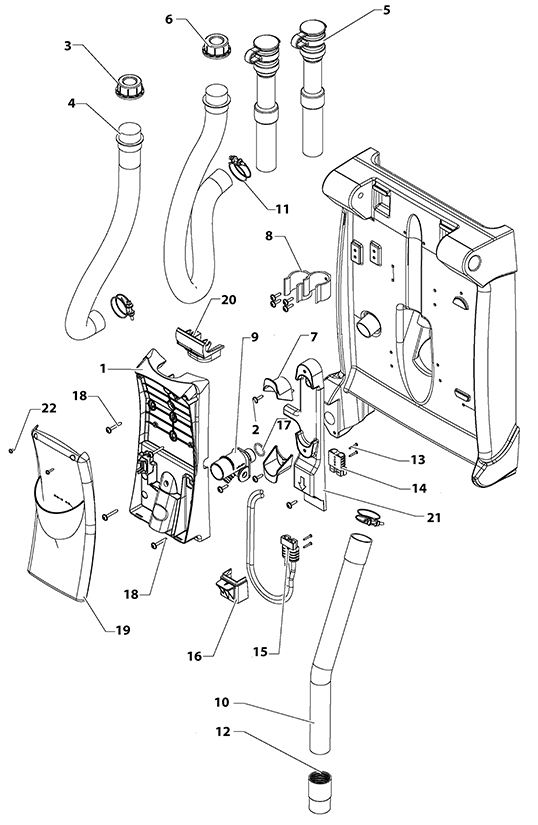

Rear Assembly - 192-1640
RefNbr Part Number Description Req Notes
1 292-5408 Rear cover 1
2 192-1561 Screw 60 x 20 torx head 9
3 192-0236 Threaded cap (blue) 1
4 192-0979 Hose 2
5 192-8971 Drain hose with attached gray cap 2 (optional)
6 192-0237 Threaded cap (red) 1
7 192-2550 Holder 2
8 192-0099 Hose holder 2
9 192-9243 Discharge housing includes o-rings 1
10 192-0133 Hose 1
11 192-0130 Hose clamp 3
12 192-0113 Hose cuff 1
13 192-0549 Screw KA 35 x 20 4
14 192-0388 50amp charger plug SB50 with post (gray) 1
15 192-0389 50amp charger plug SB50 with hole (gray) 1
16 192-5595 Charger plug housing 1
17 192-5369 O-ring 1
18 192-1557 Screw 60 x 35 torx head 4
19 292-5410 Cover 1
20 192-9984 Cover 1
21 292-5411 Cover 1
22 192-1595 Screw M40 x 16mm torx head 2

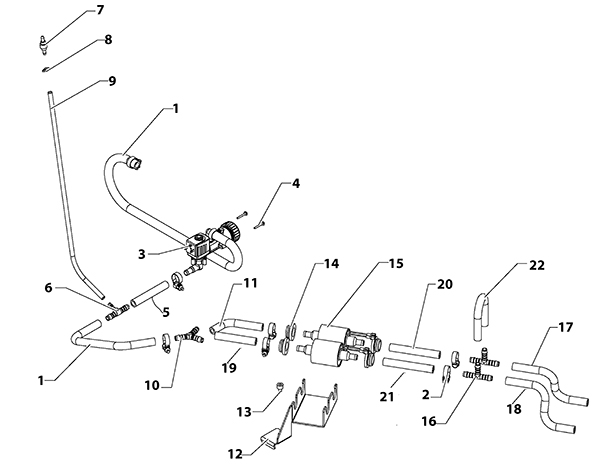

Filter, Valve, and Tube Assembly - 192-1641
RefNbr Part Number Description Req Notes
1 192-0400 Wire reinforced hose (sold by the inch) 38 in
2 192-0334 Hose clamp 8
3 192-9276 Solenoid and filter assembly 1
4 192-6279 Screw 40 x 25 torx head 2
5 192-0404 Wire reinforced hose (sold by the inch) 4 in
6 192-0894 T-nipple 1
7 192-1601 Check valve 1
8 192-0973 3 1/4 inch cable tie 1
9 192-0639 Solution hose (sold by the inch) 43 in
10 192-7548 Y-pipe 1
11 192-4461 Tygon hose (sold by the inch) 4 in
12 292-8042 Holder 1
13 192-0364 Screw M8 x 12mm socket head 1
14 192-6161 Rubber bushing 4
15 192-5845 24V pump 2
16 192-7109 T-nipple 2
17 192-0404 Wire reinforced hose (sold by the inch) 7 in
18 192-0404 Wire reinforced hose (sold by the inch) 7 in
19 192-4461 Tygon hose (sold by the inch) 4 in
20 192-4461 Tygon hose (sold by the inch) 4 in
21 192-4461 Tygon hose (sold by the inch) 4 in
22a 192-0404 Wire reinforced hose (sold by the inch) 8 in
22b 192-0404 Wire reinforced hose (sold by the inch) 8 in

Solenoid and Filter Assembly - 192-1642
RefNbr Part Number Description Req Notes
0 192-9276 Solenoid and filter assembly 1 (includes 1)
1 292-0082 Filter kit 1

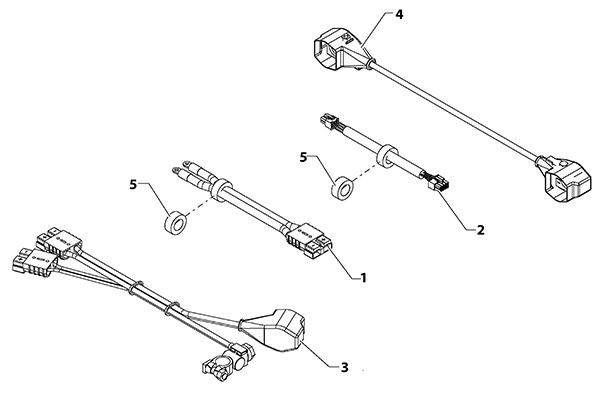

Battery And Charger Harness Assembly - 192-1643
RefNbr Part Number Description Req Notes
1 192-9548 Wiring harness (power board to batteries) 1
2 192-9549 Cable (dashboard to charger) 1
3 192-7536 Wiring harness - Anderson to battery 1
4 192-1406 Battery cable 1
5 192-0712 Coil with toric core 1

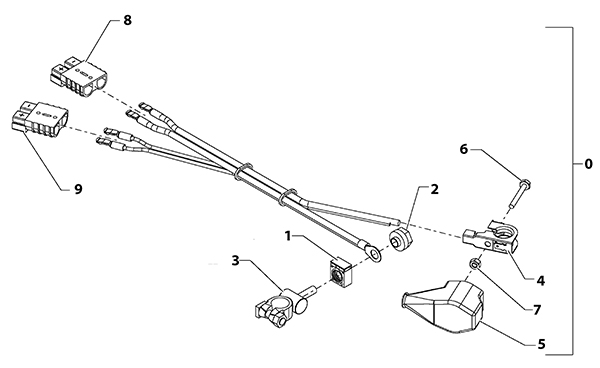

Wire Harness Assembly - 192-1644
RefNbr Part Number Description Req Notes
0 192-7536 Wiring harness - Anderson to battery 1 (includes 1-9)
1 192-1420 75amp fuse 1
2 192-4577 Insulating nut 1 (10 Nm torque)
3 192-2505 Battery cable clamp 1
4 192-1926 Negative battery clamp 1
5 192-0886 Battery post cover 2
6 192-9355 Screw M6 x 40mm hex head 1
7 192-0151 Nut M6 hex 1
8 192-0389 50amp charger plug SB50 with hole (gray) 1
9 192-1266 50amp charger plug SB50 1

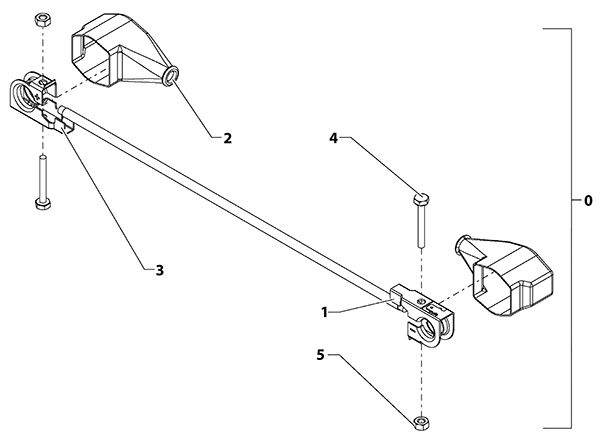

Battery Cable Assembly - 192-1645
RefNbr Part Number Description Req Notes
0 192-1406 Battery cable 1 (includes 1-5)
1 192-1926 Negative battery clamp 1
2 192-0886 Battery post cover 2
3 192-1927 Positive battery clamp 1
4 192-9355 Screw M6 x 40mm hex head 1
5 192-0151 Nut M6 hex 1

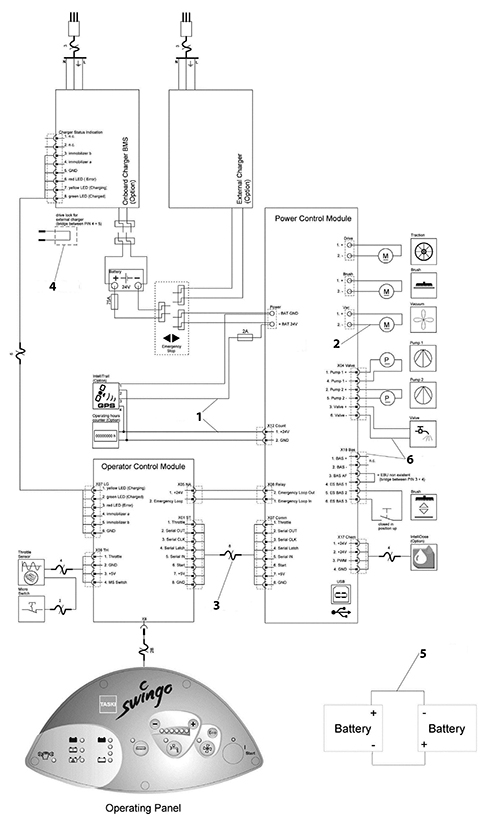

Wiring Diagram - 192-1646
RefNbr Part Number Description Req Notes
1 192-9553 Wiring harness (power board to J-fit option) 1
2 192-9545 Wiring harness (vac motor to control board) 1
3 192-9329 Communication cable (dashboard to power electronic) 1
4 292-5424 Jumper (8 pins) 1
5 192-1406 Battery cable 1
6 292-8043 Wire harness 1

- Batteries, Brushes, and Chargers - 192-1647
RefNbr Part Number Description Req Notes
1 292-8595 24V 13Ah onboard battery charger 1
2 292-8082 12v 76Ah gel battery 2
3 292-9114 24V 52ah lithium battery 1
4 292-0796 Lithium weight kit 1 (For Li-Ion battery conversion) (After SN 36173 with onboard charger)
5 292-4737 Extension kit (includes weights and screws) 1 (For Li-Ion battery conversion) (After SN 36173 with onboard charger)
6 292-8595 24V 13Ah onboard battery charger 1 (For Li-Ion battery conversion) (Before SN 36174 with onboard charger) (Charger must be replaced)
7 192-9973 Onboard charger cord 1 (Before SN 36174 with onboard charger)
8 292-8606 Charger bracket (swingo 455B) 1 (Use to convert to an on-board charger)
9 192-0407 Screw M5 x 10mm socket head cap 1 (Use to convert to an on-board charger)
10 192-1571 Screw M50 x 16mm 4 (Use to convert to an on-board charger)
11 292-4738 24V 30amp Li-ion off board battery charger 1 (Any of the on-board charger units can be replaced with an external charger. If the serial number is before SN 32227, the internal charger needs to be removed and only the external charger can be used)
12 292-5424 Jumper (8 pins) 1

- Pads - 11 inch - 255-1100
RefNbr Part Number Description Req Notes
01 255-1140 11 inch aqua plus burnishing pad (pkg of 20)
02 255-1890 18 inch premium black stripping pad (pkg of 5)
03 255-1142 11 inch Blue Jay burnishing pad (pkg of 20)
04 255-1064 10 inch Blue ace pad (pkg of 20)
05 255-1112 11 inch Cure white pad (pkg of 5)
06 255-1177 11 inch Diamondback extreme stripping pad (pkg of 20)
07 255-1138 11 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1121 11 inch gorilla lite burnishing pad (pkg of 20)
09 255-1150 11 inch gorilla spray buff/polish/burnish pad (pkg of 20)
10 255-1165 11 inch Heat concrete bonding pad (pkg of 5)
11 255-1130 11 inch jaguar burnishing pad (pkg of 20)
12 255-1190 11 inch premium black stripping pad (pkg of 20)
13 255-1170 11 inch premium blue cleaning pad (pkg of 20)
14 255-1192 11 inch premium brown stripping pad (pkg of 20)
15 255-1180 11 inch premium green scrubbing pad (pkg of 20)
16 255-1160 11 inch premium red scrubbing pad (pkg of 5)
17 255-1152 11 inch premium tan polishing pad (pkg of 20)
18 255-1120 11 inch premium white polishing pad (pkg of 20)
19 255-1147 11 inch Redwood maroon floor prep pad (pkg of 10)
20 255-1155 11 inch Ruff non-abrasive brush pad (pkg of 2)
21 255-1111 11 inch superspeed rubberized pad (pkg of 20)
22 255-9039 11 x 14 inch non-abrasive brush pad (pkg of 2) (OBSOLETE)
23 255-9528 11 inch Diamond by Gorilla 11000 Grit (pkg of 2)
24 255-9525 11 inch Diamond by Gorilla 1500 Grit (pkg of 2)
25 255-9522 11 inch Diamond by Gorilla 200 Grit (pkg of 2)
26 255-9526 11 inch Diamond by Gorilla 3000 Grit (pkg of 2)
27 255-9523 11 inch Diamond by Gorilla 400 Grit (pkg of 2)
28 255-9524 11 inch Diamond by Gorilla 800 Grit (pkg of 2)
29 255-9527 11 inch Diamond by Gorilla 8000 Grit (pkg of 2)
30 255-9636 11 inch Diamond starter pack (1 of each grit)
31 255-1115 11 inch Duala clean and shine pad - low speed (pkg of 5)
32 255-1116 11 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
