Parts List Complete for TASKI SWINGO 4000

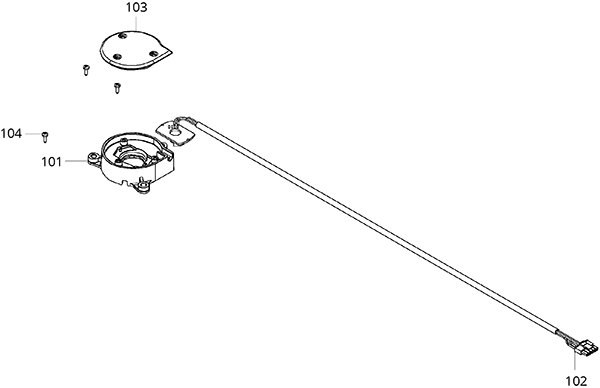

Encoder Assembly - 192-0032
RefNbr Part Number Description Req Notes
101 292-5598 Housing 1
102 292-8496 Rotary encoder 1
103 292-5599 Cover 1
104 192-6283 Screw for plastic KA 30 x 8 3

Electrical Diagram - 192-0082
RefNbr Part Number Description Req Notes
192-9553 Wiring harness (power board to J-fit option) 1
292-0237 Wiring harness 1
292-0917 Wire 2 AWG (red) 1
292-0918 Wire harness 1
192-9827 Cable switch 1
292-0914 Battery wire 3
292-0919 Wire 6 AWG (red) 1
292-5613 Wire harness 1
192-1174 2amp fuse clip 1
292-0343 175amp fuse 1
192-0886 Battery post cover 7

Electrical Parts and Connections Assembly - 192-0391
RefNbr Part Number Description Req Notes
101 192-3469 Clutch plate 1 (4000)
102 192-3013 Brush coupling 1 (5000)
103 192-0445 Screw M5 x 25mm pan head tap 4
104a 292-0911 24V 40amp gel charger (OBSOLETE) 1
104b 292-0870 24V 40amp gel charger (OBSOLETE) 1
105 192-9973 Onboard charger cord 1
106 292-0146 Long drain hose 1
107 192-9828 Flash light assembly 1
108 192-9829 Spotlight assembly 1
109 292-5404 Drainage pump assembly 1
110 292-5405 Chassis protection with wheels assembly 1
111 292-5406 Protection roof 1

Chassis Protection Assembly - 192-0392
RefNbr Part Number Description Req Notes
000 292-5405 Chassis protection with wheels assembly 1 (includes 101-107)
101 292-0912 Roll 60 6
102 292-0913 Bolt 6
103 192-0086 Snap ring 6
104 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 4
105 192-7424 Washer 8.4/20 4
106 192-0468 Screw M10 x 20 hex 8
107 192-0496 Washer M10 8

Protection Roof Assembly - 192-0393
RefNbr Part Number Description Req Notes
000 292-5406 Protection roof 1 (includes 101-103)
101 192-0468 Screw M10 x 20 hex 14
102 192-0496 Washer M10 8
103 192-1135 Nut M10 hex 6

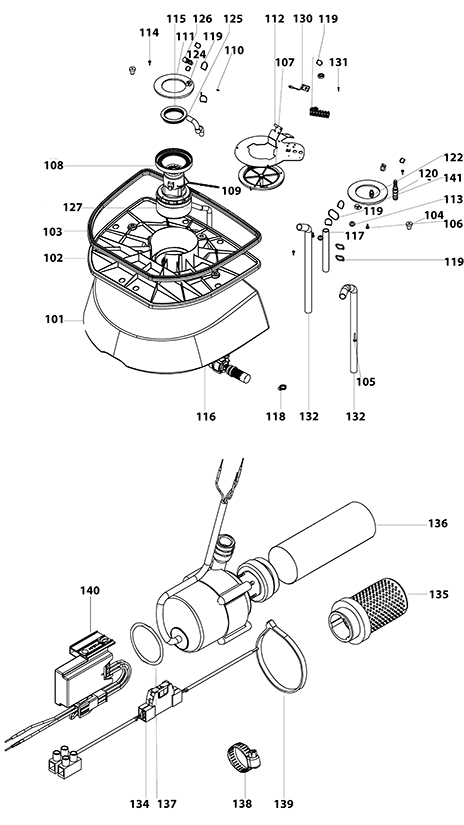

Upper Tank Assembly - 192-0501
RefNbr Part Number Description Req Notes
101 192-9683 Tank cover 1
102 192-9684 Base plate 1
103 192-6334 Sealing profile (sold by the inch) 83 in
104 192-1575 Buffer 2
105 192-1557 Screw 60 x 35 torx head 2
106 192-8753 Flange bolt 2
107 192-3617 Filter 1
108 192-1562 Guide ring 1
109 192-0956 24V 3 stage vac motor 1
110 192-7525 Wire sleeve 2
111 192-1573 Gasket 2
112 192-9685 Sensor holder 1
113 192-0817 Grommet 2
114 192-1571 Screw M50 x 16mm 3
115 192-1569 Sealing ring 1
116a 192-9689 24V pump 1
116b 192-9691 Filter bag 1
117 192-0203 Hose (sold by the inch) 32 in
118 192-1230 Hose clamp 2
119 192-0102 7 3/4 inch cable tie 16
120 192-9688 Connector 1
122 192-9687 Cable bushing 1
124 192-9210 Hose clamp 3
125 192-0400 Wire reinforced hose (sold by the inch) 8 in
126 192-2596 Tube connector 1
127 192-0399 Hose (clear) (sold by the inch) 28 in
128 192-9686 Sensor 1
130 192-0951 6 way connection block 1
131 192-9692 Screw M3 x 16mm 2
132a 192-9834 Hose (sold by the inch) 21 in
132b 192-9834 Hose (sold by the inch) 24 in
134 192-2597 Fuse holder 1
135 192-0992 Filter cage 1
136 192-0993 4 inch filter bag 1
137 192-0991 O-ring 1
138 192-1230 Hose clamp 1
139 192-0794 Cable tie 1
140 292-1069 Pump controller 1 (series 3)
141 192-4205 Nut M16 x 1-1/2 hex 2

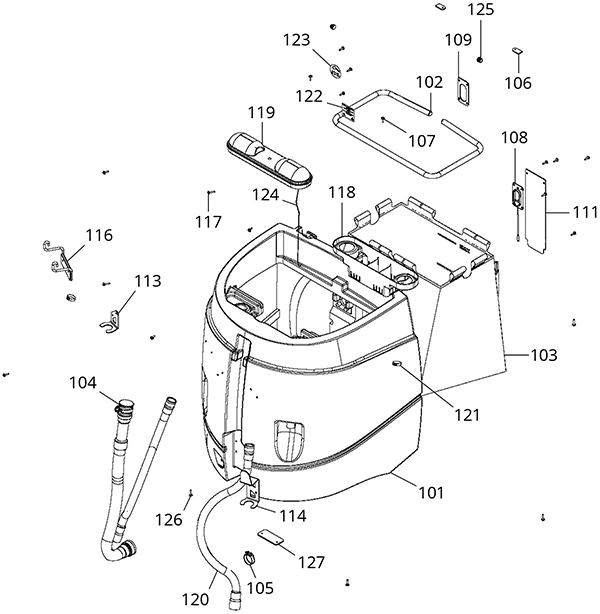

Lower Tank Assembly - 192-0502
RefNbr Part Number Description Req Notes
101 192-9697 Tank 1
102 192-9693 Frame 1
103 192-9695 Bladder bag 1
104 192-9315 Drain hose (push on mount) 1
105 192-4375 Hose clamp 1
106 192-9696 Plate 2
107 192-1561 Screw 60 x 20 torx head 14
108a 292-5400 Sensor assembly 1 (includes 109, 111) (series 1 and series 2)
108b 292-5670 Sensor 1 (series 3)
109 192-9704 Gasket 1
111 192-9705 Cover 1
113 192-2598 Holder 1
114 192-2917 Holder 1
116 192-9698 Holder 1
117 192-8848 Screw 60 x 25 torx 2
118 192-9702 Filter 1
119 192-9701 Filter cover 1
120 192-9700 Suction hose 2
121 192-9169 Hose clamp 2
122 192-9971 Reference decal 1
123 192-0185 Decal (blue) 1
124 192-0714 Cord (sold by the inch) 20 in
125 192-9694 Stopple 2
126 192-1509 Screw 60 x 25 torx head 6
127 192-9706 Holder 1
N/S 192-9703 Holder 1 (series 1 and series 2)
N/S 192-6282 Screw KA 30 x 10 2 (series 1 and series 2) (included with 108a)
N/S 192-0976 Measuring cup 1 (series 3)
N/S 192-9709 Gasket 1 (series 1 and series 2) (included with 108a)
N/S 192-1306 Bushing 2 (series 3)

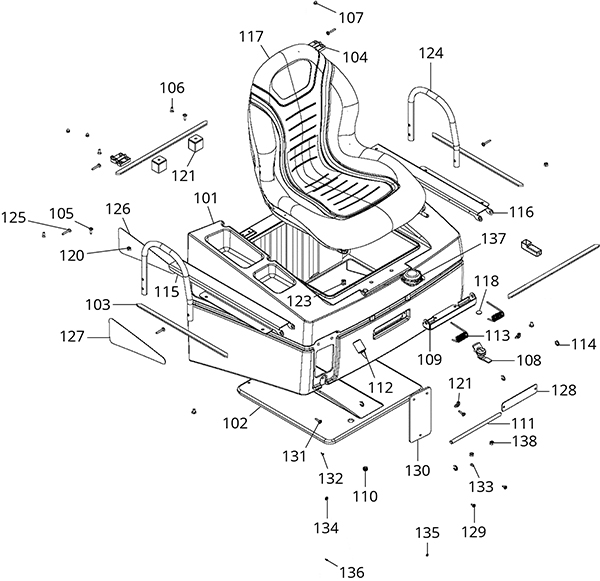

Driver Seat Assembly - 192-0503
RefNbr Part Number Description Req Notes
101 192-9717 Cover 1
102 192-9716 Cover 1
103 192-2918 Gasket 4
104 192-9714 Hinge 2
105 192-1561 Screw 60 x 20 torx head 4
106 192-0157 Screw M6 x 16mm countersunk head cap 4
107 192-2627 Nut cap M6 4
108 192-9715 Closure 1
109 192-9720 Bracket 1
110 192-0627 Grommet 1
111 192-9718 Axle 1
112 192-1872 Grease 1
113 192-1184 Tension spring 2
114 192-2775 Snap ring for shaft 4
115 192-9712 Bracket 1
116 192-9711 Bracket 1
117 192-1183 Driver seat 1
118 192-2919 Disc 1
120 192-0347 Nut M8 hex 4
121 192-0102 7 3/4 inch cable tie 2
122 192-9713 Buffer 2
123 192-0348 Screw M8 x 12mm truss head 2
124 192-9719 Support bracket 2
125 192-1557 Screw 60 x 35 torx head 6
126 292-5353 Left and right logo decals 1 (4000)
127 292-0904 Decorative decal 1 (5000)
128 192-9721 Cover window 1
129 192-9722 Retaining rivet 2
130 292-5557 Plate 1
131 192-1509 Screw 60 x 25 torx head 2
132 192-1058 Screw 35 x 10 for plastic 1
133 292-5558 Magnet 1
134 192-0200 Washer M6 1
135 192-0674 Washer 1
136 192-0209 Screw M3 x 8 recessed countersunk head 1
137 192-1191 Seat switch assembly 1
138 192-0510 Nut M8 self locking 2
N/S 192-0603 Screw hex 1 (series 1 and 2)
N/S 999-1409 Screw M8-1.25 x 12mm socket head stainless steel 4 (series 3)

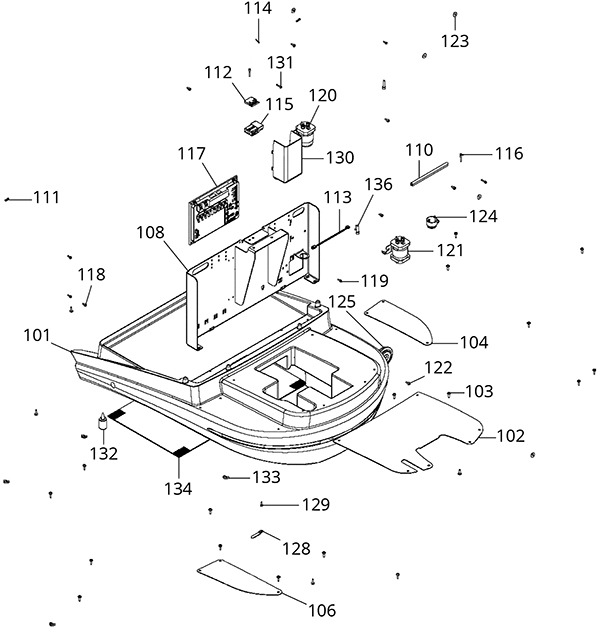

Electrical Panel Assembly - 192-0504
RefNbr Part Number Description Req Notes
101 192-9734 Base 1
102 192-9732 Foot plate 1
103 192-1561 Screw 60 x 20 torx head 24
104 192-9735 Foot plate 1
106 192-9733 Foot plate 1
108 192-9726 Bracket 1
110 192-2351 Bumper (sold by the inch) 11 in
111 192-9725 Bumper profile (sold by the inch) 15 in
112 192-9724 Charger jack holder 1
113 292-0905 2L connection cable 1
114 192-8784 Switch lever 1
115 192-9723 Charger jack housing 1
116 192-6481 Screw M5 x 30 socket head cap 2
117a 192-9730 Electronic control board 1 (series 1 and series 2)
117b 292-8478 Electronics 1 (series 3)
118 292-0906 Stand off M5 x 10mm 4
119 192-0077 Screw M5 x 12mm socket head 4 (series 1 and series 2)
120a 192-9190 24V relay 1 (series 1 and series 2)
120b 192-9727 24V relay 1 (series 3)
121 292-8479 Drive relay 1
122 192-0506 Screw M6 x 12mm socket head 7
123 192-7421 Washer 5
124b 292-0681 Horn 1 (series 3)
125 192-9728 Horn 1
128 192-2791 Clamp 1
129 192-1571 Screw M50 x 16mm 1
130 292-0929 Cover 1
131 192-0262 Screw M5 x 20mm socket head cap 2
132 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
133 192-0102 7 3/4 inch cable tie 20
134 192-9736 Mat 1
136 192-0603 Screw hex 2
N/S 192-9941 Wire harness with charger switch 1 (series 1 and series 2)
N/S 192-0880 Washer M5 4 (series 1 and series 2)
N/S 192-1537 Washer M5 serrated lock 4 (series 1 and series 2)
N/S 192-0200 Washer M6 4 (series 1 and series 2)
N/S 192-0179 Washer M6 serrated lock 4 (series 1 and series 2)
N/S 192-9737 120amp charger jack 1 (series 1 and series 2)
N/S 192-1003 Screw M5 x 35mm raised cheese head torx 4 (series 1 and series 2)
N/S 192-6479 Screw M5 x 16mm socket head 4 (series 3)

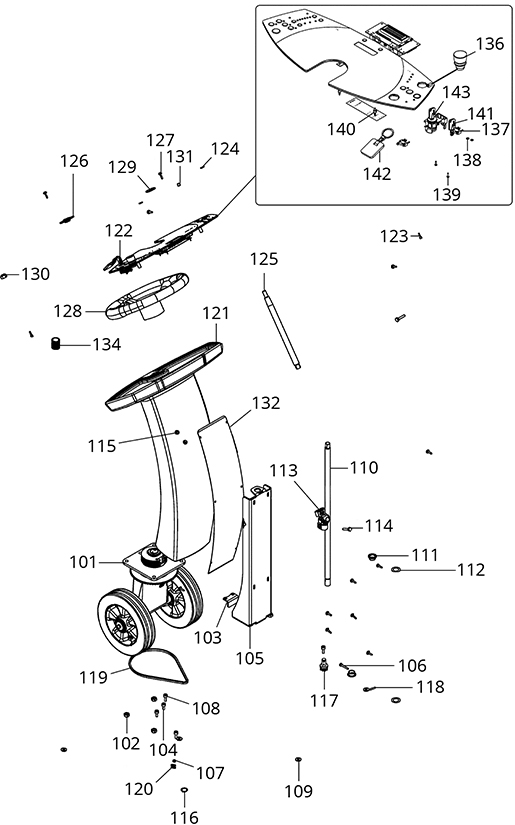

Upper Drive Assembly - 192-0505
RefNbr Part Number Description Req Notes
101a 192-9750 Drive assembly 1 (includes 101b-101e)
101b 192-9751 Wheel 2
101c 192-0822 Screw M8 x 25 hex head 2
101d 192-7427 Washer 4
101e 292-5402 Front wheel without profile (red) 2 (option)
102 192-6339 Nut M10 self locking 4
103 192-9749 Angled bracket 1
104 192-0078 Screw M8 x 16mm socket head 2
105 192-9747 Bracket 1
106 192-4224 Screw M6 x 35mm hex head 1
107 192-0151 Nut M6 hex 1
108 192-0036 Screw M8 x 20mm socket head 4
109 192-0079 Washer 4
110 192-9745 Rod 1
111a 192-9744 Slide bearing 2 (series 1 and series 2)
111b 192-1044 Slide bearing 2 (series 3)
112 192-1077 Spacer disc 2
113 192-1069 Cross joint 1
114 192-0835 Screw M8 x 35mm hex head 2
115 192-0510 Nut M8 self locking 2
116 192-0807 Retaining ring 1
117 192-1075 Chain wheel 1
118 192-1076 Extensible pin 5 x 24 1
119 192-9748 Chain 1
120 192-1217 3/8 inch chain master link 1
121 192-9742 Hood 1
122a 192-9741 Keyboard 1 (includes 136) (series 1 and series 2)
122b 292-8623 Control board 1 (includes 136-143) (series 3)
123 192-0035 Screw M5 x 16mm socket head cap 2
124 192-0091 Washer 2
125 192-9740 Rod 1
126 192-9739 Flanged bearing 1
127 192-1561 Screw 60 x 20 torx head 12
128 192-1051 Steering wheel 1
129 192-1078 Washer 1
130 192-1049 Nut M12 self locking 1
131 192-9746 Plug 1
132 192-9743 Panel 1
134 192-9834 Hose (sold by the inch) 33 in
136 192-8729 Actuator stop button 1
137 192-8721 Microswitch 2
138 192-0677 Washer M3 2
139 192-0003 Screw M3 x 10mm raised head 2
140 292-5542 Bolt M3 x 22.2 4
141 292-5254 Steel key 1
142 192-4662 Key ring 1
143 292-8535 Key switch assembly 1
N/S 192-0102 7 3/4 inch cable tie 4 (series 1 and series 2)
N/S 192-1048 Cap (OBSOLETE) 1 (series 1 and series 2)
N/S 192-1052 Flange 1 (series 1 and series 2)

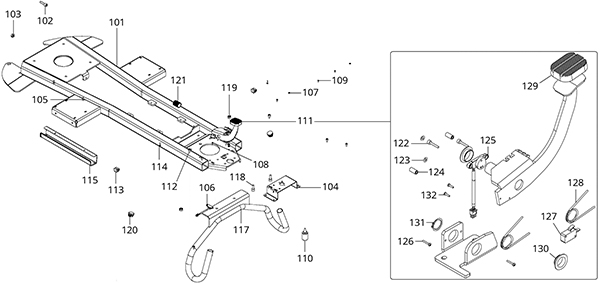

Pedal Assembly - 192-0506
RefNbr Part Number Description Req Notes
101 192-9759 Chassis 1
102 192-0594 Screw socket head cap 1
103 192-1135 Nut M10 hex 1
104 192-9752 Holder 1
105 192-0506 Screw M6 x 12mm socket head 6
106 292-8485 Sensor 1
107 192-9755 Spring washer 3 x 9 x 1 2
108 192-5921 Screw M4 x 12 raised cheese head 2
109 192-0003 Screw M3 x 10mm raised head 2
110 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
111a 192-9758 Pedal (OBSOLETE) 1 (series 1 and series 2)
111b 292-9099 Pedal set 1 (includes 122-132) (series 3)
112 192-0364 Screw M8 x 12mm socket head 2
113 192-0260 2-way connection block 2
114 192-0326 Screw M4 x 16 raised head 2
115 192-9760 Cable conduit 1
117 192-2920 Tilt protection 1
118 192-6473 Screw M10 x 25mm socket head cap 2
119 192-6339 Nut M10 self locking 2
120 292-0907 Plug 2
121 192-9834 Hose (sold by the inch) 11 in
122 192-1105 Screw M4 x 20mm socket head 2
123 192-9755 Spring washer 3 x 9 x 1 2
124 292-5506 Bushing 2
125 292-8486 Sensor 1
126 192-0054 Screw M3 x 16mm raised cheese head 2
127 192-0681 Microswitch 1
128 192-9756 Torsion spring 2
129 192-1096 Pedal pad 1
130 192-9744 Slide bearing 2
131 192-0807 Retaining ring 1
132 192-0003 Screw M3 x 10mm raised head 2
N/S 192-9753 Sensor 1 (series 1 and series 2)
N/S 192-9754 Sensor 1 (series 1 and series 2)
N/S 192-9757 Pedal holder (OBSOLETE) 1 (series 1 and series 2)

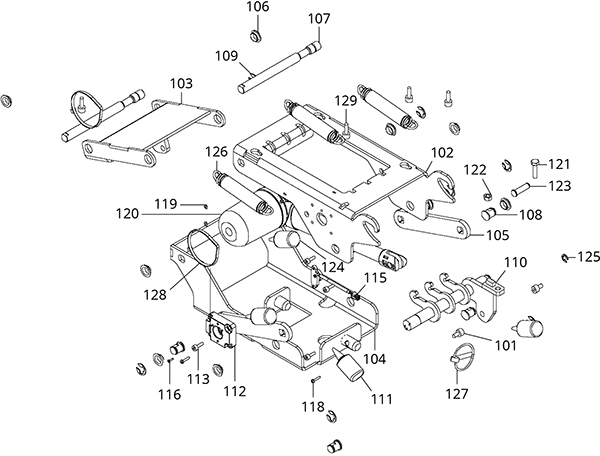

Tool Lowering Assembly - 192-0507
RefNbr Part Number Description Req Notes
101 192-0364 Screw M8 x 12mm socket head 2
102 192-9762 Tension spring bracket 1
103 192-9764 Lever 1
104 192-9765 Console 1
105 192-9771 Console bracket 2
106 192-9351 Grommet 9
107 192-9763 Bolt 2
108 192-9766 Bolt 4
109 192-2776 Snap ring 7
110 192-9768 Tension spring bracket 1
111 192-1872 Grease 1
112 192-9769 Sensor holder (OBSOLETE) 1
113 192-0007 Screw M6 x 16mm socket head cap 4
115 192-9770 Sensor 1
116 192-0003 Screw M3 x 10mm raised head 2
118 192-6286 Screw KA 40 x 18 2
119 192-9755 Spring washer 3 x 9 x 1 2
120 192-9178 Brush actuator 1
121 192-0838 Screw M8 x 30 hex head 1
122 192-0347 Nut M8 hex 1
123 192-9182 Bolt 2
124 192-1872 Grease 1
125 192-0086 Snap ring 2
126 192-9767 Tension spring 3
127 192-1148 Pin with ring 1
128 192-0102 7 3/4 inch cable tie 2
129 192-0036 Screw M8 x 20mm socket head 4
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) 2

Lower Drive Assembly - 192-0508
RefNbr Part Number Description Req Notes
101 192-9772 Center pivot plate 1
102 192-9775 Transaxle assembly 1
103 192-9784 Drive motor 1
104 192-9785 Brake 1
105 192-9777 Screw socket head cap 8
106 192-1082 Grommet 1
107 192-6339 Nut M10 self locking 12
108 292-8495 Magnet 1
109 192-0425 Screw M4 x 10mm socket head cap 3
110 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
112 192-9776 Drive wheel 2
113 192-0036 Screw M8 x 20mm socket head 16
114 192-9778 Cord 1
115 192-6203 Rubber shield 2
116 192-5559 Plate 2
117 192-9779 Splash guard bracket 2
118 192-0148 Screw M4 x 10mm raised cheese head 4
119 192-0506 Screw M6 x 12mm socket head 4
120 192-9773 2 way connection block 1
121 192-1105 Screw M4 x 20mm socket head 1
122 292-0910 Disc 2
123 192-9787 Drive wheel 2 (option)
124 192-9788 Drive wheel 2 (option)
125 292-5401 Traction wheel without profile (red) 2 (option)
126 292-0909 Wheel hub set 1
127 292-0908 Carbon brush set 1
128 292-5598 Housing 1
129 292-8496 Rotary encoder 1
130 292-5599 Cover 1
131 192-6283 Screw for plastic KA 30 x 8 3
N/S 192-9780 Holder 1 (series 1 and series 2)
N/S 192-0510 Nut M8 self locking 4 (series 1 and series 2)
N/S 192-4221 Screw M5 x 14mm hex head 1 (series 1 and series 2)
N/S 192-0705 Washer 1 (series 1 and series 2)
N/S 192-9786 Strap 1 (series 1 and series 2)
N/S 192-0340 Nut M5 hex self locking 1 (series 1 and series 2)
N/S 192-1195 Washer M4 3 (series 3)

Squeegee Lift Assembly - 192-0509
RefNbr Part Number Description Req Notes
101 192-9780 Holder 1
102 192-9782 Bracket 1
103 192-9351 Grommet 2
104 192-9792 Lever 1
105 192-9790 Slide bearing 8
106 192-9789 Bolt 1
107 192-2775 Snap ring for shaft 5
108 192-9794 Lever 1
109 192-9791 Bolt 2
110 192-9797 Squeegee bracket 1
111 192-9799 Squeegee bracket bolt 1
112 192-9185 Squeegee actuator 1
113 192-9795 Bolt 1
114 192-9796 Bolt 1
115 192-0840 Snap ring 4
116 192-0305 Tension spring 2
117 192-9793 Tension spring 2
118 192-9783 Bolt 1
119 192-9781 Torsion spring 1
120 192-2776 Snap ring 2
121 192-9798 Bracket 1
122 192-8983 Pedal pad 1
123 192-0111 Star knob 2
124 192-1872 Grease 1
125 192-0102 7 3/4 inch cable tie 4
126 192-0496 Washer M10 2
127 192-0510 Nut M8 self locking 4
128 192-9786 Strap 1
129 192-4221 Screw M5 x 14mm hex head 1
130 192-0705 Washer 1
131 192-0340 Nut M5 hex self locking 1

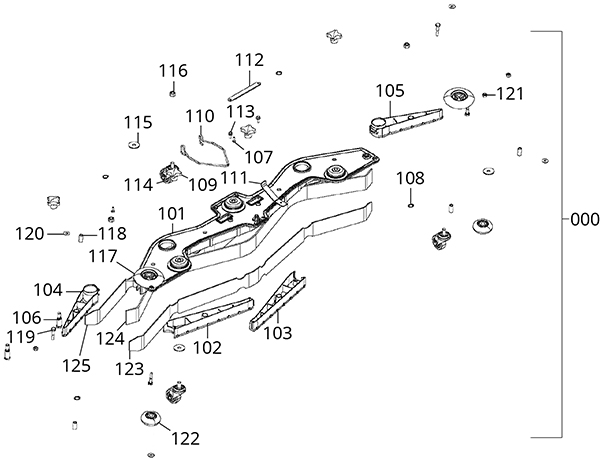

Squeegee Assembly - 192-0510
RefNbr Part Number Description Req Notes
000a 192-8963 Squeegee assembly 1 (includes 101a, 102a, 103a, 104a, 105a, 106-122, 123a, 124a, 125a, 125a) (4000)
000b 292-0167 Squeegee assembly 1 (includes 101b, 102b, 103b, 104b, 105b, 106-122, 123b, 124b, 125b, 125c) (5000)
101a 292-0024 Squeegee weldment 1 (4000)
101b 292-0174 Squeegee weldment 1 (5000)
102a 192-8965 Left side middle blade retainer 1 (4000)
102b 292-0170 Left side middle blade retainer 1 (5000)
103a 192-8966 Right side middle blade retainer 1 (4000)
103b 292-0169 Right side middle blade retainer 1 (5000)
104a 192-8964 Left side blade retainer 1 (4000)
104b 292-0171 Left side blade retainer 1 (5000)
105a 192-8967 Right side blade retainer 1 (4000)
105b 292-0168 Right side blade retainer 1 (5000)
106 292-0005 Screw M10 hex head 4
107 192-1571 Screw M50 x 16mm 2
108 192-0075 Retaining ring 4
109 292-0004 Star knob 4
110 292-0002 Wire spring 1
111 292-0003 Flat spring 1
112 292-0126 Holder bar 1
113 192-9360 Screw M6 x 16mm self tapping 3
114 192-9801 Castor wheel 3
115 192-0112 Washer 3
116 192-6339 Nut M10 self locking 3
117 192-8744 Wheel 2
118 192-9803 Bushing 6 (qty 4 for 5000)
119 192-9212 Screw M8 x 40/22mm hex 4
120 192-7424 Washer 8.4/20 4
121 192-0510 Nut M8 self locking 4 (qty 2 for 4000)
122 192-9802 Wheel 2
123a 192-8968 Squeegee blade front 1 (4000)
123b 292-0172 Squeegee blade front 1 (5000)
124a 292-5369 4.5mm squeegee blade 1 (4000)
124b 292-0926 Squeegee blade 1 (4000) (option)
124c 292-0173 Squeegee blade rear 1 (5000)
125a 192-9804 Squeegee blade front solid 1 (4000) (option)
125b 292-0175 Squeegee blade front solid 1 (5000) (option)
125c 292-1070 Squeegee blade 54/5 x 1415 1 (5000) (option)

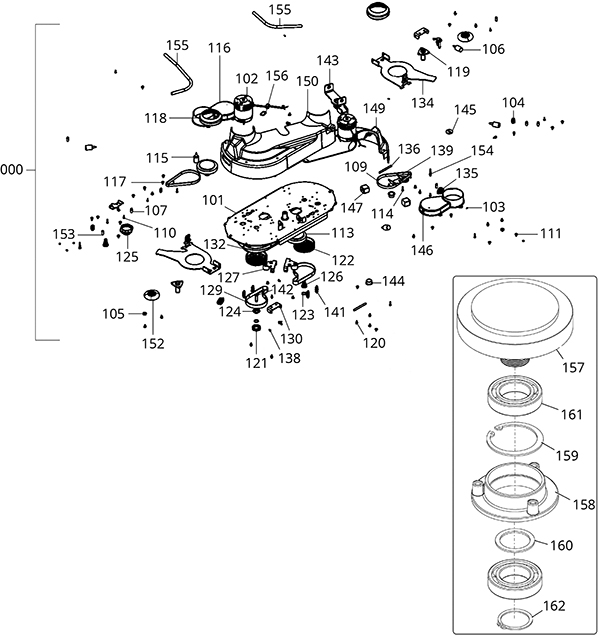

Brush Drive Assembly - 192-0511
RefNbr Part Number Description Req Notes
000 292-9100 Brush drive 1 (includes 101-156)
101 192-9810 Brush base plate 1
102 192-5078 24V brush motor with noise suppression 2
103 192-7525 Wire sleeve 4
104 192-9811 Pulley 2
105 192-0800 Nut M12 left hand thread hex 2
106 292-8528 .5ml capsule loctite medium strength thread lock (red) 3
107 192-8633 Stud 6
109 192-9809 Poly v belt 2
110 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 6
111 192-0200 Washer M6 6
113 292-0068 Pulley kit (includes bearings and clips) 2 (includes 157-162)
114 192-1285 Screw M6 x 25mm hex head 6
115 192-1872 Grease 2
116 192-9808 Motor cover 2
117 192-0348 Screw M8 x 12mm truss head 26
118 192-9807 Sealing ring 2
119 192-0590 Pulley axle 2
120 192-0364 Screw M8 x 12mm socket head 20
121 192-6321 Sealing ring 2
122 292-0137 Pulley 2
123 192-0503 Retaining ring 2
124 192-6320 Sealing ring 2
125 192-3032 Drive hub 2
126 192-2728 Flanged bushing 2
127 192-9813 Tensioning roller 2
129 192-9812 Poly v belt 2
130 192-9819 Plate bracket 2
132 192-9818 Cover 1
134 192-9820 Plate 2
135 192-8983 Pedal pad 2
136 192-9821 Bolt 2
138 192-0086 Snap ring 4
139 192-9817 Stop 2
141 192-9265 Tension spring 4
142 192-1677 Angled nipple 2
143 192-9814 Bracket 1
144 192-9816 Slide bearing 2
145 192-9815 Disc 1
146 192-0243 Screw M8 x 20mm socket head 2
147 192-9713 Buffer 2
149 192-9805 Rear hood 1
150 192-9806 Front hood 1
152 192-8744 Wheel 2
153 192-9803 Bushing 2
154 192-9212 Screw M8 x 40/22mm hex 2
155a 192-0404 Wire reinforced hose (sold by the inch) 23 in (2 23 inch sections)
155b 192-0400 Wire reinforced hose (sold by the inch) 23 in (2 23 inch sections)
156 192-0102 7 3/4 inch cable tie 1
157 192-4607 Intermediate pulley 1
158 192-0484 Flanged bearing 1
159 192-0483 Retaining ring 1
160 192-0482 Spacer 1
161 192-0481 Ball bearing 2
162 192-0485 Retaining ring 1
N/S 192-9210 Hose clamp 2
N/S 292-5415 Check valve 2 (series 3)

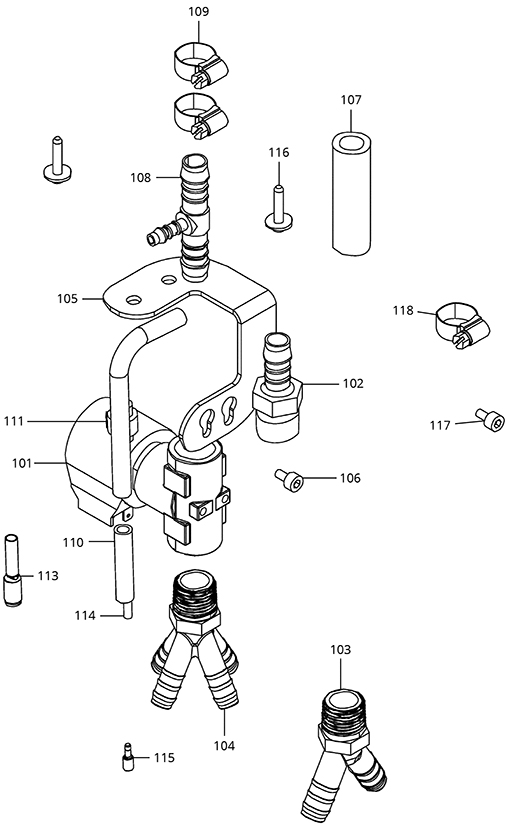

Magnetic Valve Assembly - 192-0512
RefNbr Part Number Description Req Notes
101 292-0958 24V magnetic valve 1
102 192-0398 Male connector 1
103 192-9823 Nipple 1 (4000)
104 192-3467 Nipple 1 (5000)
105 192-9822 Valve holder 1
106 192-6485 Screw M5 x 8mm socket head cap 2
107 192-0400 Wire reinforced hose (sold by the inch) 8 in
108 192-9542 T-nipple 1
109 192-9210 Hose clamp 3
110a 192-4344 Hose (sold by the inch) 8 in
110b 192-4344 Hose (sold by the inch) 4 in
111 192-1601 Check valve 1
113 192-9824 Connector 1
114 292-5581 Pipe (OBSOLETE) 58 in
115 292-0145 Plug 1
116 192-1561 Screw 60 x 20 torx head 2
117 292-1071 Screw M5 x 6 mm socket head cap 2
118 192-0334 Hose clamp 3
N/S 192-9825 Key assembly 1 (series 1 and series 2)
N/S 192-1592 Plastic key 1 (series 1 and series 2)
N/S 292-5254 Steel key 1 (series 1 and series 2)
N/S 192-8584 Screw 40 x 8 1 (series 1 and series 2)
N/S 192-9826 Washer 1 (series 1 and series 2)
N/S 192-0003 Screw M3 x 10mm raised head 1 (series 1 and series 2)
N/S 192-7416 Washer 4. 3/8 1 (series 1 and series 2)
N/S 192-5078 24V brush motor with noise suppression 2 (series 1 and series 2)
N/S 192-8633 Stud 6 (series 1 and series 2)
N/S 192-9809 Poly v belt 2 (series 1 and series 2)
N/S 192-9811 Pulley 2 (4000) (series 1 and series 2)
N/S 292-0144 Pulley 2 (5000) (series 1 and series 2)
N/S 192-0800 Nut M12 left hand thread hex 2 (series 1 and series 2)
N/S 192-0200 Washer M6 6 (series 1 and series 2)
N/S 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 6 (series 1 and series 2)
N/S 192-7525 Wire sleeve 4 (series 1 and series 2)
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) 1 (series 1 and series 2)
N/S 192-9834 Hose (sold by the inch) 21 in (series 1 and series 2)
N/S 192-9834 Hose (sold by the inch) 11 in (series 1 and series 2)
N/S 192-9834 Hose (sold by the inch) 33 in (series 1 and series 2)
N/S 192-9834 Hose (sold by the inch) 24 in (series 1 and series 2)

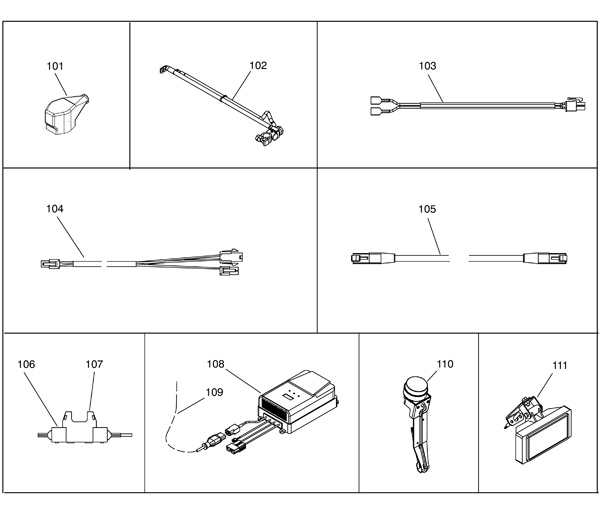

Electrical Components Assembly - Series 1 and Series 2 - 192-0515
RefNbr Part Number Description Req Notes
101 192-0886 Battery post cover 1
102 292-0237 Wiring harness 1
103 192-9827 Cable switch 1
104 192-9553 Wiring harness (power board to J-fit option) 1
105 192-9329 Communication cable (dashboard to power electronic) 1
106 192-3890 Fuse holder 1
107 192-1174 2amp fuse clip 1
108 192-9830 24V 30amp onboard battery charger (OBSOLETE) 1
109 192-9973 Onboard charger cord 1
110 192-9828 Flash light assembly 1
111 192-9829 Spotlight assembly 1
N/S 292-0343 175amp fuse 1
N/S 292-0914 Battery wire 3

Pump and Hose Assembly - Series 1 and Series 2 - 192-0517
RefNbr Part Number Description Req Notes
101 292-0146 Long drain hose 1
109 292-5404 Drainage pump assembly 1 (includes 110-126)
110 192-1234 Waste drainage pump 1
111 192-1153 Toroidal choke 1
112 192-0794 Cable tie 1
113 192-0102 7 3/4 inch cable tie 16
114 292-0147 Angled nipple 1
115 192-5367 O-ring 19 x 2 1
116 292-0148 Flanged bushing 1
117 192-3981 Gasket 1
118 192-9935 Nut M20 hex 1
119 192-1233 L-connector 1
120 192-1561 Screw 60 x 20 torx head 4
121 292-0149 Drain hose with switch 1
122 192-1230 Hose clamp 1
123 192-1224 4 way connection block 1
124 292-0150 Holder 1
125 192-0941 Screw M40 x M10 for plastic 2
126 292-0151 Connection cable 1
130 292-5405 Chassis protection with wheels assembly 1
131 292-0912 Roll 60 6
132 292-0913 Bolt 1
133 192-0086 Snap ring 6
135 292-5406 Protection roof 1

Pad Driver Assembly - 192-0736
RefNbr Part Number Description Req Notes
000a 292-5109 17 inch pad driver 1 (includes 101-103a)
000b 192-9430 11 inch pad driver 1 (includes 101-102, 103b)
101 292-8682 Ring (yellow) 1
102 192-0445 Screw M5 x 25mm pan head tap 4
103a 192-3469 Clutch plate 1 (17 inch)
103b 192-3013 Brush coupling 1 (11 inch)

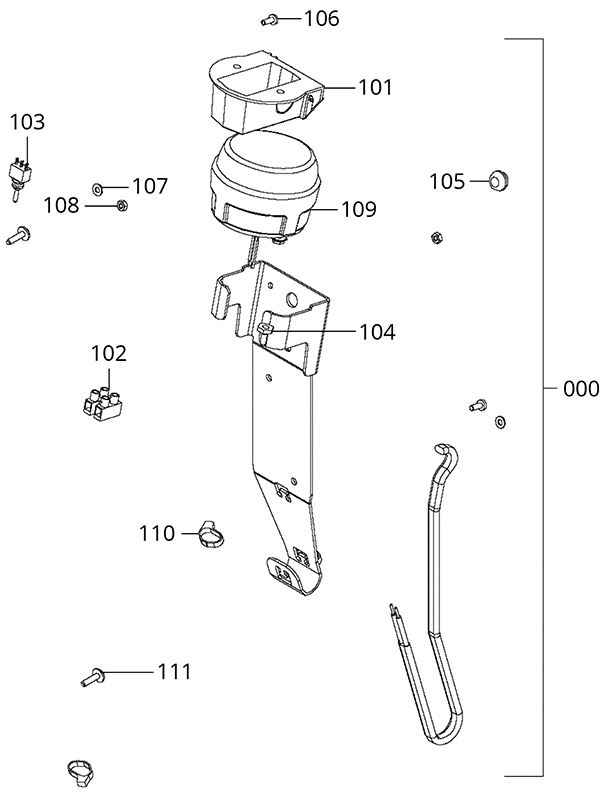

Flashlight Set Assembly - 192-2039
RefNbr Part Number Description Req Notes
000 192-9828 Flash light assembly 1 (includes 101-111)
101 192-1197 Support 1
102 192-2895 2 way connection block 1
103 192-1201 Toggle switch 1
104 192-1202 Switch boot 1
105 192-1198 Grommet 1
106 192-0148 Screw M4 x 10mm raised cheese head 2
107 192-1195 Washer M4 2
108 192-0039 Nut M4 hex 2
109 192-1196 Flashing light 1
110 192-0973 3 1/4 inch cable tie 4
111 192-1571 Screw M50 x 16mm 2

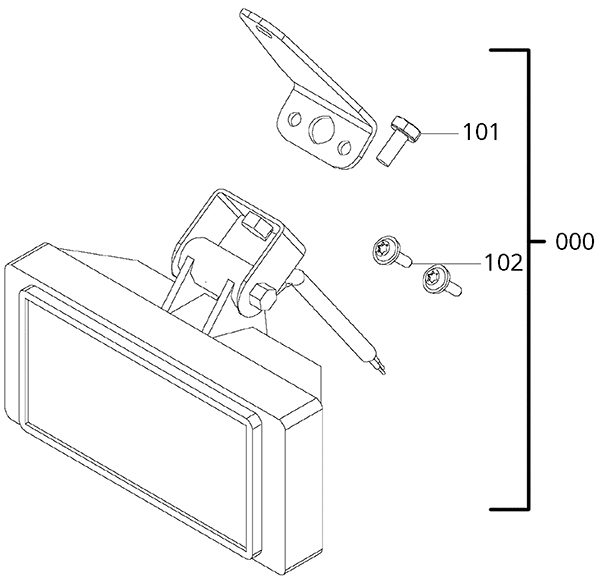

Spotlight Set Assembly - 192-2040
RefNbr Part Number Description Req Notes
000 192-9829 Spotlight assembly 1 (includes 101-102)
101 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 1
102 192-1561 Screw 60 x 20 torx head 2

Drainage Pump Assembly - 192-2041
RefNbr Part Number Description Req Notes
000 292-5404 Drainage pump assembly 1 (includes 101-121)
101 192-1234 Waste drainage pump 1
102 192-1153 Toroidal choke 1
103 192-0102 7 3/4 inch cable tie 10
104 192-0973 3 1/4 inch cable tie 1
105 192-4221 Screw M5 x 14mm hex head 1
106 192-6343 Nut M5 self locking 1
107 292-0147 Angled nipple 1
108 192-5367 O-ring 19 x 2 1
109 292-0148 Flanged bushing 1
110 192-3981 Gasket 1
111 192-9935 Nut M20 hex 1
112 192-1233 L-connector 1
113 192-1561 Screw 60 x 20 torx head 4
114 292-0149 Drain hose with switch 1
115 192-1230 Hose clamp 1
116 192-0067 Washer 4 x 17 x 3 4
117 192-1224 4 way connection block 1
118 292-0150 Holder 1
119 192-0941 Screw M40 x M10 for plastic 2
120 292-0151 Connection cable 1
121 192-0506 Screw M6 x 12mm socket head 2

Drain Hose with Switch Assembly - 192-2042
RefNbr Part Number Description Req Notes
000 292-0149 Drain hose with switch 1 (includes 101-117)
101 192-1229 Tapped cap 1
102 192-1228 O-ring 1
103 192-1242 Key ring 16 1
104 192-2732 Chain (sold by the inch) 6 inches
105 192-1243 S-hook 1
106 192-1227 Nipple 1
107 192-0204 Hose clamp 1
108 192-0203 Hose (sold by the inch) 126 inches
109 192-0705 Washer 1
110 192-1240 Screw M5 x 10mm raised cheese head 1
111 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
112 192-1235 Switch housing 1
113 192-2490 Cable bushing 1
114 192-1237 Switch 1
115 192-1238 Protection cap 1
116 192-1236 Adapter 1
117 192-0102 7 3/4 inch cable tie 14

- Simplified Electrical System - Series 1 and 2 -

RefNbr Part Number Description Req Notes

- Simplified Recovery System - Series 1 and 2 -

RefNbr Part Number Description Req Notes

- Know Your Machine -

RefNbr Part Number Description Req Notes

- Simplified Solution System - Series 1 and 2 -

RefNbr Part Number Description Req Notes

- Frequently Replaced Parts - 192-9956
RefNbr Part Number Description Req Notes
162-0005 6V 305Ah wet battery (SNSR) 4
162-0046 6V 335Ah AGM battery (Group J305) 4
162-0002 12V 185Ah wet battery (SNSR) 4 (machines before 2016) (in series and parallel combination)
192-9830 24V 30amp onboard battery charger (OBSOLETE) 1
162-5133 24V 30amp smart battery charger with medium SB120 gray plug 1
162-5133 24V 30amp smart battery charger with medium SB120 gray plug 1
292-5252 120amp charger plug (gray) SB120 1
998-0010 Battery jumper cable - ring type (red) 1
292-8535 Key switch assembly 1
292-5254 Steel key 1
192-1592 Plastic key 1
192-2732 Chain (sold by the inch) 6 in
192-9748 Chain 1
192-1217 3/8 inch chain master link 1
292-0958 24V magnetic valve 1
192-0992 Filter cage 1
192-9702 Filter 1
192-0993 4 inch filter bag 1
192-8968 Squeegee blade front 1 (4000)
192-0172 Stopper (OBSOLETE) 1 (5000)
292-5369 4.5mm squeegee blade 1 (4000)
292-0926 Squeegee blade 1 (4000) (option)
292-0173 Squeegee blade rear 1 (5000) (option)
192-9804 Squeegee blade front solid 1 (4000) (option)
292-0175 Squeegee blade front solid 1 (5000) (option)
292-1070 Squeegee blade 54/5 x 1415 1 (5000) (option)
192-9683 Tank cover 1
192-6334 Sealing profile (sold by the inch) 83 in
192-9315 Drain hose (push on mount) 1
192-0956 24V 3 stage vac motor 1
292-0908 Carbon brush set 1
292-5109 17 inch pad driver 2
192-9433 11 inch progrit scrubbing brush (gray) 4
192-9431 11 inch hard nylon scrubbing brush (white) 4
192-9432 11 inch soft nylon scrubbing brush (white) 4
292-5112 17 inch progrit scrubbing brush (gray) 2
292-5110 17 inch hard nylon scrubbing brush (white) 2
292-5111 17 inch soft nylon scrubbing brush (white) 2
192-3469 Clutch plate 1 (4000)
192-3013 Brush coupling 1 (5000)
991-2214 Center-Lok II pad holder - left hand thread (red) 1
991-2201 Center-Lok II pad holder - right hand thread (black) 1
991-2206 Center-Lok 3 pad holder 1
991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE) 1

- Batteries, Brushes and Chargers - 192-9969
RefNbr Part Number Description Req Notes
162-0005 6V 305Ah wet battery (SNSR) 4
162-0046 6V 335Ah AGM battery (Group J305) 4
162-0005 6V 305Ah wet battery (SNSR) 4 (machines starting in 2016) (series 1 and series 2)
162-0002 12V 185Ah wet battery (SNSR) 4 (machines before 2016) (in series and parallel combination)
192-9830 24V 30amp onboard battery charger (OBSOLETE) 1
162-5133 24V 30amp smart battery charger with medium SB120 gray plug 1
192-9433 11 inch progrit scrubbing brush (gray) 4
192-9431 11 inch hard nylon scrubbing brush (white) 4
192-9432 11 inch soft nylon scrubbing brush (white) 4
292-5112 17 inch progrit scrubbing brush (gray) 2
292-5110 17 inch hard nylon scrubbing brush (white) 2
292-5111 17 inch soft nylon scrubbing brush (white) 2

- Pads - 11 inch - 255-1100
RefNbr Part Number Description Req Notes
01 255-1140 11 inch aqua plus burnishing pad (pkg of 20)
02 255-1890 18 inch premium black stripping pad (pkg of 5)
03 255-1142 11 inch Blue Jay burnishing pad (pkg of 20)
04 255-1064 10 inch Blue ace pad (pkg of 20)
05 255-1112 11 inch Cure white pad (pkg of 5)
06 255-1177 11 inch Diamondback extreme stripping pad (pkg of 20)
07 255-1138 11 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1121 11 inch gorilla lite burnishing pad (pkg of 20)
09 255-1150 11 inch gorilla spray buff/polish/burnish pad (pkg of 20)
10 255-1165 11 inch Heat concrete bonding pad (pkg of 5)
11 255-1130 11 inch jaguar burnishing pad (pkg of 20)
12 255-1190 11 inch premium black stripping pad (pkg of 20)
13 255-1170 11 inch premium blue cleaning pad (pkg of 20)
14 255-1192 11 inch premium brown stripping pad (pkg of 20)
15 255-1180 11 inch premium green scrubbing pad (pkg of 20)
16 255-1160 11 inch premium red scrubbing pad (pkg of 5)
17 255-1152 11 inch premium tan polishing pad (pkg of 20)
18 255-1120 11 inch premium white polishing pad (pkg of 20)
19 255-1147 11 inch Redwood maroon floor prep pad (pkg of 10)
20 255-1155 11 inch Ruff non-abrasive brush pad (pkg of 2)
21 255-1111 11 inch superspeed rubberized pad (pkg of 20)
22 255-9039 11 x 14 inch non-abrasive brush pad (pkg of 2) (OBSOLETE)
23 255-9528 11 inch Diamond by Gorilla 11000 Grit (pkg of 2)
24 255-9525 11 inch Diamond by Gorilla 1500 Grit (pkg of 2)
25 255-9522 11 inch Diamond by Gorilla 200 Grit (pkg of 2)
26 255-9526 11 inch Diamond by Gorilla 3000 Grit (pkg of 2)
27 255-9523 11 inch Diamond by Gorilla 400 Grit (pkg of 2)
28 255-9524 11 inch Diamond by Gorilla 800 Grit (pkg of 2)
29 255-9527 11 inch Diamond by Gorilla 8000 Grit (pkg of 2)
30 255-9636 11 inch Diamond starter pack (1 of each grit)
31 255-1115 11 inch Duala clean and shine pad - low speed (pkg of 5)
32 255-1116 11 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pads - 17 inch - 255-1700
RefNbr Part Number Description Req Notes
01 255-1740 17 inch aqua plus burnishing pad (pkg of 5)
02 255-1735 17 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1764 17 inch Blue ace pad (pkg of 5)
04 255-1742 17 inch Blue Jay burnishing pad (pkg of 5)
05 255-1712 17 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-1777 17 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1738 17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1721 17 inch gorilla lite burnishing pad (pkg of 5)
09 255-1750 17 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1765 17 inch Heat concrete bonding pad (pkg of 5)
11 255-1730 17 inch jaguar burnishing pad (pkg of 5)
12 255-1767 17 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-1768 17 inch Microclean daily cleaning pad (pkg of 2)
14 255-1769 17 inch Micropolish polishing and burnishing pad (pkg of 2)
15 255-1790 17 inch premium black stripping pad (pkg of 5)
16 255-1770 17 inch premium blue cleaning pad (pkg of 5)
17 255-1792 17 inch premium brown stripping pad (pkg of 5)
18 255-1780 17 inch premium green scrubbing pad (pkg of 5)
19 255-1760 17 inch premium red scrubbing pad (pkg of 5)
20 255-1752 17 inch premium tan polishing pad (pkg of 5)
21 255-1720 17 inch premium white polishing pad (pkg of 5)
22 255-1711 17 inch superspeed rubberized pad (pkg of 5)
23 255-1795 17 inch razorback stripping pad (pkg of 5)
24 255-1747 17 inch Redwood maroon floor prep pad (pkg of 10)
25 255-1755 17 inch Ruff non-abrasive brush pad (pkg of 2)
26 255-1723 17 inch sand screen driver pad (pkg of 2)
27 255-0139 17 inch Professional sand screen 100 grit (pkg of 10)
28 255-0019 17 inch Professional sand screen 120 grit (pkg of 10)
29 255-0140 17 inch Professional sand screen 150 grit (pkg of 10)
30 255-0141 17 inch Professional sand screen 180 grit (pkg of 10)
31 255-0142 17 inch Professional sand screen 220 grit (pkg of 10)
32 255-0143 17 inch Professional sand screen 400 grit (pkg of 10)
33 255-0138 17 inch Professional sand screen 60 grit (pkg of 10)
34 255-0018 17 inch Professional sand screen 80 grit (pkg of 10)
35 255-0225 17 inch Superscreen sand screen 100 grit (pkg of 10)
36 255-0226 17 inch Superscreen sand screen 120 grit (pkg of 10)
37 255-0227 17 inch Superscreen sand screen 150 grit (pkg of 10)
38 255-0228 17 inch Superscreen sand screen 180 grit (pkg of 10)
39 255-0229 17 inch Superscreen sand screen 220 grit (pkg of 10)
40 255-0230 17 inch Superscreen sand screen 400 grit (pkg of 10)
41 255-0223 17 inch Superscreen sand screen 60 grit (pkg of 10)
42 255-0224 17 inch Superscreen sand screen 80 grit (pkg of 10)
43 255-1724 17 inch Tiger carpet bonnet (pkg of 2)
44 255-9570 17 inch Diamond by Gorilla 11000 Grit (pkg of 2)
45 255-9567 17 inch Diamond by Gorilla 1500 Grit (pkg of 2)
46 255-9564 17 inch Diamond by Gorilla 200 Grit (pkg of 2)
47 255-9568 17 inch Diamond by Gorilla 3000 Grit (pkg of 2)
48 255-9565 17 inch Diamond by Gorilla 400 Grit (pkg of 2)
49 255-9566 17 inch Diamond by Gorilla 800 Grit (pkg of 2)
50 255-9569 17 inch Diamond by Gorilla 8000 Grit (pkg of 2)
51 255-9642 17 inch Diamond starter pack (1 of each grit)
52 255-1782 17 inch Turbostrip segmented rotary pad (pkg of 4)
53 255-1715 17 inch Duala clean and shine pad - low speed (pkg of 5)
54 255-1716 17 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Manufacturer Recommended Stocking Parts - 392-9898
RefNbr Part Number Description Req Notes
1 192-0956 24V 3 stage vac motor 1
2 192-0993 4 inch filter bag 1
3 192-8753 Flange bolt 2
4 192-8784 Switch lever 1
5 292-5254 Steel key 1
6 192-9801 Castor wheel 3
7 192-8968 Squeegee blade front 1
8 292-5369 4.5mm squeegee blade 1
9 192-1174 2amp fuse clip 1
Webpage Problem Reporting
