- Batteries, Brushes, and Chargers - 192-0337 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
292-8581 |
36V 6Ah Li-ion battery |
1 |
|
|
192-9929 |
13 inch brush assembly (black) - CYLINDRICAL |
1 |
|
|
192-9930 |
13 inch hard brush assembly (red) - CYLINDRICAL (OBSOLETE) |
1 |
|
|
292-5156 |
13 inch active fiber pad roll |
1 |
|
|
392-9981 |
Swingo 150 B/E wear parts kit (blades,hose,cylindrical brush |
1 |
(includes 192-9926, 192-9940, 192-9929) |
|
|
- Brushes - 192-8019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
192-9929 |
13 inch brush assembly (black) - CYLINDRICAL |
1 |
|
| 02 |
192-9930 |
13 inch hard brush assembly (red) - CYLINDRICAL (OBSOLETE) |
1 |
|
| 03 |
292-5156 |
13 inch active fiber pad roll |
1 |
|
|
|
Handle Assembly - 192-9129 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
192-6281 |
Screw KA 40 x 35 |
7 |
|
| 2 |
292-8585 |
Pressure switch |
1 |
|
| 3 |
192-9860 |
Vacuum motor switch |
1 |
|
| 6 |
192-5931 |
Screw M6 x 12mm truss head phillips |
4 |
|
| 7 |
228-2828 |
Single screw 4 x 45 hilo |
1 |
|
| 9 |
192-9863 |
Quick snap plug |
1 |
|
| 11 |
192-9865 |
Front handle |
1 |
|
| 13 |
292-8586 |
Electronic board |
1 |
|
| 14 |
292-8587 |
Handle assembly |
1 |
(includes 1-4, 6-13, 15-17) |
| 15 |
192-8250 |
Screw M3-.9 x 13mm pan head tapping |
1 |
|
| 16 |
292-8588 |
Support assembly |
1 |
|
| 18 |
292-8581 |
36V 6Ah Li-ion battery |
1 |
|
|
|

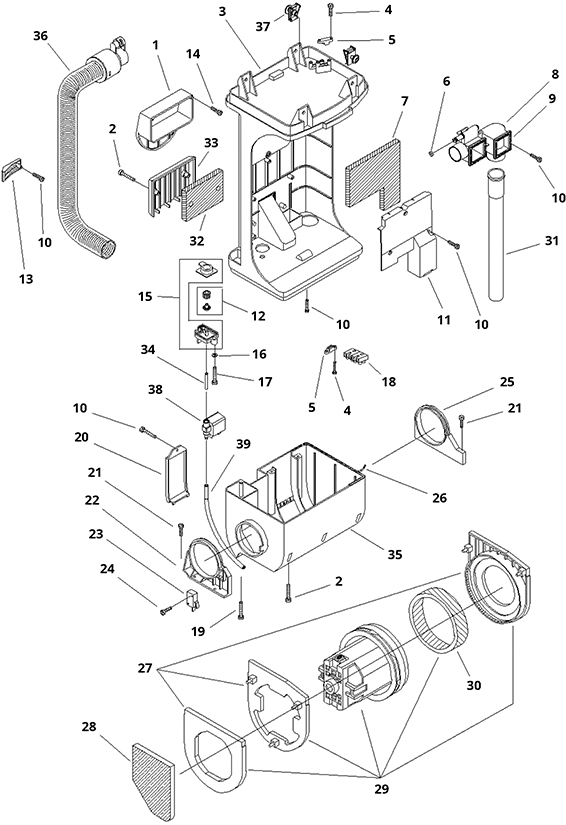

Vacuum Assembly - 192-9130 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
192-6284 |
Screw KA 35 x 25 |
7 |
|
| 3 |
192-9869 |
Upper housing |
1 |
|
| 4 |
999-0678 |
Screw 8-18 x 5/8 pan head self-drilling stainless steel |
4 |
|
| 9 |
192-9872 |
Gasket (pkg of 2) |
1 |
|
| 10 |
192-0548 |
Screw KA 35 x 10 |
9 |
|
| 12 |
192-9874 |
Water filter kit |
1 |
|
| 13 |
192-9875 |
Hose holder |
1 |
|
| 14 |
192-6286 |
Screw KA 40 x 18 |
3 |
|
| 15 |
192-9876 |
Water valve kit |
1 |
|
| 17 |
192-0767 |
Screw KA 40 x 10 |
2 |
|
| 18 |
292-8582 |
5 way connection block |
1 |
|
| 19 |
192-6281 |
Screw KA 40 x 35 |
1 |
|
| 21 |
192-0549 |
Screw KA 35 x 20 |
4 |
|
| 22 |
192-9878 |
Left motor support |
1 |
|
| 23 |
192-9879 |
Microswitch |
1 |
|
| 24 |
192-0452 |
Screw for plastic KA 30 x 16mm |
1 |
|
| 25 |
192-9880 |
Right motor support |
1 |
|
| 29 |
292-8590 |
36V vacuum motor |
1 |
|
| 30 |
192-9885 |
Vacuum motor filter |
1 |
|
| 31 |
192-9886 |
Tube with gasket |
1 |
|
| 32 |
192-9887 |
Exhaust filter |
1 |
|
| 33 |
192-9888 |
Filter housing |
1 |
|
| 34 |
192-6437 |
Silicone hose (sold by the inch) |
2 inches |
|
| 35 |
192-9889 |
Vacuum motor housing |
1 |
|
| 36 |
192-9940 |
Vacuum hose |
1 |
|
| 38 |
292-8580 |
36V magnetic valve |
1 |
|
| 39 |
192-0654 |
Silicone hose (sold by the inch) |
14 inches |
|
|
|

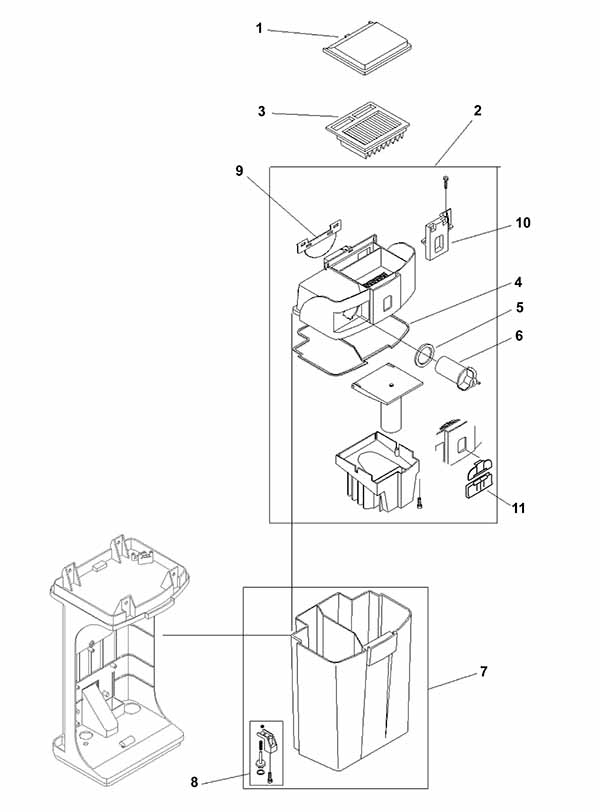

Pump and Tank Assembly - 192-9131 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
192-9894 |
Water filter cover |
1 |
|
| 2 |
192-9896 |
Filter housing assembly |
1 |
(includes 4-6, 9-11) |
| 3 |
192-9897 |
Water filter |
1 |
|
| 7 |
192-9901 |
Water tank |
1 |
(inlcudes 8) |
|
|

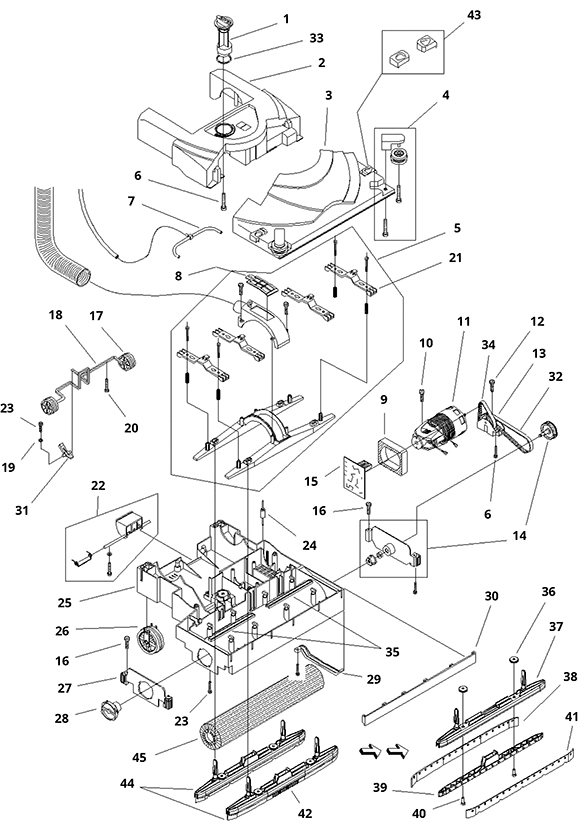

Power Head Assembly - 192-9132 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
192-9904 |
Adjusting knob |
1 |
|
| 2 |
192-9905 |
Brush housing |
1 |
|
| 3 |
192-9906 |
Brush housing cover |
1 |
|
| 4 |
192-9907 |
Guide wheel kit |
2 |
|
| 5 |
192-9908 |
Bracket kit |
1 |
(includes 8, 21) |
| 6 |
192-1595 |
Screw M40 x 16mm torx head |
2 |
|
| 8 |
192-9910 |
Suction cover |
1 |
|
| 10 |
192-6286 |
Screw KA 40 x 18 |
3 |
|
| 11 |
292-8591 |
36V 150W brush motor |
1 |
|
| 12 |
192-6285 |
Screw KA 40 x 16 |
2 |
|
| 13 |
192-9912 |
Belt support |
1 |
|
| 14 |
192-9913 |
Transmission support |
1 |
|
| 15 |
292-8592 |
Electronic board |
1 |
|
| 16 |
192-5442 |
Screw 3 1/2 x 13 pan head tapping |
4 |
|
| 20 |
192-1571 |
Screw M50 x 16mm |
3 |
|
| 23 |
192-0548 |
Screw KA 35 x 10 |
9 |
|
| 25 |
192-9920 |
Brush housing |
1 |
|
| 28 |
192-9923 |
Brush bearing |
1 |
|
| 30 |
192-9925 |
Front bumper |
1 |
|
| 31 |
192-9927 |
Base lifting lever |
1 |
|
| 32 |
192-9928 |
Belt (long) |
1 |
|
| 34 |
192-9932 |
Belt (short) |
1 |
|
| 35 |
192-9933 |
Water channels (pkg of 2) |
1 |
|
| 36 |
192-4682 |
Nut M5 knurled |
4 |
|
| 37 |
292-0057 |
Squeegee retainer |
2 |
|
| 38 |
292-0056 |
Squeegee blade rear un-notched (white) |
2 |
|
| 39 |
292-0058 |
Squeegee weldment |
2 |
|
| 40 |
192-4221 |
Screw M5 x 14mm hex head |
4 |
|
| 41 |
292-0059 |
Squeegee blade front notched (clear) |
2 |
|
| 42 |
292-8583 |
Squeegee assembly |
2 |
|
| 44 |
192-9926 |
Squeegee kit |
1 |
|
| 45a |
192-9929 |
13 inch brush assembly (black) - CYLINDRICAL |
1 |
|
| 45b |
192-9930 |
13 inch hard brush assembly (red) - CYLINDRICAL (OBSOLETE) |
1 |
|
| 45c |
292-5156 |
13 inch active fiber pad roll |
1 |
|
|
|

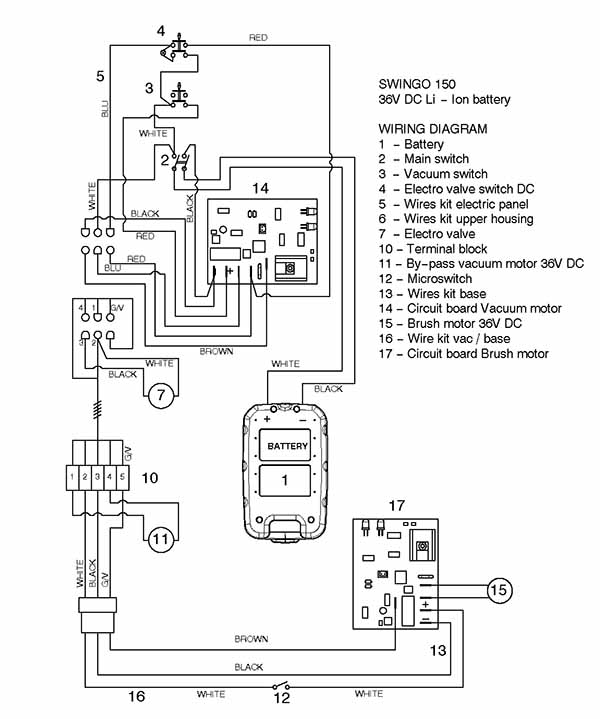

Wiring Assembly - 192-9133 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
292-8581 |
36V 6Ah Li-ion battery |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
