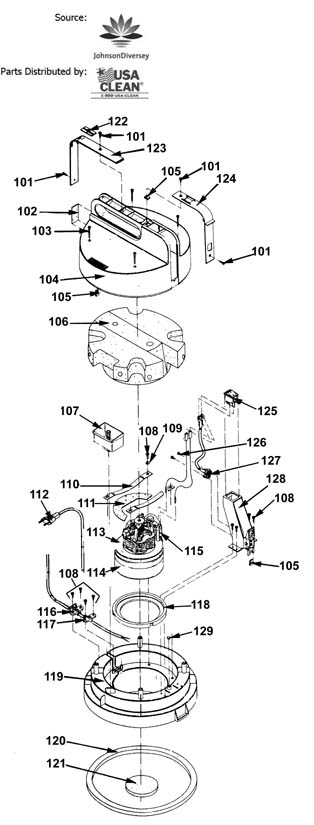

Top Part Assembly - 192-2018 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 101 |
192-2987 |
Screw 4.2 x 16 counter sunk self tapping (OBSOLETE) |
4 |
|
| 102 |
192-8446 |
Information label |
|
|
| 103 |
192-8443 |
Screw M4 x 30 cheese head |
4 |
|
| 104 |
N/A |
Not available |
|
(Cap) |
| 106 |
192-5244 |
Noise absorbing cap (OBSOLETE) |
1 |
|
| 107 |
192-6250 |
Safety valve (OBSOLETE) |
1 |
|
| 108 |
192-0547 |
Screw KA 40 x 14 |
12 |
|
| 110 |
192-5580 |
Spring plate (OBSOLETE) |
2 |
|
| 111 |
N/A |
Not available |
|
(Spacer) |
| 112 |
192-4921 |
120V 16/2 power cord (black) |
|
|
| 114 |
192-7288 |
Complete vacuum motor 115 volt (OBSOLETE) |
|
|
| 115 |
N/A |
Not available |
|
(Condenser) |
| 116 |
192-2547 |
Cable guide (OBSOLETE) |
1 |
|
| 117 |
192-6782 |
Strain relief (OBSOLETE) |
1 |
|
| 118 |
192-6328 |
Sealing ring (OBSOLETE) |
1 |
|
| 119 |
192-4603 |
Intermediate piece |
|
|
| 120 |
192-3165 |
Cover gasket (OBSOLETE) |
1 |
|
| 121 |
192-3668 |
Filter disc (pkg of 10) |
1 |
|
| 122 |
192-8444 |
Bora label |
1 |
|
| 123 |
N/A |
Not available |
1 |
(Covering strip) |
| 124 |
N/A |
Not available |
1 |
(Covering strip) |
| 125 |
N/A |
Not available |
1 |
(Rocker switch) |
| 126 |
192-5444 |
Screw 3 1/2 x 9 1/2 pan head self tapping |
2 |
|
| 127 |
192-7529 |
Wired power outlet (OBSOLETE) |
|
|
| 129 |
192-6770 |
Protection plug (OBSOLETE) |
1 |
|
| N/S |
192-4581 |
Insulating tube 4 (OBSOLETE) |
|
|
| N/S |
192-8445 |
Double female plate clip |
|
|
| N/S |
192-2466 |
Cable 1 mm (black) (OBSOLETE) |
|
|
| N/S |
192-4583 |
Insulating tube 8 |
|
|
| N/S |
192-3588 |
Female plate clip 6 (OBSOLETE) |
|
|
| N/S |
192-3370 |
Double female plate clip |
|
|
| N/S |
192-4616 |
Female isolation plate clip (OBSOLETE) |
|
|
| N/S |
192-3587 |
Female plate clip 4 (OBSOLETE) |
|
|
|
|

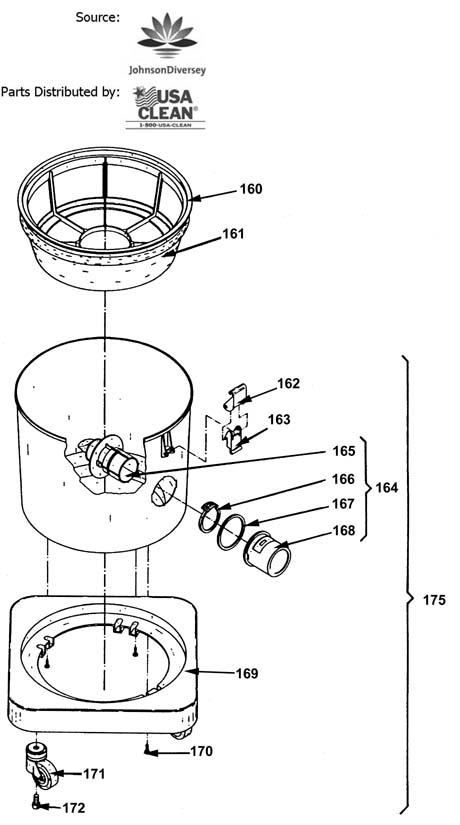

Tank Assembly - 192-2019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 160 |
192-3416 |
Dust bag basket (OBSOLETE) |
1 |
|
| 161 |
N/A |
Not available |
1 |
(Dust bag) |
| 162 |
N/A |
Not available |
2 |
Hook |
| 163 |
N/A |
Not available |
2 |
(Lever) |
| 164 |
192-7028 |
Tank with connection adapter (OBSOLETE) |
1 |
|
| 165 |
192-2894 |
Connection adapter (OBSOLETE) |
1 |
|
| 168 |
192-2408 |
Bushing (OBSOLETE) |
1 |
|
| 170 |
N/A |
Not available |
3 |
Screw |
| 172 |
192-6492 |
Screw M8 x 16 socket head cap |
4 |
|
| 175 |
192-7018 |
Tank assembly (OBSOLETE) |
1 |
|
|
|
Accessories - 192-8930 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
192-9483 |
10 inch universal floor tool |
1 |
|
| 2 |
N/A |
Not available |
1 |
(for floor tool) (10 inch metal bottom plate) |
| 3 |
192-3779 |
Felt strips (red) (pkg of 10) |
1 |
(2 strips per tool) |
| 4 |
292-0367 |
12 inch universal floor tool with 32mm neck (orange) |
1 |
|
| 5 |
N/A |
Not available |
1 |
(12 inch metal bottom plate) (for floor tool) |
| 6 |
192-3779 |
Felt strips (red) (pkg of 10) |
1 |
(2 strips per tool) |
| 7 |
192-9942 |
3 piece wand kit |
1 |
|
| 8 |
192-8465 |
1 1/2 inch suction hose with cuff |
1 |
|
|
|
