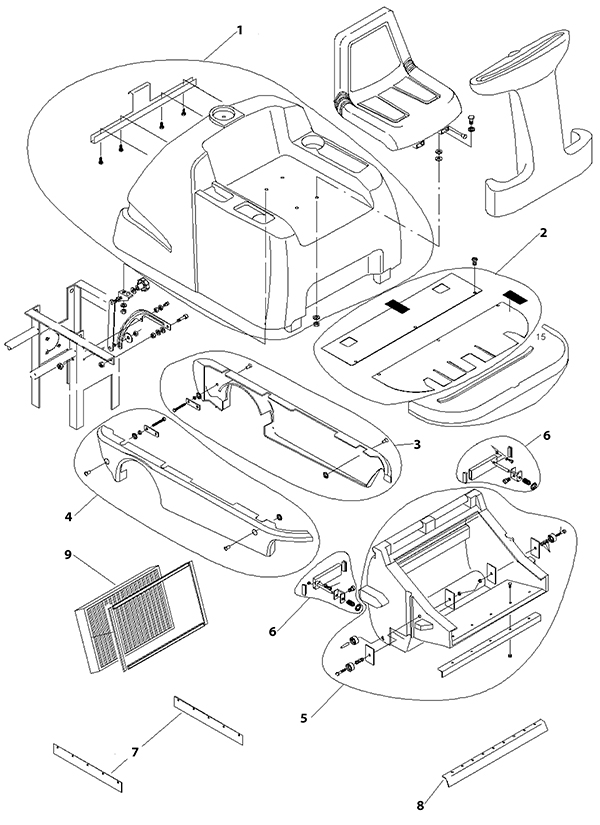

Cover Assembly - 192-0607 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
392-0029 |
Complete hood |
1 |
|
| 2 |
392-0030 |
Foot plate set |
1 |
|
| 3 |
392-0031 |
Cover set |
1 |
(left hand) |
| 4 |
392-0032 |
Cover set |
1 |
(right hand) |
| 5 |
392-0033 |
Complete dirt box |
1 |
|
| 6 |
392-0034 |
Locking lever set |
1 |
|
| 7 |
192-4005 |
Gasket roller cover |
2 |
|
| 8 |
192-4016 |
Gasket : recirculating flap |
1 |
|
| 9 |
192-3425 |
Dust filter washable polyester |
1 |
|
|
|

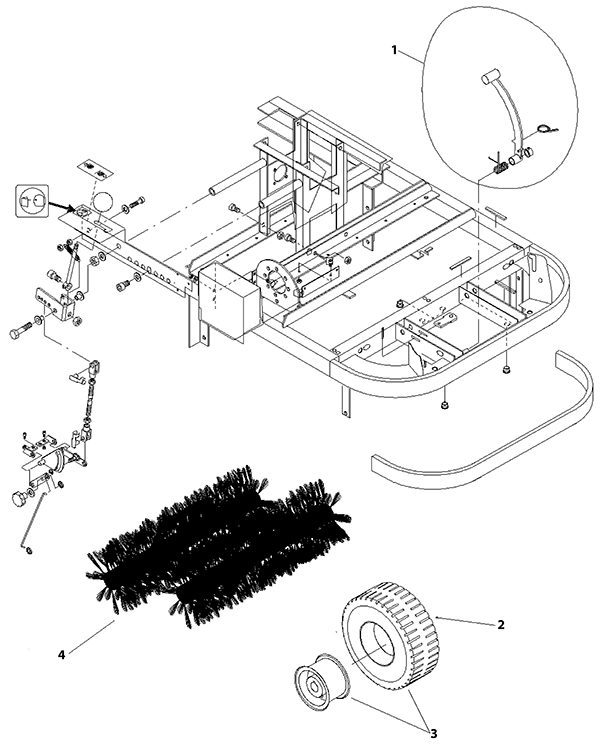

Frame Assembly - 192-0608 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
392-0035 |
Complete lever |
1 |
|
| 2a |
192-5621 |
Pneumatic tires |
2 |
|
| 2b |
192-3879 |
Full rubber tires |
2 |
|
| 2c |
192-3878 |
Full rubber tires non marking |
2 |
|
| 3 |
292-8044 |
Drive wheel 250/80 (grey foam) |
2 |
(optional) |
| 4a |
292-8048 |
Center broom b6500 |
2 |
|
| 4b |
292-8045 |
Main broom PPN wired |
2 |
(optional) |
| 4c |
292-8093 |
Main broom PPN nature (OBSOLETE) |
2 |
(optional) |
| 4d |
292-8046 |
Main broom double rows |
2 |
(optional) |
| 4e |
292-8047 |
Main broom PA |
2 |
(optional) |
| 4f |
292-8049 |
2nd side broom |
1 |
(optional) (2nd side broom) |
|
|

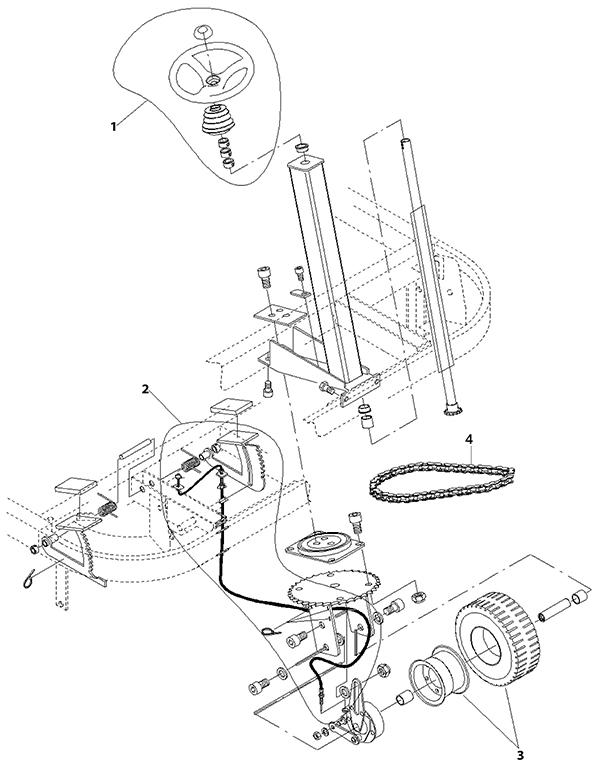

Guidance Assembly - 192-0609 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
392-0036 |
Steering wheel set |
1 |
|
| 2 |
392-0037 |
Bowden cable |
1 |
|
| 3 |
292-8050 |
Front wheel 250/80 (grey) |
1 |
|
| 4 |
392-0100 |
Roller chain |
1 |
|
|
|

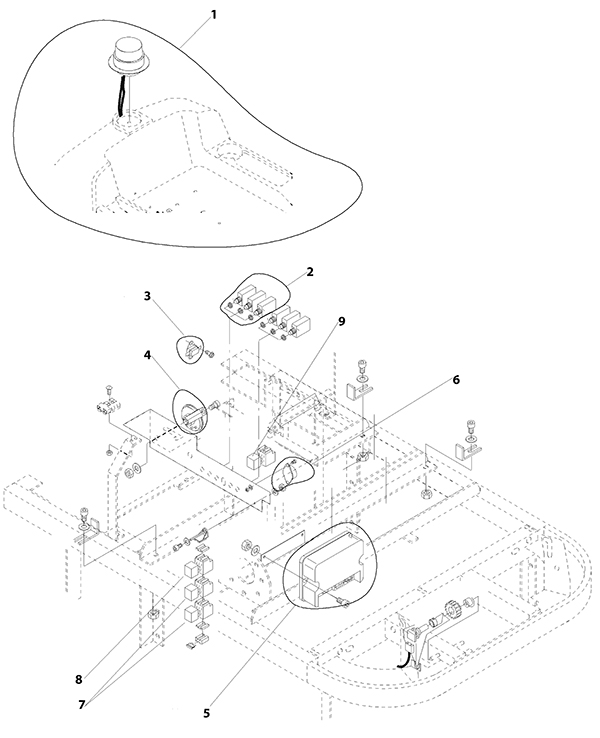

Electrical Parts Assembly - 192-0610 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
392-0039 |
25amp overload switch |
3 |
|
| 3 |
392-0040 |
Thermo switch |
1 |
|
| 5 |
392-0042 |
Complete electronics |
1 |
|
| 9 |
292-8052 |
9-30V 60W relay |
1 |
|
|
|

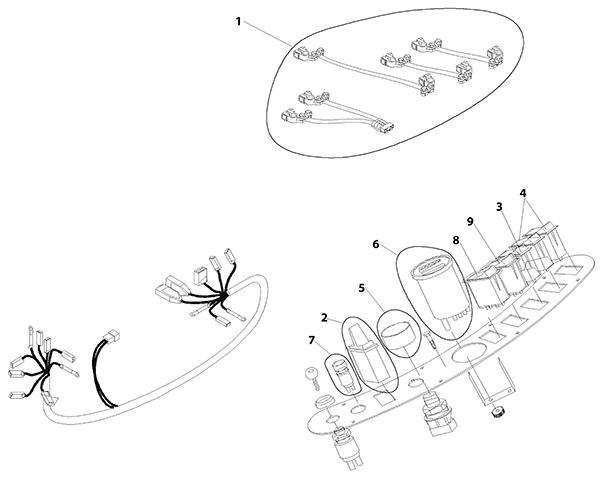

Operating Elements Assembly - 192-0611 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
392-0044 |
Complete main cord |
1 |
|
| 2 |
392-0045 |
Rocker handle switch |
1 |
|
| 3 |
392-0046 |
Rocker handle switch |
1 |
|
| 4 |
392-0047 |
Rocker handle switch |
1 |
|
| 5 |
392-0048 |
Complete stop actuator |
1 |
|
| 6 |
392-0049 |
Battery indicator |
1 |
|
| 8 |
392-0051 |
Pressure switch |
1 |
|
| 9 |
392-0052 |
Rocking switch |
1 |
|
|
|

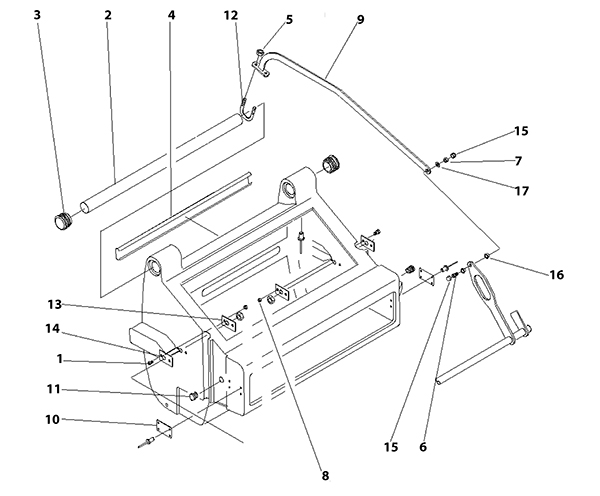

High Dump Assembly-2 - 192-0612 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
192-2983 |
Screw M6 x 30 head cap counters |
4 |
|
| 4 |
292-8085 |
Protecting profile |
1 |
|
| 5 |
192-6339 |
Nut M10 self locking |
2 |
|
| 6 |
192-0278 |
Screw M8 x 25mm socket head |
1 |
|
| 7 |
192-0510 |
Nut M8 self locking |
1 |
|
| 16 |
292-8092 |
Slide bearing |
2 |
|
|
|

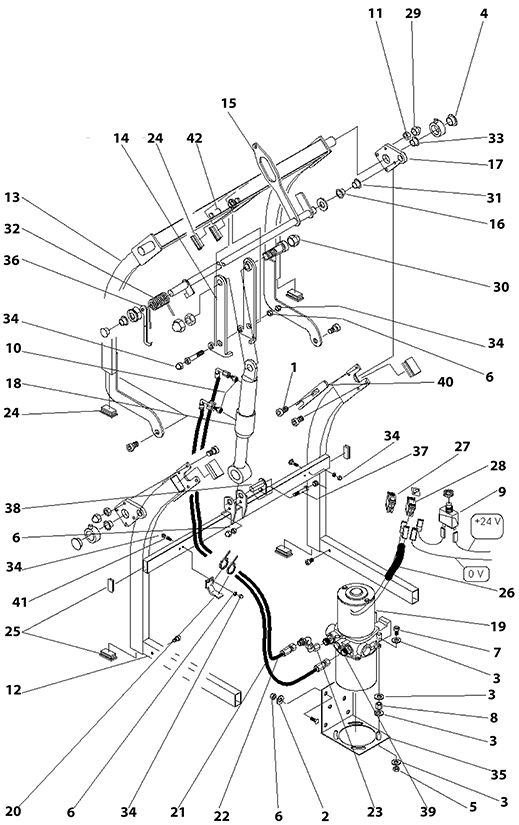

High Dump Assembly-1 - 192-1648 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
192-0835 |
Screw M8 x 35mm hex head |
4 |
|
| 5 |
192-0235 |
Nut M4 self locking |
4 |
|
| 6 |
192-0563 |
Nut M6 self-locking |
10 |
|
| 7 |
192-1105 |
Screw M4 x 20mm socket head |
4 |
|
| 9 |
292-8054 |
20A overload switch |
1 |
|
| 10 |
292-8055 |
3/8 inch connector |
2 |
|
| 11 |
192-0510 |
Nut M8 self locking |
8 |
|
| 16 |
292-8060 |
Slide bearing |
2 |
|
| 18 |
292-8062 |
Hydraulic cylinder |
1 |
|
| 19 |
292-8063 |
Hydraulic unit |
1 |
|
| 21 |
292-8065 |
Pressure hose |
1 |
|
| 22 |
292-8066 |
Pressure hose |
1 |
|
| 24 |
292-8068 |
Protection cap |
4 |
|
| 25 |
292-8069 |
Protection cap |
6 |
|
| 27 |
292-8071 |
Rocking switch |
1 |
|
| 28 |
392-0052 |
Rocking switch |
1 |
|
| 30 |
292-8075 |
Protection cap |
2 |
|
| 32 |
292-8073 |
Torsion spring |
1 |
|
| 33 |
292-8074 |
Bearing 3032 |
2 |
|
| 34 |
192-5731 |
Protecting cap 6 |
10 |
|
| 35 |
292-8076 |
Angle bracket |
1 |
|
| 37 |
192-7559 |
Screw M6 x 45/24 socket head |
1 |
|
| 39 |
292-8078 |
Connection nipple |
2 |
|
| 41 |
192-5935 |
Screw M6 x 40 raised cheese head |
2 |
|
| 42 |
292-8081 |
Slide bearing |
2 |
|
|
|
- Batteries, Brushes and Chargers - 192-1650 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0043 |
6V 224Ah AGM battery (Group GC2) |
4 |
|
|
292-8049 |
2nd side broom |
1 |
|
|
292-8048 |
Center broom b6500 |
2 |
|
|
292-8049 |
2nd side broom |
2 |
(optional second side broom) |
|
292-8045 |
Main broom PPN wired |
2 |
|
|
292-8093 |
Main broom PPN nature (OBSOLETE) |
2 |
|
|
292-8046 |
Main broom double rows |
2 |
|
|
|

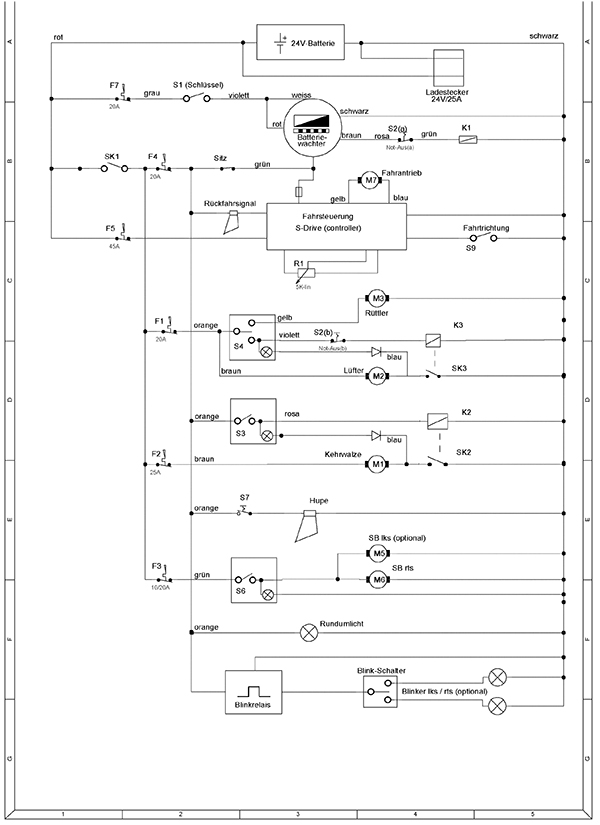

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
