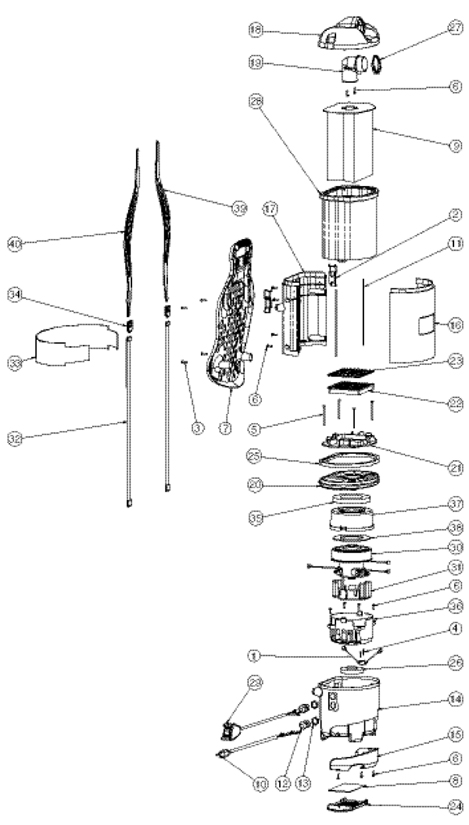

Entire Assembly - 190-4800 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
190-1502 |
Thermal protection switch |
1 |
(Thermal protection switch) |
| 2 |
190-0610 |
Lid latch |
1 |
(Latch) |
| 3 |
N/A |
Not available |
4 |
(Screw) |
| 4 |
N/A |
Not available |
2 |
(Screw) |
| 5 |
190-0505 |
Upper cord hook screw |
4 |
|
| 7 |
190-0686 |
Backplate (no straps) |
1 |
|
| 8 |
190-0462 |
Exhaust filter |
1 |
|
| 9 |
190-0450 |
Cloth bag |
1 |
(Paper bags) |
| 10 |
189-7558 |
Power harness |
1 |
|
| 12 |
189-7612 |
Strain relief |
2 |
|
| 13 |
N/A |
Not available |
2 |
(Nut) |
| 14 |
190-1497 |
Motor compartment |
1 |
|
| 15 |
N/A |
Not available |
1 |
(Bumper) |
| 16 |
N/A |
Not available |
1 |
(Front plate) |
| 17 |
N/A |
Not available |
1 |
(Back plate) |
| 18 |
190-1495 |
Cover |
1 |
(Cover) |
| 20 |
190-0465 |
Motor cover |
1 |
|
| 21 |
N/A |
Not available |
1 |
(Secondary filter plate) |
| 22 |
190-0461 |
HEPA filter |
1 |
|
| 23 |
190-0460 |
Filter frame cap |
1 |
|
| 24 |
190-0463 |
Bottom filter frame |
1 |
|
| 26 |
190-1498 |
Bottom motor mount |
1 |
|
| 28 |
190-0461 |
HEPA filter |
1 |
|
| 29 |
189-7559 |
Switch harness |
1 |
|
| 30 |
190-0459 |
Vacuum motor |
1 |
|
| 31 |
190-1500 |
Motor shroud |
1 |
|
| 32 |
N/A |
Not available |
2 |
(Shoulder harness strap) |
| 33 |
N/A |
Not available |
1 |
(Waist belt) |
| 34 |
N/A |
Not available |
2 |
(Shoulder strap buckle) |
| 35 |
190-0466 |
Motor mount kit |
1 |
|
| 36 |
190-1501 |
Motor shroud |
1 |
|
| 37 |
190-0467 |
Top motor shroud |
1 |
|
| 38 |
190-0468 |
Bottom motor mount |
1 |
|
| 39 |
N/A |
Not available |
1 |
(Right hand shoulder harness) |
| 40 |
N/A |
Not available |
1 |
(Left hand shoulder harness) |
|
|
- Commonly Asked For Parts - 190-9964 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
190-0456 |
Hose assembly |
|
|
| 04 |
182-2105 |
Carpet nozzle |
|
|
| 06 |
182-8166 |
Left shoulder strap |
|
|
| 07 |
182-8164 |
Right shoulder strap |
|
|
| 08 |
190-0491 |
50 ft power cord |
|
|
|
|
|
